Hammond 1486E24 8x8x24-Inch Type 4/12 Hinged Wiring Trough
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 8 x 8 x 24 in (203 x 203 x 610 mm) wiring trough
- IEC 60529 IP66; NEMA Type 12, 4 compliant
- UL 870 and CSA Type 1, 12, 4 listed
- Hinged cover with stainless steel screw clamps
- Permanently secured oil resistant gaskets
- 14 gauge steel with ANSI 61 gray powder coat
- Holes on 22.75 x 8.69 in centers

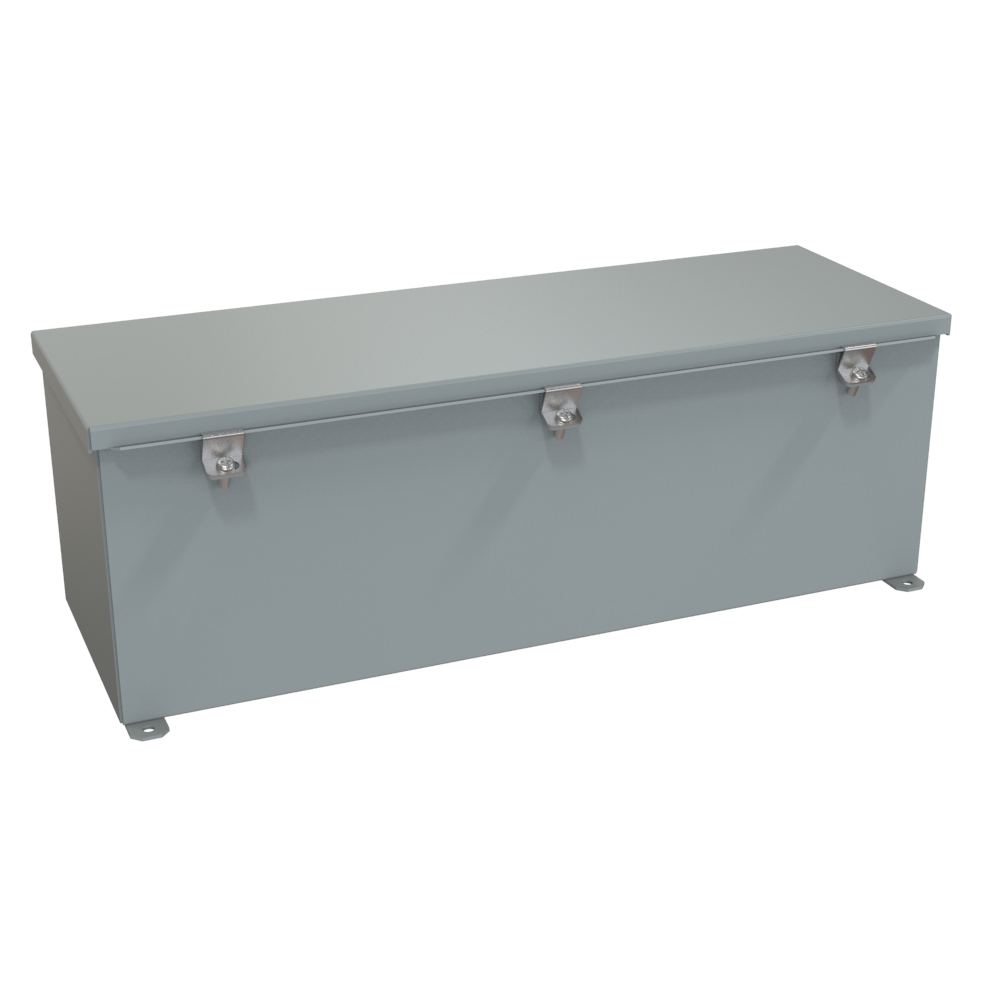

With an 8.00 in (203 mm) square profile and a 24.00 in (610 mm) length, the 1486E24 is a two-foot Type 4/12 wiring trough for enclosing and protecting multiple wiring junctions from dirt, dust, oil and water. It measures 8 in x 8 in x 24 in (203 mm x 203 mm x 610 mm) overall.
The 1486 Series construction uses formed 14 gauge steel with smooth continuously welded seams. A butt hinged cover is held with easily operated stainless steel screw clamps, and oil resistant gaskets are permanently secured. Trough and cover are ANSI 61 gray powder coated.
According to the drawing, the top opening is 22.73 in and the side opening is 7.25 in. The door is listed at 24.38 in long and 7.25 in, with 22.73 in x 6.73 in of clear space available on the door. The back view shows 0.31 in mounting holes spaced 22.75 in lengthwise and 8.69 in across.
The welded 12 gauge external mounting feet make for a 9.50 in overall width at the feet. The 1486E24 has a shipping weight of 26 lbs (11.79 kg).
It carries UL 870 Type 1, 12, 4 (UL File E186830) and CSA Type 1, 12, 4 (Cert. LL21312) listings, complies with NEMA Type 12, 4 and IEC 60529 IP66, and is RoHS and REACH compliant.
Ideal For
- Enclosing multiple wiring junctions
- Machine building
- General plant wiring
- Oily, dusty or wet areas needing Type 4/12 protection
Mounting
| Mounting Method | 12 gauge external mounting feet welded to the back |
| Mounting Hole Diameter | 0.31 in (typ.) |
| Mounting Hole Spacing, Across | 8.69 in |
| Mounting Hole Spacing, Lengthwise | 22.75 in |
Overview
| Series | 1486 Series, Type 4/12 Wiring Trough |
| Application | Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water |
| Description | TYPE 4/12 WRG TROUGH - 8X8X24 |
| Part Number | 1486E24 |
Dimensions
| Door Width | 7.25 in |
| Door Length | 24.38 in |
| Side Opening | 7.25 in |
| Top Opening Length | 22.73 in |
| Enclosure Depth (D) | 8.00 in (203 mm) |
| Enclosure Height (H) | 8.00 in (203 mm) |
| Enclosure Length (L) | 24.00 in (610 mm) |
| Nominal Size (H X W X D) | 8 in x 8 in x 24 in (203 mm x 203 mm x 610 mm) |
| Clear Space Available On Door | 22.73 in x 6.73 in |
| Side Profile Dimension (Drawing) | 8.17 in |
| Overall Width Across Mounting Feet (Drawing) | 9.50 in |
Identifiers
| UPC | 623980103655 |
| UNSPSC | 39131710 |
Packaging & Shipping
| Shipping Weight | 26 lbs (11.79 kg) |
Construction & Finish
| Cover | Butt hinged cover secured with easily operated stainless steel screw clamps |
| Seams | Smooth continuously welded seams |
| Finish | ANSI 61 gray powder coating (troughs and covers) |
| Gaskets | Oil resistant gaskets, permanently secured |
| Material | Formed 14 gauge steel |
Compliance & Certifications
| UL File # | E186830 |
| CSA Rating | CSA Type 1, 12, 4 |
| IEC Rating | Complies with IEC 60529, IP66 |
| CSA Cert. # | LL21312 |
| NEMA Rating | Complies with NEMA Type 12, 4 |
| UL Standard | UL 870 Type 1, 12, 4 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1486E24?▾
8 in x 8 in x 24 in (203 mm x 203 mm x 610 mm).
What is the clear space on the door?▾
22.73 in x 6.73 in, on a door listed at 24.38 in long.
How is the 1486E24 mounted?▾
Using 12 gauge external mounting feet welded to the back, with 0.31 in holes on 22.75 in by 8.69 in spacing.
What ratings apply?▾
UL 870 Type 1, 12, 4; CSA Type 1, 12, 4; compliance with NEMA Type 12, 4 and IEC 60529 IP66.
What is the shipping weight?▾
26 lbs (11.79 kg).
