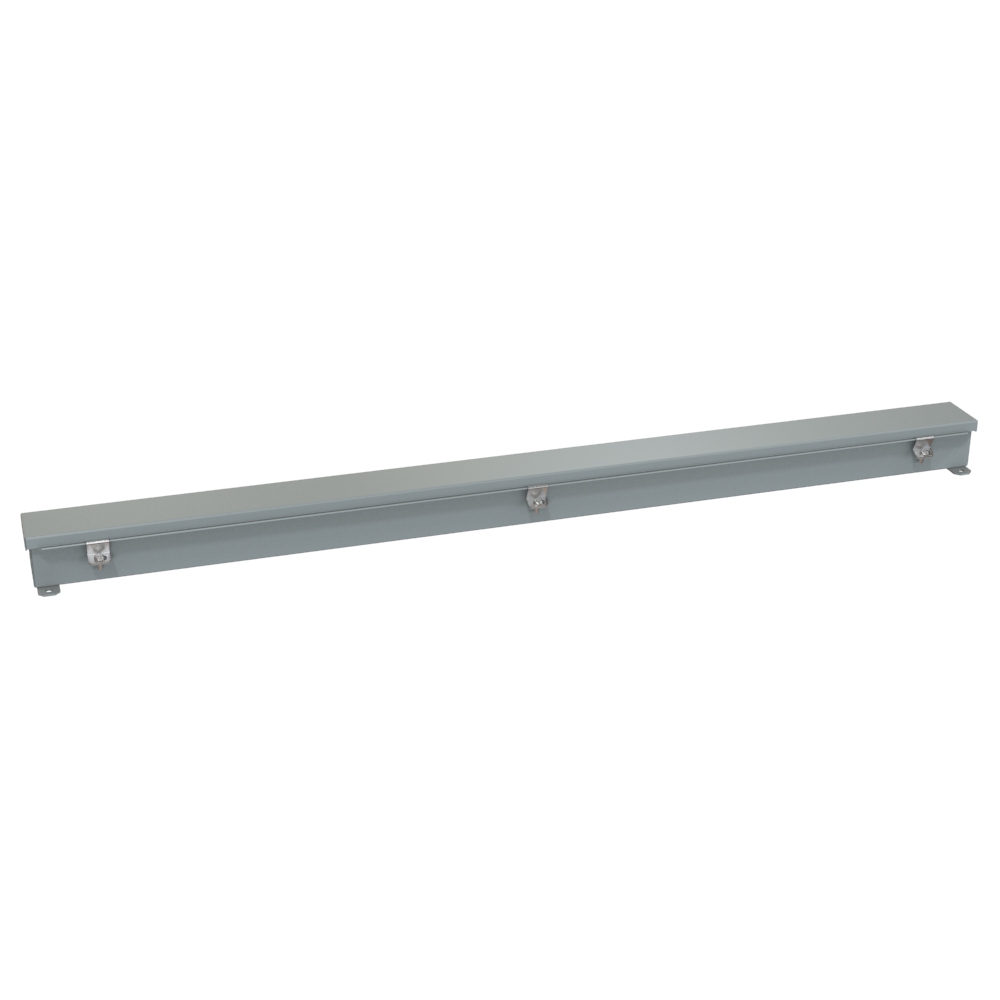

Hammond 1486B48 2.5 x 2.5 x 48 in Type 4/12 Wiring Trough

The 1486B48 is a 48 in (1219 mm) wiring trough in the 1486 Series with a 2.50 in x 2.50 in section. Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water, this four-foot length suits longer runs of small conductor bundles along production lines and machine frames.

The trough is formed 14 gauge steel with smooth continuously welded seams. Its butt hinged cover is secured with easily operated stainless steel screw clamps and seals on permanently secured oil resistant gaskets. 12 gauge external mounting feet are welded to the back. Both trough and cover are finished in ANSI 61 gray powder coating.

• H x D x L: 2.50 in (64 mm) x 2.50 in (64 mm) x 48.00 in (1219 mm)
• Opening (drawing): 47.21 in x 1.71 in
• Door (drawing): 48.38 in x 2.88 in
• Mounting holes: 0.31 in diameter

The series is rated UL 870 Type 1, 12, 4 and CSA Type 1, 12, 4, and complies with NEMA Type 12, 4 and IEC 60529 IP66. The 1486B48 is listed under UL File E186830 and CSA Cert. LL21312, is RoHS and REACH compliant, and ships in a box at 13 lbs (5.90 kg).
