N4SS 2DR Freest 60X48X18
$8,390.80Backorder
Buy now
Type 4X Stainless Steel Two Door Freestanding Enclosure · HN4 FSTD SS Series
Brand: Hammond Manufacturing · 23 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
- ■Formed 12 gauge 304 stainless steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- ■Doors are supported with heavy gauge continuous hinges.
from $683.01
23 of 23 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HN4 FSTD SS Series part number
Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
17 of 17 part numbers · 17 priced online
N4SS 2DR Freest 72X48X18
$9,221.93Backorder
Buy now
N4SS 2DR Freest 72X48X24 Dual
$11,332.53Backorder
Buy now
N4SS 2DR Freest 72X48X24
$10,009.51Backorder
Buy now
N4SS 2DR Freest 72X60X18
$10,394.96In stock
Buy now
N4SS 2DR Freest 72X60X24 Dual
$12,762.00Backorder
Buy now
N4SS 2DR Freest 72X60X24
$11,227.70Backorder
Buy now
N4SS 2DR Freest 72X60X36 Dual
$14,668.85Backorder
Buy now
N4SS 2DR Freest 72X60X36
$12,943.17In stock
Buy now
N4SS 2DR Freest 72X72X18
$11,544.35Backorder
Buy now
N4SS 2DR Freest 72X72X24 Dual
$14,146.85Backorder
Buy now
N4SS 2DR Freest 72X72X24
$12,482.45Backorder
Buy now
N4SS 2DR Freest 90X48X20
$10,803.00Backorder
Buy now
N4SS 2DR Freest 90X72X20
$13,632.37Backorder
Buy now
N4SS 2DR Freest 90X72X24 Dual
$16,241.32Backorder
Buy now
N4SS 2DR Freest 90X72X24
$14,328.56Backorder
Buy now
N4SS 2DR Freest 90X72X36
$16,399.91Backorder
Buy nowDimension tables (inches / mm)
Single Access
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ (Part No.) | Price | Order |
|---|---|---|---|---|---|---|

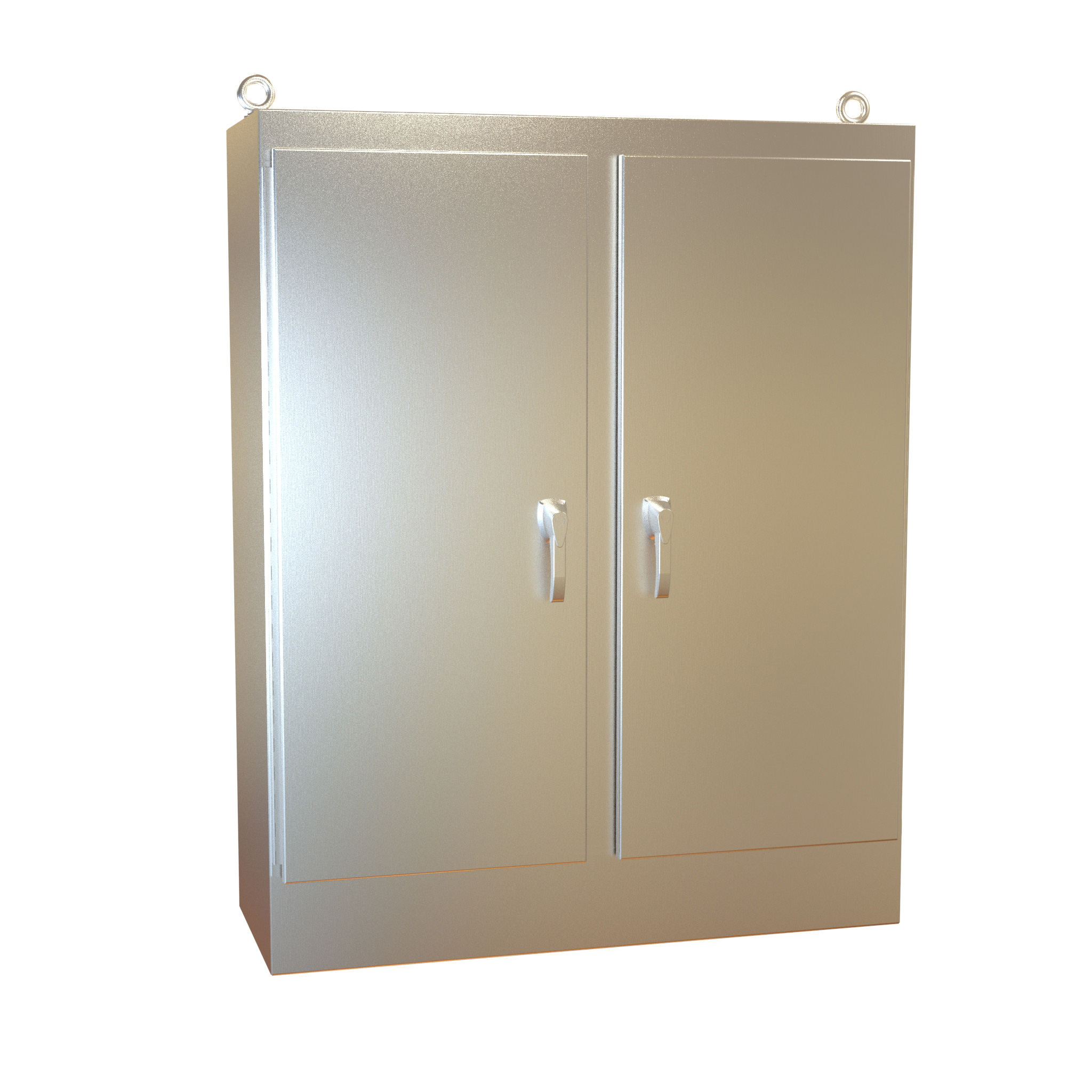

| HN4FS604818SS | 60.00 | 48.00 | 18.00 | 60AWFW | $8,390.80BackorderHN4FS604818SS | Buy now |
| HN4FS724818SS | 72.00 | 48.00 | 18.00 | 72ZWFW | $9,221.93BackorderHN4FS724818SS | Buy now |
| HN4FS726018SS | 72.00 | 60.00 | 18.00 | 72ZXFW | $10,394.96In stockHN4FS726018SS | Buy now |

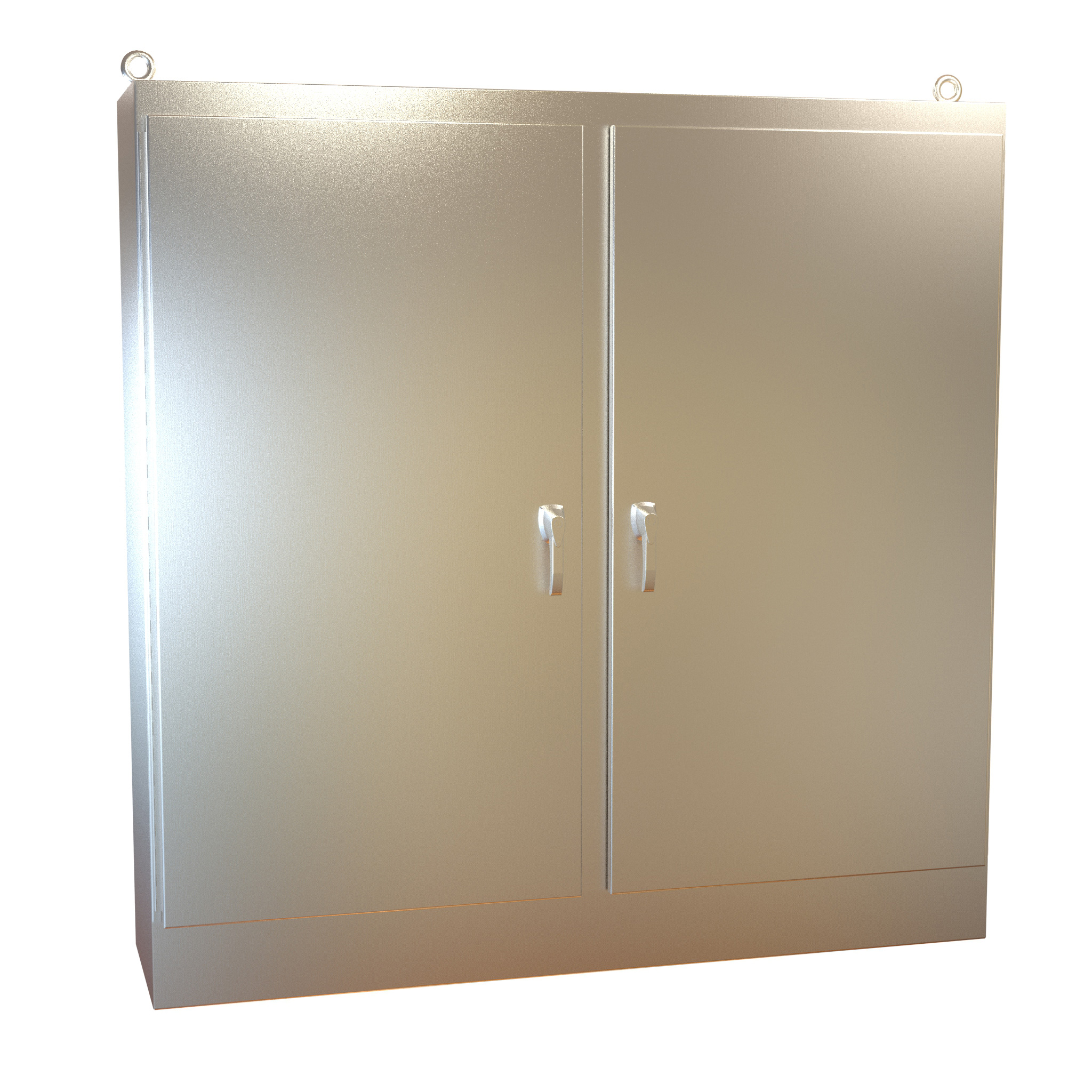

| HN4FS727218SS | 72.00 | 72.00 | 18.00 | 72ZYFW | $11,544.35BackorderHN4FS727218SS | Buy now |
| HN4FS904820SS | 90.00 | 48.00 | 20.00 | 90BWFW | $10,803.00BackorderHN4FS904820SS | Buy now |
| HN4FS907220SS | 90.00 | 72.00 | 20.00 | 90BYFW | $13,632.37BackorderHN4FS907220SS | Buy now |
| HN4FS724824SS | 72.00 | 48.00 | 24.00 | 72ZWFW | $10,009.51BackorderHN4FS724824SS | Buy now |
| HN4FS726024SS | 72.00 | 60.00 | 24.00 | 72ZXFW | $11,227.70BackorderHN4FS726024SS | Buy now |
| HN4FS727224SS | 72.00 | 72.00 | 24.00 | 72ZYFW | $12,482.45BackorderHN4FS727224SS | Buy now |
| HN4FS907224SS | 90.00 | 72.00 | 24.00 | 90BYFW | $14,328.56BackorderHN4FS907224SS | Buy now |

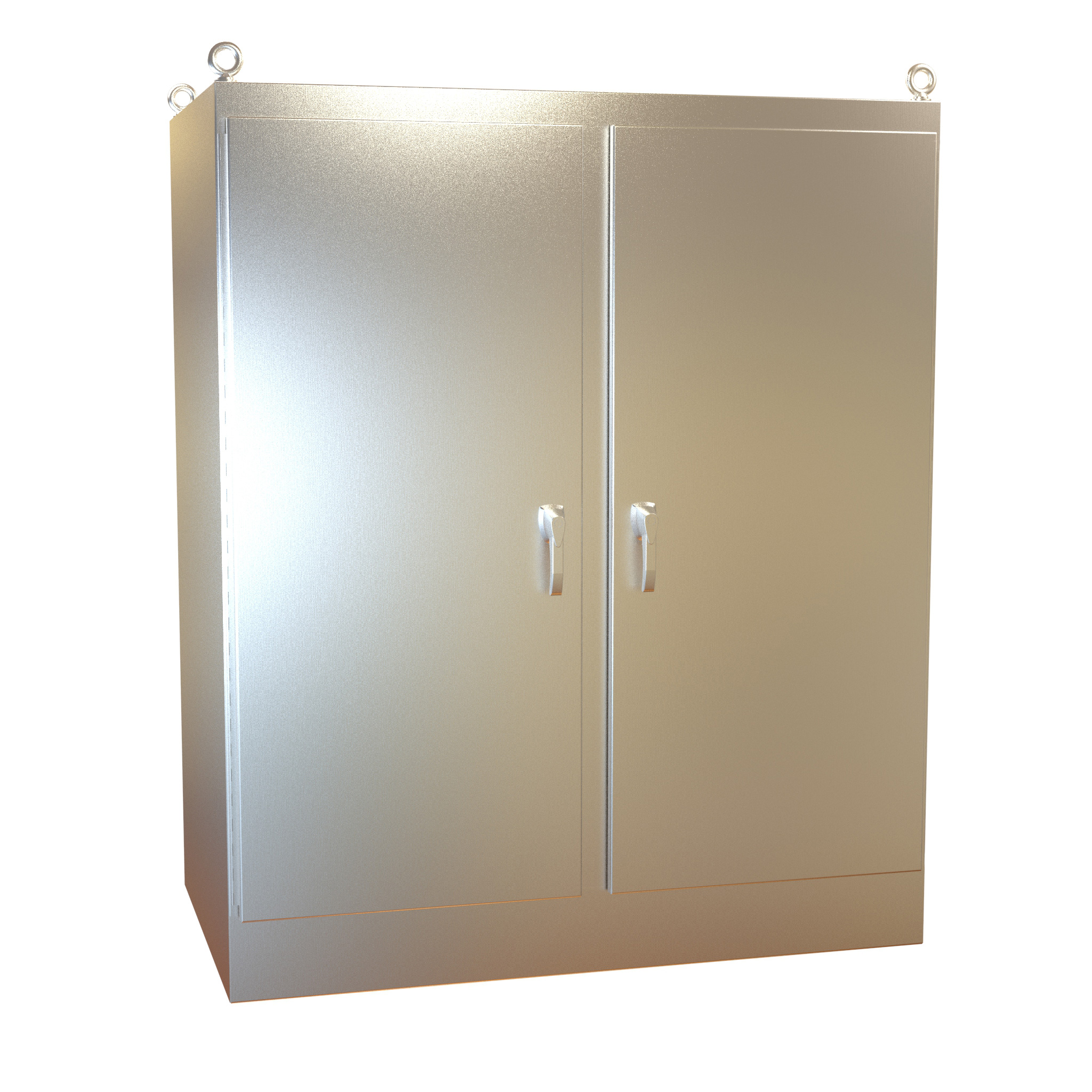

| HN4FS726036SS | 72.00 | 60.00 | 36.00 | 72ZXFW | $12,943.17In stockHN4FS726036SS | Buy now |
| HN4FS907236SS | 90.00 | 72.00 | 36.00 | 90BYFW | $16,399.91BackorderHN4FS907236SS | Buy now |
Dual Access
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ (Part No.) | Price | Order |
|---|---|---|---|---|---|---|
| HN4FS724824DASS | 72.00 | 48.00 | 24.00 | 72ZWFW | $11,332.53BackorderHN4FS724824DASS | Buy now |
| HN4FS726024DASS | 72.00 | 60.00 | 24.00 | 72ZXFW | $12,762.00BackorderHN4FS726024DASS | Buy now |

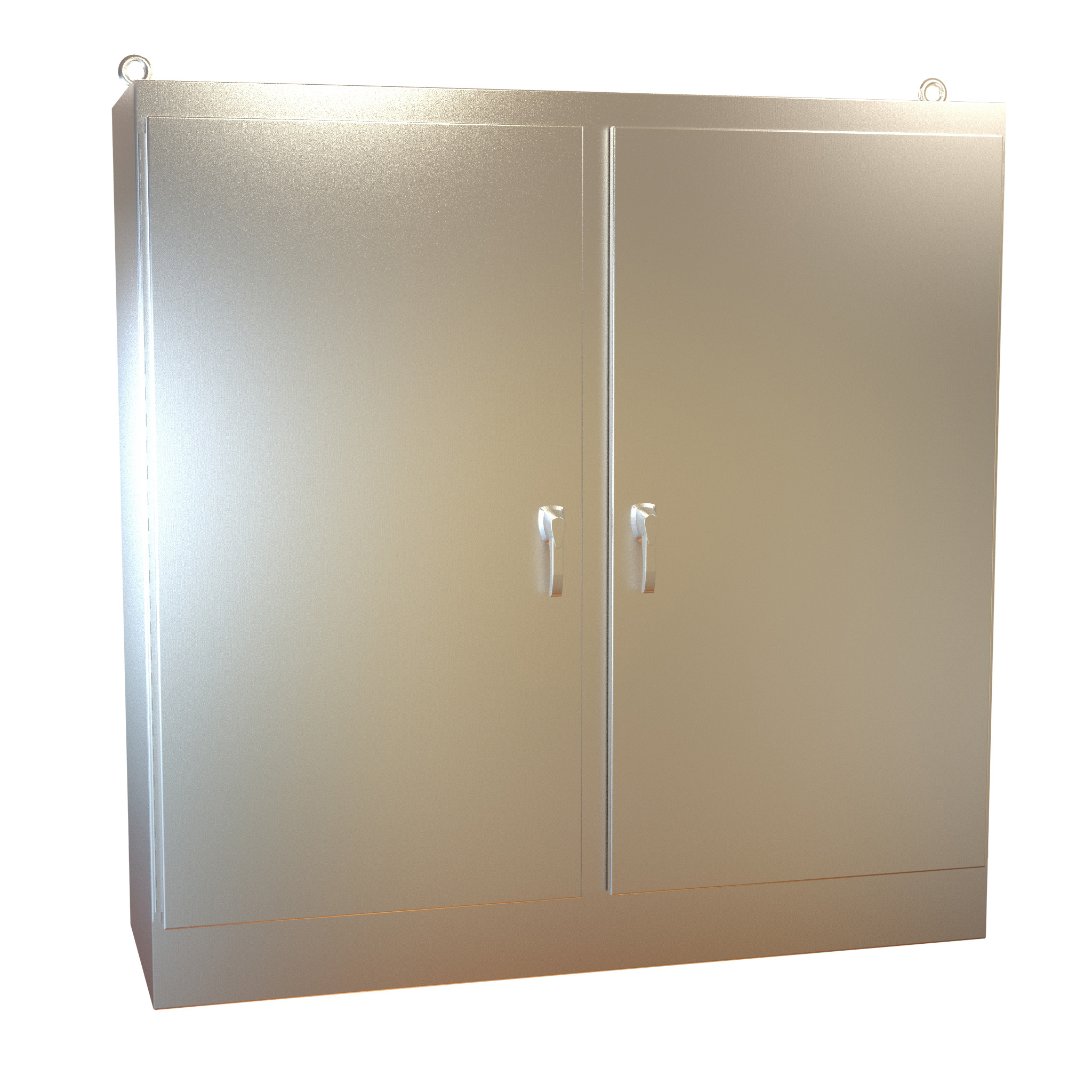

| HN4FS727224DASS | 72.00 | 72.00 | 24.00 | 72ZYFW | $14,146.85BackorderHN4FS727224DASS | Buy now |

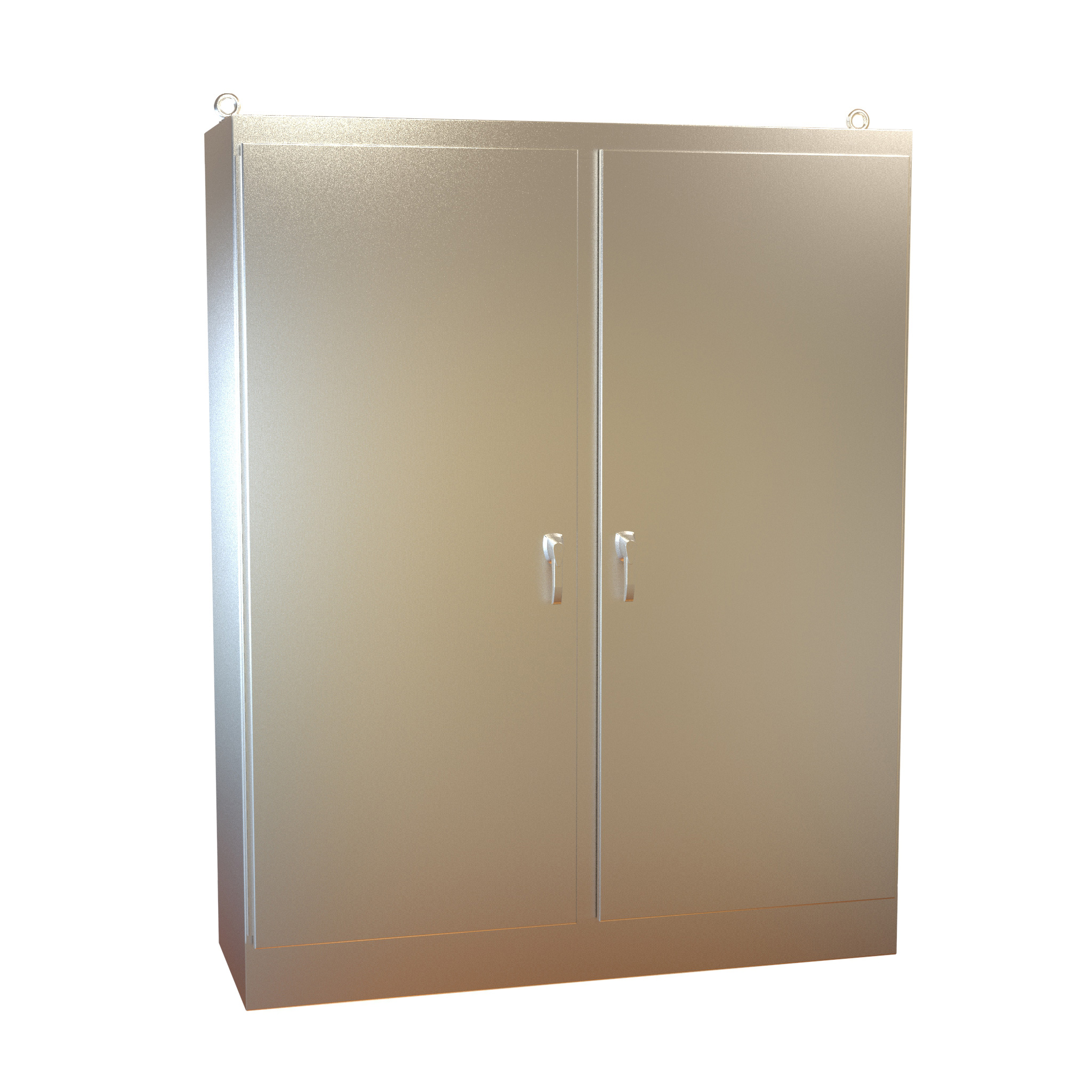

| HN4FS907224DASS | 90.00 | 72.00 | 24.00 | 90BYFW | $16,241.32BackorderHN4FS907224DASS | Buy now |
| HN4FS726036DASS | 72.00 | 60.00 | 36.00 | 72ZXFW | $14,668.85BackorderHN4FS726036DASS | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Construction
- ■Formed 12 gauge 304 stainless steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- ■Doors are supported with heavy gauge continuous hinges.
- ■Dual Access versions have doors front and back.
- ■3-pt padlocking door handle.
- ■Seamless poured-in place gasket.
- ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- ■Center post is removable for easy installation of the inner panel.
Standards
- ■UL 508A Type 3R, 4X and 12
- ■CSA Type 3R, 4X and 12
- ■Complies with: NEMA Type 3R, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4X, 12 and 13
- ■IEC 60529, IP66
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
Documents
Additional information
Single Access
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ |
|---|---|---|---|---|
| HN4FS604818SS | 60.00 | 48.00 | 18.00 | 60AWFW |
| HN4FS724818SS | 72.00 | 48.00 | 18.00 | 72ZWFW |
| HN4FS726018SS | 72.00 | 60.00 | 18.00 | 72ZXFW |
| HN4FS727218SS | 72.00 | 72.00 | 18.00 | 72ZYFW |
| HN4FS904820SS | 90.00 | 48.00 | 20.00 | 90BWFW |
| HN4FS907220SS | 90.00 | 72.00 | 20.00 | 90BYFW |
| HN4FS724824SS | 72.00 | 48.00 | 24.00 | 72ZWFW |
| HN4FS726024SS | 72.00 | 60.00 | 24.00 | 72ZXFW |
| HN4FS727224SS | 72.00 | 72.00 | 24.00 | 72ZYFW |
| HN4FS907224SS | 90.00 | 72.00 | 24.00 | 90BYFW |
| HN4FS726036SS | 72.00 | 60.00 | 36.00 | 72ZXFW |
| HN4FS907236SS | 90.00 | 72.00 | 36.00 | 90BYFW |
Dual Access
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ |
|---|---|---|---|---|
| HN4FS724824DASS | 72.00 | 48.00 | 24.00 | 72ZWFW |
| HN4FS726024DASS | 72.00 | 60.00 | 24.00 | 72ZXFW |
| HN4FS727224DASS | 72.00 | 72.00 | 24.00 | 72ZYFW |
| HN4FS907224DASS | 90.00 | 72.00 | 24.00 | 90BYFW |
| HN4FS726036DASS | 72.00 | 60.00 | 36.00 | 72ZXFW |
