Hammond HN4FS907236SS 90x72x36 Two Door 304 Stainless Type 4X Enclosure

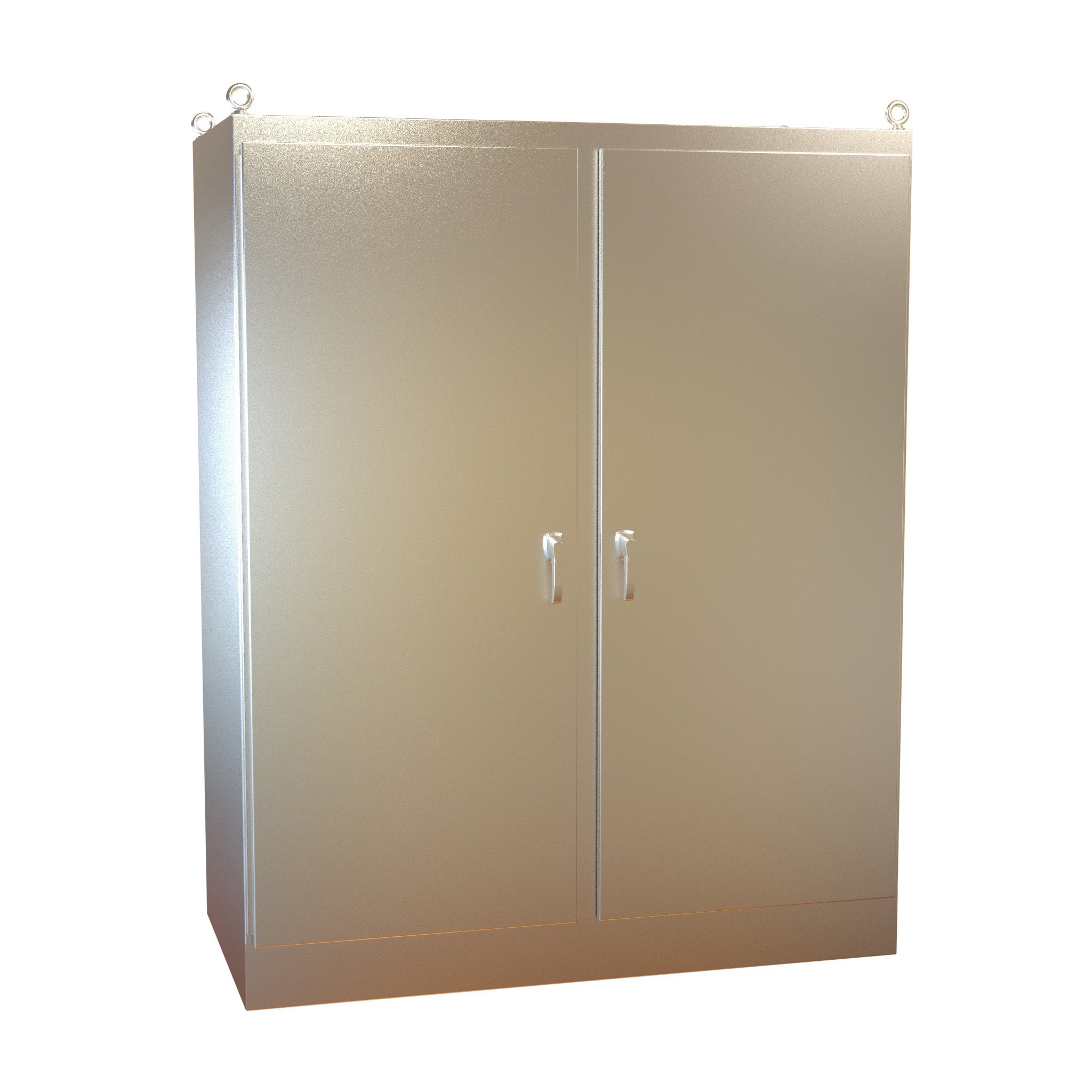

The HN4FS907236SS is the largest enclosure in the HN4 FSTD SS series, a 90 x 72 x 36 in two door Type 4X freestanding cabinet formed from 12 gauge 304 stainless steel. It is designed to house electrical, electronic, hydraulic or pneumatic controls and instruments where equipment may be hosed down, be very wet, or face serious corrosion, with the 36 in depth accommodating deep components.

Nominal size is 90 x 72 x 36 in (2,286 x 1,829 x 914 mm) and the drawing lists 90.06 x 72.06 x 36.06 in overall. The two 34.00 in wide doors are 80.53 in tall and close over 32.55 in wide openings, with 30.06 in x 78.62 in of clear space available on each door.

Heavy gauge continuous hinges carry the doors, and a 3-pt padlocking door handle secures them against a seamless poured-in place gasket. Seams are smooth and continuously welded with no knockouts, cutouts or holes. Heavy duty stainless lifting eyebolts with reinforcing support angles are provided for handling this 960 lb unit, and there is a grounding stud in the enclosure and a bonding stud on the door. The removable center post makes installing the optional 90BYFW full height/full width panel easy; depth panels and half height width panels are also available.

Standards: UL 508A Type 3R, 4X and 12 (UL File E65324), CSA Type 3R, 4X and 12 (LR21001), and compliance with NEMA Type 3R, 4X, 12 and 13 and IEC 60529 IP66. It is REACH and RoHS compliant, finished in natural smooth brushed stainless, and ships on a skid.
