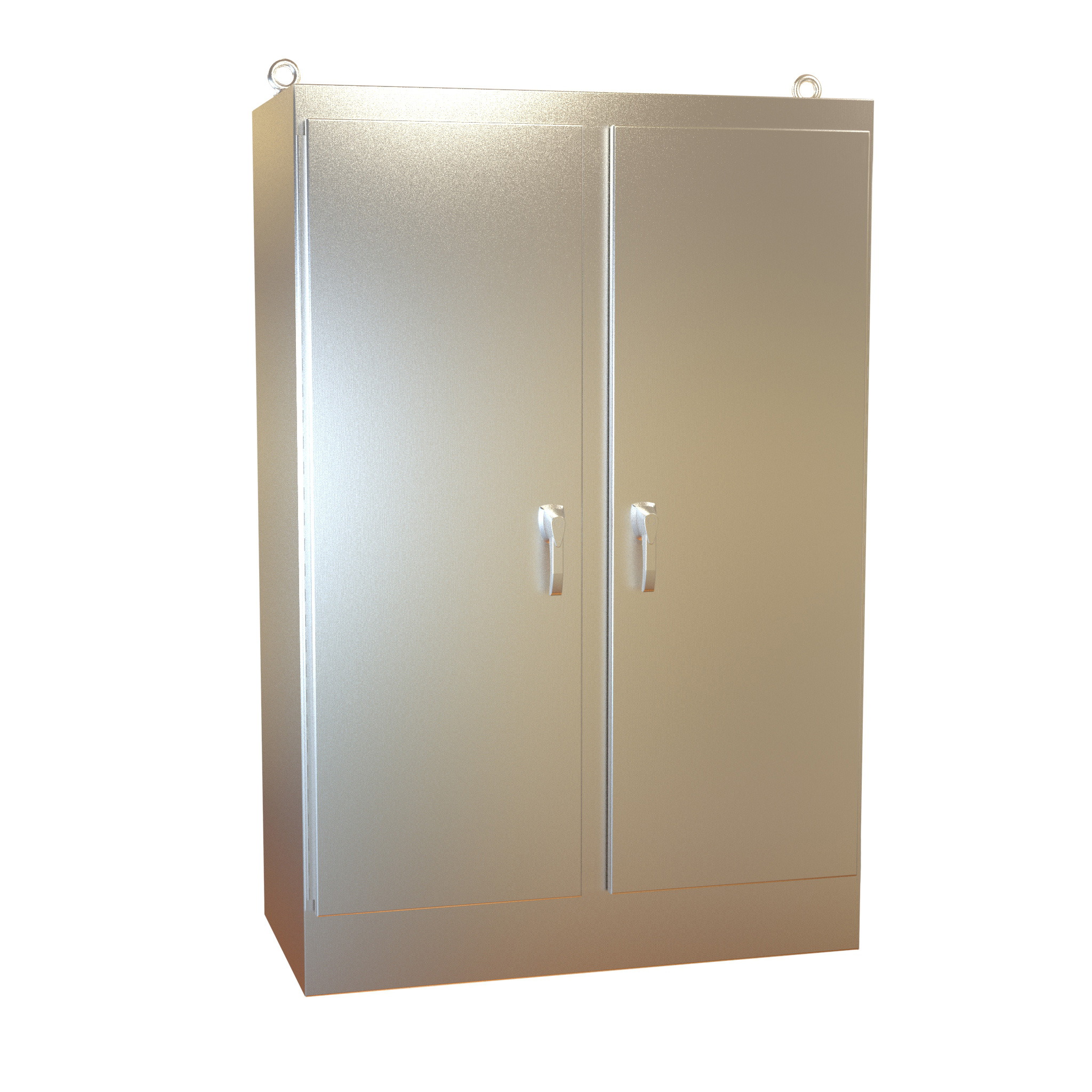

Hammond HN4FS724824SS 72x48x24 Two Door 304 Stainless Type 4X Enclosure

With a 24 in nominal depth, the HN4FS724824SS gives more room for deep components than the 18 in version of the same 72 x 48 in two door enclosure. It is a single access, Type 4X freestanding enclosure from the HN4 FSTD SS series, formed from 12 gauge 304 stainless steel to house electrical, electronic, hydraulic or pneumatic controls and instruments in wet or corrosive locations.

Nominal size is 72 x 48 x 24 in (1,829 x 1,219 x 610 mm); overall drawing dimensions are 72.06 x 48.06 x 24.06 in. Two 22.00 in wide, 62.53 in tall doors open onto 20.55 in wide openings, and the drawing shows 17.42 in x 60.62 in of clear space available on each door.

• Smooth, continuously welded seams with no knockouts, cutouts or holes
• Heavy gauge continuous hinges with a 3-pt padlocking door handle
• Seamless poured-in place gasket
• Heavy duty stainless lifting eyebolts with reinforcing support angles
• Grounding stud in the enclosure and bonding stud on the door
• Removable center post for easy inner panel installation

The optional full height/full width panel for this size is 72ZWFW. The enclosure is listed UL 508A Type 3R, 4X and 12 (File E65324) and CSA Type 3R, 4X and 12 (LR21001), complies with NEMA Type 3R, 4X, 12 and 13 and IEC 60529 IP66, and is REACH and RoHS compliant. It has a natural stainless smooth brushed finish and a 500 lb shipping weight on a skid.
