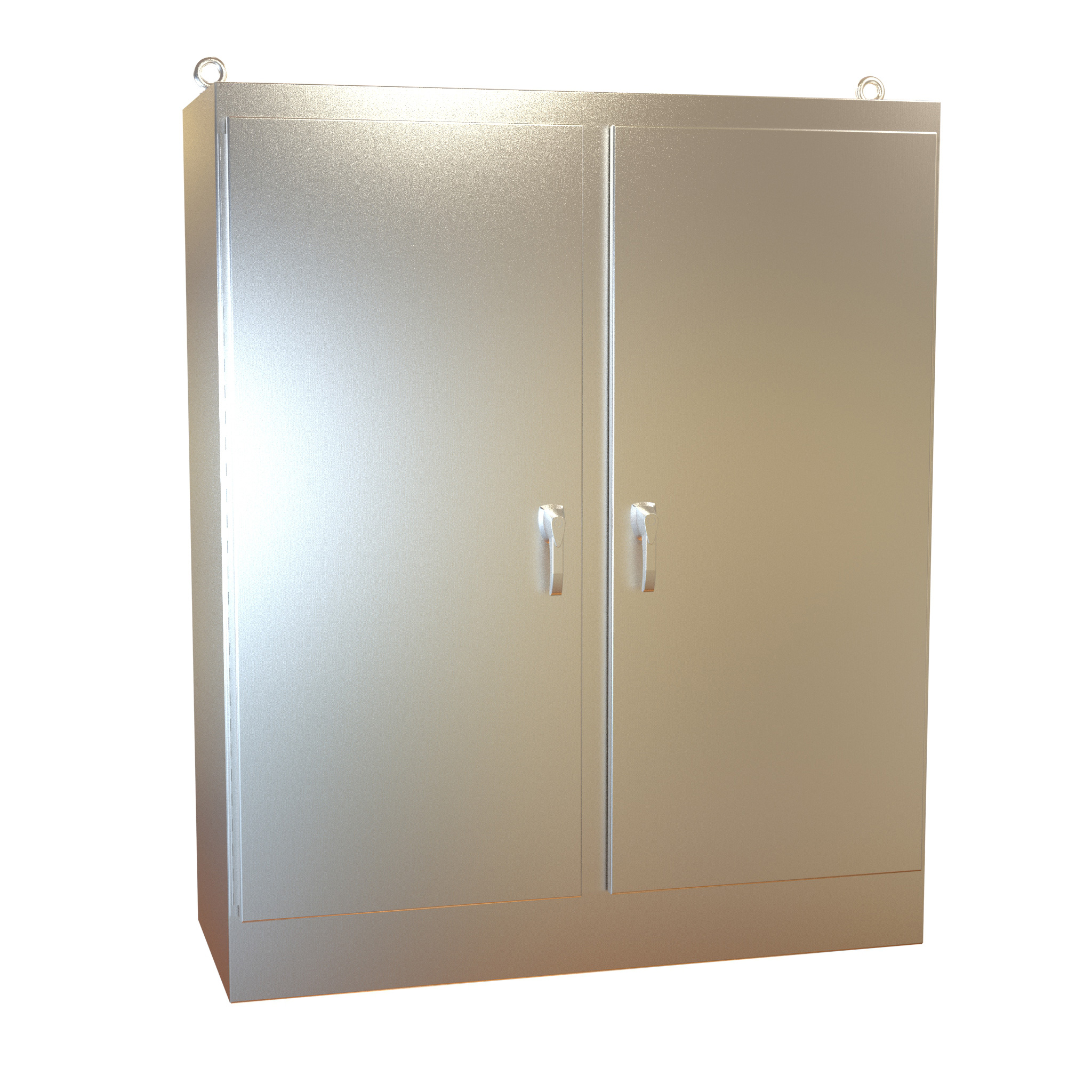

Hammond HN4FS726024SS 72x60x24 Two Door 304 Stainless Type 4X Enclosure

The HN4FS726024SS is a single access, two door Type 4X freestanding enclosure in formed 12 gauge 304 stainless steel, with a 72 x 60 x 24 in nominal size. Part of the HN4 FSTD SS series, it houses electrical, electronic, hydraulic or pneumatic controls and instruments where hose-down cleaning, persistent moisture or corrosion is expected.

Nominal size is 72 x 60 x 24 in (1,829 x 1,524 x 610 mm); overall drawing dimensions are 72.06 x 60.06 x 24.06 in. The front has two 28.00 in wide doors, 62.53 in tall, over 26.55 in wide openings. The drawing shows 24.06 in x 60.62 in of clear space available on each door.

Each door rides on a heavy gauge continuous hinge, and the pair is secured with a 3-pt padlocking door handle against a seamless poured-in place gasket. The body is built with smooth, continuously welded seams and no knockouts, cutouts or holes. Heavy duty stainless lifting eyebolts with reinforcing support angles are included, as are a grounding stud in the enclosure and a bonding stud on the door. The removable center post makes it easy to install the optional 72ZXFW full height/full width panel; depth panels and half height width panels are also available.

Listings and compliance: UL 508A Type 3R, 4X and 12 (File E65324), CSA Type 3R, 4X and 12 (LR21001), NEMA Type 3R, 4X, 12 and 13, IEC 60529 IP66, REACH and RoHS. The natural stainless enclosure has a smooth brushed finish and ships on a skid at 590 lbs.
