Hammond HN4FS727224SS 72x72x24 Two Door 304 Stainless Type 4X Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 72 x 72 x 24 in nominal single access two door enclosure
- Formed 12 gauge 304 stainless steel
- UL 508A / CSA Type 3R, 4X, 12; complies with NEMA 3R, 4X, 12, 13 and IP66
- Two 34.00 x 62.53 in doors with 3-pt padlocking handle
- Removable center post for inner panel installation
- Optional 72ZYFW full height/full width panel
- Seamless poured-in place gasket, welded seams

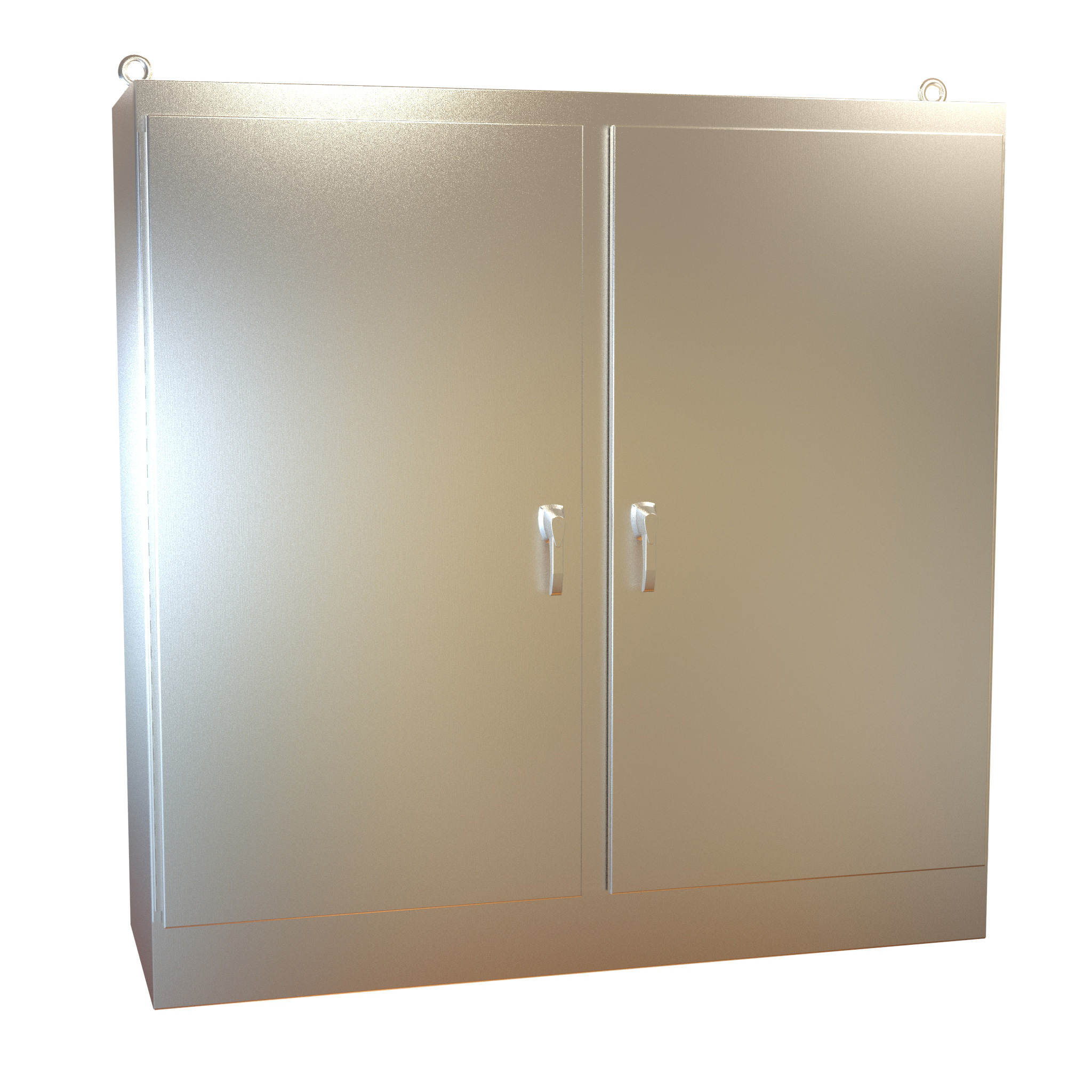

The HN4FS727224SS is a single access, two door Type 4X freestanding enclosure with a square 72 x 72 in face and 24 in nominal depth. Formed from 12 gauge 304 stainless steel, it houses electrical, electronic, hydraulic or pneumatic controls and instruments where hose-down, heavy moisture or corrosion is a concern.
Nominal size is 72 x 72 x 24 in (1,829 x 1,829 x 610 mm); overall drawing dimensions are 72.06 x 72.06 x 24.06 in. The two doors are each 34.00 in wide and 62.53 in tall over 32.55 in wide openings, and each has 30.06 in x 60.62 in of clear space available for operator devices.
The enclosure uses smooth, continuously welded seams without knockouts, cutouts or holes. Its doors hang on heavy gauge continuous hinges and are secured by a 3-pt padlocking door handle, sealing on a seamless poured-in place gasket. Heavy duty stainless lifting eyebolts with reinforcing support angles aid handling. A grounding stud in the enclosure and a bonding stud on the door are fitted, and the removable center post simplifies installation of the optional 72ZYFW full height/full width panel.
- UL 508A Type 3R, 4X and 12 (UL File E65324)
- CSA Type 3R, 4X and 12 (LR21001)
- Complies with NEMA Type 3R, 4X, 12 and 13 and IEC 60529 IP66
- REACH and RoHS compliant
The finish is natural stainless with a smooth brushed surface. Shipping weight is 700 lbs on a skid.
Ideal For
- Wide two door control panels
- Hose-down and wet locations
- Corrosion-prone plants
- Hydraulic and pneumatic controls
Overview
| Doors | Two continuous hinge doors with handle |
| Series | HN4 FSTD SS Series - Type 4X Stainless Steel Two Door Freestanding Enclosure |
| Part Number | HN4FS727224SS |
| Long Description | N4X 2 Door Freestanding Encl - 72 x 72 x 24 - 304 SS |
| Short Description | N4SS 2DR FREEST 72X72X24 |
| Access Configuration | Single Access |
Dimensions
| Enclosure Depth | 24.00 in (610 mm) |
| Enclosure Width | 72.00 in (1829 mm) |
| Enclosure Height | 72.00 in (1829 mm) |
| Door Height (Drawing) | 62.53 in |
| Nominal Size (H X W X D) | 72 in x 72 in x 24 in (1,829 mm x 1,829 mm x 610 mm) |
| Door Width, Each (Drawing) | 34.00 in |
| Door Opening Height (Drawing) | 62.53 in |
| Door Opening Width, Each (Drawing) | 32.55 in |
| Clear Space Available On Door (Drawing) | 30.06 in x 60.62 in (each door) |
| Overall Dimensions (Drawing, H X W X D) | 72.06 in x 72.06 in x 24.06 in |
Identifiers
| UPC | 623980911281 |
| UNSPSC | 39121324 |
Packaging & Shipping
| Packaging Type | Skid |
| Shipping Weight | 700 lbs (317.51 kg) |
Construction & Finish
| Seams | Smooth, continuously welded seams without knockouts, cutouts or holes |
| Finish | Natural stainless steel with a smooth brushed finish (cover and enclosure) |
| Gasket | Seamless poured-in place gasket |
| Hinges | Heavy gauge continuous hinges |
| Lifting | Heavy duty stainless steel lifting eyebolts with reinforcing support angles |
| Material | Formed 12 gauge 304 stainless steel |
| Grounding | Grounding stud in enclosure; bonding stud on door |
| Center Post | Removable, for easy installation of the inner panel |
| Door Handle | 3-pt padlocking door handle |
Mounting & Accessories
| Series Accessories | Inner Panels, Center Panel Supports, Panel Rails, Swing Out Frames, Door Stop Kit, Top Hat Cable Modules, Drip Shield Kit, Type 12/4, 4X Handle Kits, Window Kits, Climate Control, Lighting, General Accessories |
| Optional Full Panel | 72ZYFW (optional full height/full width panel) |
| Other Panel Options | Depth panels / half height width panels are also available |
Compliance & Certifications
| UL | UL 508A Type 3R, 4X and 12 |
| CSA | CSA Type 3R, 4X and 12 |
| NEMA | Complies with NEMA Type 3R, 4X, 12 and 13 |
| IEC 60529 | IP66 |
| RoHS Compliant | Yes |
| UL File Number | E65324 |
| REACH Compliant | Yes |
| RoHS Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| CSA Certificate Number | LR21001 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU (Corrosion Resistant Enclosures declaration, Sep 21, 2023) |
| Safety Of Machinery Standard | EN 60204-1: 2006 / IEC 60204-1: 2005-10 (Electrical Equipment of Machines, Part 1: General Requirements) |
| Degrees Of Protection Standard | EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 (IP code) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the HN4FS727224SS dimensions?▾
Nominal 72 x 72 x 24 in (1,829 x 1,829 x 610 mm); the drawing shows 72.06 x 72.06 x 24.06 in overall.
Is there a dual access version?▾
Yes, HN4FS727224DASS is the dual access version of this size.
Which panel is listed?▾
The optional full height/full width panel is 72ZYFW.
What material and finish?▾
Formed 12 gauge 304 stainless steel with a natural smooth brushed finish.
What is the shipping weight?▾
700 lbs (317.51 kg), on a skid.
