Hammond HN4FS907224SS 90x72x24 Two Door 304 Stainless Type 4X Enclosure

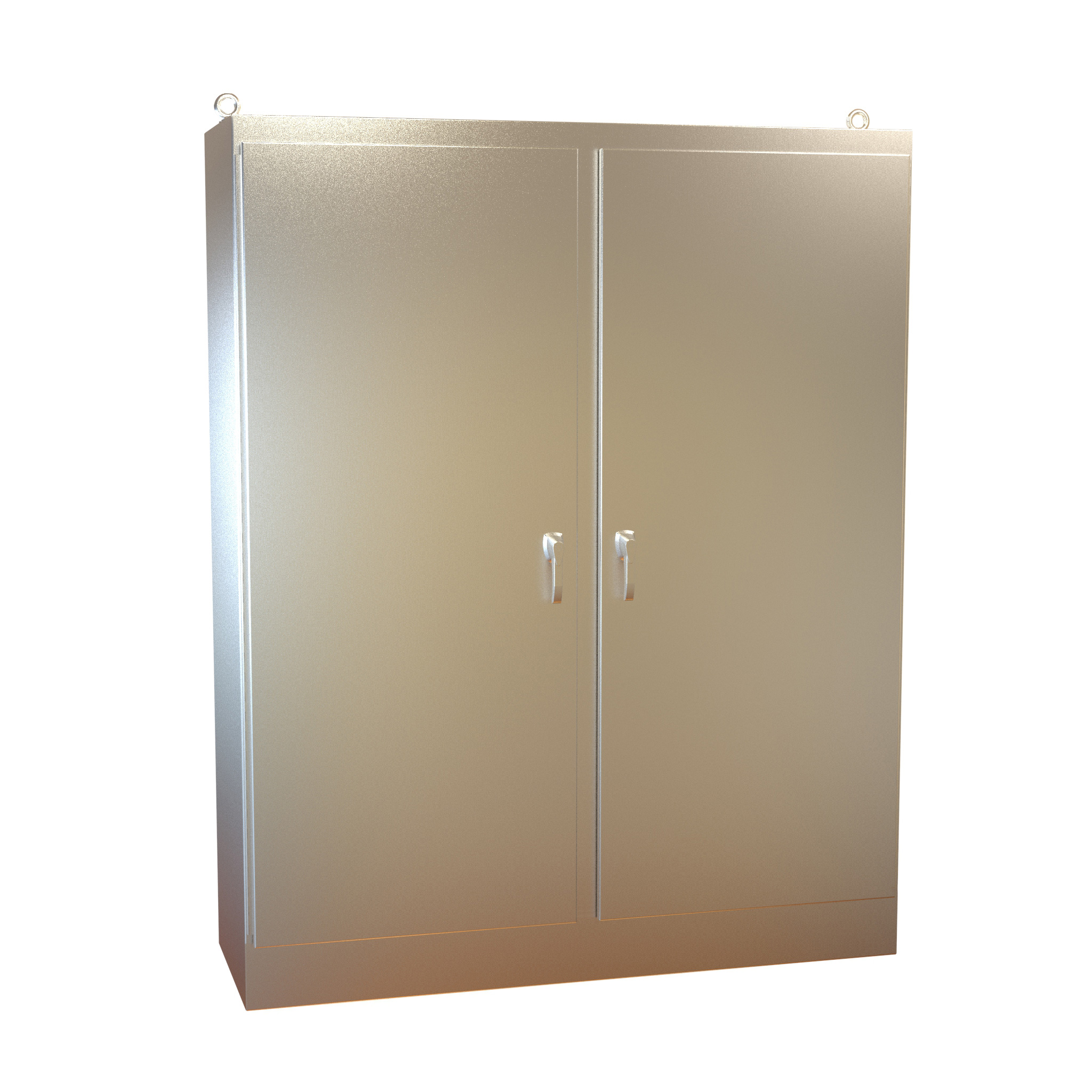

The HN4FS907224SS is a single access, two door Type 4X freestanding enclosure with a 90 x 72 x 24 in nominal size, giving a tall, wide mounting area for large control and instrument assemblies. It is formed from 12 gauge 304 stainless steel and designed for electrical, electronic, hydraulic or pneumatic equipment in hose-down, very wet or corrosive locations.

Nominal size is 90 x 72 x 24 in (2,286 x 1,829 x 610 mm); overall drawing dimensions are 90.06 x 72.06 x 24.06 in. Two 34.00 in wide doors, 80.53 in tall, open onto 32.55 in wide door openings, and each door has 30.06 in x 78.62 in of clear space available per the drawing.

• Smooth, continuously welded seams with no knockouts, cutouts or holes
• Heavy gauge continuous hinges and a 3-pt padlocking door handle
• Seamless poured-in place gasket
• Heavy duty stainless lifting eyebolts with reinforcing support angles
• Grounding stud in the enclosure, bonding stud on the door
• Removable center post for easy inner panel installation

The optional full height/full width panel is 90BYFW, and depth panels and half height width panels are also available. The enclosure is listed UL 508A Type 3R, 4X and 12 (File E65324) and CSA Type 3R, 4X and 12 (LR21001), complies with NEMA Type 3R, 4X, 12 and 13 and IEC 60529 IP66, and is REACH and RoHS compliant. It has a natural stainless smooth brushed finish and ships on a skid at 810 lbs. A dual access version of this size is listed as HN4FS907224DASS.
