Hammond HN4FS904820SS 90x48x20 Two Door 304 Stainless Type 4X Enclosure

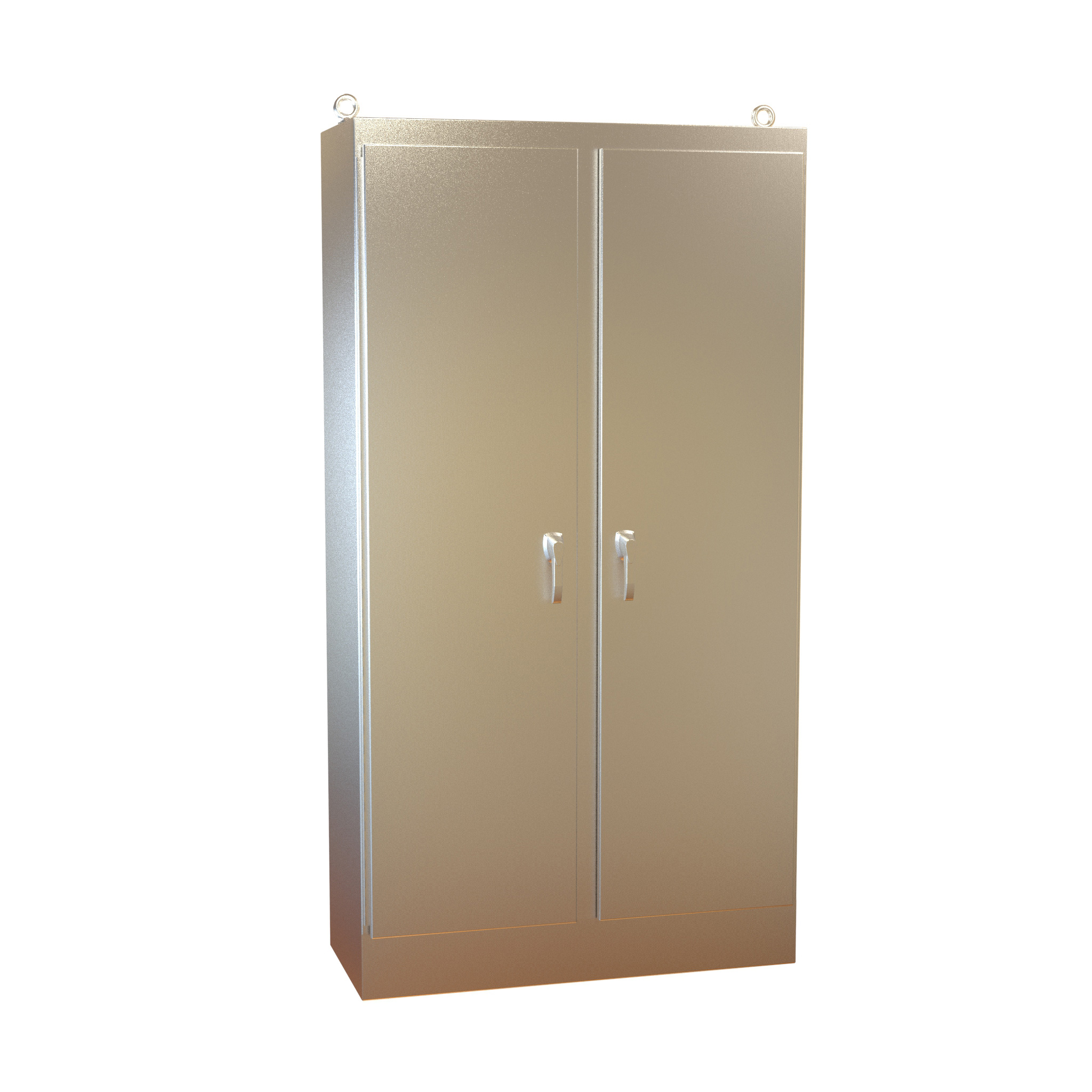

The HN4FS904820SS is a 90 in tall, 48 in wide two door Type 4X freestanding enclosure from the HN4 FSTD SS series. Its full-height format suits tall control and instrument layouts, and the formed 12 gauge 304 stainless steel body is designed for electrical, electronic, hydraulic or pneumatic equipment where it may be hosed down, stay very wet, or face serious corrosion.

Nominal size is 90 x 48 x 20 in (2,286 x 1,219 x 508 mm); the drawing lists 90.06 x 48.06 x 20.06 in overall. Two 22.00 in wide doors, 80.53 in tall, close over 20.55 in wide openings, and the drawing shows 18.06 in x 78.62 in of clear space available on each door.

Doors are supported by heavy gauge continuous hinges and closed by a 3-pt padlocking door handle onto a seamless poured-in place gasket. Seams are smooth and continuously welded, with no knockouts, cutouts or holes. Heavy duty stainless lifting eyebolts with reinforcing support angles are fitted, and a grounding stud in the enclosure and bonding stud on the door are included. The removable center post allows easy installation of the optional 90BWFW full height/full width panel; depth panels and half height width panels are also offered.

The enclosure is listed UL 508A Type 3R, 4X and 12 (File E65324) and CSA Type 3R, 4X and 12 (LR21001), complies with NEMA Type 3R, 4X, 12 and 13 and IEC 60529 IP66, and is REACH and RoHS compliant. Natural stainless, smooth brushed finish; 550 lb shipping weight on a skid.
