Hammond HN4FS726036DASS 72x60x36 Dual Access Two Door 304 Stainless Enclosure

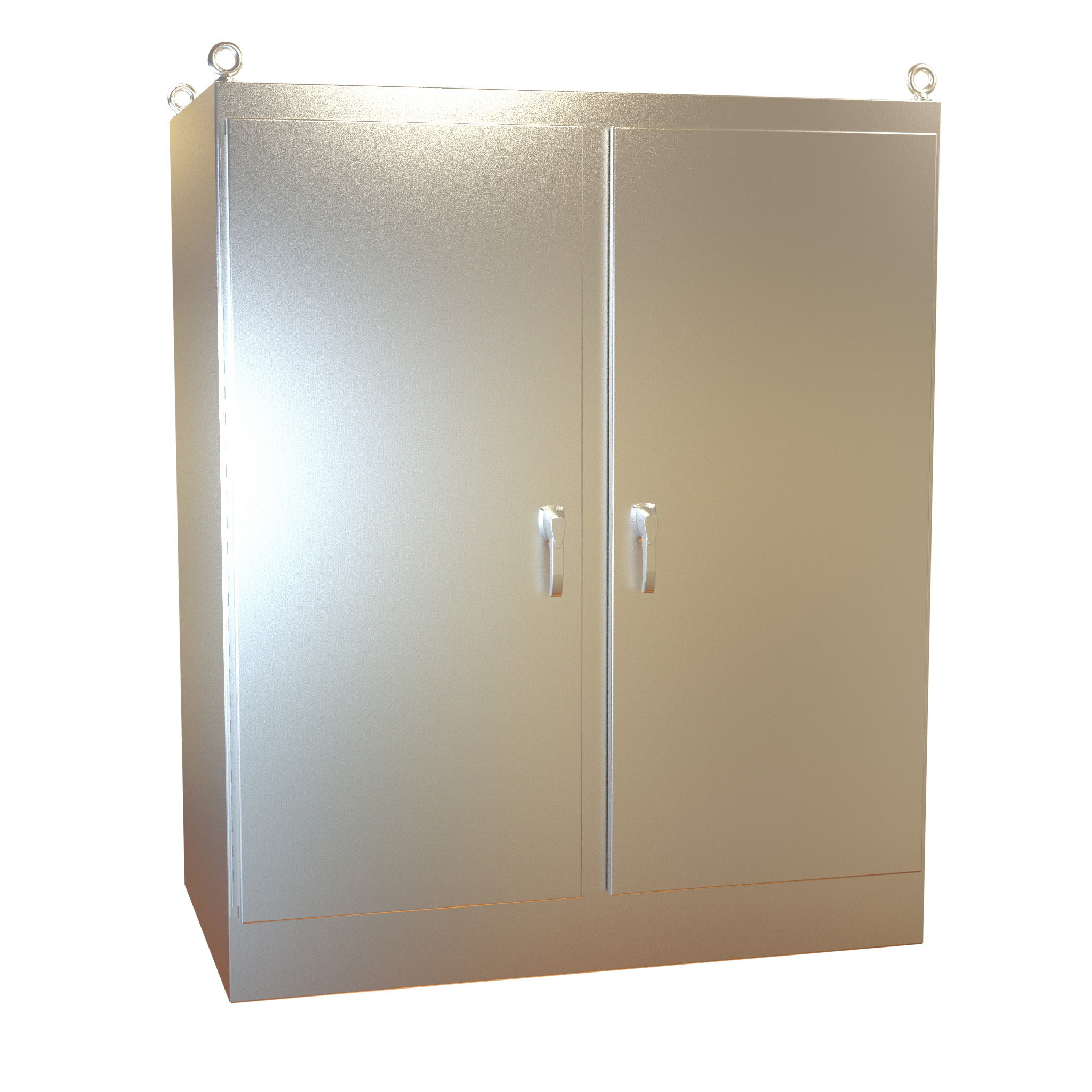

The HN4FS726036DASS is the deepest dual access model in the HN4 FSTD SS series, a two door Type 4X freestanding enclosure at 72 x 60 x 36 in nominal. Doors front and back give access to controls and instruments from both sides, while formed 12 gauge 304 stainless steel protects the contents where equipment may be hosed down, be very wet, or face serious corrosion.

Nominal dimensions are 72 x 60 x 36 in (1,829 x 1,524 x 914 mm) and the drawing lists 72.06 x 60.06 x 36.06 in overall. Each face uses two 28.00 in wide, 62.53 in tall doors over 26.55 in wide openings with a 61.31 in opening height. The drawing shows 24.35 in x 62.15 in of clear space available on each door.

• Heavy gauge continuous hinges and 3-pt padlocking door handles
• Seamless poured-in place gasket
• Smooth, continuously welded seams with no knockouts, cutouts or holes
• Heavy duty stainless lifting eyebolts with reinforcing support angles
• Grounding stud in the enclosure, bonding stud on the door
• Removable center post for easy inner panel installation

The optional full height/full width panel is 72ZXFW. The enclosure is listed UL 508A Type 3R, 4X and 12 (File E65324) and CSA Type 3R, 4X and 12 (LR21001), complies with NEMA Type 3R, 4X, 12 and 13 and IEC 60529 IP66, and is REACH and RoHS compliant. It has a natural stainless smooth brushed finish and ships on a skid at 755 lbs.
