Swing Out Rack Frame for Enclosures · 1418SWF Series

Key Features and Benefits

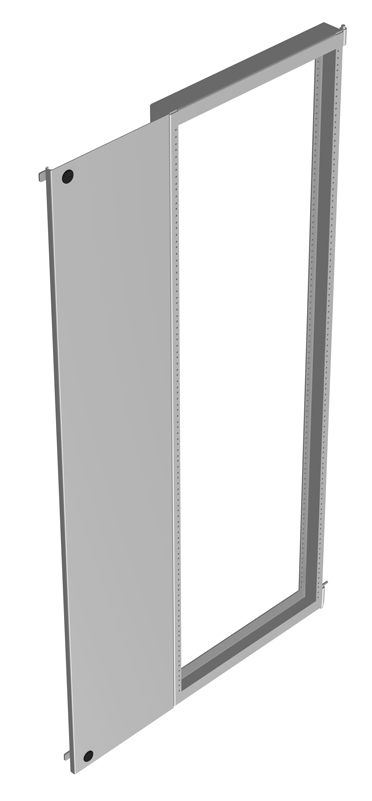

The 1418SWF Series swing-out rack frames provide a practical solution for mounting and servicing 19-inch rack equipment inside industrial enclosures. Designed for use with Hammond 1418FS and HN4FS enclosures, these frames allow rack-mounted equipment to pivot outward, providing full rear access for installation, maintenance, and cable management.

Constructed from heavy-duty steel and manufactured in North America, the 1418SWF Series enables efficient integration of IT and control equipment into NEMA environments while improving accessibility and reducing service time in industrial applications.

• ■10-gauge steel construction supports up to 250 lb, providing heavy-duty mounting for rack equipment inside industrial enclosures.
• ■Converts compatible enclosures into 19 in rack-mount systems, enabling integration of standard IT and telecom equipment.

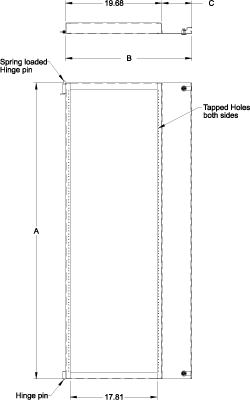

• ■Designed for installation in 72" and 90" high enclosures. The swing frame pivots on 0.5" pins within the enclosure for easy access to the rear of rack mounted equipment.
• ■Frame can be positioned at any depth within the enclosure, allowing flexible equipment placement.
• ■Secured in the closed position with quarter-turn fasteners for quick access and secure operation.
• ■Supports single or multiple frame configurations depending on enclosure width and access requirements.
• ■Compatible with Hammond 1418FS and HN4FS freestanding enclosures for seamless integration.
• ■Threaded mounting holes support standard rack equipment installation.
• ■Enables hybrid installations combining rack-mounted and panel-mounted equipment within a single enclosure.
• ■Manufactured in North America, ensuring consistent quality and production standards.
• ■TAA-compliant, manufactured in North America within an ISO 9001 certified facility.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.

When Another Product May Be a Better Choice

• ■When you need fixed rack mounting without swing-out access, consider our 1418PR Series rack rails.
