Slope Top 16X12X8 304SS
$728.44In stock
Buy now
Type 4X Stainless Steel Wallmount Enclosure w/ Sloped Top · ST SS Series
Brand: Hammond Manufacturing · 25 part numbers
Hinge Door with Quarter Turn
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Sloped top prevents water from resting on top as well as providing potential for controls mounting.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12 Mounting foot kit required to maintain UL/CSA external mounting requirements. Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
from $19.32
25 of 25 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your ST SS Series part number
Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
20 of 20 part numbers · 20 priced online
Slope Top 16X16X8 304SS
$801.02In stock
Buy now
Slope Top 20X16X8 304SS
$885.96In stock
Buy now

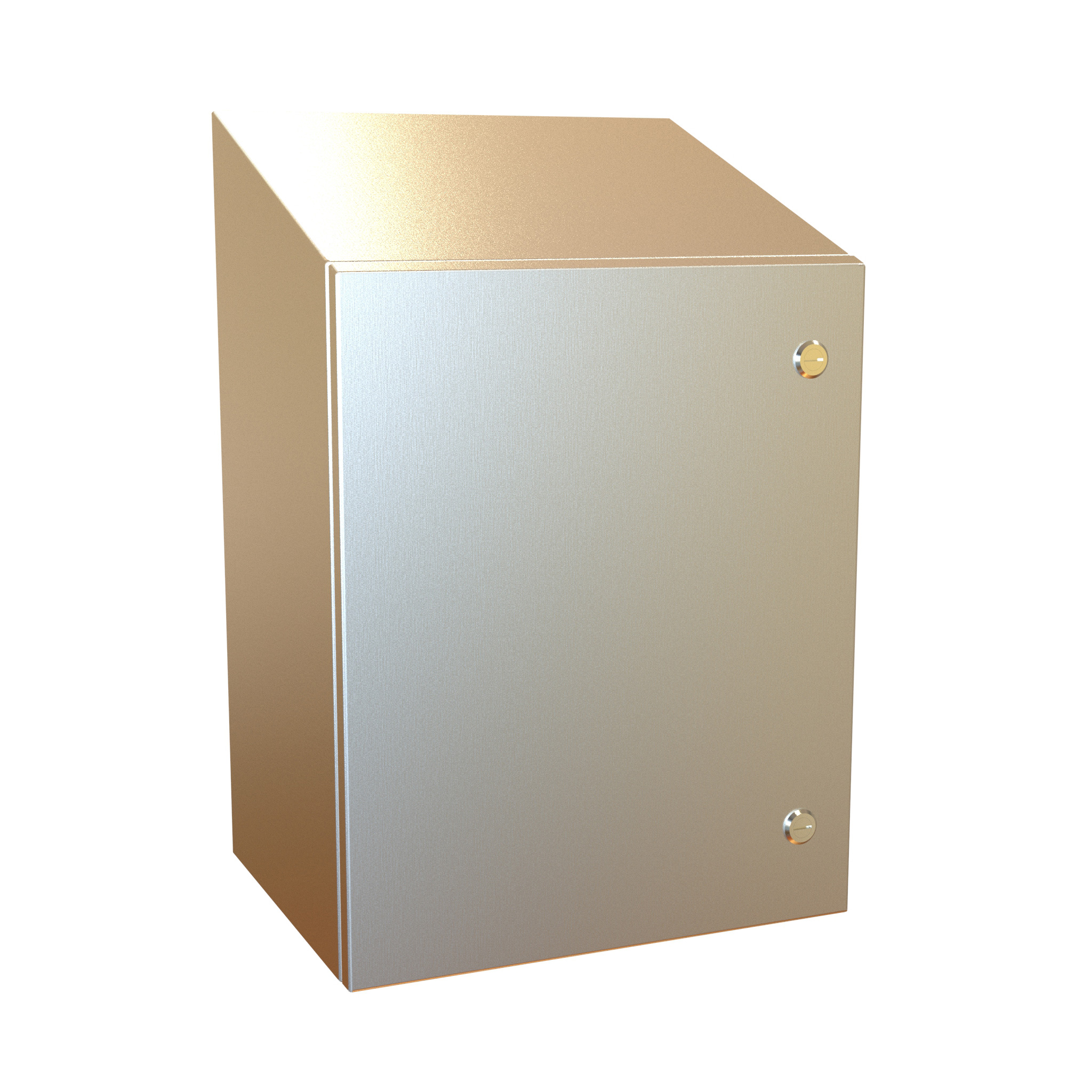

Slope Top 20X16X12 304SS
$993.48In stock
Buy now
Slope Top 20X20X8 304SS
$1,011.76In stock
Buy now

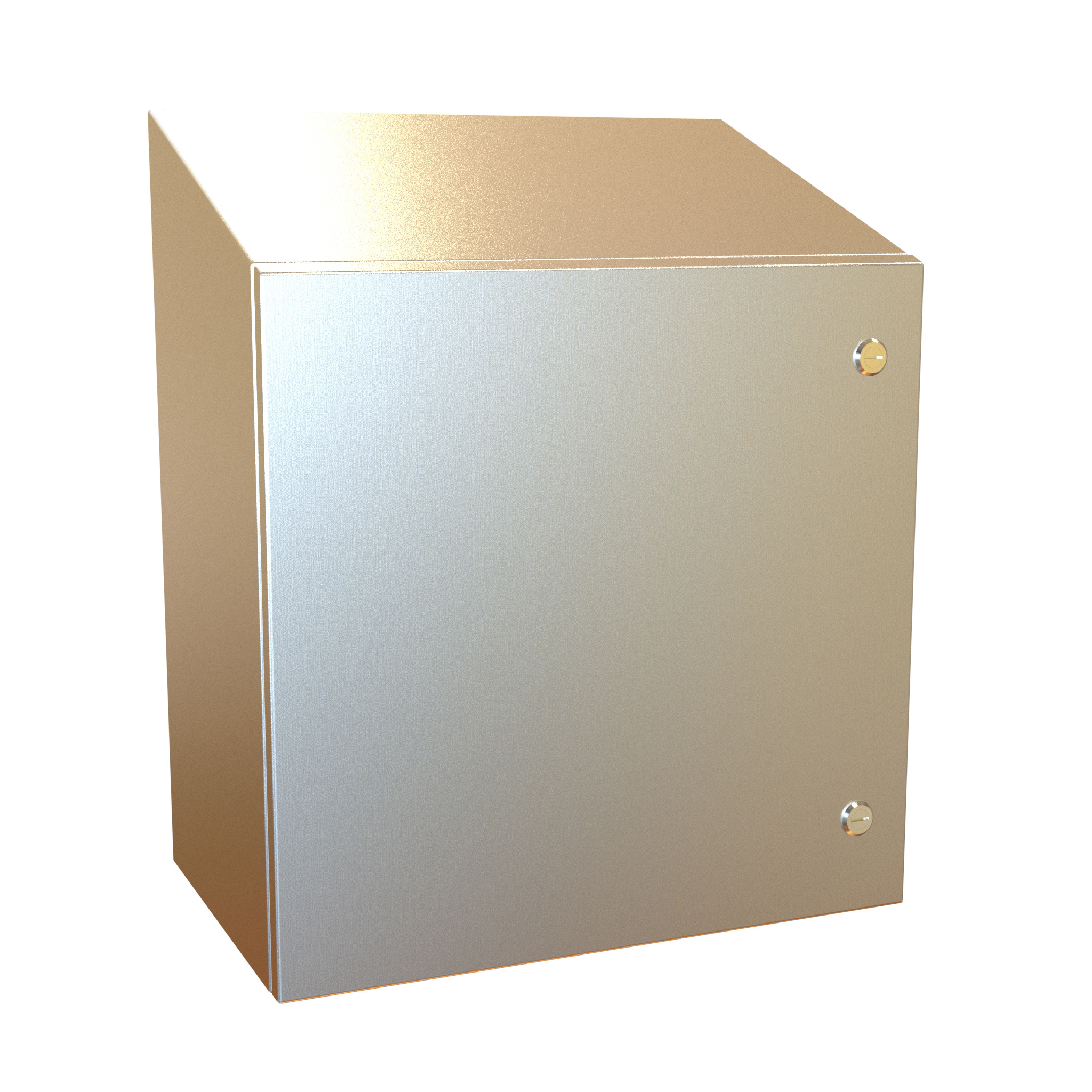

Slope Top 20X20X12 304SS
$1,162.28In stock
Buy now

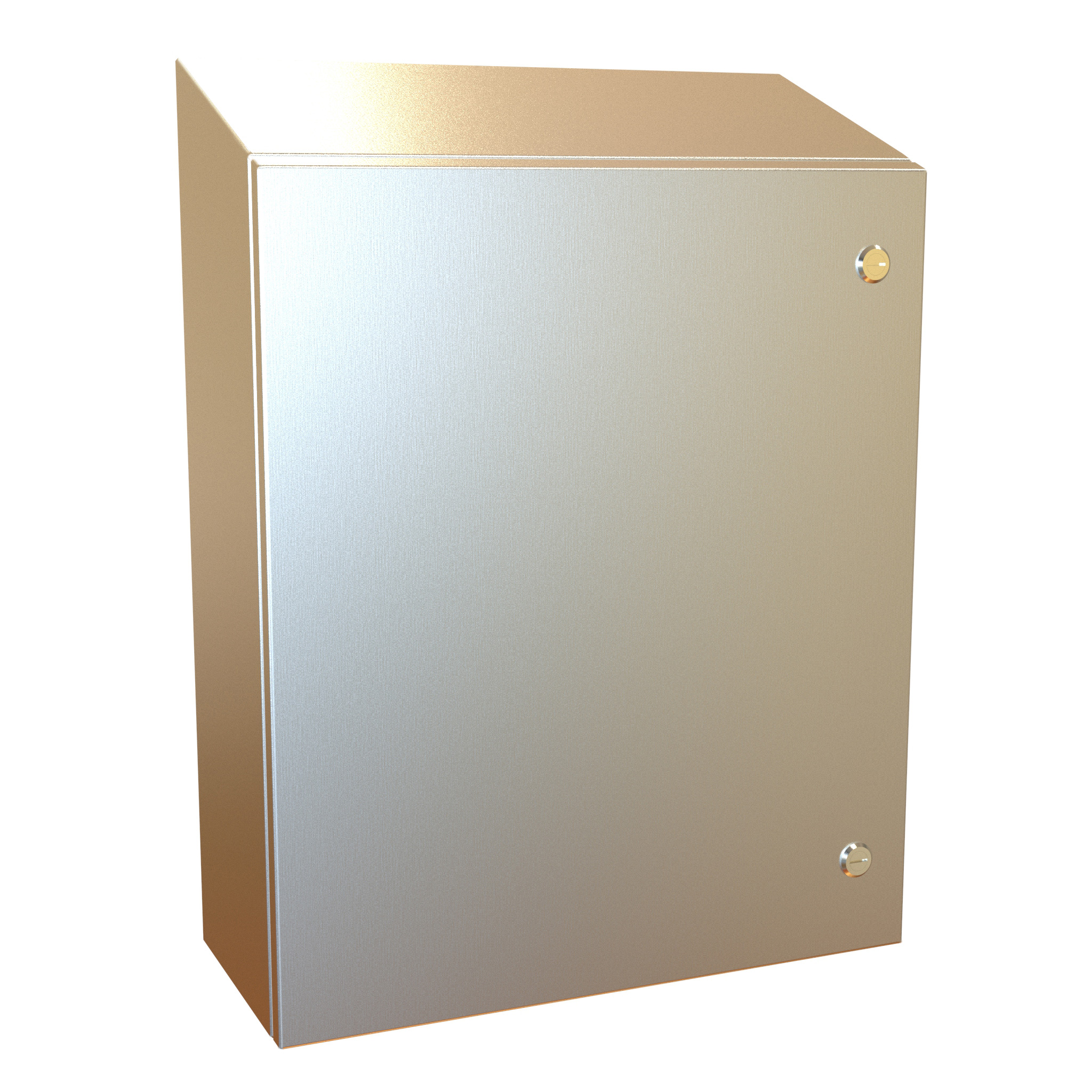

Slope Top 24X20X8 304SS
$1,076.26In stock
Buy now

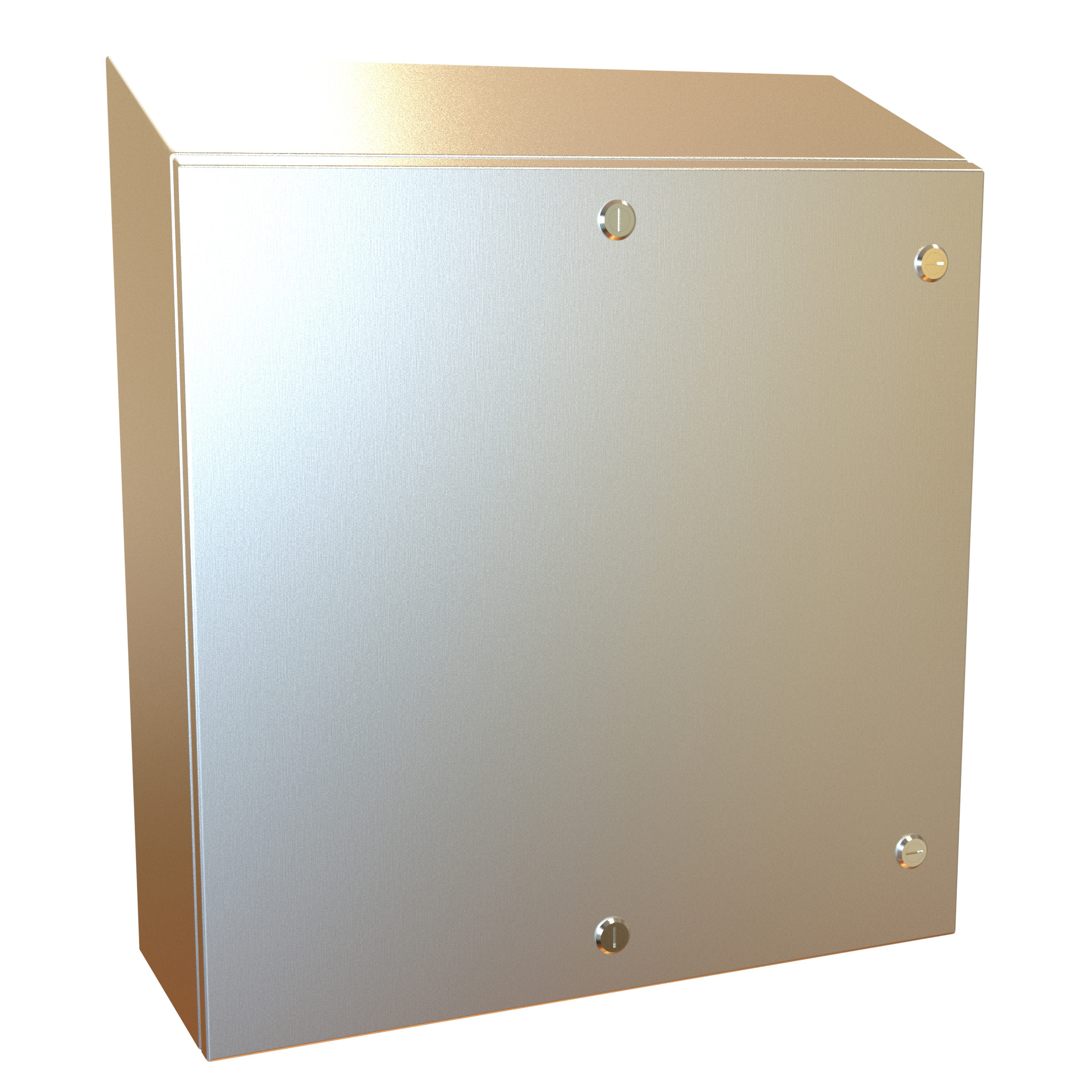

Slope Top 24X24X8 304SS
$1,181.09In stock
Buy now

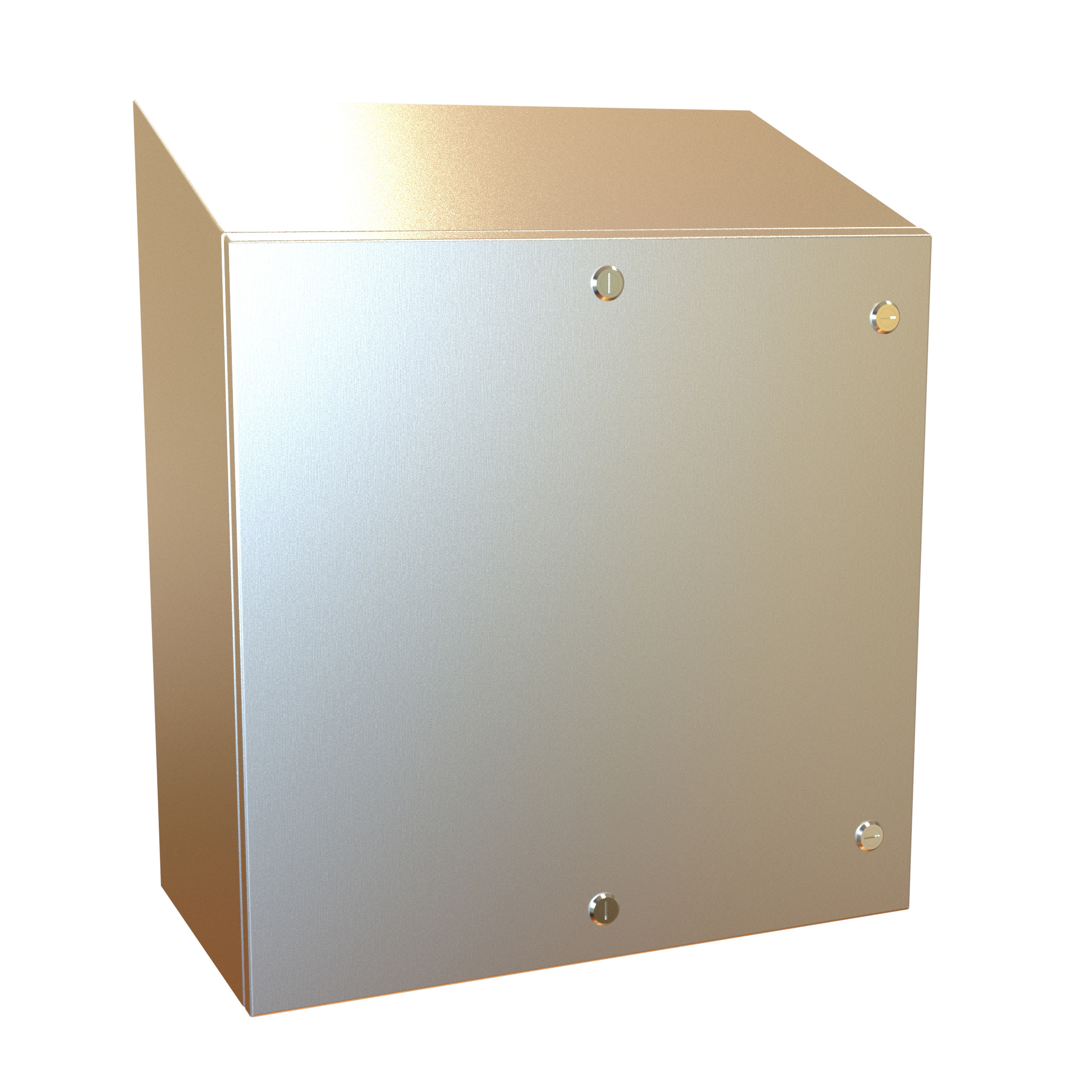

Slope Top 24X24X12 304SS
$1,343.99In stock
Buy now

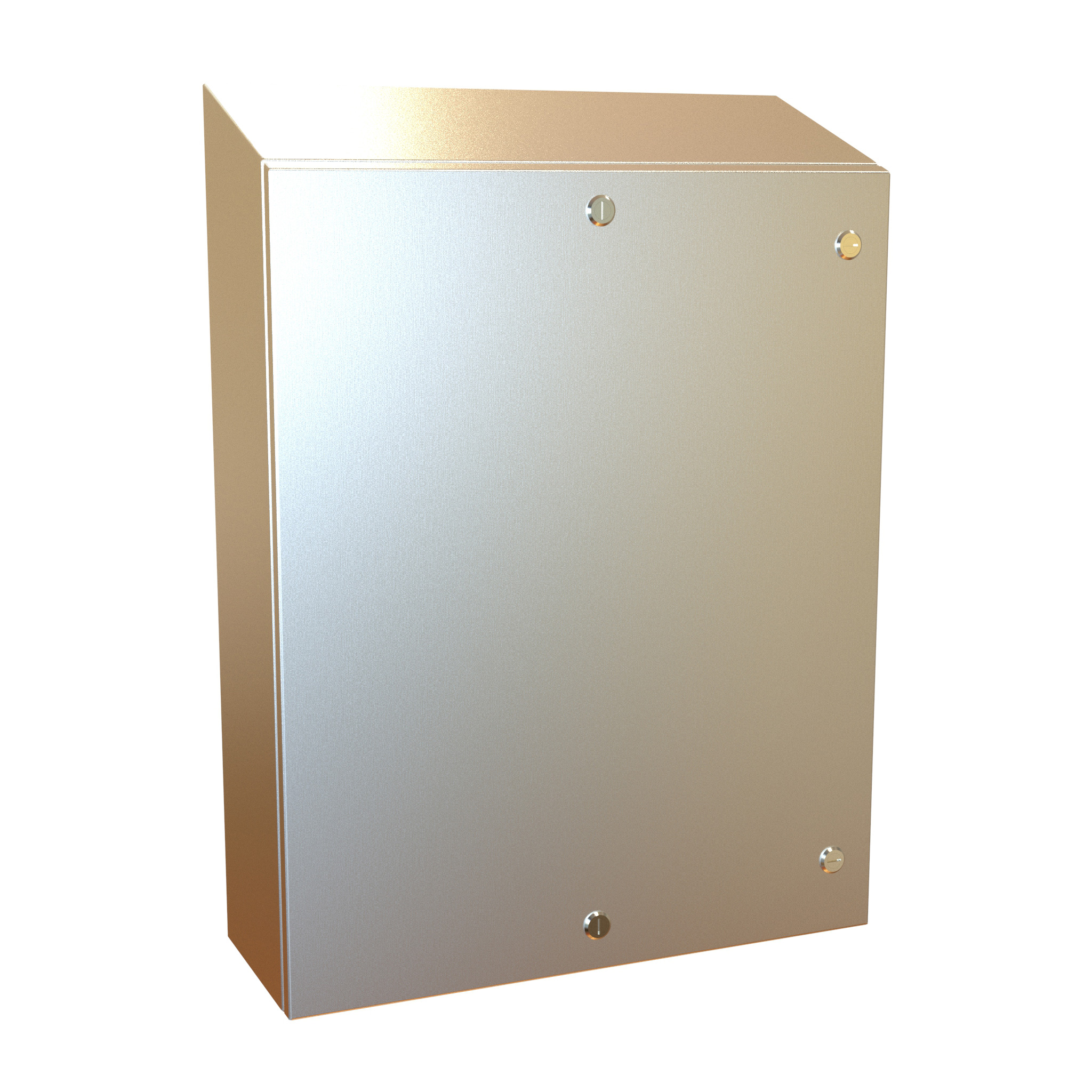

Slope Top 30X24X8 304SS
$1,218.72In stock
Buy now
Slope Top 30X24X12 304SS
$1,523.56In stock
Buy now

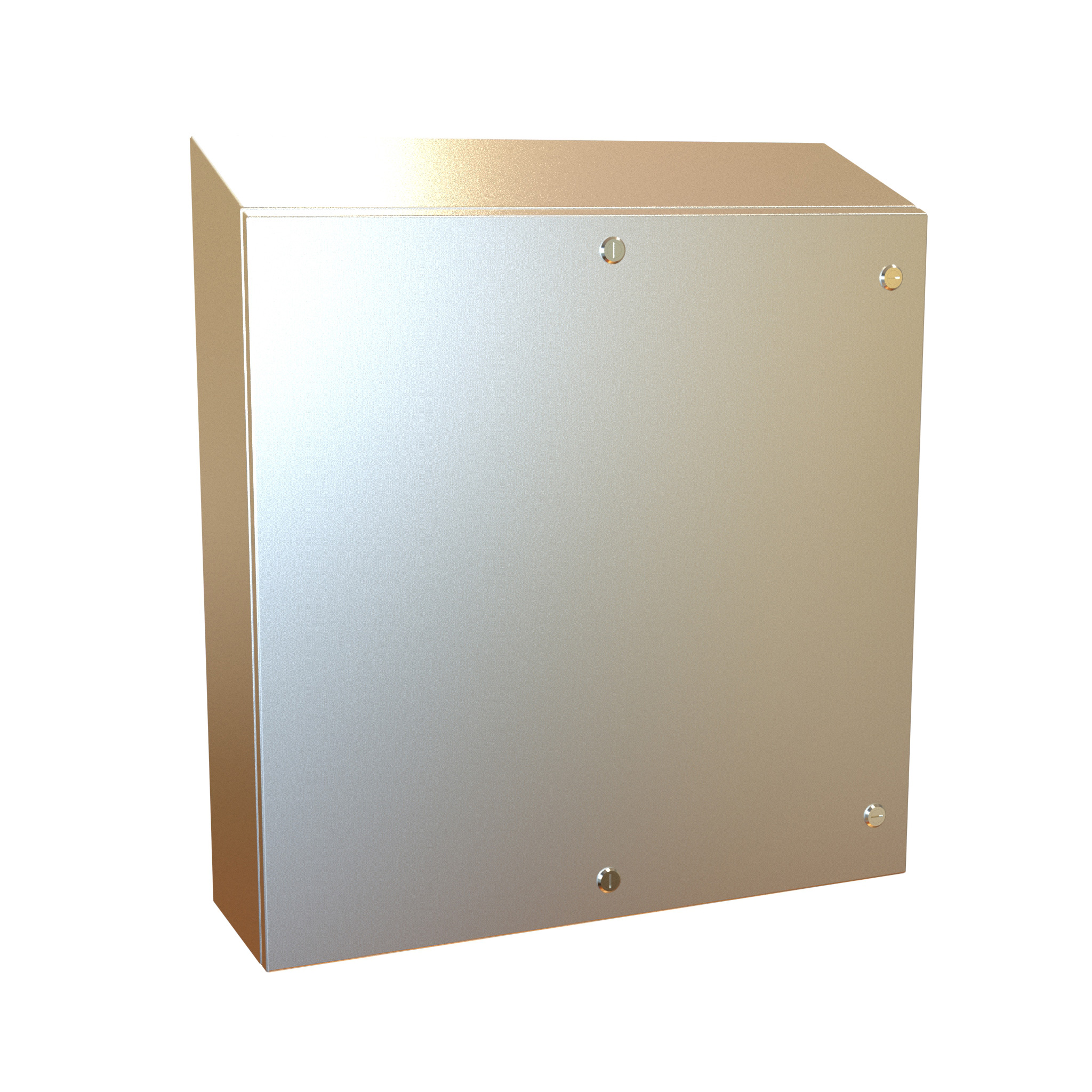

Slope Top 30X30X8 304SS
$1,530.54In stock
Buy now

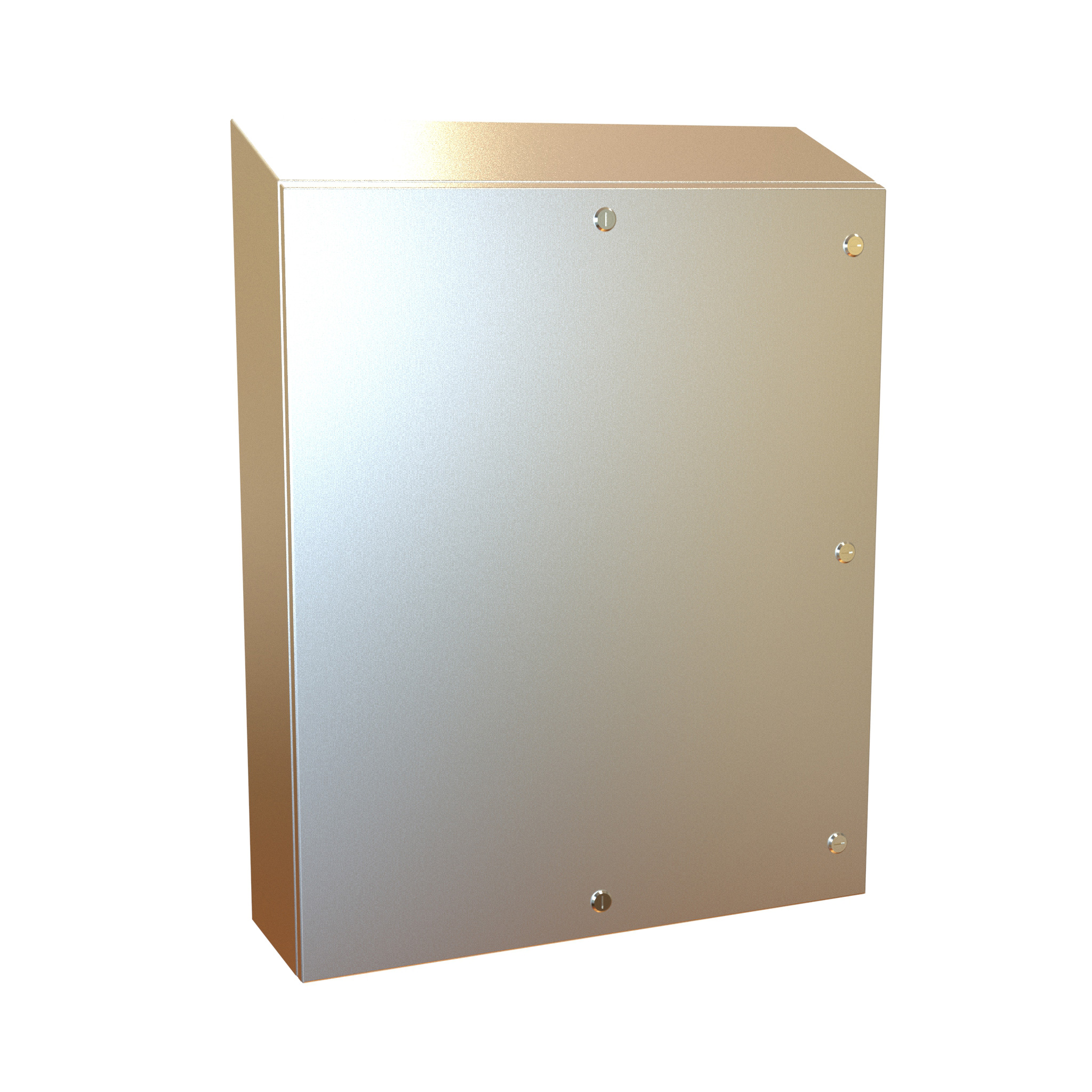

Slope Top 36X30X8 304SS
$1,723.54In stock
Buy now
Slope Top 36X30X12 304SS
$1,940.73In stock
Buy now

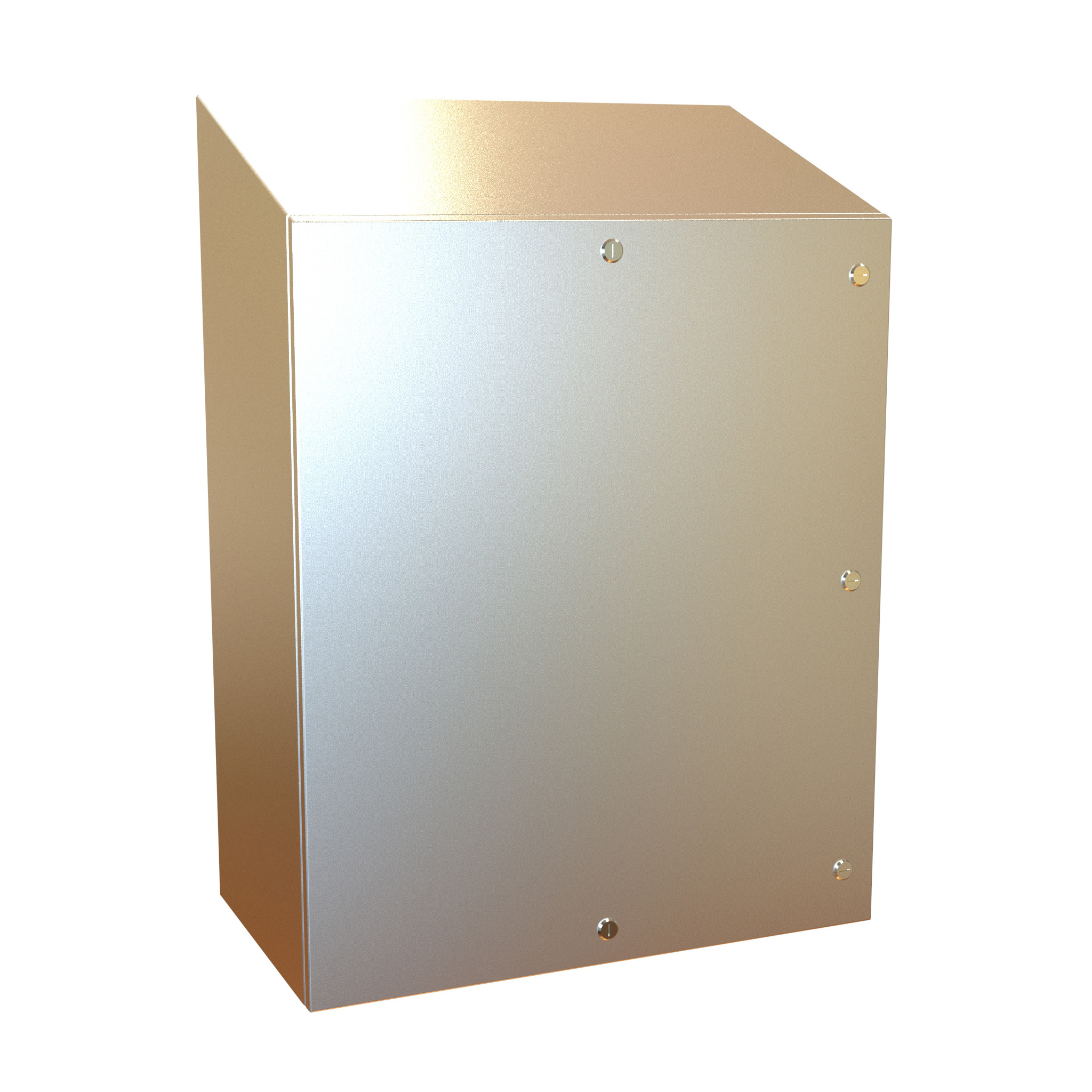

Slope Top 36X30X16 304SS
$2,161.14In stock
Buy now
Slope Top 36X36X12 304SS
$2,182.64Backorder
Buy now

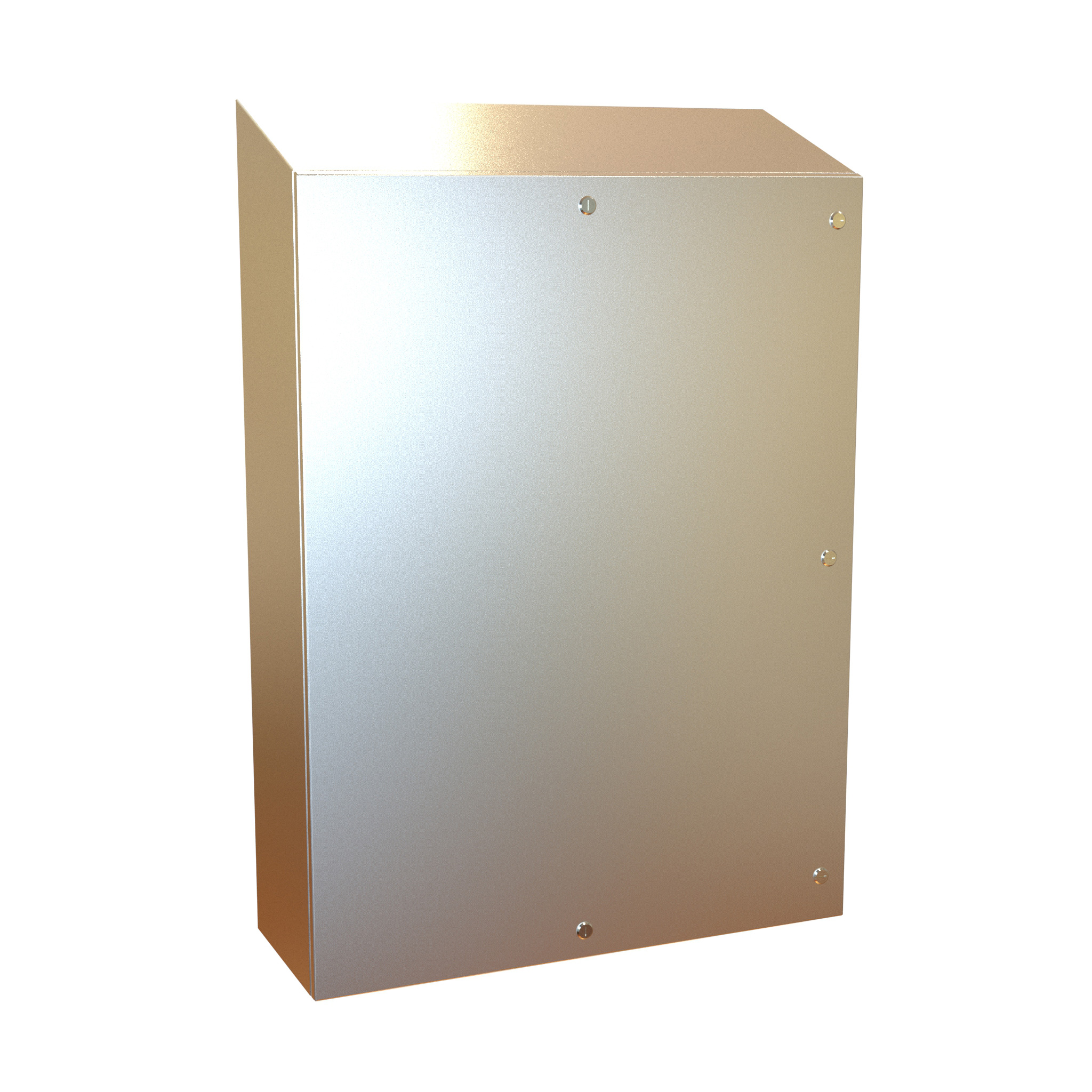

Slope Top 48X36X12 304SS
$2,640.13In stock
Buy now

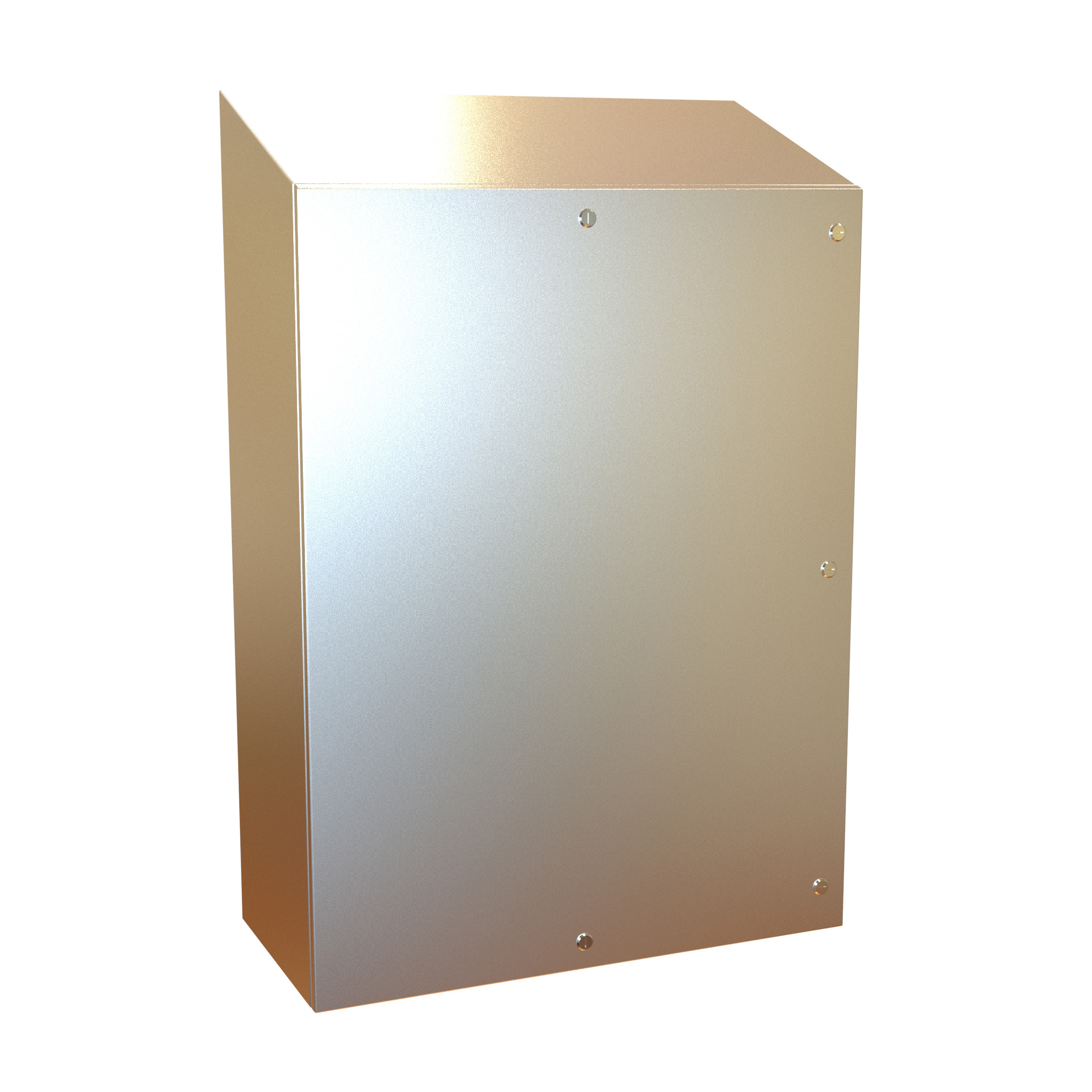

Slope Top 48X36X16 304SS
$2,939.57In stock
Buy now
Slope Top 60X36X12 304SS
$3,251.92In stock
Buy now

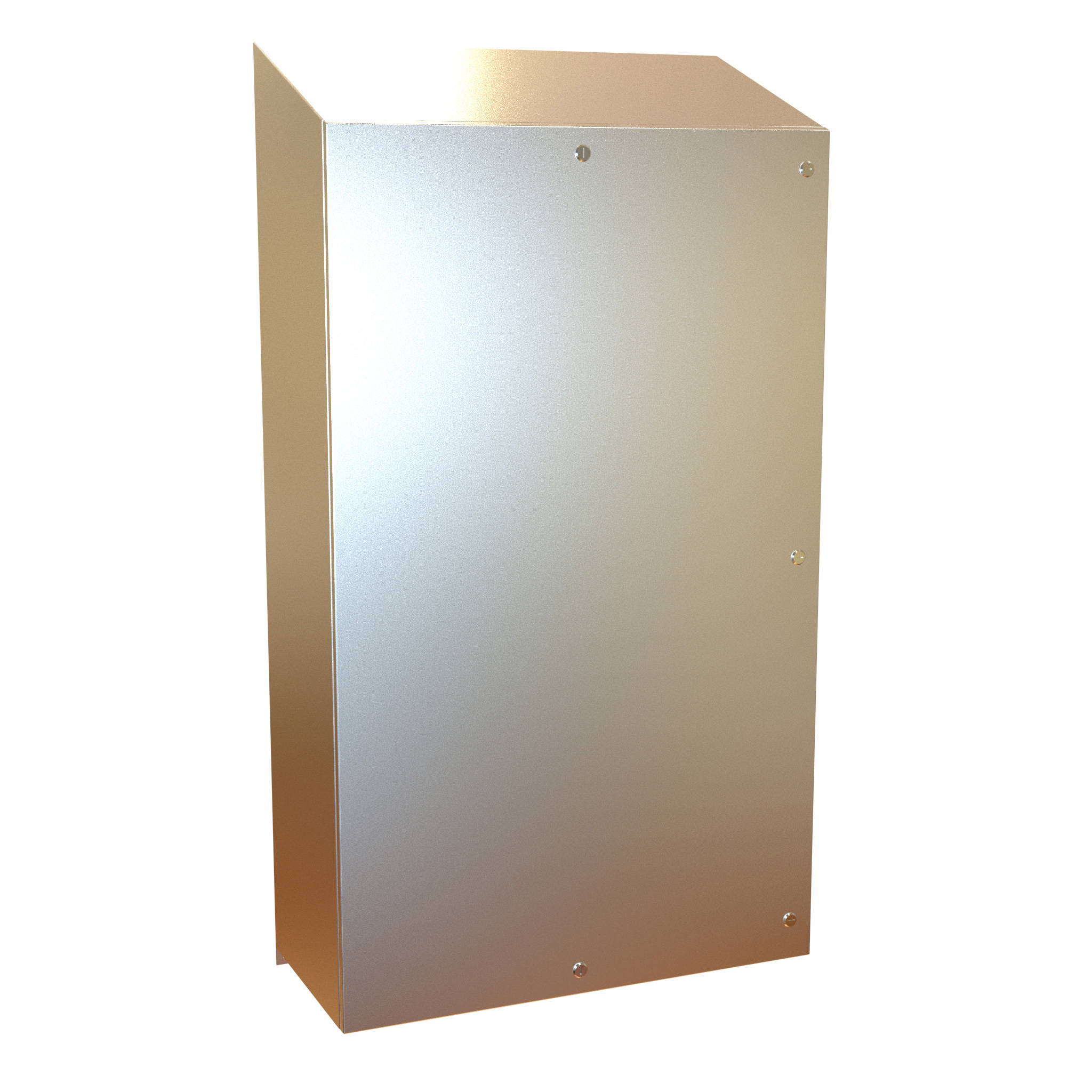

Slope Top 60X36X16 304SS
$3,621.78In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|

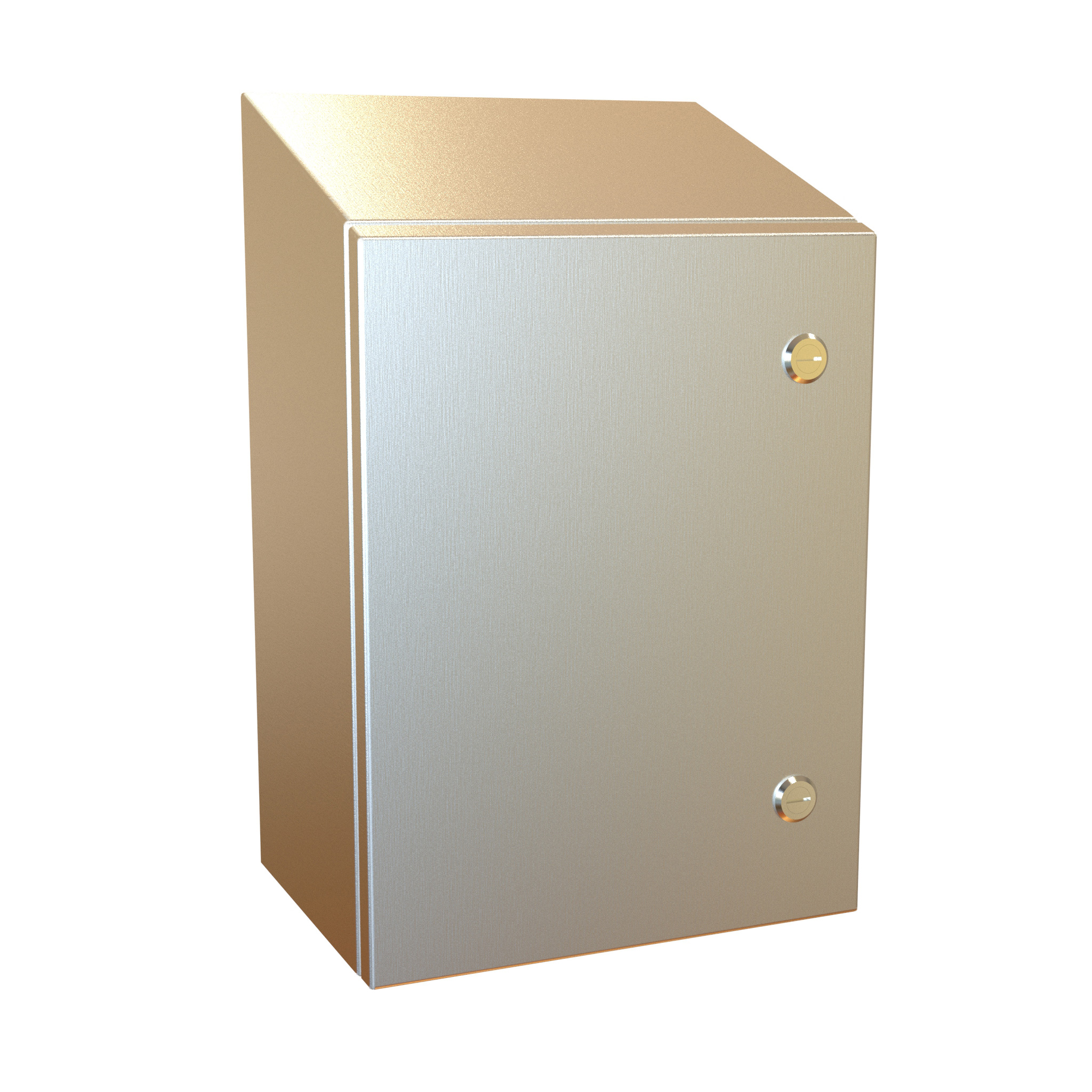

| ST161208SS | 16.00 | 18.89 | 12.00 | 8.00 | EP1612 | 14.20 | 10.20 | $728.44In stockST161208SS | Buy now |

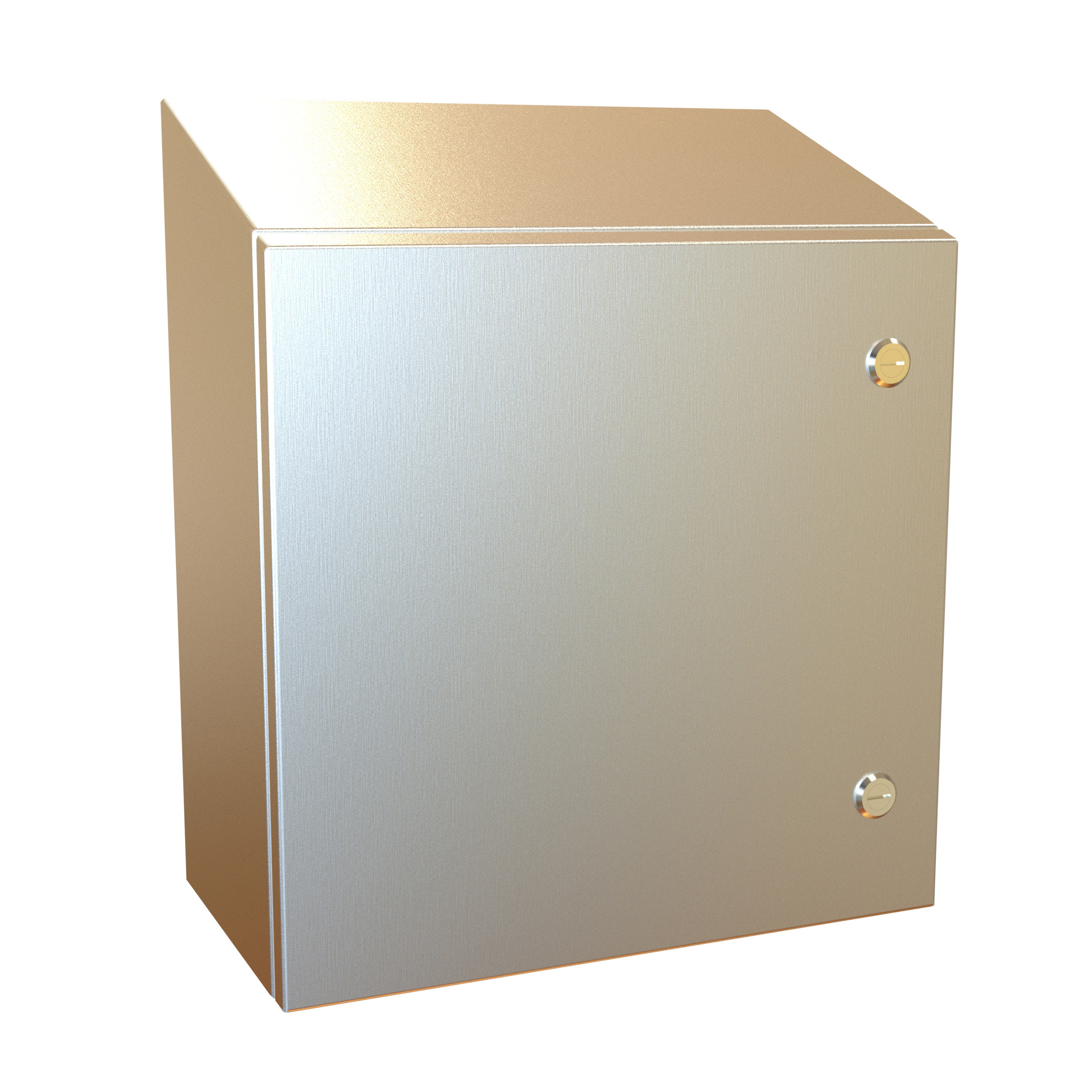

| ST161608SS | 16.00 | 18.89 | 16.00 | 8.00 | EP1616 | 14.20 | 14.20 | $801.02In stockST161608SS | Buy now |

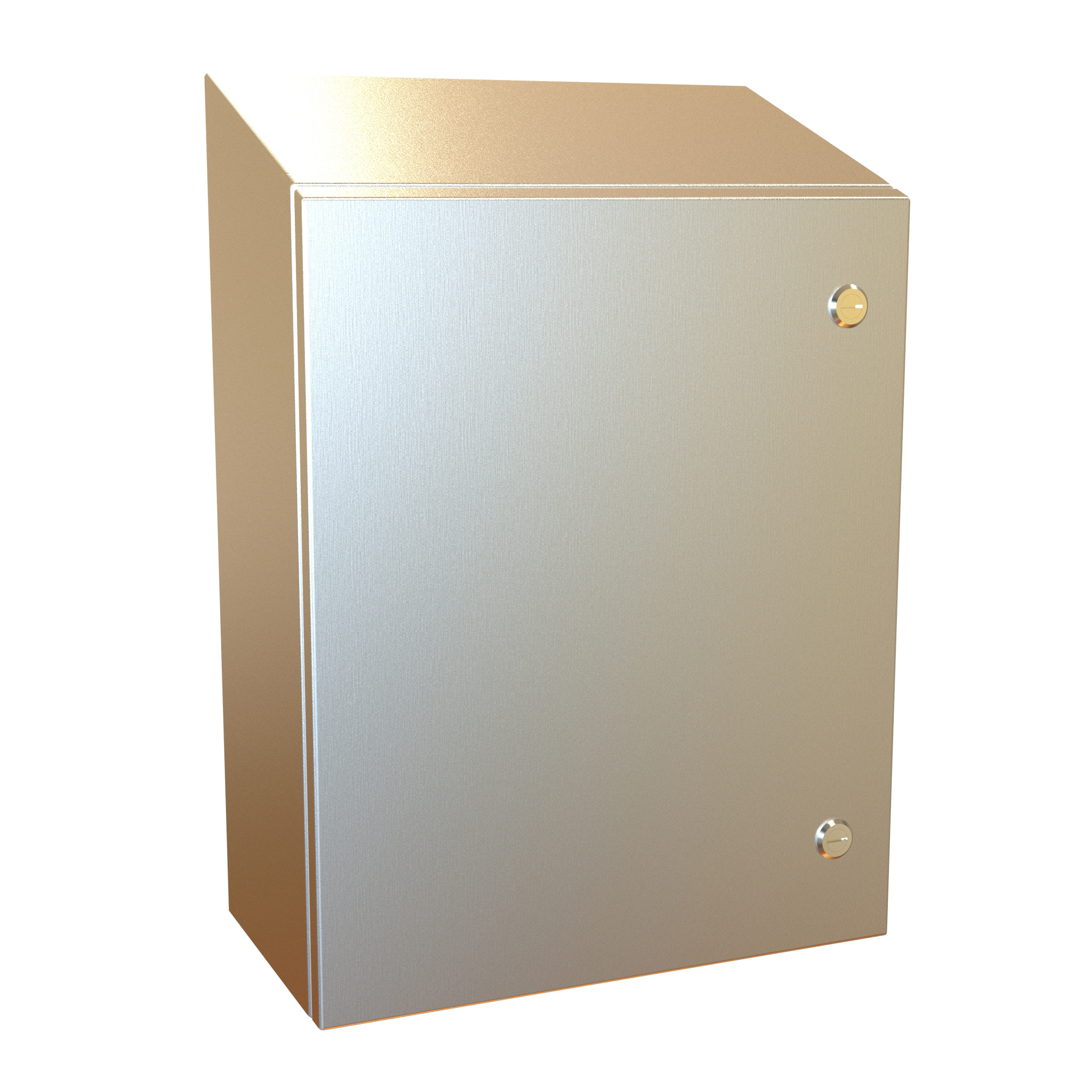

| ST201608SS | 20.00 | 22.89 | 16.00 | 8.00 | EP2016 | 18.20 | 14.20 | $885.96In stockST201608SS | Buy now |

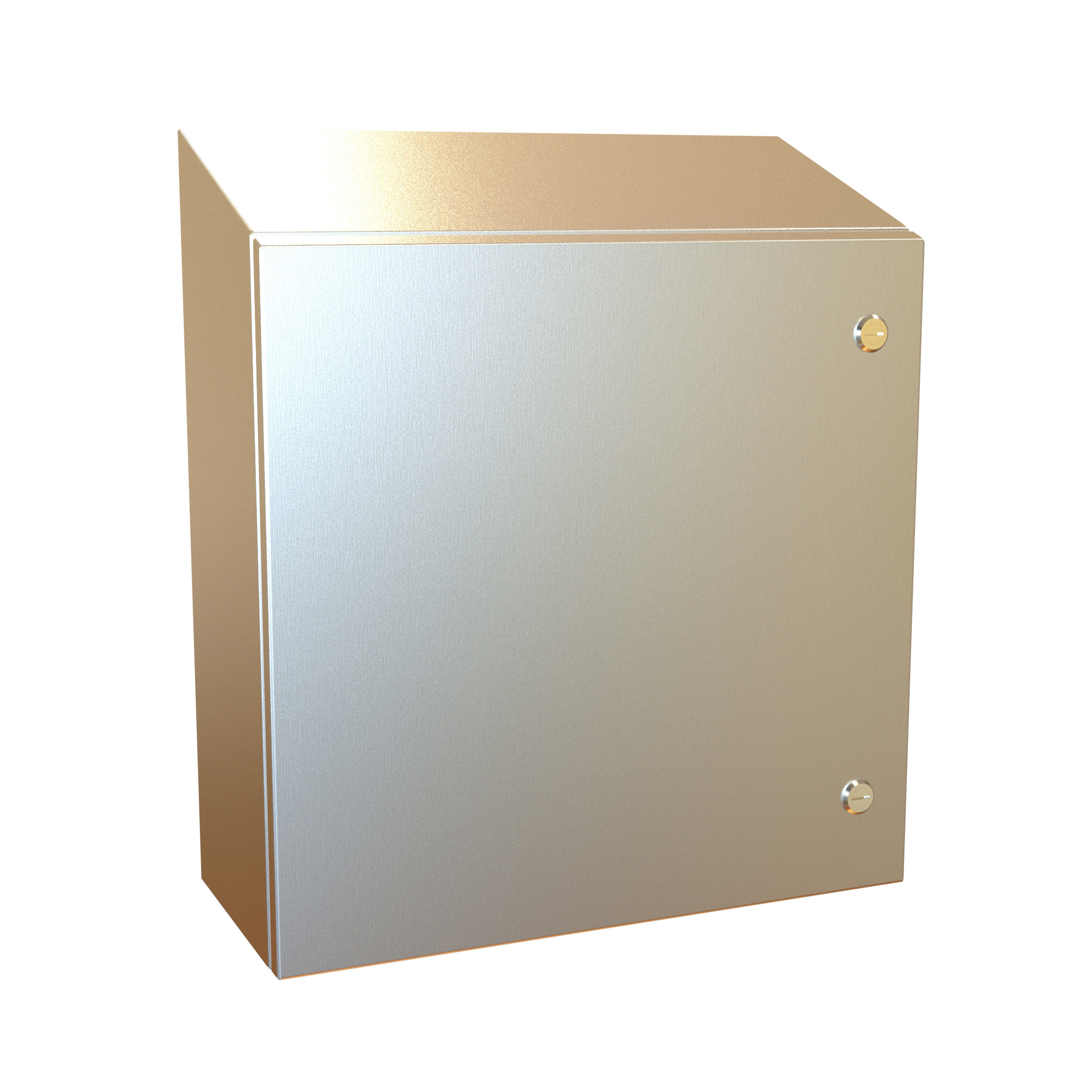

| ST202008SS | 20.00 | 22.89 | 20.00 | 8.00 | EP2020 | 18.20 | 18.20 | $1,011.76In stock | Buy now |
| ST242008SS | 24.00 | 26.89 | 20.00 | 8.00 | EP2420 | 22.20 | 18.20 | $1,076.26In stock | Buy now |
| ST242408SS | 24.00 | 26.89 | 24.00 | 8.00 | EP2424 | 22.20 | 22.20 | $1,181.09In stock | Buy now |
| ST302408SS | 30.00 | 32.89 | 24.00 | 8.00 | EP3024 | 28.20 | 22.20 | $1,218.72In stock | Buy now |
| ST303008SS | 30.00 | 32.89 | 30.00 | 8.00 | EP3030 | 28.20 | 28.20 | $1,530.54In stockST303008SS | Buy now |
| ST363008SS | 36.00 | 38.89 | 30.00 | 8.00 | EP3630 | 34.20 | 28.20 | $1,723.54In stock | Buy now |
| ST201612SS | 20.00 | 24.35 | 16.00 | 12.00 | EP2016 | 18.20 | 14.20 | $993.48In stockST201612SS | Buy now |
| ST202012SS | 20.00 | 24.35 | 20.00 | 12.00 | EP2020 | 18.20 | 18.20 | $1,162.28In stock | Buy now |
| ST242412SS | 24.00 | 28.35 | 24.00 | 12.00 | EP2424 | 22.20 | 22.20 | $1,343.99In stock | Buy now |

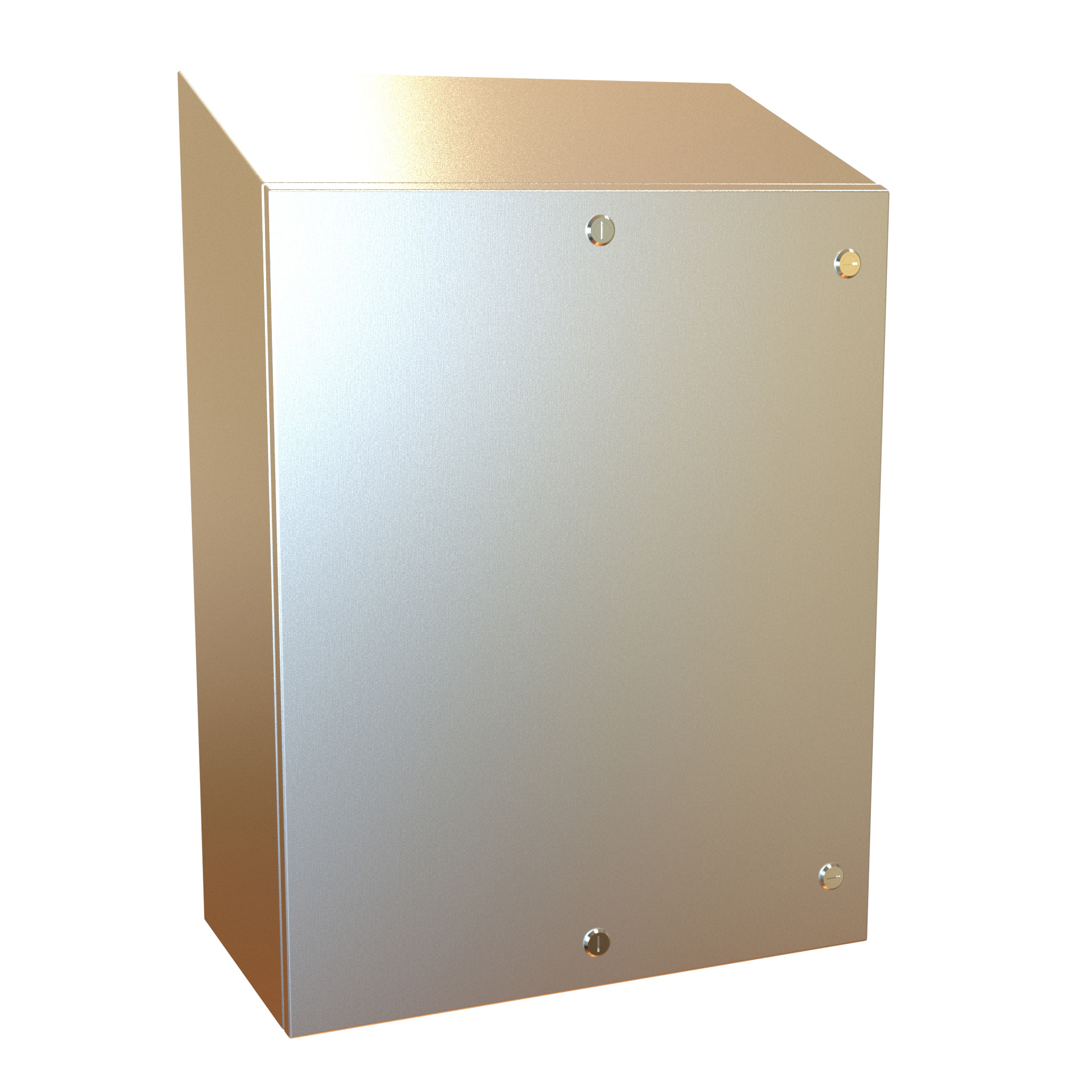

| ST302412SS | 30.00 | 34.35 | 24.00 | 12.00 | EP3024 | 28.20 | 22.20 | $1,523.56In stock | Buy now |

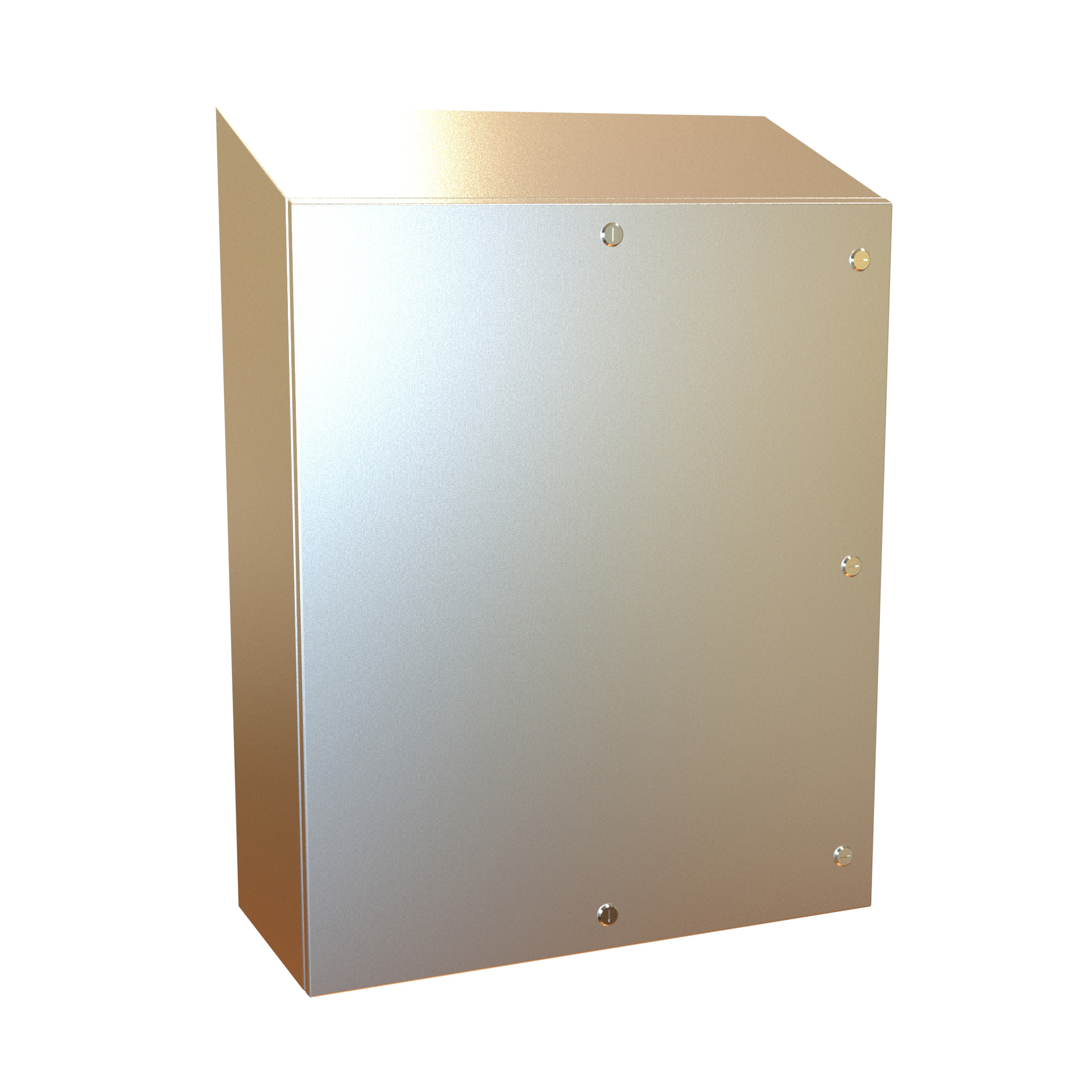

| ST363012SS | 36.00 | 40.35 | 30.00 | 12.00 | EP3630 | 34.20 | 28.20 | $1,940.73In stock | Buy now |

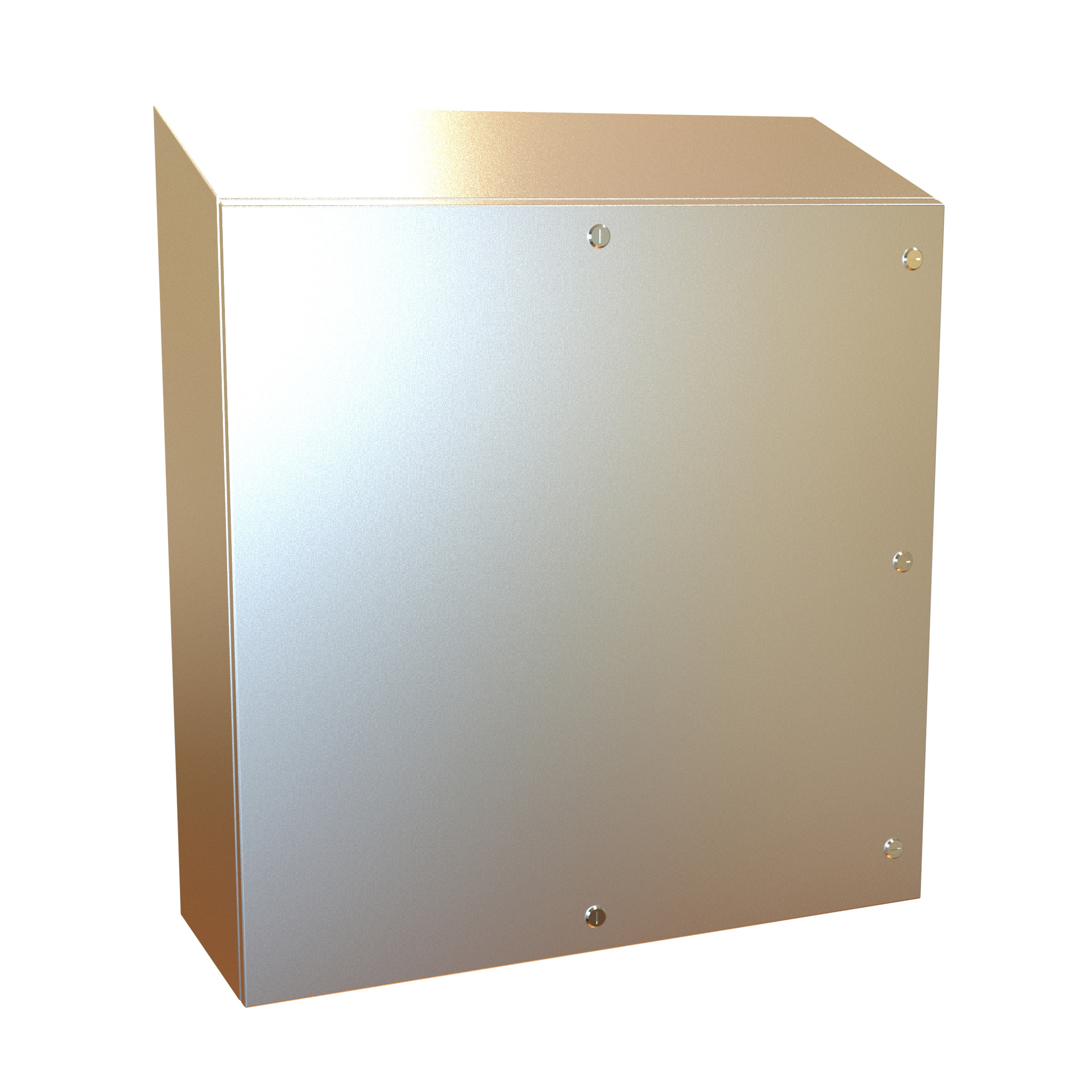

| ST363612SS | 36.00 | 40.35 | 36.00 | 12.00 | EP3636 | 34.20 | 34.20 | $2,182.64BackorderST363612SS | Buy now |
| ST483612SS | 48.00 | 52.35 | 36.00 | 12.00 | EP4836 | 46.20 | 34.20 | $2,640.13In stock | Buy now |

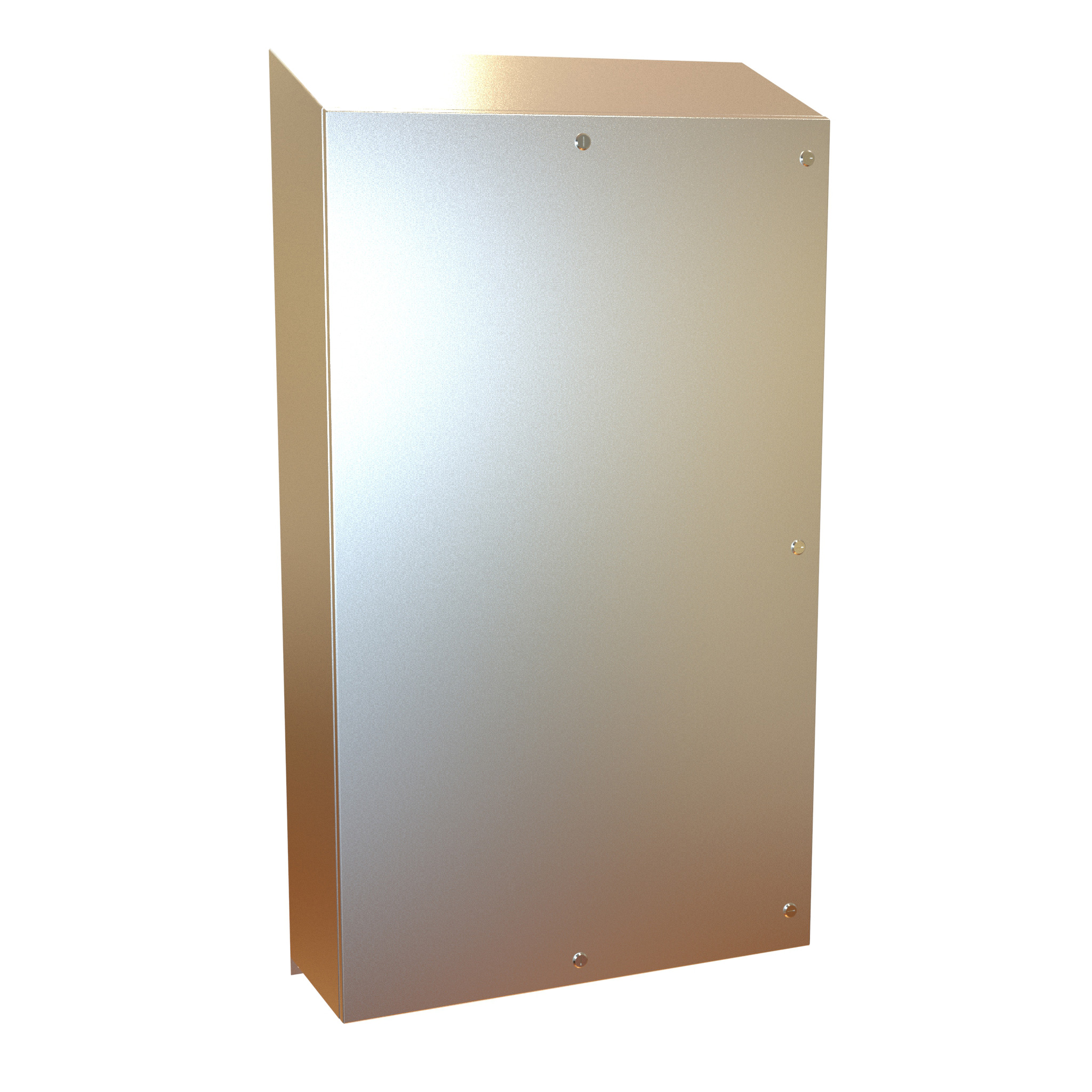

| ST603612SS | 60.00 | 64.35 | 36.00 | 12.00 | EP6036 | 58.20 | 34.20 | $3,251.92In stock | Buy now |
| ST363016SS | 36.00 | 41.80 | 30.00 | 16.00 | EP3630 | 34.20 | 28.20 | $2,161.14In stock | Buy now |
| ST483616SS | 48.00 | 53.80 | 36.00 | 16.00 | EP4836 | 46.20 | 34.20 | $2,939.57In stock | Buy now |
| ST603616SS | 60.00 | 65.80 | 36.00 | 16.00 | EP6036 | 58.20 | 34.20 | $3,621.78In stock | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Sloped top prevents water from resting on top as well as providing potential for controls mounting.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
Standards
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12 Mounting foot kit required to maintain UL/CSA external mounting requirements. Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
- ■Mounting foot kit required to maintain UL/CSA external mounting requirements.
- ■Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
- ■Complies with NEMA 3R, 4, 4X, 12 and 13 IEC 60529, IP 66
- ■NEMA 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP 66
Construction
- ■Formed 14 gauge 304 stainless steel.
- ■Continuously welded seams ground smooth.
- ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options. Please note that several smaller sizes of this series will no longer feature C channel stiffener/door brackets – see drawing for details. Removing this feature allows for more usable door space. Inventory will take some time to be converted to the new design. Note: If desired, the C channel door brackets can be added as a special order modification.
- ■Please note that several smaller sizes of this series will no longer feature C channel stiffener/door brackets – see drawing for details. Removing this feature allows for more usable door space.
- ■Inventory will take some time to be converted to the new design.
- ■Note: If desired, the C channel door brackets can be added as a special order modification.
- ■Formed lip on enclosure to exclude flowing liquids and contaminants.
- ■Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
- ■Doors may be easily removed for modifications and are interchangeable.
- ■Seamless poured-in place gasket.
- ■Collar studs provided for mounting inner panel.
- ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- ■Bonding stud provided on door and grounding stud installed in enclosure.
- ■Hinges are 304 stainless.
- ■Stainless steel hinge pins and quarter turns.
- ■Door alignment guide provided on 36" wide enclosures.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
Documents
Additional information
Part Details
| Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|---|
| ST161208SS | 16.00 | 18.89 | 12.00 | 8.00 | EP1612 | 14.20 | 10.20 |
| ST161608SS | 16.00 | 18.89 | 16.00 | 8.00 | EP1616 | 14.20 | 14.20 |
| ST201608SS | 20.00 | 22.89 | 16.00 | 8.00 | EP2016 | 18.20 | 14.20 |
| ST202008SS | 20.00 | 22.89 | 20.00 | 8.00 | EP2020 | 18.20 | 18.20 |
| ST242008SS | 24.00 | 26.89 | 20.00 | 8.00 | EP2420 | 22.20 | 18.20 |
| ST242408SS | 24.00 | 26.89 | 24.00 | 8.00 | EP2424 | 22.20 | 22.20 |
| ST302408SS | 30.00 | 32.89 | 24.00 | 8.00 | EP3024 | 28.20 | 22.20 |
| ST303008SS | 30.00 | 32.89 | 30.00 | 8.00 | EP3030 | 28.20 | 28.20 |
| ST363008SS | 36.00 | 38.89 | 30.00 | 8.00 | EP3630 | 34.20 | 28.20 |
| ST201612SS | 20.00 | 24.35 | 16.00 | 12.00 | EP2016 | 18.20 | 14.20 |
| ST202012SS | 20.00 | 24.35 | 20.00 | 12.00 | EP2020 | 18.20 | 18.20 |
| ST242412SS | 24.00 | 28.35 | 24.00 | 12.00 | EP2424 | 22.20 | 22.20 |
| ST302412SS | 30.00 | 34.35 | 24.00 | 12.00 | EP3024 | 28.20 | 22.20 |
| ST363012SS | 36.00 | 40.35 | 30.00 | 12.00 | EP3630 | 34.20 | 28.20 |
| ST363612SS | 36.00 | 40.35 | 36.00 | 12.00 | EP3636 | 34.20 | 34.20 |
| ST483612SS | 48.00 | 52.35 | 36.00 | 12.00 | EP4836 | 46.20 | 34.20 |
| ST603612SS ¹ | 60.00 | 64.35 | 36.00 | 12.00 | EP6036 | 58.20 | 34.20 |
| ST363016SS | 36.00 | 41.80 | 30.00 | 16.00 | EP3630 | 34.20 | 28.20 |
| ST483616SS | 48.00 | 53.80 | 36.00 | 16.00 | EP4836 | 46.20 | 34.20 |
| ST603616SS ¹ | 60.00 | 65.80 | 36.00 | 16.00 | EP6036 | 58.20 | 34.20 |
