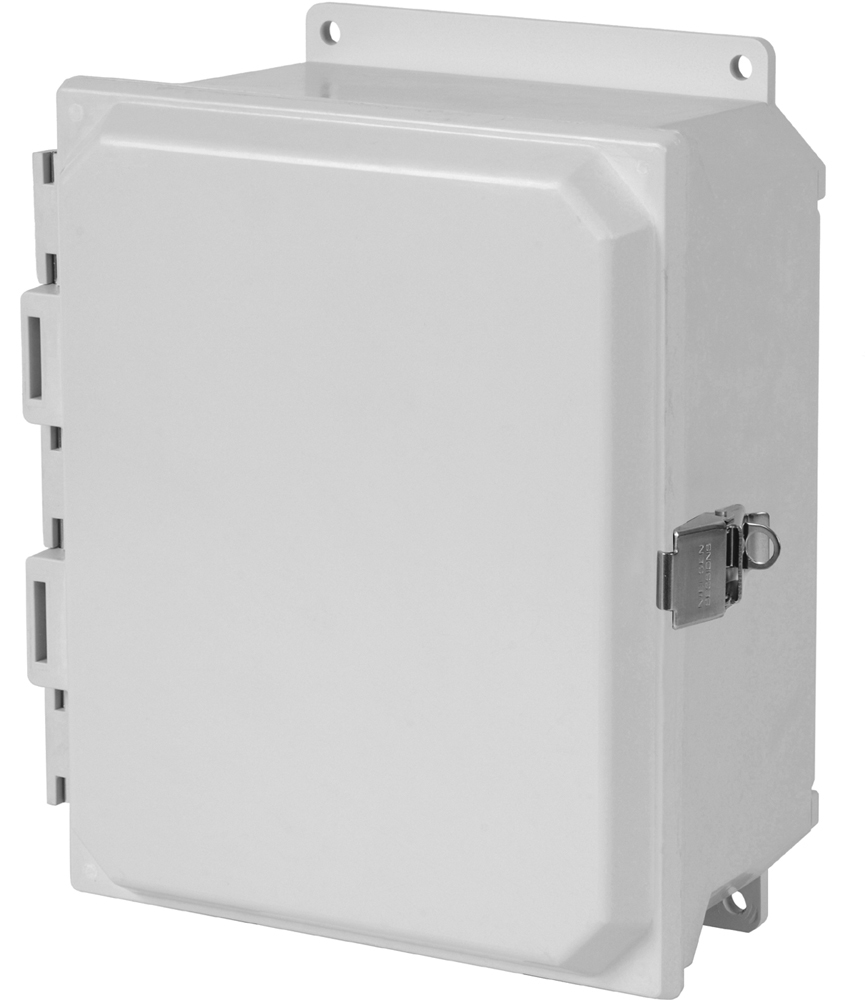

Type 4X Polyester Junction Box (Solid and Clear Cover) PJU Series

Type 4X Polyester Junction Box (Solid and Clear Cover) · PJU Series

Brand: Hammond Manufacturing · 42 part numbers

Continuous Hinge Door with Snap Latches

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.
  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66

from $5.35

40 of 42 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PJU Series part number

Filter 34 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

34 of 34 part numbers · 32 priced online

PJU664CCL

Non Met Hng Snapl Clr Cvr Feet

$126.53In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PJU664LFPJU664LPJU664CCLFPJU664CCL6.056.274.134.884.8814R0505$129.39In stockPJU664CCLFBuy now
PJU864LFPJU864LPJU864CCLFPJU864CCL8.056.274.136.754.8814R0705$121.29In stockPJU864LFBuy now
PJU1084LFPJU1084LPJU1084CCLFPJU1084CCL10.058.274.138.756.8814R0907$130.56In stockPJU1084LFBuy now

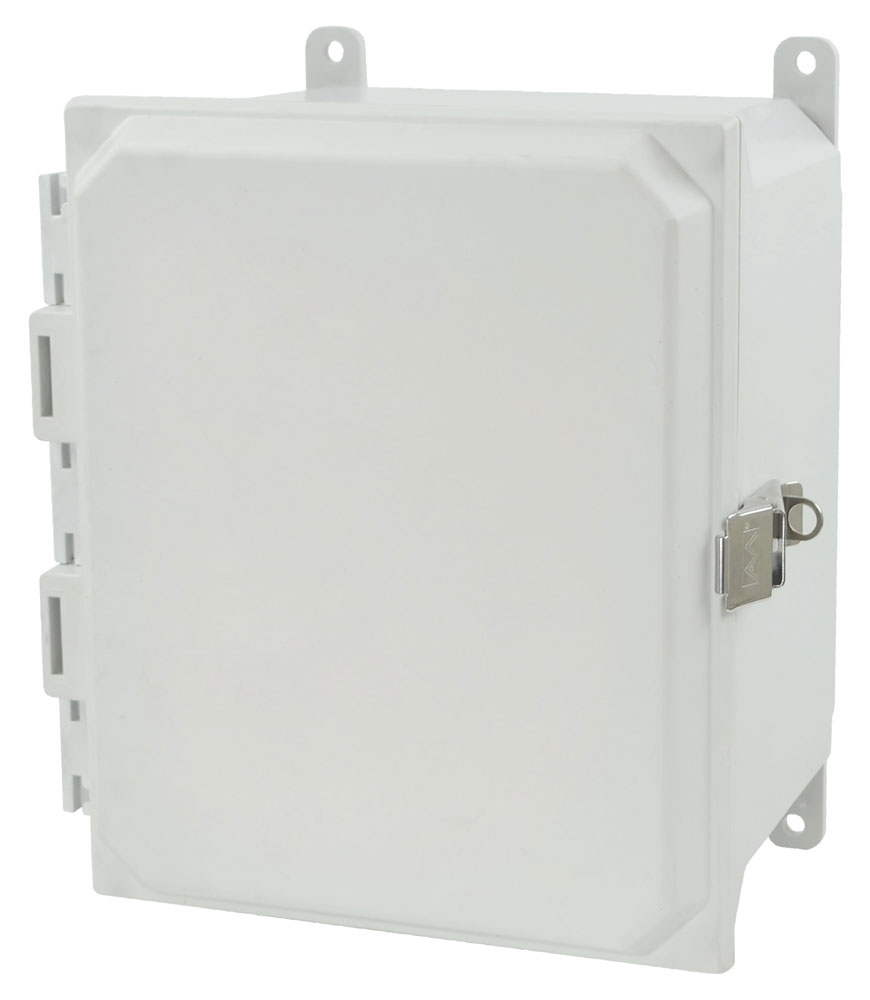

PJU1086LFPJU1086LPJU1086CCLFPJU1086CCL10.058.276.138.756.8814R0907$132.70In stockPJU1086LFBuy now
PJU12106LFPJU12106LPJU12106CCLFPJU12106CCL12.0510.276.1310.758.8814R1109$155.33In stockPJU12106LFBuy now
PJU14126LFPJU14126LPJU14126CCLFPJU14126CCL14.0512.276.1312.7510.8814R1311$184.89In stockPJU14126LFBuy now
PJU16148LFPJU16148LPJU16148CCLFPJU16148CCL16.0514.278.1314.7512.8814R1513$209.65In stockPJU16148LFBuy now
PJU181610LFPJU181610L18.3016.5210.1316.8814.88P1868$309.09In stockPJU181610LFBuy now
PJU201610LFPJU201610LPJU201610CCLFPJU201610CCL20.5016.2710.1318.4414.44P2068$434.59In stockPJU201610LFBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 1, 2, 3, 4, 4X, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • ■Enhanced UV inhibitors protect against outdoor weathering.
  • ■Standard JIC sizes under 18" x 16".
  • ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • ■Stainless steel draw type "snap latch" door fasteners.
  • ■Door fasteners include a provision for padlocking.

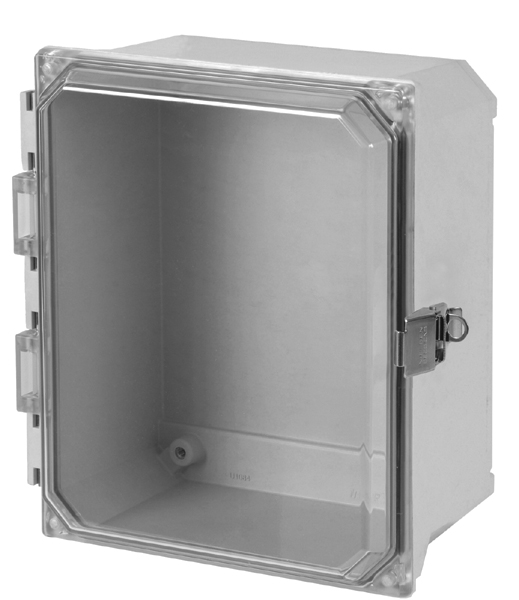

  • ■Enclosure available with clear Polycarbonate cover to 16" x 14".
  • ■Molded hinge with stainless steel pin.
  • ■Captive oil resistant gasket provides a positive seal.
  • ■Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
  • ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • ■Impact index of 6.78J (5 ft/lb).
  • ■For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • ■Fiberglass polyester material has a gray finish.
  • ■Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.

Documents

Specification Sheet

Additional information

Part Details

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PJU664LFPJU664LPJU664CCLFPJU664CCL6.056.274.134.884.8814R0505
PJU864LFPJU864LPJU864CCLFPJU864CCL8.056.274.136.754.8814R0705
PJU1084LFPJU1084LPJU1084CCLFPJU1084CCL10.058.274.138.756.8814R0907
PJU1086LFPJU1086LPJU1086CCLFPJU1086CCL10.058.276.138.756.8814R0907
PJU12106LFPJU12106LPJU12106CCLFPJU12106CCL12.0510.276.1310.758.8814R1109
PJU14126LFPJU14126LPJU14126CCLFPJU14126CCL14.0512.276.1312.7510.8814R1311
PJU16148LFPJU16148LPJU16148CCLFPJU16148CCL16.0514.278.1314.7512.8814R1513
PJU181610LFPJU181610L18.3016.5210.1316.8814.88P1868
PJU201610LFPJU201610LPJU201610CCLFPJU201610CCL20.5016.2710.1318.4414.44P2068
