PC Non Met Latch Clr Feet
$80.49Backorder
Buy now

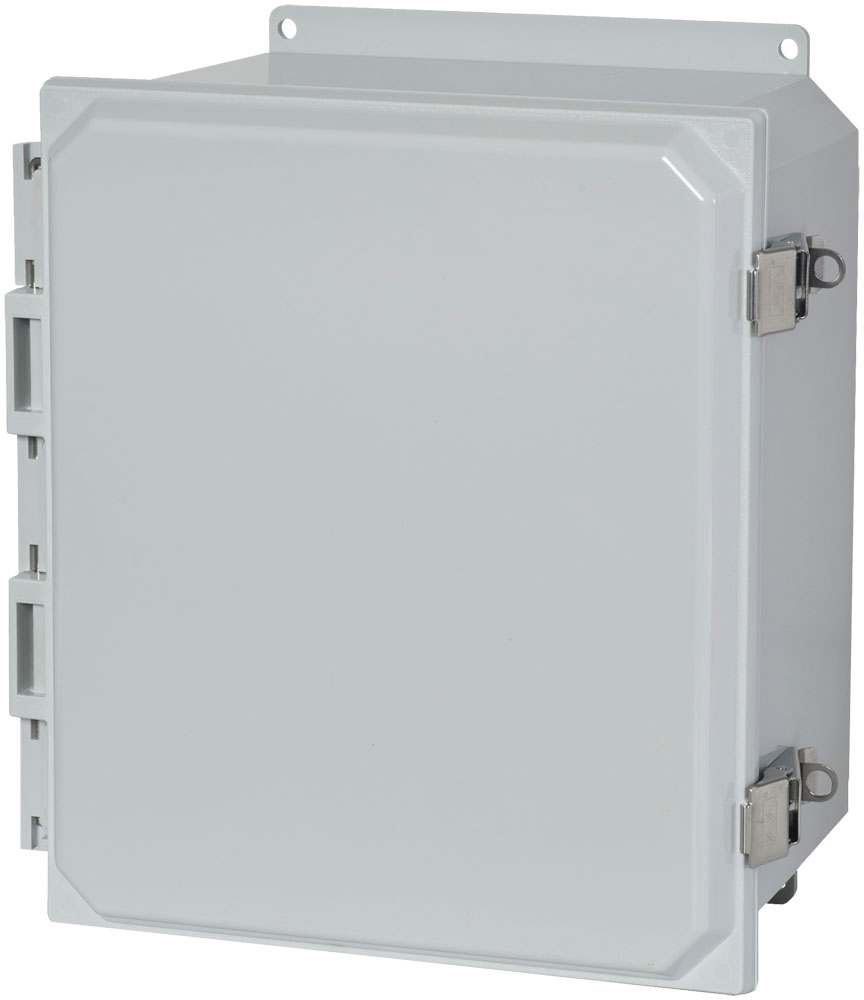

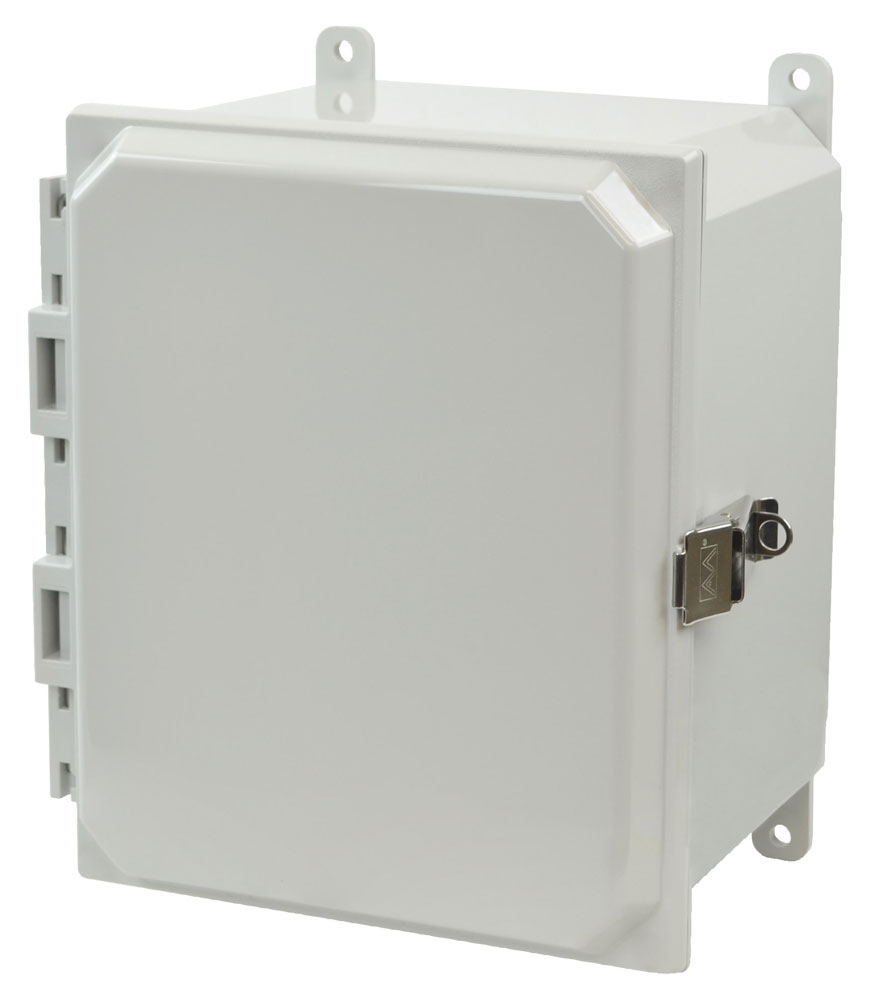

Type 4X Polycarbonate Junction Box (Solid and Clear Cover) · PCJ Series
Brand: Hammond Manufacturing · 65 part numbers
Metal Latch Cover
- ■Designed to insulate and protect controls and components in both indoor and outdoor conditions
- ■Ideal for industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants
- ■UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
- ■cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- ■Complies with NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 IEC 60529, IP66 Flammability V-O per UL 94 UV rating (f1) per UL746C - UV stabilized for outdoor use Compliant with RoHS directive
- ■NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
from $7.52
59 of 65 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your PCJ Series part number
Filter 54 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
54 of 54 part numbers · 48 priced online
PC Non Met Latch Clr Flange
$84.49Backorder
Buy nowPC Non Met Latch Feet
$73.06In stock
Buy nowPC Non Met Latch Flange
$76.91Backorder
Buy nowPC Non Met Latch Clr Feet
$85.69In stock
Buy nowPC Non Met Latch Clr Flange
$89.98In stock
Buy nowPC Non Met Latch Feet
$77.90In stock
Buy nowPC Non Met Latch Flange
$81.80In stock
Buy nowPC Non Met Latch Clr Feet
$90.93In stock
Buy nowPC Non Met Latch Clr Flange
$95.50In stock
Buy nowPC Non Met Latch Feet
$82.67Backorder
Buy nowPC Non Met Latch Flange
QuoteRequest a quote
PC Non Met Latch Clr Feet
$93.79Backorder
Buy nowPC Non Met Latch Clr Flange
$98.48In stock
Buy nowPC Non Met Latch Feet
$85.25In stock
Buy nowPC Non Met Latch Flange
$89.54In stock
Buy nowPC Non Met Latch Clr Feet
$101.94In stock
Buy nowPC Non Met Latch Clr Flange
$107.06In stock
Buy nowPC Non Met Latch Feet
$92.69In stock
Buy nowPC Non Met Latch Flange
$97.37In stock
Buy nowPC Non Met Latch Clr Feet
$115.40Backorder
Buy nowPC Non Met Latch Clr Flange
$121.29In stock
Buy nowPC Non Met Latch Feet
$105.71In stock
Buy nowPC Non Met Latch Flange
$110.99In stock
Buy nowPC Non Met Latch Clr Feet
$123.40In stock
Buy nowPC Non Met Latch Clr Flange
$129.87In stock
Buy nowPC Non Met Latch Feet
$113.18In stock
Buy nowPC Non Met Latch Flange
$119.17In stock
Buy nowPC Non Met Latch Clr Feet
$162.36Backorder
Buy nowPC Non Met Latch Clr Flange
$170.47In stock
Buy nowPC Non Met Latch Feet
$148.93In stock
Buy nowPC Non Met Latch Flange
$156.35In stock
Buy nowPC Non Met Latch Clr Feet
$194.81In stock
Buy nowPC Non Met Latch Clr Flange
QuoteRequest a quote
PC Non Met Latch Feet
QuoteRequest a quote
PC Non Met Latch Flange
$187.70In stock
Buy nowPC Non Met Latch Clr Feet
$272.28Backorder
Buy nowPC Non Met Latch Clr Flange
$281.53In stock
Buy nowPC Non Met Latch Feet
$256.95Backorder
Buy nowPC Non Met Latch Flange
$265.50In stock
Buy nowPC Non Met Latch Clr Feet
$52.51In stock
Buy nowPC Non Met Latch Feet
QuoteRequest a quote
PC Non Met Latch Clr Feet
$76.76In stock
Buy nowPC Non Met Latch Clr Flange
$80.56In stock
Buy nowPC Non Met Latch Feet
$69.81In stock
Buy nowPC Non Met Latch Flange
QuoteRequest a quote
PC Non Met Latch Clr Feet
$79.61In stock
Buy nowPC Non Met Latch Clr Flange
$83.58Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Solid Cover · w/Flange · Part No. | Solid Cover · w/Feet · Part No. | Clear Cover · w/Flange · Part No. | Clear Cover · w/Feet · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · H | Optional Inner Panel · W | Optional Inner Panel · Part No. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PCJ443L | PCJ443CCL | 3.95 | 3.95 | 3.31 | 3.56 | 3.56 | PCJR0303 | $52.51In stockPCJ443CCL | Buy now | ||
| PCJ664LF | PCJ664L | PCJ664CCLF | PCJ664CCL | 5.93 | 6.16 | 3.98 | 4.81 | 4.81 | PCJR0505 | $69.81In stockPCJ664L | Buy now |
| PCJ864LF | PCJ864L | PCJ864CCLF | PCJ864CCL | 7.94 | 6.16 | 3.98 | 6.75 | 4.88 | PCJR0705 | $76.00In stockPCJ864LF | Buy now |
| PCJ884LF | PCJ884L | PCJ884CCLF | PCJ884CCL | 7.94 | 8.15 | 3.98 | 6.75 | 6.88 | PCJR0808 | $75.33In stockPCJ884L | Buy now |
| PCJ1082LF | PCJ1082L | PCJ1082CCLF | PCJ1082CCL | 9.93 | 8.15 | 2.70 | 8.75 | 6.88 | PCJR0907 | $76.91BackorderPCJ1082LF | Buy now |
| PCJ1084LF | PCJ1084L | PCJ1084CCLF | PCJ1084CCL | 9.93 | 8.15 | 3.98 | 8.75 | 6.88 | PCJR0907 | $81.80In stockPCJ1084LF | Buy now |
| PCJ1086LF | PCJ1086L | PCJ1086CCLF | PCJ1086CCL | 9.93 | 8.15 | 5.98 | 8.75 | 6.88 | PCJR0907 | $82.67BackorderPCJ1086L | Buy now |
| PCJ12104LF | PCJ12104L | PCJ12104CCLF | PCJ12104CCL | 11.92 | 10.15 | 3.98 | 10.75 | 8.88 | PCJR1109 | $89.54In stockPCJ12104LF | Buy now |
| PCJ12106LF | PCJ12106L | PCJ12106CCLF | PCJ12106CCL | 11.92 | 10.15 | 5.98 | 10.75 | 8.88 | PCJR1109 | $97.37In stockPCJ12106LF | Buy now |
| PCJ12126LF | PCJ12126L | PCJ12126CCLF | PCJ12126CCL | 11.92 | 12.16 | 5.98 | 10.75 | 10.88 | PCJR1111 | $110.99In stockPCJ12126LF | Buy now |
| PCJ14126LF | PCJ14126L | PCJ14126CCLF | PCJ14126CCL | 13.94 | 12.16 | 5.98 | 12.75 | 10.88 | PCJR1311 | $119.17In stockPCJ14126LF | Buy now |
| PCJ16148LF | PCJ16148L | PCJ16148CCLF | PCJ16148CCL | 15.98 | 13.98 | 7.81 | 14.75 | 12.88 | 14R1513 | $156.35In stockPCJ16148LF | Buy now |
| PCJ181610LF | PCJ181610L | PCJ181610CCLF | PCJ181610CCL | 18.04 | 16.04 | 9.81 | 16.88 | 14.88 | P1868 | $187.70In stockPCJ181610LF | Buy now |
| PCJ201610LF | PCJ201610L | PCJ201610CCLF | PCJ201610CCL | 19.76 | 15.98 | 10.13 | 18.88 | 14.88 | P2068 | $265.50In stockPCJ201610LF | Buy now |
Application
- ■Designed to insulate and protect controls and components in both indoor and outdoor conditions
- ■Ideal for industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants
Standards
- ■UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
- ■cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- ■Complies with NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 IEC 60529, IP66 Flammability V-O per UL 94 UV rating (f1) per UL746C - UV stabilized for outdoor use Compliant with RoHS directive
- ■NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP66
- ■Flammability V-O per UL 94
- ■UV rating (f1) per UL746C - UV stabilized for outdoor use
- ■Compliant with RoHS directive
Construction
- ■Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled
- ■Enhanced UV inhibitors protect against outdoor weathering
- ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included
- ■Stainless steel 316 screw fasteners
- ■Door fasteners include a provision for padlocking on Snap Latches

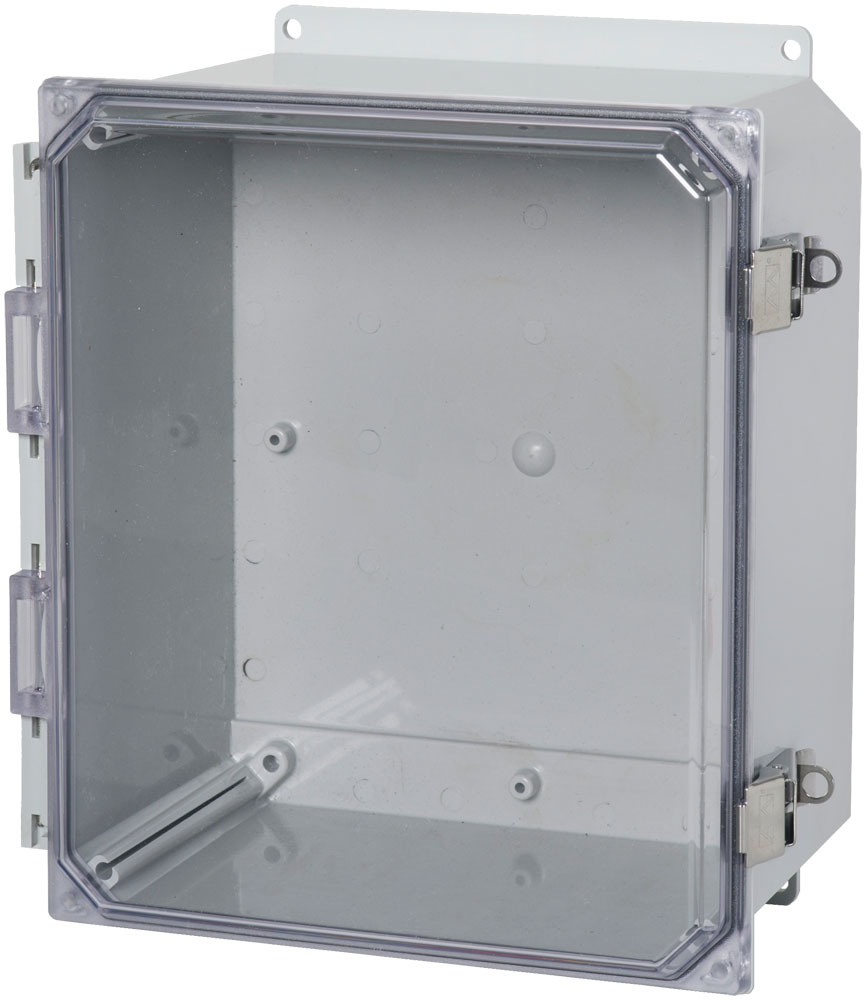

- ■Enclosure available with clear Polycarbonate cover
- ■Molded hinge
- ■Captive oil resistant gasket provides a positive seal
- ■Available with Polycarbonate flange or foot mount brackets for multi-directional mounting
- ■Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
- ■Impact index of 16 J (12 ft/lb)
- ■For corrosion resistance information, please refer to table in the Technical Information section
Finish
- ■Polycarbonate material has a light gray finish
- ■Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or fiberglass
Documents
Additional information
Part Details
| Solid Cover · w/Flange · Part No. | Solid Cover · w/Feet · Part No. | Clear Cover · w/Flange · Part No. | Clear Cover · w/Feet · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · H | Optional Inner Panel · W | Optional Inner Panel · Part No. |
|---|---|---|---|---|---|---|---|---|---|
| PCJ443L | PCJ443CCL | 3.95 | 3.95 | 3.31 | 3.56 | 3.56 | PCJR0303 | ||
| PCJ664LF | PCJ664L | PCJ664CCLF | PCJ664CCL | 5.93 | 6.16 | 3.98 | 4.81 | 4.81 | PCJR0505 |
| PCJ864LF | PCJ864L | PCJ864CCLF | PCJ864CCL | 7.94 | 6.16 | 3.98 | 6.75 | 4.88 | PCJR0705 |
| PCJ884LF | PCJ884L | PCJ884CCLF | PCJ884CCL | 7.94 | 8.15 | 3.98 | 6.75 | 6.88 | PCJR0808 |
| PCJ1082LF | PCJ1082L | PCJ1082CCLF | PCJ1082CCL | 9.93 | 8.15 | 2.70 | 8.75 | 6.88 | PCJR0907 |
| PCJ1084LF | PCJ1084L | PCJ1084CCLF | PCJ1084CCL | 9.93 | 8.15 | 3.98 | 8.75 | 6.88 | PCJR0907 |
| PCJ1086LF | PCJ1086L | PCJ1086CCLF | PCJ1086CCL | 9.93 | 8.15 | 5.98 | 8.75 | 6.88 | PCJR0907 |
| PCJ12104LF | PCJ12104L | PCJ12104CCLF | PCJ12104CCL | 11.92 | 10.15 | 3.98 | 10.75 | 8.88 | PCJR1109 |
| PCJ12106LF | PCJ12106L | PCJ12106CCLF | PCJ12106CCL | 11.92 | 10.15 | 5.98 | 10.75 | 8.88 | PCJR1109 |
| PCJ12126LF | PCJ12126L | PCJ12126CCLF | PCJ12126CCL | 11.92 | 12.16 | 5.98 | 10.75 | 10.88 | PCJR1111 |
| PCJ14126LF | PCJ14126L | PCJ14126CCLF | PCJ14126CCL | 13.94 | 12.16 | 5.98 | 12.75 | 10.88 | PCJR1311 |
| PCJ16148LF | PCJ16148L | PCJ16148CCLF | PCJ16148CCL | 15.98 | 13.98 | 7.81 | 14.75 | 12.88 | 14R1513 |
| PCJ181610LF | PCJ181610L | PCJ181610CCLF | PCJ181610CCL | 18.04 | 16.04 | 9.81 | 16.88 | 14.88 | P1868 |
| PCJ201610LF | PCJ201610L | PCJ201610CCLF | PCJ201610CCL | 19.76 | 15.98 | 10.13 | 18.88 | 14.88 | P2068 |
