NEMA12 Wrg Box 3.5X3.2
$56.44In stock
Buy now
Type 12 Mild Steel Junction Box · 1436/1438 Series
Brand: Hammond Manufacturing · 20 part numbers
Lift-Off Cover with Screws
- ■Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
from $56.44
20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1436/1438 Series part number
Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
20 of 20 part numbers · 20 priced online
NEMA12 Wrg Box 5.7X3.2
$64.46In stock
Buy now
NEMA12 Wrg Box 8.0X3.2
$72.42In stock
Buy now
NEMA12 Wrg Box 10.2X3.2
$80.41In stock
Buy now
NEMA12 Wrg Box 7.2X6.2
$88.77In stock
Buy now
NEMA12 Wrg Box 9.5X6.2
$102.01In stock
Buy now
NEMA12 Wrg Box 9.5X8.5
$118.13In stock
Buy now
NEMA12 Wrg Box 11.7X8.5
$137.49In stock
Buy now
NEMA12 Wrg Box 11.7X10.7
$173.73Backorder
Buy now
NEMA12 Wrg Box 14.0X10.7
$188.95In stock
Buy now
NEMA12 Wiring Bx 4X4
$74.13In stock
Buy now
NEMA12 Wiring Bx 6X4
$81.15In stock
Buy now
NEMA12 Wiring Bx 8X4
$91.48Backorder
Buy now
Pushbutton Box
$101.92In stock
Buy now
NEMA12 Wiring Bx 7.2X6.2
$109.03In stock
Buy now
NEMA12 Wiring Bx 9.5X6.2
$118.40In stock
Buy now
NEMA12 Wiring Bx 9.5X8.5
$137.49In stock
Buy now
NEMA12 Wiring Bx 11.7X8.5
$155.08Backorder
Buy now
NEMA12 Wiring Bx 11.7X10.7
$186.60In stock
Buy now
NEMA 12 Wiring Bx
$197.91In stock
Buy nowDimension tables (inches / mm)
Standard Depth Series (1436)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|

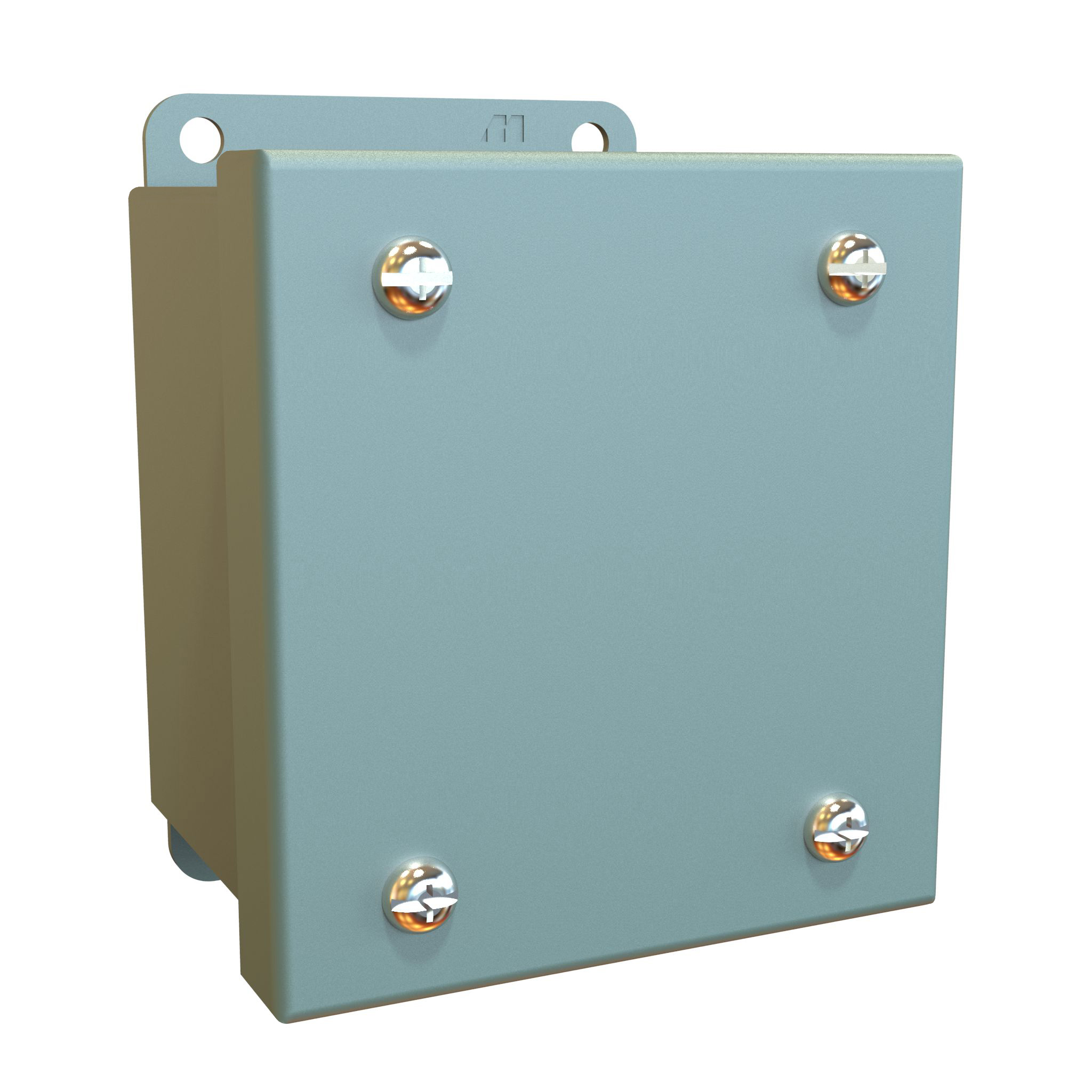

| 1436A | 3.50 | 3.25 | 2.75 | $56.44In stock | Buy now |

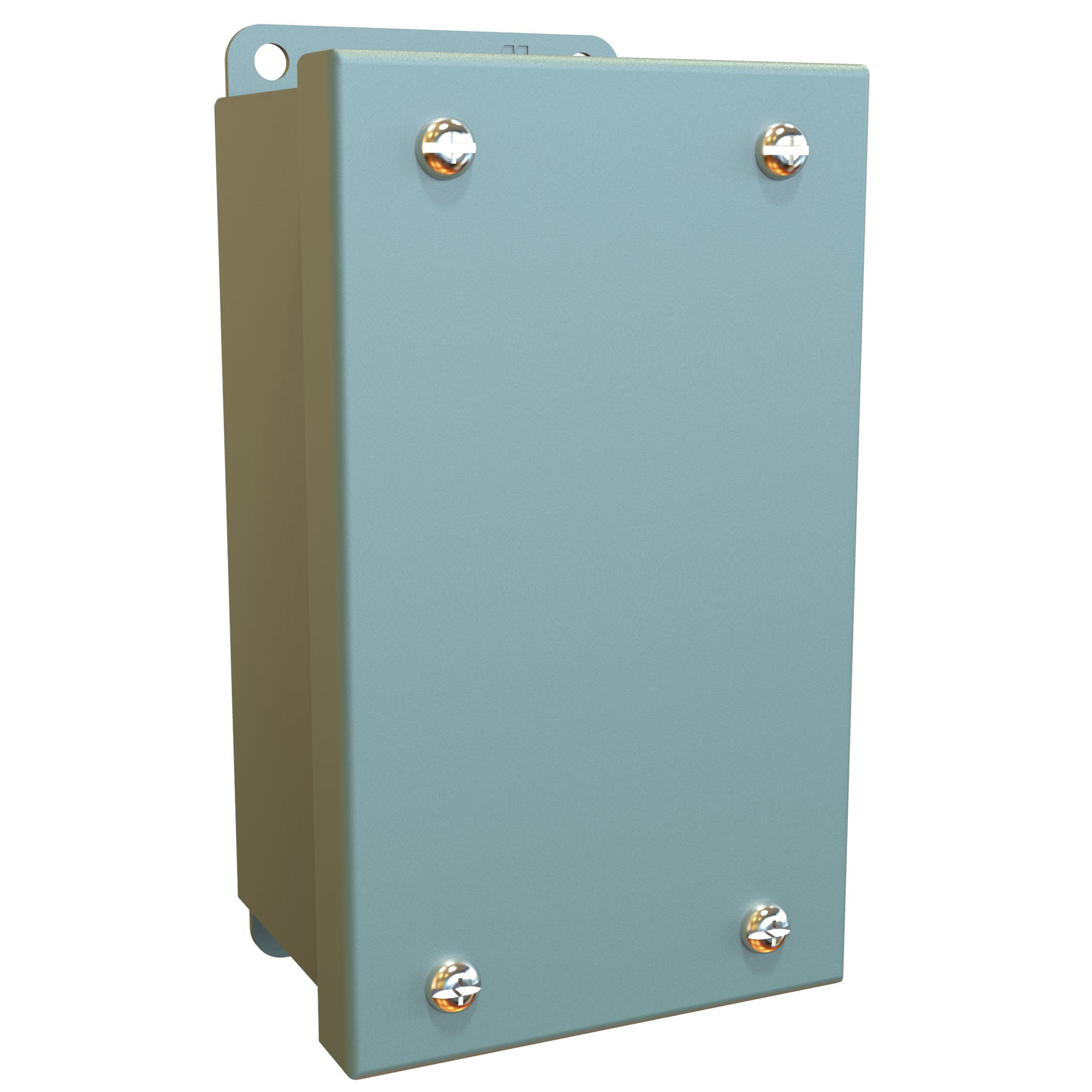

| 1436B | 5.75 | 3.25 | 2.75 | $64.46In stock | Buy now |

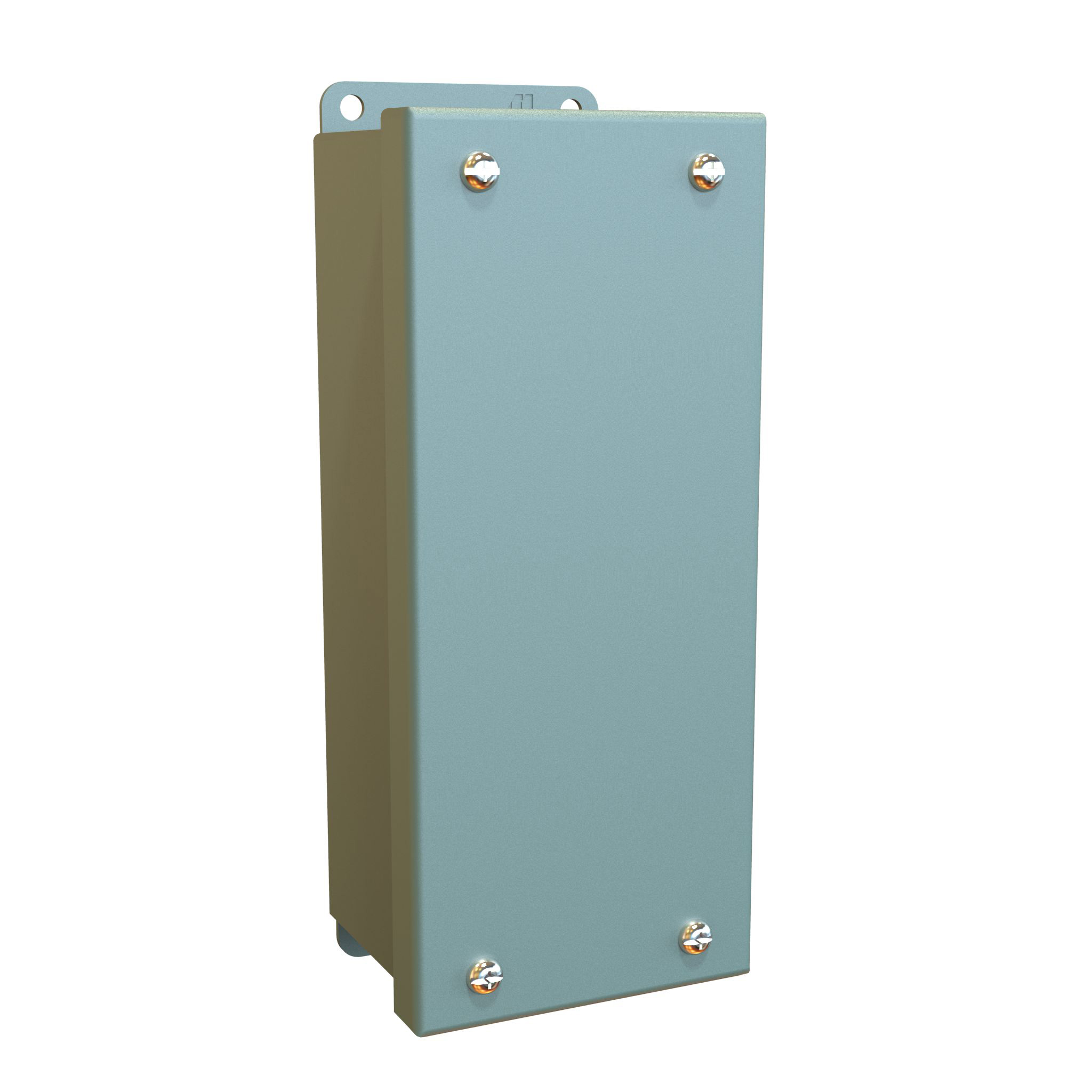

| 1436C | 8.00 | 3.25 | 2.75 | $72.42In stock | Buy now |

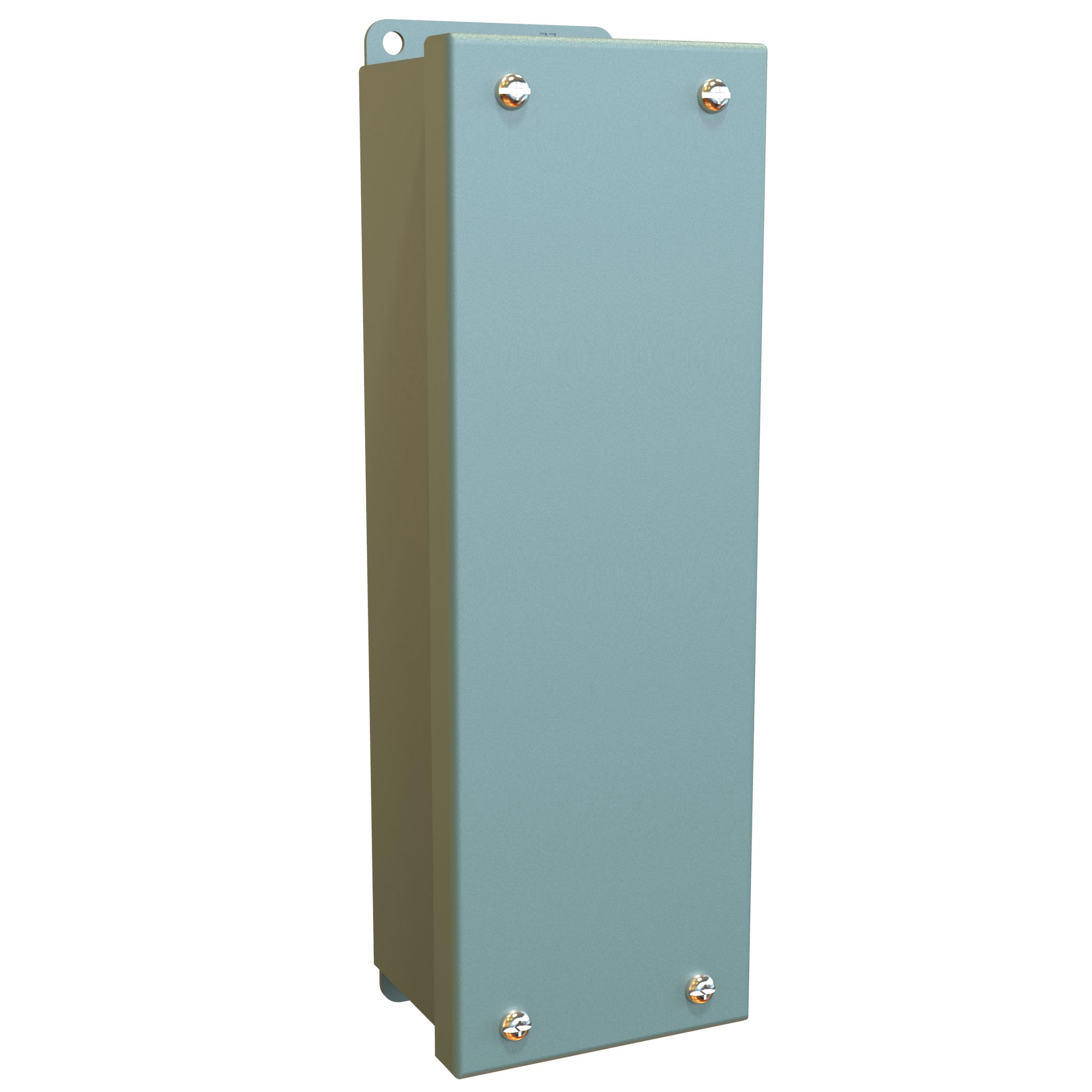

| 1436D | 10.25 | 3.25 | 2.75 | $80.41In stock | Buy now |

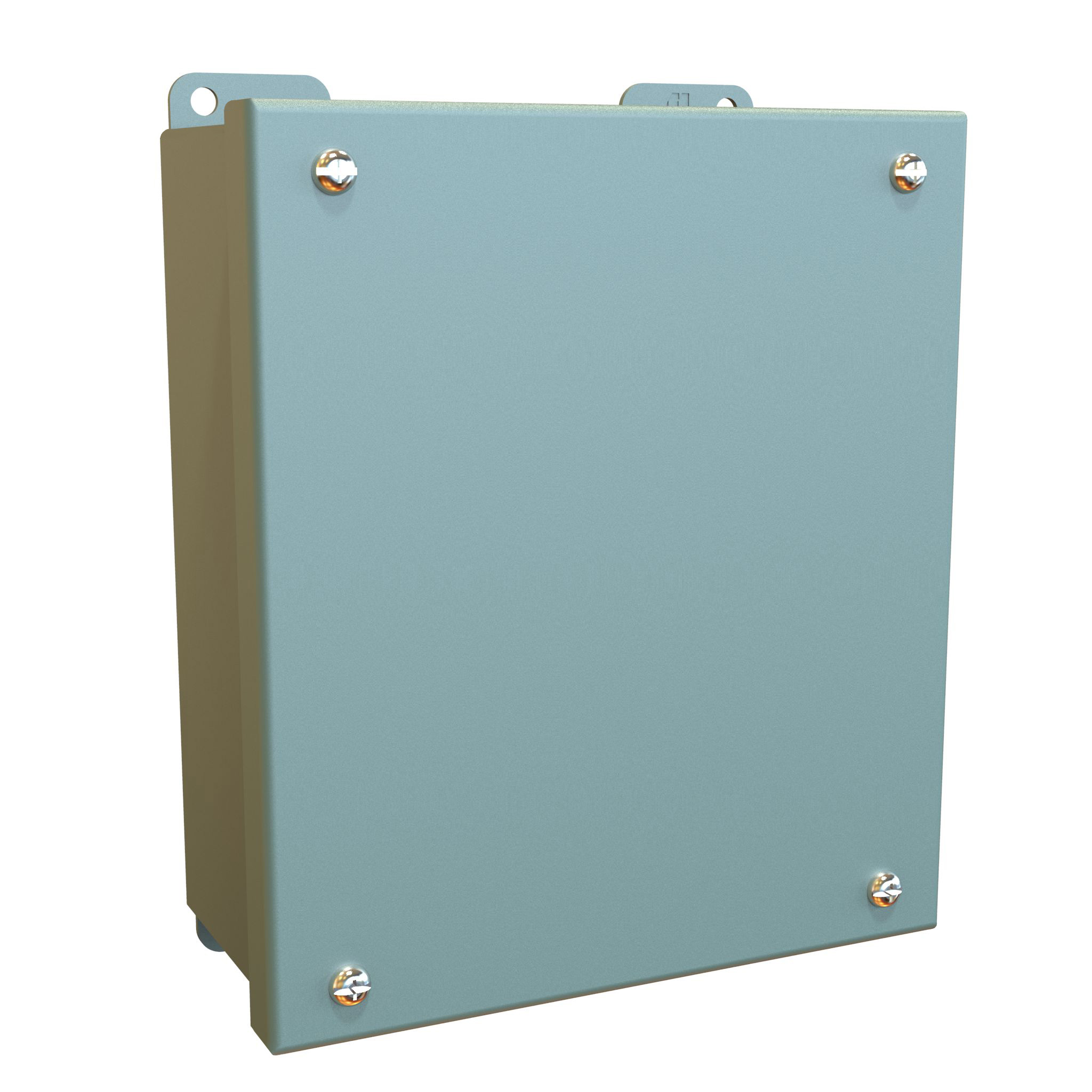

| 1436F | 7.25 | 6.25 | 3.00 | $88.77In stock | Buy now |

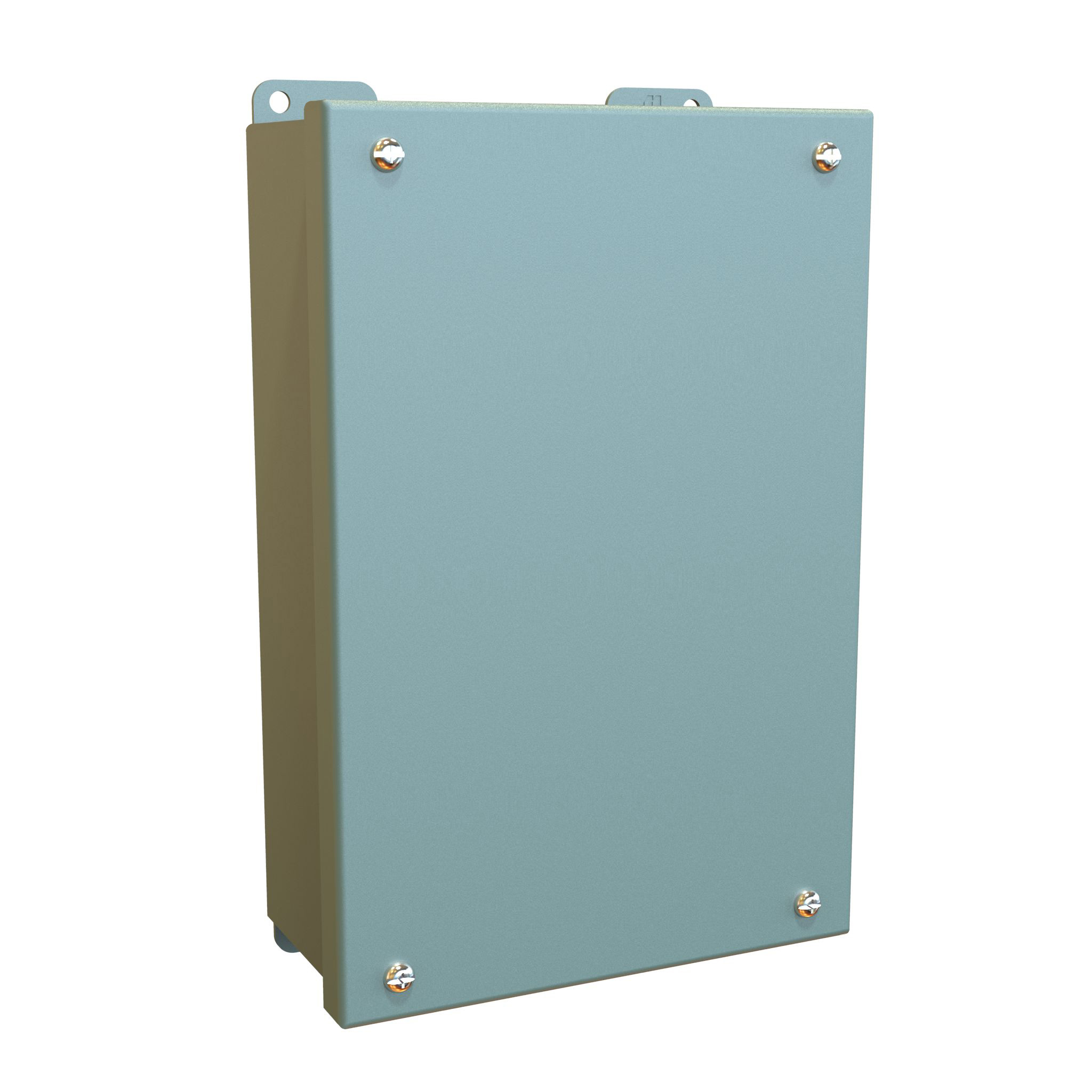

| 1436H | 9.50 | 6.25 | 3.00 | $102.01In stock | Buy now |
| 1436K | 9.50 | 8.50 | 3.00 | $118.13In stock | Buy now |

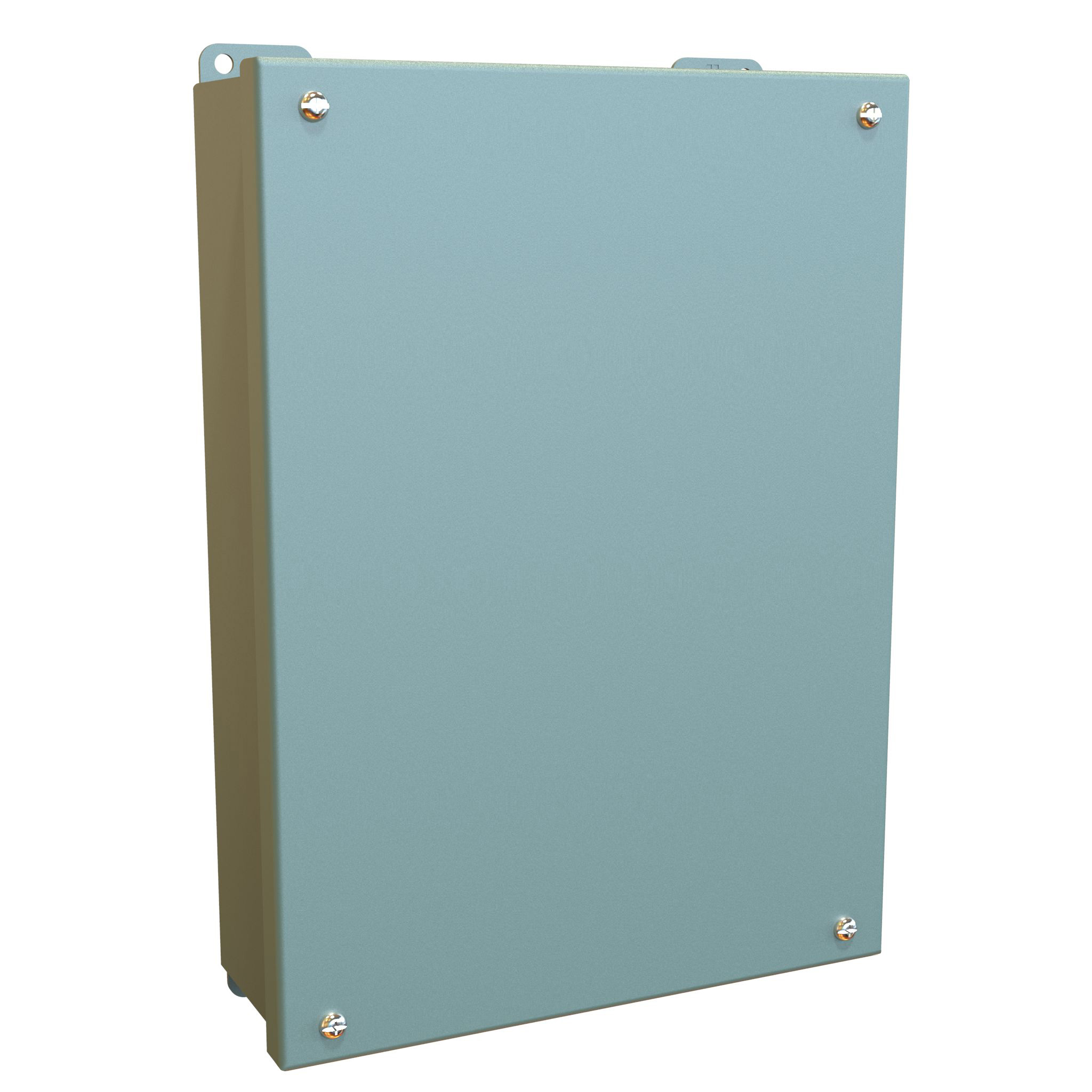

| 1436O | 11.75 | 8.50 | 3.00 | $137.49In stock | Buy now |

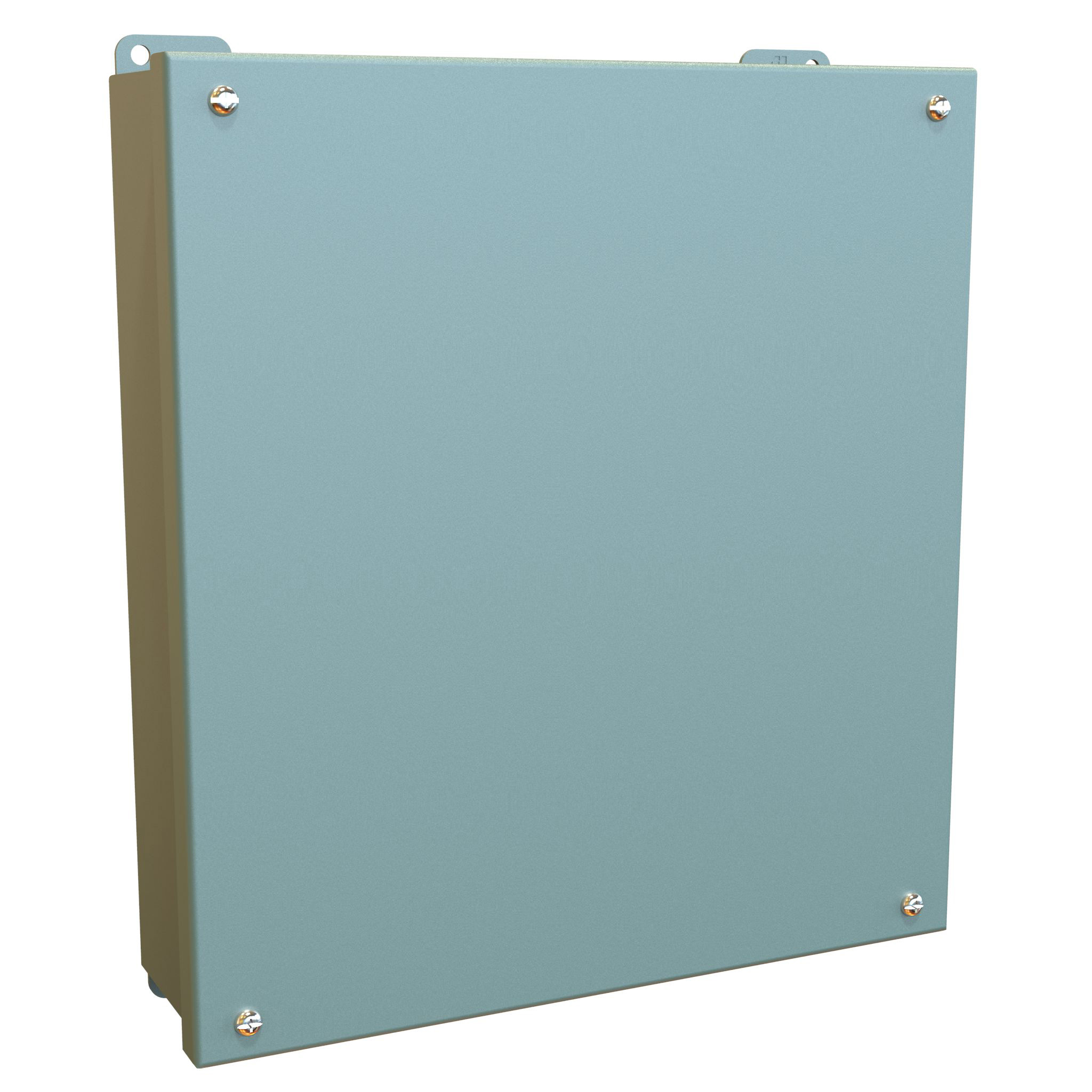

| 1436S | 11.75 | 10.75 | 3.00 | $173.73Backorder | Buy now |

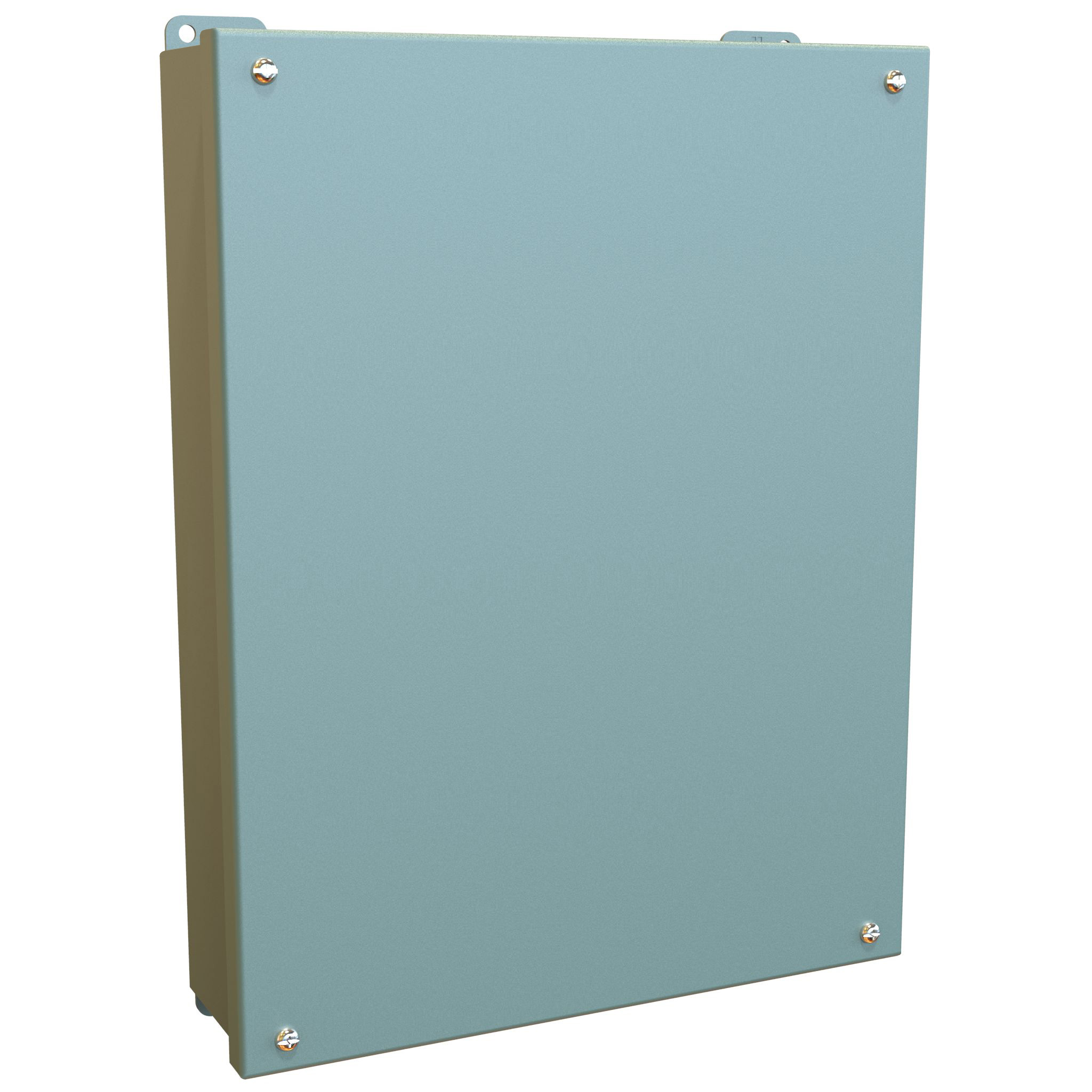

| 1436V | 14.00 | 10.75 | 3.00 | $188.95In stock | Buy now |
Extra Deep Series (1438)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|

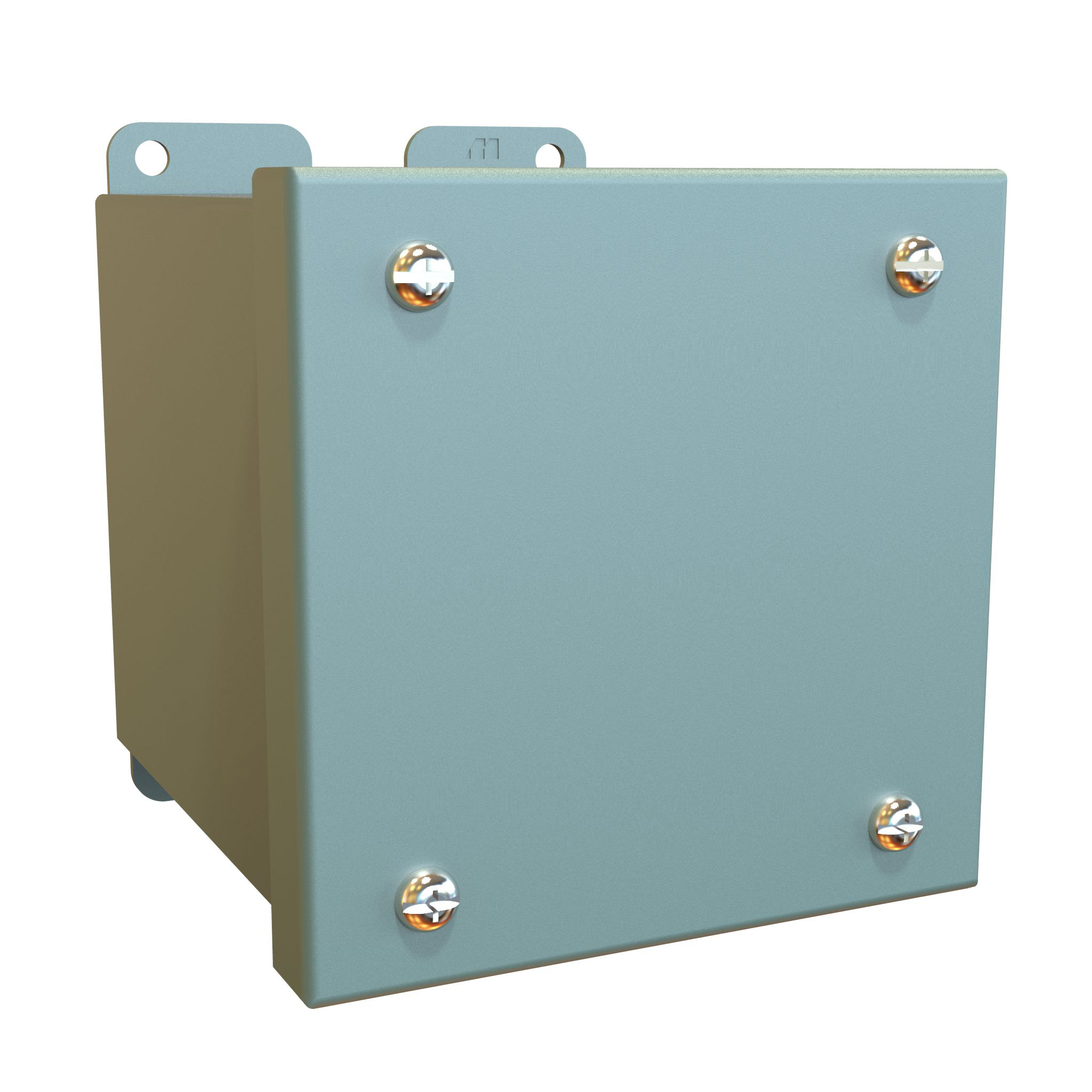

| 1438A | 4.00 | 4.00 | 4.75 | $74.13In stock | Buy now |
| 1438B | 6.00 | 4.00 | 4.75 | $81.15In stock | Buy now |
| 1438C | 8.00 | 4.00 | 4.75 | $91.48Backorder | Buy now |

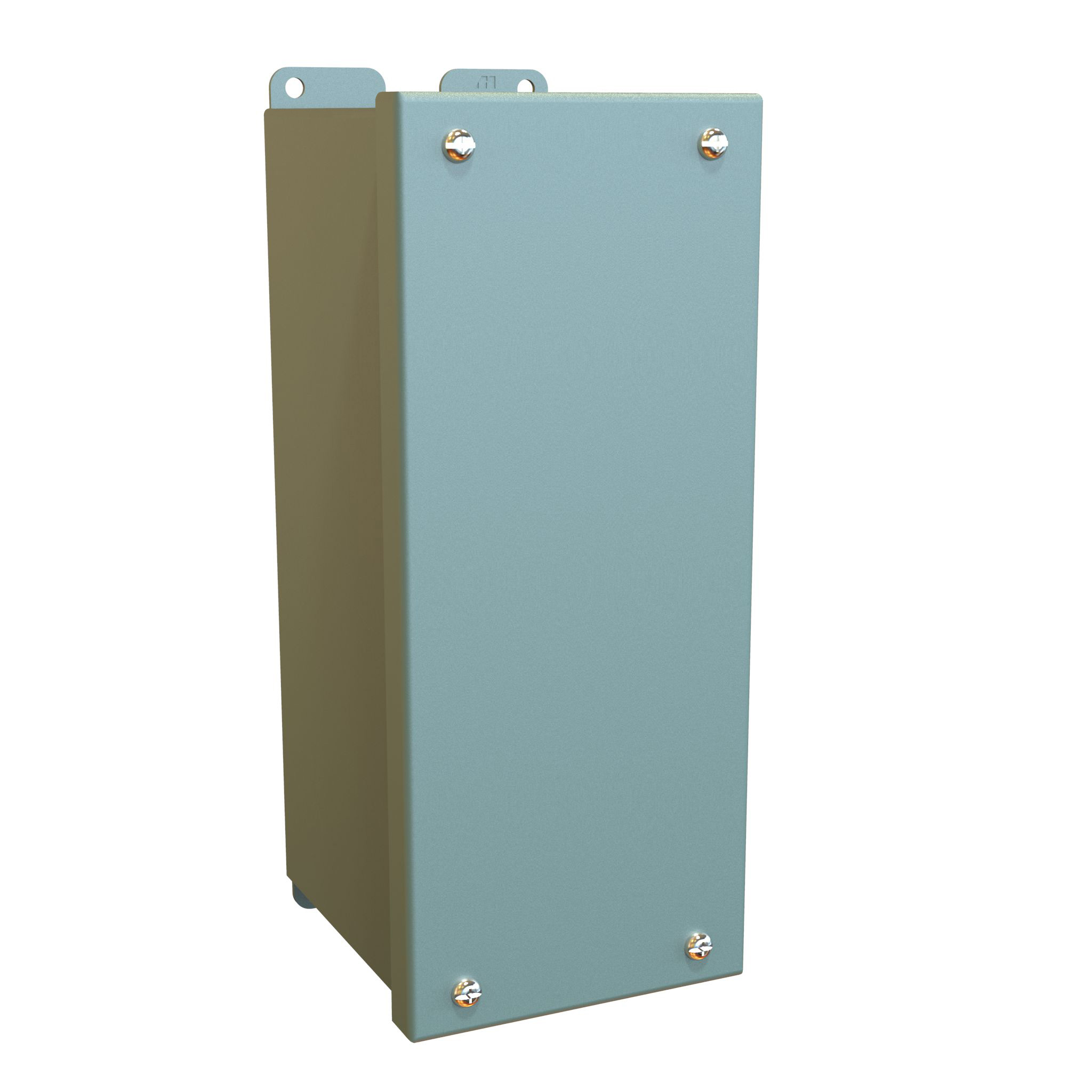

| 1438D | 10.00 | 4.00 | 4.75 | $101.92In stock | Buy now |

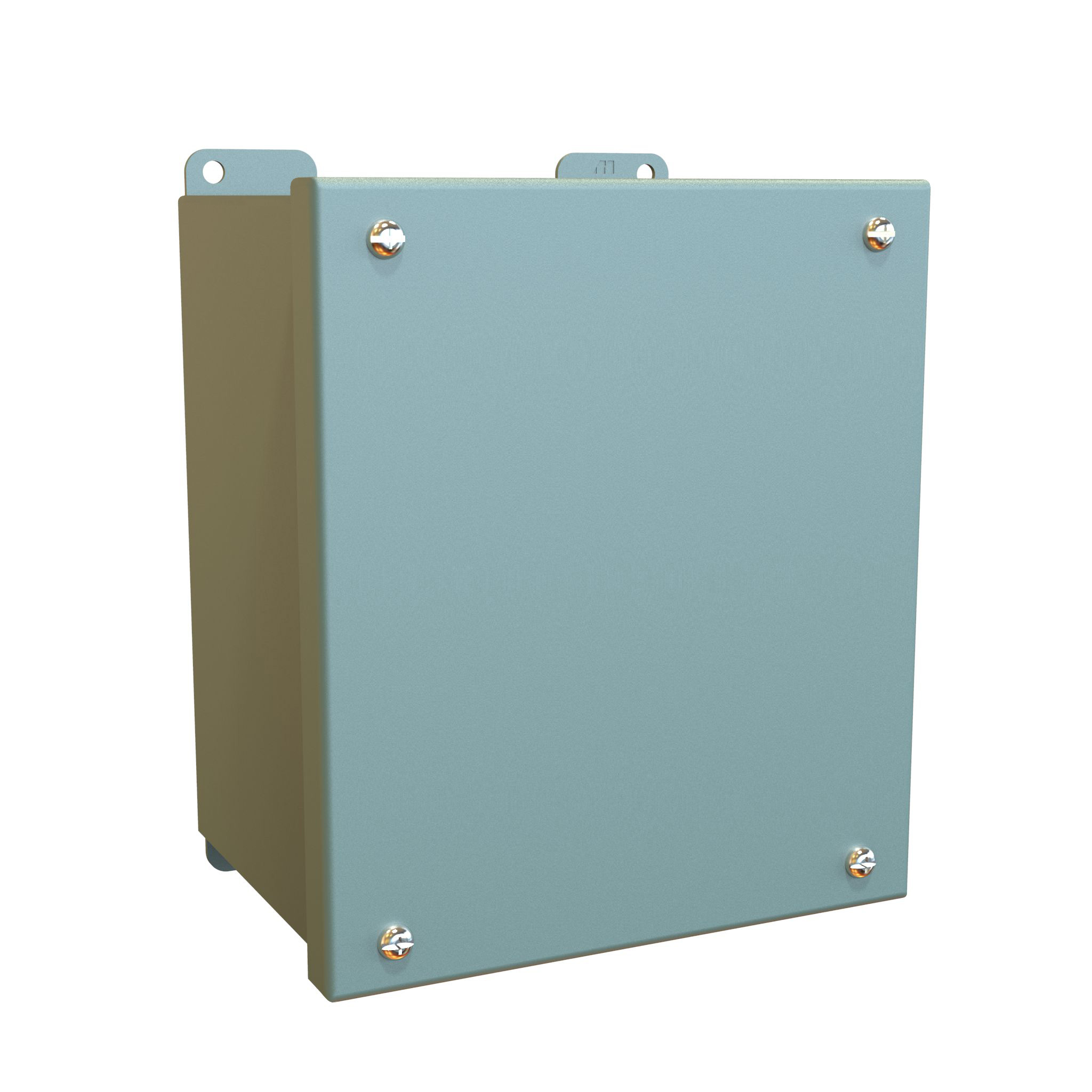

| 1438F | 7.25 | 6.25 | 4.75 | $109.03In stock | Buy now |

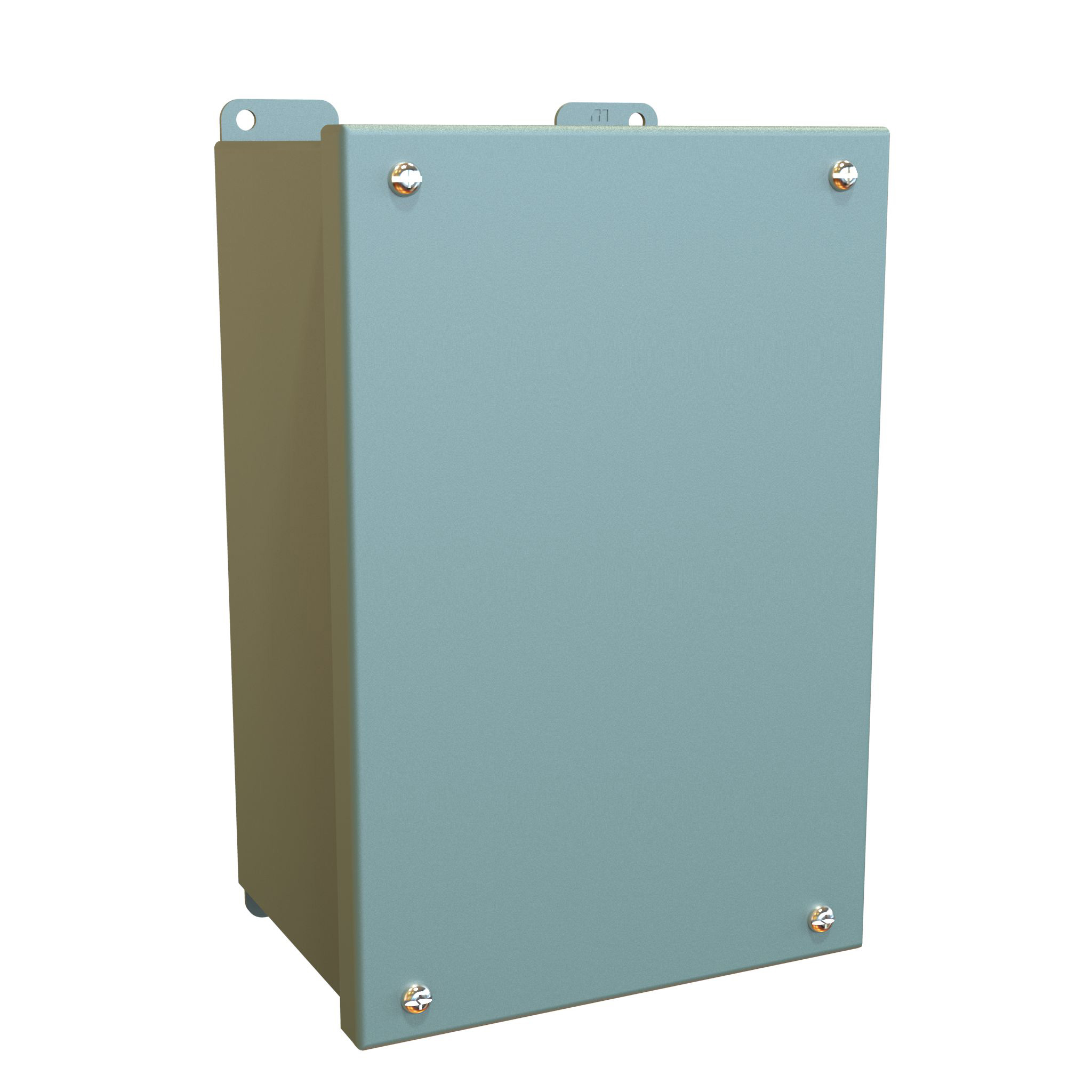

| 1438H | 9.50 | 6.25 | 4.75 | $118.40In stock | Buy now |

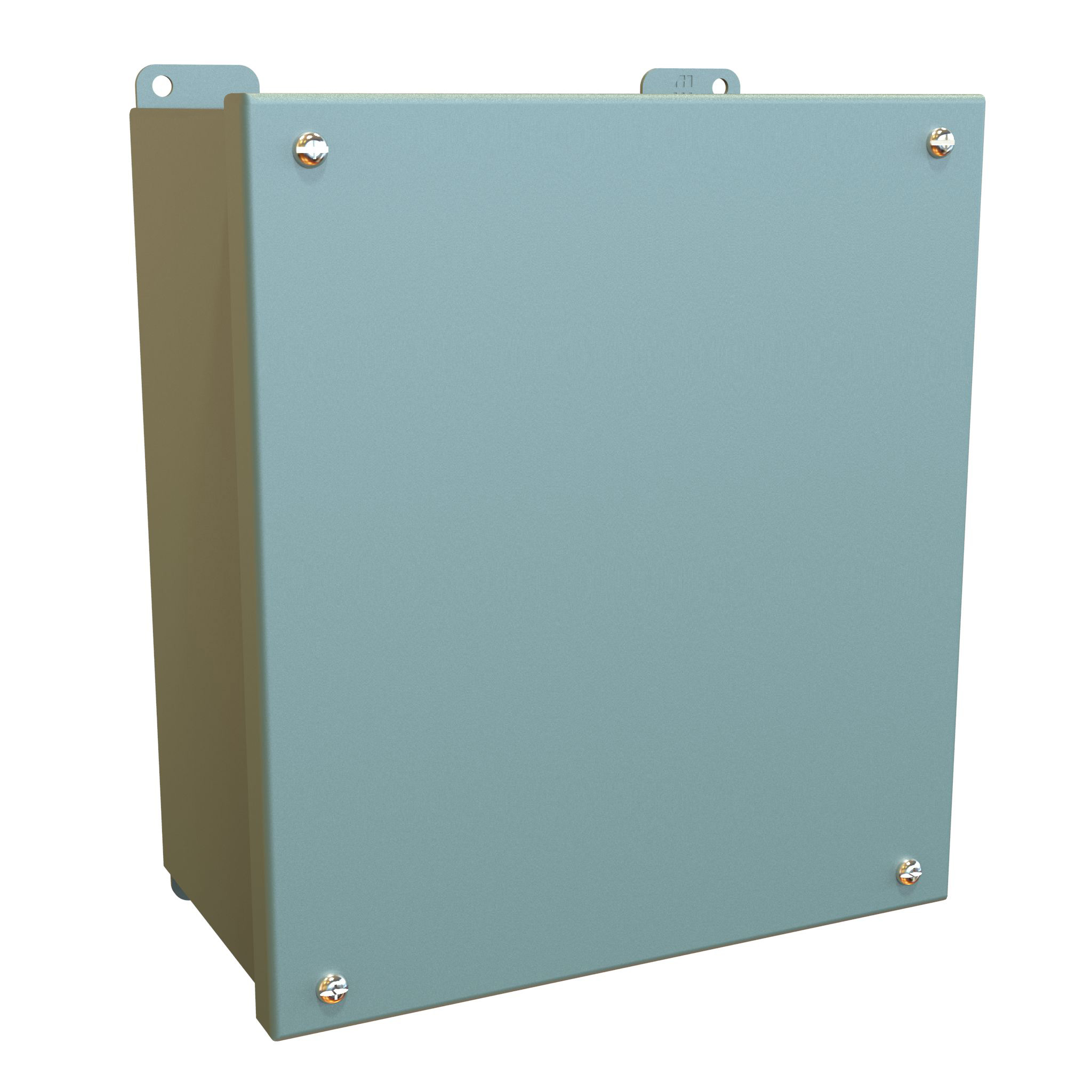

| 1438K | 9.50 | 8.50 | 4.75 | $137.49In stock | Buy now |

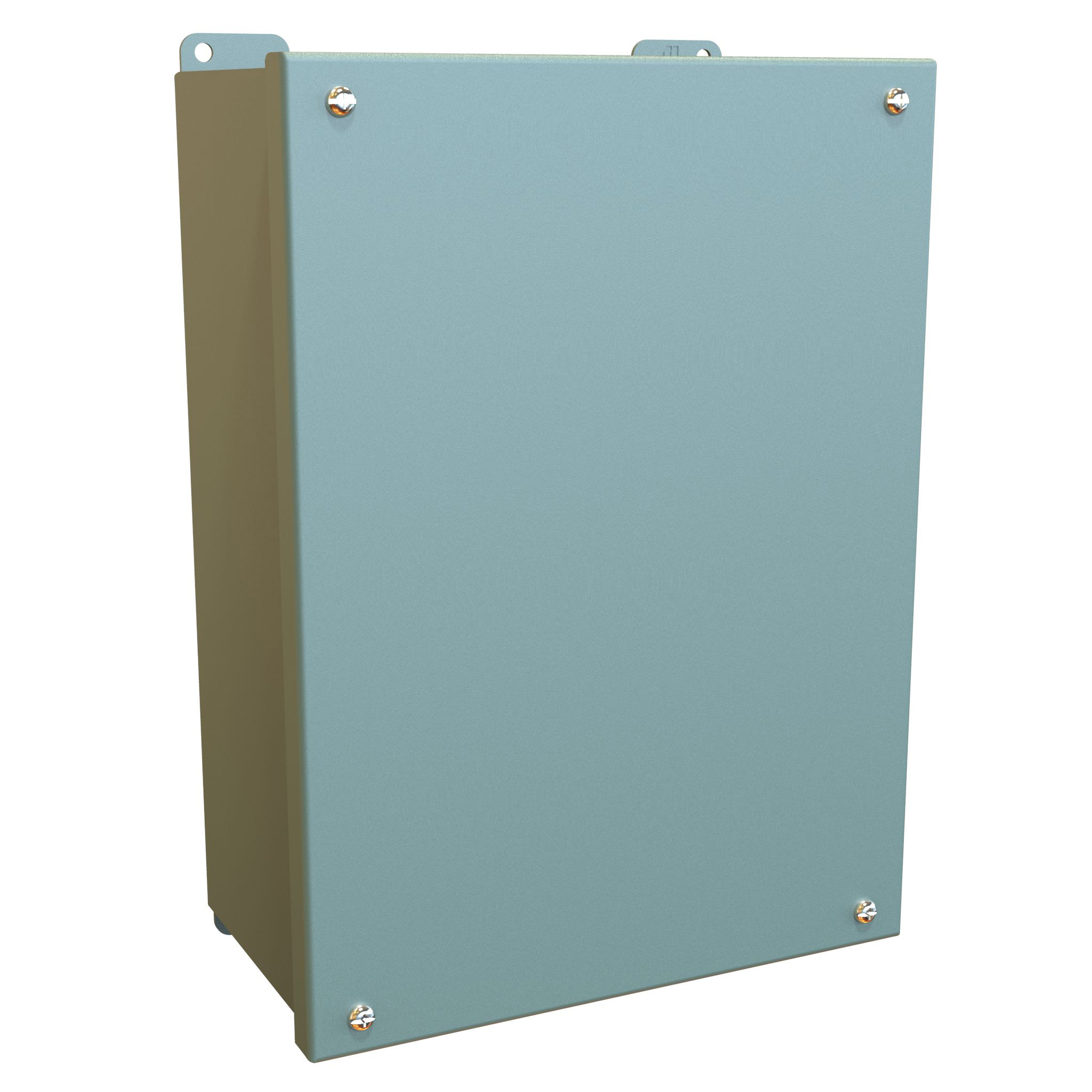

| 1438O | 11.75 | 8.50 | 4.75 | $155.08Backorder | Buy now |

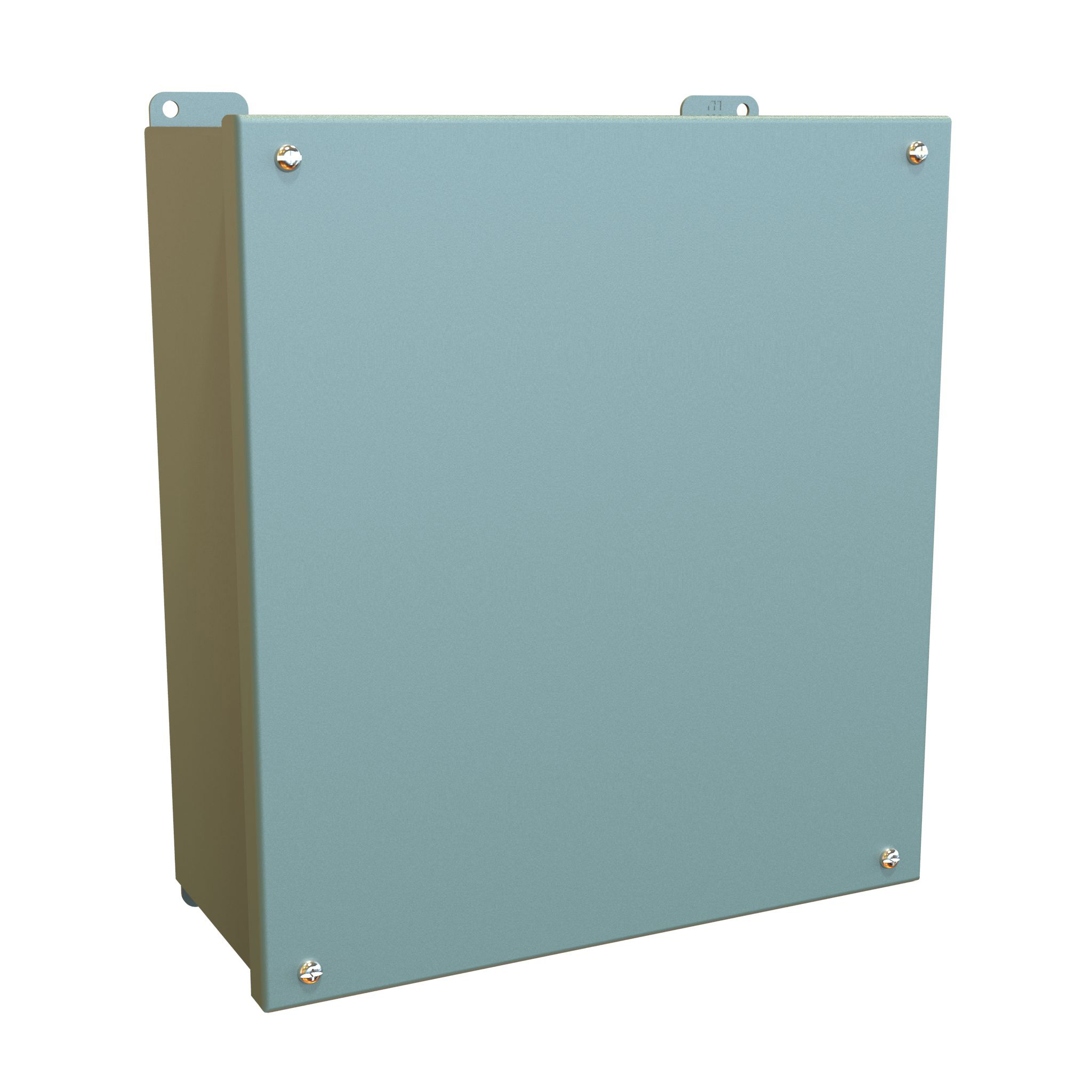

| 1438S | 11.75 | 10.75 | 4.75 | $186.60In stock | Buy now |
| 1438V | 14.00 | 10.75 | 4.75 | $197.91In stock | Buy now |
Application
- ■Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
Construction
- ■Formed from 16 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Welded brackets provide for enclosure mounting.
- ■Lift off cover is secured with captive, plated steel screws, and supported on internal hinges except as noted on charts at bottom and left.
- ■Cover screws fasten into threaded, sealed wells.
- ■Oil resistant gaskets are permanently secured.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
Documents
Additional information
Standard Depth Series (1436)
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| 1436A ¹ | 3.50 | 3.25 | 2.75 |
| 1436B ¹ | 5.75 | 3.25 | 2.75 |
| 1436C ¹ | 8.00 | 3.25 | 2.75 |
| 1436D ¹ | 10.25 | 3.25 | 2.75 |
| 1436F | 7.25 | 6.25 | 3.00 |
| 1436H | 9.50 | 6.25 | 3.00 |

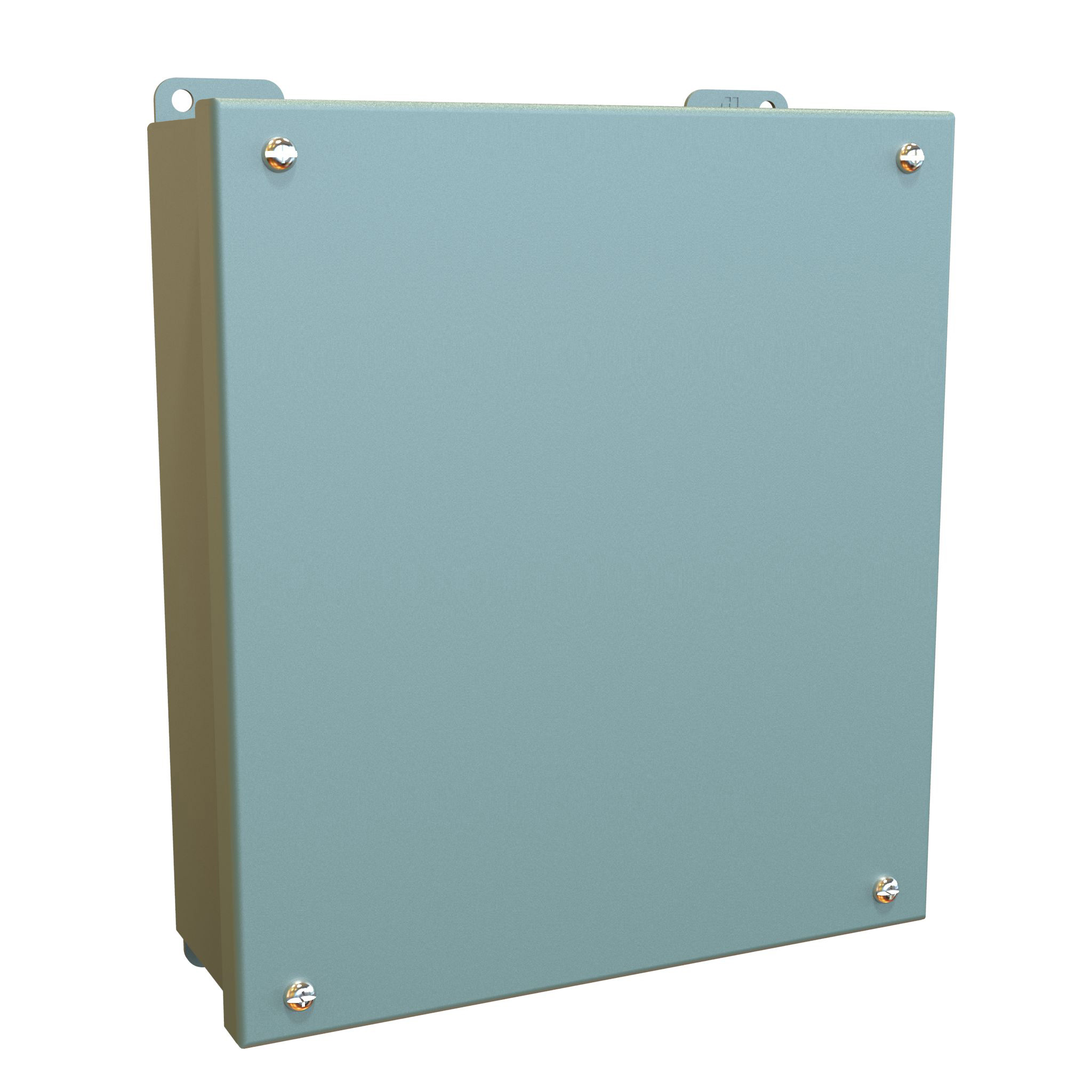

| 1436K | 9.50 | 8.50 | 3.00 |
| 1436O | 11.75 | 8.50 | 3.00 |
| 1436S | 11.75 | 10.75 | 3.00 |
| 1436V | 14.00 | 10.75 | 3.00 |
Extra Deep Series (1438)
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| 1438A ¹ | 4.00 | 4.00 | 4.75 |

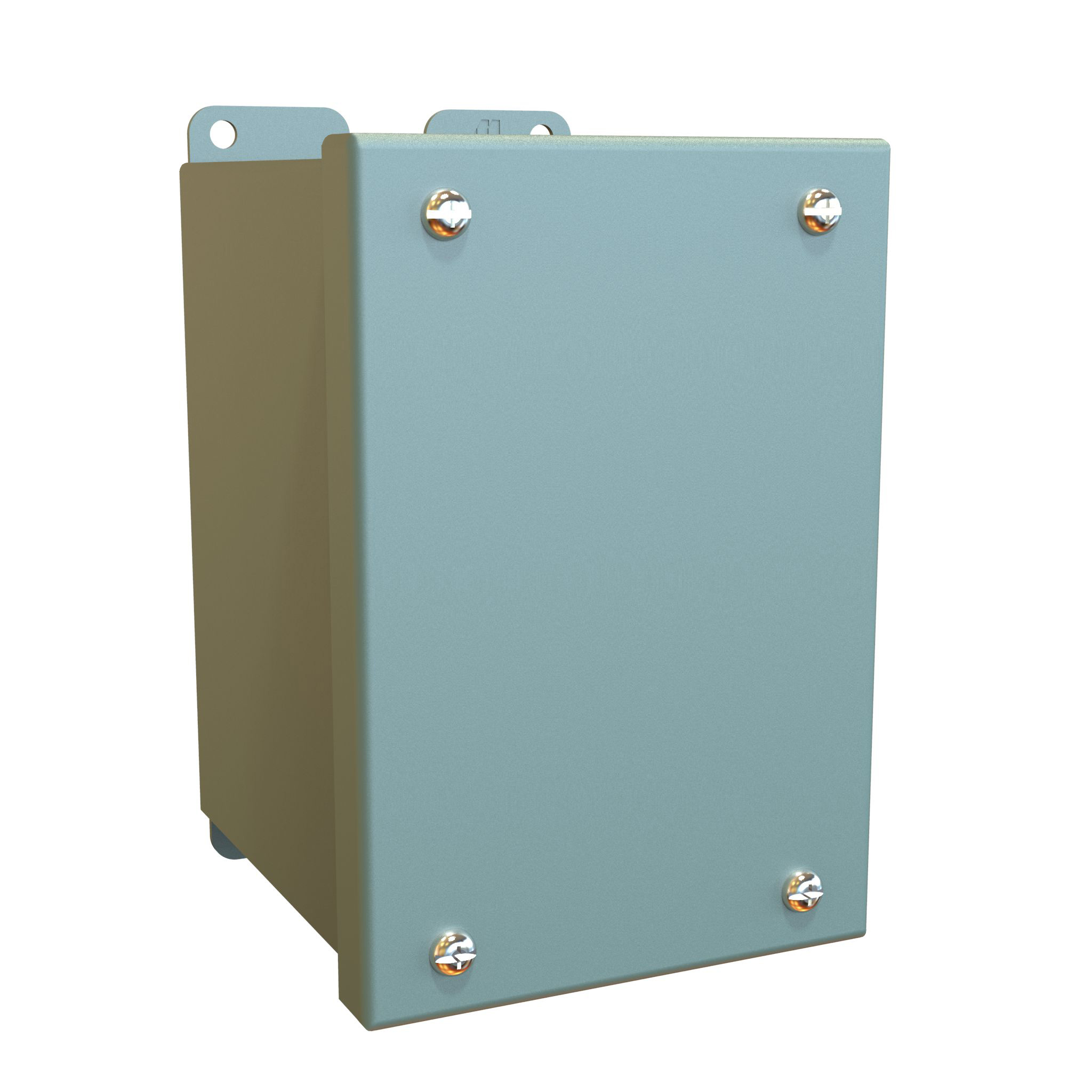

| 1438B | 6.00 | 4.00 | 4.75 |

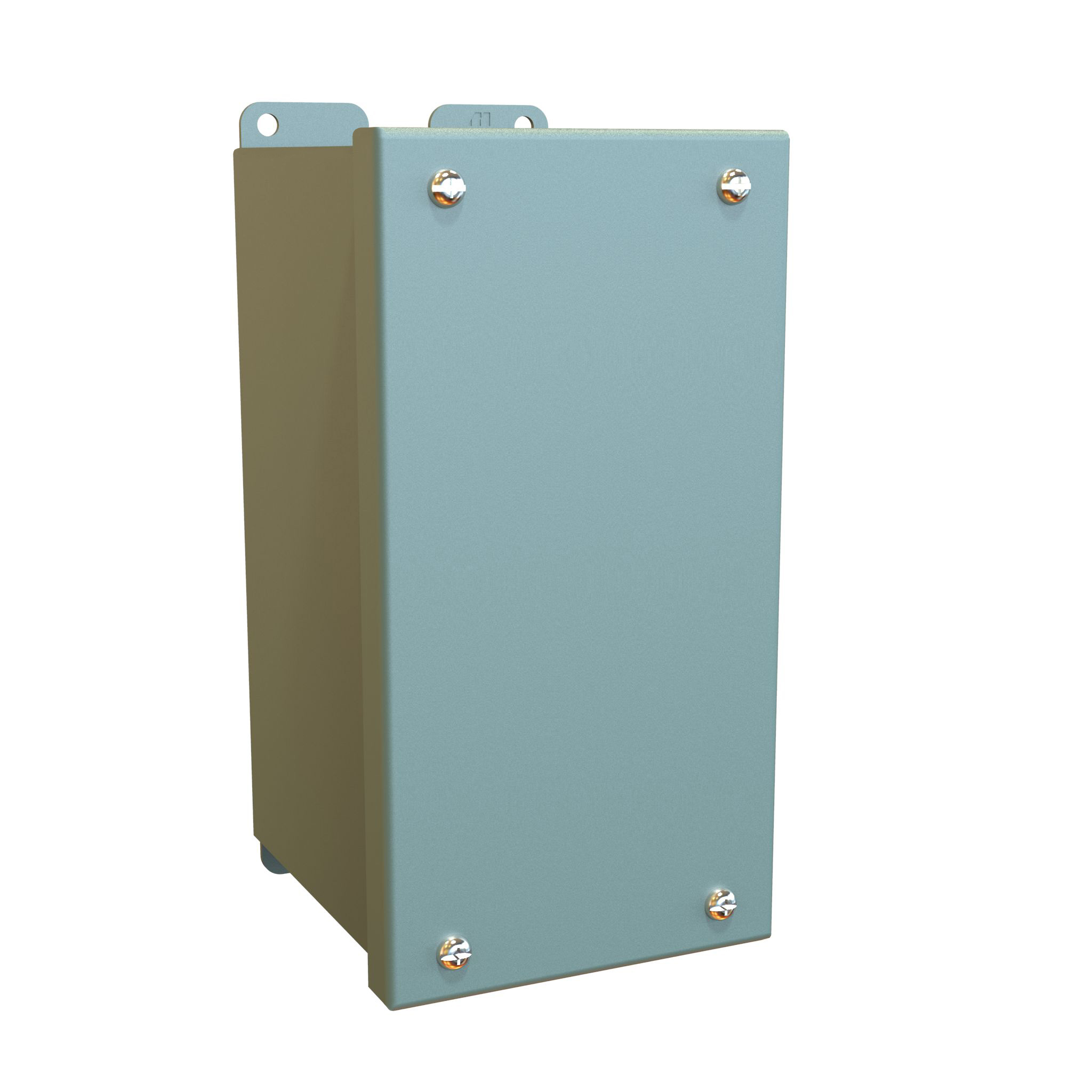

| 1438C | 8.00 | 4.00 | 4.75 |
| 1438D | 10.00 | 4.00 | 4.75 |
| 1438F | 7.25 | 6.25 | 4.75 |
| 1438H | 9.50 | 6.25 | 4.75 |
| 1438K | 9.50 | 8.50 | 4.75 |
| 1438O | 11.75 | 8.50 | 4.75 |
| 1438S | 11.75 | 10.75 | 4.75 |

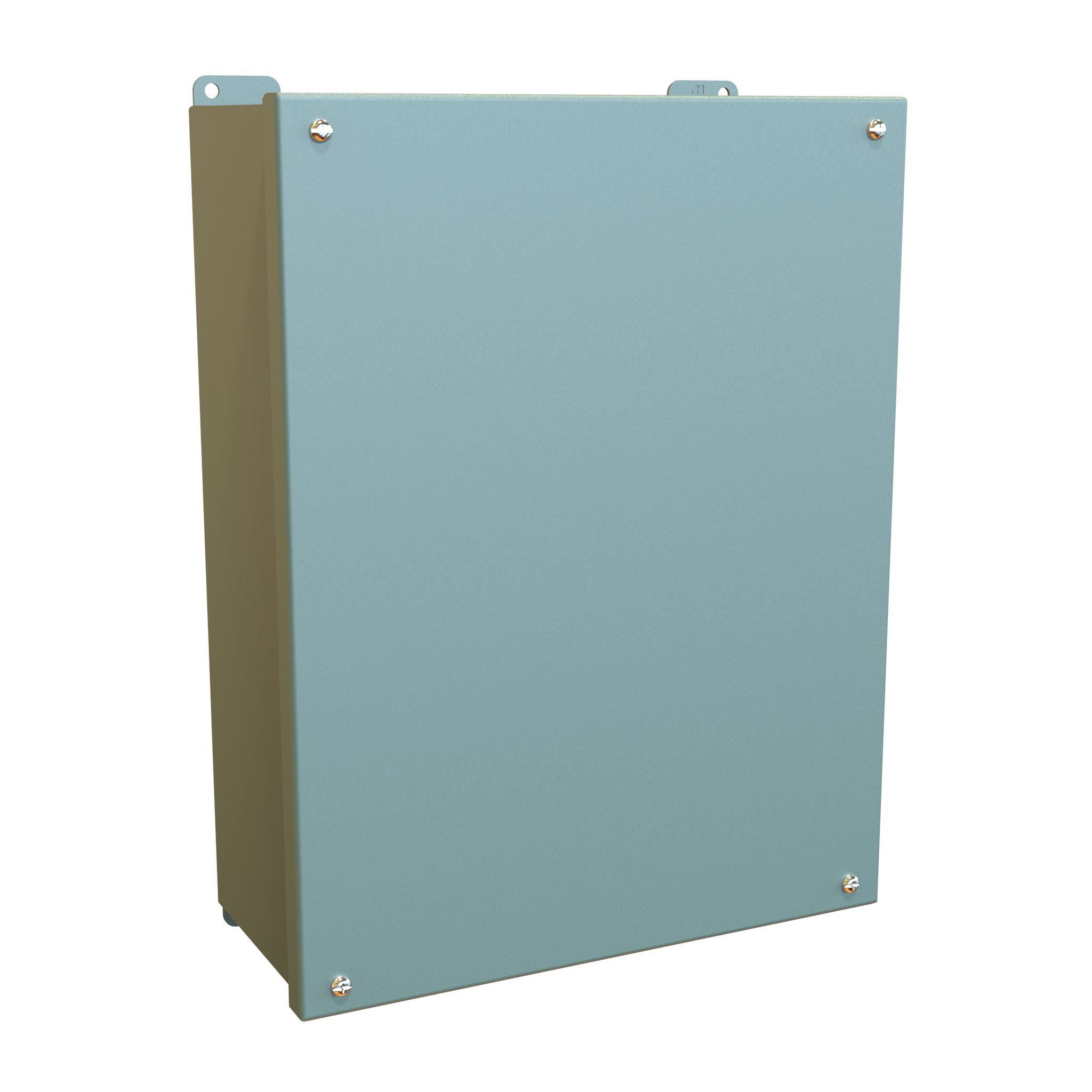

| 1438V | 14.00 | 10.75 | 4.75 |
