NEMA12 Hngd Cvr 4X4X3
$47.48In stock
Buy now
Type 12 Mild Steel Junction Box · 1414 PH Series
Brand: Hammond Manufacturing · 27 part numbers
Continuous Hinge Door with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12, 13
- ■CSA Type 12, 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
from $47.48
27 of 27 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1414 PH Series part number
Filter 27 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
27 of 27 part numbers · 27 priced online
Piano Hinged 1414PH
$49.56In stock
Buy now
NEMA12 Hngd Cvr 6X4X3
$58.65Backorder
Buy now
NEMA 12 Hngd Cvr 6X4X4
$61.79In stock
Buy now
NEMA12 Hngd Cvr 6X6X4
$67.00In stock
Buy now
NEMA12 Hngd Cvr 8X6X3.5
$71.42Backorder
Buy now
NEMA 12 Hinged Cvr 8X6X6
$84.93In stock
Buy now
Piano Hinged 1414PH
$81.98In stock
Buy now
NEMA12 Hngd Cvr 10X8X4
$91.01Backorder
Buy now
NEMA 12 Hngd Cvr 10X8X6
$103.05In stock
Buy now
NEMA 12 Hngd Cvr 10X10X6
$111.87In stock
Buy now
NEMA12 Hngd Cvr 12X10X5
$117.23In stock
Buy now
Piano Hinged 1414PH
$139.96In stock
Buy now
Piano Hinged 1414PH
$90.48In stock
Buy now
NEMA 12 Hngd Cvr 12X12X6
$136.42In stock
Buy now
NEMA12 Hngd Cvr 14X12X6
$147.25In stock
Buy now
NEMA12 Hngd Cvr 14X12X8
$165.97Backorder
Buy now
Piano Hinged 1414PH
$123.44Backorder
Buy now
Piano Hinged 1414PH
$148.13Backorder
Buy now
NEMA12 Hngd Cvr 16X14X10
$214.67In stock
Buy now
NEMA12 Hngd Cvr 16X14X6
$175.88Backorder
Buy now
Piano Hinged 1414PH
$191.93Backorder
Buy now
Piano Hinged 6 X 8 X 3.5
$71.42Backorder
Buy now
Piano Hinged 8 X 10 X 4
$89.67Backorder
Buy now
Piano Hinged 10 X 12 X 5
$116.56In stock
Buy now
Piano Hinged 12 X 14 X 6
$146.59Backorder
Buy now
Piano Hinged 14 X 16 X 6
$173.87In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1414PHA | 4.00 | 4.00 | 3.00 | no panel | no panel | $47.48In stock | Buy now |
| 1414PHC | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 | $58.65Backorder | Buy now |
| 1414PHG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 | $71.42Backorder | Buy now |
| 1414PHRG | 6.00 | 8.00 | 3.50 | 4.88 | 6.75 | $71.42Backorder | Buy now |
| 1414PHA4 | 4.00 | 4.00 | 4.00 | no panel | no panel | $49.56In stock | Buy now |

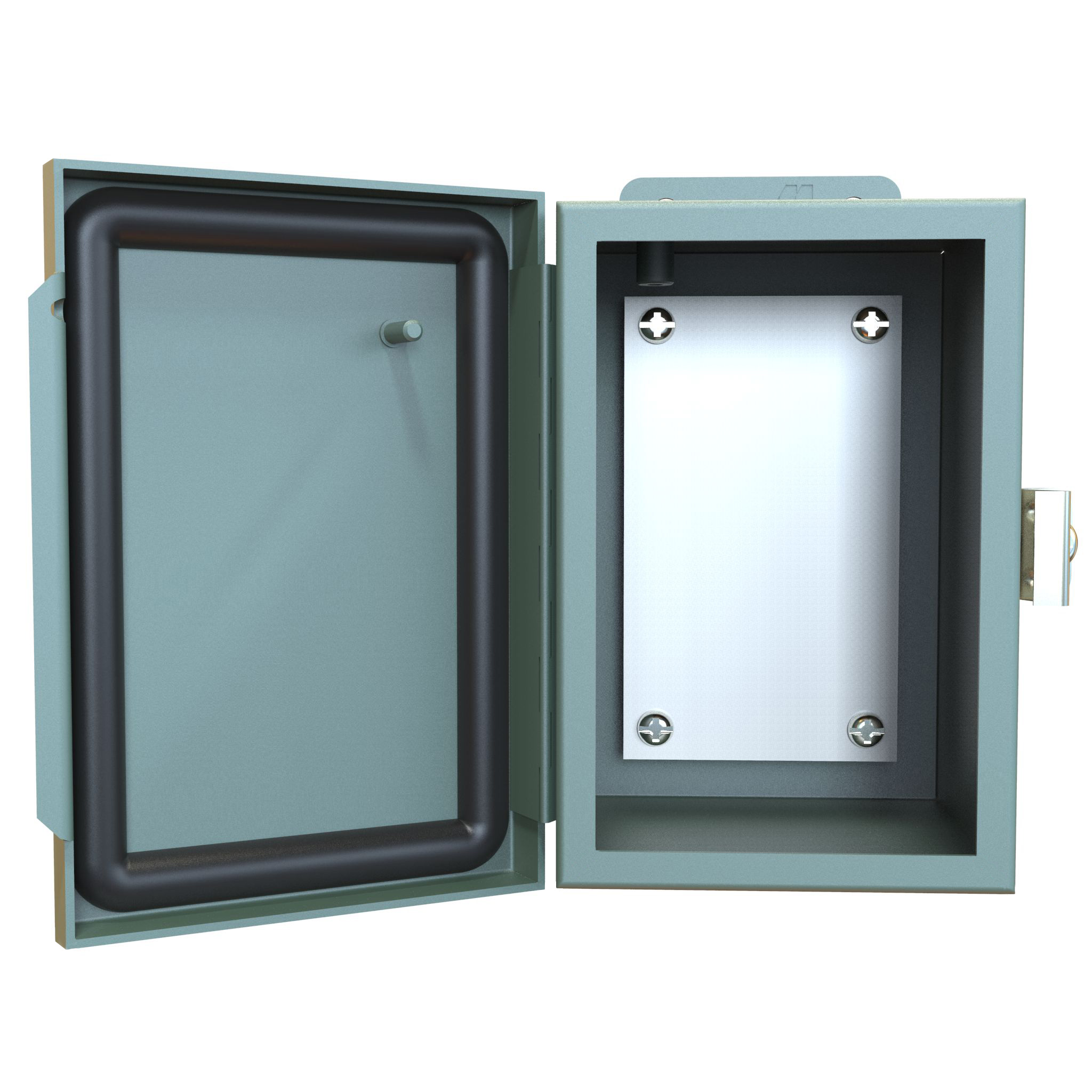

| 1414PHC4 | 6.00 | 4.00 | 4.00 | 4.88 | 2.88 | $61.79In stock | Buy now |
| 1414PHE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 | $67.00In stock | Buy now |
| 1414PHH4 | 8.00 | 8.00 | 4.00 | 6.75 | 6.88 | $81.98In stock | Buy now |
| 1414PHI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 | $91.01Backorder | Buy now |
| 1414PHRI | 8.00 | 10.00 | 4.00 | 6.88 | 8.75 | $89.67Backorder | Buy now |
| 1414PHKC4 | 12.00 | 6.00 | 4.00 | 10.75 | 4.88 | $90.48In stock | Buy now |
| 1414PHK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 | $117.23In stock | Buy now |
| 1414PHRK | 10.00 | 12.00 | 5.00 | 8.88 | 10.75 | $116.56In stock | Buy now |

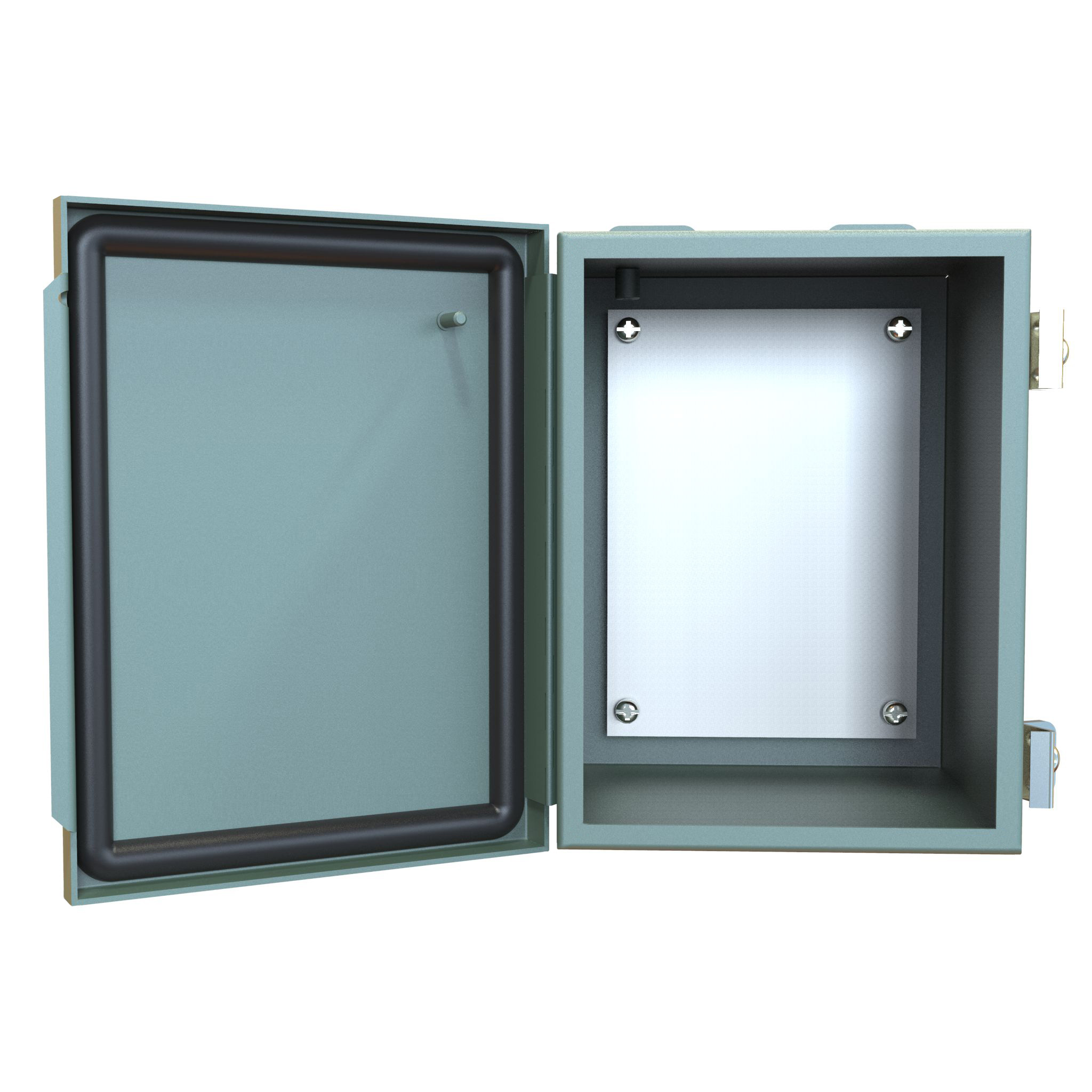

| 1414PHG6 | 8.00 | 6.00 | 6.00 | 6.75 | 4.88 | $84.93In stock | Buy now |
| 1414PHI6 | 10.00 | 8.00 | 6.00 | 8.75 | 6.88 | $103.05In stock | Buy now |
| 1414PHJ6 | 10.00 | 10.00 | 6.00 | 8.75 | 8.88 | $111.87In stock | Buy now |

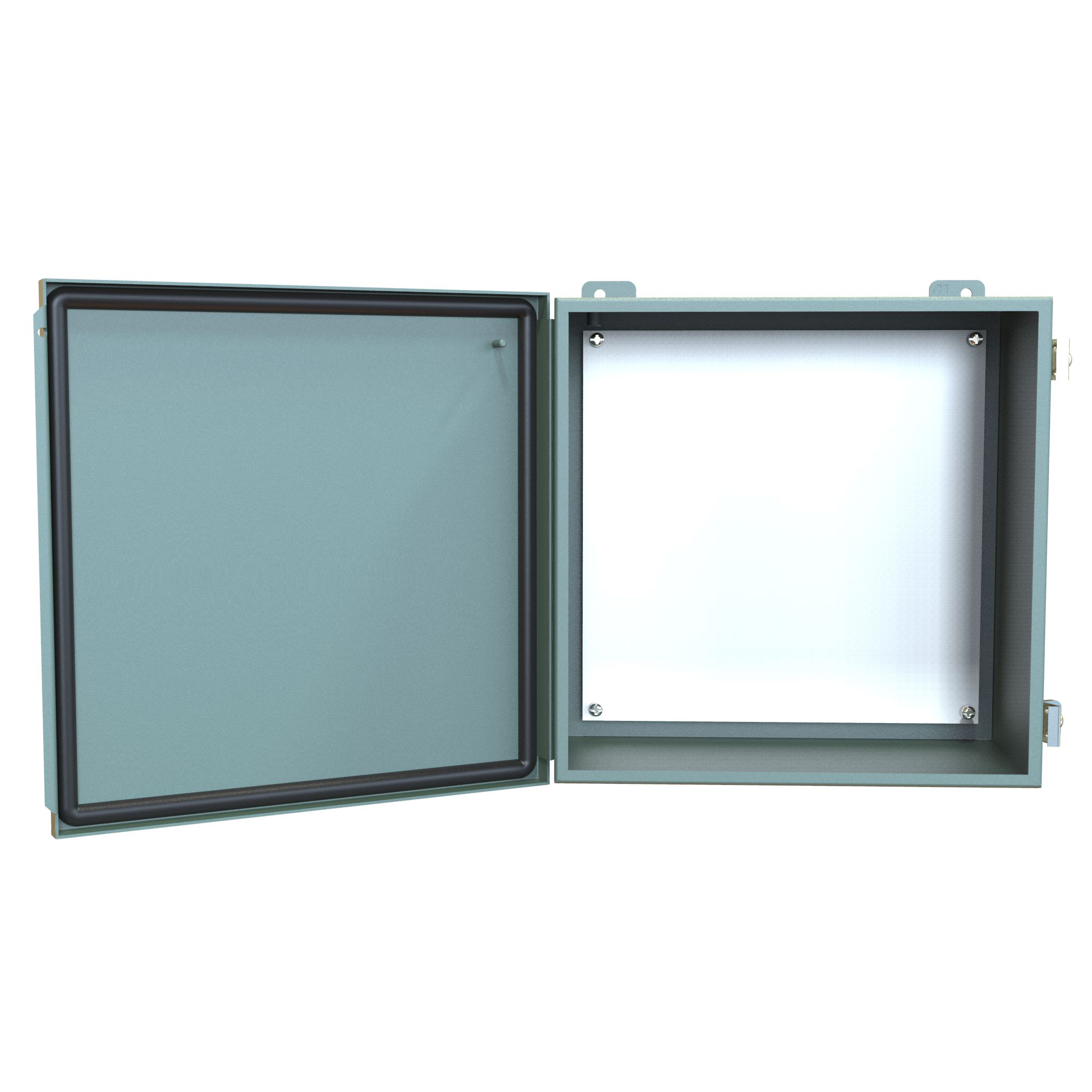

| 1414PHL6 | 12.00 | 12.00 | 6.00 | 10.75 | 10.88 | $136.42In stock | Buy now |

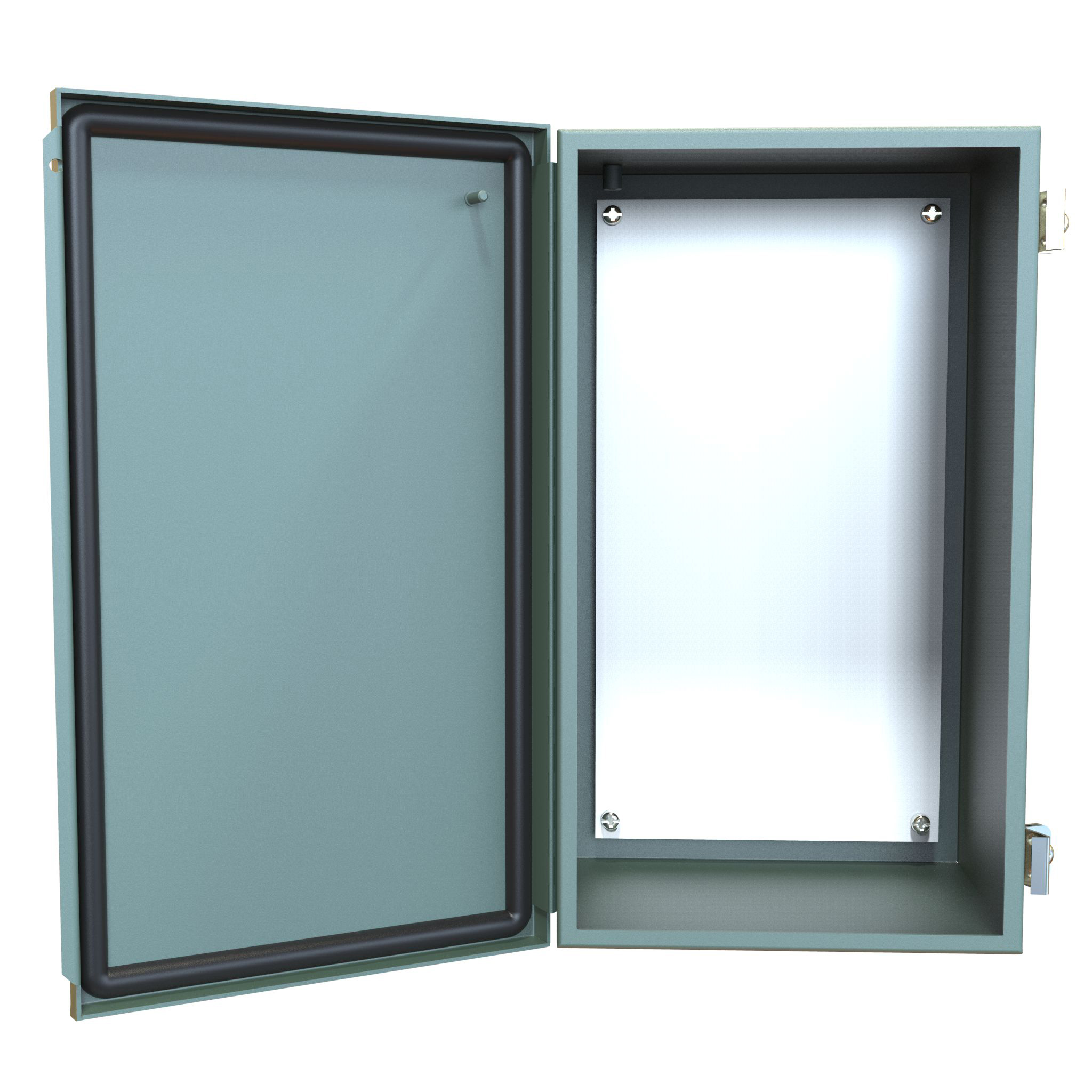

| 1414PHMH6 | 14.00 | 8.00 | 6.00 | 12.75 | 6.88 | $123.44Backorder | Buy now |
| 1414PHM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 | $147.25In stock | Buy now |
| 1414PHRM6 | 12.00 | 14.00 | 6.00 | 10.88 | 12.75 | $146.59Backorder | Buy now |
| 1414PHN6 | 16.00 | 10.00 | 6.00 | 14.75 | 8.88 | $148.13Backorder | Buy now |
| 1414PHO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 | $175.88Backorder | Buy now |
| 1414PHRO6 | 14.00 | 16.00 | 6.00 | 12.88 | 14.75 | $173.87In stock | Buy now |
| 1414PHK8 | 12.00 | 10.00 | 8.00 | 10.75 | 8.88 | $139.96In stock | Buy now |
| 1414PHM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 | $165.97Backorder | Buy now |
| 1414PHO8 | 16.00 | 14.00 | 8.00 | 14.75 | 12.88 | $191.93Backorder | Buy now |

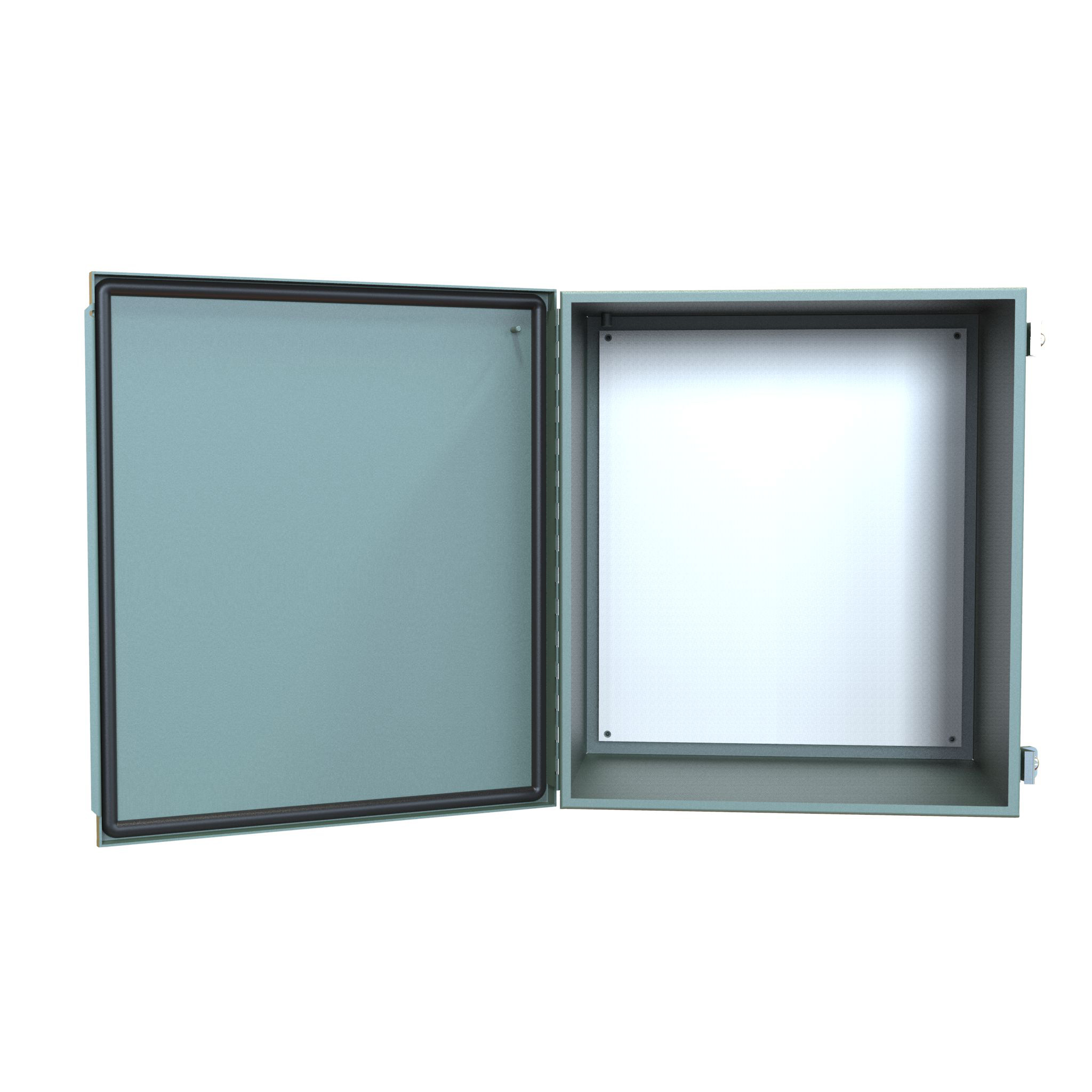

| 1414PHO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 | $214.67In stock | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12, 13
- ■CSA Type 12, 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
Construction
- ■Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Welded brackets provide for enclosure mounting.
- ■Continuously hinged cover is secured with stainless steel clamps and plated steel screws.
- ■Seamless poured-in place gasket.
- ■Models larger than 4" x 4" include a removable 14 gauge inner panel.
- ■Internal threaded weld studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1414PHA | 4.00 | 4.00 | 3.00 | no panel | no panel |
| 1414PHC | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 |
| 1414PHG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 |
| 1414PHRG | 6.00 | 8.00 | 3.50 | 4.88 | 6.75 |
| 1414PHA4 | 4.00 | 4.00 | 4.00 | no panel | no panel |
| 1414PHC4 | 6.00 | 4.00 | 4.00 | 4.88 | 2.88 |
| 1414PHE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 |
| 1414PHH4 | 8.00 | 8.00 | 4.00 | 6.75 | 6.88 |
| 1414PHI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 |
| 1414PHRI | 8.00 | 10.00 | 4.00 | 6.88 | 8.75 |
| 1414PHKC4 | 12.00 | 6.00 | 4.00 | 10.75 | 4.88 |
| 1414PHK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 |
| 1414PHRK | 10.00 | 12.00 | 5.00 | 8.88 | 10.75 |
| 1414PHG6 | 8.00 | 6.00 | 6.00 | 6.75 | 4.88 |
| 1414PHI6 | 10.00 | 8.00 | 6.00 | 8.75 | 6.88 |
| 1414PHJ6 | 10.00 | 10.00 | 6.00 | 8.75 | 8.88 |
| 1414PHL6 | 12.00 | 12.00 | 6.00 | 10.75 | 10.88 |
| 1414PHMH6 | 14.00 | 8.00 | 6.00 | 12.75 | 6.88 |
| 1414PHM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 |
| 1414PHRM6 | 12.00 | 14.00 | 6.00 | 10.88 | 12.75 |
| 1414PHN6 | 16.00 | 10.00 | 6.00 | 14.75 | 8.88 |
| 1414PHO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 |
| 1414PHRO6 | 14.00 | 16.00 | 6.00 | 12.88 | 14.75 |
| 1414PHK8 | 12.00 | 10.00 | 8.00 | 10.75 | 8.88 |
| 1414PHM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 |
| 1414PHO8 | 16.00 | 14.00 | 8.00 | 14.75 | 12.88 |
| 1414PHO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 |
