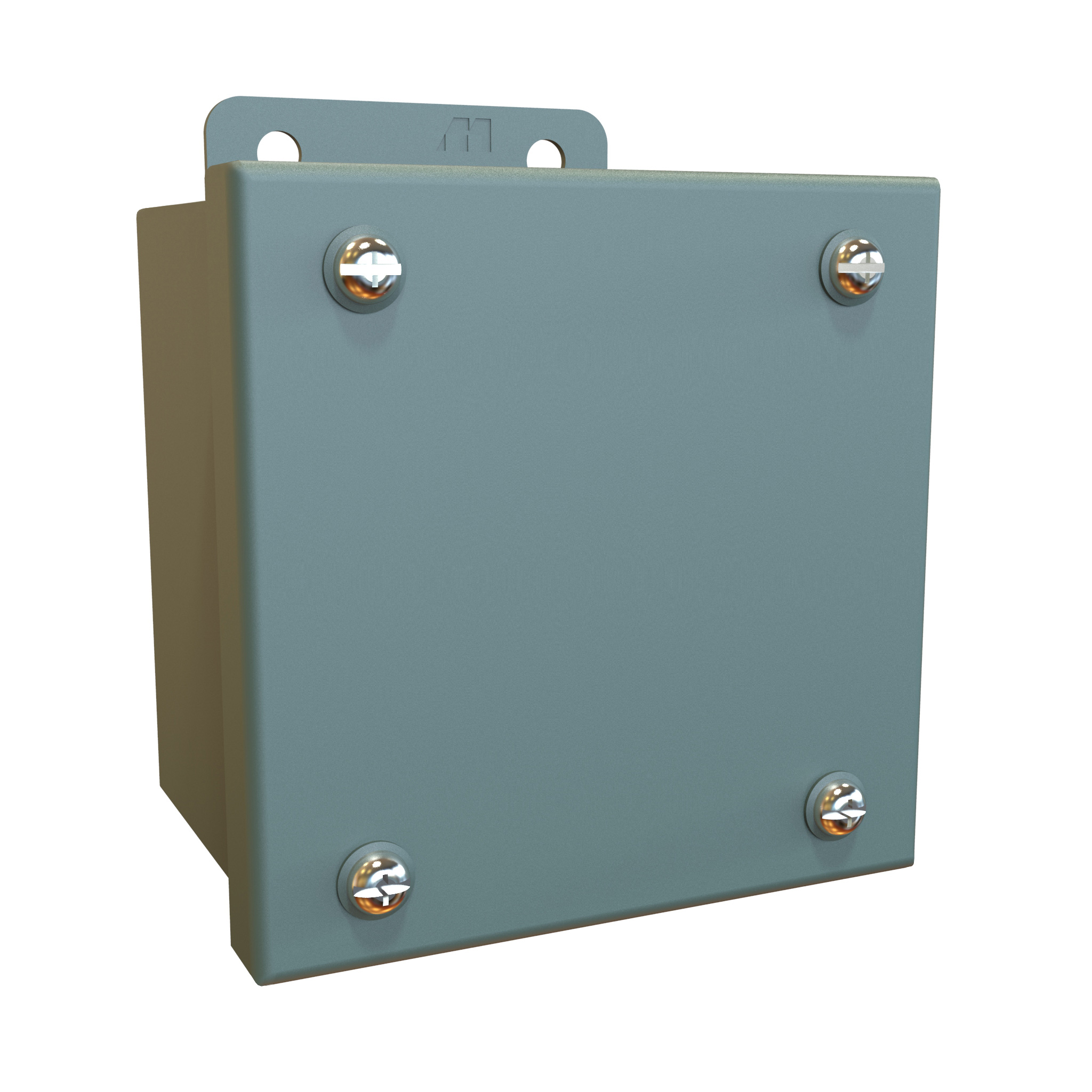

NEMA 12 Sc Enclosure 4X4X3
$48.08In stock
Buy now
Type 12 Mild Steel Junction Box · 1414 SC Series
Brand: Hammond Manufacturing · 10 part numbers
Lift-Off Cover with Screws
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
from $48.08
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1414 SC Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online

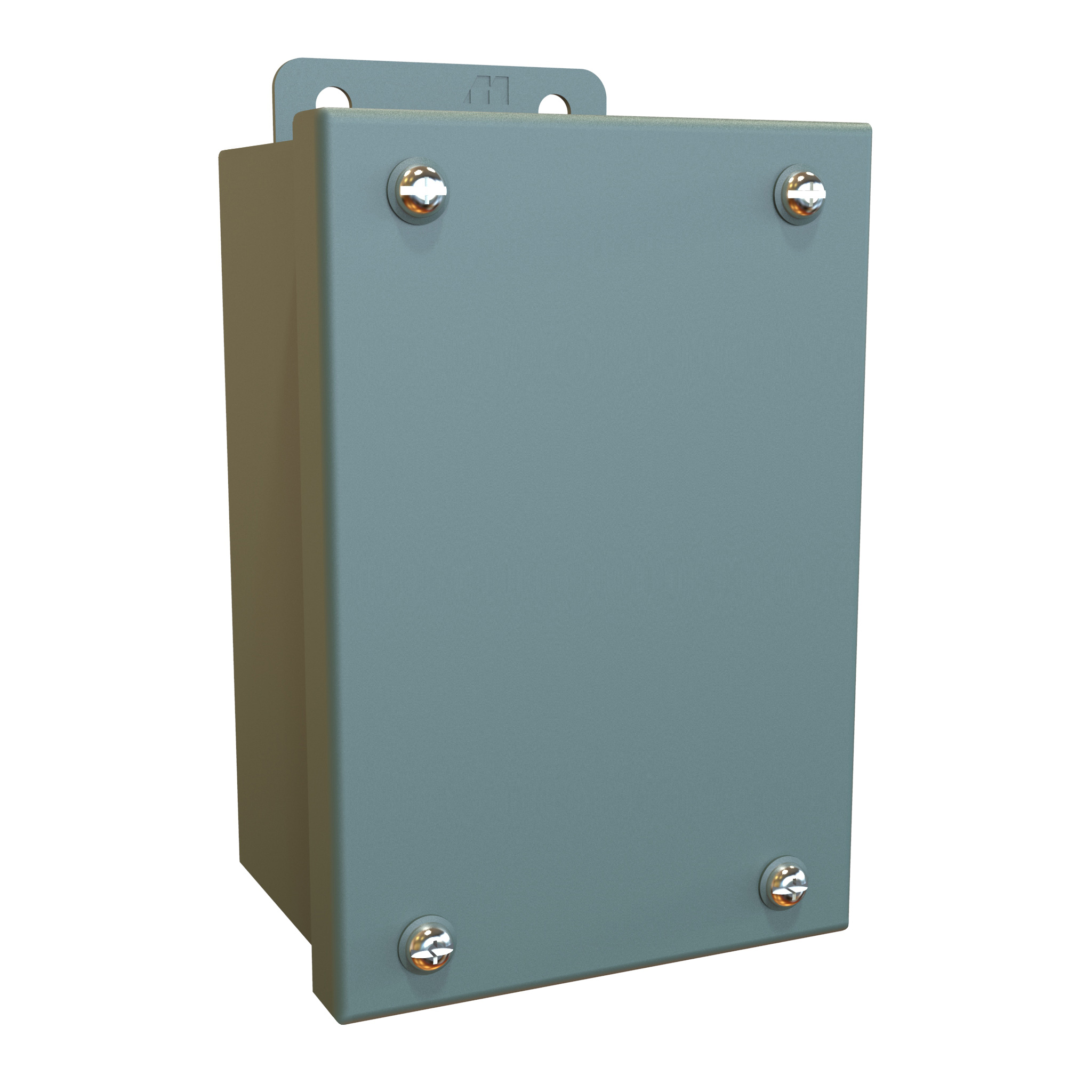

NEMA 12 Sc Enclosure 6X4X3
$59.65In stock
Buy now

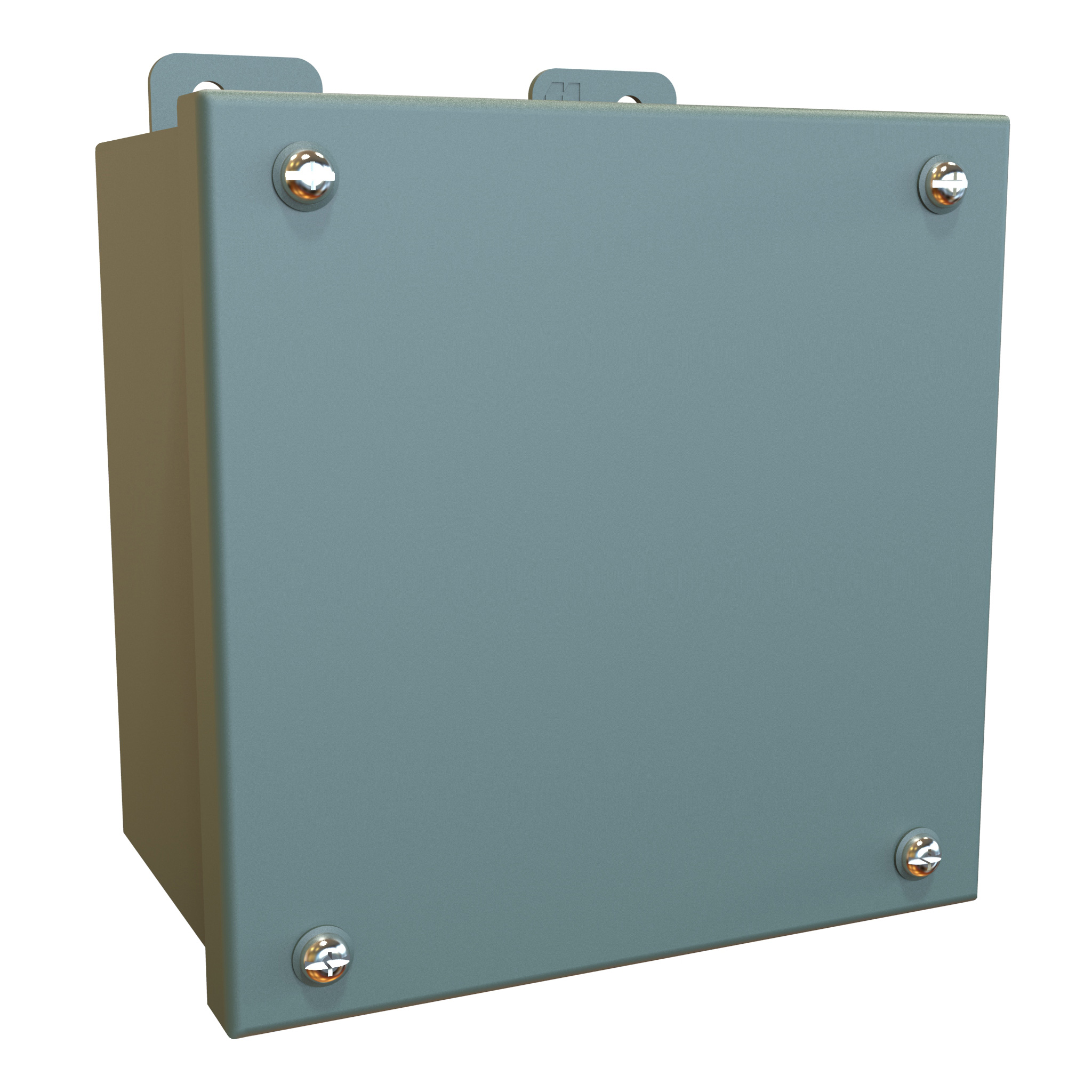

NEMA 12 Sc Enclosure 6X6X4
$69.74In stock
Buy now
NEMA 12 Sc Enclosure 8X6X3.5
$74.90Backorder
Buy now
NEMA 12 Sc Enclosure 10X8X4
$94.36Backorder
Buy now
NEMA 12 Sc Enclosure 12X10X5
$124.59In stock
Buy now
NEMA 12 Sc Enclosure 14X12X6
$158.62Backorder
Buy now
NEMA 12 Sc Enclosure 14X12X8
$223.49Backorder
Buy now
NEMA 12 Sc Enclosure 16X14X10
$304.44In stock
Buy now
NEMA 12 Sc Enclosure 16X14X6
$186.57In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1414SCA | 4.00 | 4.00 | 3.00 | no panel | no panel | $48.08In stock | Buy now |
| 1414SCC | 6.00 | 4.00 | 3.00 | 4.87 | 2.87 | $59.65In stock | Buy now |
| 1414SCG | 8.00 | 6.00 | 3.50 | 6.75 | 4.87 | $74.90Backorder | Buy now |
| 1414SCE | 6.00 | 6.00 | 4.00 | 4.87 | 4.87 | $69.74In stock | Buy now |
| 1414SCI | 10.00 | 8.00 | 4.00 | 8.75 | 6.87 | $94.36Backorder | Buy now |
| 1414SCK | 12.00 | 10.00 | 5.00 | 10.75 | 8.87 | $124.59In stock | Buy now |
| 1414SCM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.87 | $158.62Backorder | Buy now |
| 1414SCO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.87 | $186.57In stock | Buy now |
| 1414SCM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.87 | $223.49Backorder | Buy now |
| 1414SCO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.87 | $304.44In stock | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
Construction
- ■Body formed from 14 gauge (16x14 size only) or 16 gauge steel. Covers are formed from 16 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Welded brackets provide for enclosure mounting.
- ■Cover is secured with captive, plated steel screws, threaded into sealed wells.
- ■Oil resistant gaskets are permanently secured.
- ■Models larger than 4" x 4" include a removable 14 gauge inner panel.
- ■Internal threaded weld studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1414SCA | 4.00 | 4.00 | 3.00 | no panel | no panel |
| 1414SCC | 6.00 | 4.00 | 3.00 | 4.87 | 2.87 |
| 1414SCG | 8.00 | 6.00 | 3.50 | 6.75 | 4.87 |
| 1414SCE | 6.00 | 6.00 | 4.00 | 4.87 | 4.87 |
| 1414SCI | 10.00 | 8.00 | 4.00 | 8.75 | 6.87 |
| 1414SCK | 12.00 | 10.00 | 5.00 | 10.75 | 8.87 |
| 1414SCM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.87 |
| 1414SCO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.87 |
| 1414SCM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.87 |
| 1414SCO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.87 |
