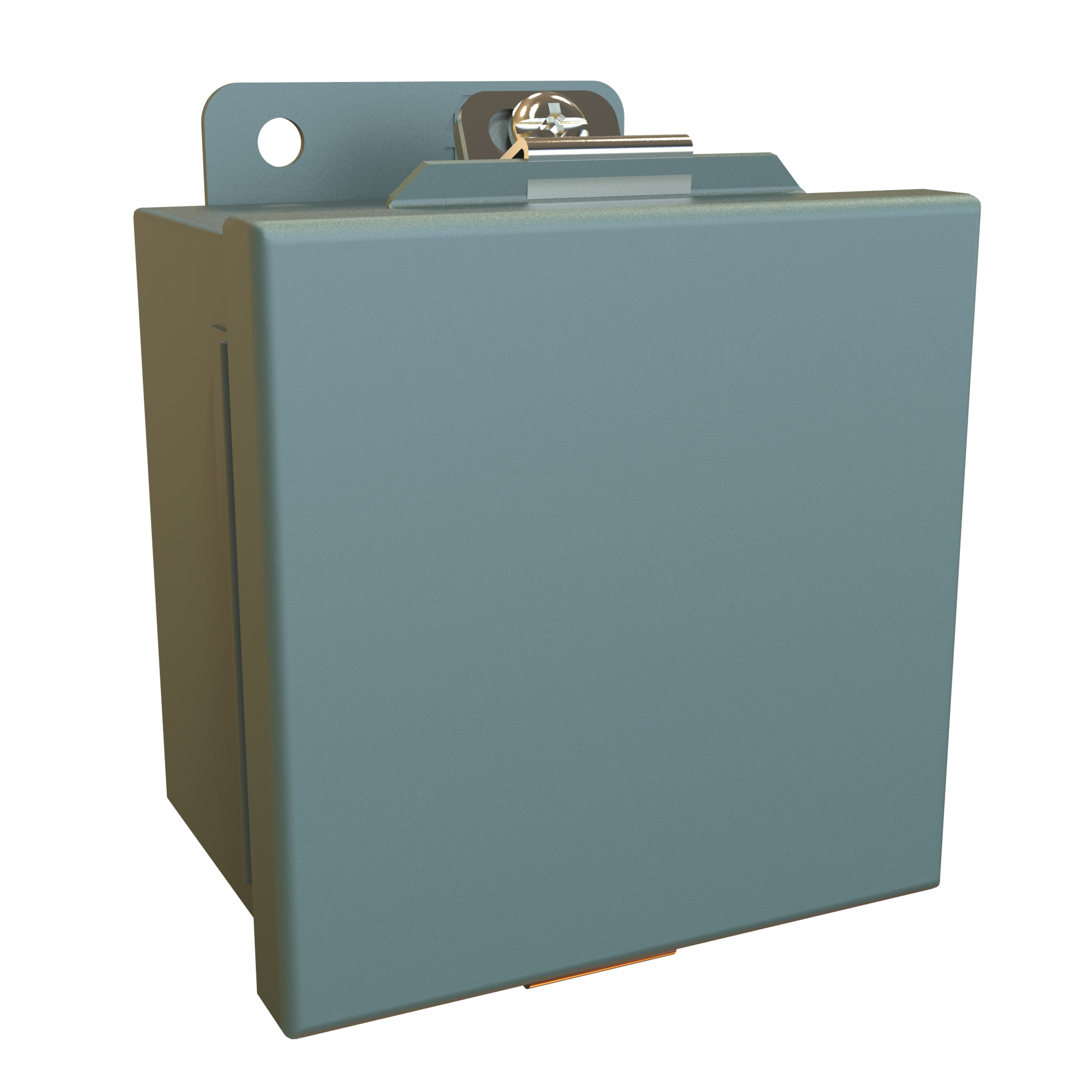

NEMA4 Hinge Enclosure 4X4X3
$68.21In stock
Buy now
Type 4 Mild Steel Junction Box · 1414 N4 PH Series
Brand: Hammond Manufacturing · 12 part numbers
Continuous Hinge Door with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■UL 508A Type 3R, 4, 12 and 13
- ■CSA Type 3R, 4, 12 and 13
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
from $68.21
12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1414 N4 PH Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online

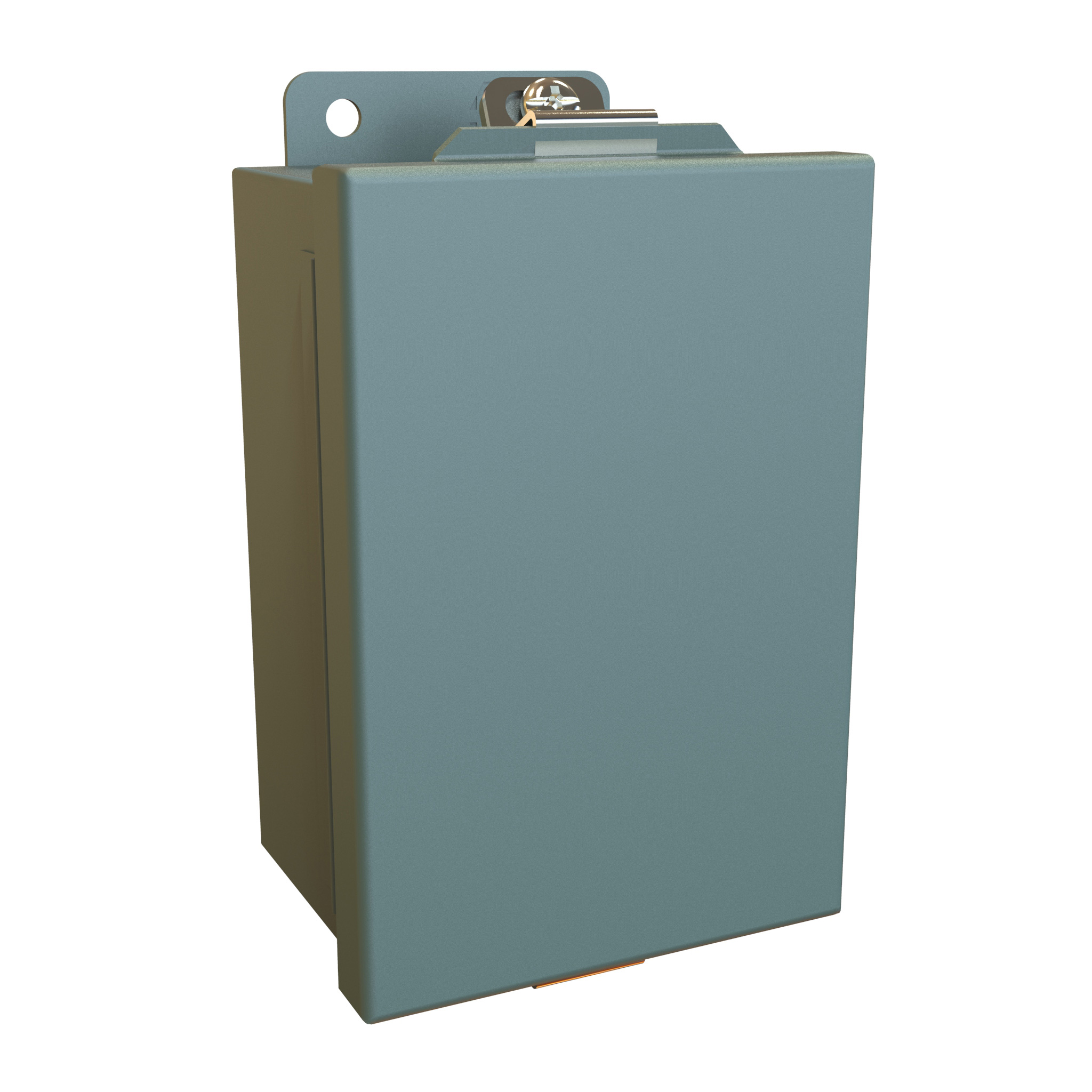

NEMA4 Hinge Enclosure 6X4X3
$82.59In stock
Buy now
NEMA4 Hinge Enclosure 6X6X4
$94.29Backorder
Buy now
NEMA4 Hinge Enclosure 8X6X3.5
$102.98In stock
Buy now
NEMA4 Hinge Enclosure 10X8X4
$124.44In stock
Buy now
Piano Hinged 1414N4
$142.51Backorder
Buy now

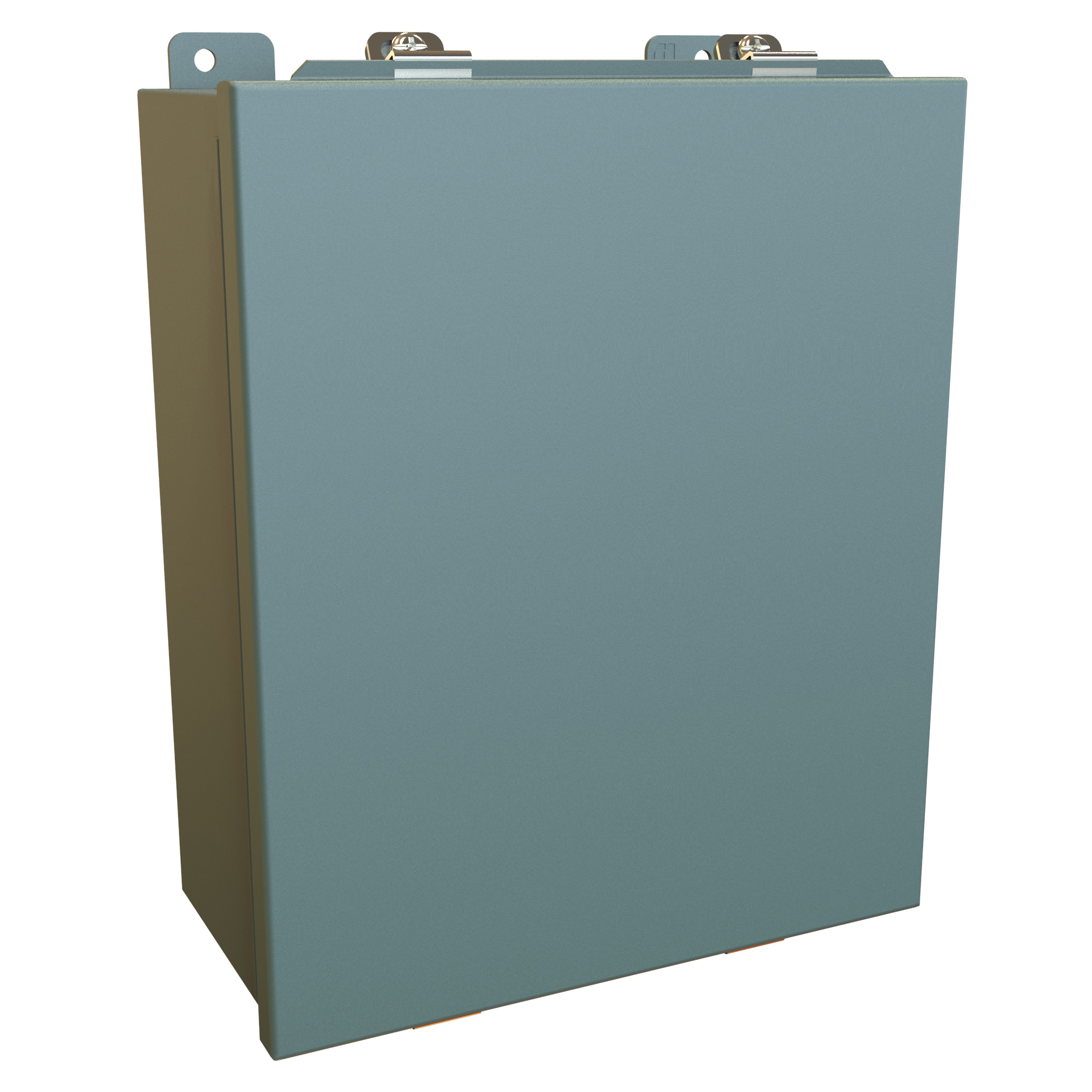

NEMA4 Hinge Enclosure 12X10X5
$159.36Backorder
Buy now
Piano Hinged 1414N4
$169.19Backorder
Buy now

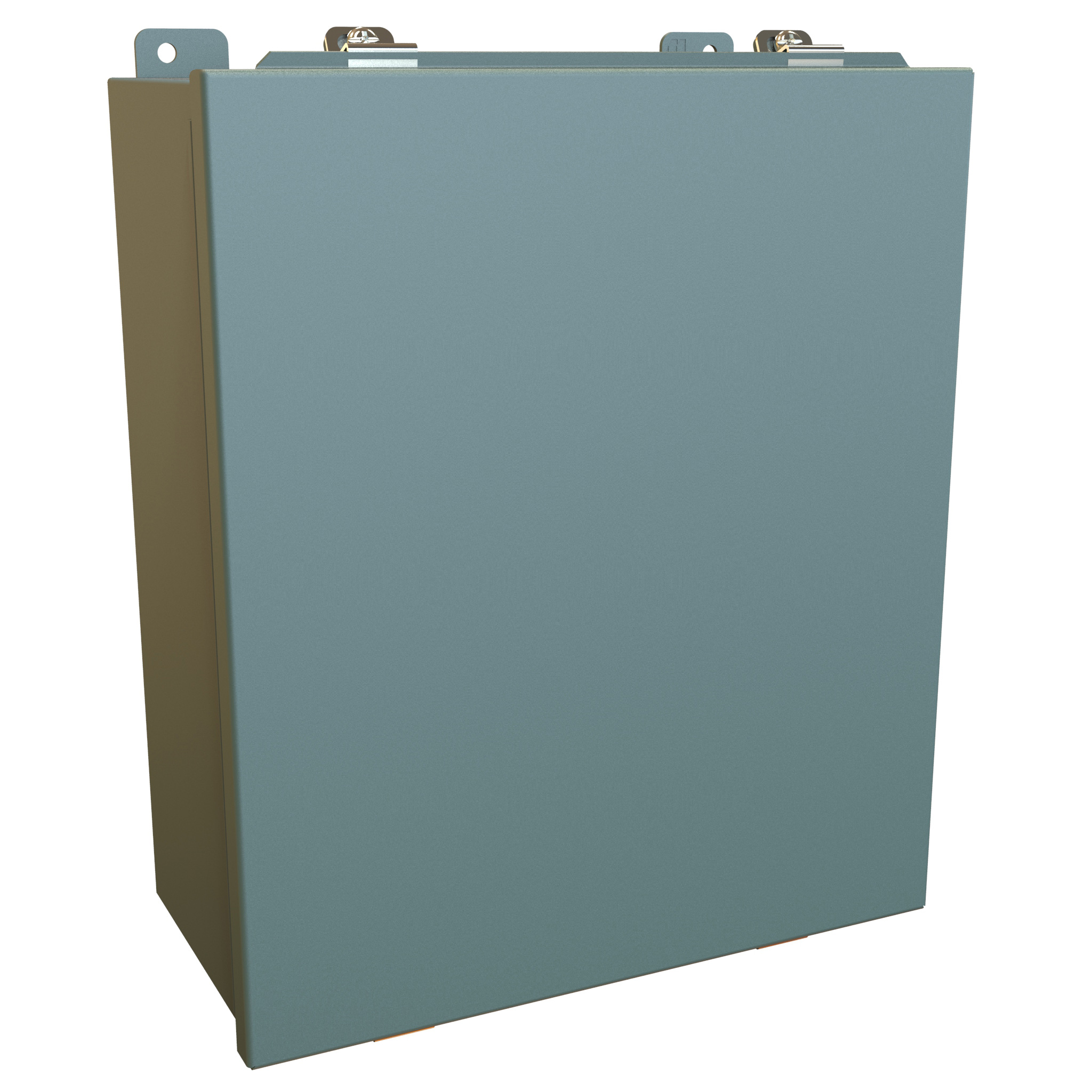

NEMA4 Hinge Enclosure 14X12X6
$201.42Backorder
Buy now

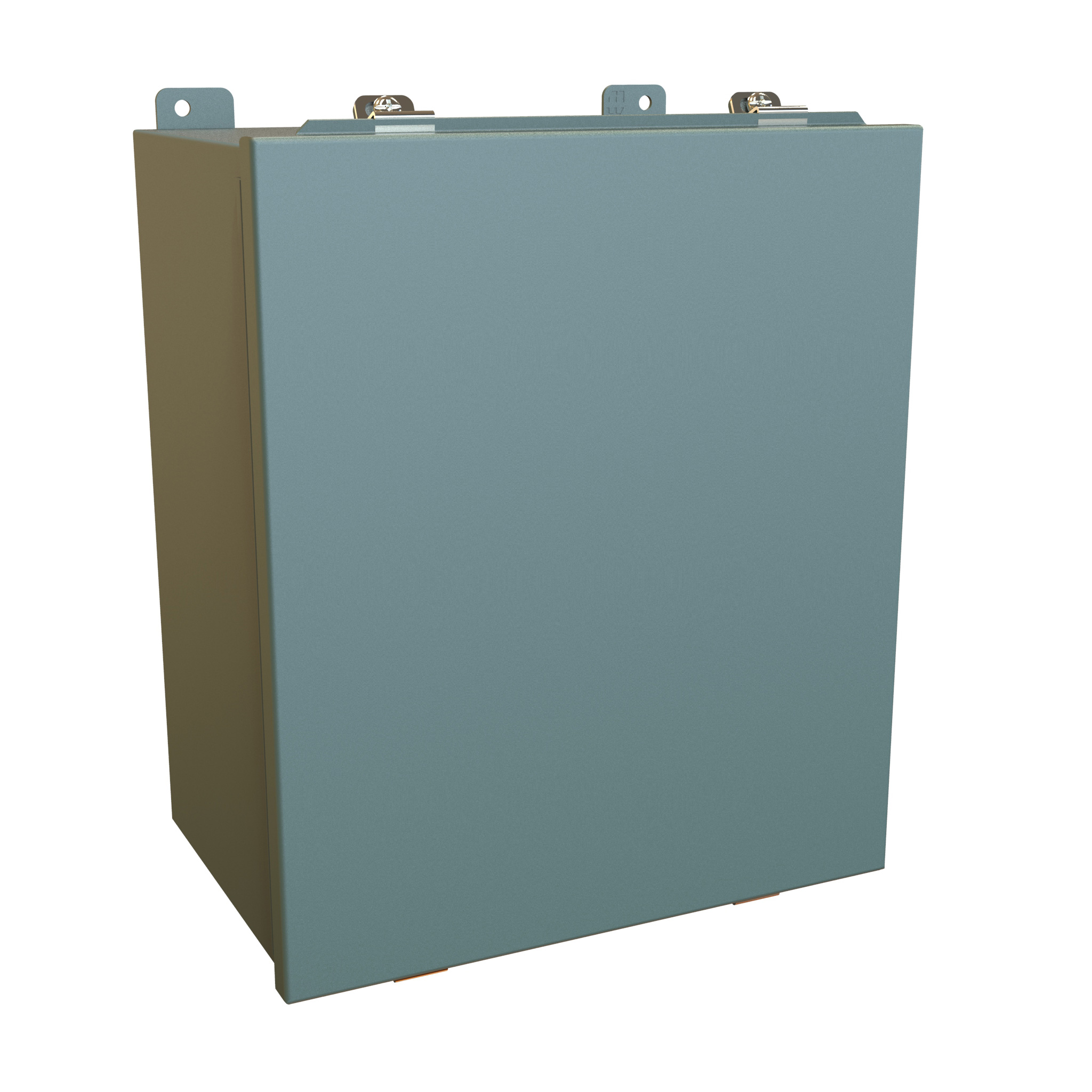

NEMA4 Hinge Enclosure 14X12X8
$243.21Backorder
Buy now

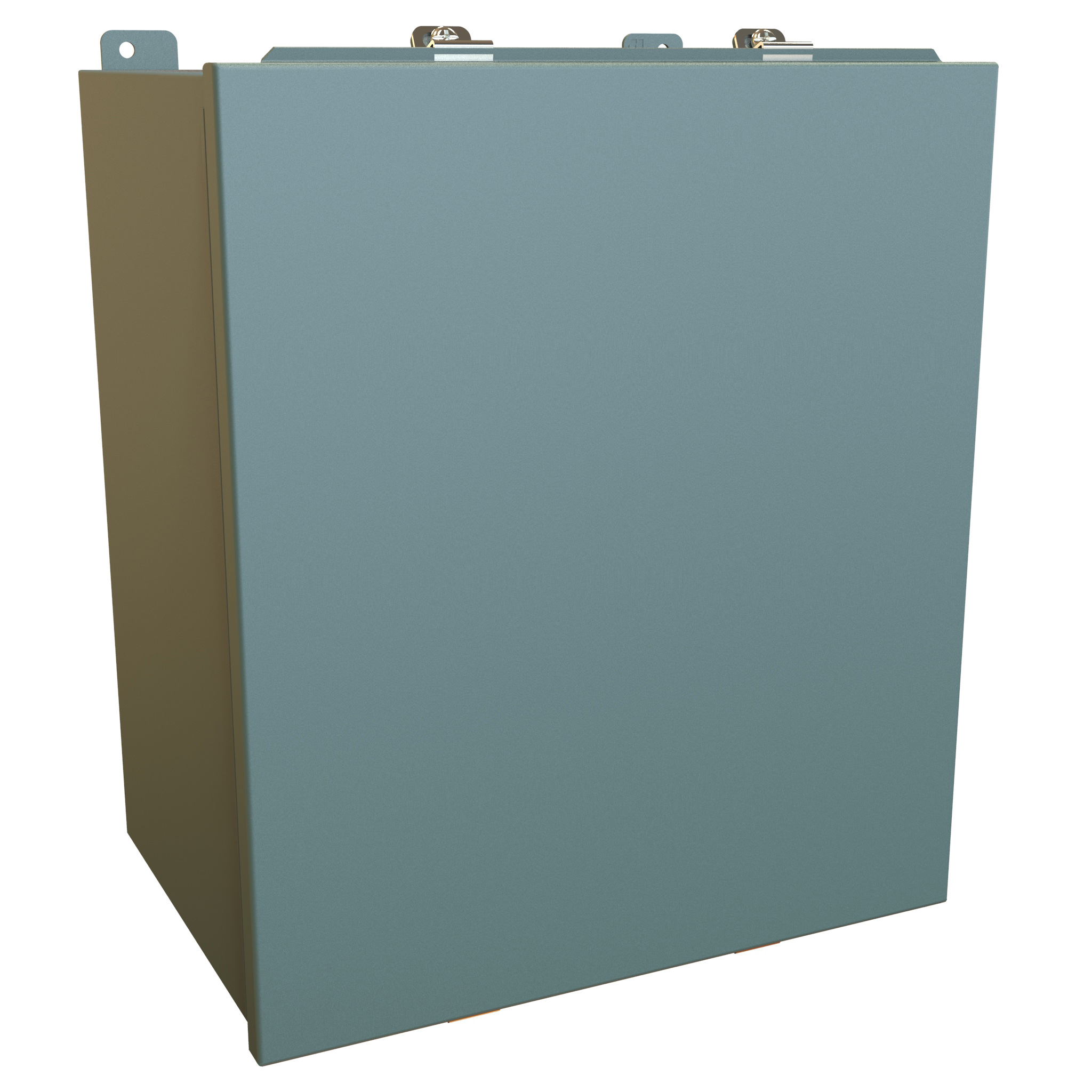

NEMA4 Hinge Enclosure 16X14X10
$293.93In stock
Buy now

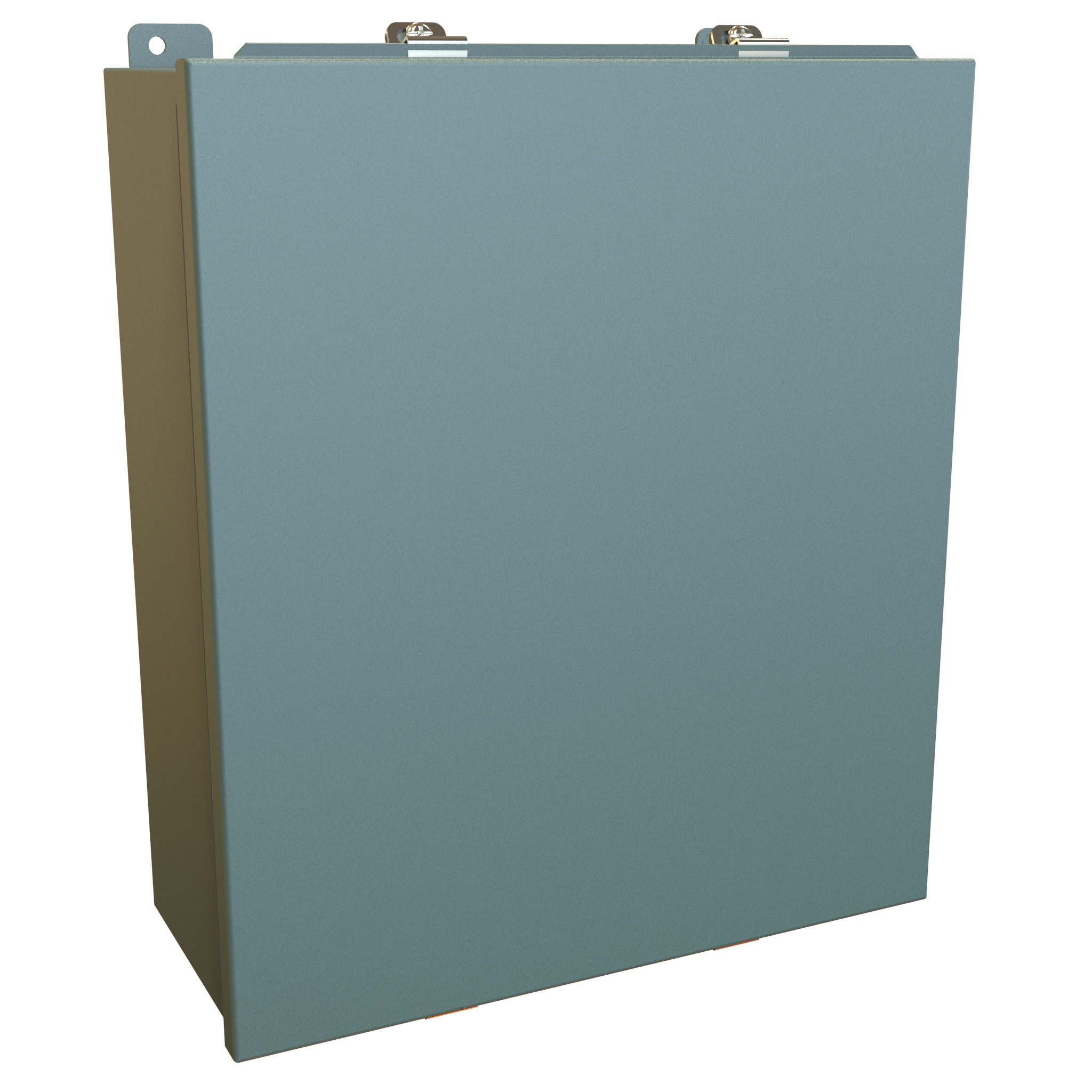

NEMA4 Hinge Enclosure 16X14X6
$236.72Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1414N4PHA | 4.00 | 4.00 | 3.00 | no panel | no panel | $68.21In stock | Buy now |
| 1414N4PHC | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 | $82.59In stock | Buy now |

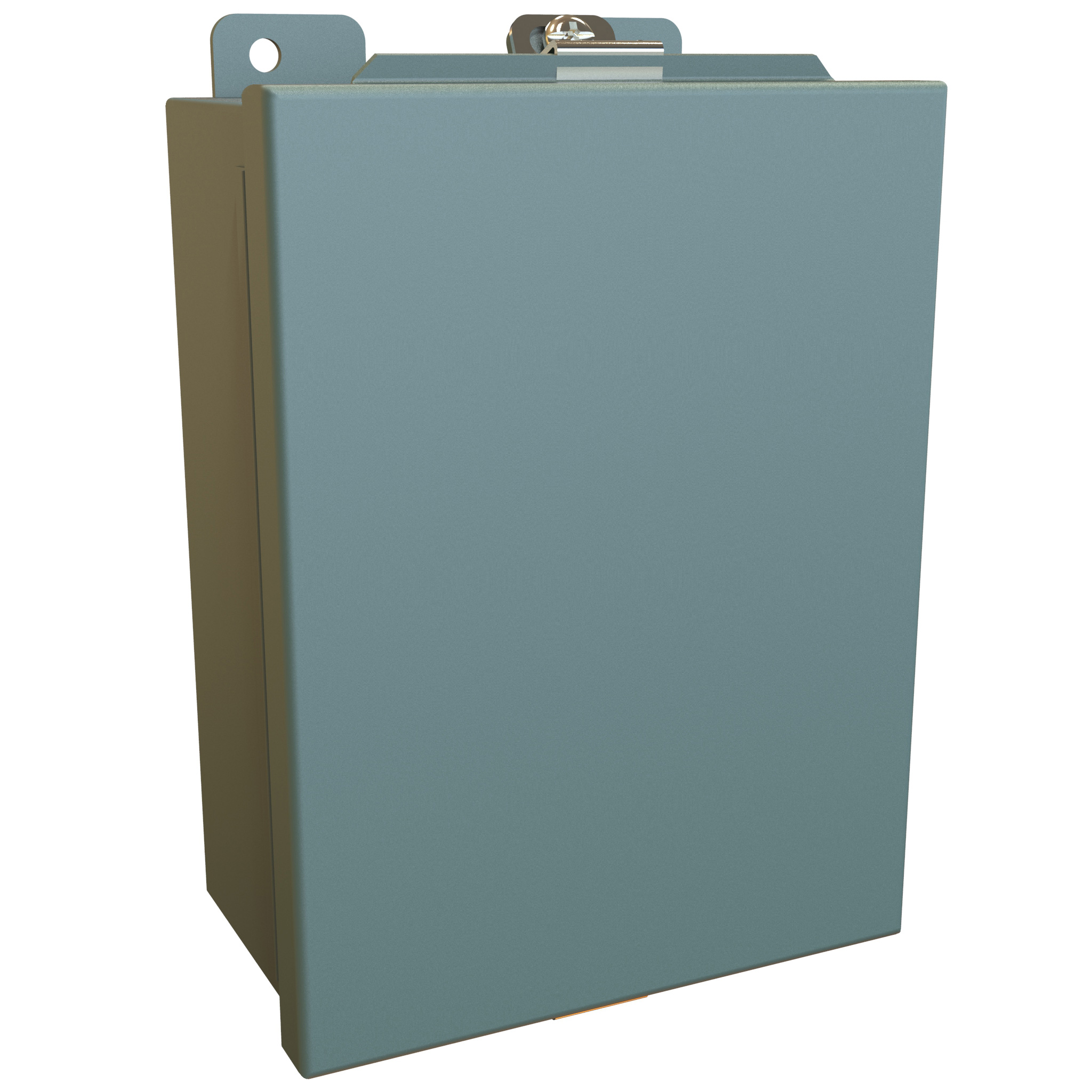

| 1414N4PHG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 | $102.98In stock | Buy now |

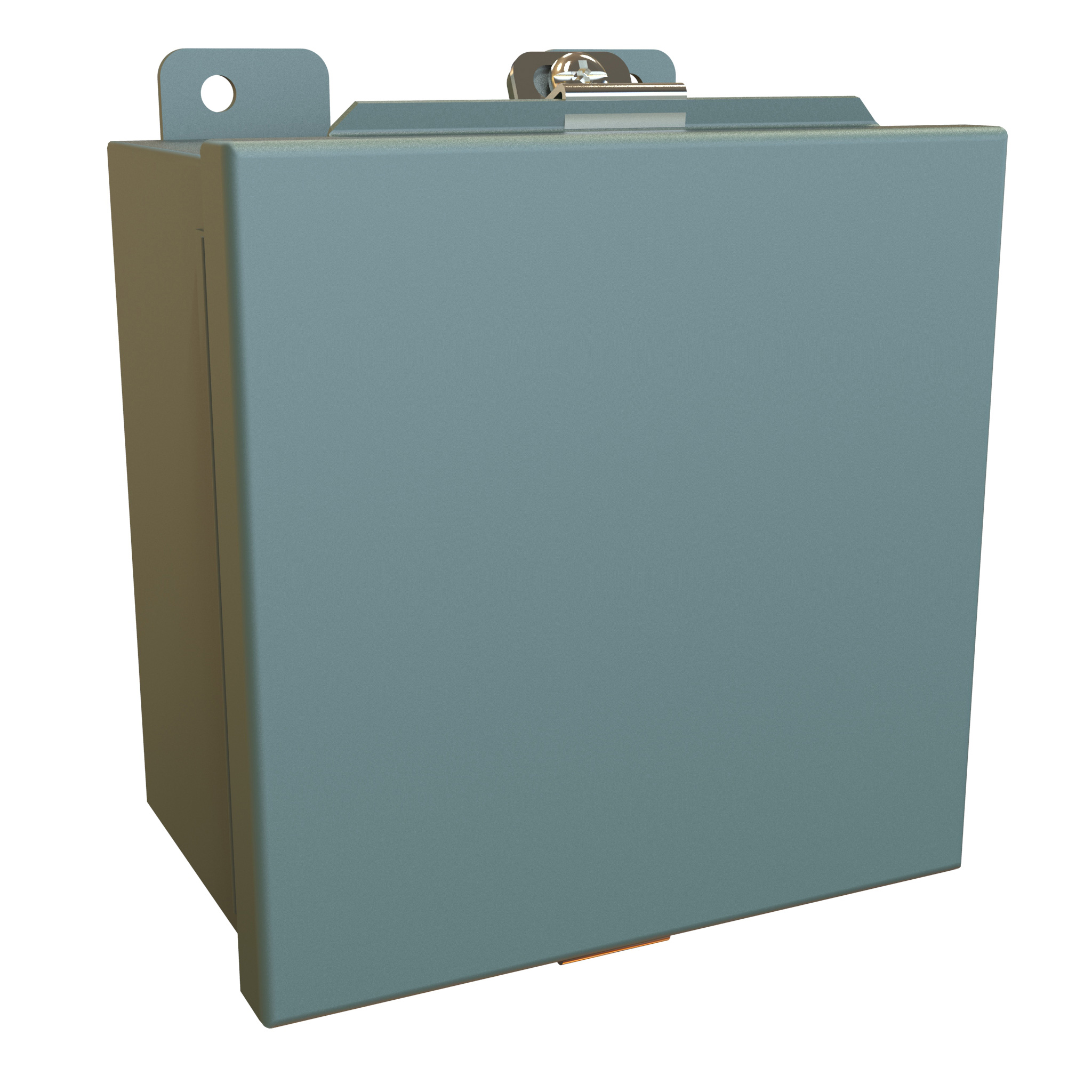

| 1414N4PHE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 | $94.29Backorder | Buy now |

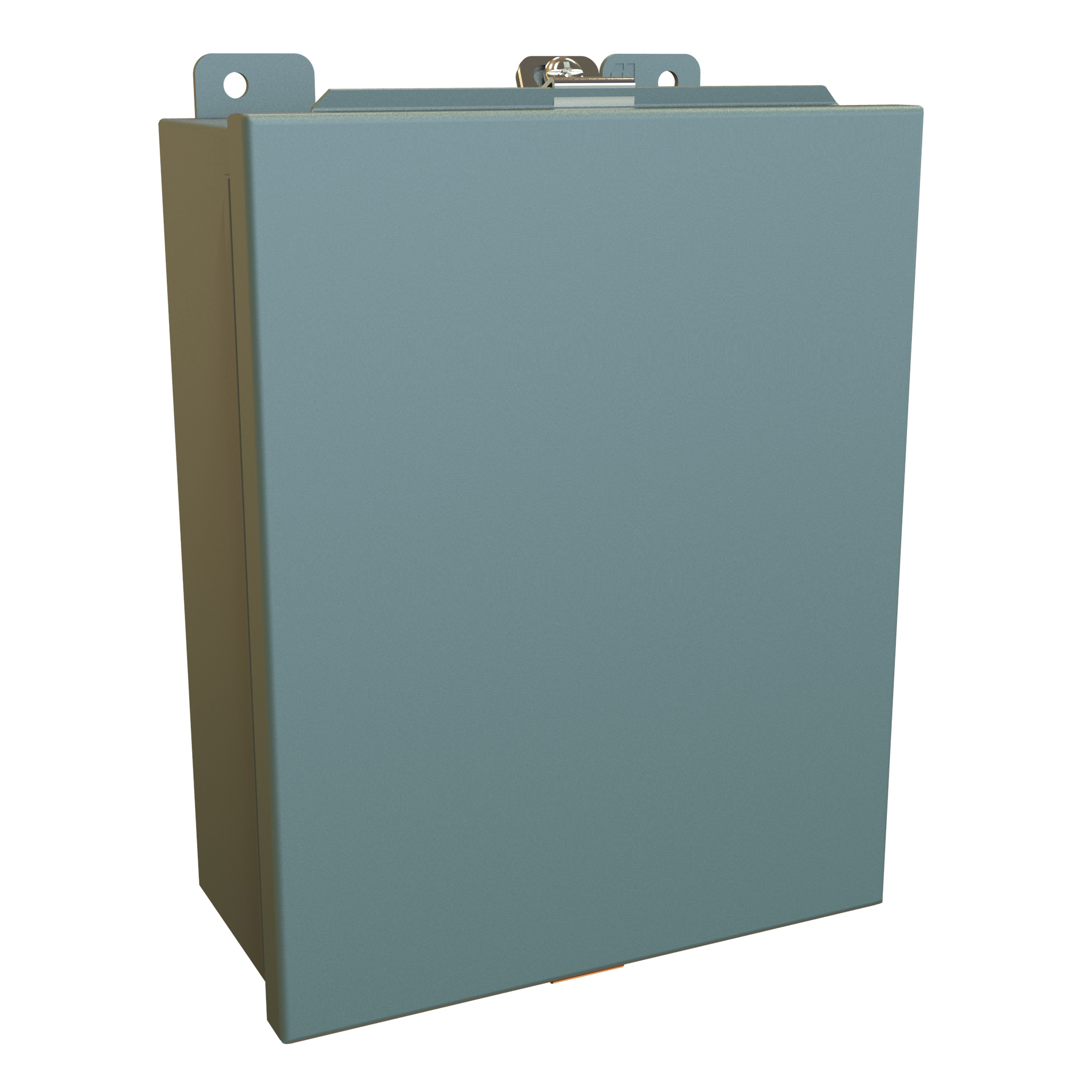

| 1414N4PHI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 | $124.44In stock | Buy now |

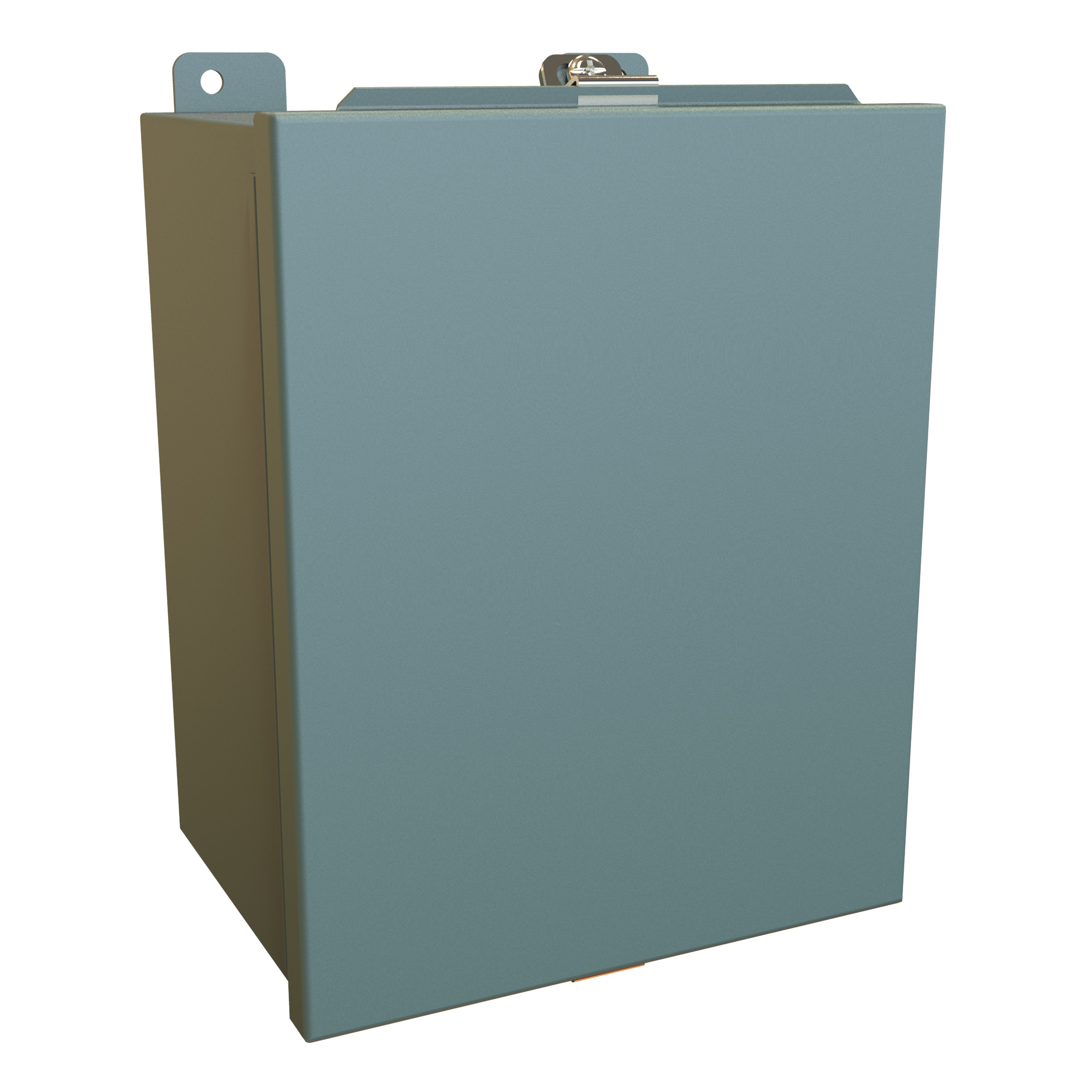

| 1414N4PHI6 | 10.00 | 8.00 | 6.00 | 8.75 | 6.88 | $142.51Backorder | Buy now |
| 1414N4PHK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 | $159.36Backorder | Buy now |

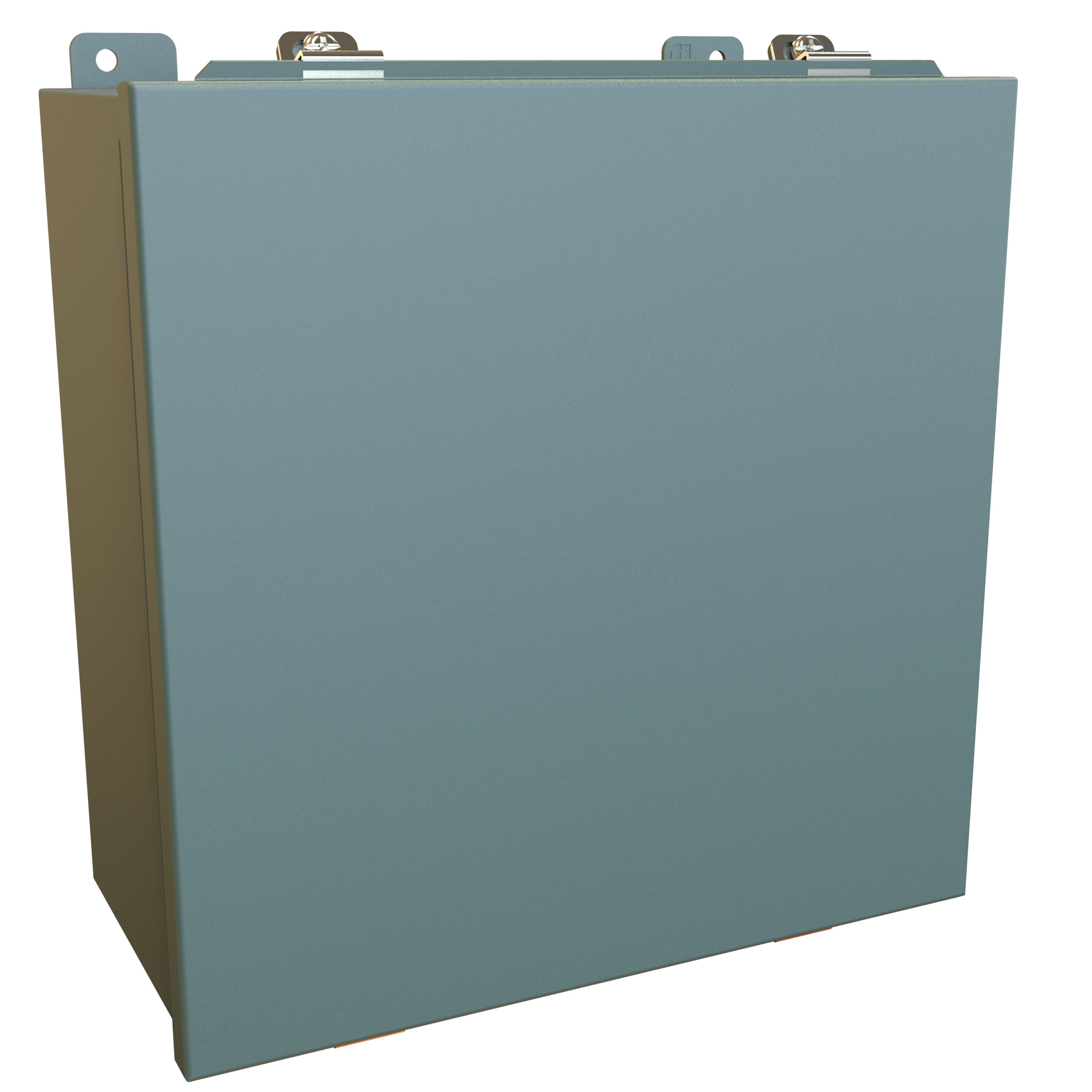

| 1414N4PHL6 | 12.00 | 12.00 | 6.00 | 10.75 | 10.88 | $169.19Backorder | Buy now |
| 1414N4PHM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 | $201.42Backorder | Buy now |
| 1414N4PHO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 | $236.72Backorder | Buy now |
| 1414N4PHM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 | $243.21Backorder | Buy now |
| 1414N4PHO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 | $293.93In stock | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
Standards
- ■UL 508A Type 3R, 4, 12 and 13
- ■CSA Type 3R, 4, 12 and 13
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Body formed from 16 or 14 gauge steel. Covers are formed from 14 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Welded brackets provide for enclosure mounting.
- ■Continuous hinged cover is secured with stainless steel clamps and screws.
- ■Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- ■Seamless poured-in place gasket.
- ■All models larger than 4" x 4" include a removable 14 gauge inner panel.
- ■Internal threaded weld studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- ■Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1414N4PHA | 4.00 | 4.00 | 3.00 | no panel | no panel |
| 1414N4PHC | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 |
| 1414N4PHG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 |
| 1414N4PHE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 |
| 1414N4PHI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 |
| 1414N4PHI6 | 10.00 | 8.00 | 6.00 | 8.75 | 6.88 |
| 1414N4PHK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 |
| 1414N4PHL6 | 12.00 | 12.00 | 6.00 | 10.75 | 10.88 |
| 1414N4PHM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 |
| 1414N4PHO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 |
| 1414N4PHM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 |
| 1414N4PHO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 |
