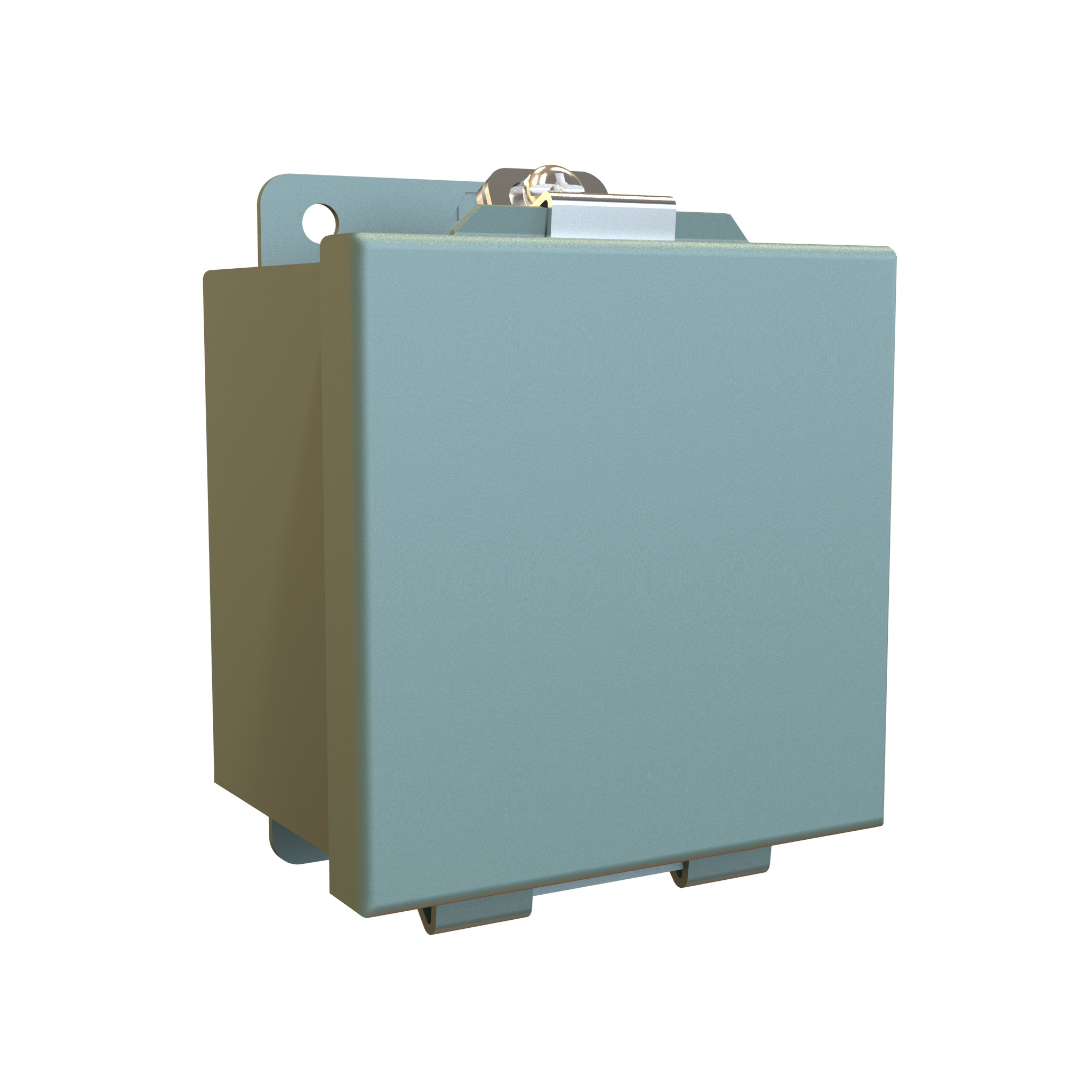

NEMA12 Rmvbl Cvr 4X4X3
$48.15In stock
Buy now
Type 12 Mild Steel Junction Box · 1414 Series
Brand: Hammond Manufacturing · 12 part numbers
Lift-Off Cover with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
from $48.15
12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1414 Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online
Clmpd Lift-Off Rmvble Cvr Box
$50.75In stock
Buy now
NEMA12 Rmvbl Cvr 6X4X3
$58.38In stock
Buy now
Clmpd Lift-Off Remvble Cvr Box
$62.92In stock
Buy now
NEMA12 Rmvbl Cvr 6X6X4
$68.34In stock
Buy now
NEMA12 Rmvbl Cvr 8X6X3.5
$72.82In stock
Buy now
NEMA 12 Rmvbl Cvr
$92.36Backorder
Buy now
NEMA12 Rmvbl Cvr 12X10X5
$119.90Backorder
Buy now
NEMA12 Rmvbl Cvr 14X12X6
$155.28In stock
Buy now
NEMA12 Rmvbl Cvr 14X12X8
$193.23In stock
Buy now
NEMA12 Rmvbl Cvr 16X14X10
$233.39In stock
Buy now
NEMA12 Rmvbl Cvr 16X14X6
$183.90In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1414A | 4.00 | 4.00 | 3.00 | - | - | $48.15In stock | Buy now |
| 1414C | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 | $58.38In stock | Buy now |
| 1414G | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 | $72.82In stock | Buy now |
| 1414A4 | 4.00 | 4.00 | 4.00 | - | - | $50.75In stock | Buy now |
| 1414C4 | 6.00 | 4.00 | 4.00 | 4.88 | 2.88 | $62.92In stock | Buy now |
| 1414E | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 | $68.34In stock | Buy now |
| 1414I | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 | $92.36Backorder | Buy now |
| 1414K | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 | $119.90Backorder | Buy now |
| 1414M6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 | $155.28In stock | Buy now |
| 1414O6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 | $183.90In stock | Buy now |
| 1414M8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 | $193.23In stock | Buy now |
| 1414O10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 | $233.39In stock | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
Construction
- ■Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Welded brackets provide for enclosure mounting.
- ■Lift off cover is secured with stainless steel clamps and plated steel screws and retained with a plated chain when open.
- ■Seamless poured-in place gasket.
- ■Models larger than 4" x 4" include a removable 14 gauge inner panel.
- ■Internal threaded weld studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1414A | 4.00 | 4.00 | 3.00 | - | - |
| 1414C | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 |
| 1414G | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 |
| 1414A4 | 4.00 | 4.00 | 4.00 | - | - |
| 1414C4 | 6.00 | 4.00 | 4.00 | 4.88 | 2.88 |
| 1414E | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 |
| 1414I | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 |
| 1414K | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 |
| 1414M6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 |
| 1414O6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 |
| 1414M8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 |
| 1414O10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 |
