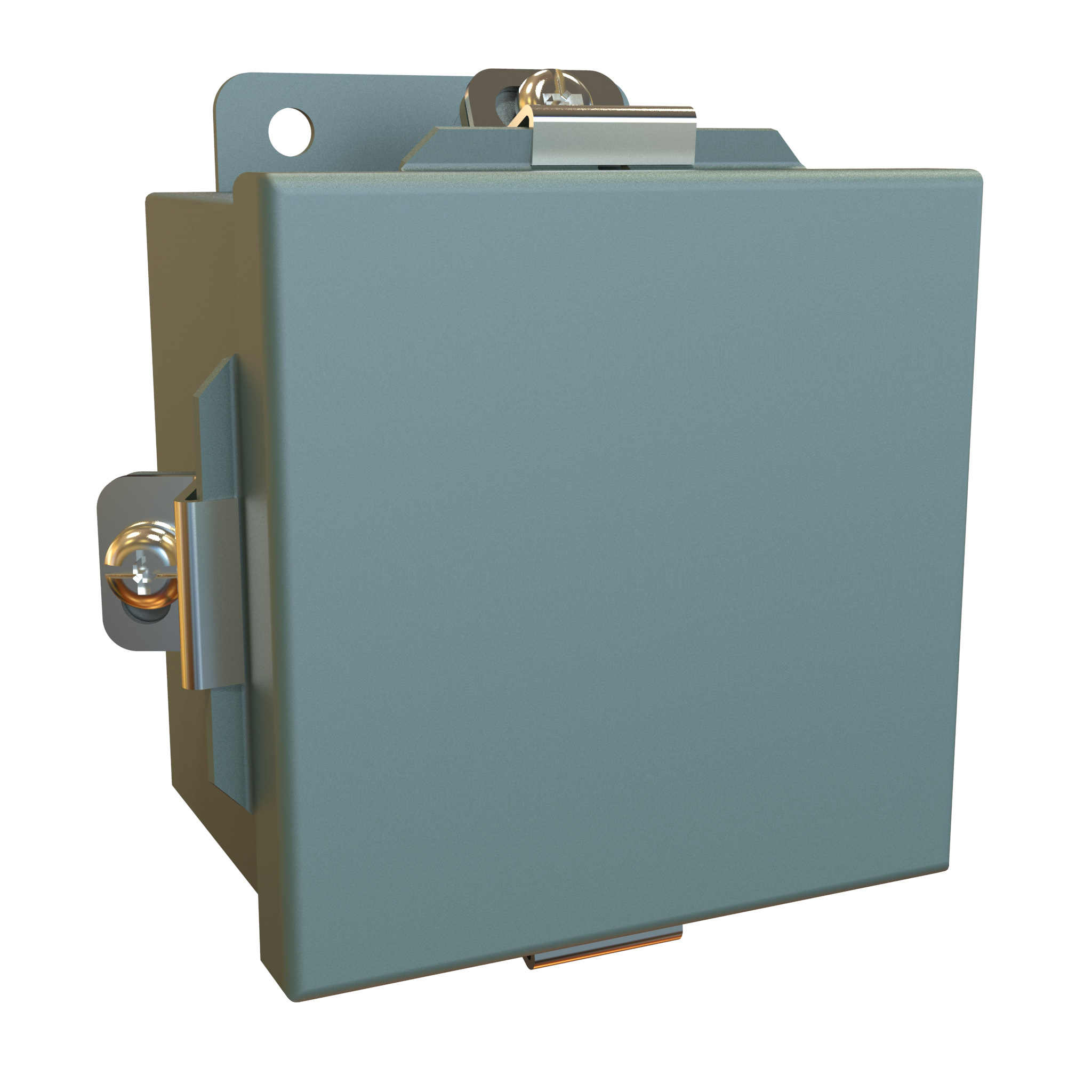

NEMA 4 Rmvbl Enc 4X4X3
$58.85Backorder
Buy now

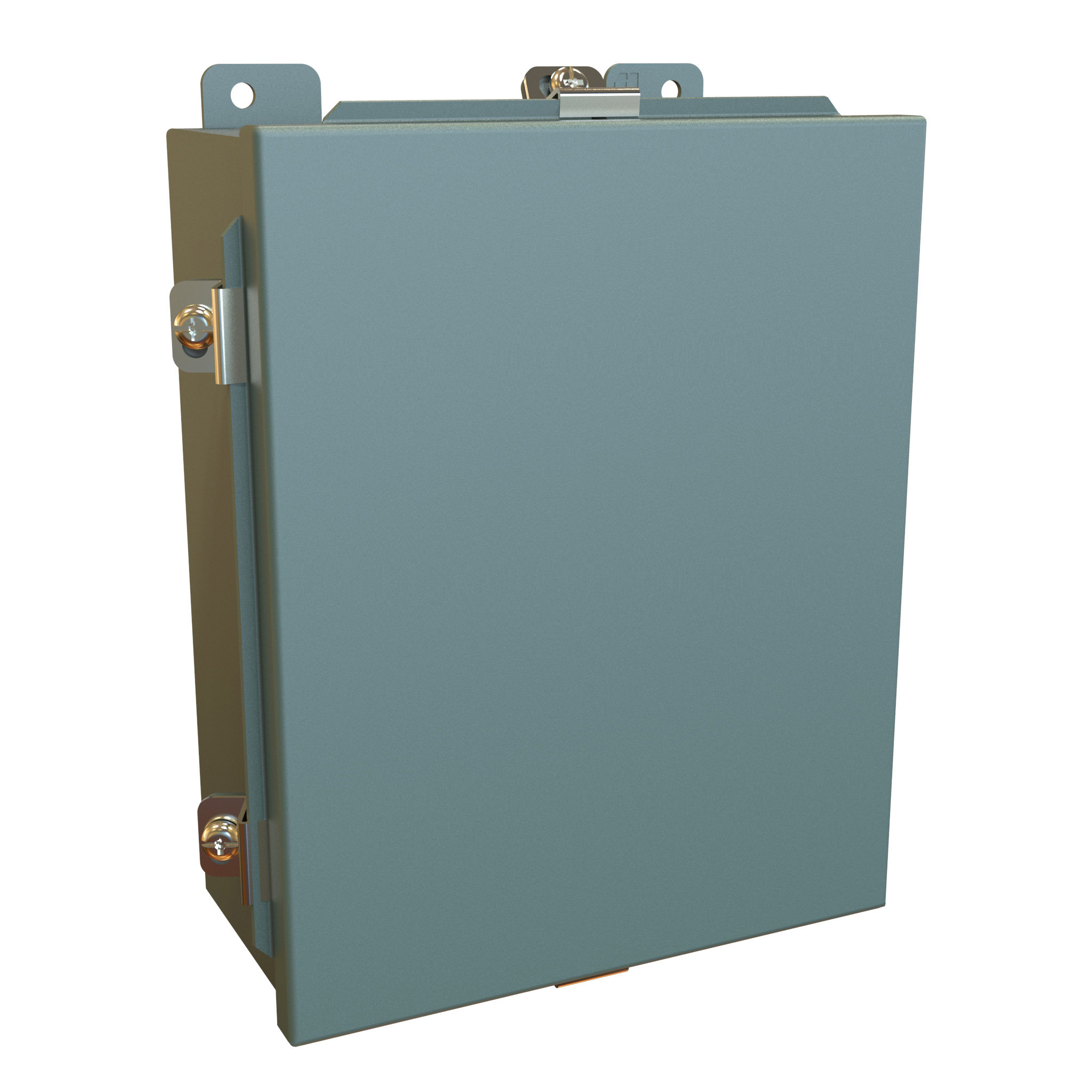

Type 4 Mild Steel Junction Box · 1414 N4 Series
Brand: Hammond Manufacturing · 10 part numbers
Lift-Off Cover with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■UL 508A Type 3R, 4, 12 and 13
- ■CSA Type 3R, 4, 12 and 13
- ■Complies with NEMA Type 3R, 4, and 12 IEC 60529, IP66
- ■NEMA Type 3R, 4, and 12
from $58.85
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1414 N4 Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online

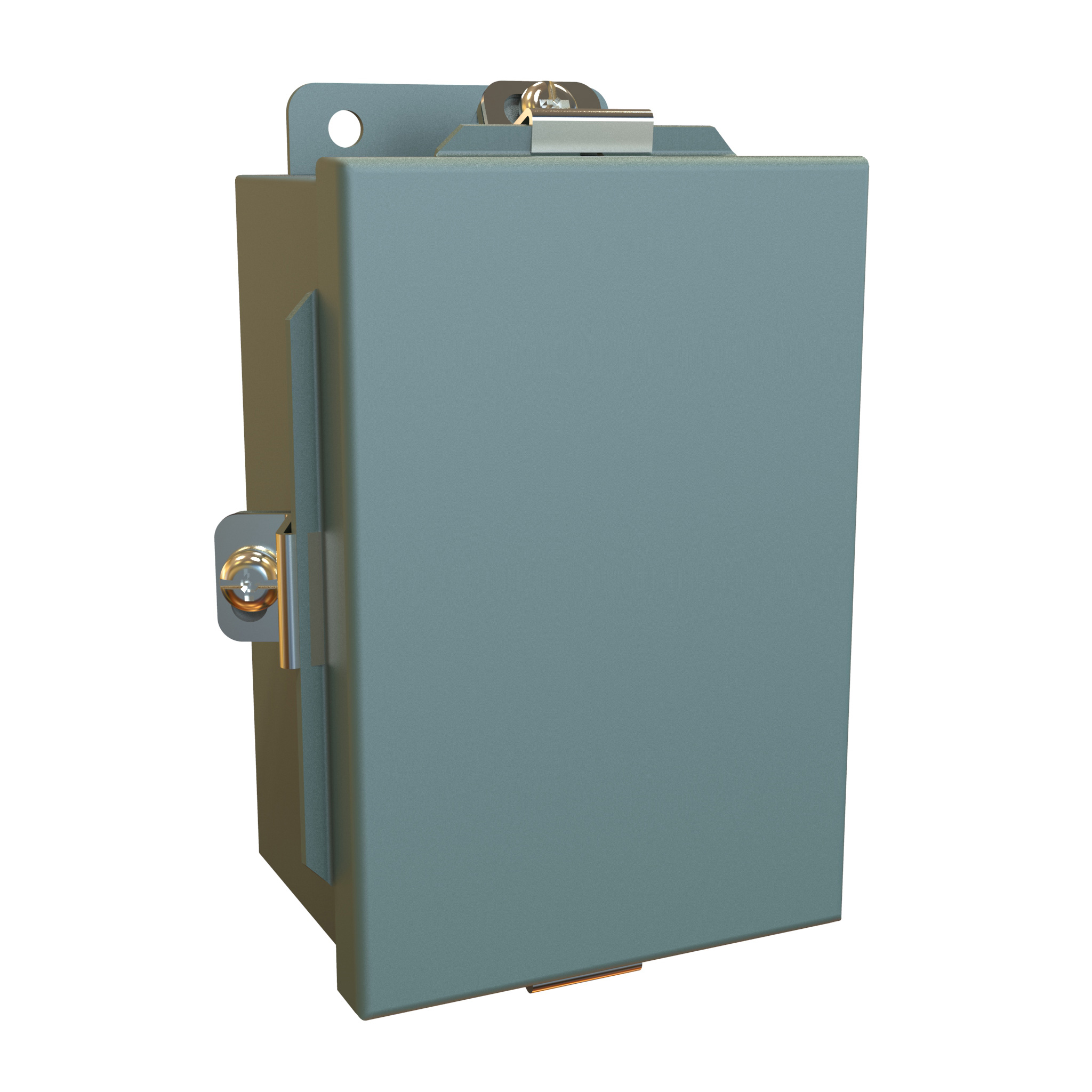

NEMA 4 Rmvbl Enc 6X4X3
$71.89In stock
Buy now

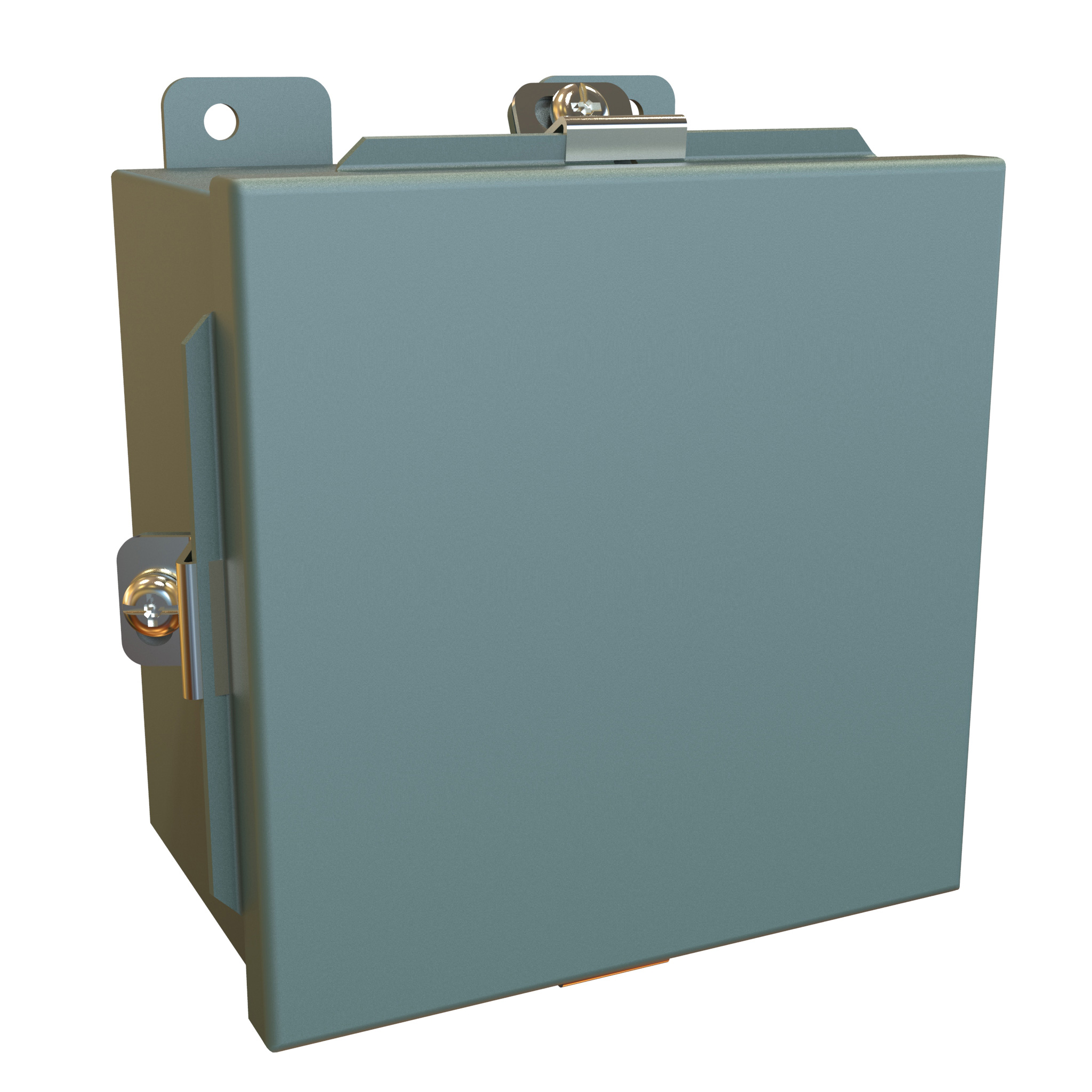

NEMA 4 Rmvbl Enc 6X6X4
$84.93In stock
Buy now

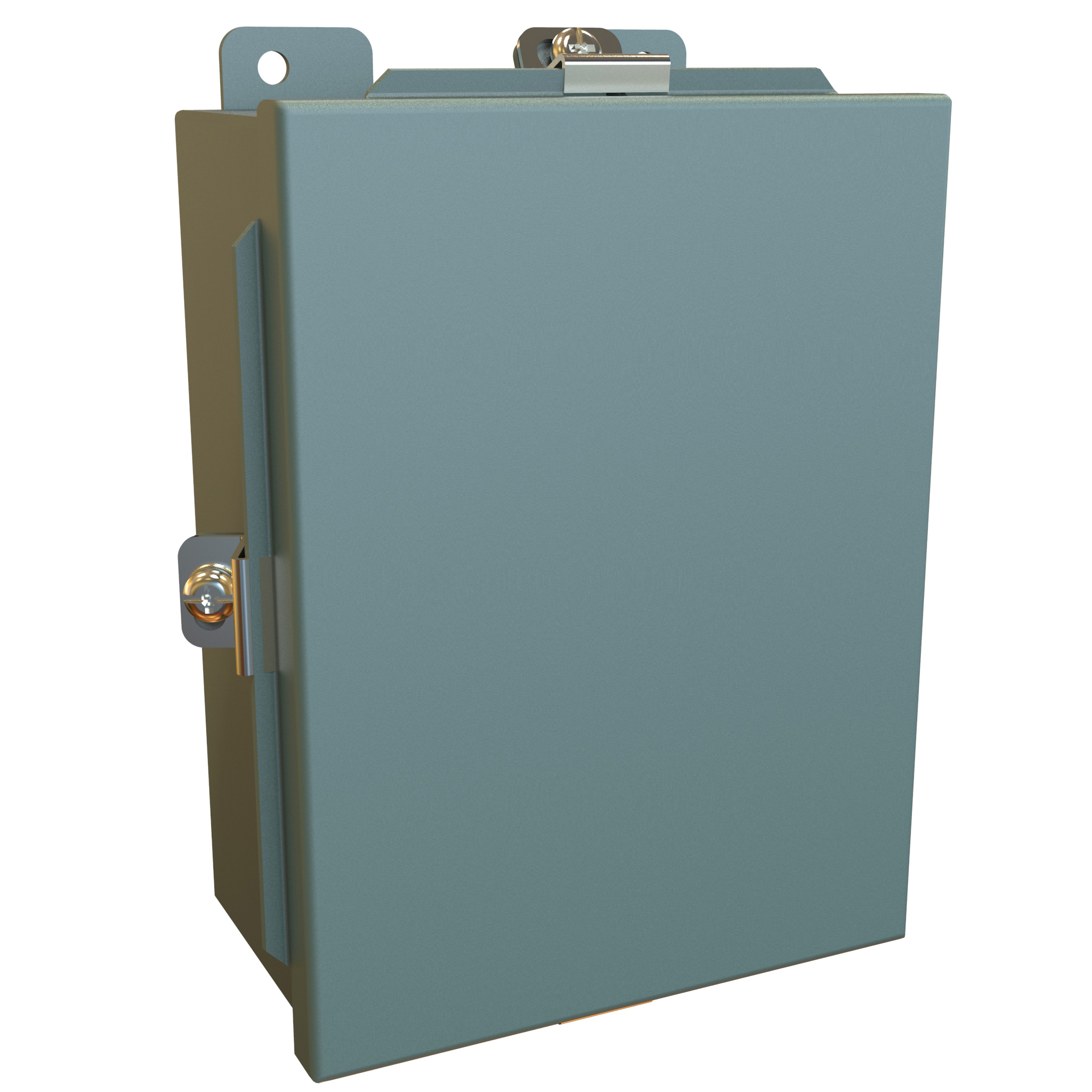

NEMA 4 Rmvbl Enc 8X6X3.5
$90.28In stock
Buy now
NEMA 4 Rmvbl Enc 10X8X4
$113.75In stock
Buy now

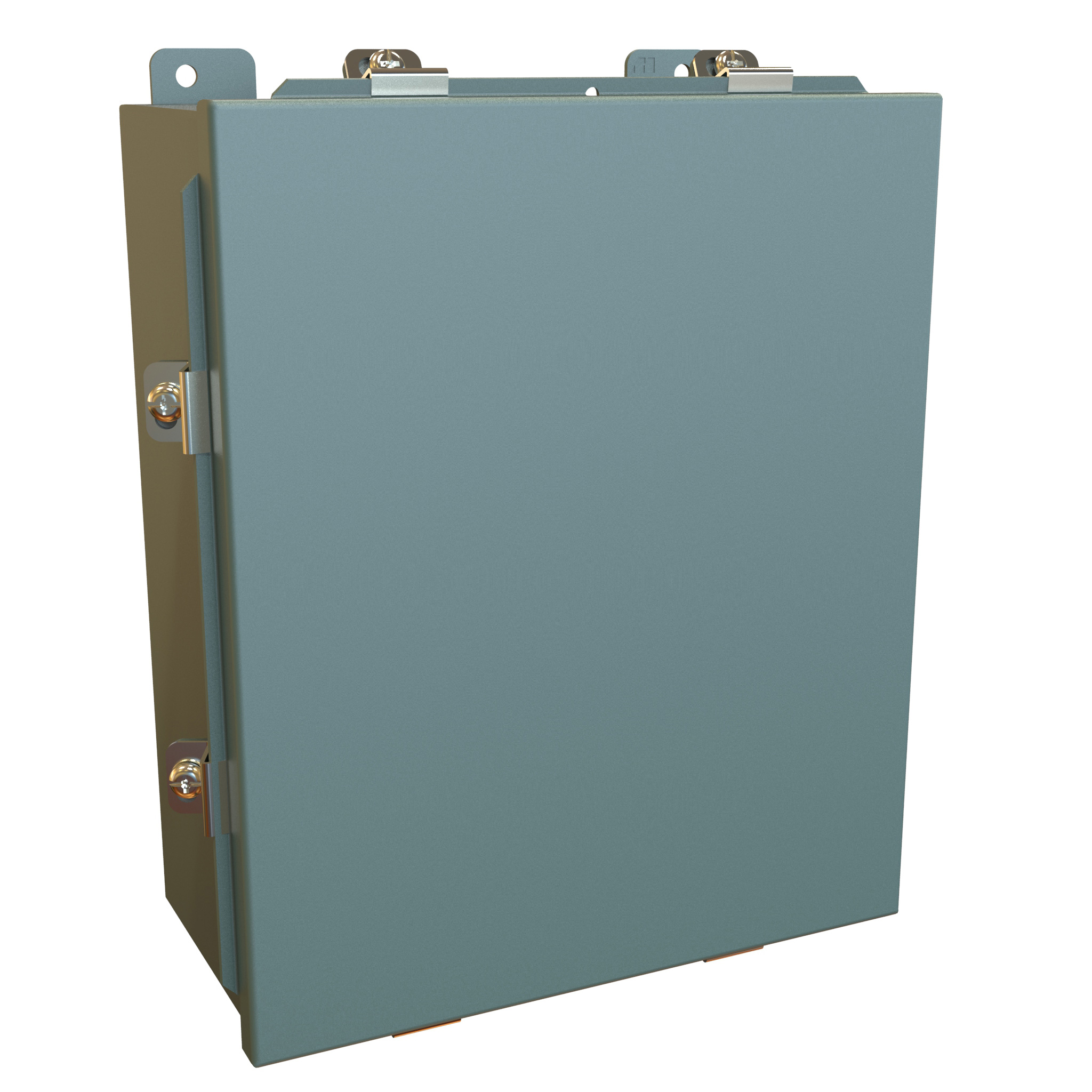

NEMA 4 Rmvbl Enc 12X10X5
$144.64In stock
Buy now
NEMA 4 Rmvbl Enc 14X12X6
$182.02In stock
Buy now

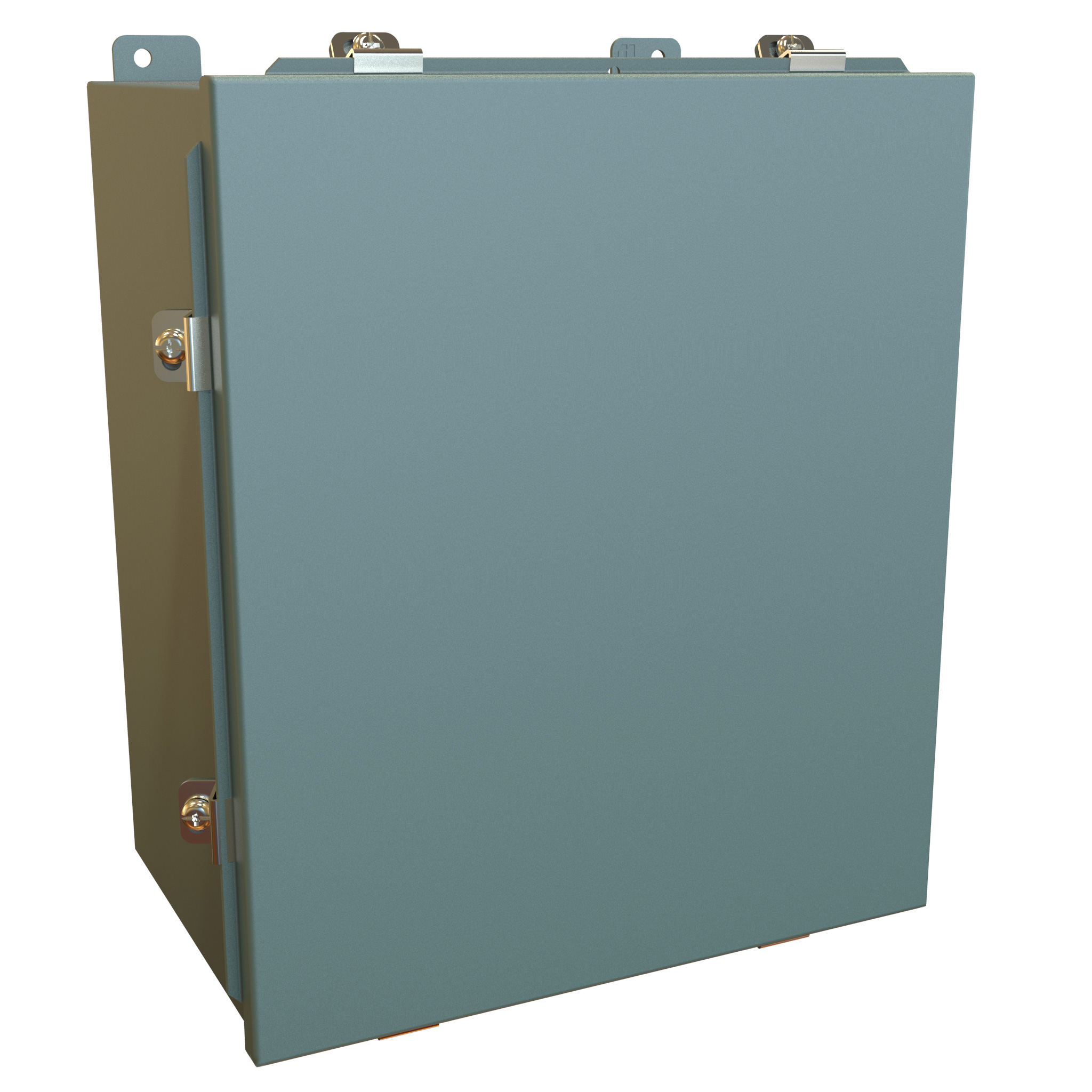

NEMA 4 Rmvbl Enc 14X12X8
$213.80In stock
Buy now

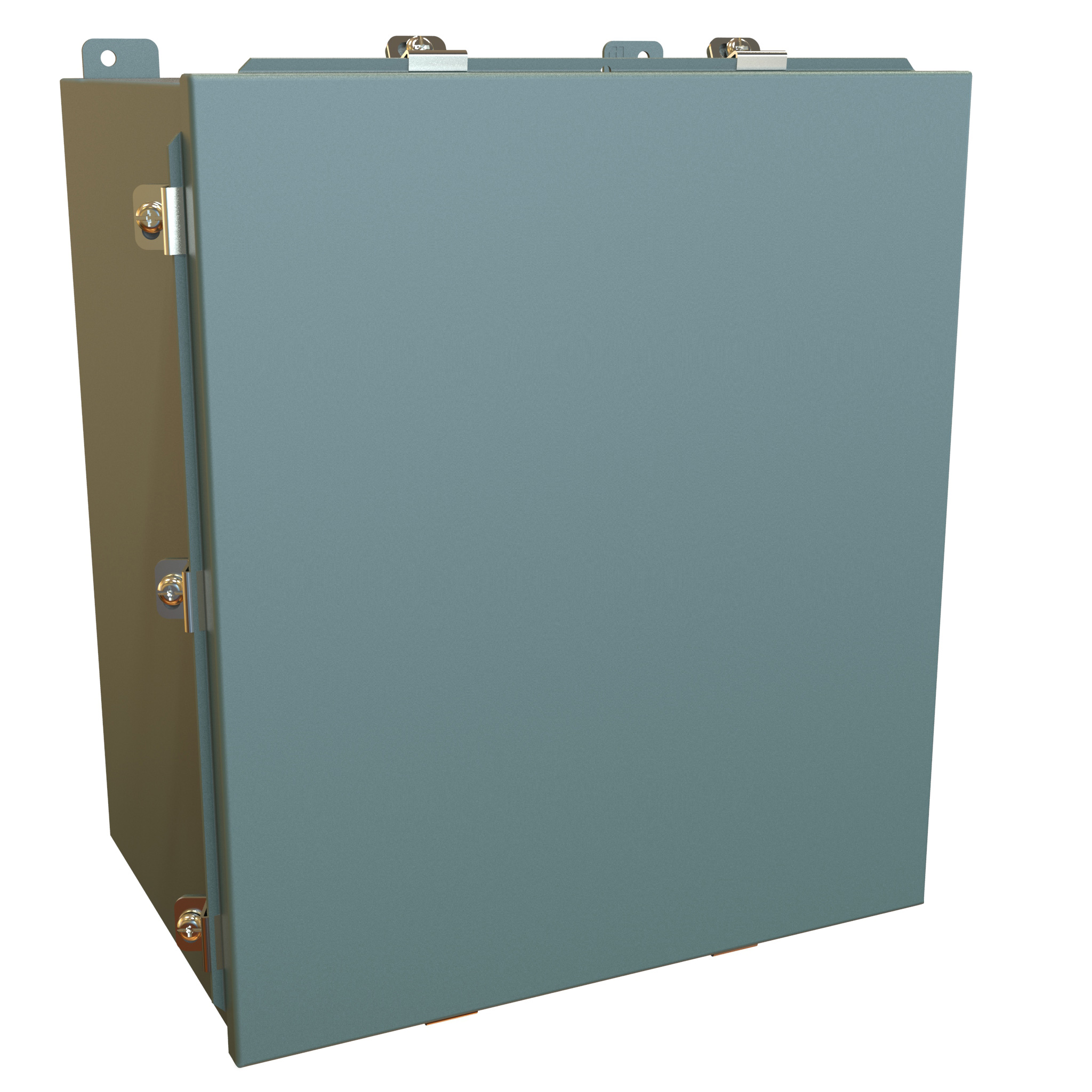

NEMA 4 Rmvbl Enc 16X14X10
$276.08Backorder
Buy now

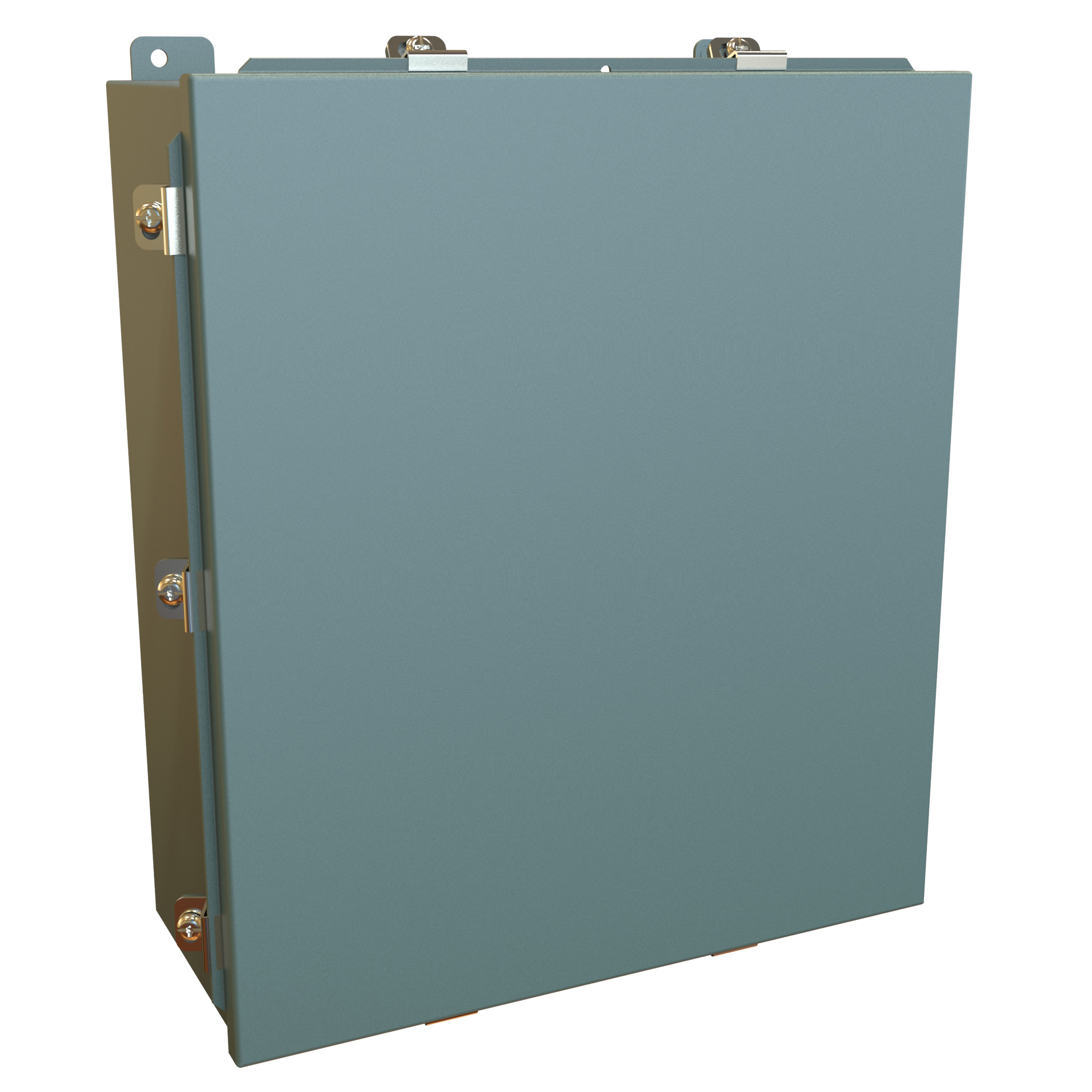

NEMA 4 Rmvbl Enc 16X14X6
$215.33In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1414N4A | 4.00 | 4.00 | 3.00 | - | - | $58.85Backorder | Buy now |
| 1414N4C | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 | $71.89In stock | Buy now |
| 1414N4G | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 | $90.28In stock | Buy now |
| 1414N4E | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 | $84.93In stock | Buy now |
| 1414N4I | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 | $113.75In stock | Buy now |
| 1414N4K | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 | $144.64In stock | Buy now |
| 1414N4M6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 | $182.02In stock | Buy now |
| 1414N4O6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 | $215.33In stock | Buy now |
| 1414N4M8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 | $213.80In stock | Buy now |
| 1414N4O10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 | $276.08Backorder | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
Standards
- ■UL 508A Type 3R, 4, 12 and 13
- ■CSA Type 3R, 4, 12 and 13
- ■Complies with NEMA Type 3R, 4, and 12 IEC 60529, IP66
- ■NEMA Type 3R, 4, and 12
- ■IEC 60529, IP66
Construction
- ■Body formed from 16 or 14 gauge steel. Covers are formed from 14 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Welded brackets provide for enclosure mounting.
- ■Lift off cover is secured with stainless steel clamps and screws.
- ■Seamless poured-in place gasket.
- ■All models larger than 4" x 4" include a removable 14 gauge inner panel.
- ■Internal threaded weld studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1414N4A ¹ | 4.00 | 4.00 | 3.00 | - | - |
| 1414N4C | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 |
| 1414N4G | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 |
| 1414N4E | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 |
| 1414N4I | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 |
| 1414N4K | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 |
| 1414N4M6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 |
| 1414N4O6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 |
| 1414N4M8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 |
| 1414N4O10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 |
