Type 4 Mild Steel Junction Box Eclipse Junior Series

Type 4 Mild Steel Junction Box · Eclipse Junior Series

Brand: Hammond Manufacturing · 56 part numbers

Continuous Hinge Door with Quarter Turn

  • ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
  • ■For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Impressive styling features make the Eclipse Junior a suitable addition to any high-tech equipment installation.
  • ■UL 508A Type 3R, 4, 12 and 13
  • ■CSA Type 3R, 4, 12 and 13
  • ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66

from $52.20

56 of 56 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your Eclipse Junior Series part number

Filter 56 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

56 of 56 part numbers · 56 priced online

EJ10106

Eclipse Jr. N4 - 1 Dr Wallmnt

$119.03Backorder
Buy now
EJ10106LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$119.03Backorder
Buy now
EJ10125

Eclipse Jr. N4 - 1 Dr Wallmnt

$122.05In stock
Buy now
EJ1084

Eclipse Jr. N4 - 1 Dr Wallmnt

$94.69In stock
Buy now
EJ1084LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$94.69In stock
Buy now
EJ1086

Eclipse Jr. N4 - 1 Dr Wallmnt

$109.18In stock
Buy now

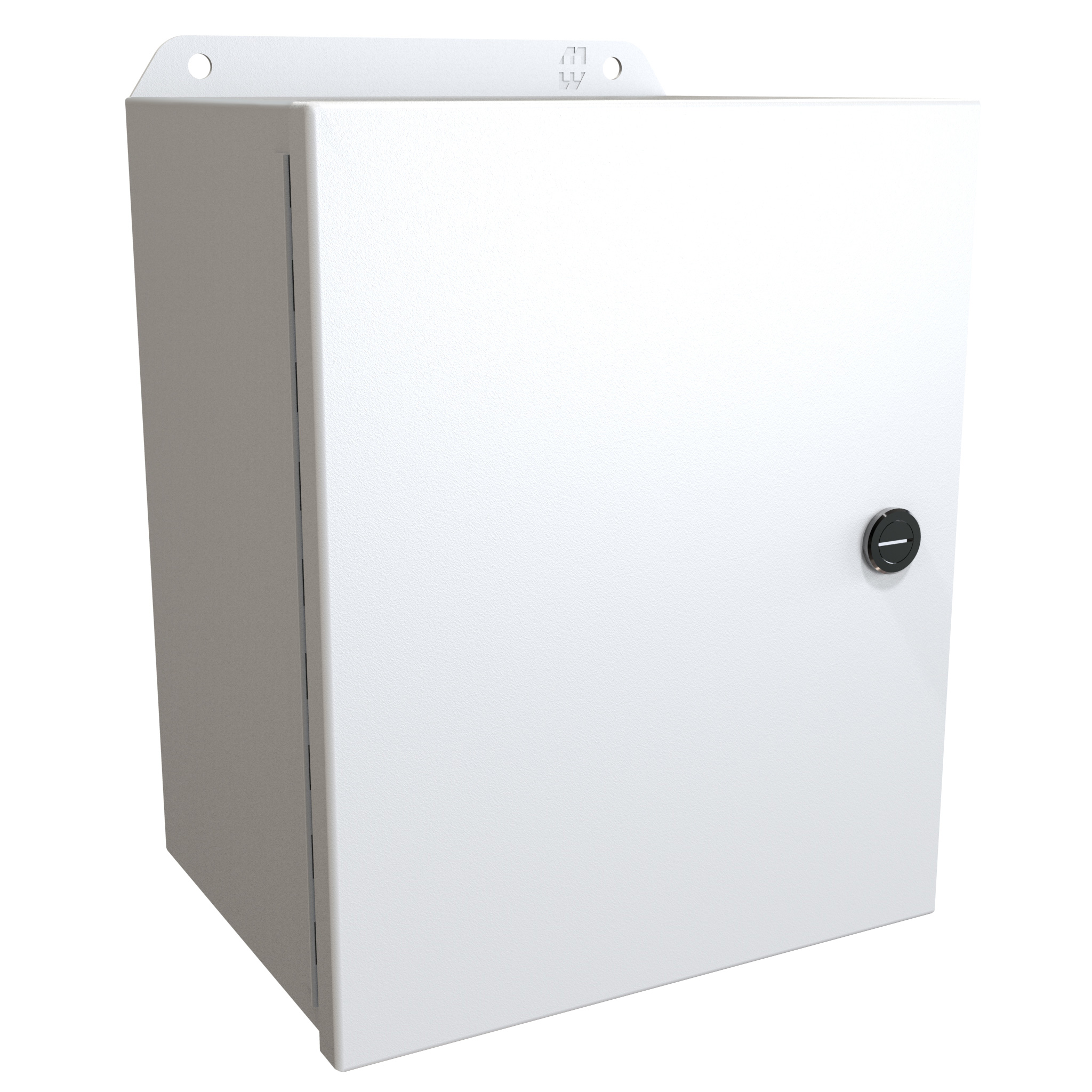

EJ1086LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$109.18Backorder
Buy now
EJ12105

Eclipse Jr. N4 - 1 Dr Wallmnt

$121.77In stock
Buy now
EJ12108

Eclipse Jr. N4 - 1 Dr Wallmnt

$145.85In stock
Buy now
EJ12124

Eclipse Jr. N4 - 1 Dr Wallmnt

$126.36In stock
Buy now
EJ12126

Eclipse Jr. N4 - 1 Dr Wallmnt

$129.37Backorder
Buy now
EJ12146

Eclipse Jr. N4 - 1 Dr Wallmnt

$154.14Backorder
Buy now
EJ12146LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$154.14Backorder
Buy now
EJ1264

Eclipse Jr. N4 - 1 Dr Wallmnt

$84.82In stock
Buy now

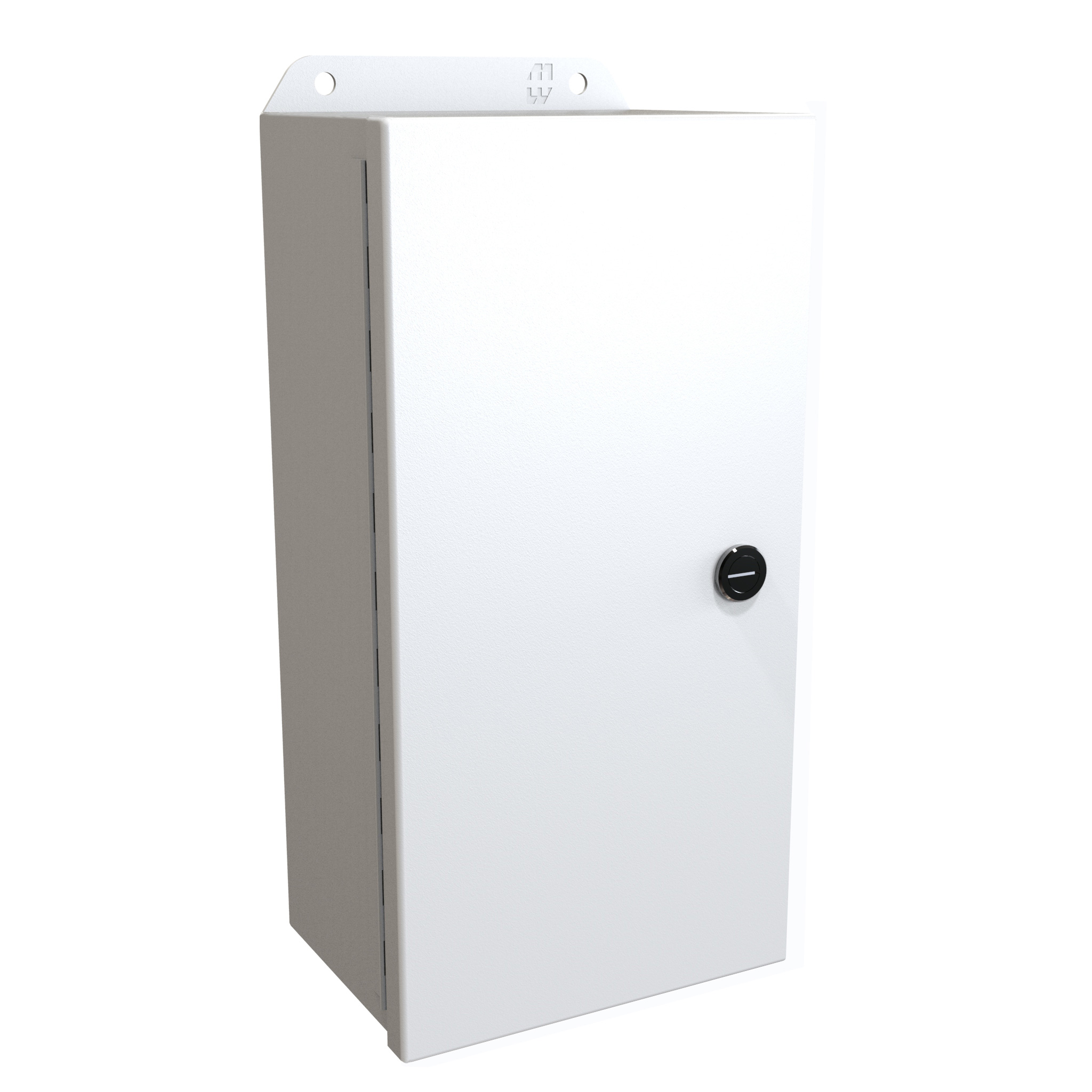

EJ1264LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$84.82Backorder
Buy now
EJ14126

Eclipse Jr. N4 - 1 Dr Wallmnt

$153.90In stock
Buy now
EJ14126LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$153.90Backorder
Buy now
EJ14128

Eclipse Jr. N4 - 1 Dr Wallmnt

$176.01Backorder
Buy now

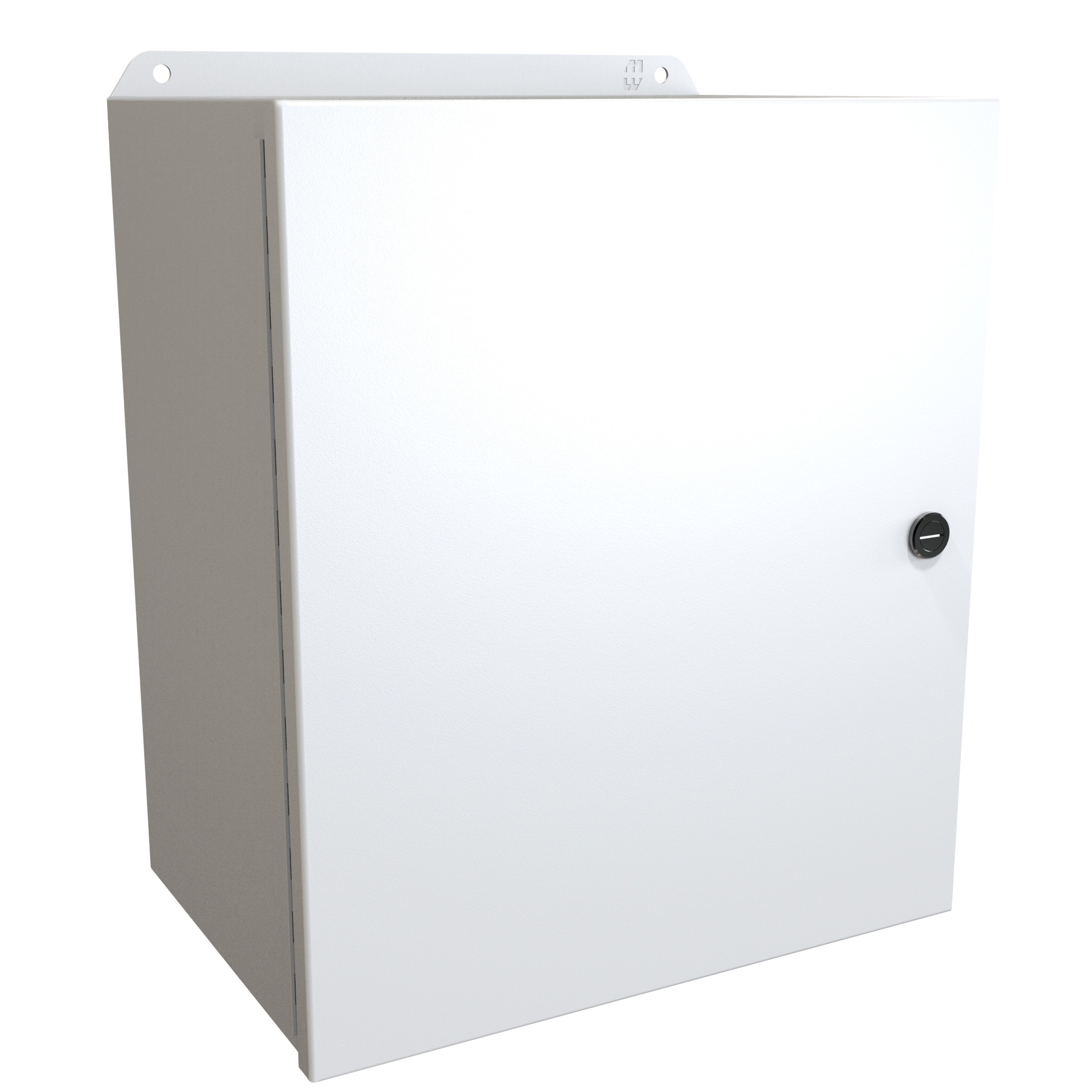

EJ14128LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$176.01Backorder
Buy now
EJ14166

Eclipse Jr. N4 - 1 Dr Wallmnt

$183.13Backorder
Buy now
EJ1486

Eclipse Jr. N4 - 1 Dr Wallmnt

$141.70Backorder
Buy now
EJ1486LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$141.70Backorder
Buy now
EJ16106

Eclipse Jr. N4 - 1 Dr Wallmnt

$154.51Backorder
Buy now
EJ16106LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$154.51Backorder
Buy now
EJ161410

Eclipse Jr. N4 - 1 Dr Wallmnt

$214.96Backorder
Buy now

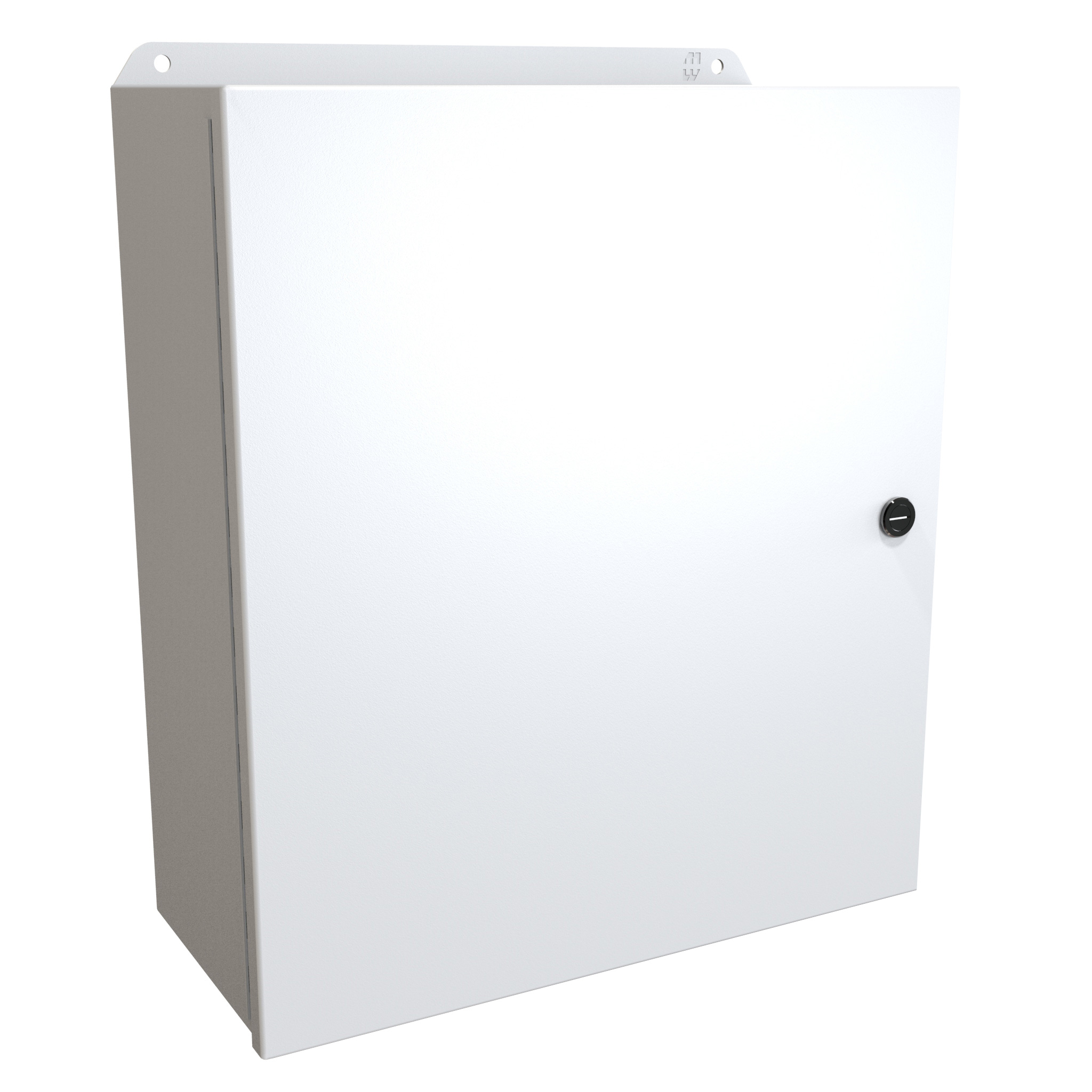

EJ16146

Eclipse Jr. N4 - 1 Dr Wallmnt

$182.80In stock
Buy now
EJ16148

Eclipse Jr. N4 - 1 Dr Wallmnt

$198.80Backorder
Buy now
EJ16148LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$198.80Backorder
Buy now
EJ443

Eclipse Jr. N4 - 1 Dr Wallmnt

$52.20Backorder
Buy now
EJ443LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$52.20In stock
Buy now

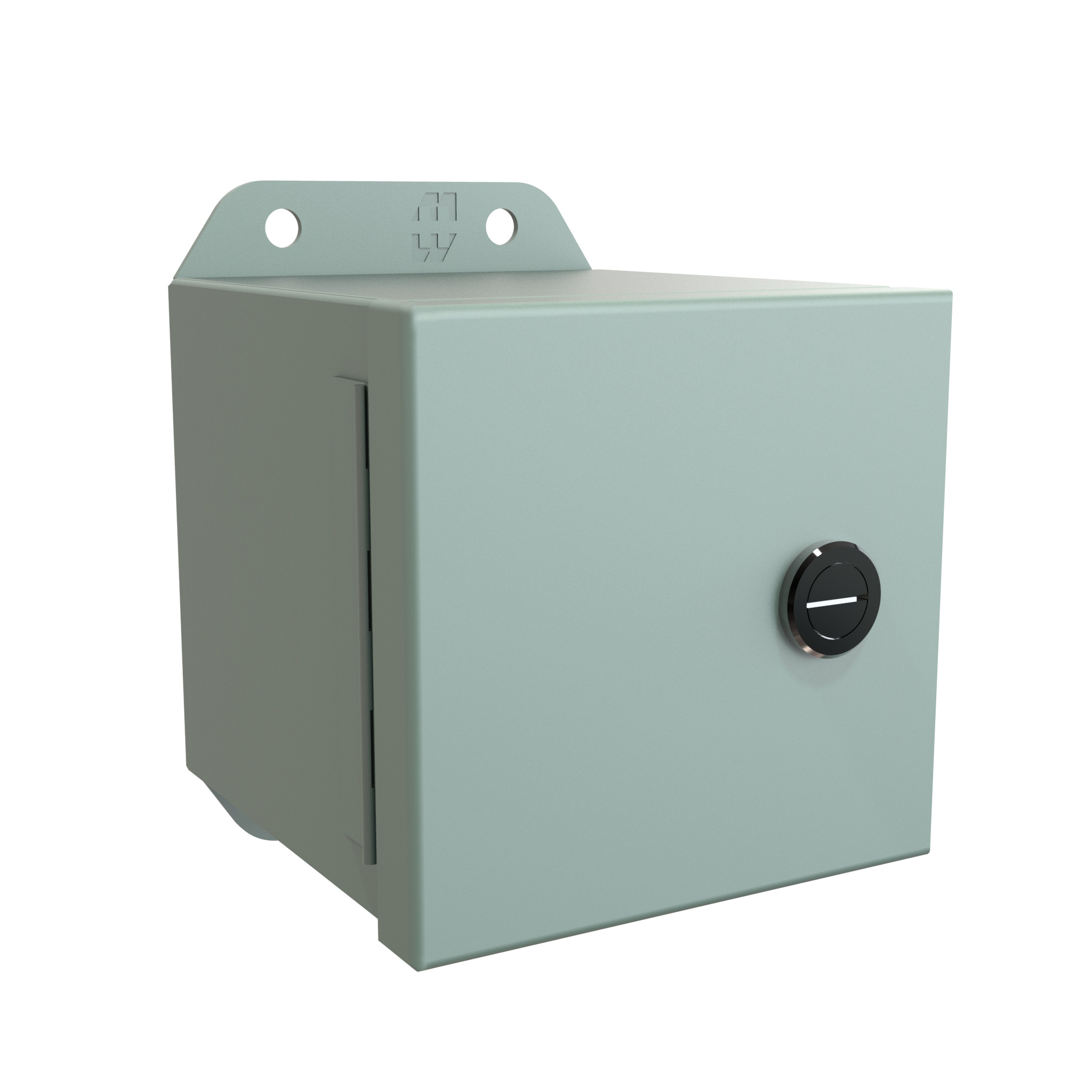

EJ444

Eclipse Jr. N4 - 1 Dr Wallmnt

$55.34In stock
Buy now
EJ444LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$55.34In stock
Buy now
EJ643

Eclipse Jr. N4 - 1 Dr Wallmnt

$62.59In stock
Buy now
EJ643LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$62.59In stock
Buy now
EJ644

Eclipse Jr. N4 - 1 Dr Wallmnt

$65.74In stock
Buy now
EJ644LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$65.74In stock
Buy now

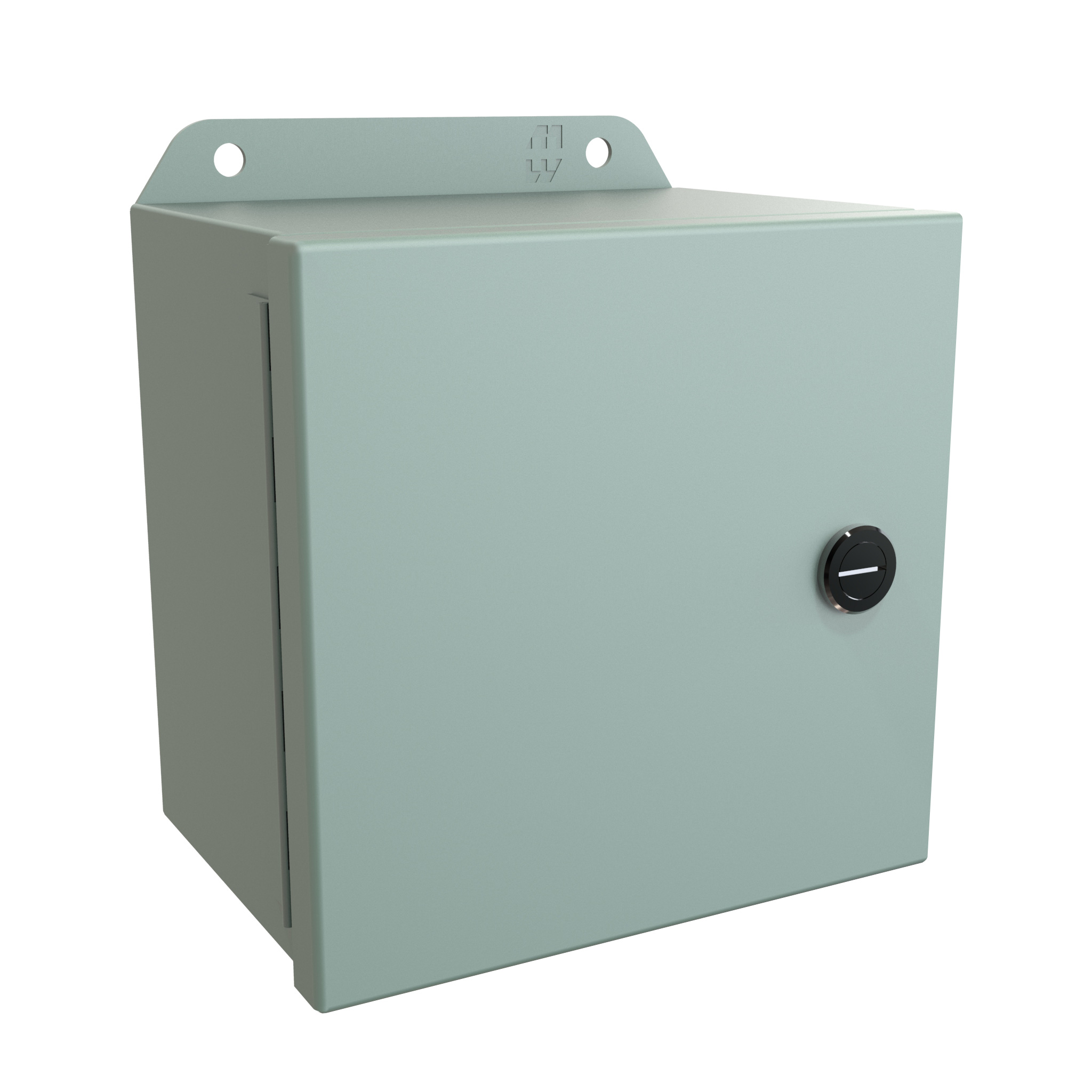

EJ664

Eclipse Jr. N4 - 1 Dr Wallmnt

$71.09In stock
Buy now
EJ664LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$71.09In stock
Buy now

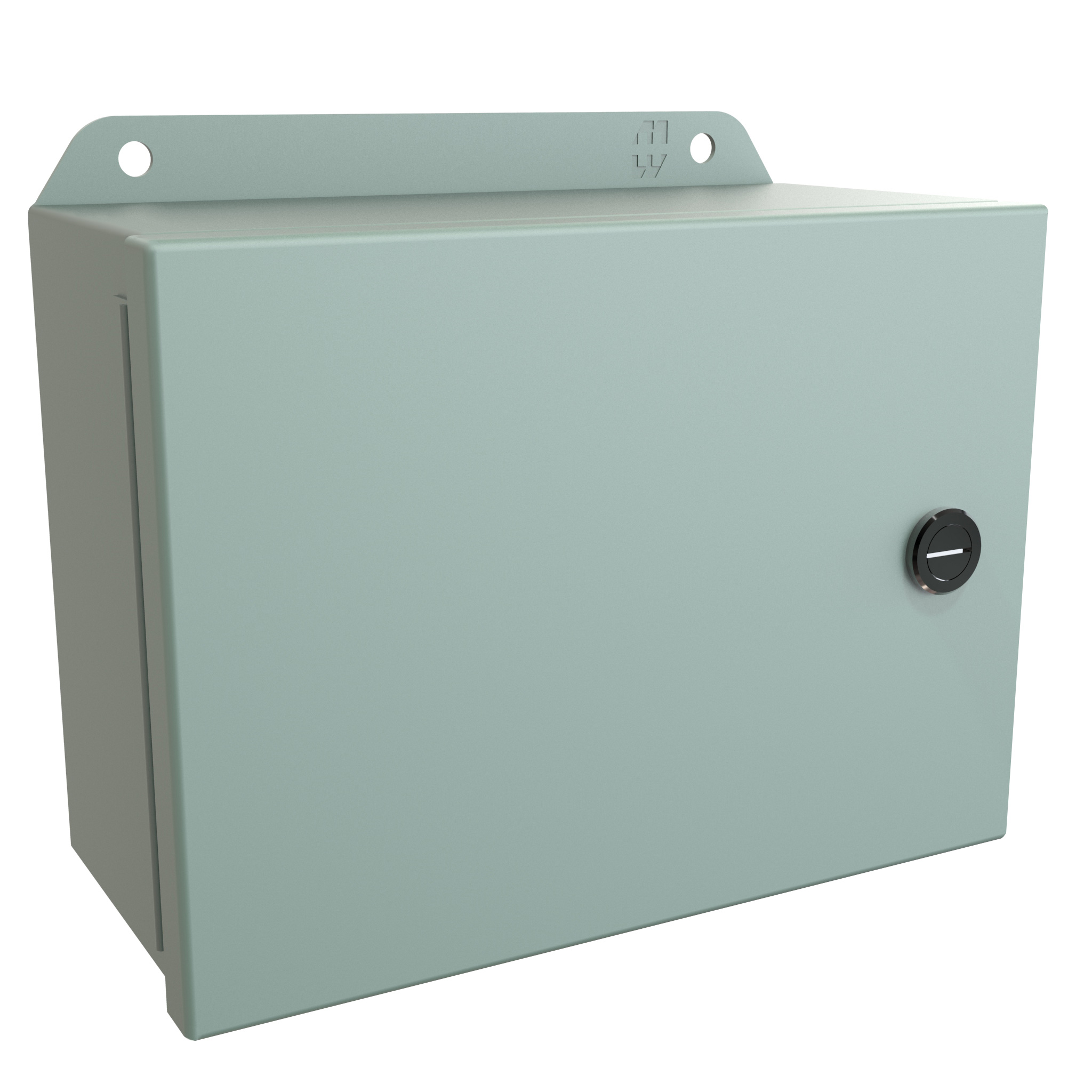

EJ683

Eclipse Jr. N4 - 1 Dr Wallmnt

$76.13Backorder
Buy now
EJ683LG

Eclipse Jr. N4 - 1 Dr Wallmnt

$76.13Backorder
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

ANSI 61 Gray · Part No.RAL 7035 Light Gray · Part No.Enclosure · HEnclosure · WEnclosure · DPanel · HPanel · WPriceOrder
EJ443EJ443LG4.004.003.00--$52.20BackorderEJ443Buy now
EJ643EJ643LG6.004.003.004.882.88$62.59In stockEJ643Buy now
EJ683EJ683LG6.008.003.504.886.75$76.13BackorderEJ683Buy now
EJ863EJ863LG8.006.003.506.754.88$77.67BackorderEJ863Buy now
EJ444EJ444LG4.004.004.00--$55.34In stockEJ444Buy now
EJ644EJ644LG6.004.004.004.882.88$65.74In stockEJ644Buy now
EJ664EJ664LG6.006.004.004.884.88$71.09In stockEJ664Buy now
EJ884EJ884LG8.008.004.006.756.88$84.77BackorderEJ884Buy now
EJ8104EJ8104LG8.0010.004.006.888.75$94.86In stockEJ8104Buy now
EJ1084EJ1084LG10.008.004.008.756.88$94.69In stockEJ1084Buy now
EJ1264EJ1264LG12.006.004.0010.754.88$84.82In stockEJ1264Buy now
EJ12124EJ12124LG12.0012.004.0010.7510.88$126.36In stockEJ12124Buy now
EJ10125EJ10125LG10.0012.005.008.8810.75$122.05In stockEJ10125Buy now
EJ12105EJ12105LG12.0010.005.0010.758.88$121.77In stockEJ12105Buy now
EJ866EJ866LG8.006.006.006.754.88$87.20BackorderEJ866Buy now
EJ1086EJ1086LG10.008.006.008.756.88$109.18In stockEJ1086Buy now
EJ10106EJ10106LG10.0010.006.008.758.88$119.03BackorderEJ10106Buy now
EJ12126EJ12126LG12.0012.006.0010.7510.88$129.37BackorderEJ12126Buy now
EJ12146EJ12146LG12.0014.006.0010.8812.75$154.14BackorderEJ12146Buy now
EJ1486EJ1486LG14.008.006.0012.756.88$141.70BackorderEJ1486Buy now
EJ14126EJ14126LG14.0012.006.0012.7510.88$153.90In stockEJ14126Buy now
EJ14166EJ14166LG14.0016.006.0012.8814.75$183.13BackorderEJ14166Buy now
EJ16106EJ16106LG16.0010.006.0014.758.88$154.51BackorderEJ16106Buy now
EJ16146EJ16146LG16.0014.006.0014.7512.88$182.80In stockEJ16146Buy now
EJ12108EJ12108LG12.0010.008.0010.758.88$145.85In stockEJ12108Buy now
EJ14128EJ14128LG14.0012.008.0012.7510.88$176.01BackorderEJ14128Buy now
EJ16148EJ16148LG16.0014.008.0014.7512.88$198.80BackorderEJ16148Buy now
EJ161410EJ161410LG16.0014.0010.0014.7512.88$214.96BackorderEJ161410Buy now

Application

  • ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
  • ■For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Impressive styling features make the Eclipse Junior a suitable addition to any high-tech equipment installation.

Standards

  • ■UL 508A Type 3R, 4, 12 and 13
  • ■CSA Type 3R, 4, 12 and 13
  • ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Body and cover are formed from 16 gauge steel.
  • ■Smooth, continuously welded seams without knockouts, cutouts, or holes.
  • ■Formed lip on enclosure to exclude flowing liquids and contaminants.
  • ■14 gauge welded brackets provide for enclosure mounting.
  • ■Continuously hinged cover has 304 stainless steel hinges and provides 180° opening.
  • ■Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • ■Quarter turn latches formed from black zinc diecast.
  • ■Seamless poured-in place gasket.
  • ■Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
  • ■Internal threaded weld studs are provided for mounting inner panels.
  • ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
  • ■Grounding and panel mounting hardware provided.

Finish

  • ■Cover and enclosure are finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
  • ■Inner panels are unpainted galvanized steel.

Documents

Specification SheetCE Declaration

Additional information

Part Details

ANSI 61 Gray · Part No.RAL 7035 Light Gray · Part No.Enclosure · HEnclosure · WEnclosure · DPanel · HPanel · W
EJ443EJ443LG4.004.003.00--
EJ643EJ643LG6.004.003.004.882.88
EJ683EJ683LG6.008.003.504.886.75
EJ863EJ863LG8.006.003.506.754.88
EJ444EJ444LG4.004.004.00--
EJ644EJ644LG6.004.004.004.882.88
EJ664EJ664LG6.006.004.004.884.88
EJ884EJ884LG8.008.004.006.756.88
EJ8104EJ8104LG8.0010.004.006.888.75
EJ1084EJ1084LG10.008.004.008.756.88
EJ1264EJ1264LG12.006.004.0010.754.88
EJ12124EJ12124LG12.0012.004.0010.7510.88
EJ10125EJ10125LG10.0012.005.008.8810.75
EJ12105EJ12105LG12.0010.005.0010.758.88
EJ866EJ866LG8.006.006.006.754.88
EJ1086EJ1086LG10.008.006.008.756.88
EJ10106EJ10106LG10.0010.006.008.758.88
EJ12126EJ12126LG12.0012.006.0010.7510.88
EJ12146EJ12146LG12.0014.006.0010.8812.75
EJ1486EJ1486LG14.008.006.0012.756.88
EJ14126EJ14126LG14.0012.006.0012.7510.88
EJ14166EJ14166LG14.0016.006.0012.8814.75
EJ16106EJ16106LG16.0010.006.0014.758.88
EJ16146EJ16146LG16.0014.006.0014.7512.88
EJ12108EJ12108LG12.0010.008.0010.758.88
EJ14128EJ14128LG14.0012.008.0012.7510.88
EJ16148EJ16148LG16.0014.008.0014.7512.88
EJ161410EJ161410LG16.0014.0010.0014.7512.88
