N4 J Box Lift Off - 10X8X4
$84.26In stock
Buy now
Type 4, 12 Mild Steel Junction Box · HJ Series
Brand: Hammond Manufacturing · 19 part numbers
Lift-Off Cover with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 3R, 4, 12 and 13
- ■CSA Type 3R, 4, 12 and 13
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
from $4.35
19 of 19 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HJ Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online
N4 J Box Lift Off - 12X10X5
$109.00In stock
Buy now
N4 J Box Lift Off - 14X12X6
$141.11In stock
Buy now
N4 J Box Lift Off - 14X12X8
$167.54Backorder
Buy now
N4 J Box Lift Off - 16X14X10
$200.87Backorder
Buy now
N4 J Box Lift Off - 16X14X6
$165.18In stock
Buy now
N4 J Box Lift Off - 4X4X3
$48.15In stock
Buy now
N4 J Box Lift Off - 4X4X4
$50.75In stock
Buy now
N4 J Box Lift Off - 6X4X3
$54.03In stock
Buy now
N4 J Box Lift Off - 6X4X4
$58.58In stock
Buy now
N4 J Box Lift Off - 6X6X4
$63.00In stock
Buy now
N4 J Box Lift Off - 8X6X3.5
$66.80In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|

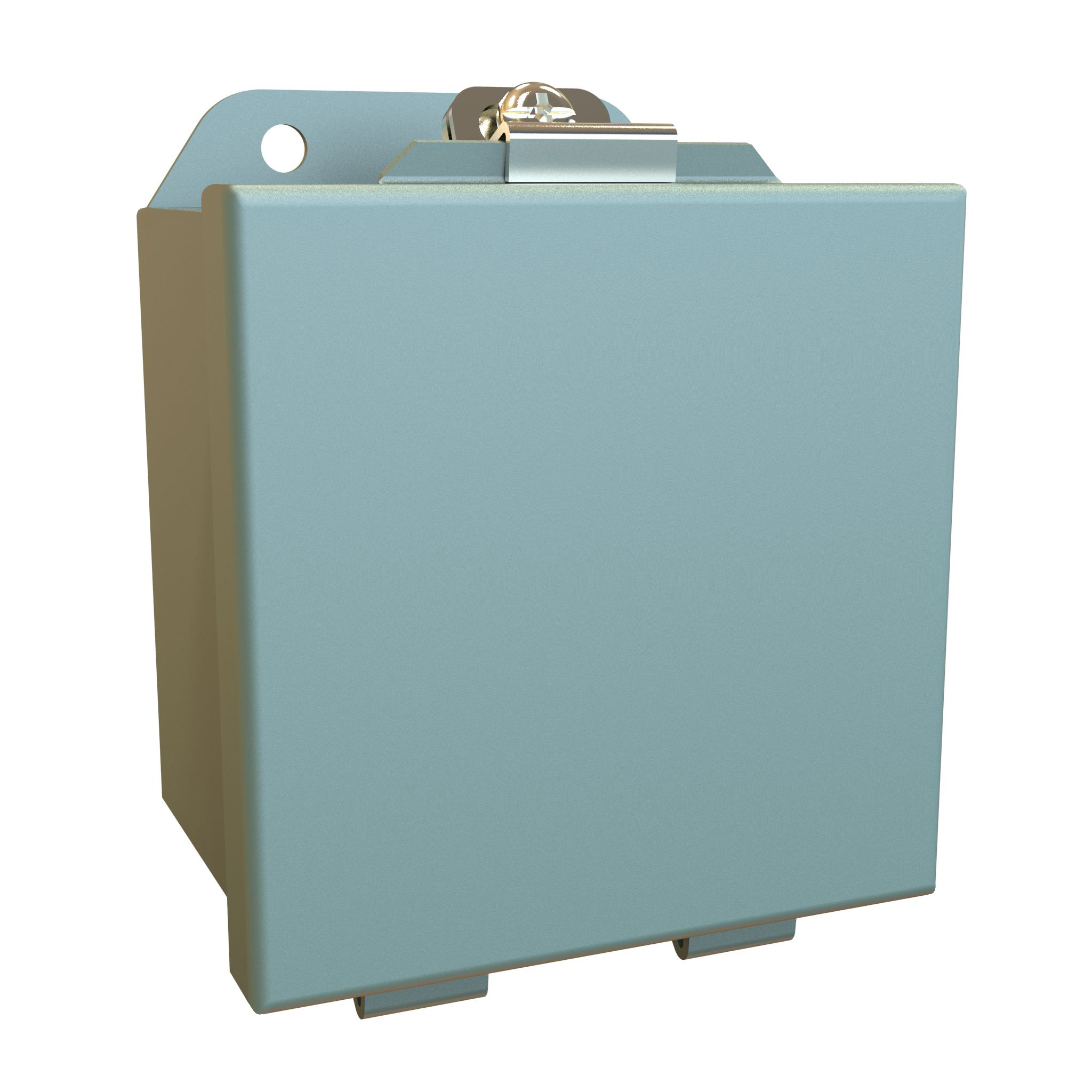

| HJ443LP | 4.00 | 4.00 | 3.00 | - | - | - | $48.15In stock | Buy now |

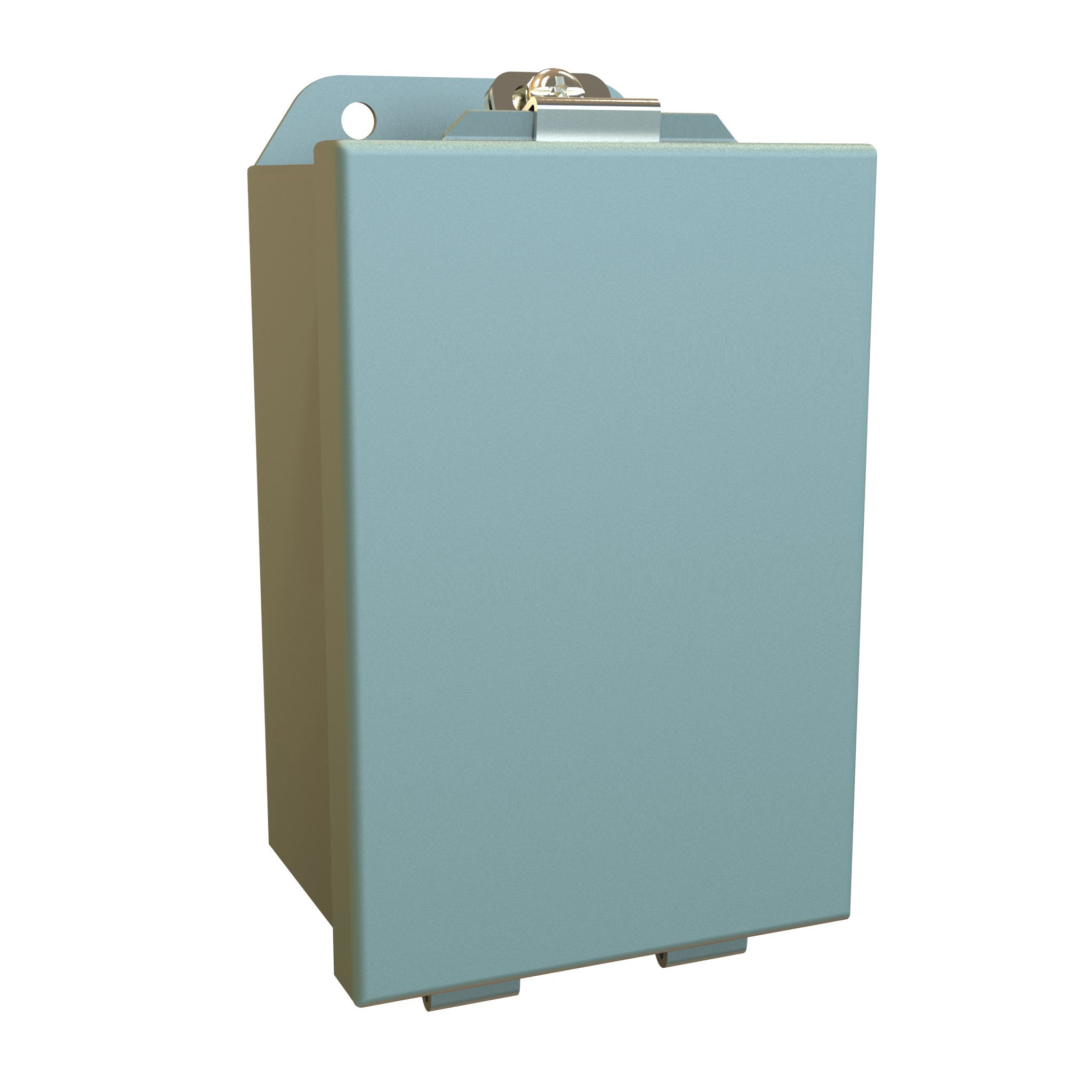

| HJ643LP | 6.00 | 4.00 | 3.00 | 14R0503 | 4.88 | 2.88 | $54.03In stockHJ643LP | Buy now |

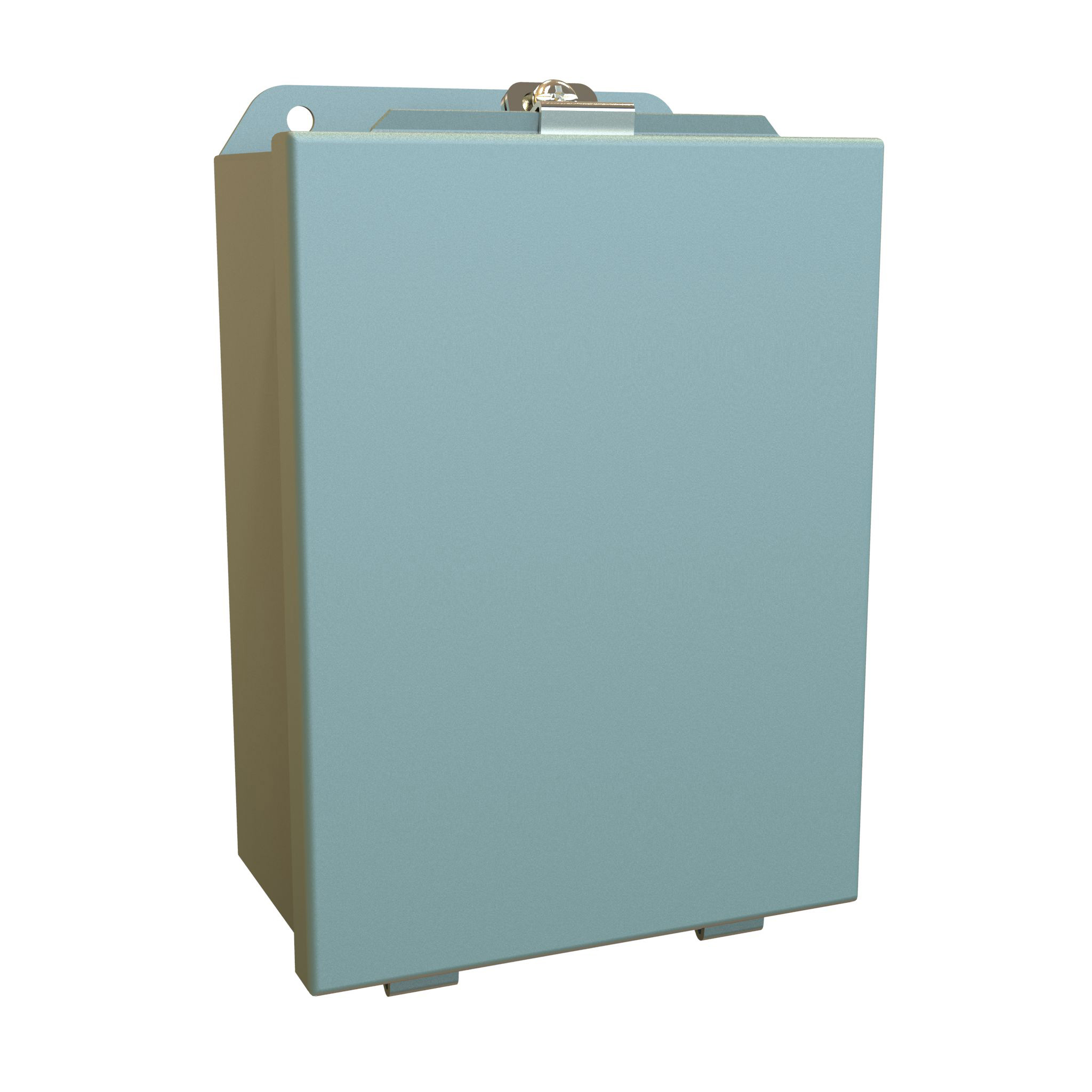

| HJ863LP | 8.00 | 6.00 | 3.50 | 14R0705 | 6.75 | 4.88 | $66.80In stockHJ863LP | Buy now |

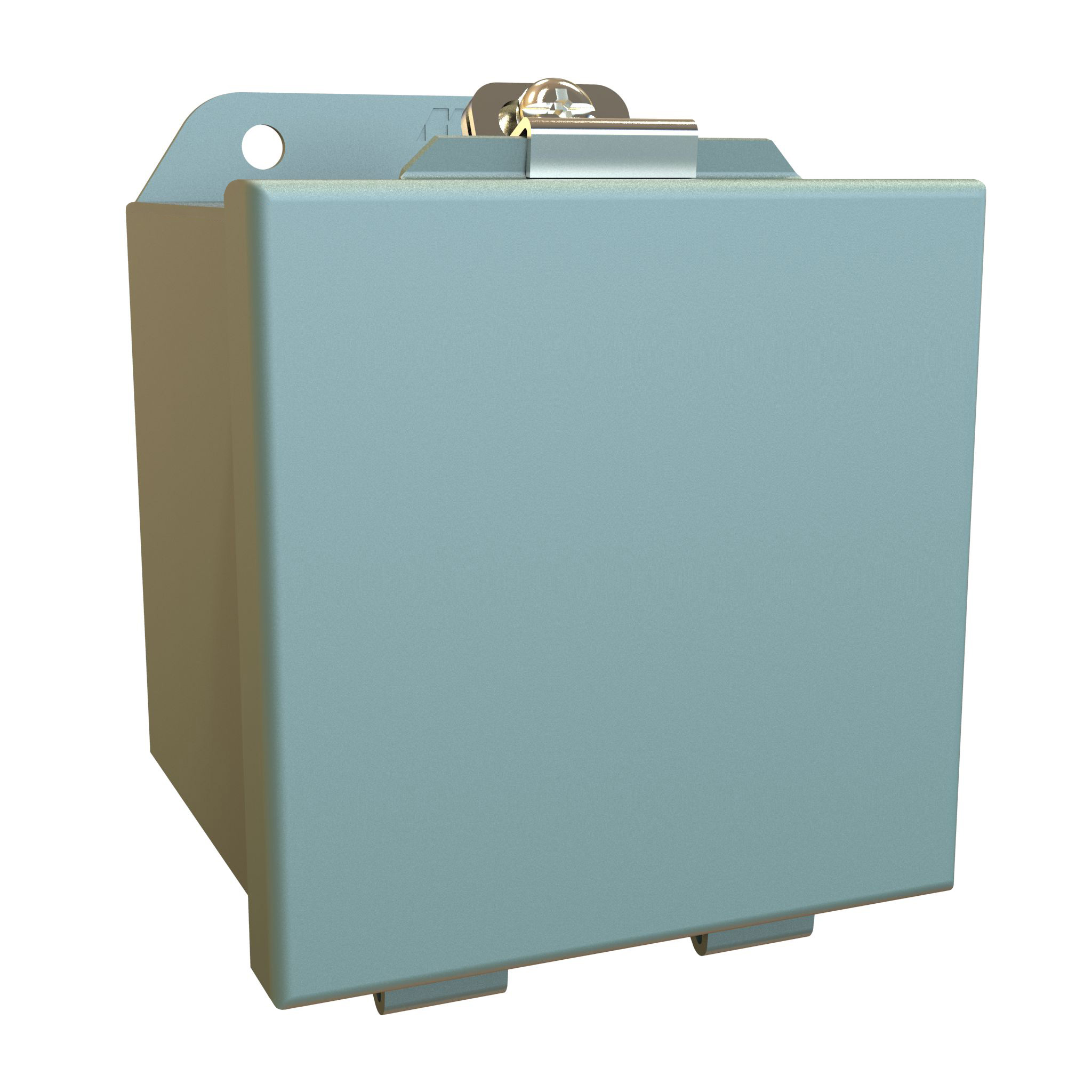

| HJ444LP | 4.00 | 4.00 | 4.00 | - | - | - | $50.75In stock | Buy now |

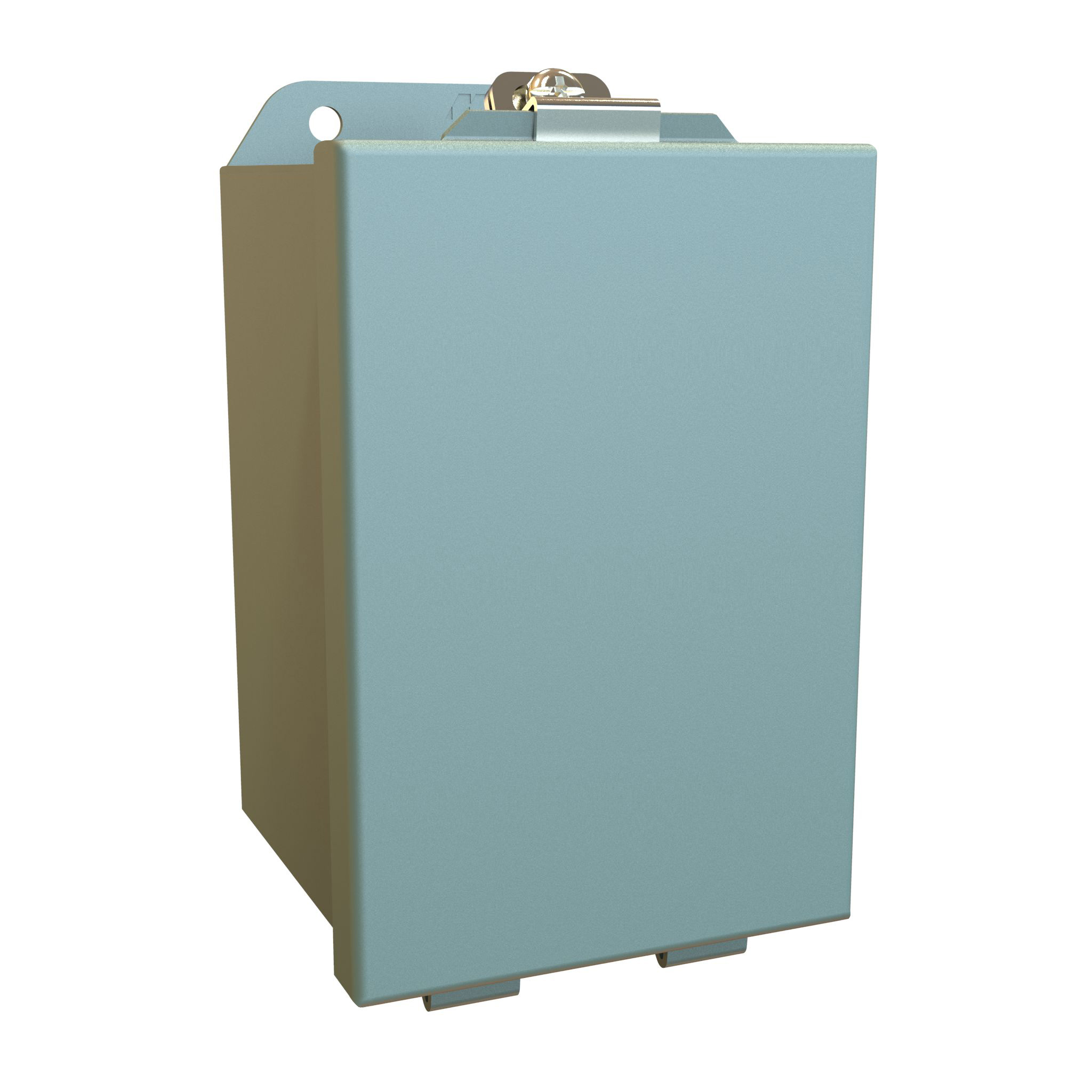

| HJ644LP | 6.00 | 4.00 | 4.00 | 14R0503 | 4.88 | 2.88 | $58.58In stockHJ644LP | Buy now |

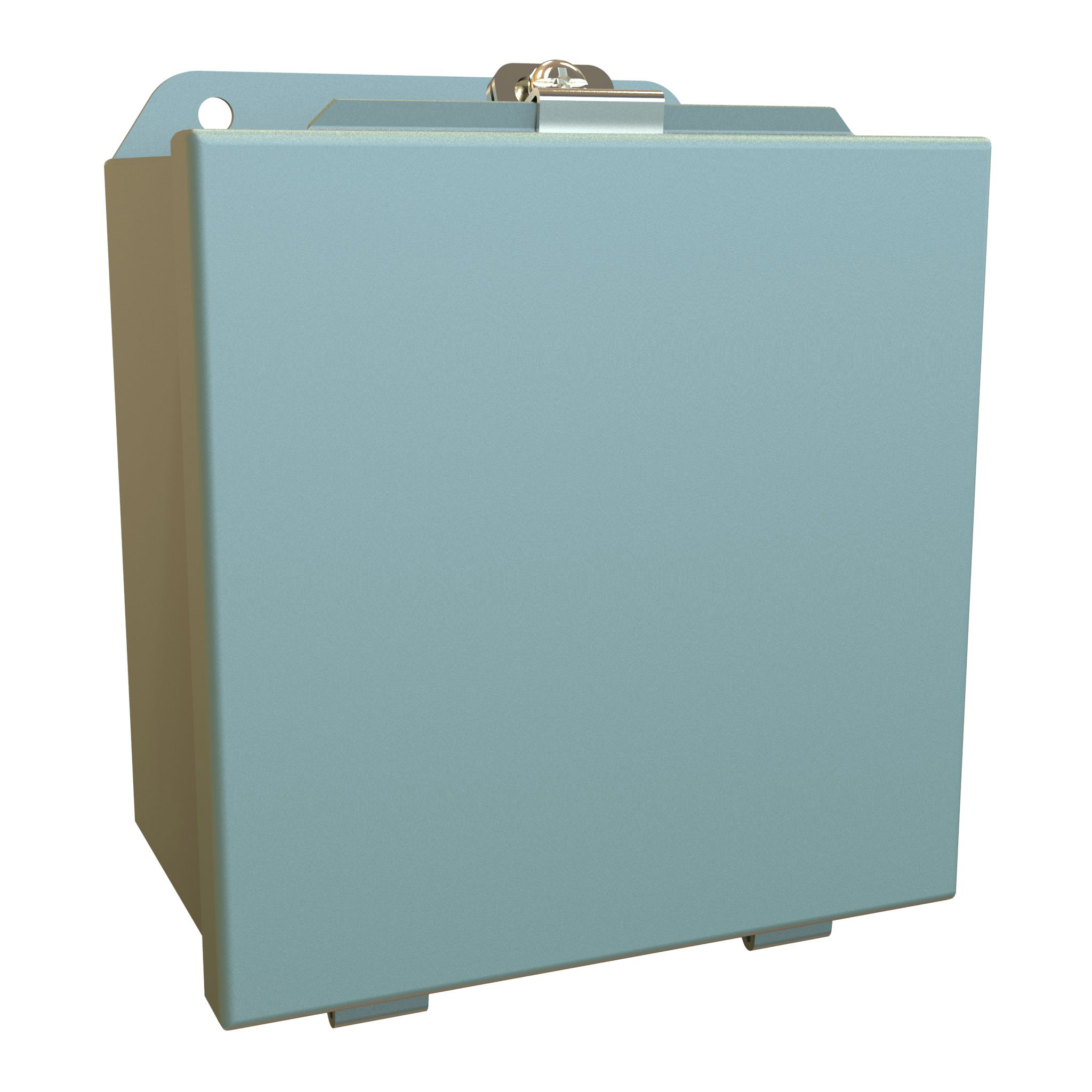

| HJ664LP | 6.00 | 6.00 | 4.00 | 14R0505 | 4.88 | 4.88 | $63.00In stockHJ664LP | Buy now |

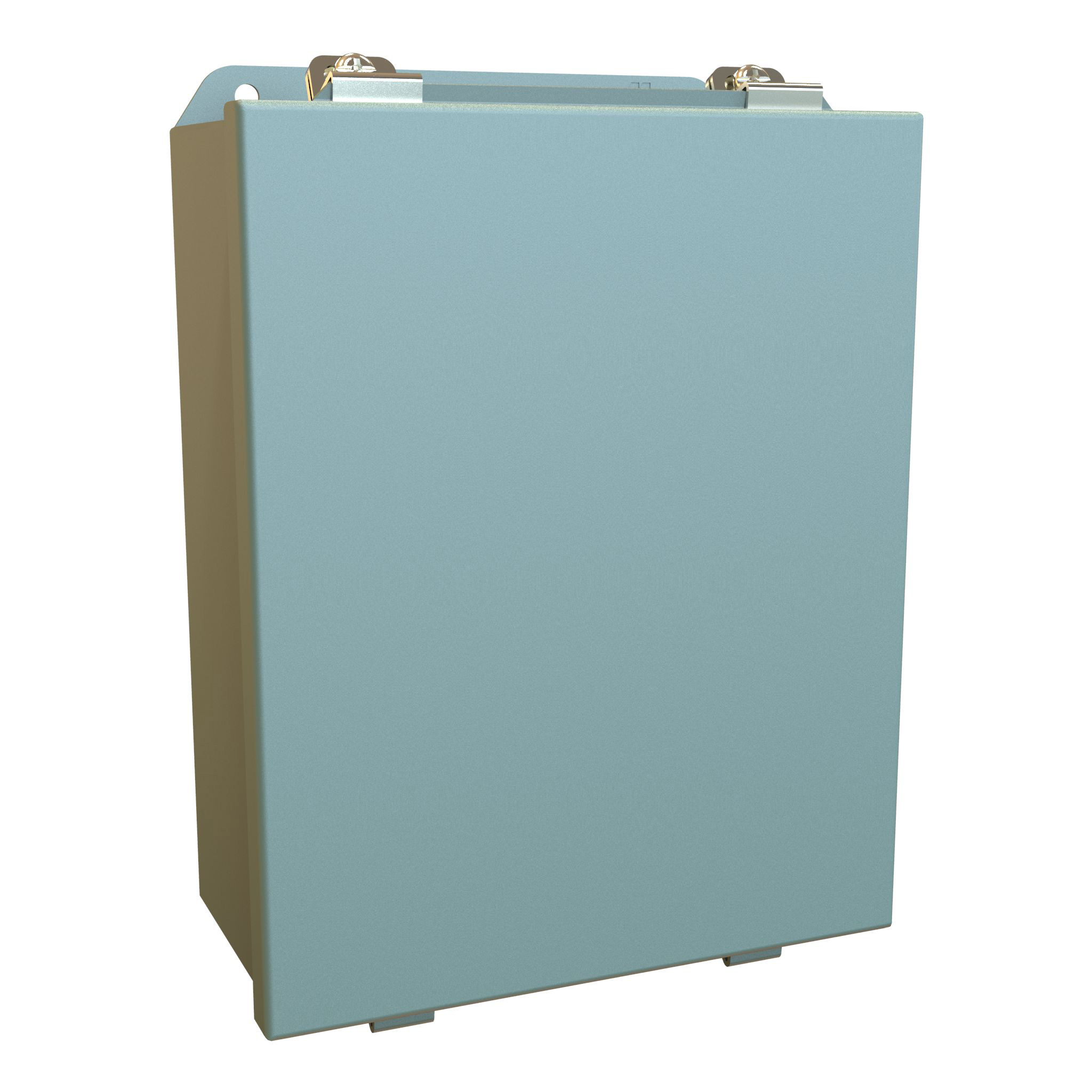

| HJ1084LP | 10.00 | 8.00 | 4.00 | 14R0907 | 8.75 | 6.88 | $84.26In stockHJ1084LP | Buy now |

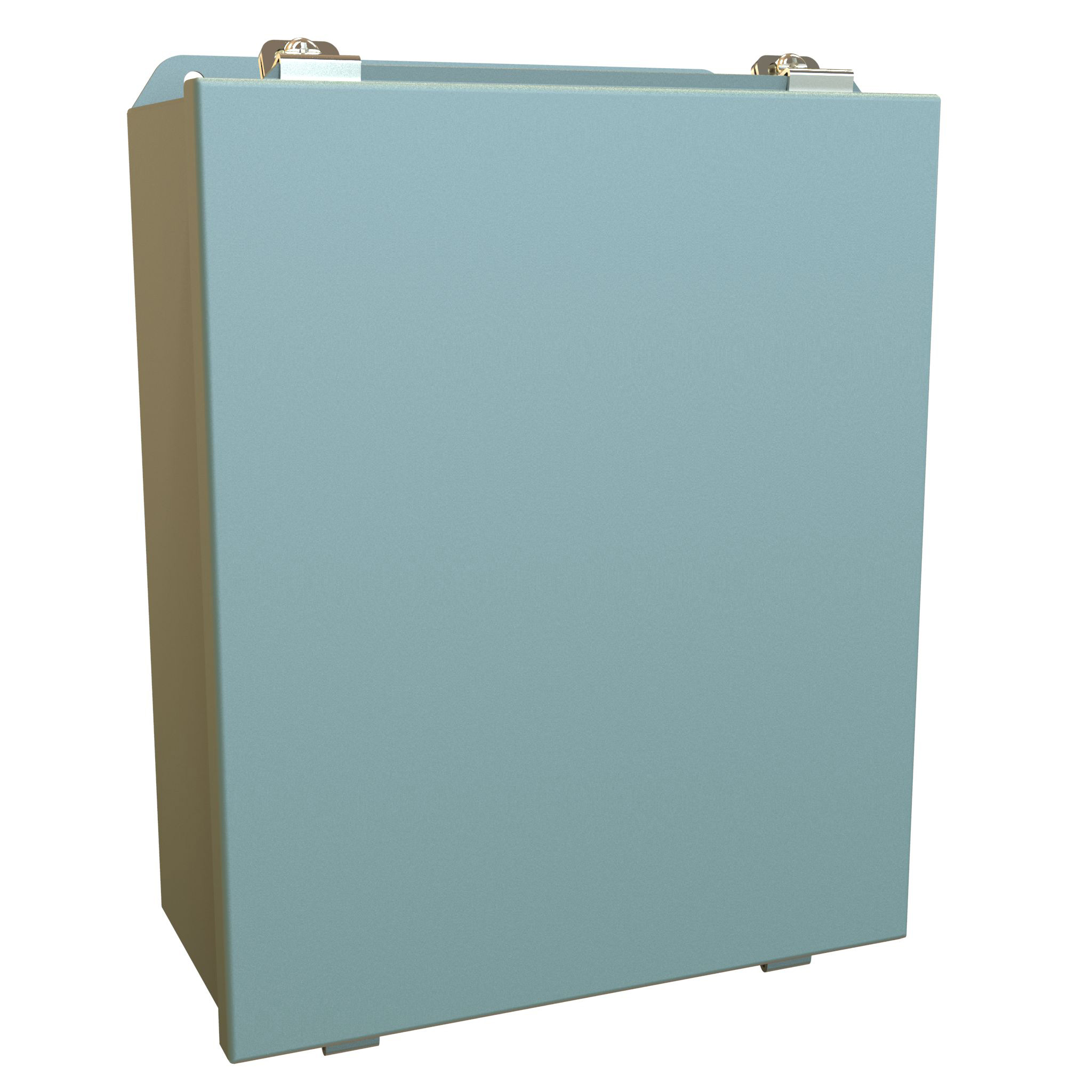

| HJ12105LP | 12.00 | 10.00 | 5.00 | 14R1109 | 10.75 | 8.88 | $109.00In stockHJ12105LP | Buy now |

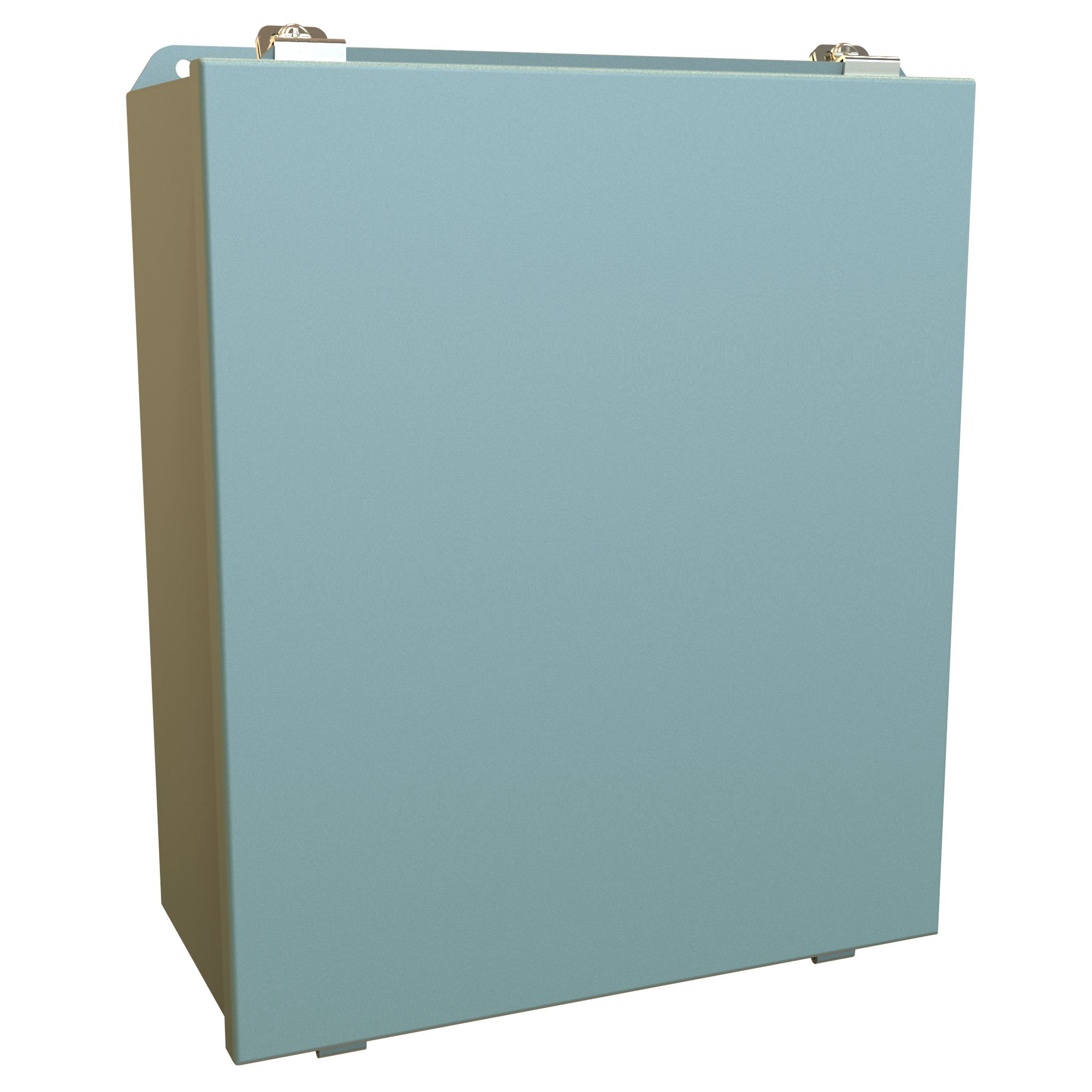

| HJ14126LP | 14.00 | 12.00 | 6.00 | 14R1311 | 12.75 | 10.88 | $141.11In stockHJ14126LP | Buy now |

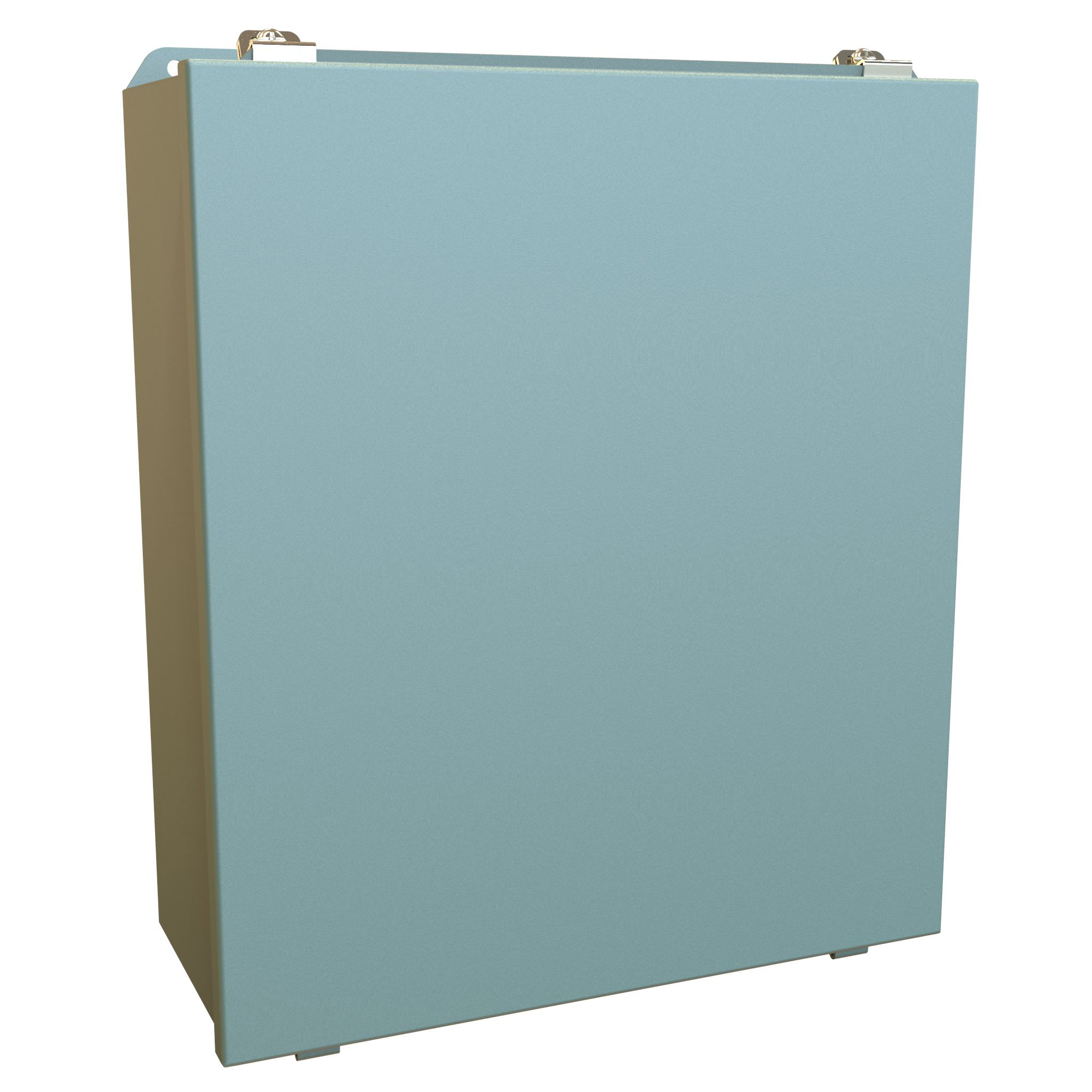

| HJ16146LP | 16.00 | 14.00 | 6.00 | 14R1513 | 14.75 | 12.88 | $165.18In stockHJ16146LP | Buy now |

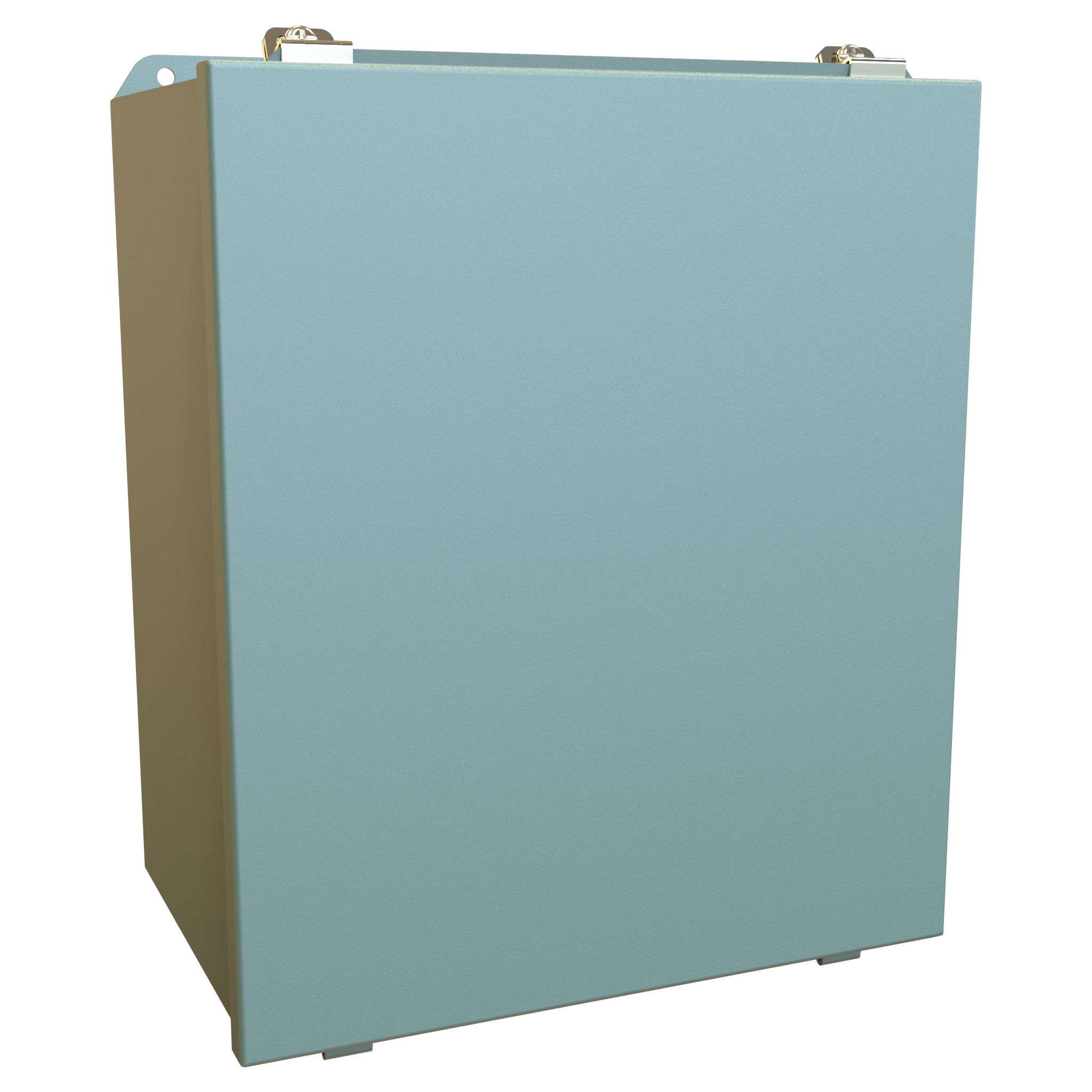

| HJ14128LP | 14.00 | 12.00 | 8.00 | 14R1311 | 12.75 | 10.88 | $167.54BackorderHJ14128LP | Buy now |

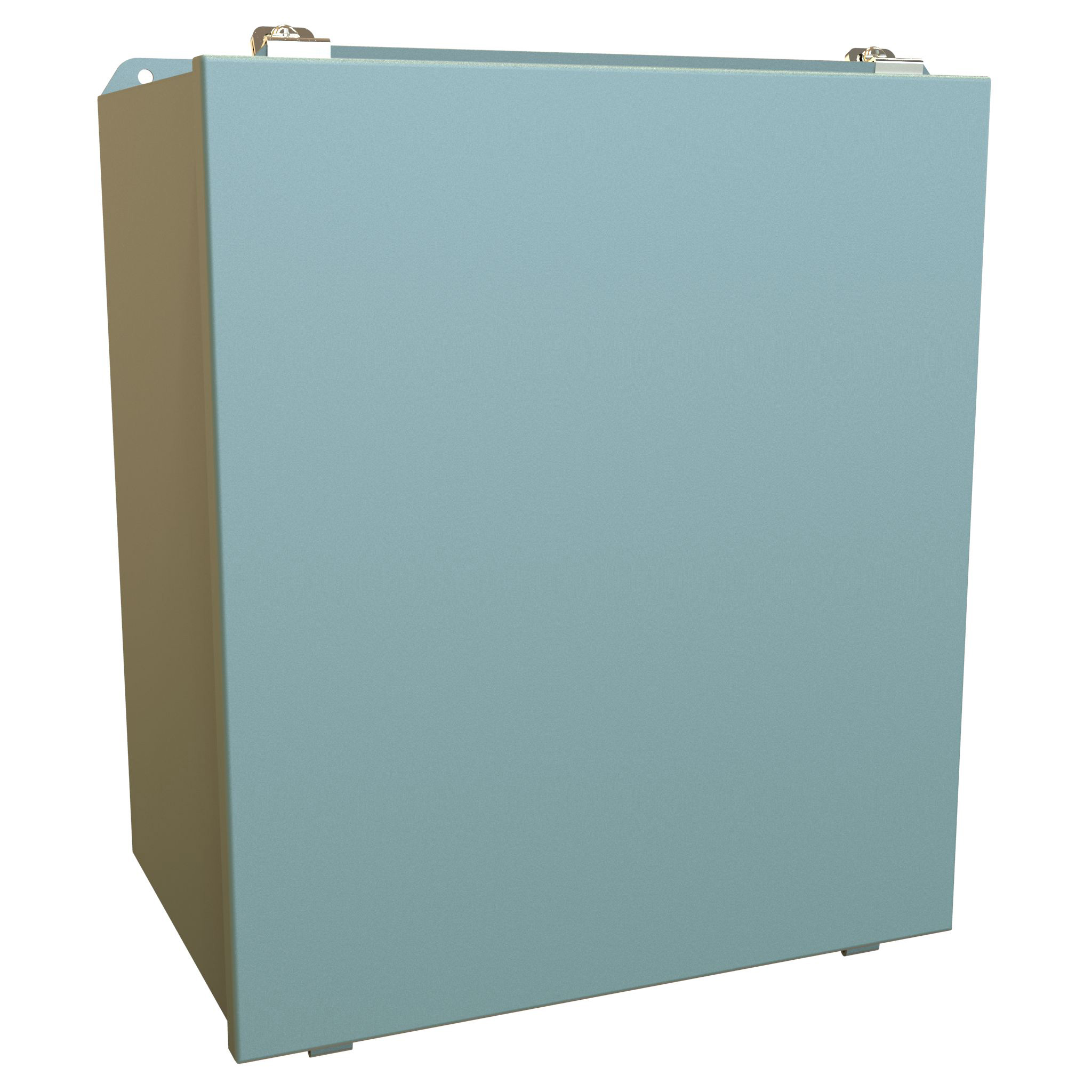

| HJ161410LP | 16.00 | 14.00 | 10.00 | 14R1513 | 14.75 | 12.88 | $200.87BackorderHJ161410LP | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 3R, 4, 12 and 13
- ■CSA Type 3R, 4, 12 and 13
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Welded brackets provide for enclosure mounting.

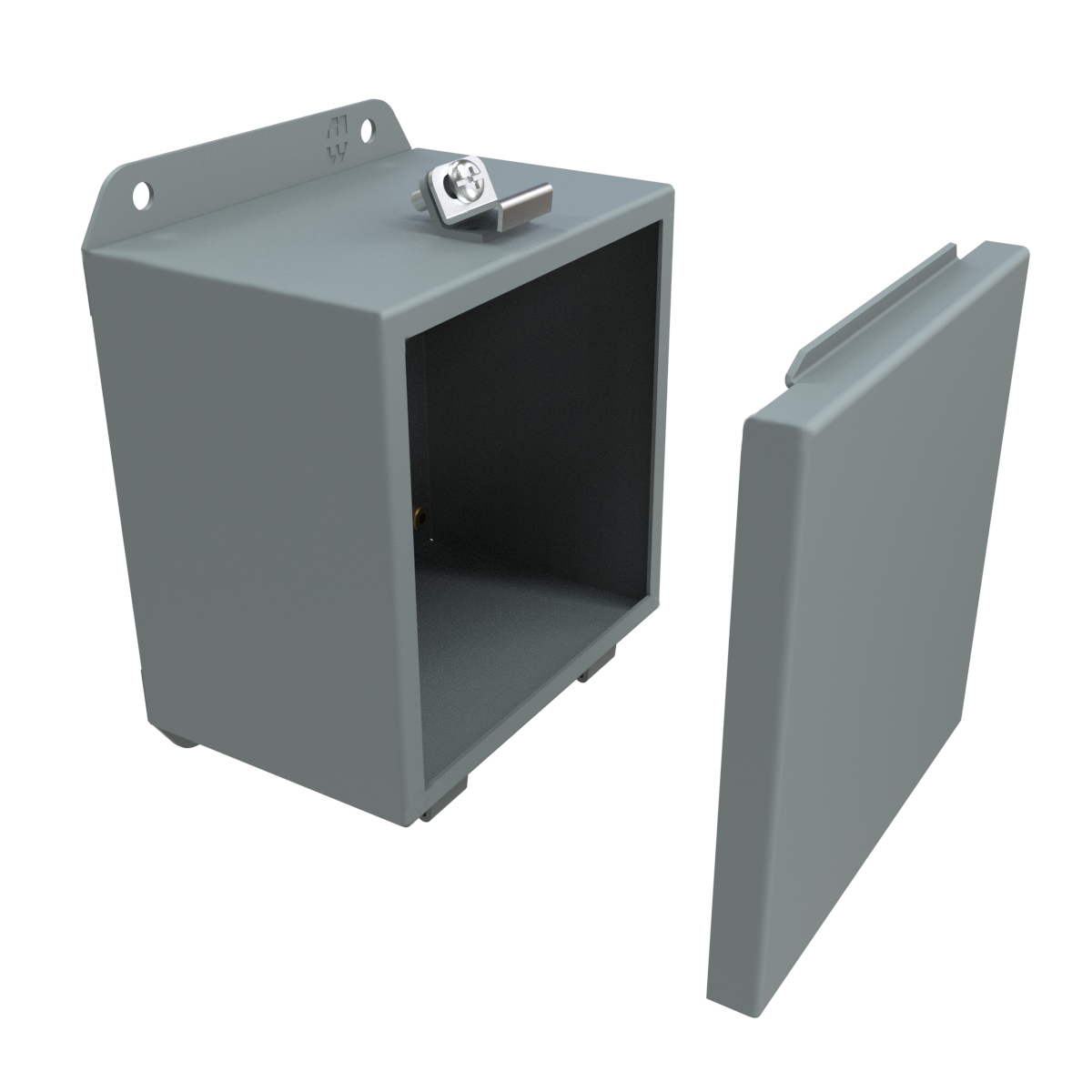

- ■Lift off cover is secured with stainless steel clamps and stainless steel screws and retained with a stainless steel chain when open.

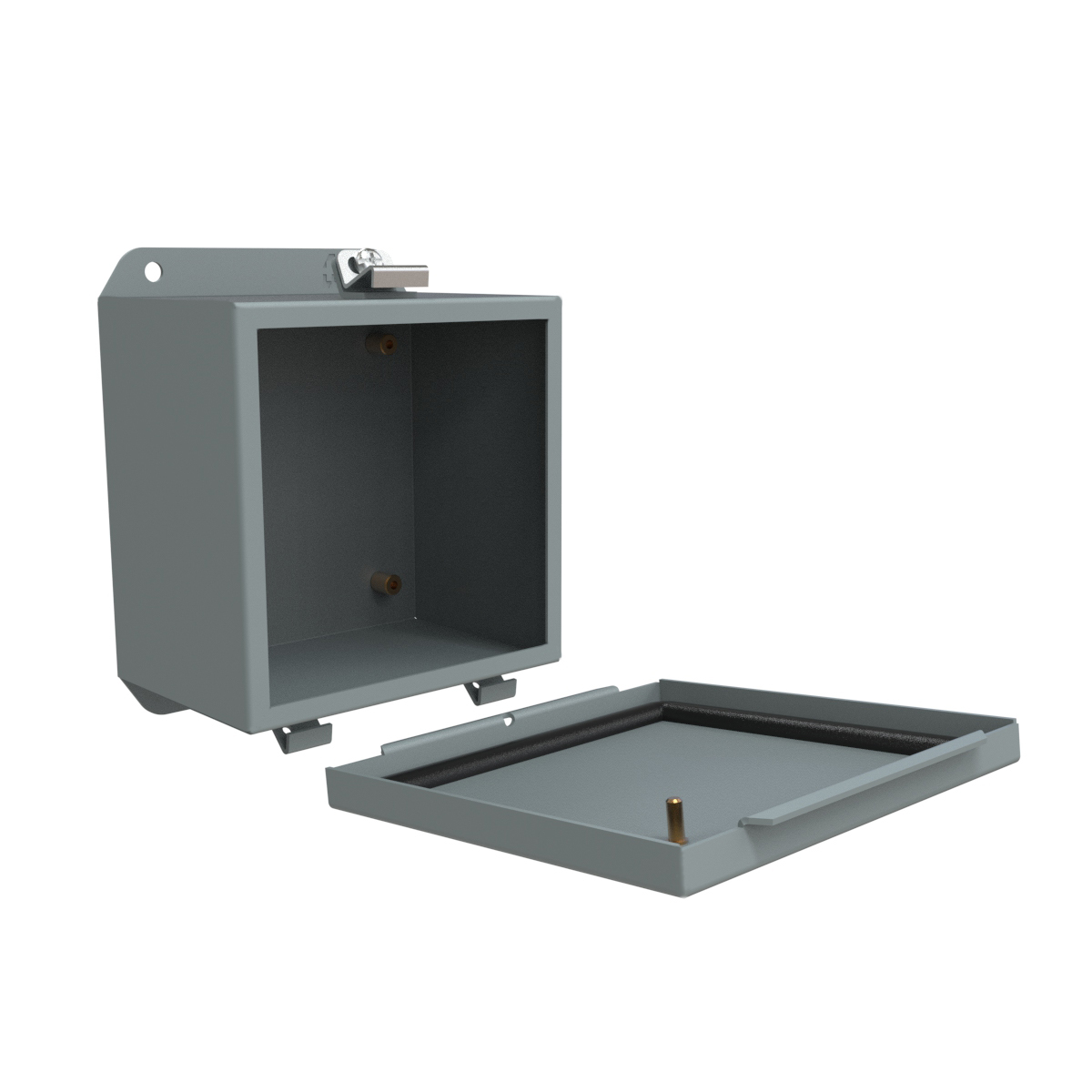

- ■Seamless poured-in place gasket.
- ■Internal threaded weld studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|
| HJ443LP | 4.00 | 4.00 | 3.00 | - | - | - |
| HJ643LP | 6.00 | 4.00 | 3.00 | 14R0503 | 4.88 | 2.88 |
| HJ863LP | 8.00 | 6.00 | 3.50 | 14R0705 | 6.75 | 4.88 |
| HJ444LP | 4.00 | 4.00 | 4.00 | - | - | - |
| HJ644LP | 6.00 | 4.00 | 4.00 | 14R0503 | 4.88 | 2.88 |
| HJ664LP | 6.00 | 6.00 | 4.00 | 14R0505 | 4.88 | 4.88 |
| HJ1084LP | 10.00 | 8.00 | 4.00 | 14R0907 | 8.75 | 6.88 |
| HJ12105LP | 12.00 | 10.00 | 5.00 | 14R1109 | 10.75 | 8.88 |
| HJ14126LP | 14.00 | 12.00 | 6.00 | 14R1311 | 12.75 | 10.88 |
| HJ16146LP | 16.00 | 14.00 | 6.00 | 14R1513 | 14.75 | 12.88 |
| HJ14128LP | 14.00 | 12.00 | 8.00 | 14R1311 | 12.75 | 10.88 |
| HJ161410LP | 16.00 | 14.00 | 10.00 | 14R1513 | 14.75 | 12.88 |
