Type 4, 12 Mild Steel Junction Box HJ H Series

Type 4, 12 Mild Steel Junction Box · HJ H Series

Brand: Hammond Manufacturing · 40 part numbers

Continuous Hinge Door with Clamps

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
  • ■UL 508A Type 3R, 4, 12 and 13
  • ■CSA Type 3R, 4, 12 and 13
  • ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4, 12 and 13

from $4.35

40 of 40 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your HJ H Series part number

Filter 27 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

27 of 27 part numbers · 27 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DOptional Mounting Panel · Part No.Optional Mounting Panel · HOptional Mounting Panel · WPriceOrder

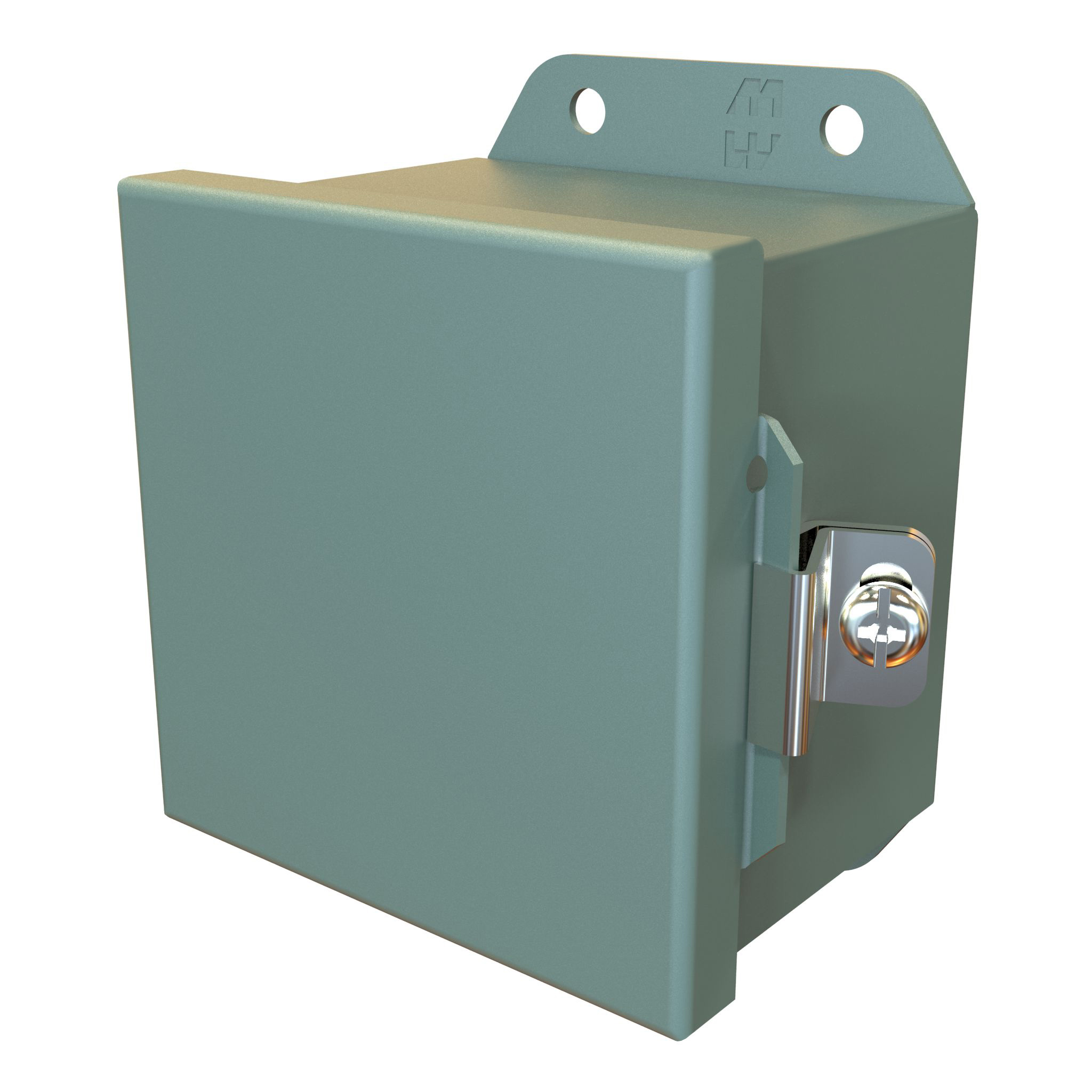

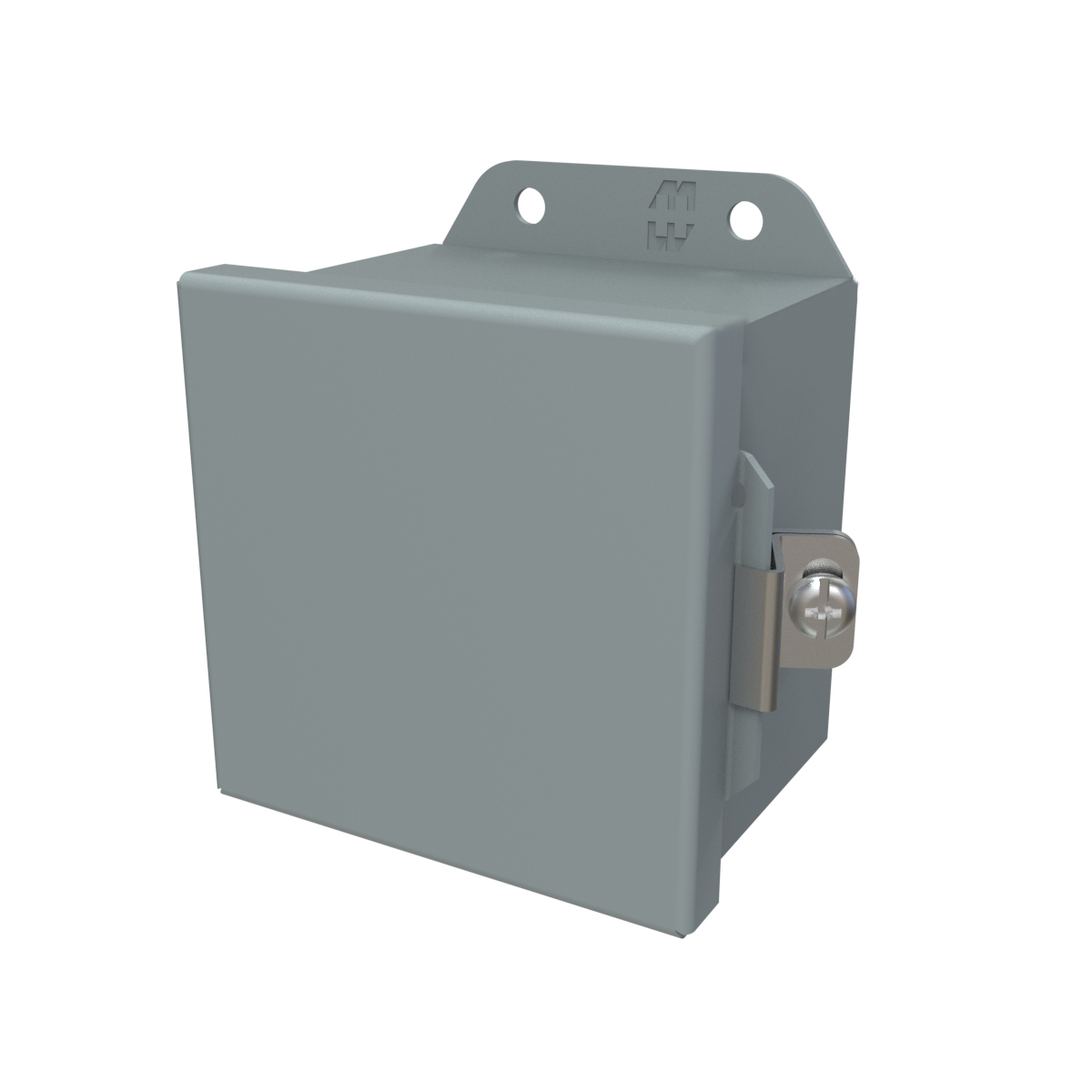

HJ443HLP4.004.003.00---$47.48In stockBuy now

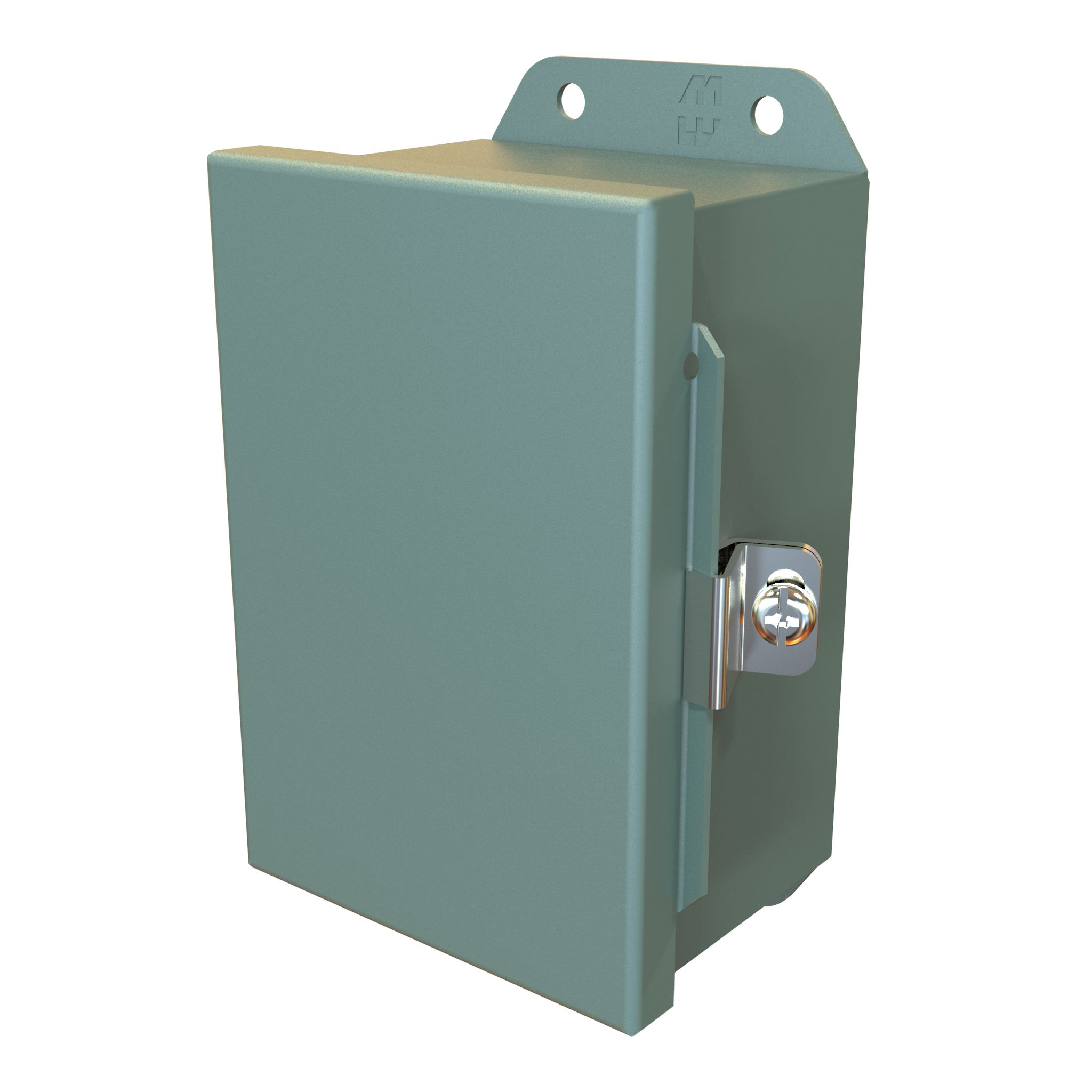

HJ643HLP6.004.003.0014R05034.882.88$54.30In stockHJ643HLPBuy now

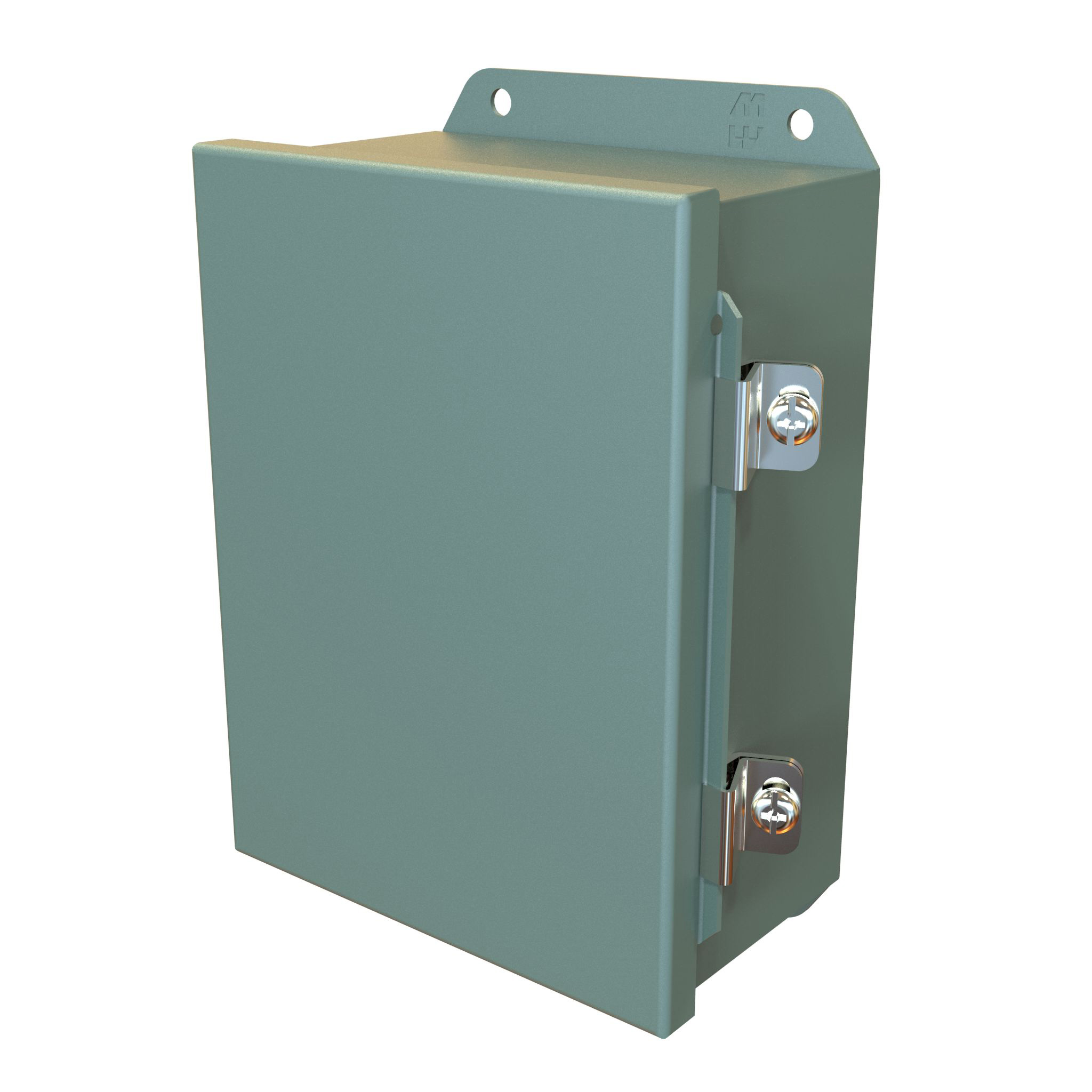

HJ863HLP8.006.003.5014R07056.754.88$65.41In stockHJ863HLPBuy now

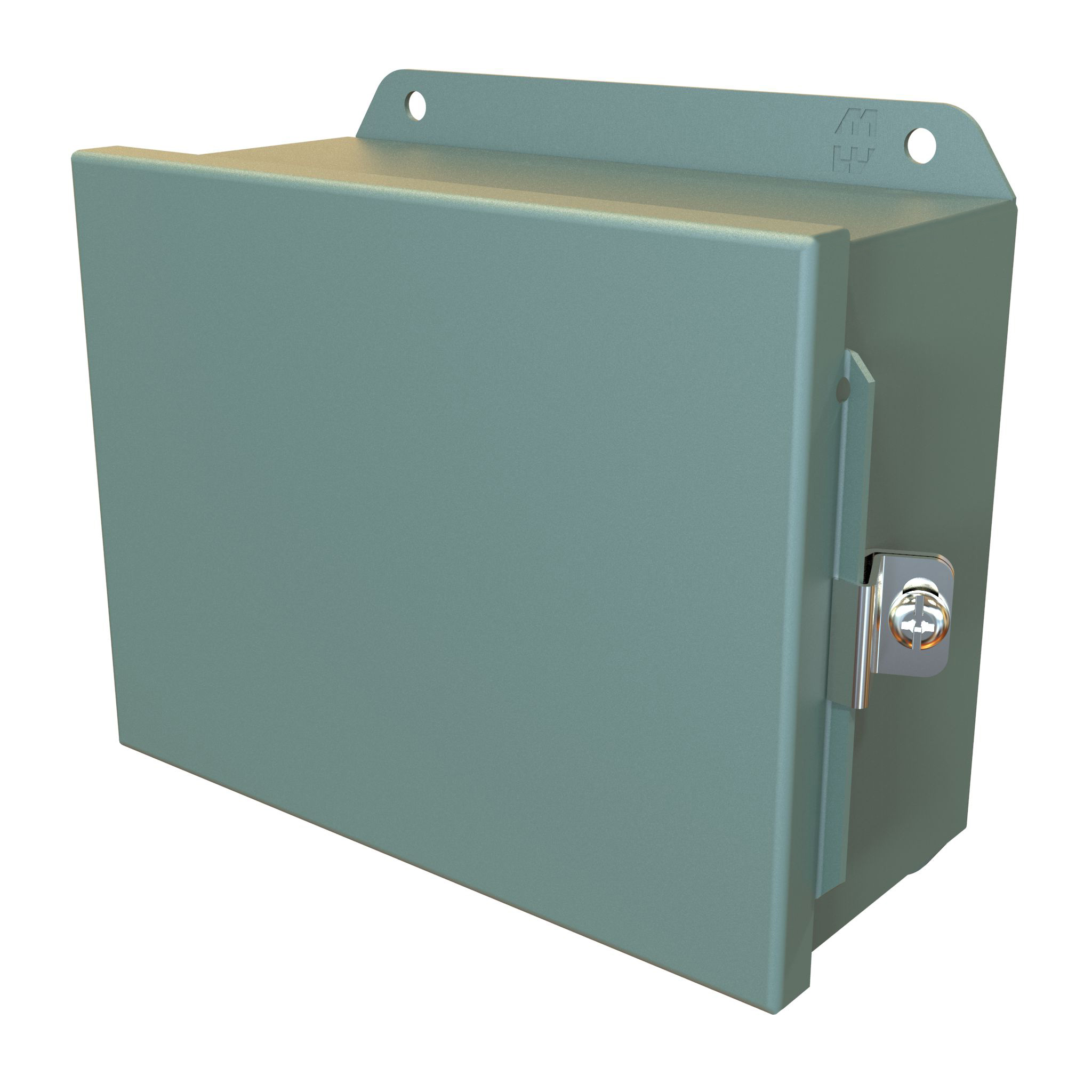

HJ683HLP6.008.003.5014R07056.754.88$65.45BackorderHJ683HLPBuy now

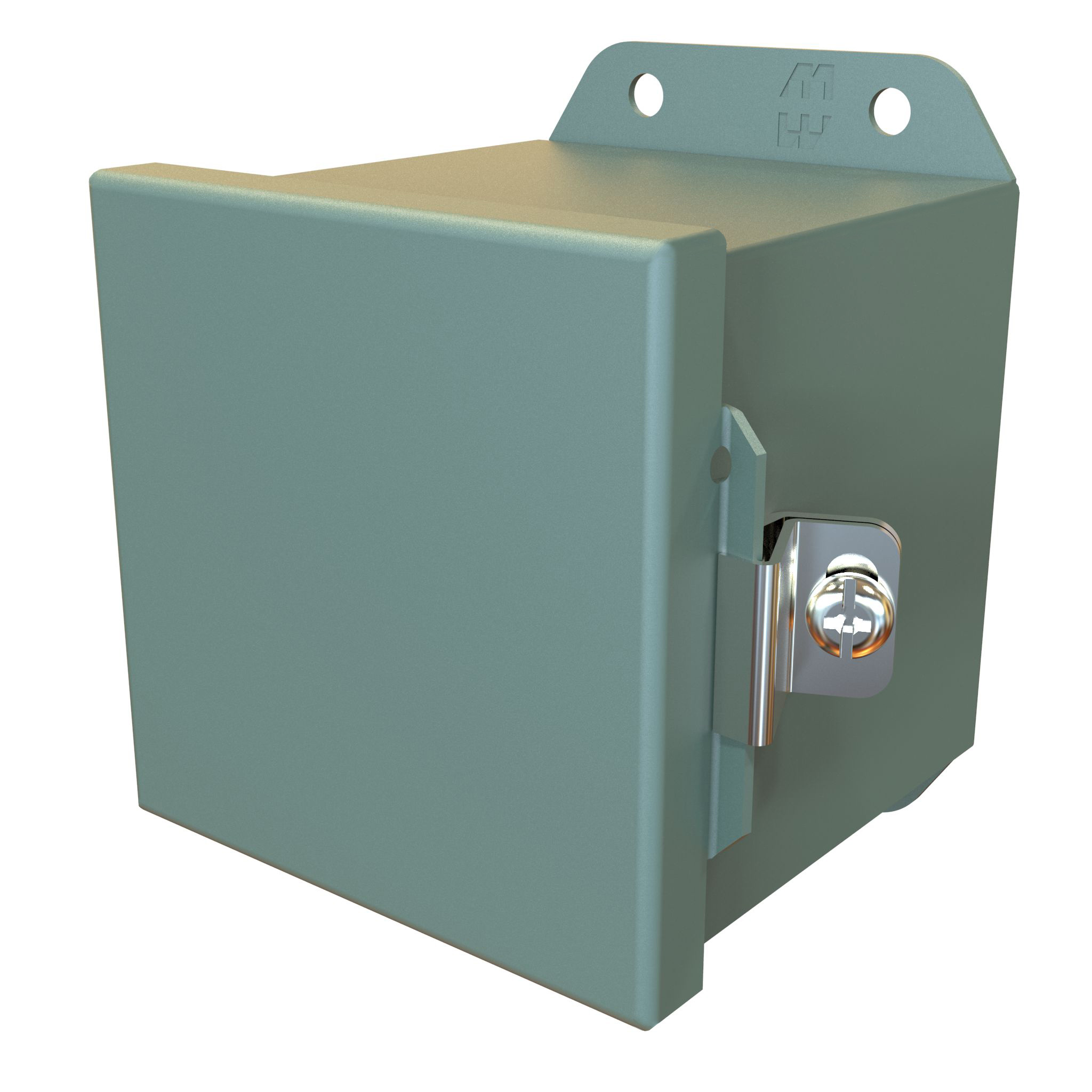

HJ444HLP4.004.004.00---$49.56BackorderBuy now

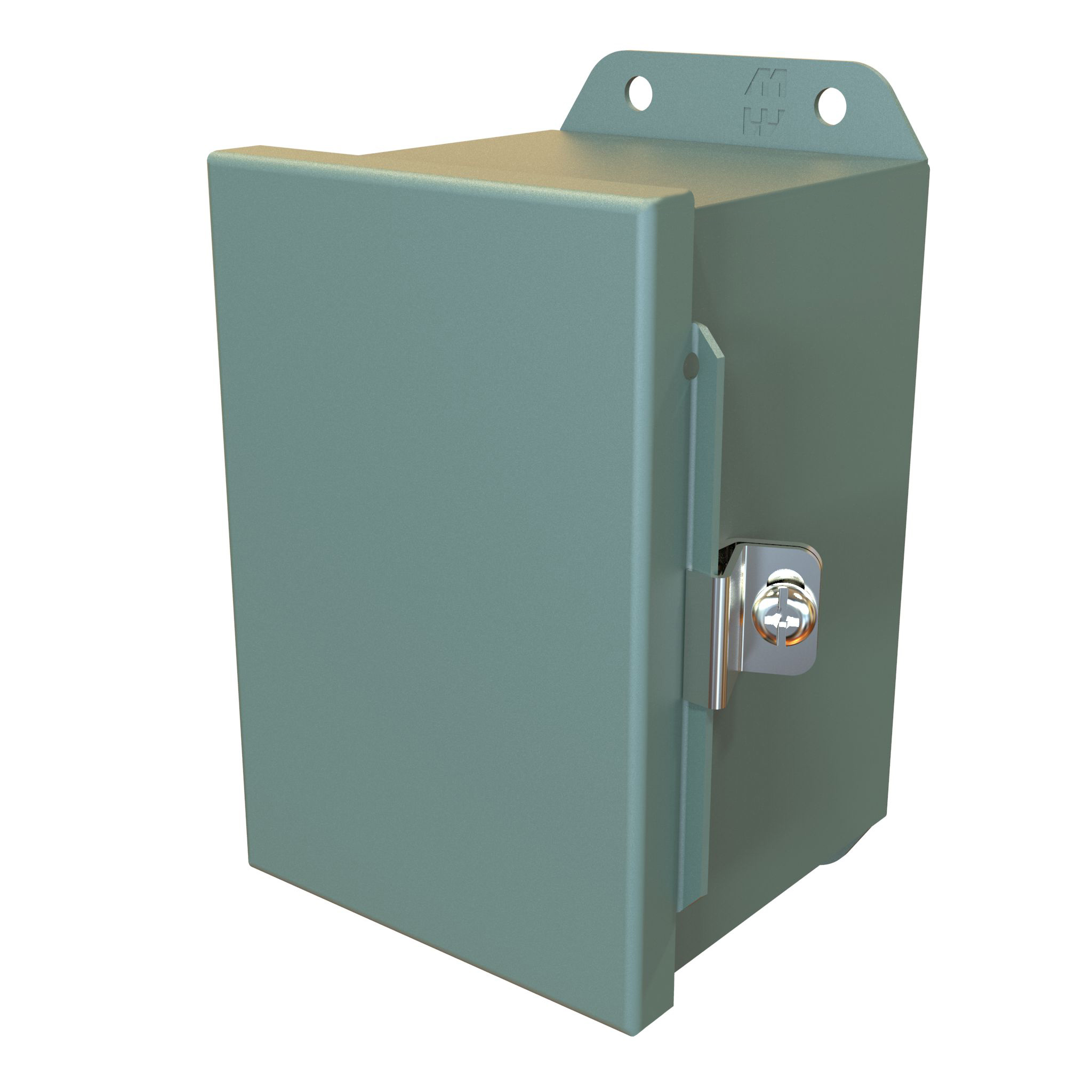

HJ644HLP6.004.004.0014R05034.882.88$57.44BackorderHJ644HLPBuy now

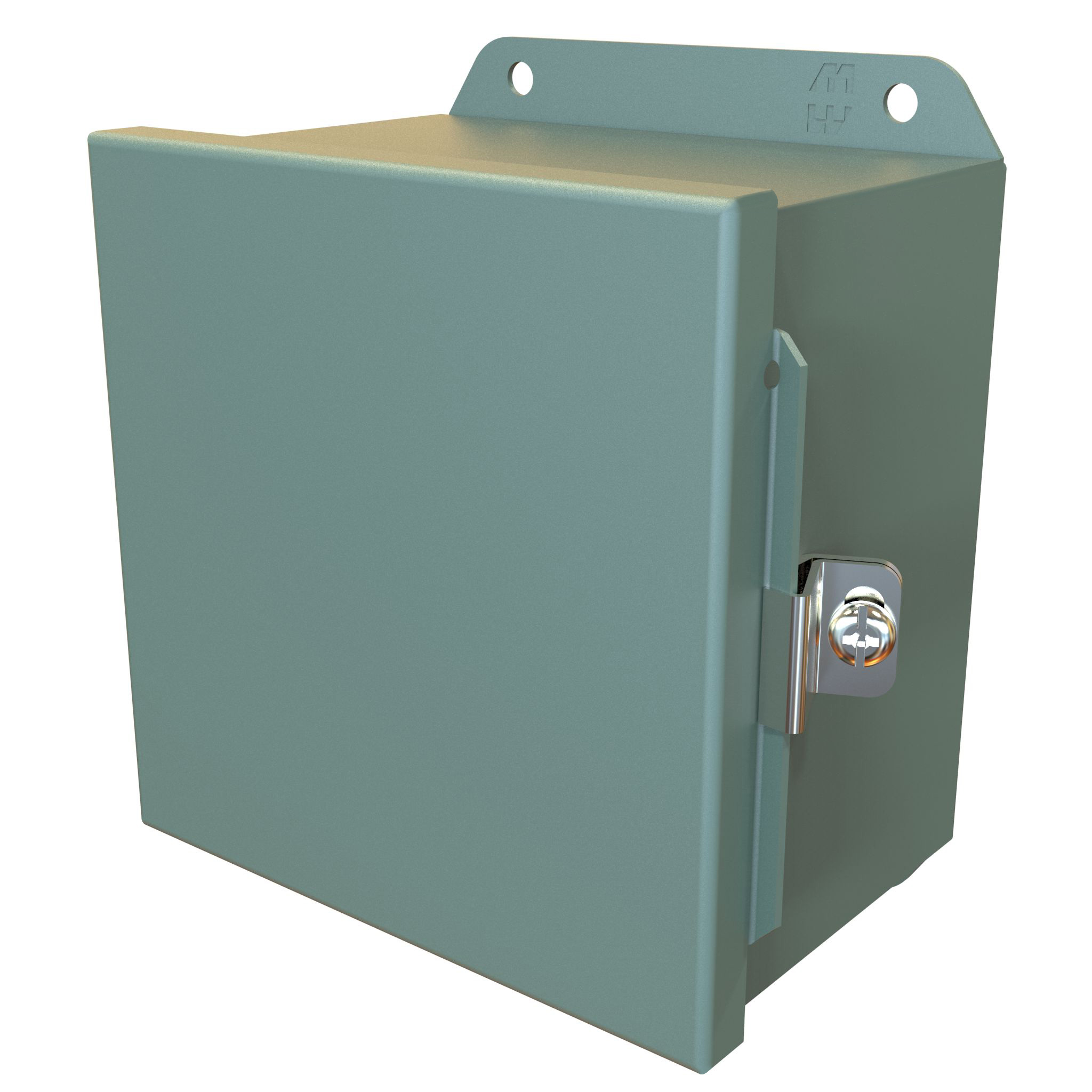

HJ664HLP6.006.004.0014R05054.884.88$61.66In stockHJ664HLPBuy now

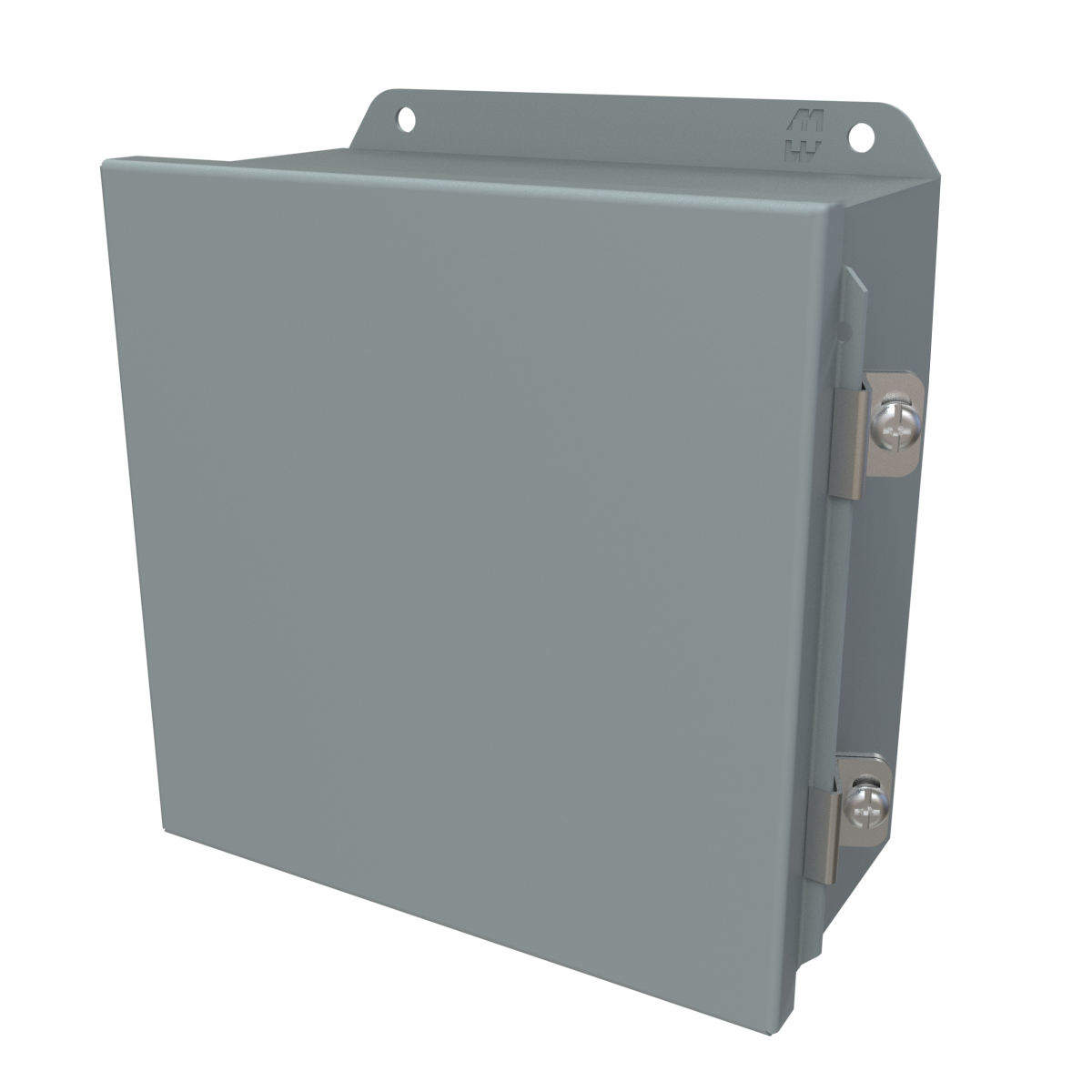

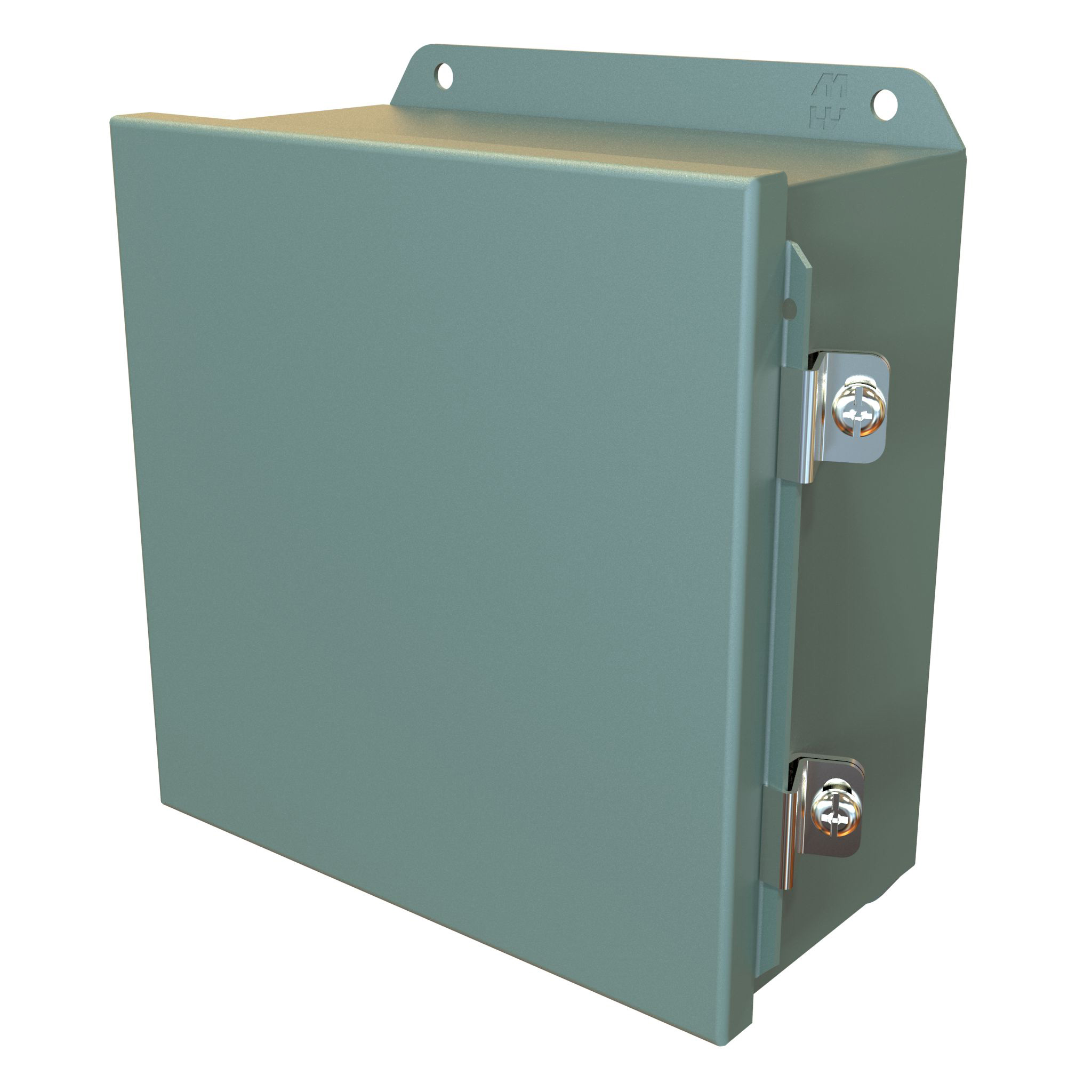

HJ884HLP8.008.004.0014R07076.756.88$74.90BackorderHJ884HLPBuy now

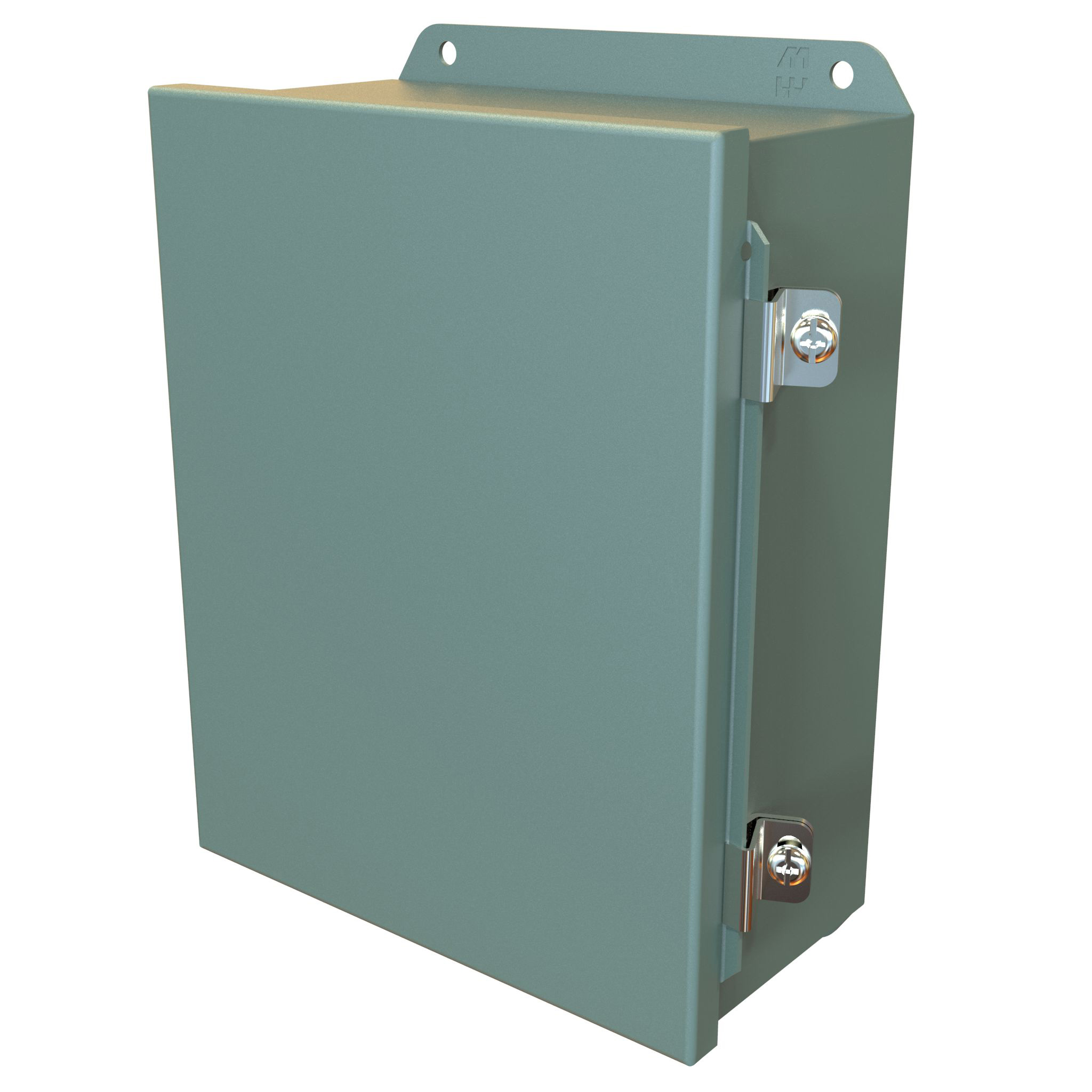

HJ1084HLP10.008.004.0014R09078.756.88$82.92BackorderHJ1084HLPBuy now
HJ8104HLP8.0010.004.0014R09078.756.88$81.59In stockHJ8104HLPBuy now

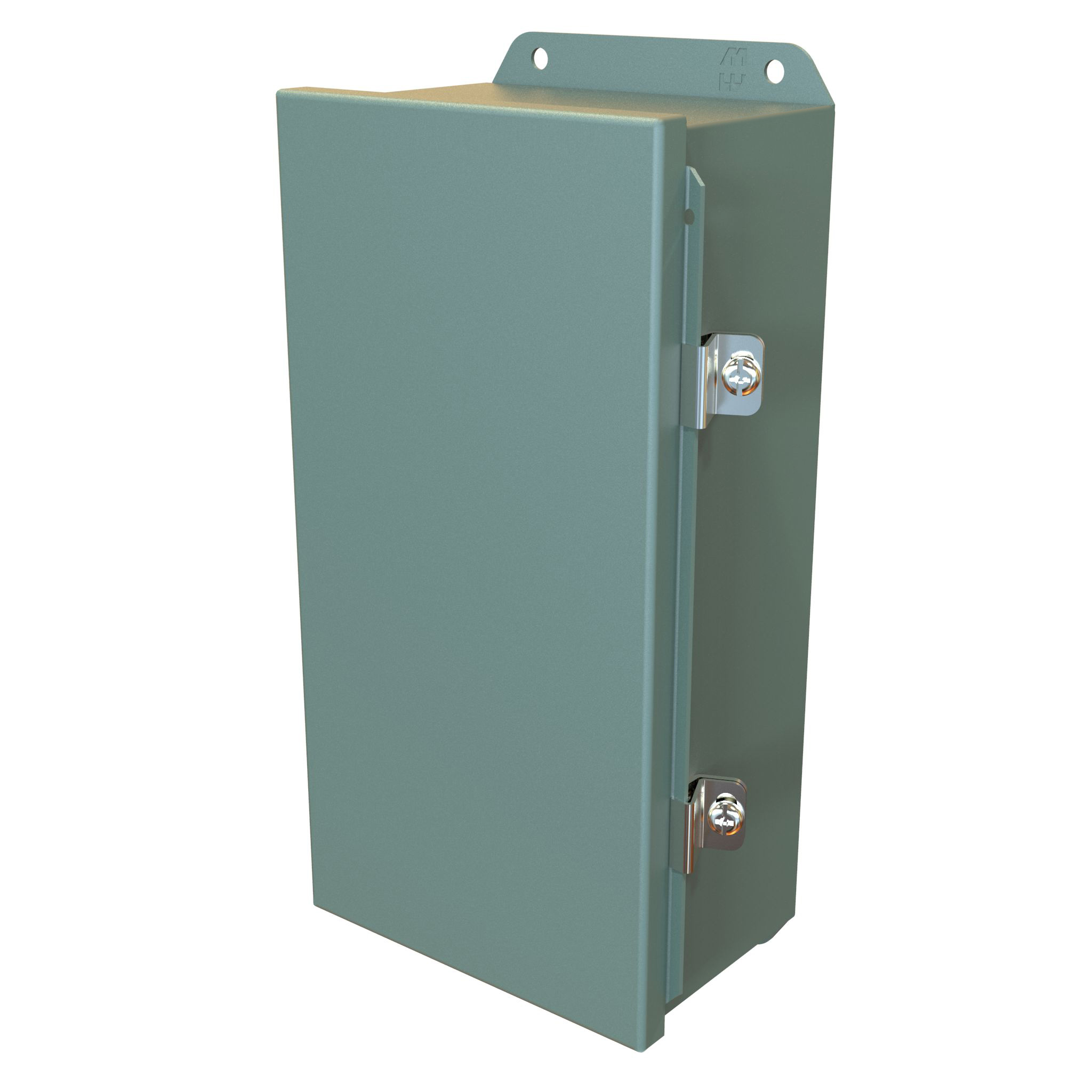

HJ1264HLP12.006.004.0014R110510.754.88$82.92BackorderHJ1264HLPBuy now

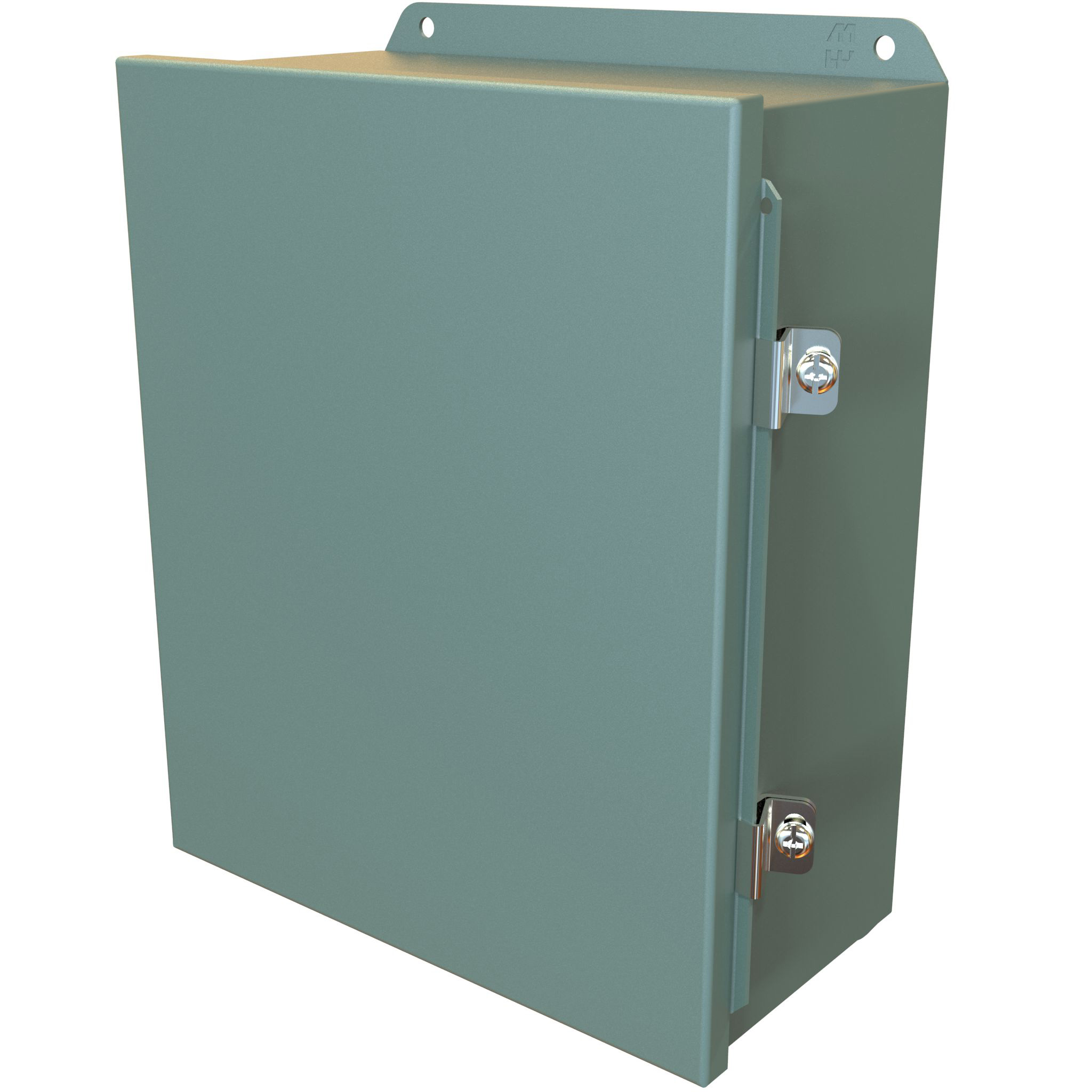

HJ12105HLP12.0010.005.0014R110910.758.88$106.33In stockHJ12105HLPBuy now

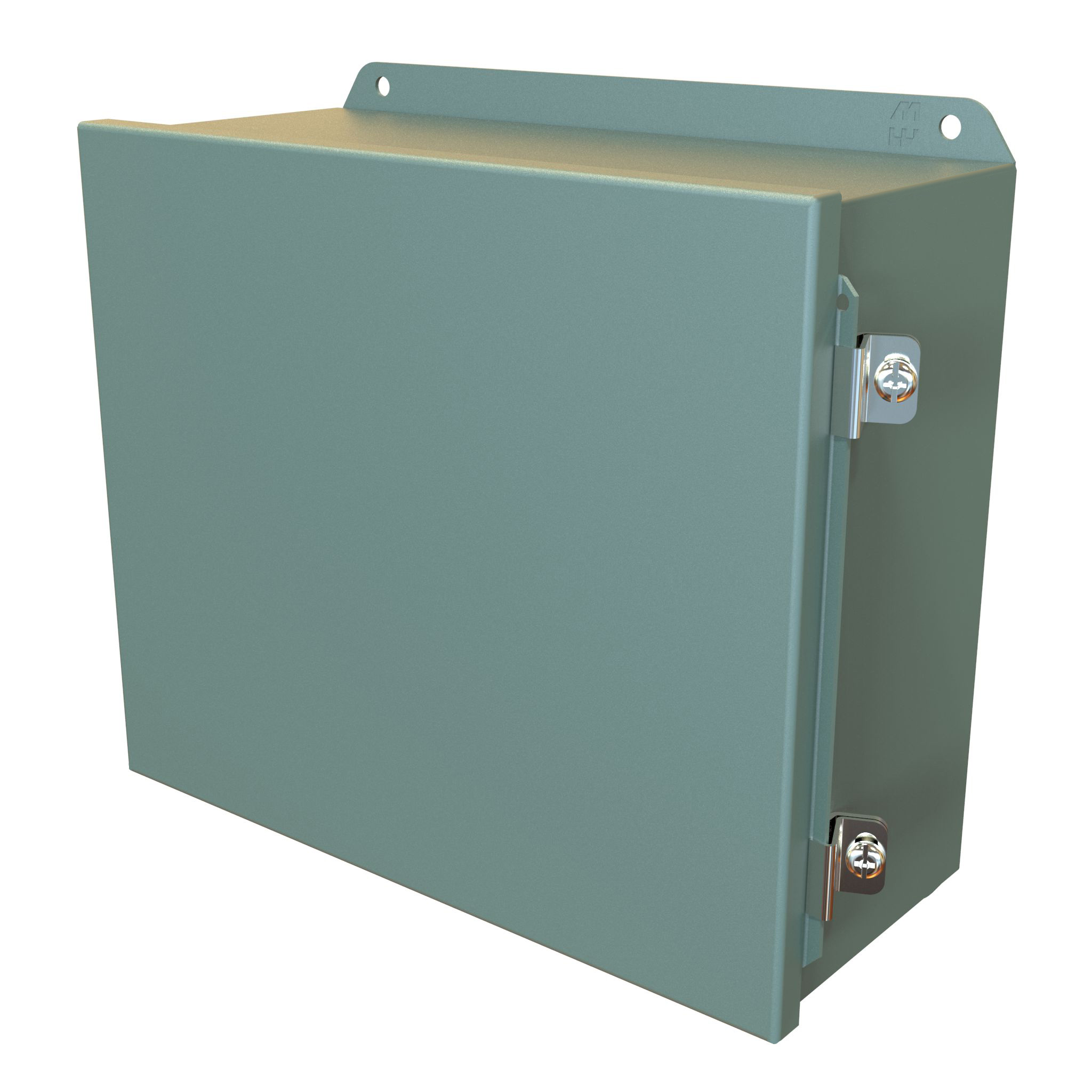

HJ10125HLP10.0012.005.0014R110910.758.88$105.66In stockHJ10125HLPBuy now

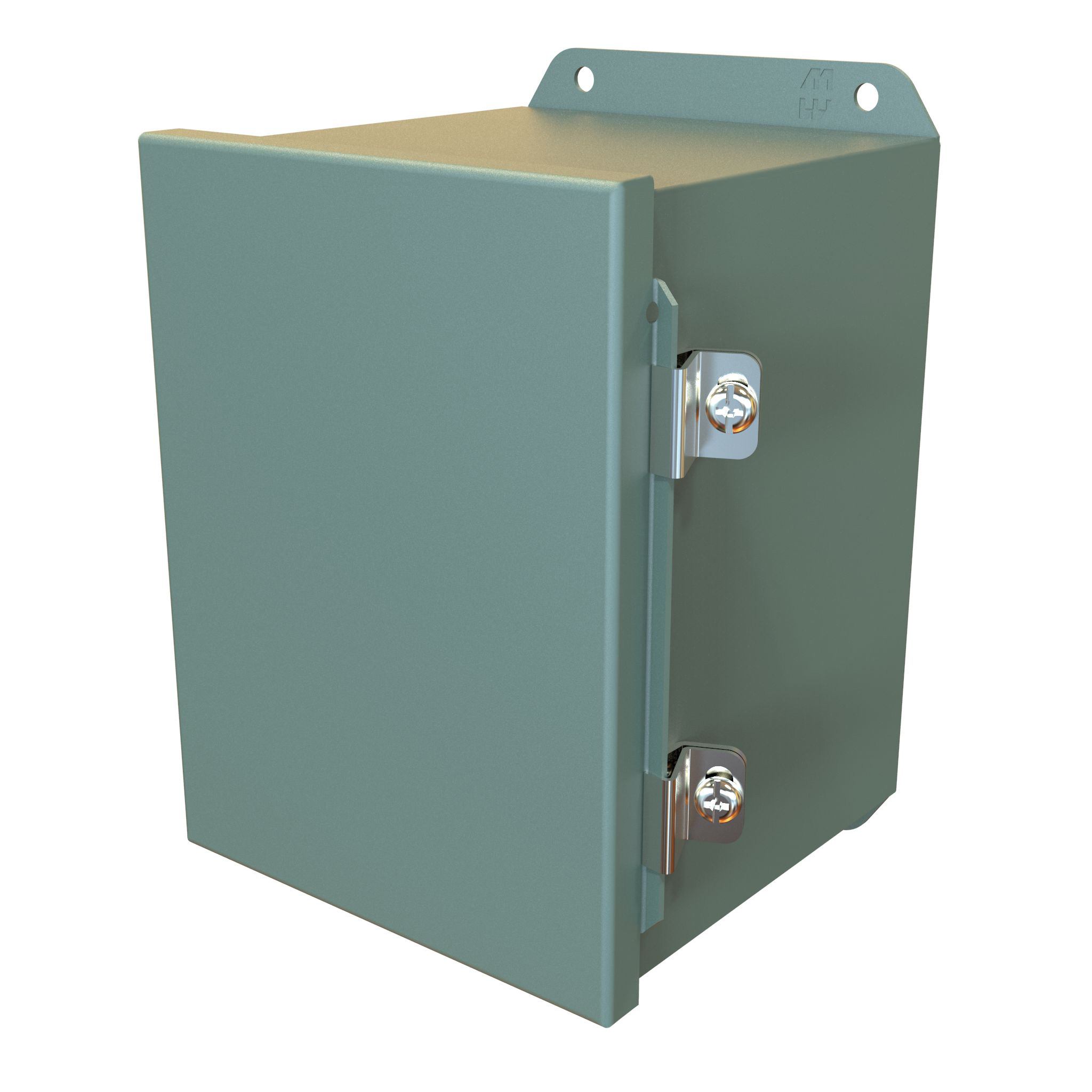

HJ866HLP8.006.006.0014R07056.754.88$78.91BackorderHJ866HLPBuy now

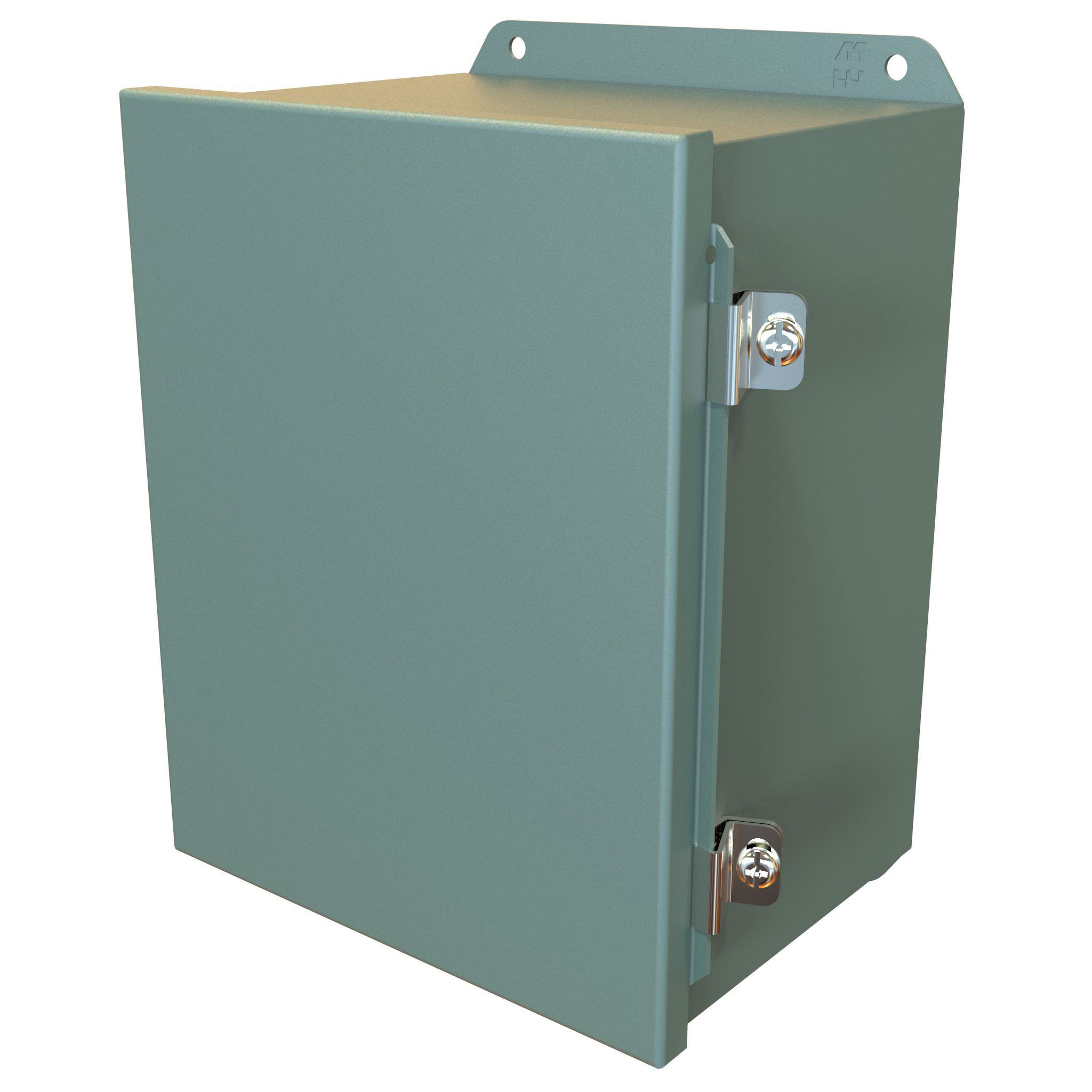

HJ1086HLP10.008.006.0014R09078.756.88$94.95In stockHJ1086HLPBuy now

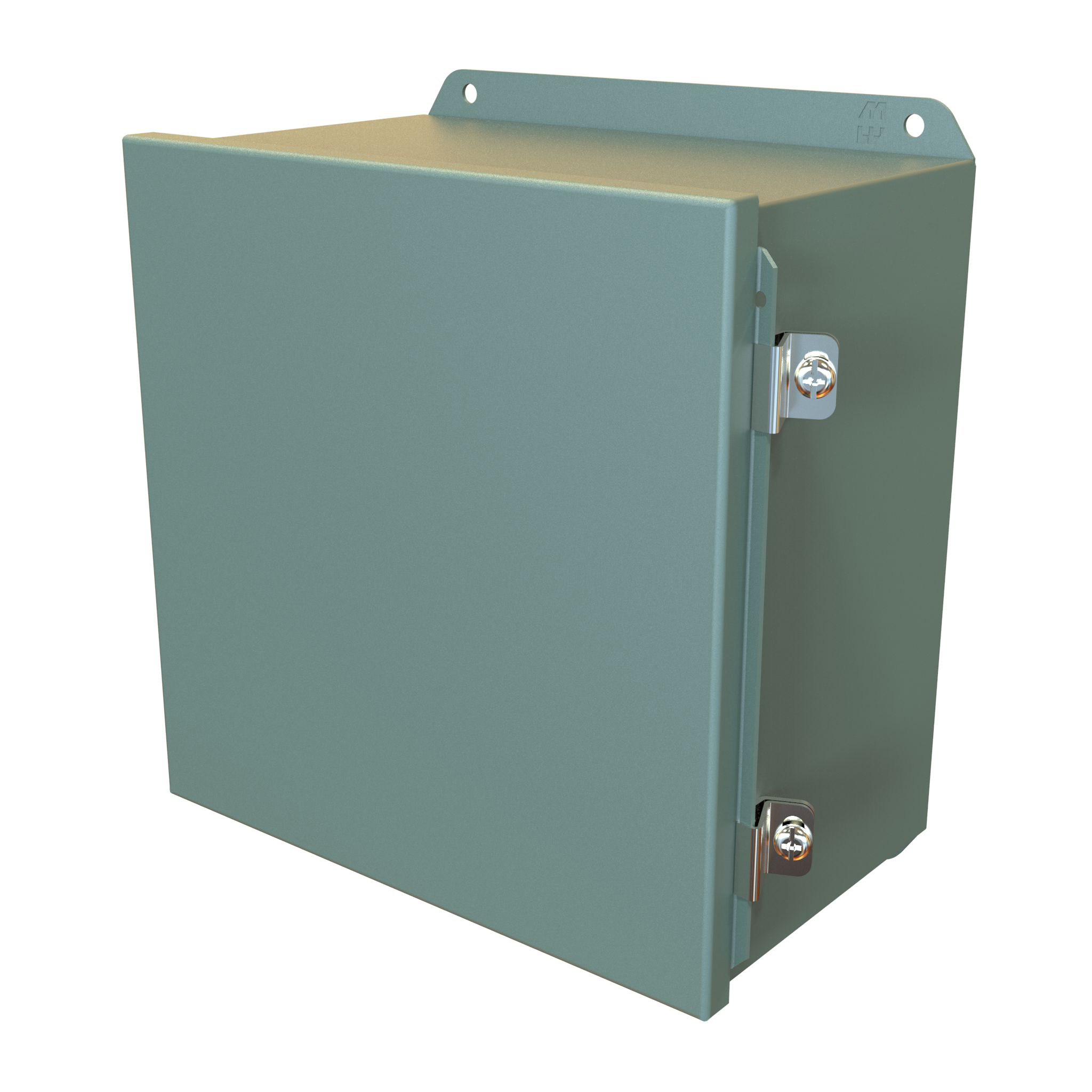

HJ10106HLP10.0010.006.0014R09098.758.88$102.31BackorderHJ10106HLPBuy now

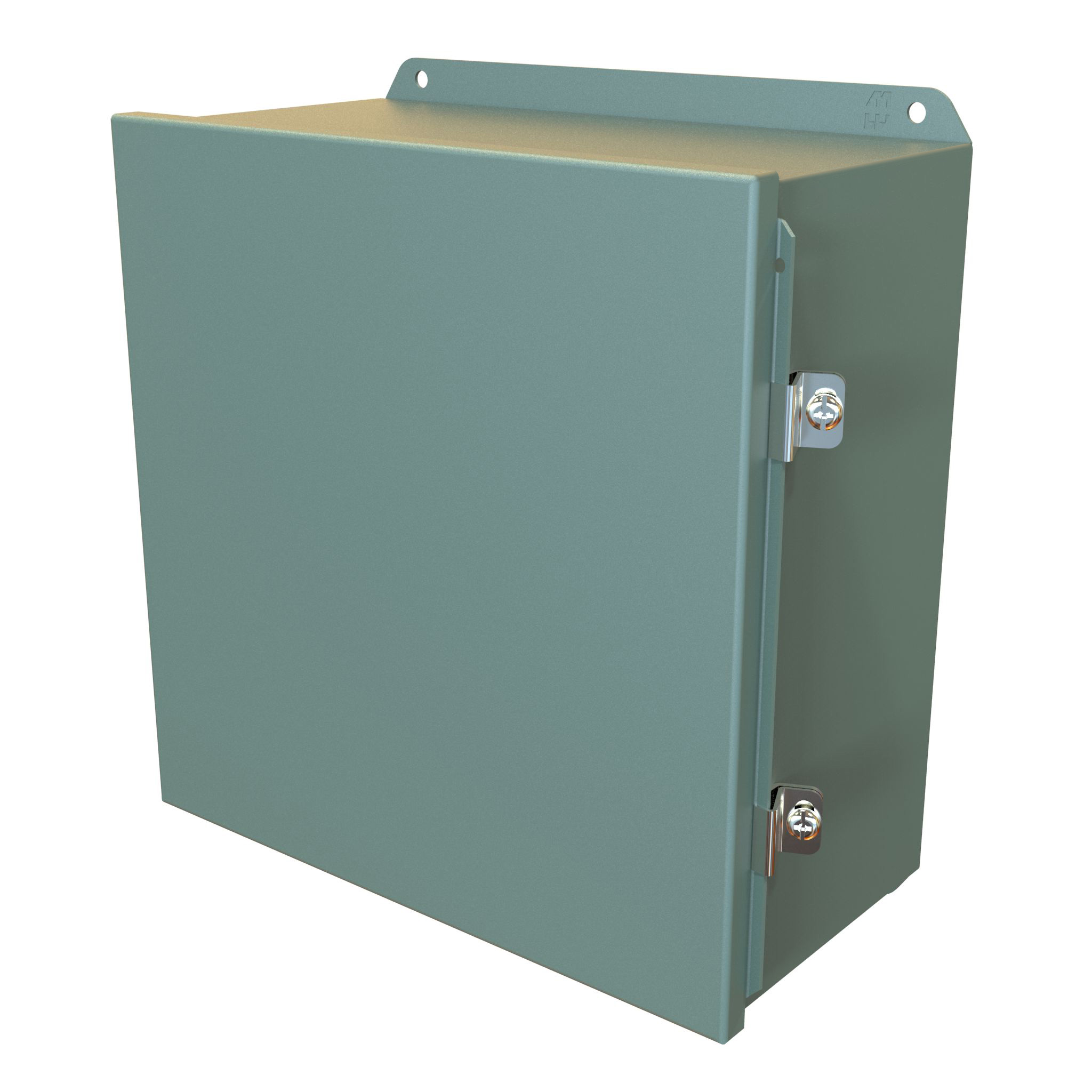

HJ12126HLP12.0012.006.0014R111110.7510.88$123.72In stockHJ12126HLPBuy now

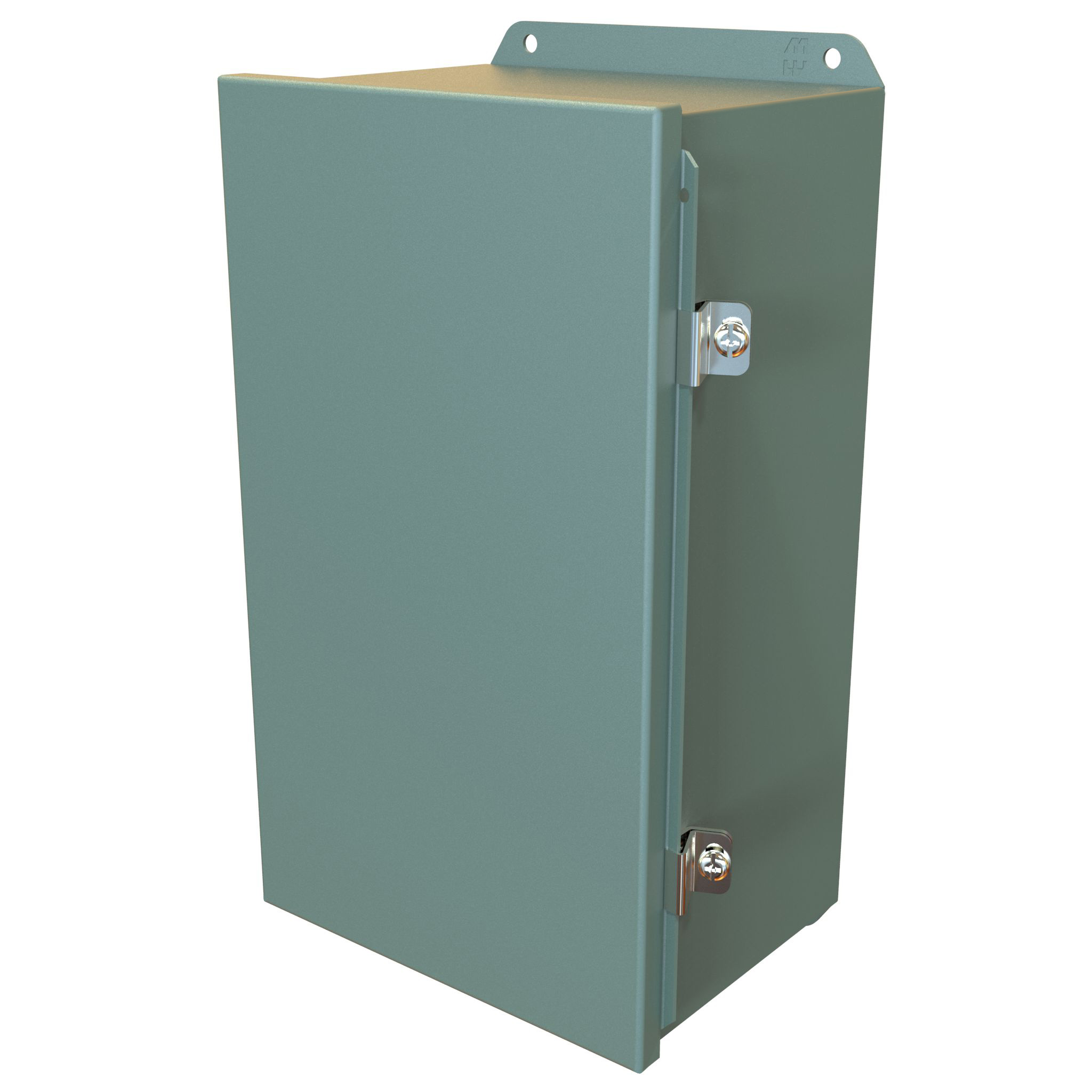

HJ1486HLP14.008.006.0014R130712.756.88$113.01In stockHJ1486HLPBuy now
HJ14126HLP14.0012.006.0014R131112.7510.88$133.08BackorderHJ14126HLPBuy now

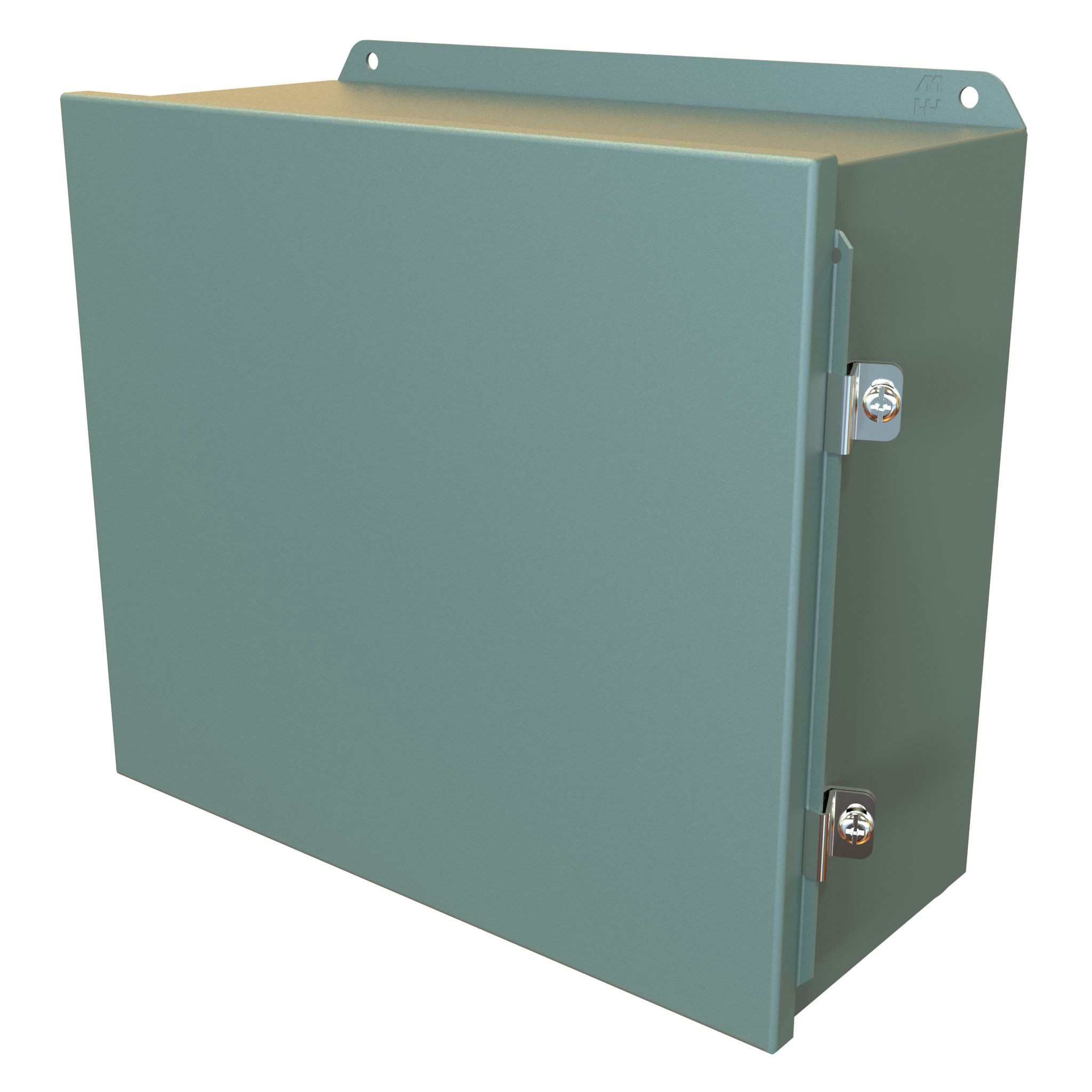

HJ12146HLP12.0014.006.0014R131112.7510.88$132.41In stockHJ12146HLPBuy now
HJ16106HLP16.0010.006.0014R150914.758.88$134.41In stockHJ16106HLPBuy now
HJ16146HLP16.0014.006.0014R151314.7512.88$157.15In stockHJ16146HLPBuy now
HJ14166HLP14.0016.006.0014R151314.7512.88$155.14BackorderHJ14166HLPBuy now

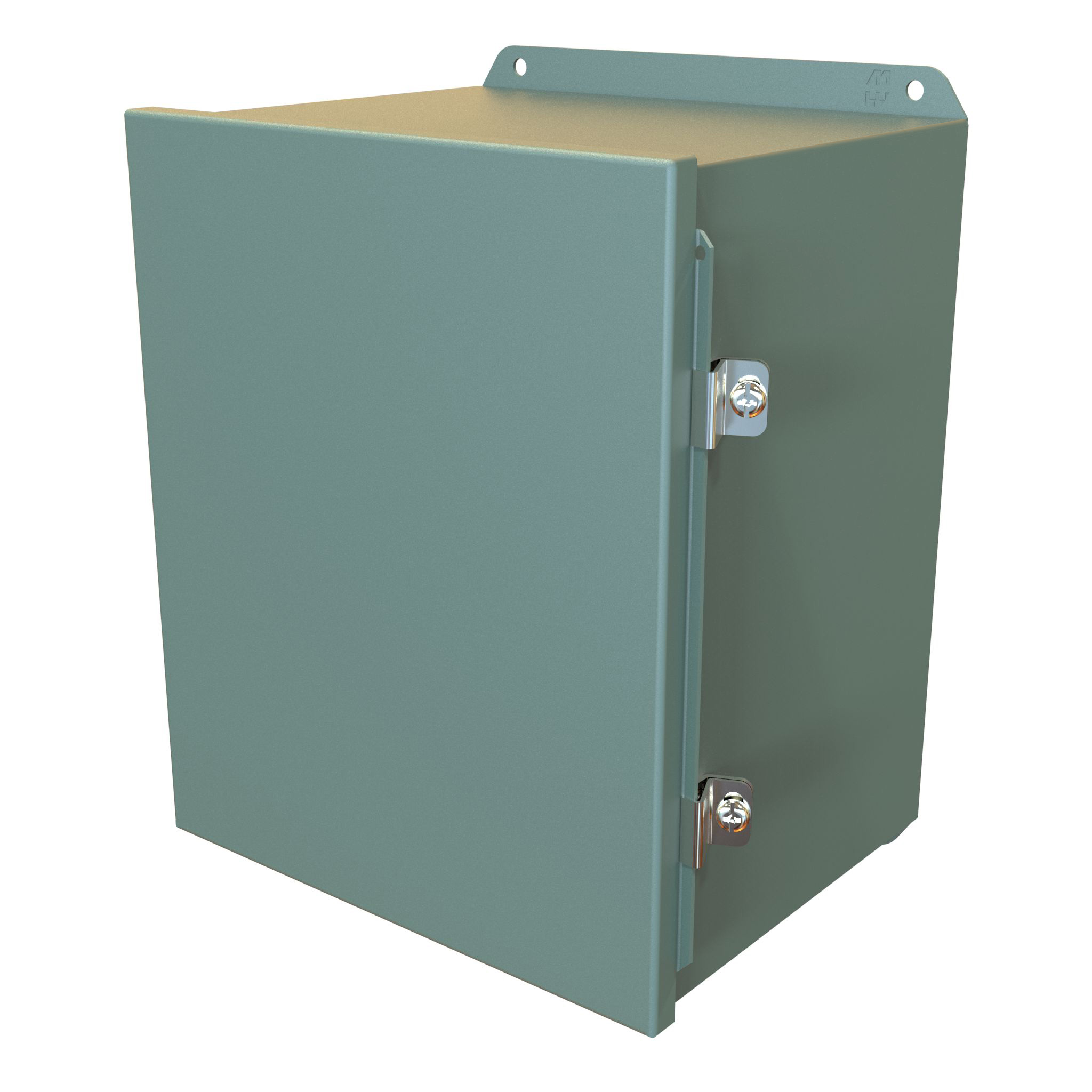

HJ12108HLP12.0010.008.0014R110910.758.88$129.06In stockHJ12108HLPBuy now
HJ14128HLP14.0012.008.0014R131112.7510.88$151.80BackorderHJ14128HLPBuy now
HJ16148HLP16.0014.008.0014R151314.7512.88$173.20BackorderHJ16148HLPBuy now
HJ161410HLP16.0014.0010.0014R151314.7512.88$195.93BackorderHJ161410HLPBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards

  • ■UL 508A Type 3R, 4, 12 and 13
  • ■CSA Type 3R, 4, 12 and 13
  • ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Body formed from 16 or 14 gauge steel. Covers are formed from 14 gauge steel.
  • ■Smooth, continuously welded seams without knockouts, cutouts or holes.
  • ■Welded brackets provide for enclosure mounting.

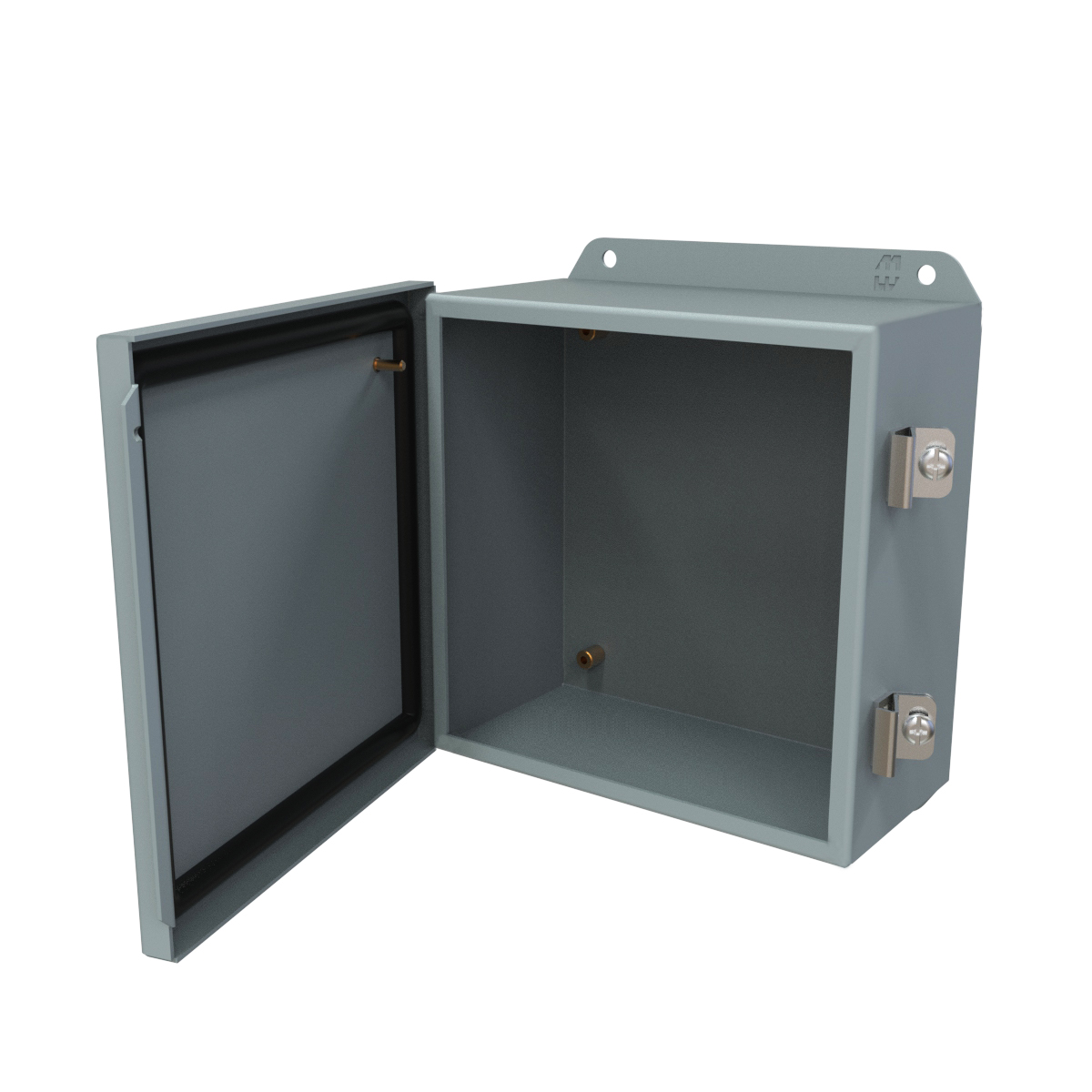

  • ■Continuous hinged cover is secured with stainless steel clamps and screws.
  • ■Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
  • ■Seamless poured-in place gasket.
  • ■Internal threaded weld studs are provided for mounting inner panels.
  • ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.

Finish

  • ■Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating.

Documents

Specification SheetCE Declaration

Additional information

Part Details

Part No.Enclosure · HEnclosure · WEnclosure · DOptional Mounting Panel · Part No.Optional Mounting Panel · HOptional Mounting Panel · W
HJ443HLP4.004.003.00---
HJ643HLP6.004.003.0014R05034.882.88
HJ863HLP8.006.003.5014R07056.754.88
HJ683HLP6.008.003.5014R07056.754.88
HJ444HLP4.004.004.00---
HJ644HLP6.004.004.0014R05034.882.88
HJ664HLP6.006.004.0014R05054.884.88
HJ884HLP8.008.004.0014R07076.756.88
HJ1084HLP10.008.004.0014R09078.756.88
HJ8104HLP8.0010.004.0014R09078.756.88
HJ1264HLP12.006.004.0014R110510.754.88
HJ12105HLP12.0010.005.0014R110910.758.88
HJ10125HLP10.0012.005.0014R110910.758.88
HJ866HLP8.006.006.0014R07056.754.88
HJ1086HLP10.008.006.0014R09078.756.88
HJ10106HLP10.0010.006.0014R09098.758.88
HJ12126HLP12.0012.006.0014R111110.7510.88
HJ1486HLP14.008.006.0014R130712.756.88
HJ14126HLP14.0012.006.0014R131112.7510.88
HJ12146HLP12.0014.006.0014R131112.7510.88
HJ16106HLP16.0010.006.0014R150914.758.88
HJ16146HLP16.0014.006.0014R151314.7512.88
HJ14166HLP14.0016.006.0014R151314.7512.88
HJ12108HLP12.0010.008.0014R110910.758.88
HJ14128HLP14.0012.008.0014R131112.7510.88
HJ16148HLP16.0014.008.0014R151314.7512.88
HJ161410HLP16.0014.0010.0014R151314.7512.88
