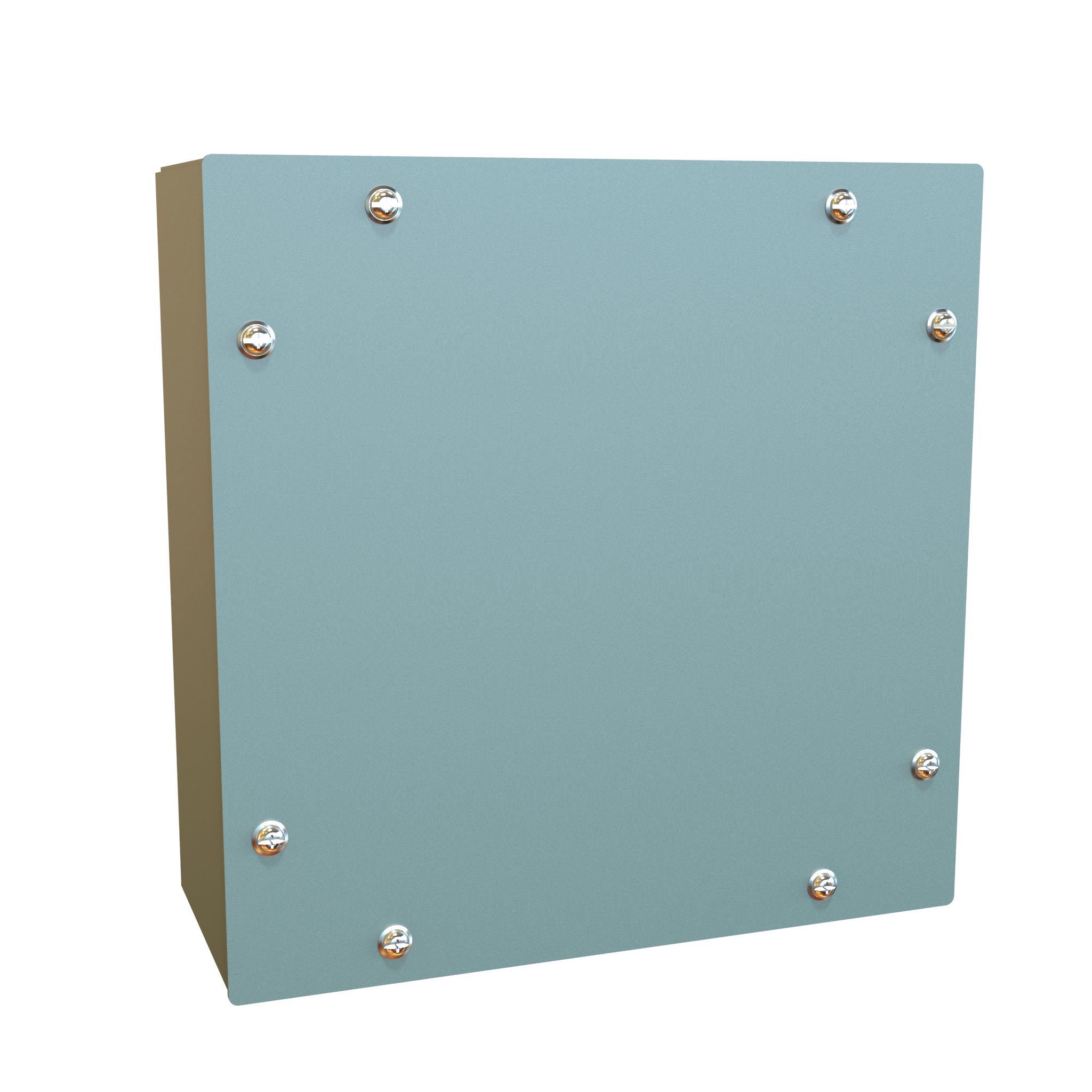

Type 3/12/4 Mild Steel Junction Box · C3SC Series

Application

• ■Designed for use as a wiring box, junction box, terminal or pull box in indoor or outdoor applications where subject to windblown dust or rain.

Standards

• ■UL 508A Listed; Type 3, 4, 12
• ■cULus Listed per CSA C22.2 No 94; Type 3, 4, 12
• ■Complies with NEMA Type 3, 4 and 12 IEC 60529, IP66
• ■NEMA Type 3, 4 and 12
• ■IEC 60529, IP66

Construction

• ■14 gauge steel body up to 24”x24”; 12 gauge body when 30”x30” or larger
• ■14 gauge steel cover up to 24”x24”; 12 gauge cover when 30”x30” or larger
• ■Smooth, continuously welded seams without knockouts, cutouts, or holes
• ■Captivated stainless steel cover screws thread into sealed wells
• ■Seamless poured-in place gasket
• ■No provision for inner mounting panel
• ■Mounting Foot Kit sold separately - use C3MTGFOOT
• ■Replacement lid cover screws (package of 25) - use 1421A4XLCS25SS
• ■Replacement lid cover washers/sealed wells (package of 25) - use 1421A4XLCW25

Finish

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

• ■Enclosure and cover are finished with an ANSI 61 gray powder coating inside and outside
