Hammond 1414I 10x8x4 Type 12 Steel Junction Box, Lift-Off Cover

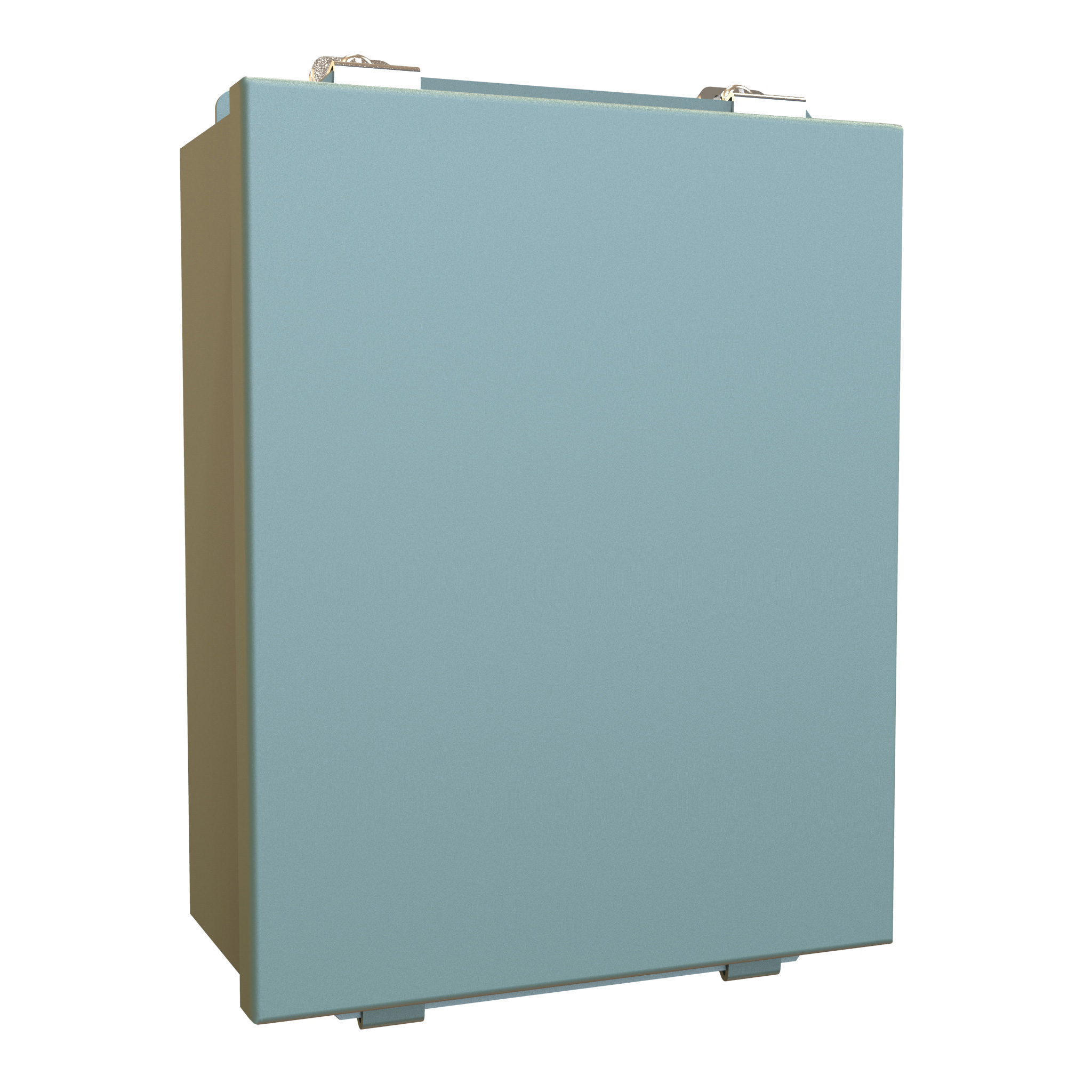

The 1414I is a 10 x 8 x 4 in (254 x 203 x 102 mm) Type 12 mild steel junction box with a lift-off cover and clamps. It is a mid-size housing for control wiring, hydraulic or pneumatic control components and terminal blocks in indoor plant environments.

The body is formed from 16 or 14 gauge mild steel with smooth, continuously welded seams and no knockouts, cutouts or holes. The 14 gauge lift-off cover is secured with stainless steel clamps and plated steel screws, sealed by a seamless poured-in place gasket, and retained with a plated chain when open so it stays with the box during service. Welded brackets provide for enclosure mounting.

It includes a removable 14 gauge inner panel measuring 8.75 x 6.88 in (222 x 175 mm). The drawing gives a 7.30 x 9.30 in door opening and 3.35 in of usable depth. The panel mounts on internal threaded weld studs. Additional inner panels, a swing panel kit, terminal kit assemblies and door clamping hardware are listed as accessories.

The 1414 Series is rated UL 508A and CSA Type 12 and 13 and complies with NEMA Type 12 and 13 and IEC 60529 IP54, giving a degree of protection from falling dirt, dust, oil and water. Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating, a bonding stud is provided on the door and a grounding stud on the enclosure, and the part is REACH and RoHS compliant. Shipping weight is 10 lbs (4.54 kg).
