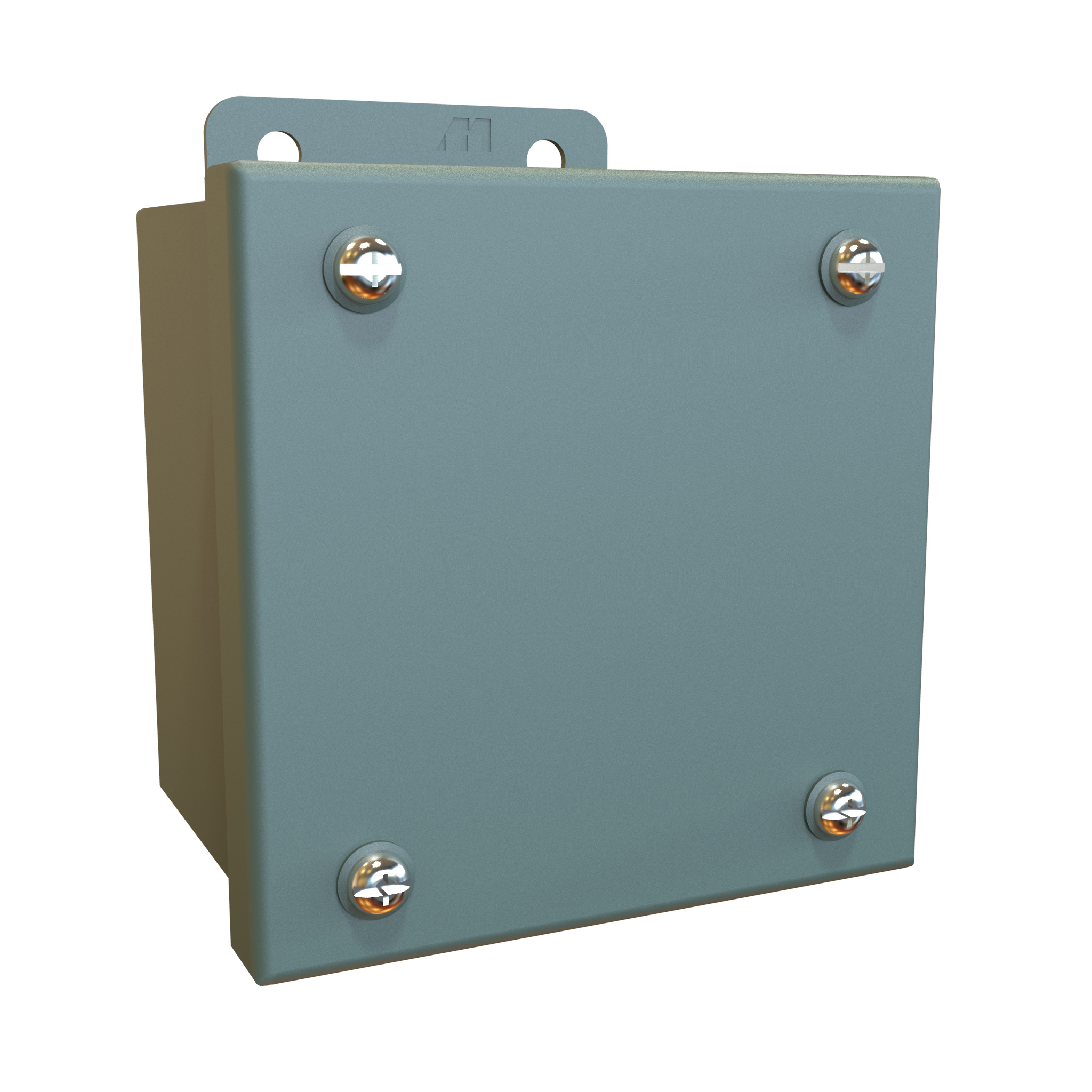

Hammond 1414SCA 4x4x3" Screw Cover Steel Junction Box

The 1414SCA is a Type 12 mild steel junction box from the 1414 SC Series, sized 4 x 4 x 3 in (102 mm x 102 mm x 76 mm). It uses a lift-off cover secured with captive, plated steel screws threaded into sealed wells, and is square in face (equal height and width). It is designed for use as an instrument enclosure, an electric, hydraulic or pneumatic control housing, an electrical junction box or a terminal wiring enclosure, providing a degree of protection from falling dirt, dust, oil and water.

The 1414SCA body is formed from 16 gauge steel (the series uses 14 gauge only for the 16 x 14 size), and the cover is formed from 16 gauge steel. Seams are smooth and continuously welded without knockouts, cutouts or holes. Oil resistant gaskets are permanently secured, and the cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating. A bonding stud is provided on the door and a grounding stud on the enclosure.

At 4 x 4 in, the 1414SCA is the size in the series without an inner panel; the series includes a removable panel only on models larger than 4 x 4 in. The drawing shows a cover opening of 3.30 in x 3.30 in (H x W) and clear space available on the cover of 2.56 in x 2.56 in (H x W).

Welded brackets provide for enclosure mounting, with 0.31 in diameter mounting holes shown on the drawing. The series is listed to UL 508A Type 12 and 13 (UL File E65324) and CSA Type 12 and 13 (Cert. LR21001), and complies with NEMA Type 12 and 13 and IEC 60529 IP54. The 1414SCA is REACH and RoHS compliant and ships in a box at 2 lbs (0.91 kg).
