Hygienic N4X Gasket
$183.05In stock
Buy now
Hygienic Type 4X Stainless Steel Wallmount Enclosure · HYW Series
Brand: Hammond Manufacturing · 36 part numbers
Sloped Top with Silicone Gasket
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, hygienic environments for wallmount applications.
- ■Sloped top prevents water from resting on top as well as providing potential for controls mounting.
- ■Internal hinge design and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 4, 4X and 12
- ■cUL Type 3R, 4, 4X and 12
from $34.71
36 of 36 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HYW Series part number
Filter 27 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
27 of 27 part numbers · 27 priced online
Hygienic N4X Gasket
$202.24In stock
Buy nowHygienic N4X Gasket
$207.41In stock
Buy nowHygienic N4X Gasket
$210.36In stock
Buy nowHygienic N4X Gasket
$214.79In stock
Buy nowHygienic N4X Gasket
$222.17In stock
Buy nowHygienic N4X Gasket
$233.98In stock
Buy nowHygienic N4X Gasket
$284.91In stock
Buy nowHygienic N4X Gasket
$255.39In stock
Buy now
Hygienic N4X 304SS 16X16X8
$1,541.16In stock
Buy now
Hygienic N4X 304SS 20X16X8
$1,703.54In stock
Buy now
Hygienic N4X 304SS 20X20X10
$2,005.42In stock
Buy now
Hygienic N4X 304SS 20X20X8
$1,945.64In stock
Buy now
Hygienic N4X 304SS 24X20X10
$2,292.54In stock
Buy nowHygienic N4X 304SS 24X20X12
$2,467.47In stock
Buy now
Hygienic N4X 304SS 24X20X8
$2,065.21In stock
Buy now
Hygienic N4X 304SS 24X24X10
$2,389.23In stock
Buy now
Hygienic N4X 304SS 24X24X12
$2,576.71In stock
Buy now
Hygienic N4X 304SS 24X24X8
$2,268.18In stock
Buy now
Hygienic N4X 304SS 30X24X12
$2,923.61In stock
Buy now
Hygienic N4X 304SS 30X24X8
$2,341.25In stock
Buy now
Hygienic N4X 304SS 36X30X12
$3,722.24In stock
Buy now
Hygienic N4X 304SS 36X30X16
$4,143.69In stock
Buy now
Hygienic N4X 304SS 42X36X12
$4,275.81In stock
Buy now
Hygienic N4X 304SS 42X36X16
$5,041.96In stock
Buy now
Hygienic N4X 304SS 48X36X12
$5,340.16In stock
Buy now
Hygienic N4X 304SS 48X36X16
$5,635.40In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 304 SS · Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Replacement · Gasket (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|

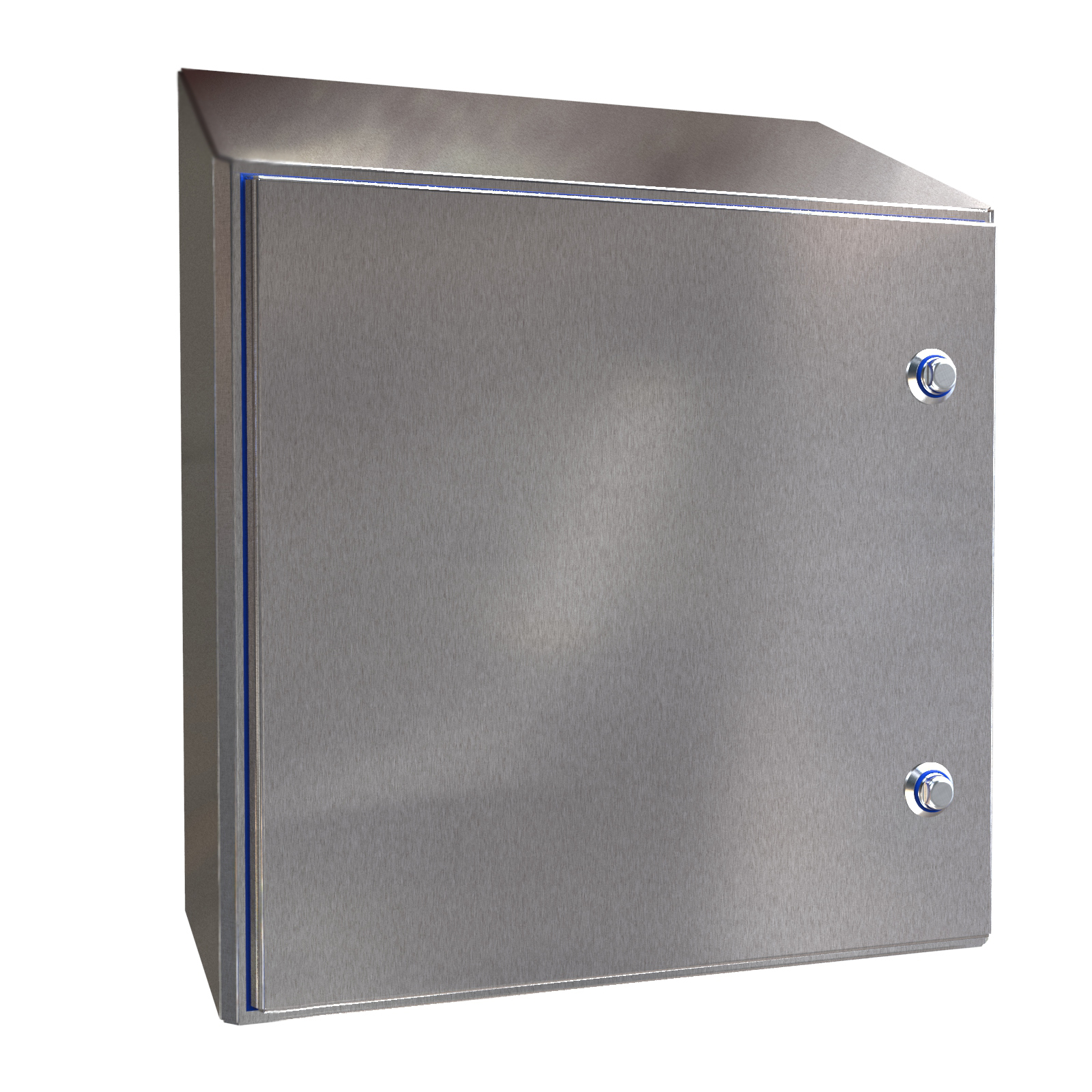

| HYW16168SS | 16.00 | TBD | 16.00 | 8.00 | 18P1313 | 13.00 | 13.00 | HYG1616 | $1,541.16In stockHYW16168SS | Buy now |

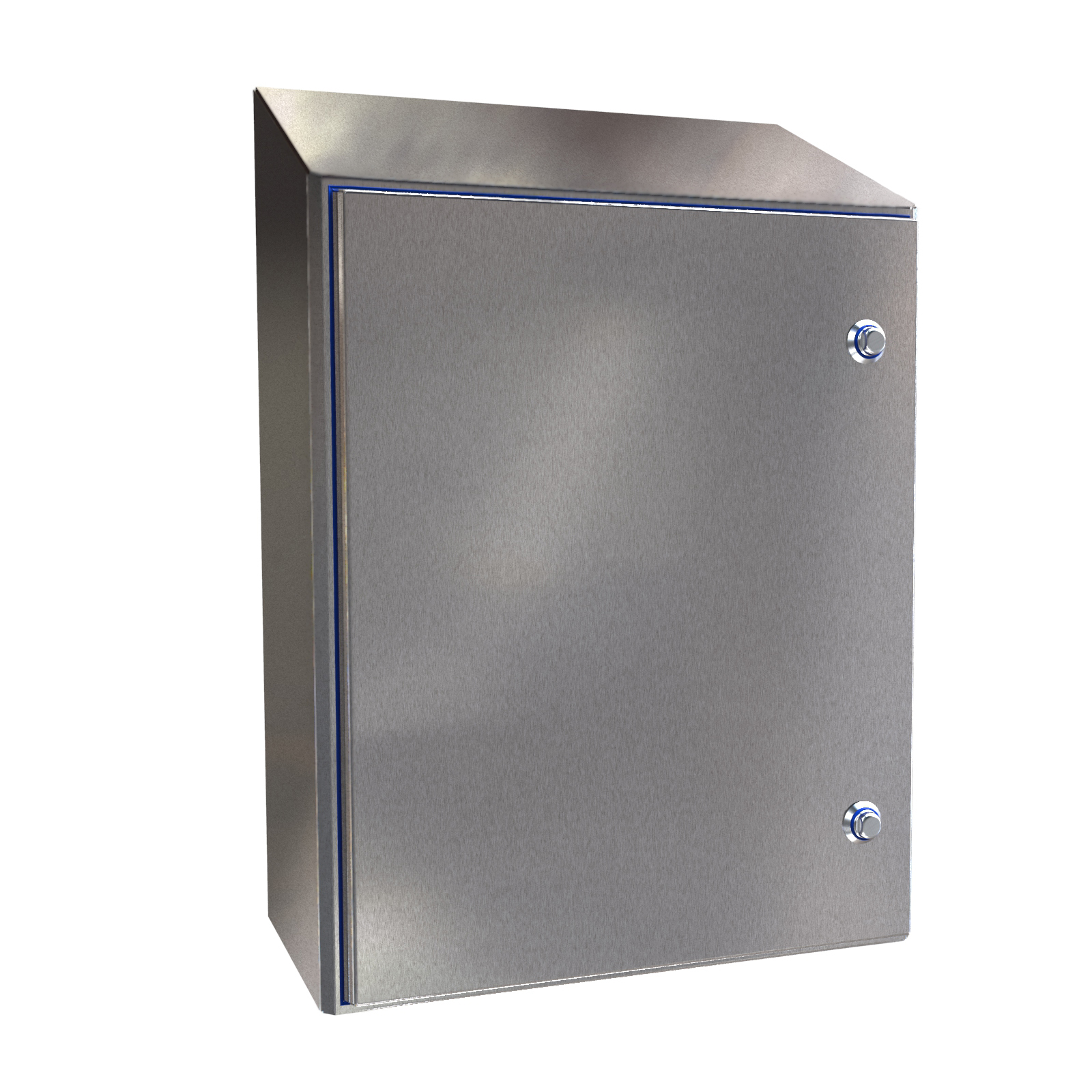

| HYW20168SS | 20.00 | TBD | 16.00 | 8.00 | 18P1713 | 17.00 | 13.00 | HYG2016 | $1,703.54In stockHYW20168SS | Buy now |

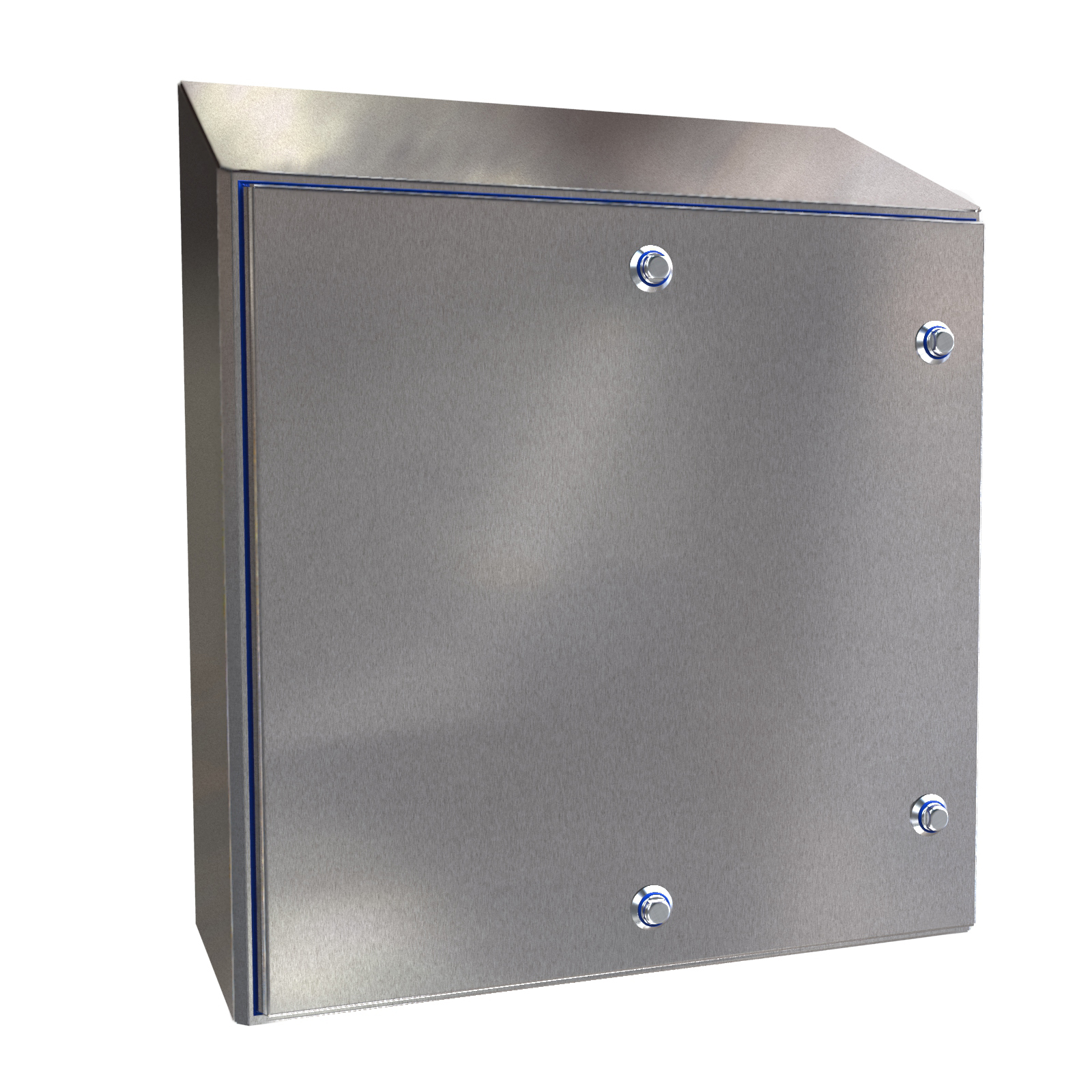

| HYW20208SS | 20.00 | TBD | 20.00 | 8.00 | 18P1717 | 17.00 | 17.00 | HYG2020 | $1,945.64In stockHYW20208SS | Buy now |

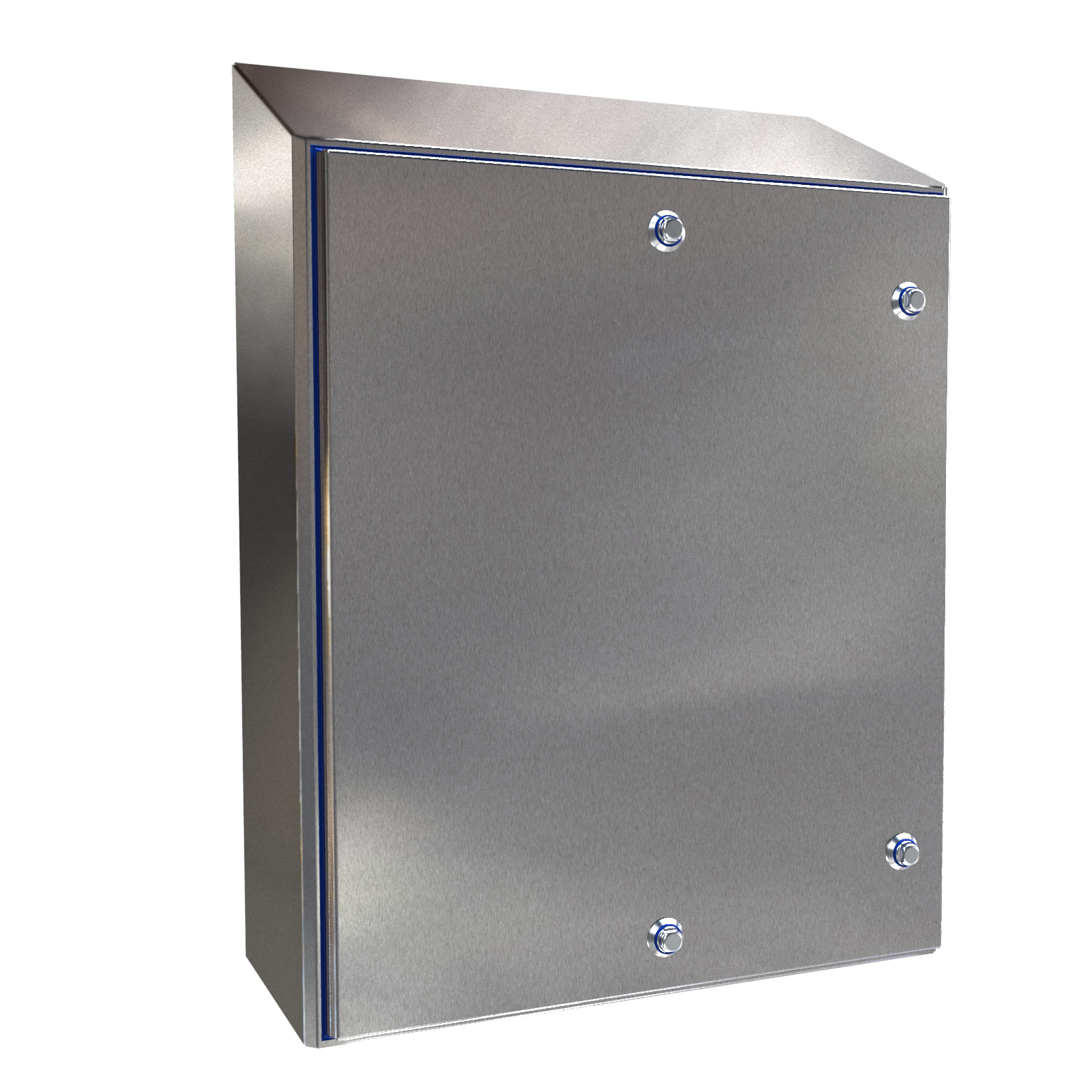

| HYW24208SS | 24.00 | TBD | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 | HYG2420 | $2,065.21In stockHYW24208SS | Buy now |

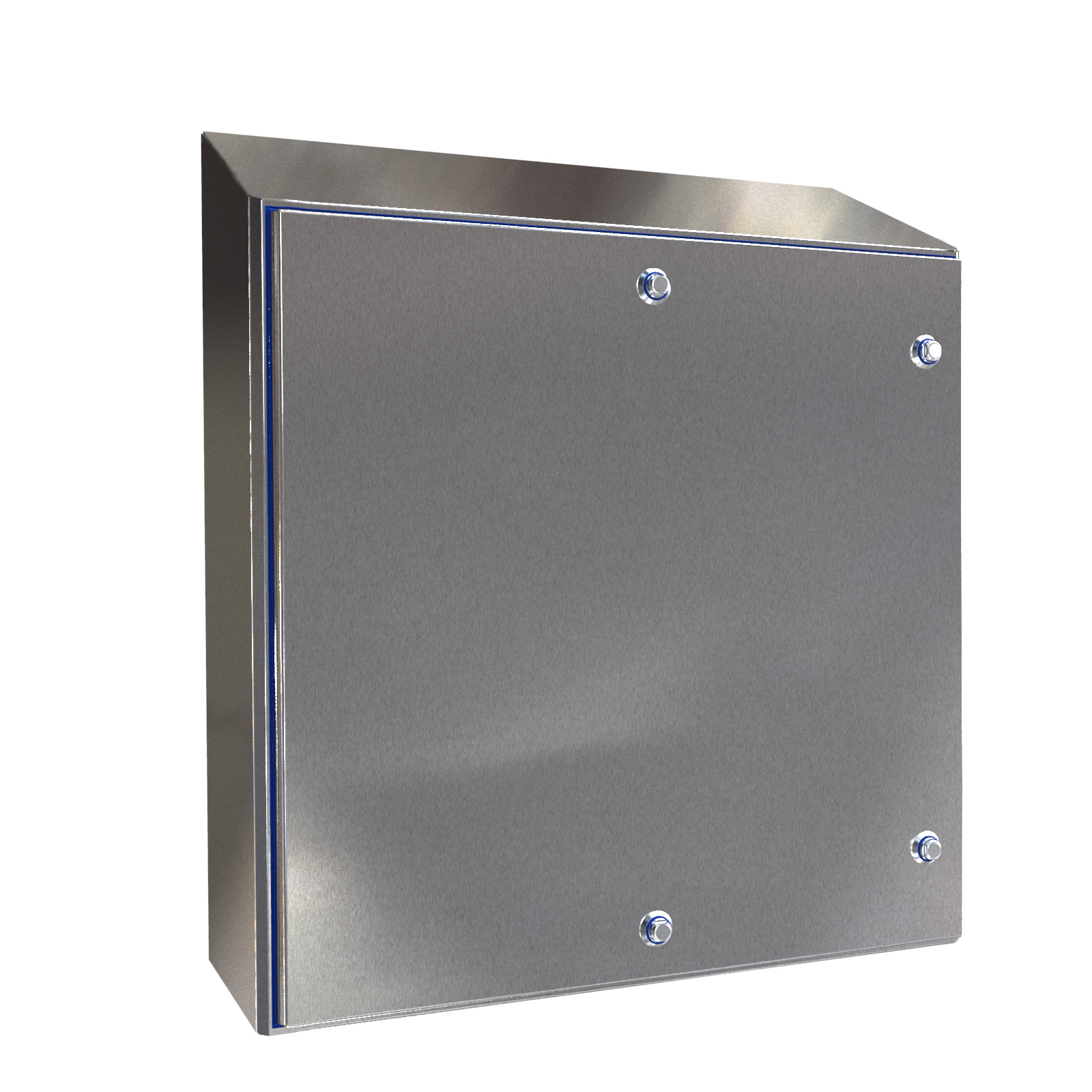

| HYW24248SS | 24.00 | TBD | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 | HYG2424 | $2,268.18In stockHYW24248SS | Buy now |

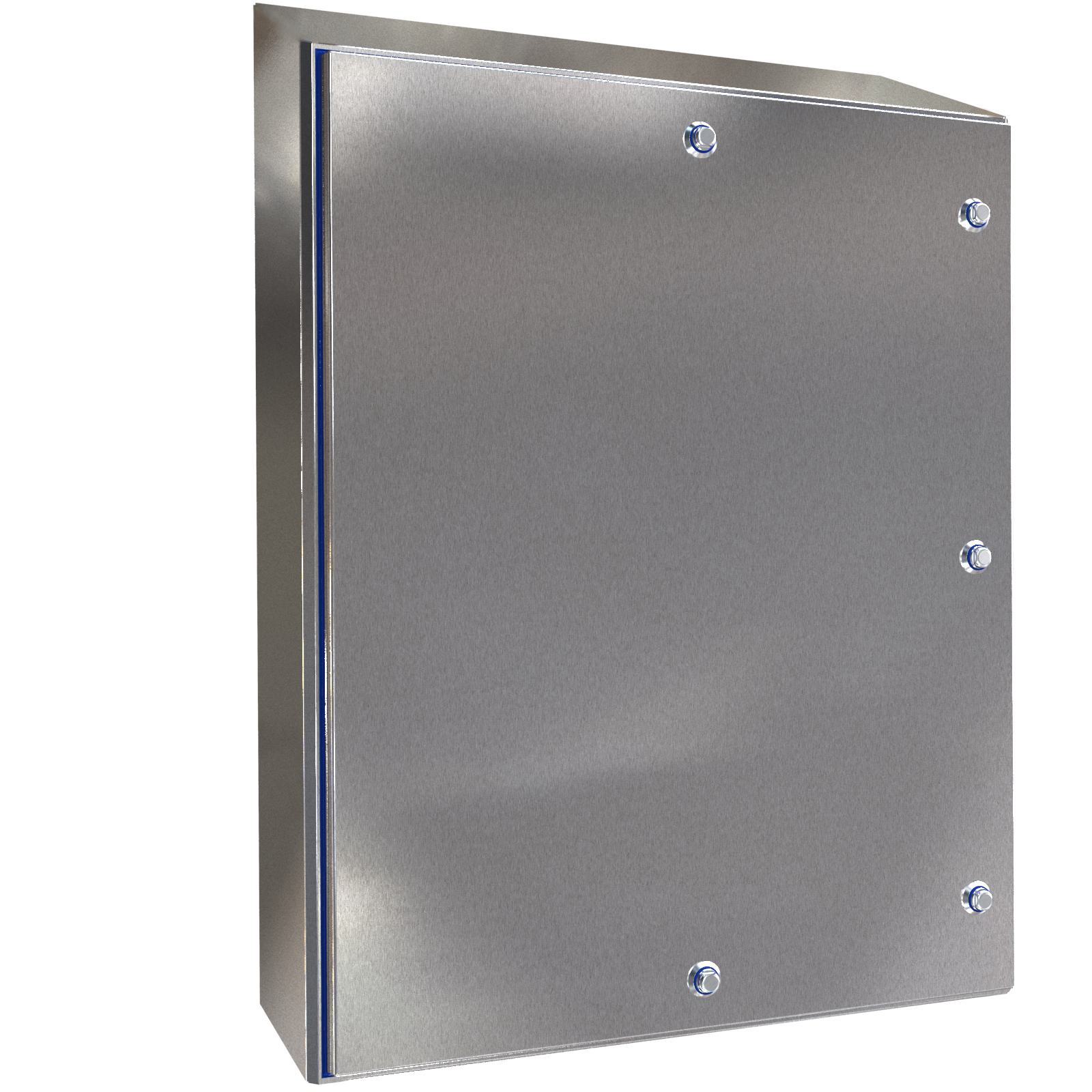

| HYW30248SS | 30.00 | TBD | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 | HYG3024 | $2,341.25In stockHYW30248SS | Buy now |

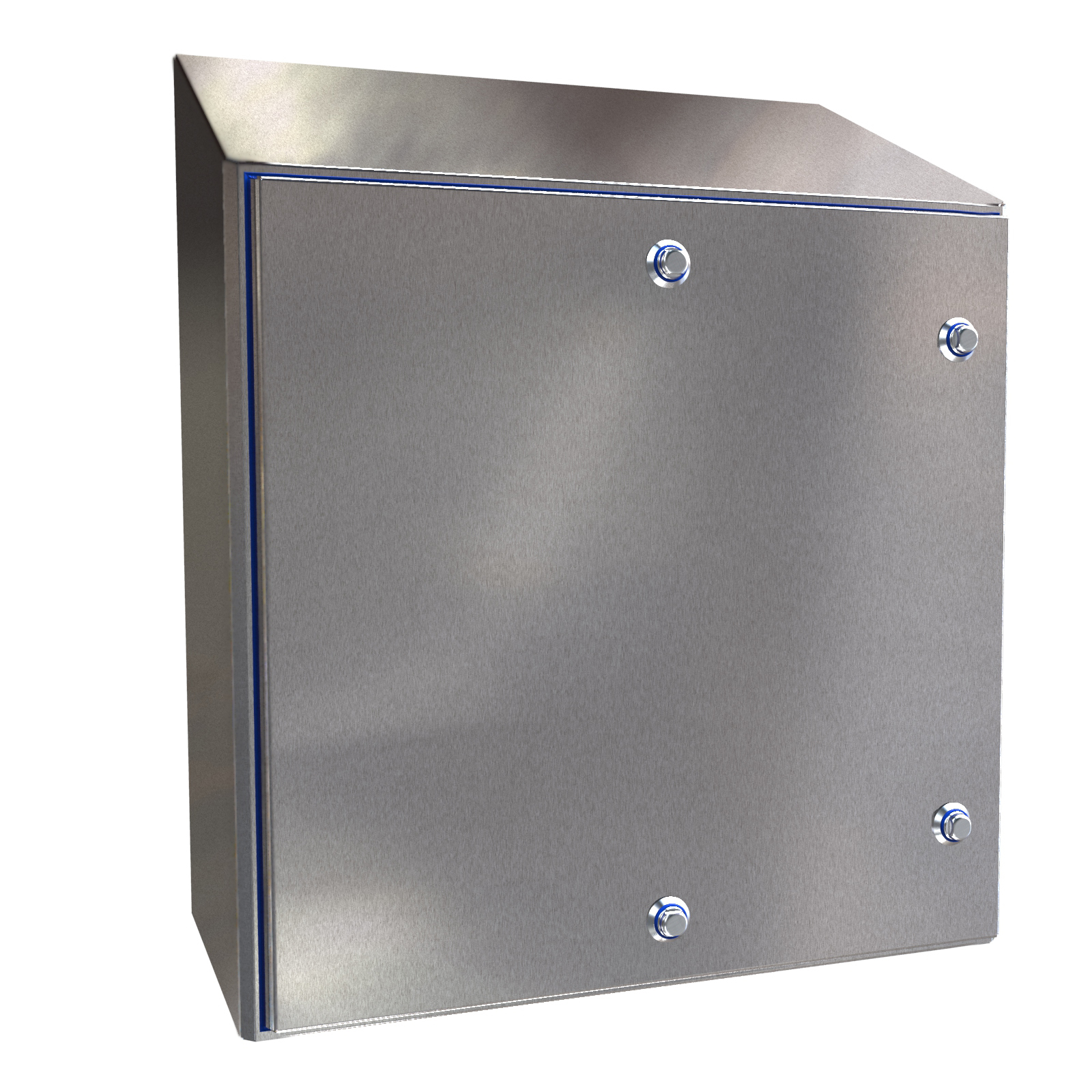

| HYW202010SS | 20.00 | TBD | 20.00 | 10.00 | 18P1717 | 17.00 | 17.00 | HYG2020 | $2,005.42In stockHYW202010SS | Buy now |

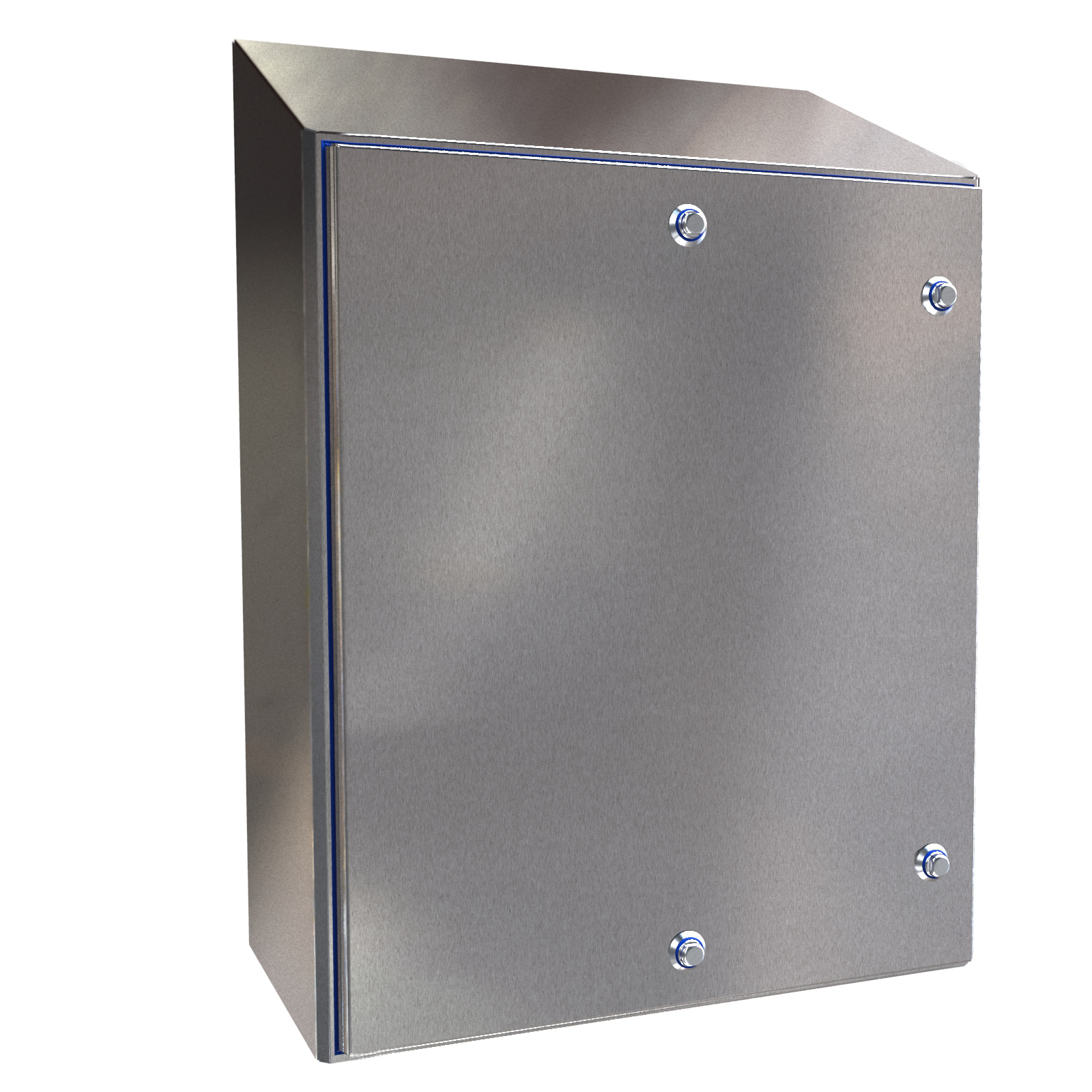

| HYW242010SS | 24.00 | TBD | 20.00 | 10.00 | 18P2117 | 21.00 | 17.00 | HYG2420 | $2,292.54In stockHYW242010SS | Buy now |

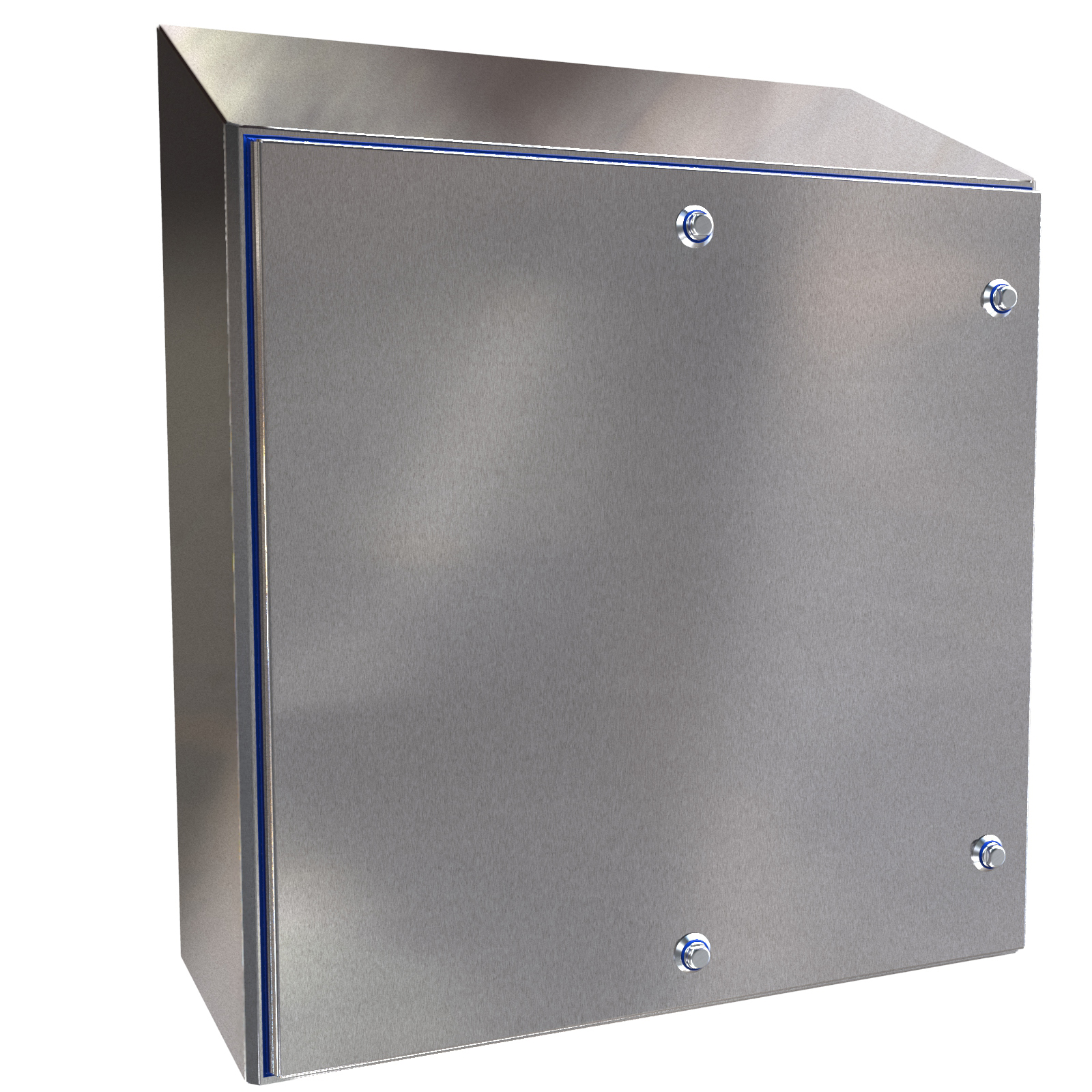

| HYW242410SS | 24.00 | TBD | 24.00 | 10.00 | 18P2121 | 21.00 | 21.00 | HYG2424 | $2,389.23In stockHYW242410SS | Buy now |
| HYW242012SS | 24.00 | TBD | 20.00 | 12.00 | 18P2117 | 21.00 | 17.00 | HYG2420 | $2,467.47In stockHYW242012SS | Buy now |

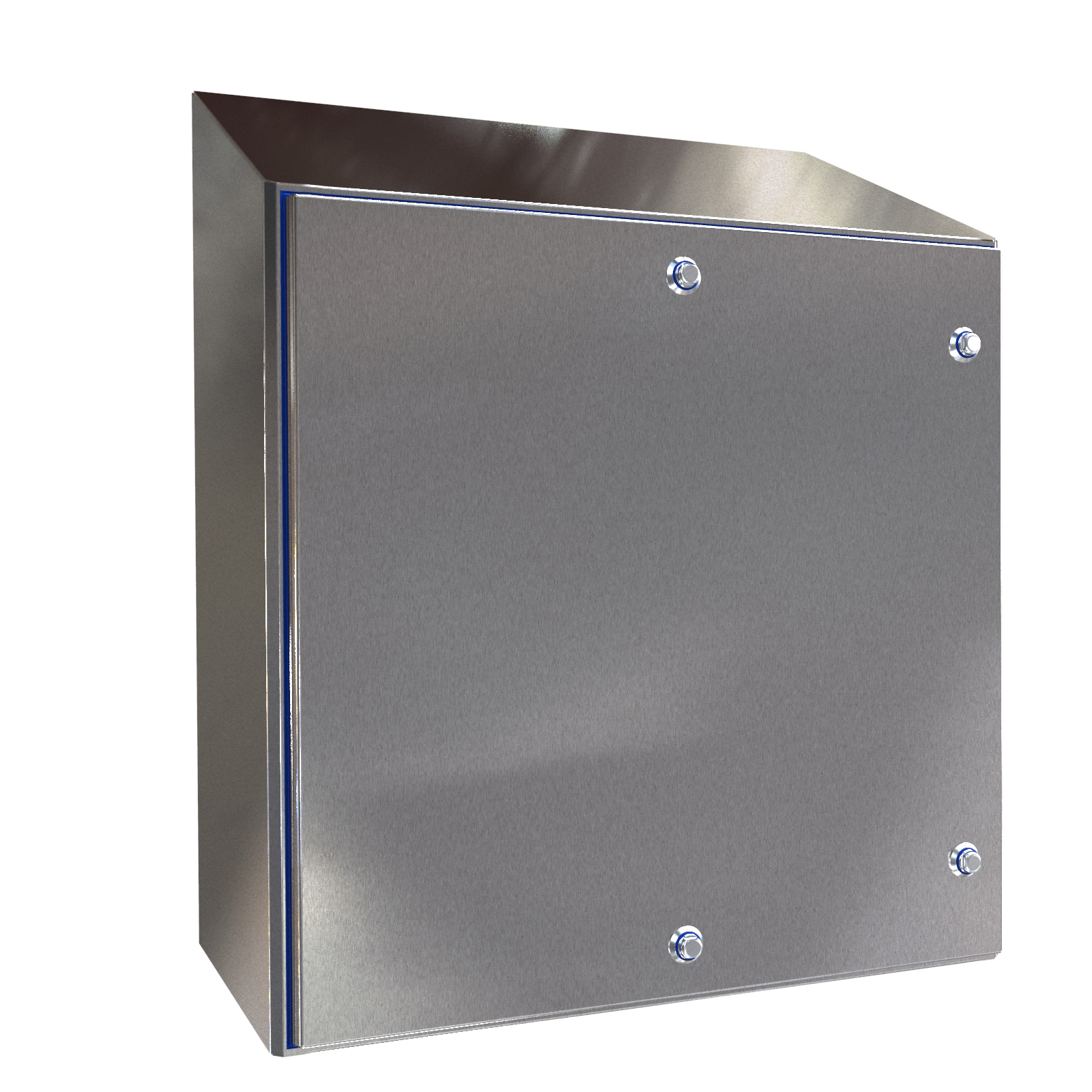

| HYW242412SS | 24.00 | TBD | 24.00 | 12.00 | 18P2121 | 21.00 | 21.00 | HYG2424 | $2,576.71In stockHYW242412SS | Buy now |

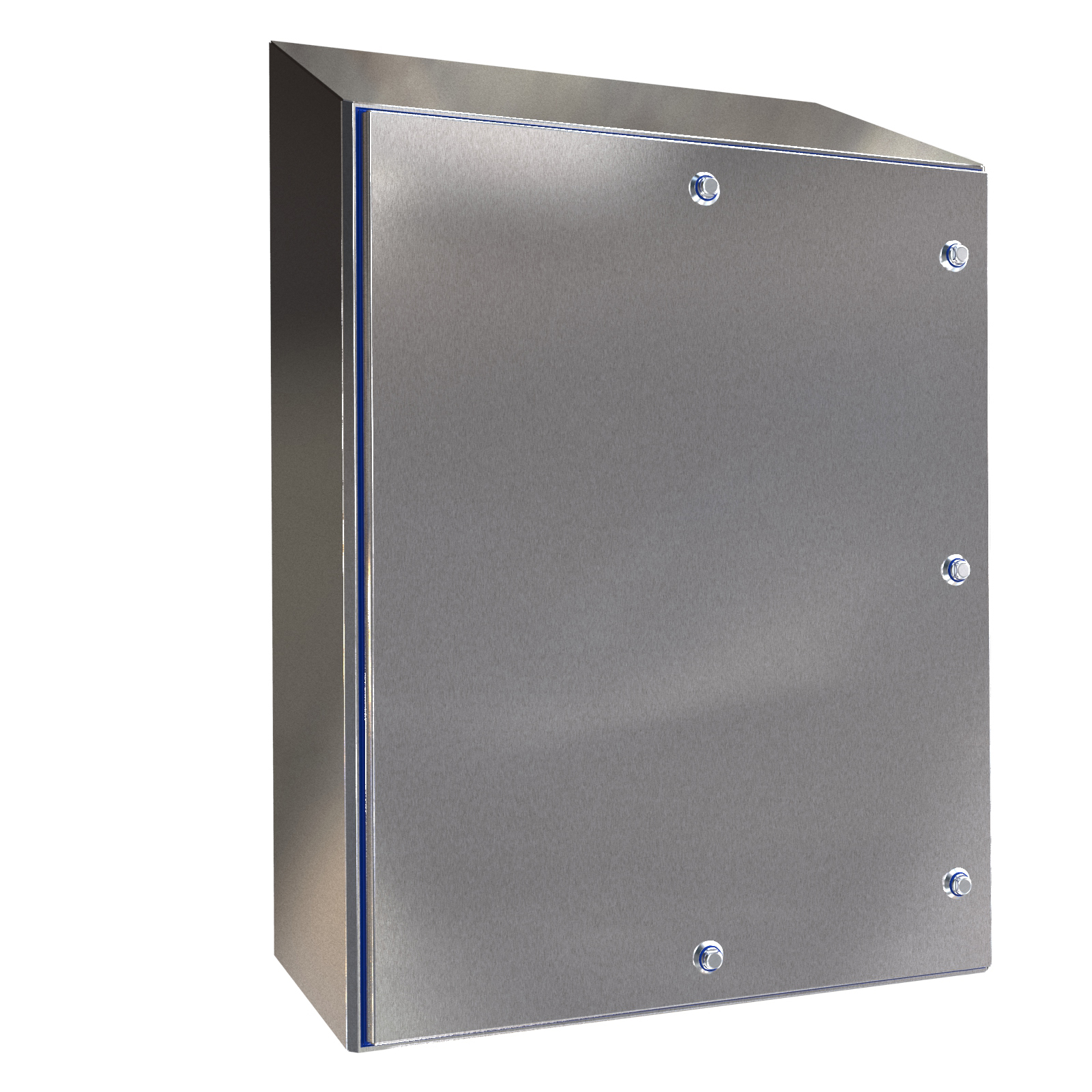

| HYW302412SS | 30.00 | TBD | 24.00 | 12.00 | 18P2721 | 27.00 | 21.00 | HYG3024 | $2,923.61In stockHYW302412SS | Buy now |

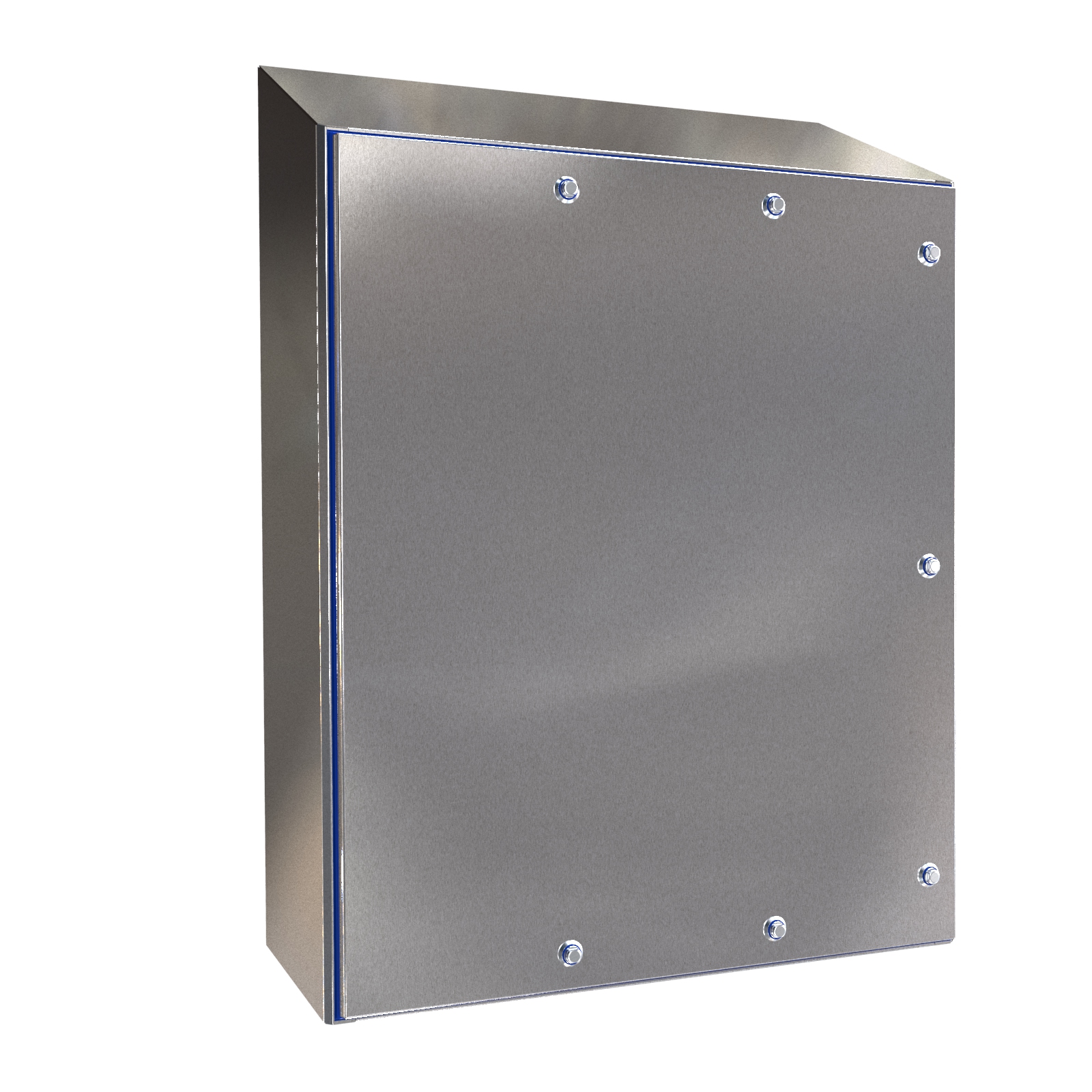

| HYW363012SS | 36.00 | TBD | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 | HYG3630 | $3,722.24In stockHYW363012SS | Buy now |

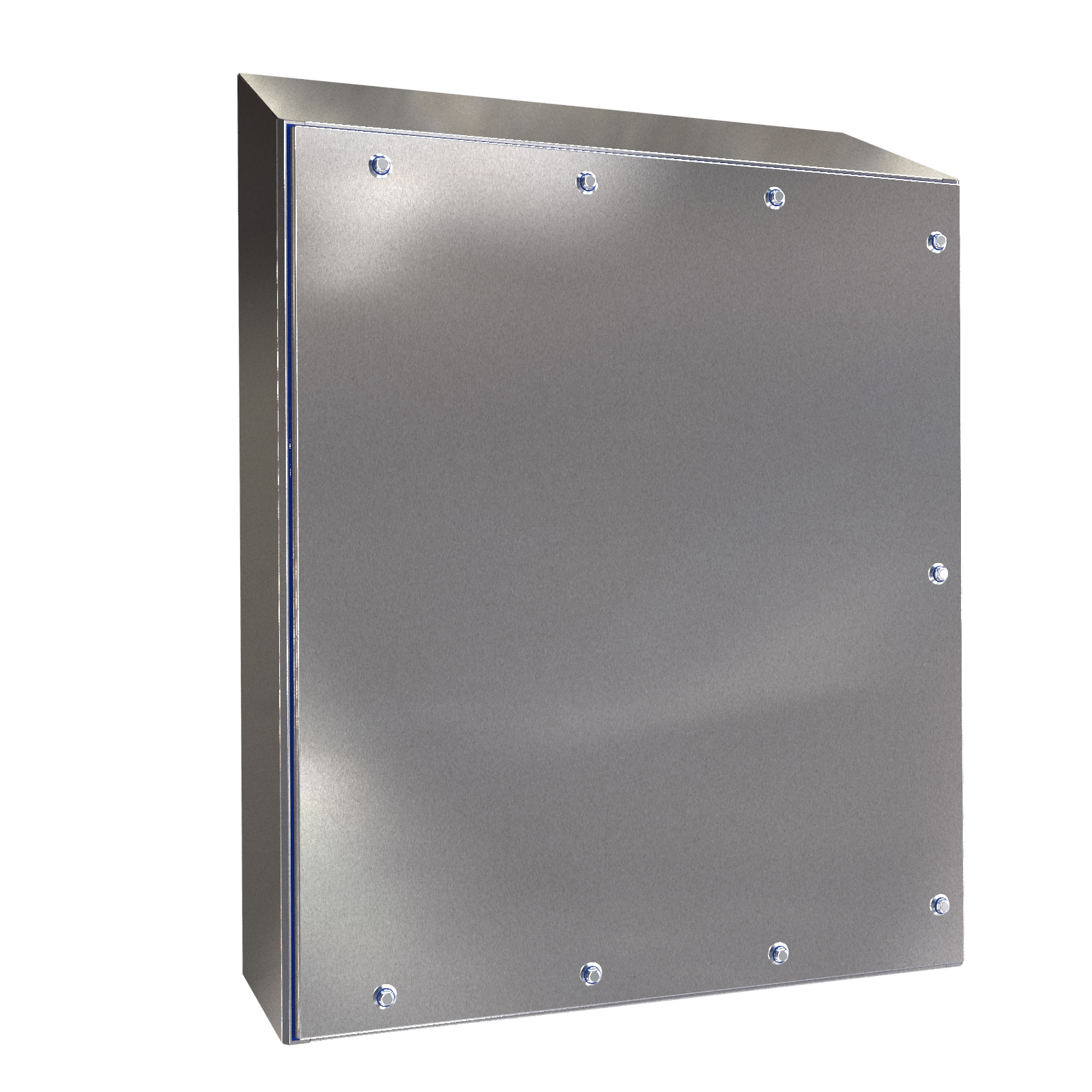

| HYW423612SS | 42.00 | TBD | 36.00 | 12.00 | 18P3933 | 39.00 | 33.00 | HYG4236 | $4,275.81In stockHYW423612SS | Buy now |

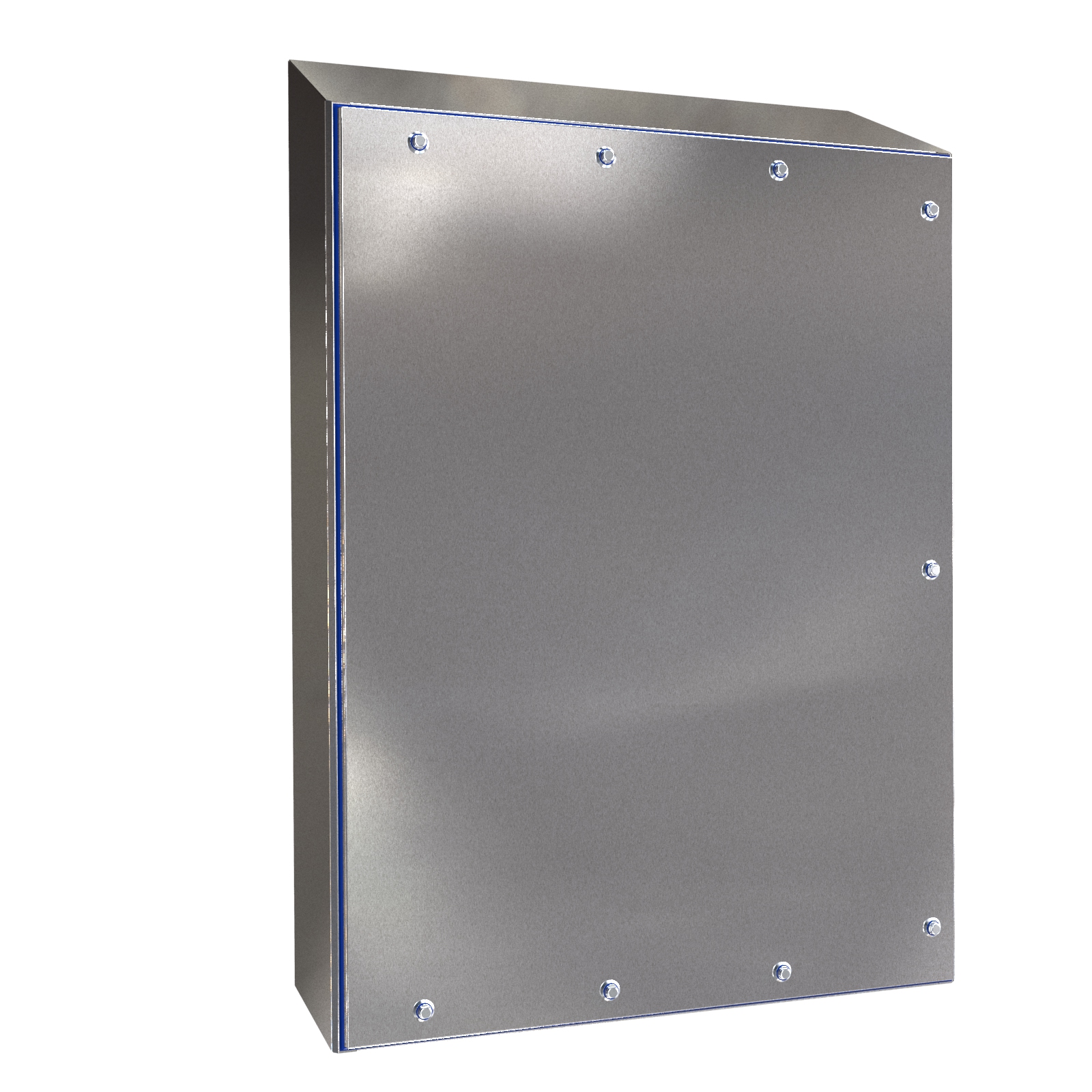

| HYW483612SS | 48.00 | TBD | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 | HYG4836 | $5,340.16In stockHYW483612SS | Buy now |

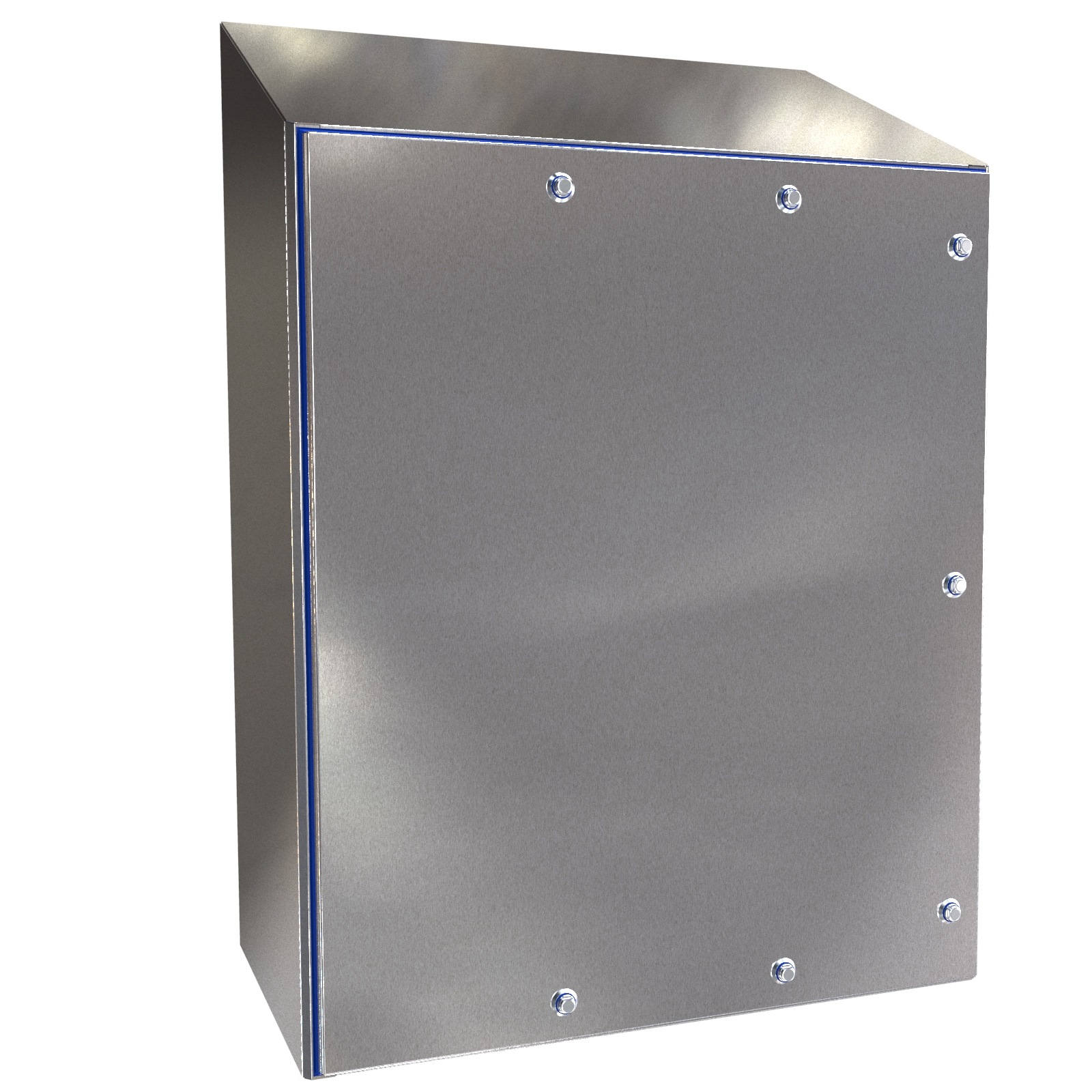

| HYW363016SS | 36.00 | TBD | 30.00 | 16.00 | 18P3327 | 33.00 | 27.00 | HYG3630 | $4,143.69In stockHYW363016SS | Buy now |

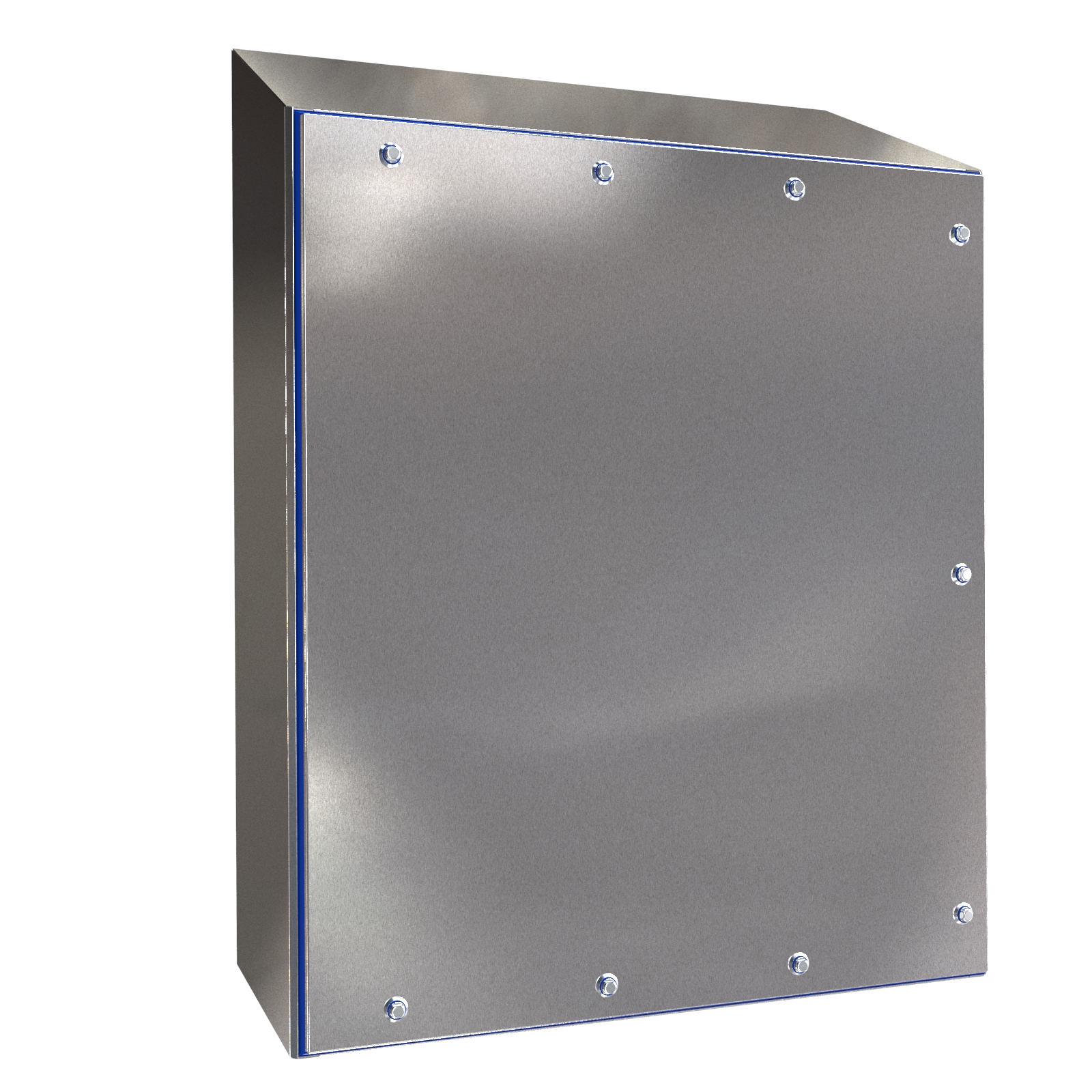

| HYW423616SS | 42.00 | TBD | 36.00 | 16.00 | 18P3933 | 39.00 | 33.00 | HYG4236 | $5,041.96In stockHYW423616SS | Buy now |

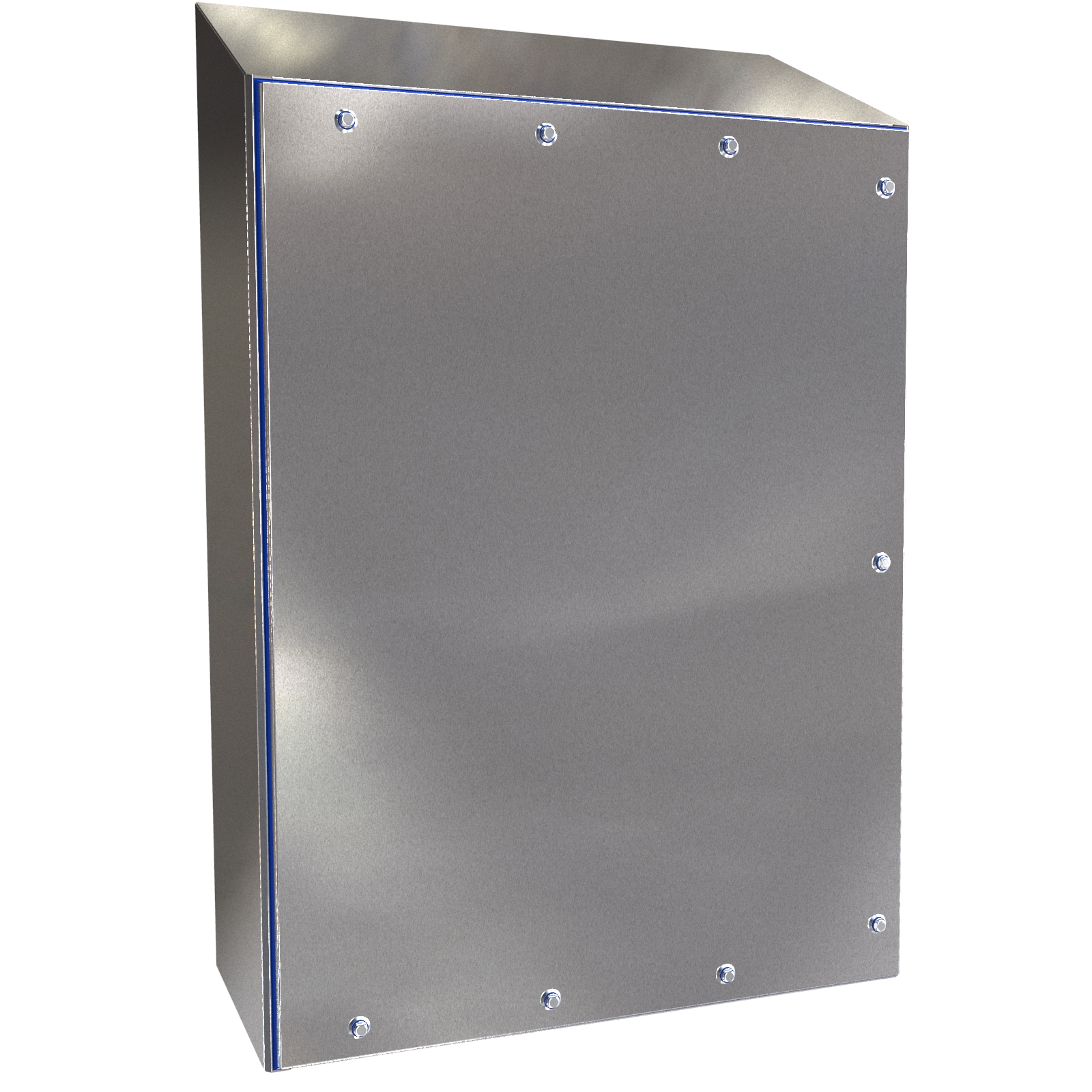

| HYW483616SS | 48.00 | TBD | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 | HYG4836 | $5,635.40In stockHYW483616SS | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, hygienic environments for wallmount applications.
- ■Sloped top prevents water from resting on top as well as providing potential for controls mounting.
- ■Internal hinge design and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
- ■A wide range of sizes and practical accessories make this product line a complete package.
Standards
- ■UL 508A Type 3R, 4, 4X and 12
- ■cUL Type 3R, 4, 4X and 12
- ■NSF – ANSI 169 Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
- ■Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
- ■Complies with NEMA 3R, 4, 4X, 12 IEC 60529, IP 66, IP69, IP69K
- ■NEMA 3R, 4, 4X, 12
- ■IEC 60529, IP 66, IP69, IP69K
Construction
- ■Formed, smooth 304 stainless steel.
- ■Top sloped 25°
- ■Continuously welded seams ground smooth.
- ■Door stiffeners are provided where required for increased strength and rigidity.

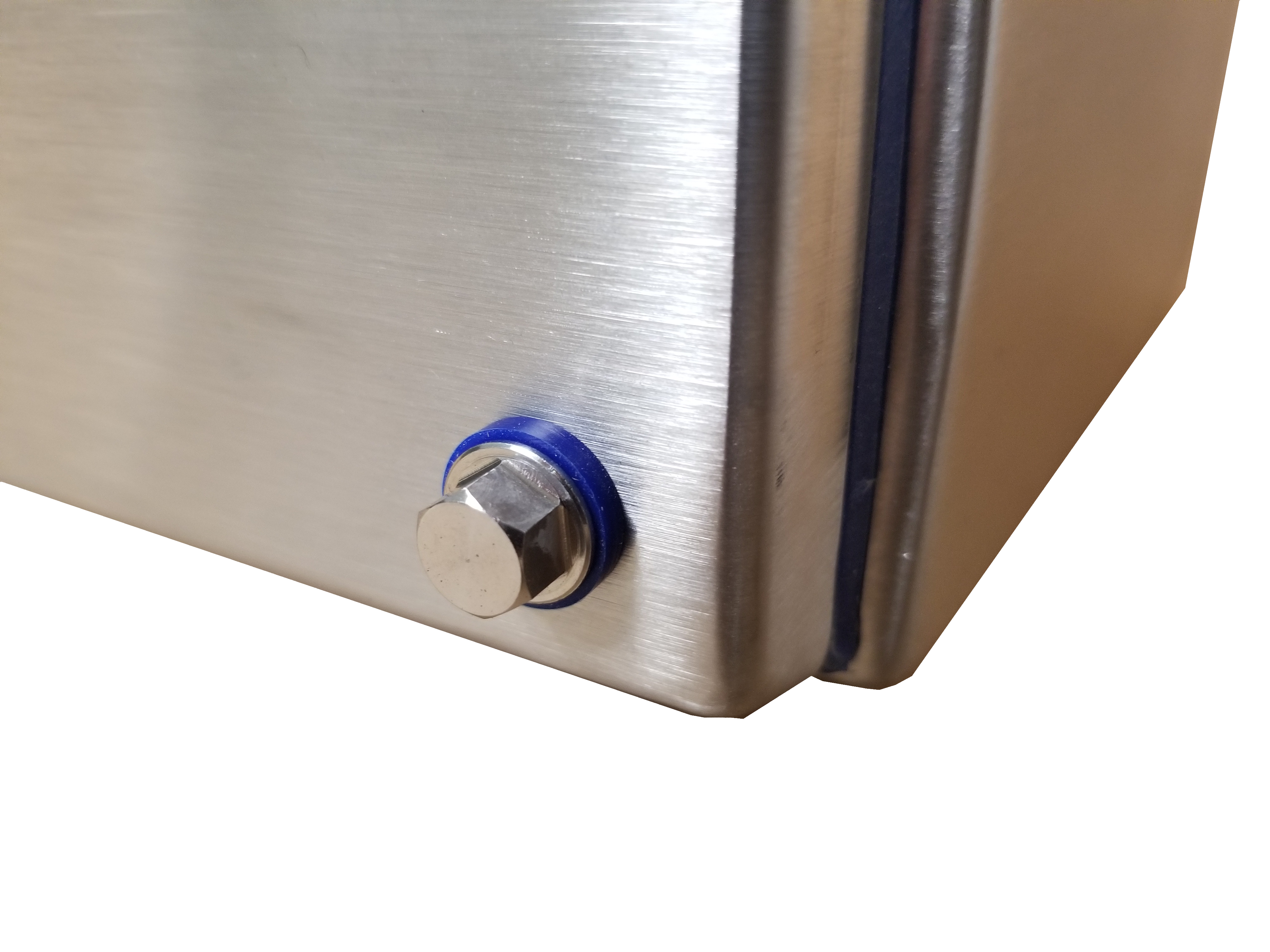

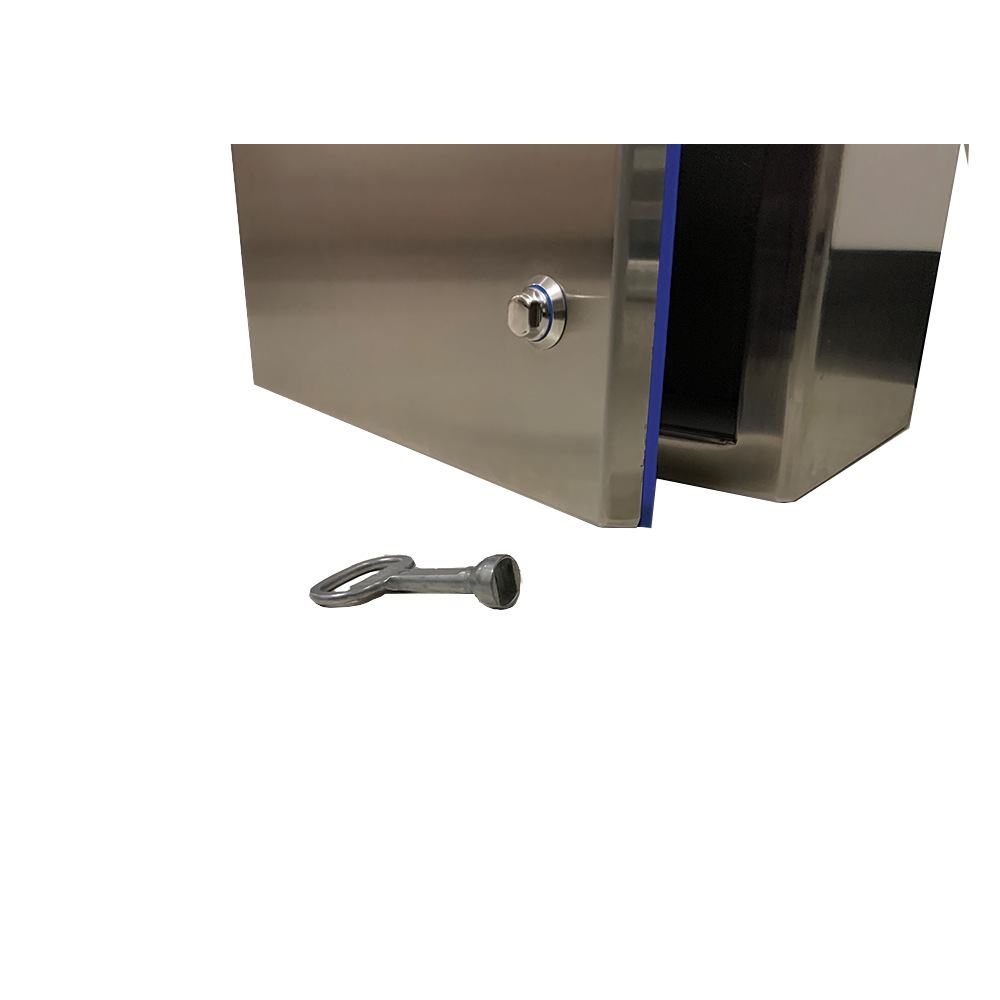

- ■Hygienic door latches (316 stainless steel quarter turns) require use of tool for opening.
- ■Interior hinges provide 105 degree opening, are easily removed for reverse door swing or on-site modifications.

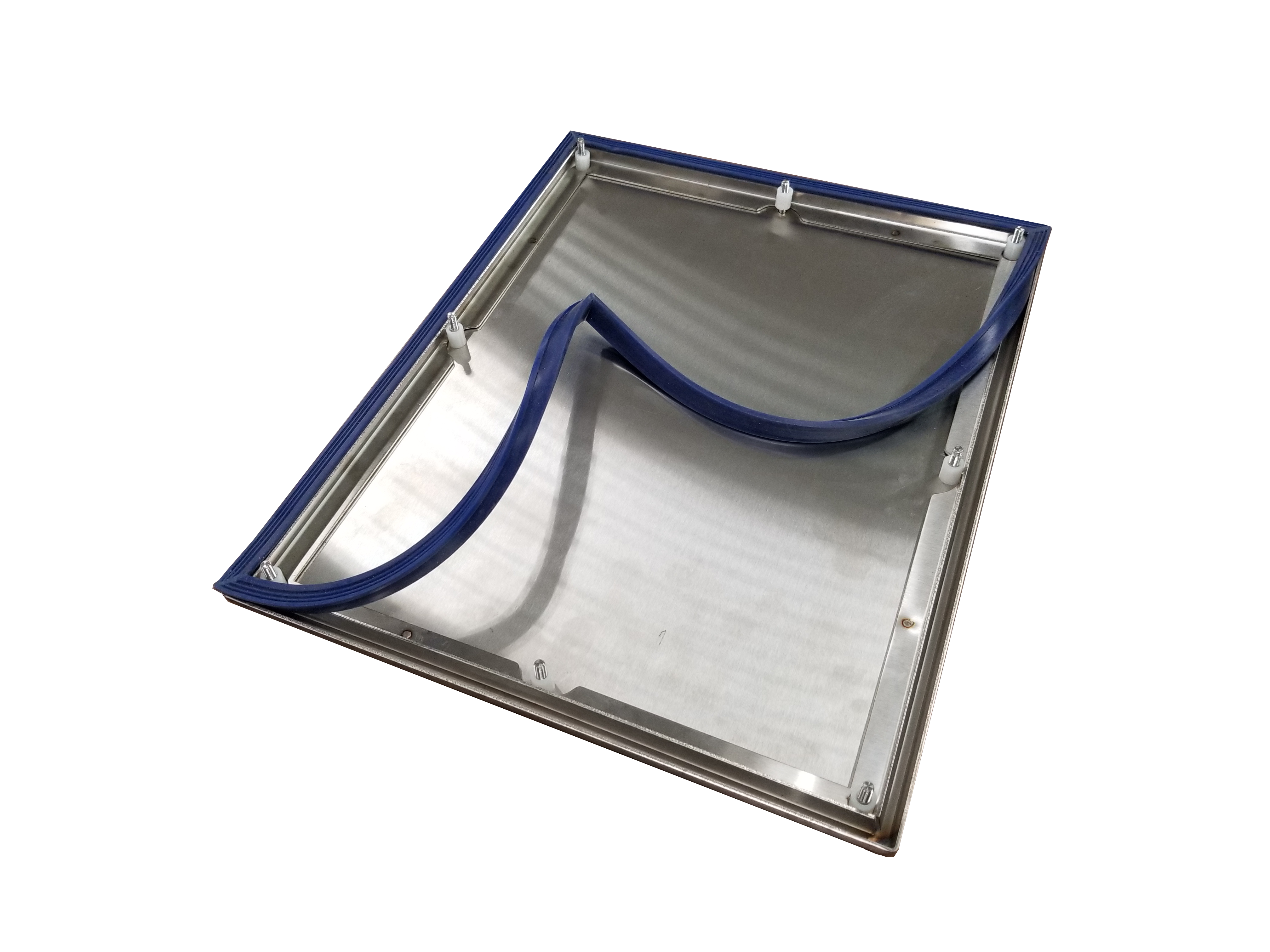

- ■Silicone gasket (hygienic blue) mounts around entire door edge allowing for efficient cleaning in hygienic environments.
- ■Gasket can be easily removed and re-installed for cleaning or replacement.
- ■Internal alignment guide provided to limit door sag.
- ■Collar studs provided for mounting inner panel.
- ■Includes hardware kit with panel mounting nuts.
- ■No pre-drilled wall mounting holes allow for flexible mounting alternatives - weld-in-place, stand-offs
- ■Bonding stud provided on door and grounding stud installed in enclosure.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth #4 dairy finish.
Documents
Additional information
Part Details
| 304 SS · Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Replacement · Gasket |
|---|---|---|---|---|---|---|---|---|
| HYW16168SS | 16.00 | TBD | 16.00 | 8.00 | 18P1313 | 13.00 | 13.00 | HYG1616 |
| HYW20168SS | 20.00 | TBD | 16.00 | 8.00 | 18P1713 | 17.00 | 13.00 | HYG2016 |
| HYW20208SS | 20.00 | TBD | 20.00 | 8.00 | 18P1717 | 17.00 | 17.00 | HYG2020 |
| HYW24208SS | 24.00 | TBD | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 | HYG2420 |
| HYW24248SS | 24.00 | TBD | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 | HYG2424 |
| HYW30248SS | 30.00 | TBD | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 | HYG3024 |
| HYW202010SS | 20.00 | TBD | 20.00 | 10.00 | 18P1717 | 17.00 | 17.00 | HYG2020 |
| HYW242010SS | 24.00 | TBD | 20.00 | 10.00 | 18P2117 | 21.00 | 17.00 | HYG2420 |
| HYW242410SS | 24.00 | TBD | 24.00 | 10.00 | 18P2121 | 21.00 | 21.00 | HYG2424 |
| HYW242012SS | 24.00 | TBD | 20.00 | 12.00 | 18P2117 | 21.00 | 17.00 | HYG2420 |
| HYW242412SS | 24.00 | TBD | 24.00 | 12.00 | 18P2121 | 21.00 | 21.00 | HYG2424 |
| HYW302412SS | 30.00 | TBD | 24.00 | 12.00 | 18P2721 | 27.00 | 21.00 | HYG3024 |
| HYW363012SS | 36.00 | TBD | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 | HYG3630 |
| HYW423612SS | 42.00 | TBD | 36.00 | 12.00 | 18P3933 | 39.00 | 33.00 | HYG4236 |
| HYW483612SS | 48.00 | TBD | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 | HYG4836 |
| HYW363016SS | 36.00 | TBD | 30.00 | 16.00 | 18P3327 | 33.00 | 27.00 | HYG3630 |
| HYW423616SS | 42.00 | TBD | 36.00 | 16.00 | 18P3933 | 39.00 | 33.00 | HYG4236 |
| HYW483616SS | 48.00 | TBD | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 | HYG4836 |
