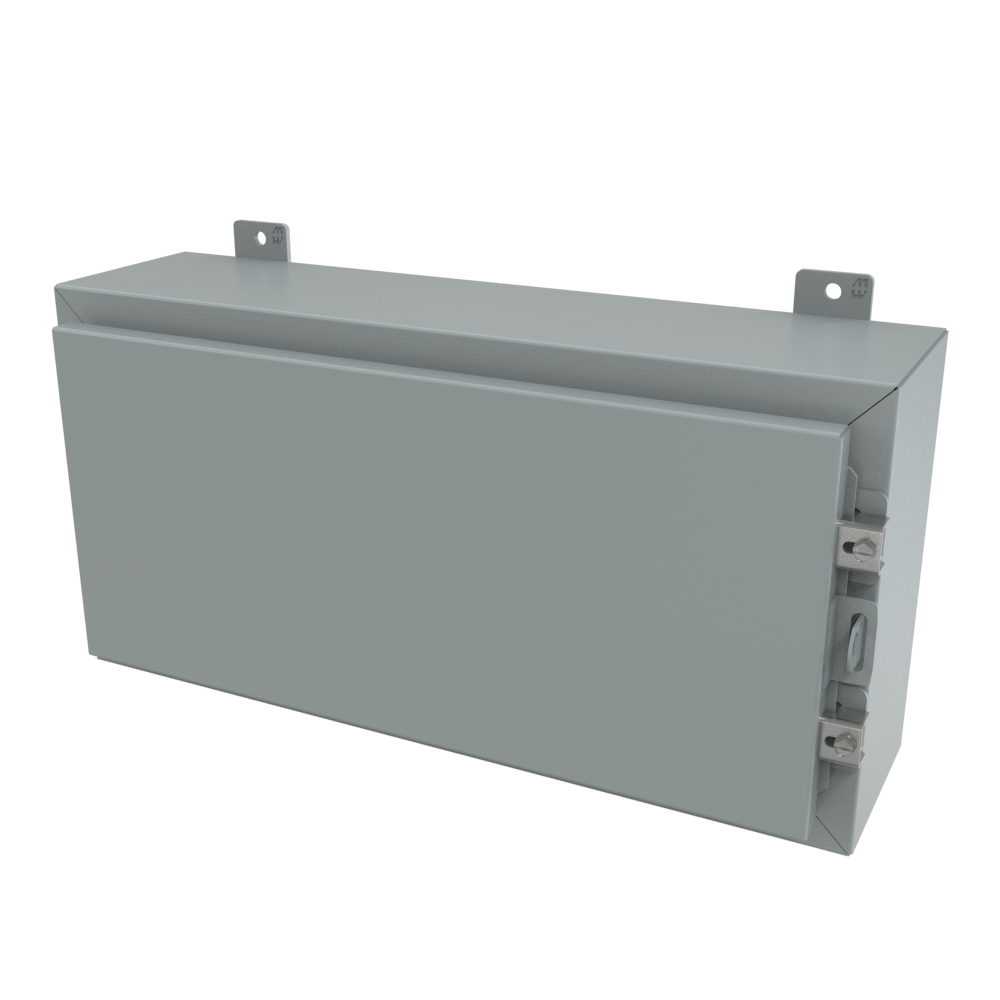

NEMA 4/12 Enclosure 12X24X6
$347.80In stock
Buy now
New

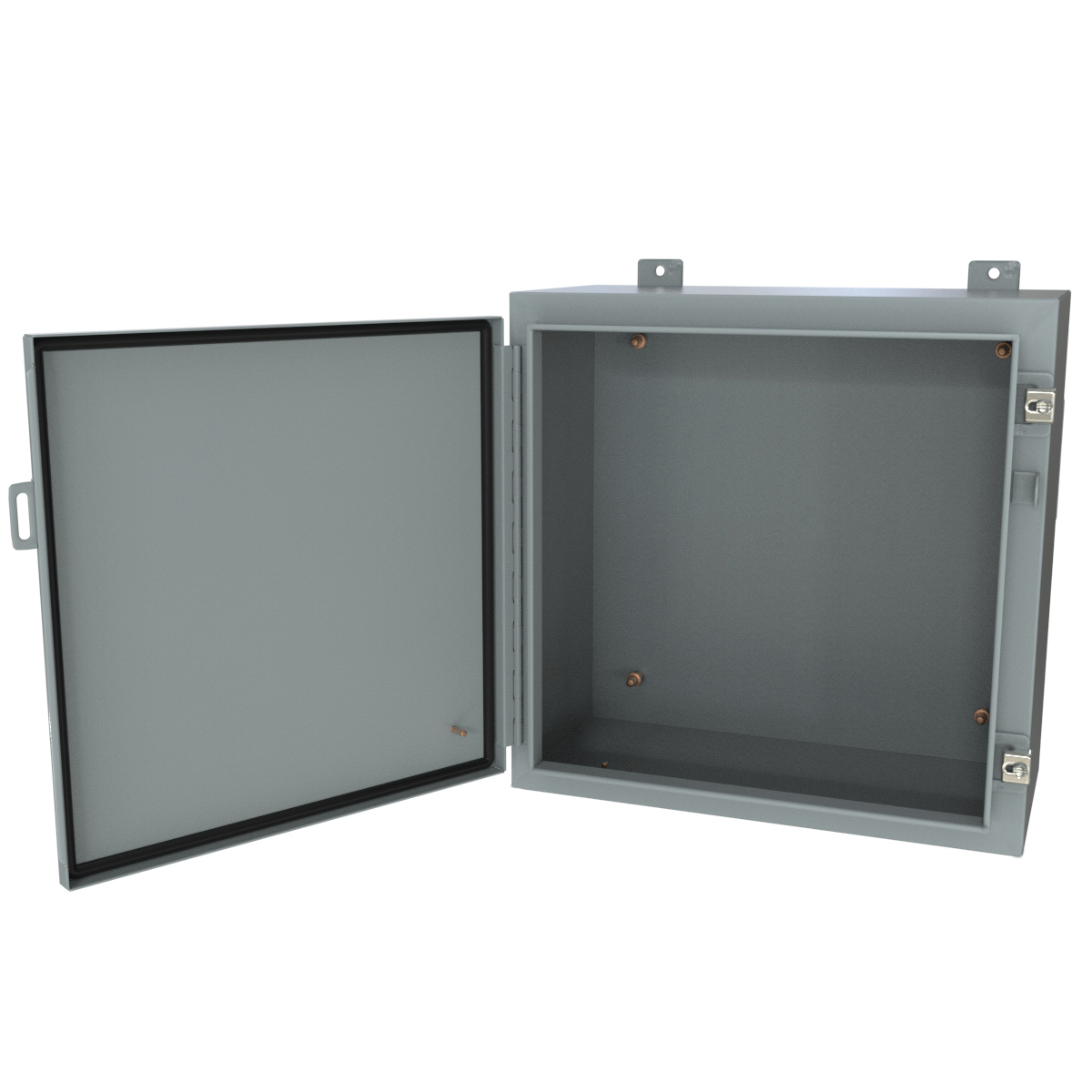

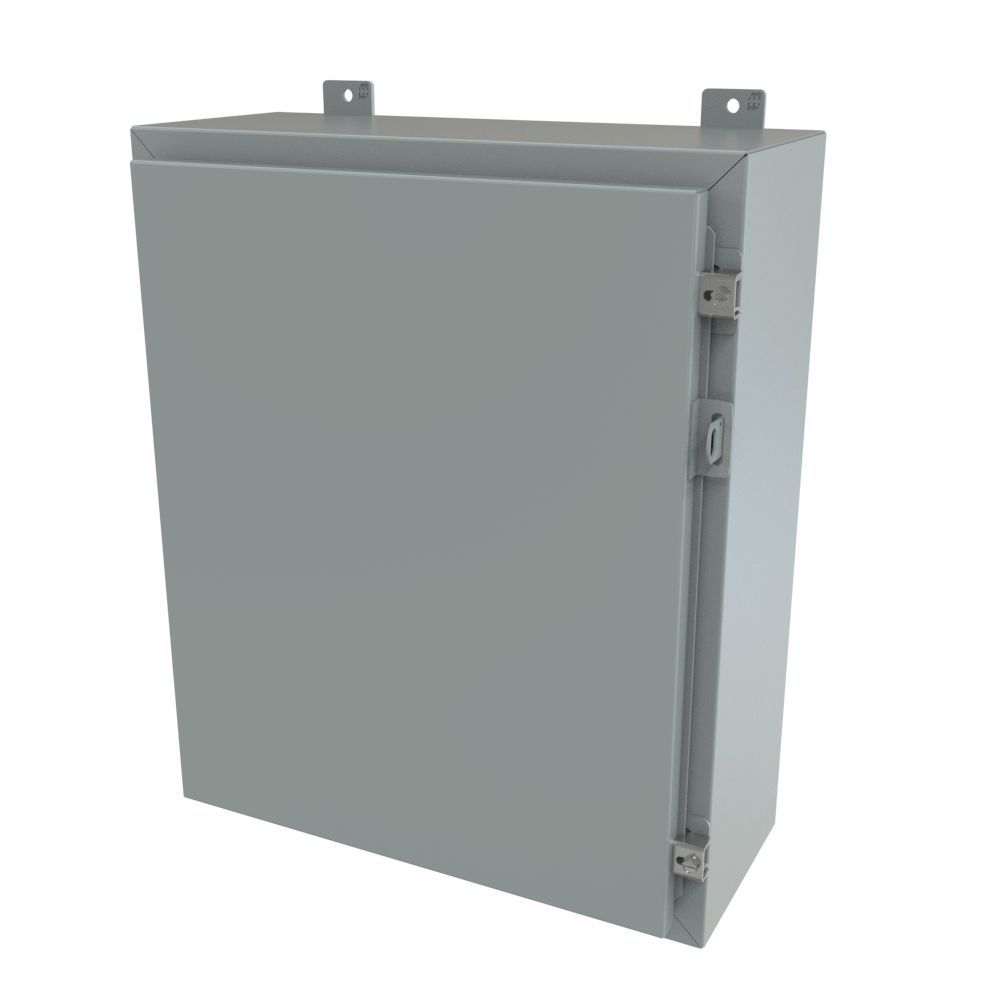

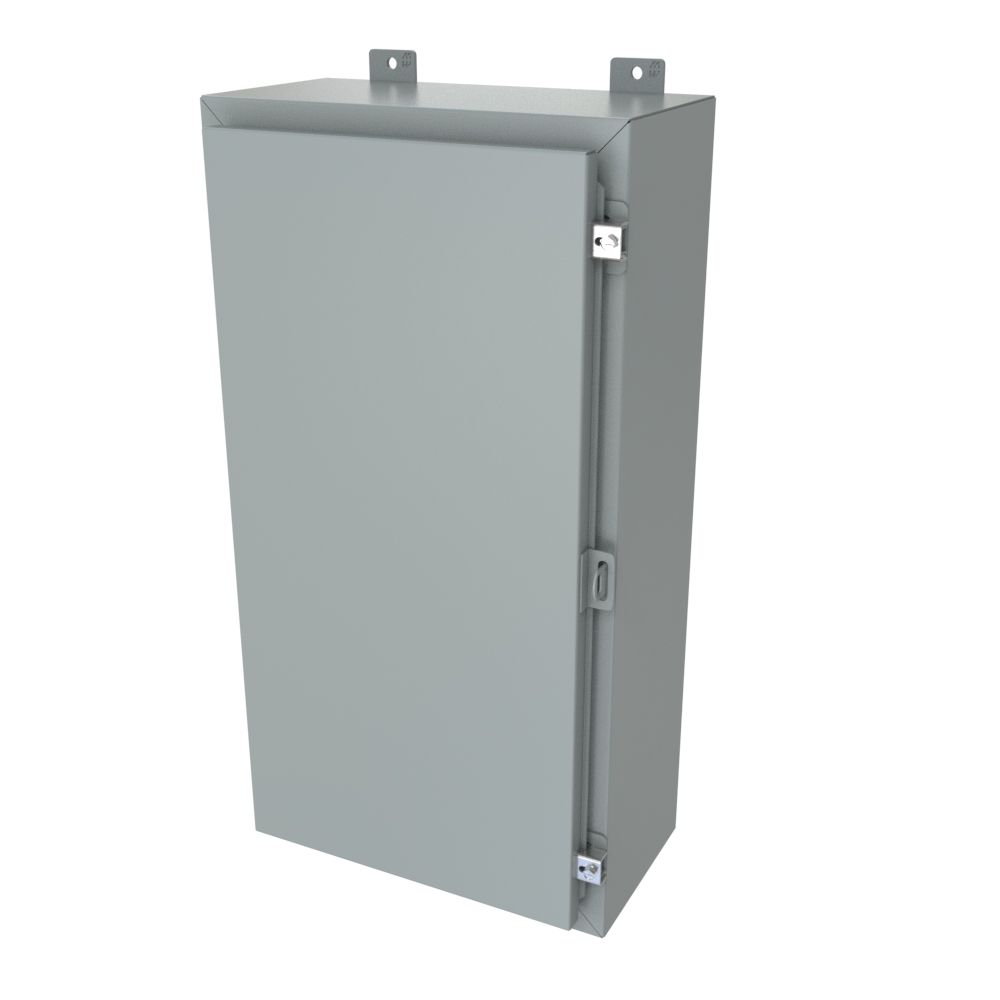

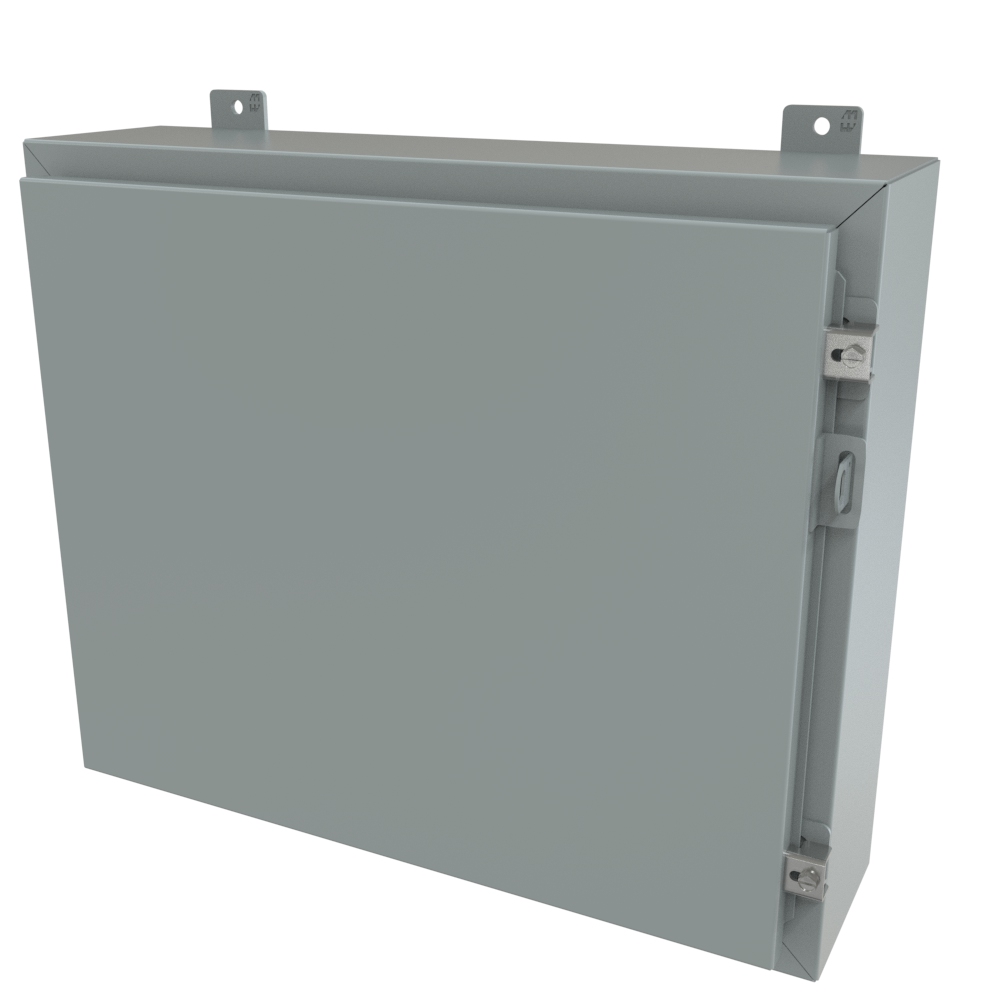

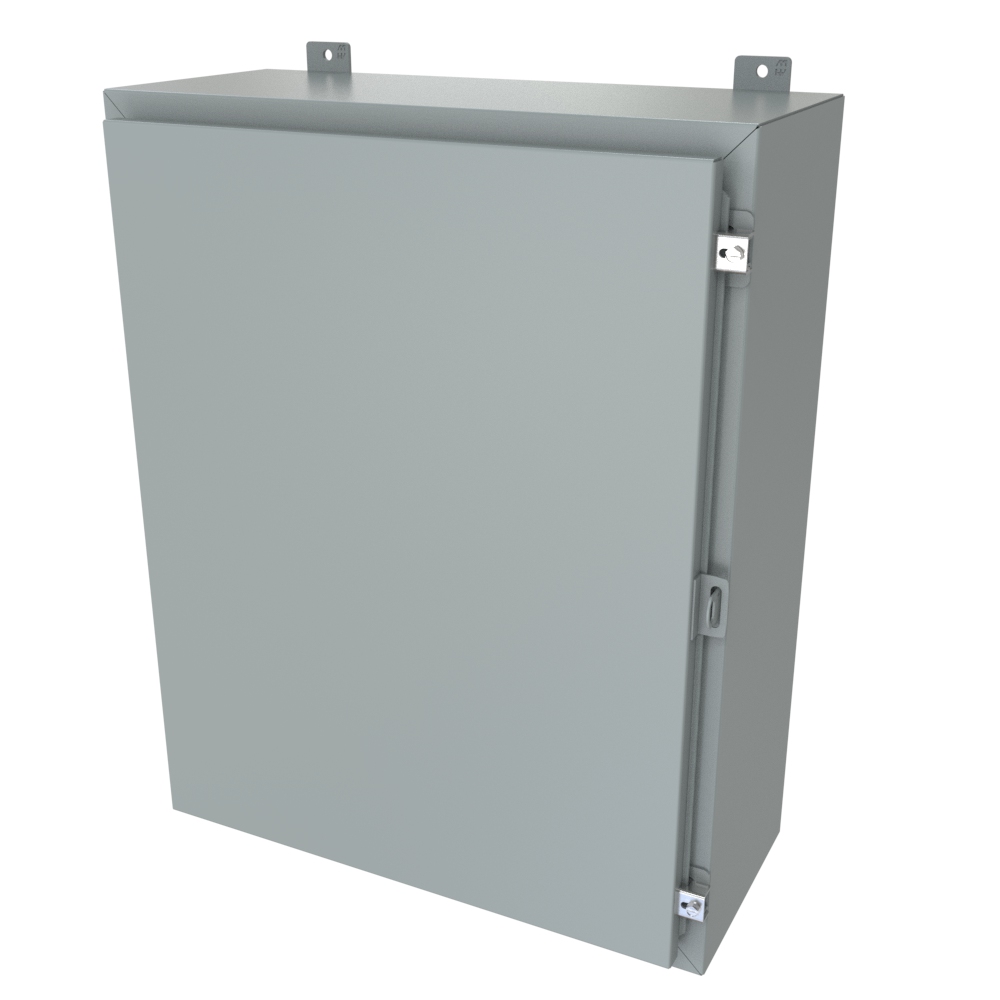

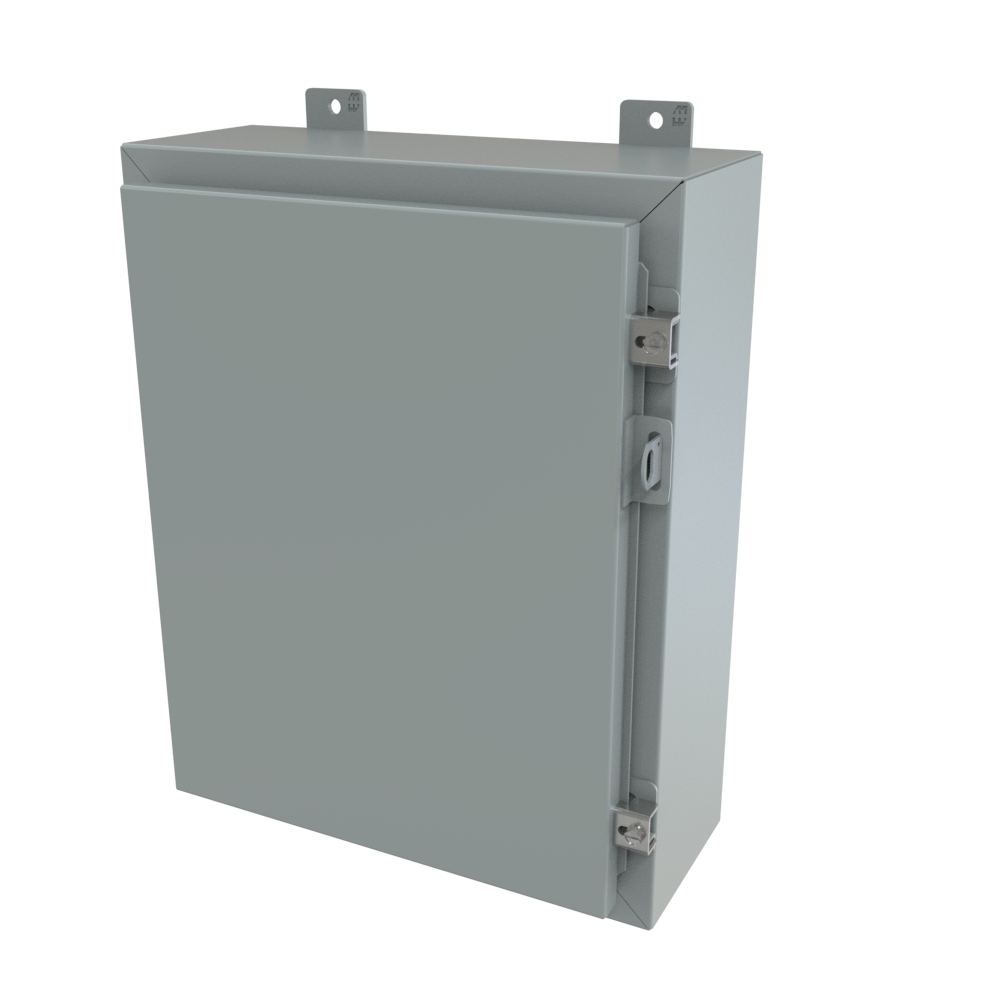

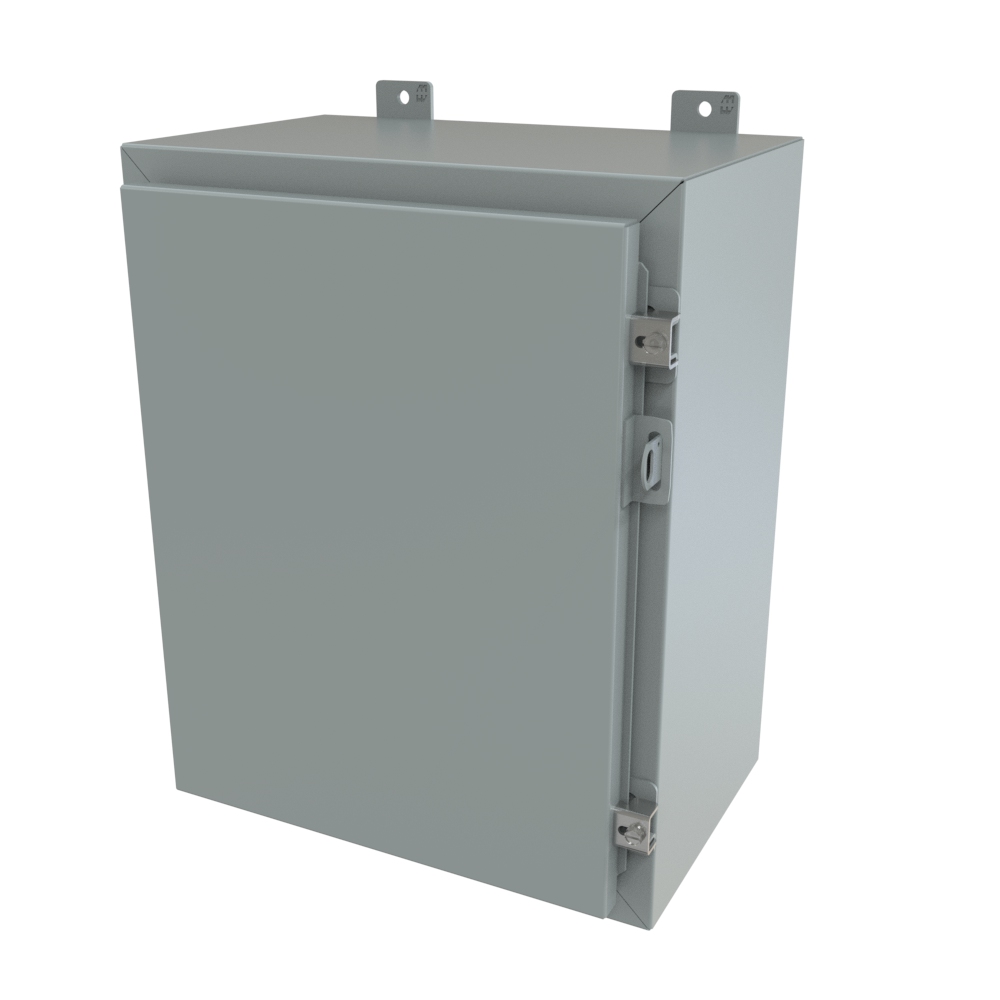

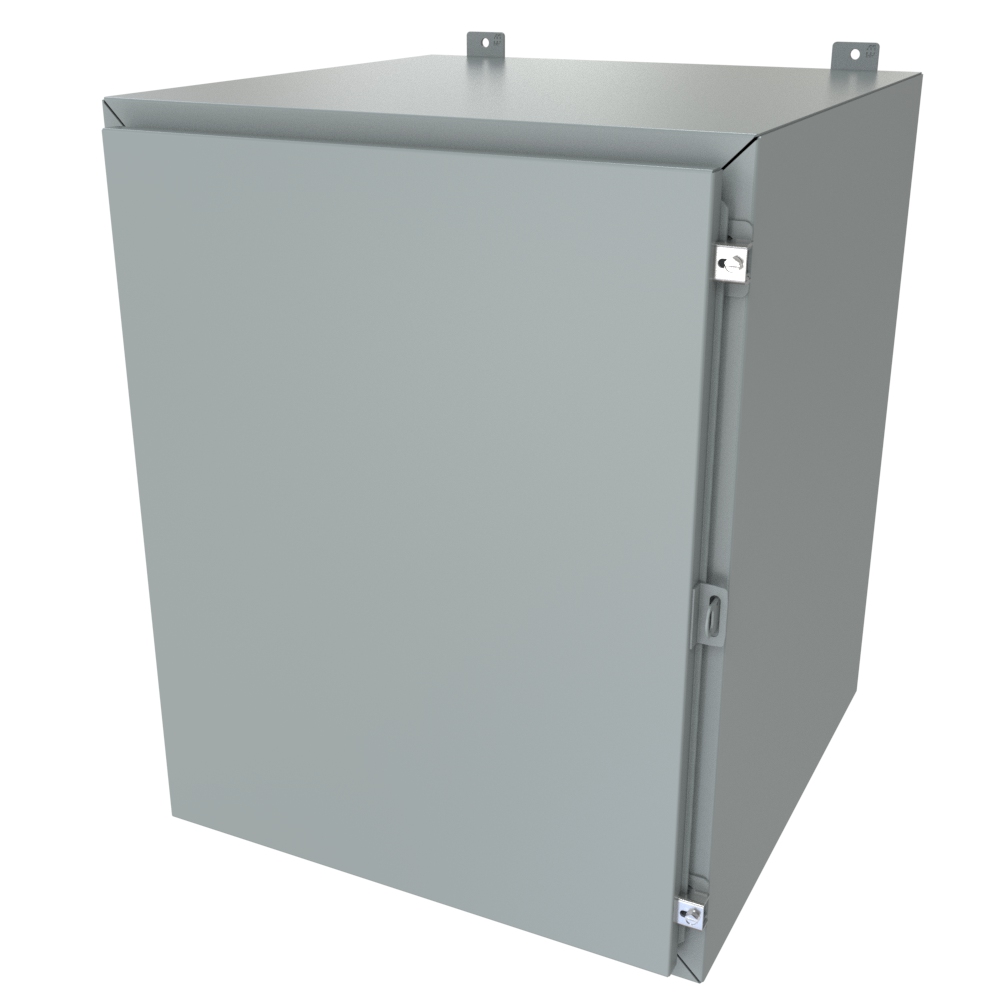

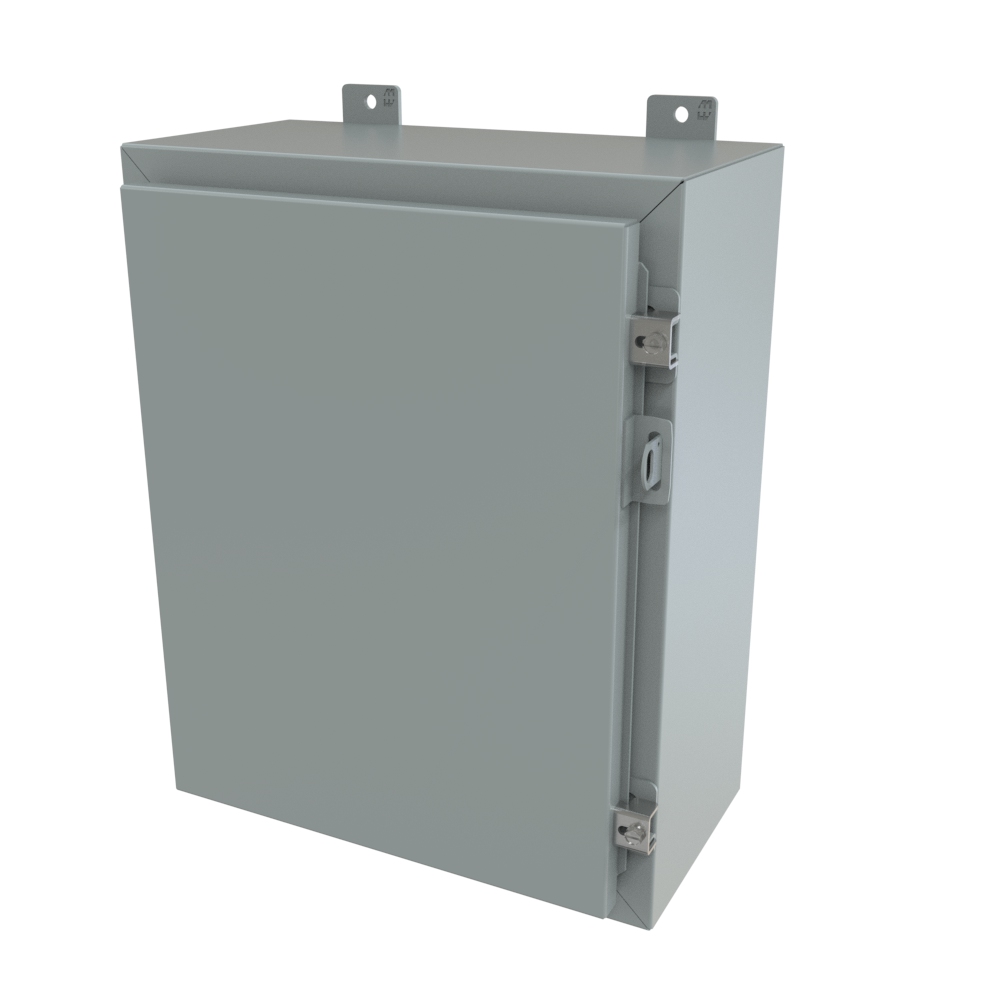

Type 4/12 Mild Steel Wallmount Enclosure - Less Panel · 1418LP Series
Brand: Hammond Manufacturing · 141 part numbers
Continuous Hinge Door with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■UL 508A Type 3R,12, 13, 4
- ■cUL Type 3R, 12, 13, 4
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
from $28.22
141 of 141 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1418LP Series part number
Filter 91 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
91 of 91 part numbers · 89 priced online
NEMA 4/12 Enclosure 12X24X8
$365.55Backorder
Buy now
NEMA 4/12 Enclosure 24X12X10
$386.01In stock
Buy now
NEMA 4/12 Enclosure 24X12X6
$347.80In stock
Buy now
NEMA 4/12 Enclosure 24X12X8
$365.55In stock
Buy now
NEMA 4/12 Enclosure 16X12X10
$340.25In stock
Buy now
NEMA 4/12 Enclosure 16X12X6
$301.37Backorder
Buy now
NEMA 4/12 Enclosure 16X12X8
$317.04In stock
Buy now
NEMA 4/12 Enclosure 20X16X10
$384.86In stock
Buy now
NEMA 4/12 Enclosure 20X16X12
$414.17In stock
Buy now
NEMA 4/12 Enclosure 20X16X6
$348.01In stock
Buy now
NEMA 4/12 Enclosure 20X16X8
$365.76In stock
Buy now
NEMA 4/12 Enclosure 20X12X6
$330.11Backorder
Buy now
NEMA 4/12 Enclosure 20X12X8
$346.47Backorder
Buy now
NEMA 4/12 Enclosure 16X20X6
$357.57Backorder
Buy now
NEMA 4/12 Enclosure 16X20X8
$377.33In stock
Buy now
NEMA 4/12 Enclosure 20X20X10
$416.37Backorder
Buy now
NEMA 4/12 Enclosure 20X20X6
$376.16In stock
Buy now
NEMA 4/12 Enclosure 20X20X8
$396.62In stock
Buy now
NEMA 4/12 Enclosure 24X20X10
$448.04In stock
Buy now
NEMA 4/12 Enclosure 24X20X12
$484.89In stock
Buy now
NEMA 4/12 Enclosure 24X20X16
$532.63In stock
Buy now
NEMA 4/12 Enclosure 24X20X6
$401.67In stock
Buy now
NEMA 4/12 Enclosure 24X20X8
$425.54In stock
Buy now
NEMA 4/12 Enclosure 20X24X6
$413.27In stock
Buy now
NEMA 4/12 Enclosure 20X24X8
$425.54In stock
Buy now
NEMA 4/12 Enclosure 30X20X10
$509.73In stock
Buy now
NEMA 4/12 Enclosure 30X20X6
$455.86In stock
Buy now
NEMA 4/12 Enclosure 30X20X8
$483.14In stock
Buy now
NEMA 4/12 Enclosure 30X16X6
$416.68In stock
Buy now
NEMA 4/12 Enclosure 16X16X6
$323.99In stock
Buy now
NEMA 4/12 Enclosure 16X16X8
$341.04Backorder
Buy now
NEMA 4/12 Enclosure 24X16X6
$382.24In stock
Buy now
NEMA 4/12 Enclosure 24X16X8
$391.11Backorder
Buy now
NEMA 4/12 Enclosure 24X24X10
$483.71In stock
Buy now
NEMA 4/12 Enclosure 24X24X12
$508.96In stock
Buy now
NEMA 4/12 Enclosure 24X24X16
$574.43In stock
Buy now
NEMA 4/12 Enclosure 24X24X6
$433.94In stock
Buy now
NEMA 4/12 Enclosure 24X24X8
$459.17In stock
Buy now
NEMA 4/12 Enclosure 30X24X10
$537.96Backorder
Buy now
NEMA 4/12 Enclosure 30X24X12
$566.61In stock
Buy now
NEMA 4/12 Enclosure 30X24X16
$639.56Backorder
Buy now
NEMA 4/12 Enclosure 30X24X20
$698.91Backorder
Buy now
NEMA 4/12 Enclosure 30X24X24
$758.93Backorder
Buy now
NEMA 4/12 Enclosure 30X24X6
$495.66In stock
Buy nowNEMA 4/12 Enclosure 30X24X8
$509.30In stock
Buy nowNEMA 4/12 Enclosure 30X12X8
$458.21Backorder
Buy now
NEMA 4/12 Enclosure 30X16X8
$480.81In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · White Part No. | Optional Inner Panel · Galvanized Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| 1418A6LP | 12.00 | 24.00 | 6.00 | 18P2109 | 18G2109 | 9.00 | 21.00 | $347.80In stock1418A6LP | Buy now |

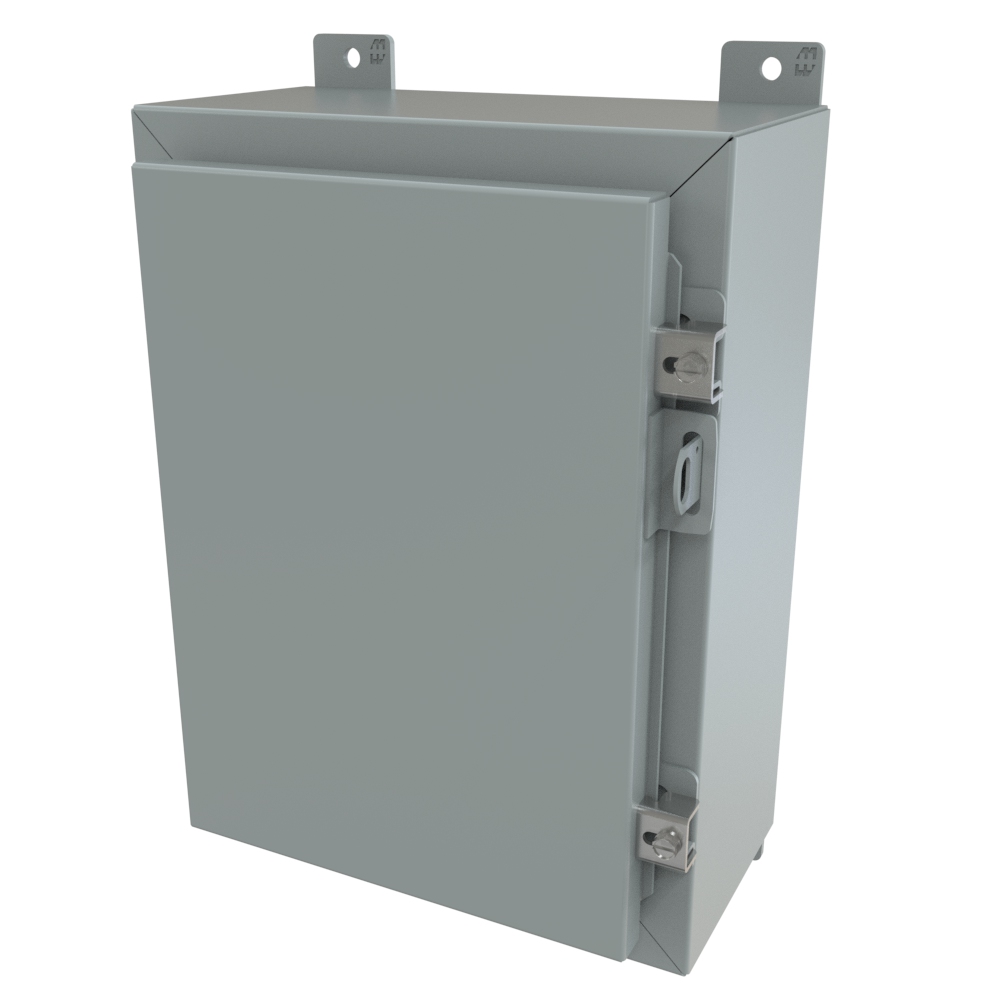

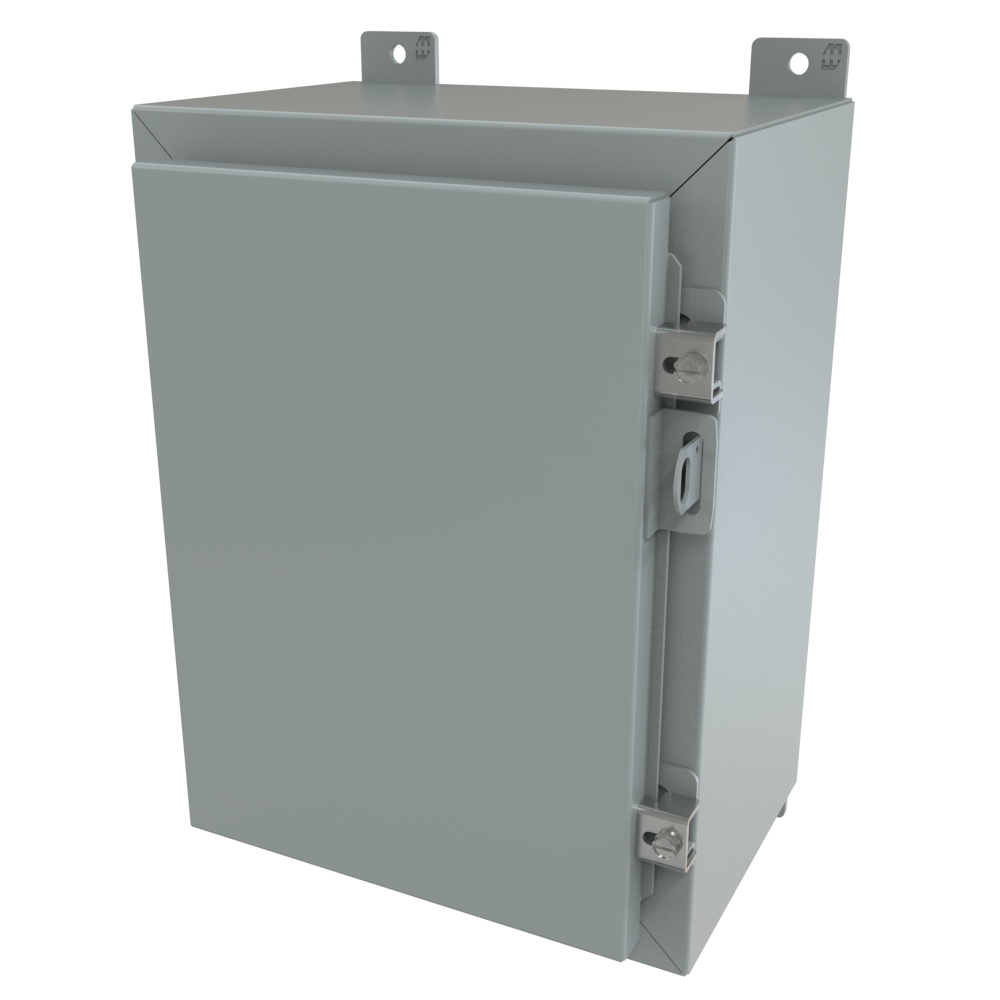

| 1418B6LP | 16.00 | 12.00 | 6.00 | 18P1309 | 18G1309 | 13.00 | 9.00 | $301.37Backorder1418B6LP | Buy now |

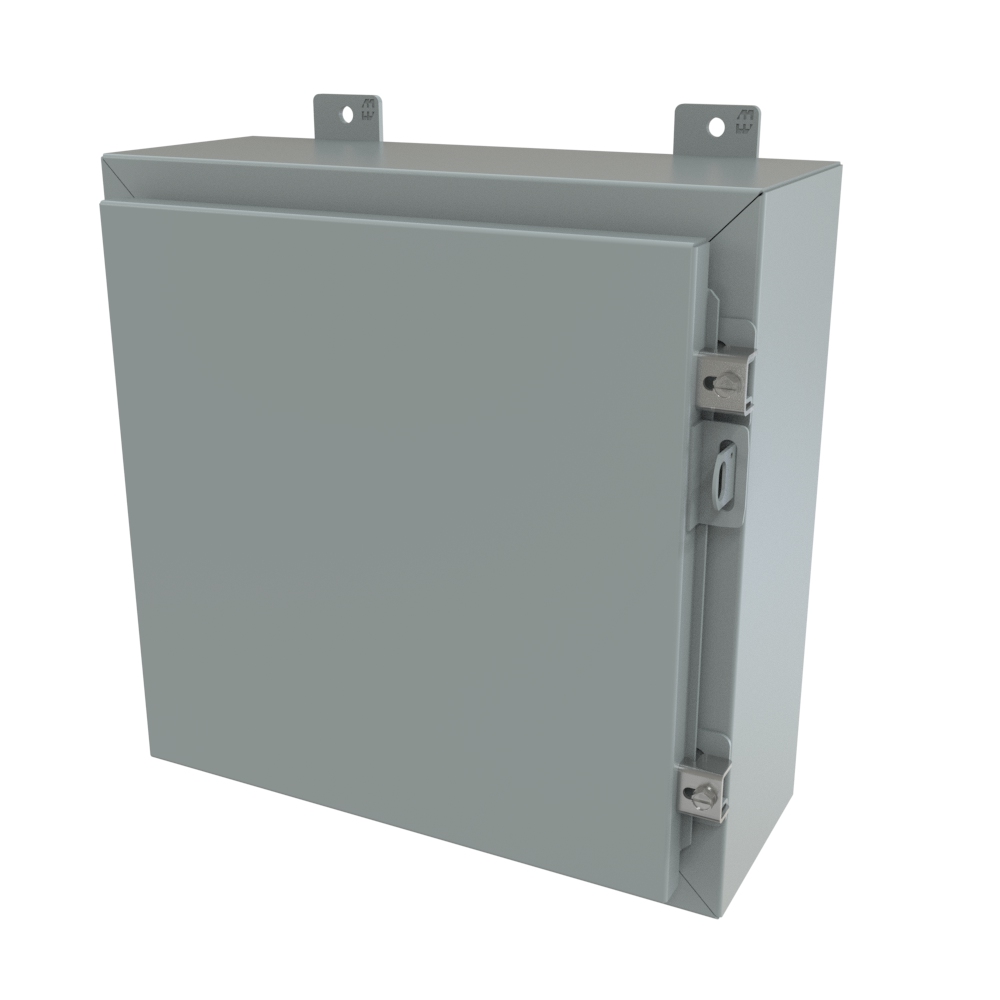

| 1418G6LP | 16.00 | 16.00 | 6.00 | 18P1313 | 18G1313 | 13.00 | 13.00 | $323.99In stock1418G6LP | Buy now |

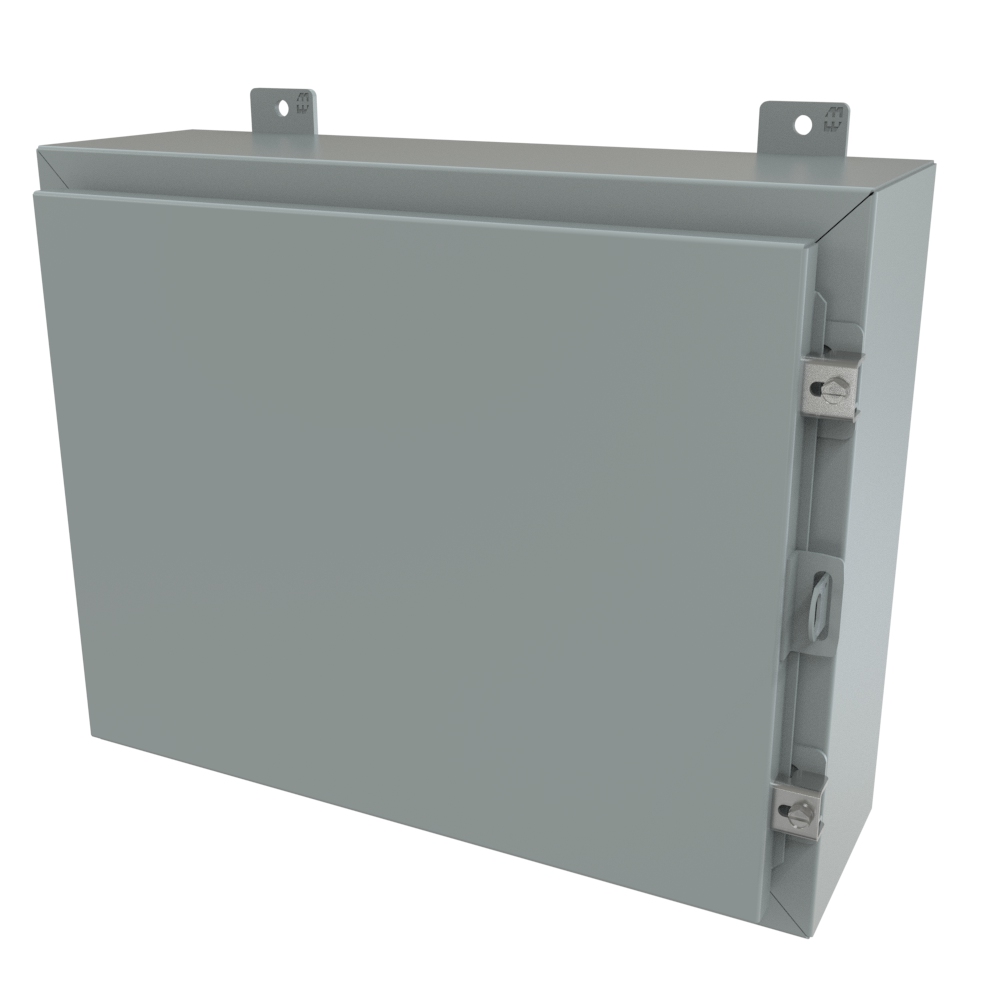

| 1418CR6LP | 16.00 | 20.00 | 6.00 | 18P1713 | 18G1713 | 13.00 | 17.00 | $357.57Backorder1418CR6LP | Buy now |

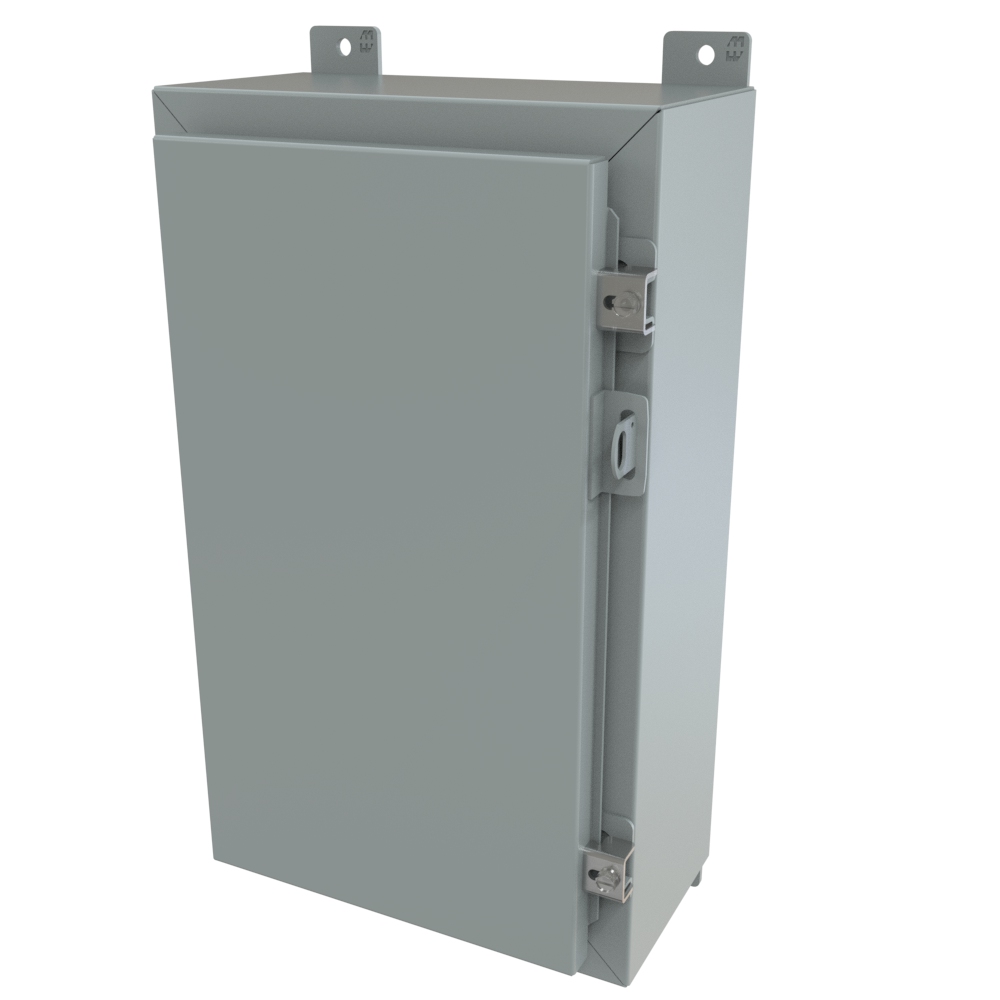

| 1418CA6LP | 20.00 | 12.00 | 6.00 | 18P1709 | 18G1709 | 17.00 | 9.00 | $330.11Backorder1418CA6LP | Buy now |
| 1418C6LP | 20.00 | 16.00 | 6.00 | 18P1713 | 18G1713 | 17.00 | 13.00 | $348.01In stock1418C6LP | Buy now |
| 1418D6LP | 20.00 | 20.00 | 6.00 | 18P1717 | 18G1717 | 17.00 | 17.00 | $376.16In stock1418D6LP | Buy now |
| 1418ER6LP | 20.00 | 24.00 | 6.00 | 18P2117 | 18G2117 | 17.00 | 21.00 | $413.27In stock1418ER6LP | Buy now |

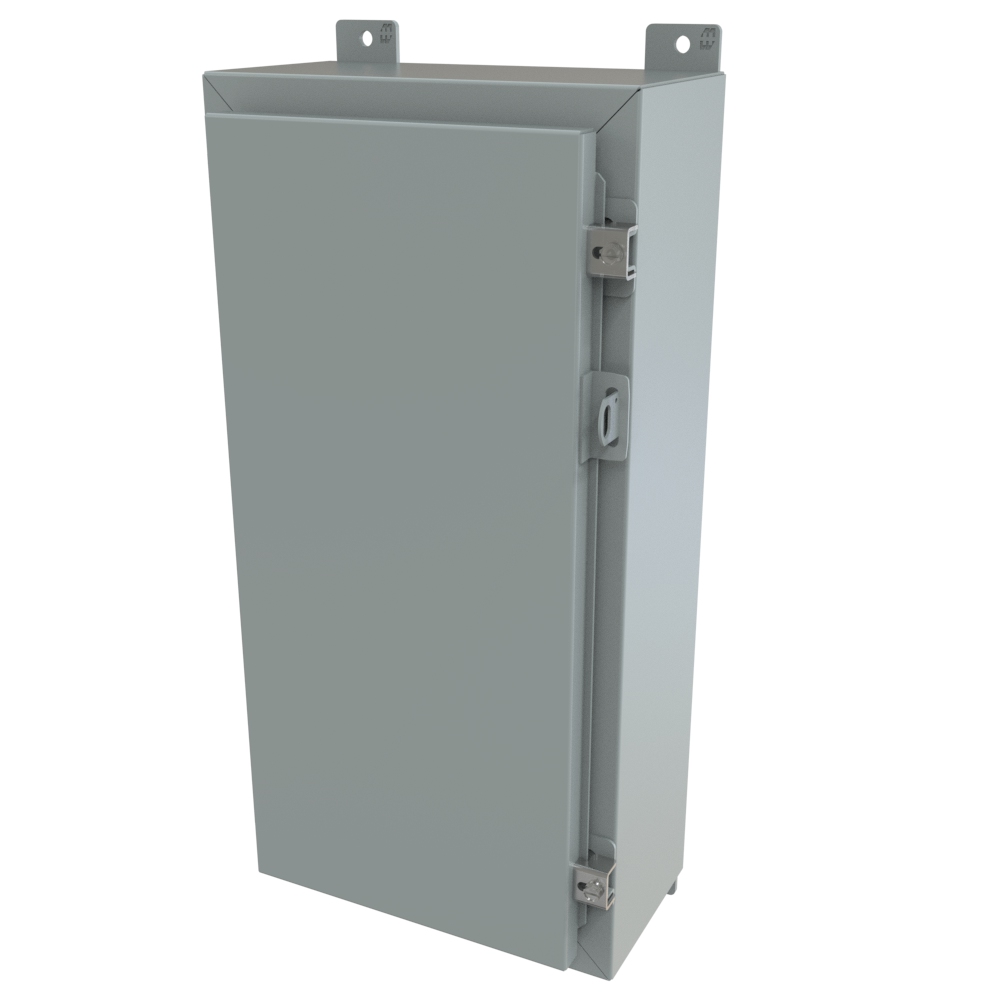

| 1418AR6LP | 24.00 | 12.00 | 6.00 | 18P2109 | 18G2109 | 21.00 | 9.00 | $347.80In stock1418AR6LP | Buy now |

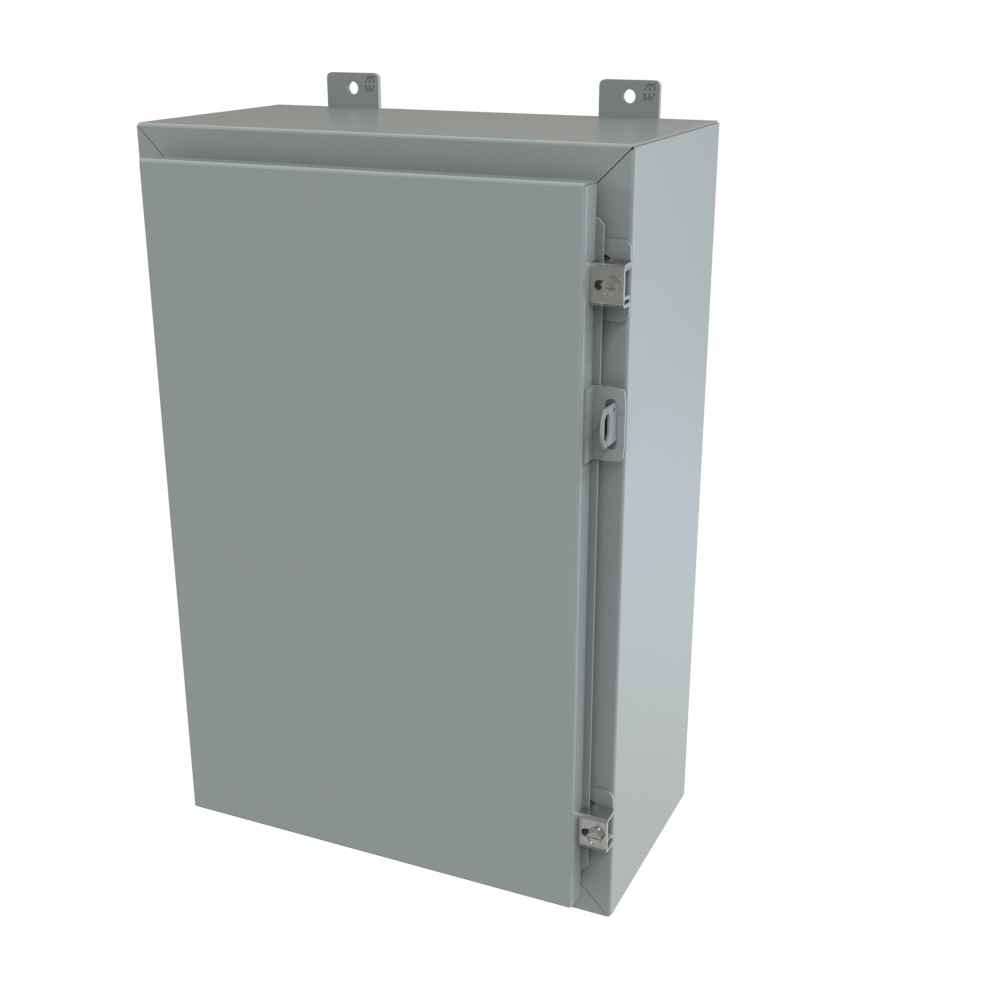

| 1418H6LP | 24.00 | 16.00 | 6.00 | 18P2113 | 18G2113 | 21.00 | 13.00 | $382.24In stock1418H6LP | Buy now |

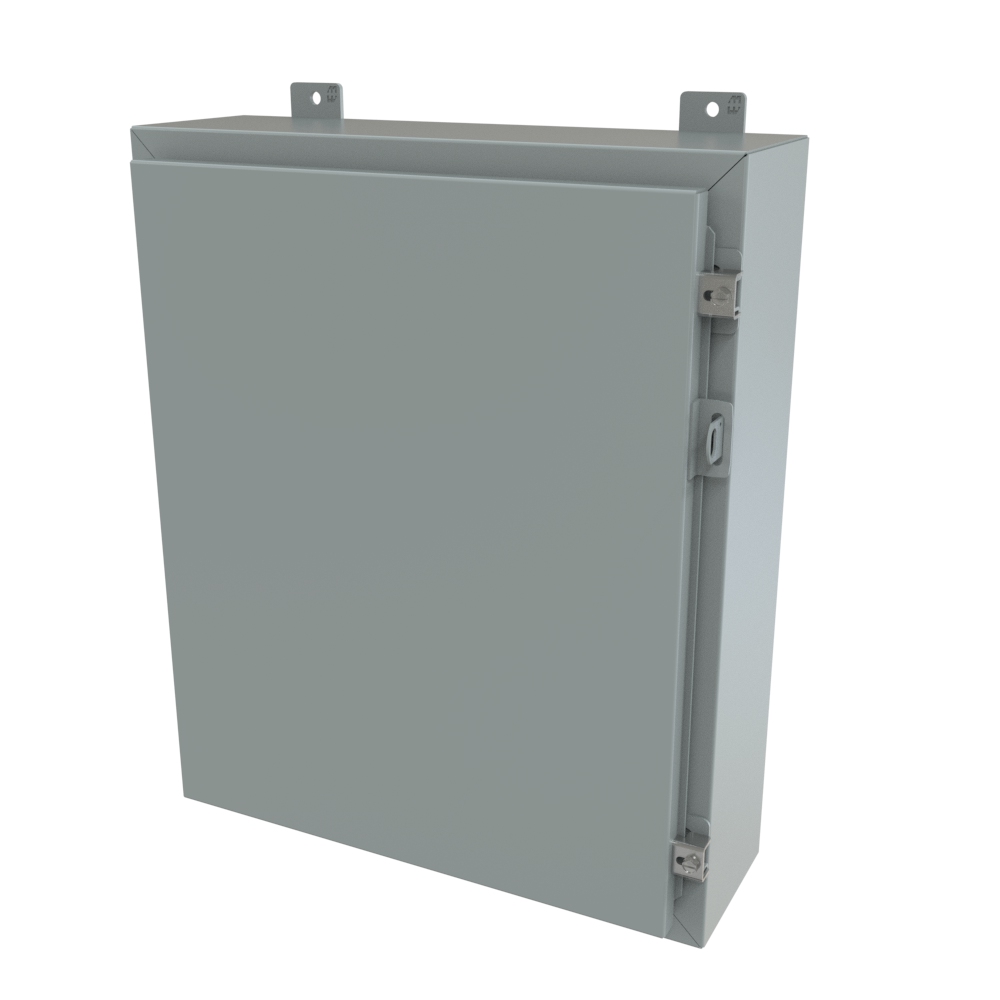

| 1418E6LP | 24.00 | 20.00 | 6.00 | 18P2117 | 18G2117 | 21.00 | 17.00 | $401.67In stock1418E6LP | Buy now |
| 1418J6LP | 24.00 | 24.00 | 6.00 | 18P2121 | 18G2121 | 21.00 | 21.00 | $433.94In stock1418J6LP | Buy now |

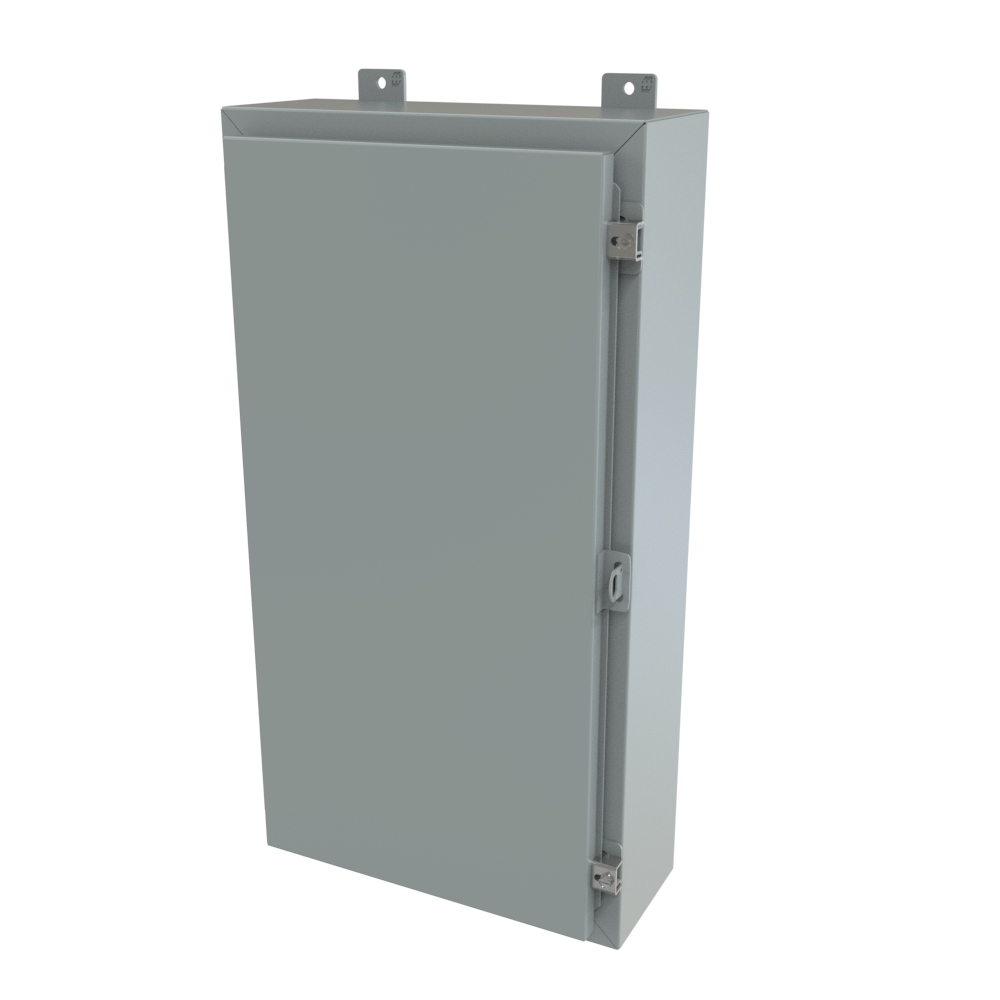

| 1418FG6LP | 30.00 | 16.00 | 6.00 | 18P2713 | 18G2713 | 27.00 | 13.00 | $416.68In stock1418FG6LP | Buy now |

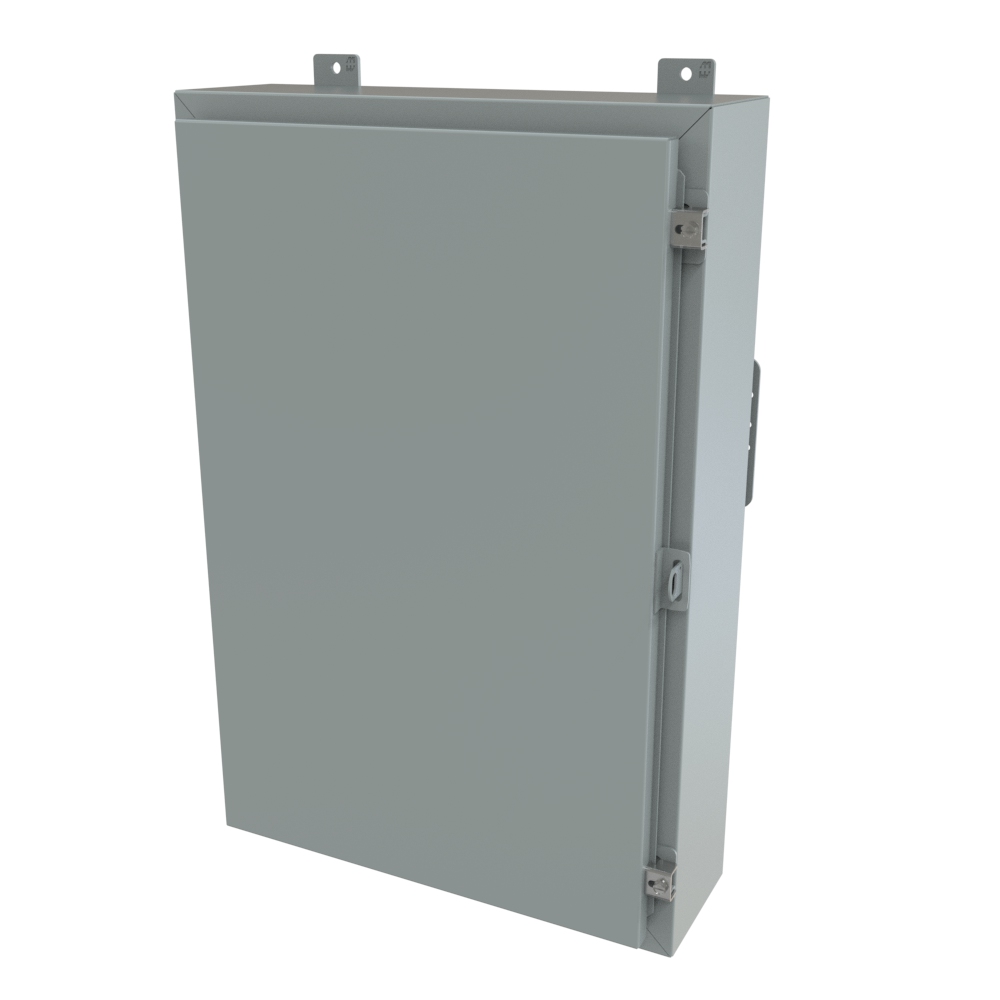

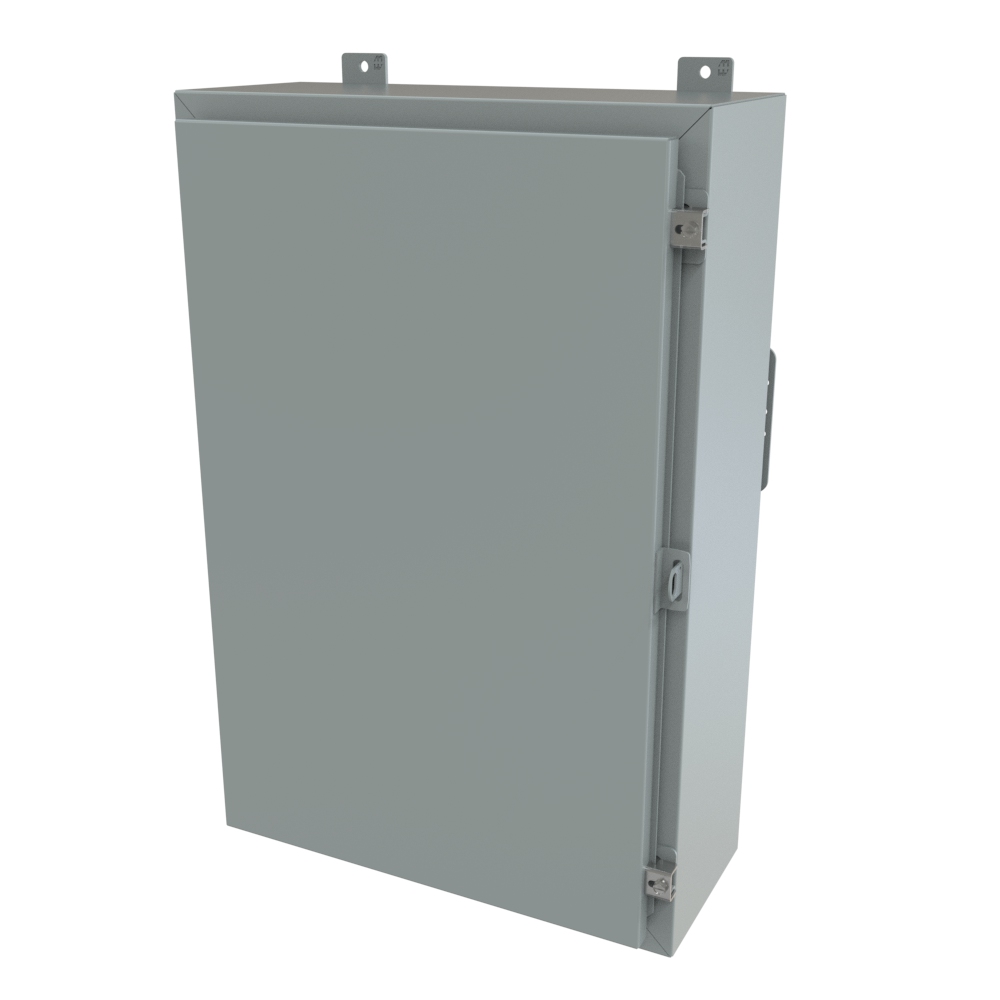

| 1418F6LP | 30.00 | 20.00 | 6.00 | 18P2717 | 18G2717 | 27.00 | 17.00 | $455.86In stock1418F6LP | Buy now |

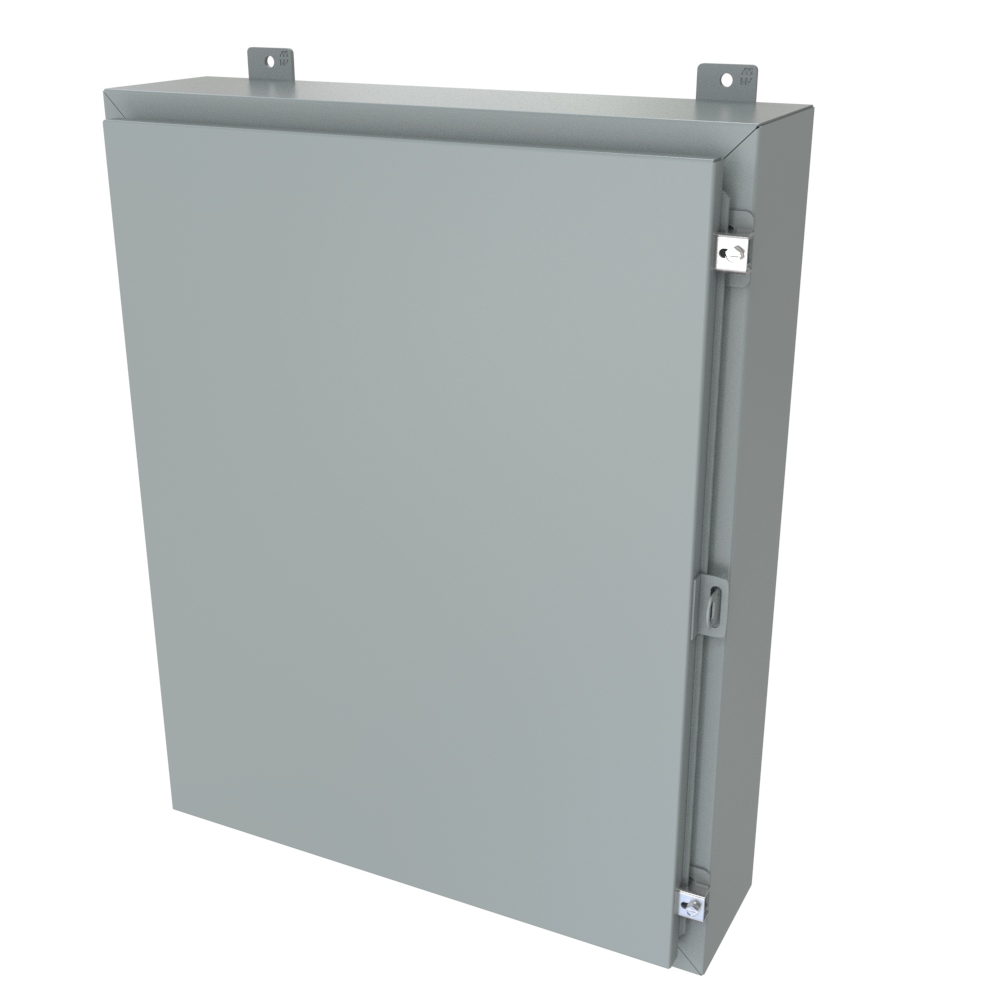

| 1418K6LP | 30.00 | 24.00 | 6.00 | 18P2721 | 18G2721 | 27.00 | 21.00 | $495.66In stock1418K6LP | Buy now |
| 1418L6LP | 36.00 | 24.00 | 6.00 | 18P3321 | 18G3321 | 33.00 | 21.00 | $543.07In stock1418L6LP | Buy now |
| 1418M6LP | 36.00 | 30.00 | 6.00 | 18P3327 | 18G3327 | 33.00 | 27.00 | $612.01Backorder1418M6LP | Buy now |

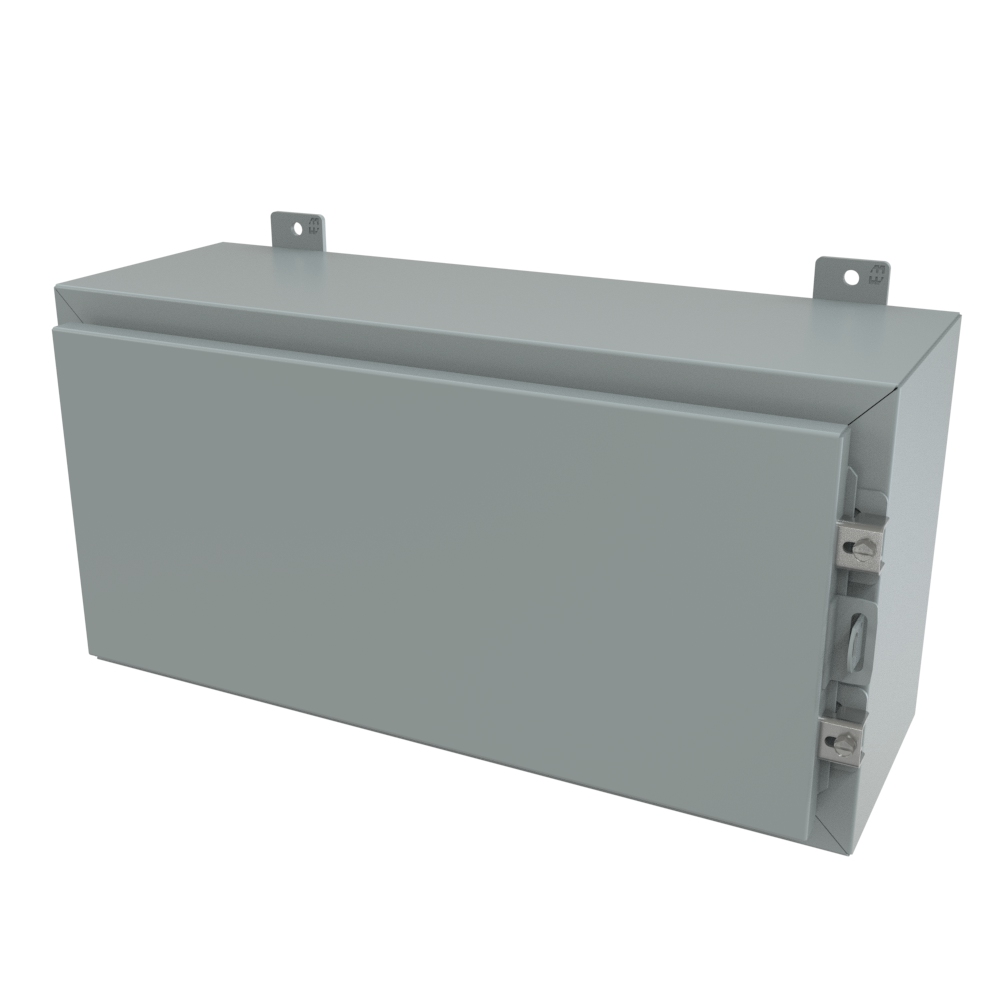

| 1418A8LP | 12.00 | 24.00 | 8.00 | 18P2109 | 18G2109 | 9.00 | 21.00 | $365.55Backorder1418A8LP | Buy now |
| 1418B8LP | 16.00 | 12.00 | 8.00 | 18P1309 | 18G1309 | 13.00 | 9.00 | $317.04In stock1418B8LP | Buy now |

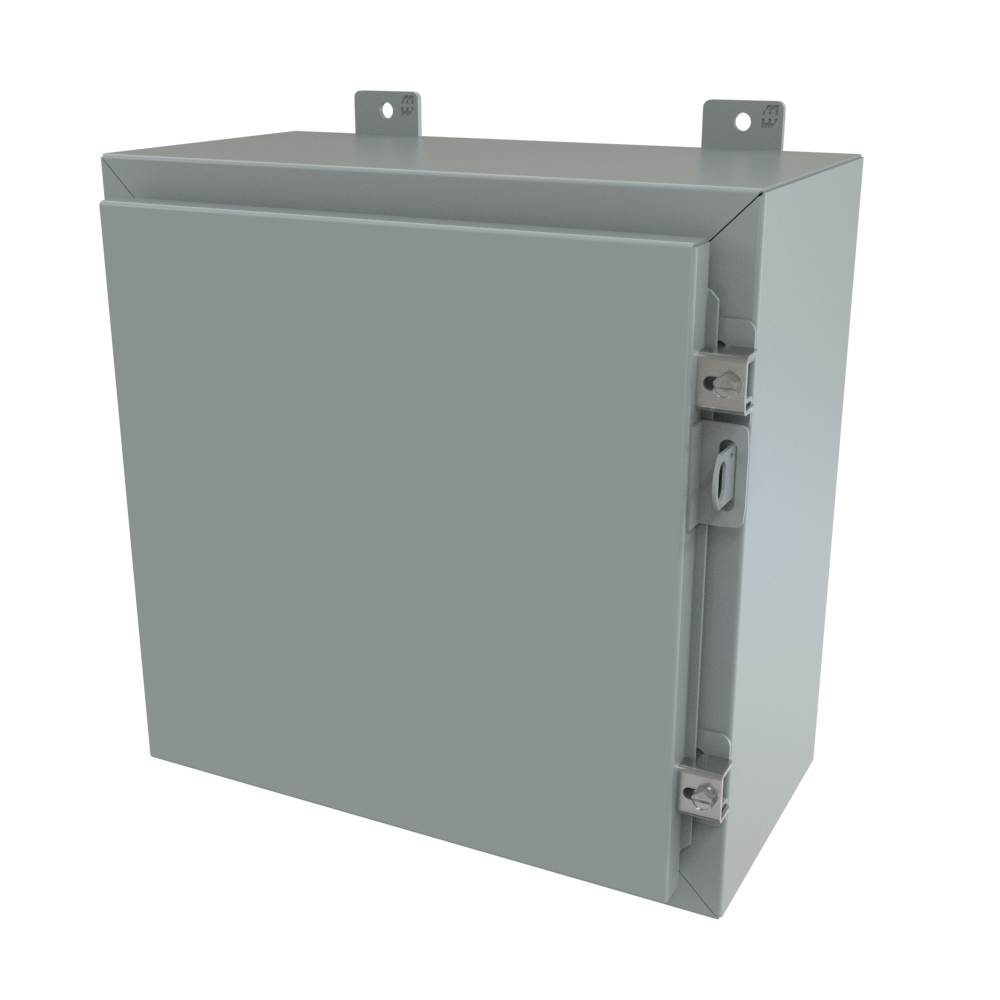

| 1418G8LP | 16.00 | 16.00 | 8.00 | 18P1313 | 18G1313 | 13.00 | 13.00 | $341.04Backorder1418G8LP | Buy now |

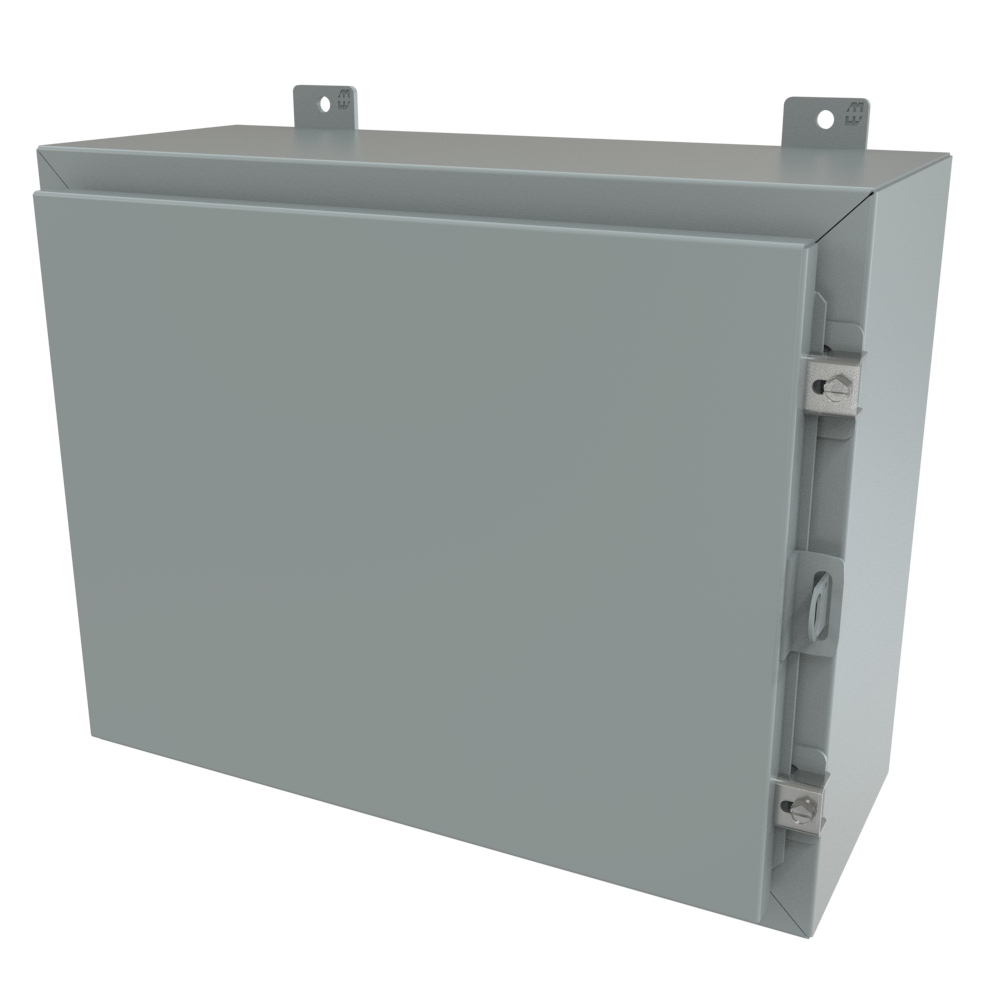

| 1418CR8LP | 16.00 | 20.00 | 8.00 | 18P1713 | 18G1713 | 13.00 | 17.00 | $377.33In stock1418CR8LP | Buy now |

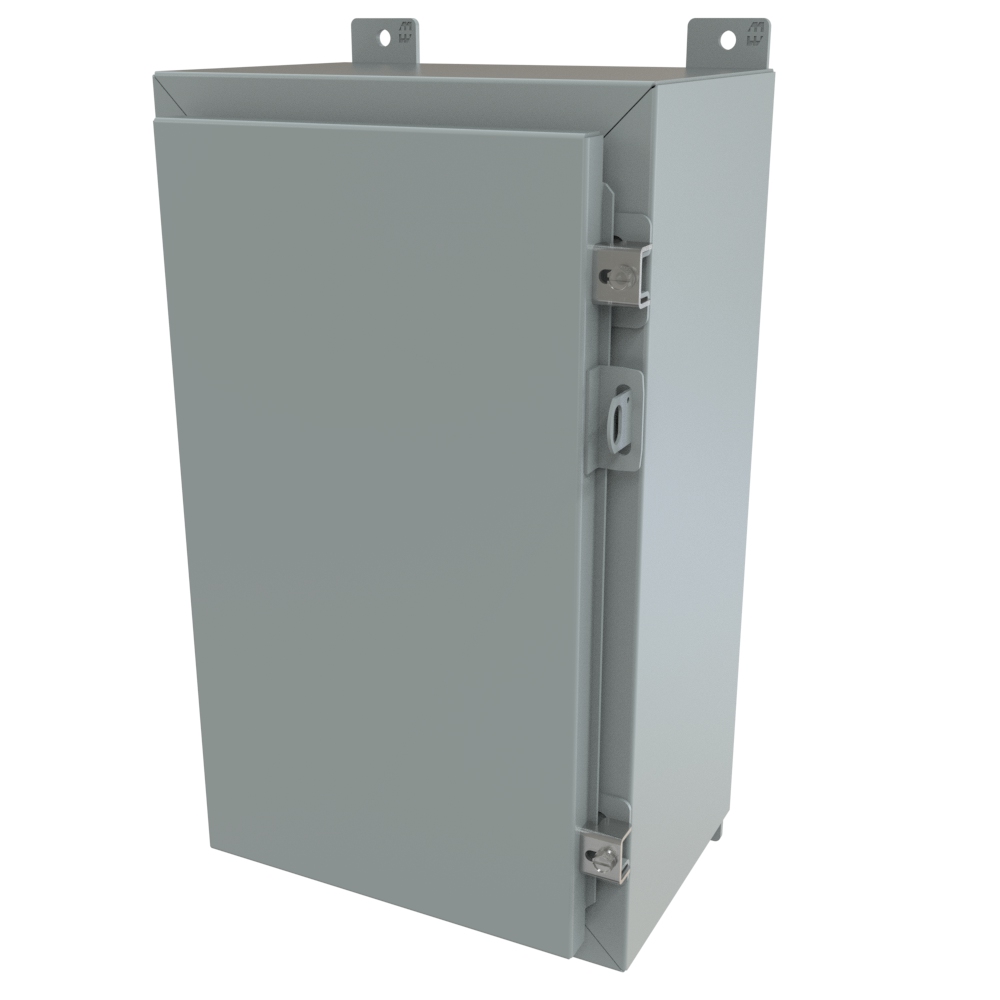

| 1418CA8LP | 20.00 | 12.00 | 8.00 | 18P1709 | 18G1709 | 17.00 | 9.00 | $346.47Backorder1418CA8LP | Buy now |
| 1418C8LP | 20.00 | 16.00 | 8.00 | 18P1713 | 18G1713 | 17.00 | 13.00 | $365.76In stock1418C8LP | Buy now |

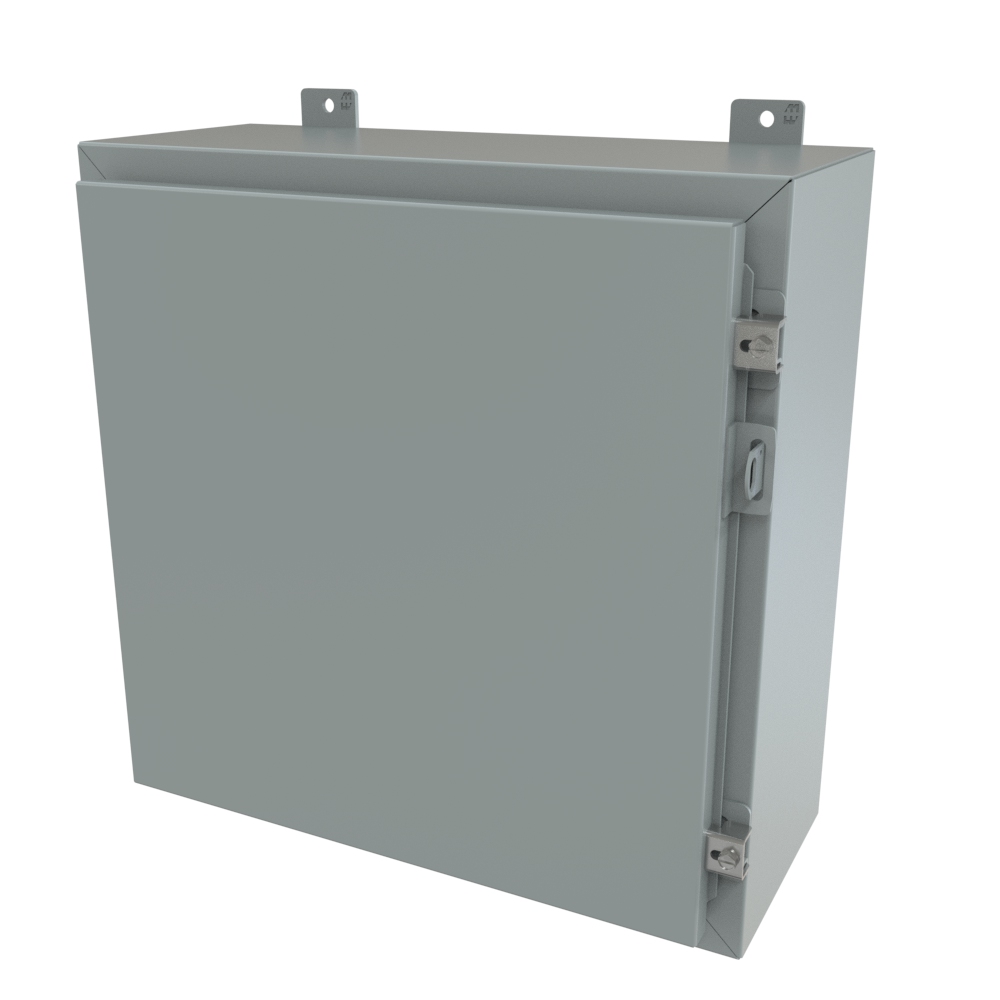

| 1418D8LP | 20.00 | 20.00 | 8.00 | 18P1717 | 18G1717 | 17.00 | 17.00 | $396.62In stock1418D8LP | Buy now |
| 1418ER8LP | 20.00 | 24.00 | 8.00 | 18P2117 | 18G2117 | 17.00 | 21.00 | $425.54In stock1418ER8LP | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
Standards
- ■UL 508A Type 3R,12, 13, 4
- ■cUL Type 3R, 12, 13, 4
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed 14 gauge steel bodies and doors.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Door stiffeners are provided in the larger enclosures for extra rigidity.
- ■Welded brackets provide for enclosure mounting.
- ■Formed lip on door and enclosure exclude flowing liquids and contaminants.
- ■Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- ■Door is secured with easily operated stainless steel clamps.
- ■Provision for padlocking.
- ■Seamless poured-in place gasket.
- ■Collar studs are provided for mounting optional inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■A literature pocket is provided for the inside of the door.
- ■Note - Inner panel sold separately.
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · White Part No. | Optional Inner Panel · Galvanized Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|---|
| 1418A6LP | 12.00 | 24.00 | 6.00 | 18P2109 | 18G2109 | 9.00 | 21.00 |
| 1418B6LP | 16.00 | 12.00 | 6.00 | 18P1309 | 18G1309 | 13.00 | 9.00 |
| 1418G6LP | 16.00 | 16.00 | 6.00 | 18P1313 | 18G1313 | 13.00 | 13.00 |
| 1418CR6LP | 16.00 | 20.00 | 6.00 | 18P1713 | 18G1713 | 13.00 | 17.00 |
| 1418CA6LP | 20.00 | 12.00 | 6.00 | 18P1709 | 18G1709 | 17.00 | 9.00 |
| 1418C6LP | 20.00 | 16.00 | 6.00 | 18P1713 | 18G1713 | 17.00 | 13.00 |
| 1418D6LP | 20.00 | 20.00 | 6.00 | 18P1717 | 18G1717 | 17.00 | 17.00 |
| 1418ER6LP | 20.00 | 24.00 | 6.00 | 18P2117 | 18G2117 | 17.00 | 21.00 |
| 1418AR6LP | 24.00 | 12.00 | 6.00 | 18P2109 | 18G2109 | 21.00 | 9.00 |
| 1418H6LP | 24.00 | 16.00 | 6.00 | 18P2113 | 18G2113 | 21.00 | 13.00 |
| 1418E6LP | 24.00 | 20.00 | 6.00 | 18P2117 | 18G2117 | 21.00 | 17.00 |

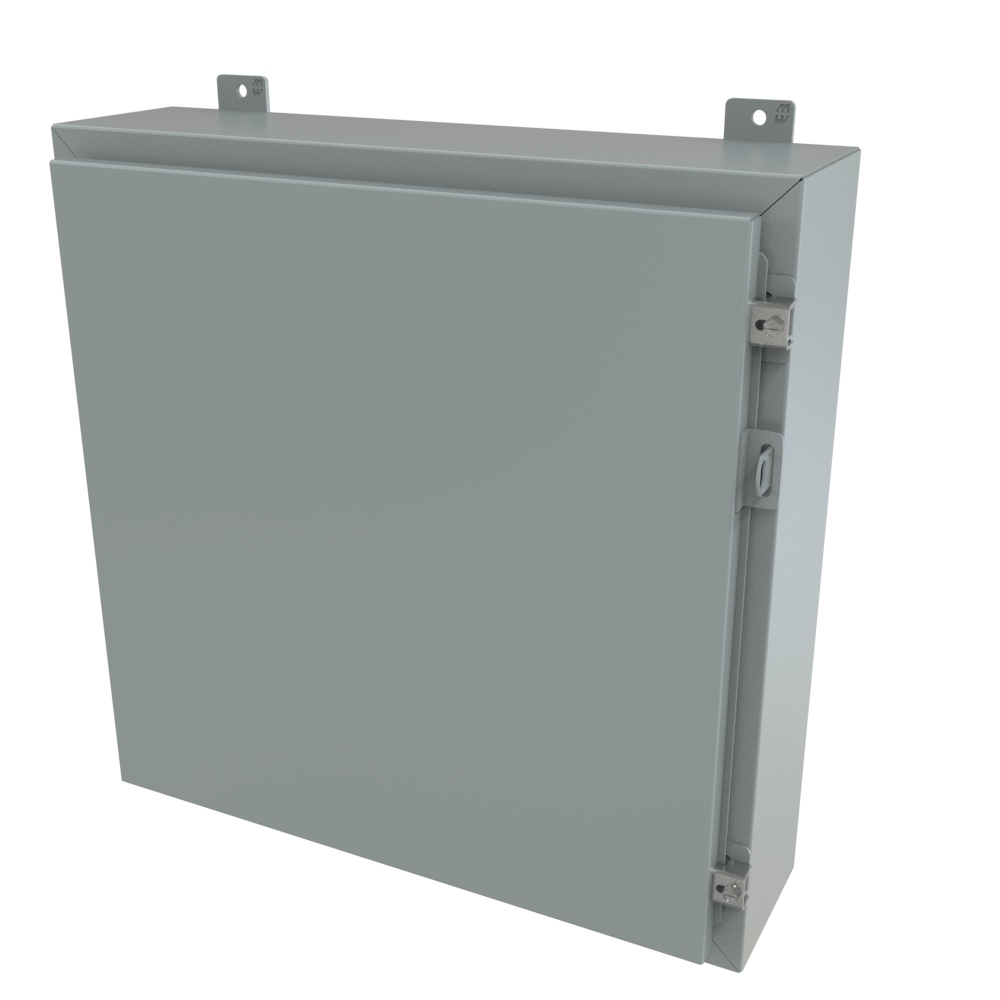

| 1418J6LP | 24.00 | 24.00 | 6.00 | 18P2121 | 18G2121 | 21.00 | 21.00 |
| 1418FG6LP | 30.00 | 16.00 | 6.00 | 18P2713 | 18G2713 | 27.00 | 13.00 |
| 1418F6LP | 30.00 | 20.00 | 6.00 | 18P2717 | 18G2717 | 27.00 | 17.00 |
| 1418K6LP | 30.00 | 24.00 | 6.00 | 18P2721 | 18G2721 | 27.00 | 21.00 |
| 1418L6LP | 36.00 | 24.00 | 6.00 | 18P3321 | 18G3321 | 33.00 | 21.00 |
| 1418M6LP | 36.00 | 30.00 | 6.00 | 18P3327 | 18G3327 | 33.00 | 27.00 |
| 1418A8LP | 12.00 | 24.00 | 8.00 | 18P2109 | 18G2109 | 9.00 | 21.00 |
| 1418B8LP | 16.00 | 12.00 | 8.00 | 18P1309 | 18G1309 | 13.00 | 9.00 |
| 1418G8LP | 16.00 | 16.00 | 8.00 | 18P1313 | 18G1313 | 13.00 | 13.00 |
| 1418CR8LP | 16.00 | 20.00 | 8.00 | 18P1713 | 18G1713 | 13.00 | 17.00 |
| 1418CA8LP | 20.00 | 12.00 | 8.00 | 18P1709 | 18G1709 | 17.00 | 9.00 |
| 1418C8LP | 20.00 | 16.00 | 8.00 | 18P1713 | 18G1713 | 17.00 | 13.00 |
| 1418D8LP | 20.00 | 20.00 | 8.00 | 18P1717 | 18G1717 | 17.00 | 17.00 |
| 1418ER8LP | 20.00 | 24.00 | 8.00 | 18P2117 | 18G2117 | 17.00 | 21.00 |

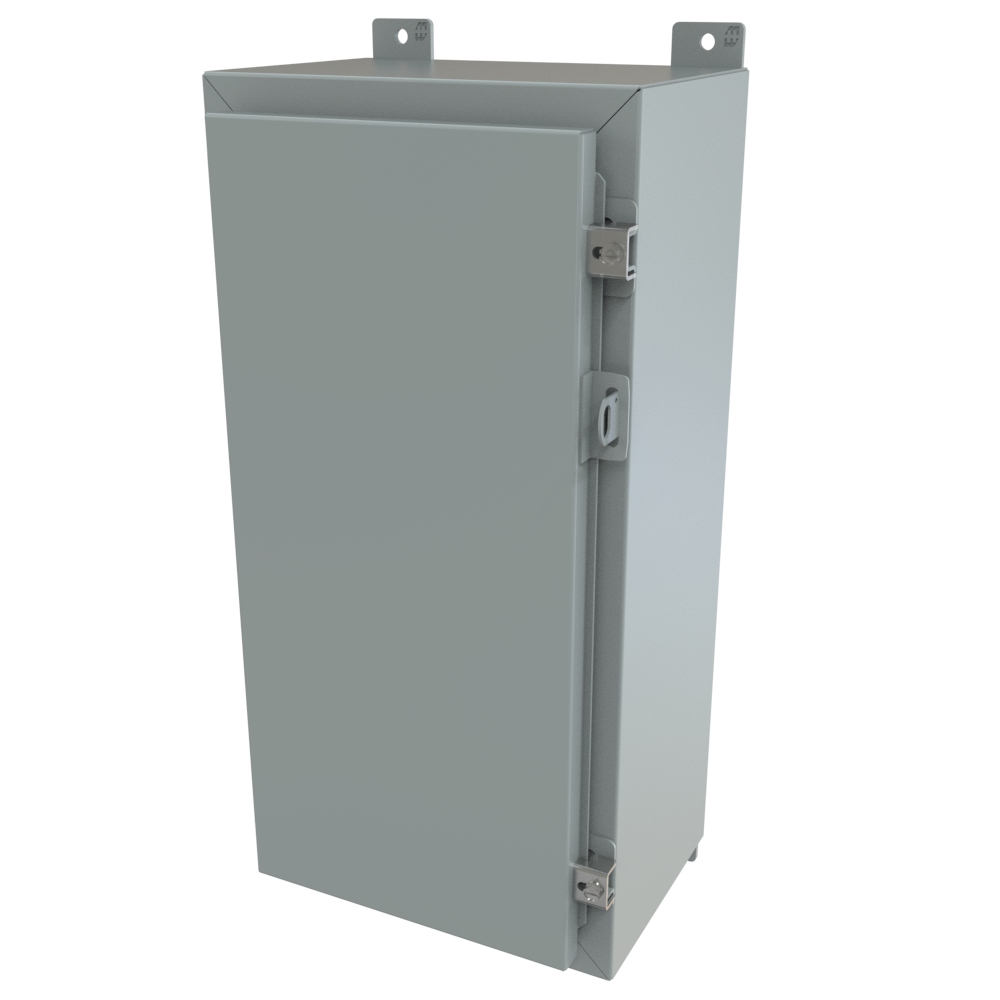

| 1418AR8LP | 24.00 | 12.00 | 8.00 | 18P2109 | 18G2109 | 21.00 | 9.00 |
| 1418H8LP | 24.00 | 16.00 | 8.00 | 18P2113 | 18G2113 | 21.00 | 13.00 |
| 1418E8LP | 24.00 | 20.00 | 8.00 | 18P2117 | 18G2117 | 21.00 | 17.00 |

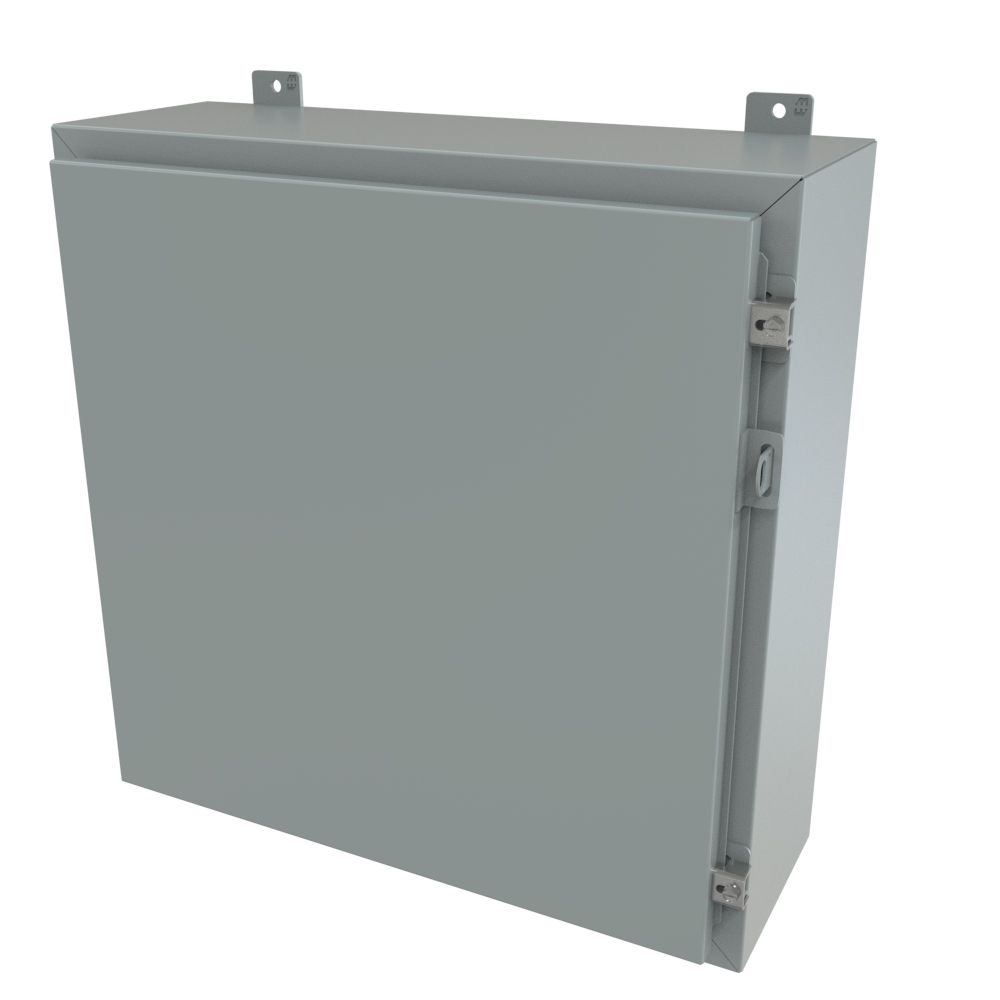

| 1418J8LP | 24.00 | 24.00 | 8.00 | 18P2121 | 18G2121 | 21.00 | 21.00 |
| 1418KR8LP | 24.00 | 30.00 | 8.00 | 18P2721 | 18G2721 | 21.00 | 27.00 |
| 1418KA8LP | 30.00 | 12.00 | 8.00 | 18P2709 | 18G2709 | 27.00 | 9.00 |
| 1418KG8LP | 30.00 | 16.00 | 8.00 | 18P2713 | 18G2713 | 27.00 | 13.00 |
| 1418F8LP | 30.00 | 20.00 | 8.00 | 18P2717 | 18G2717 | 27.00 | 17.00 |
| 1418K8LP | 30.00 | 24.00 | 8.00 | 18P2721 | 18G2721 | 27.00 | 21.00 |
| 1418KK8LP | 30.00 | 30.00 | 8.00 | 18P2727 | 18G2727 | 27.00 | 27.00 |
| 1418MR8LP | 30.00 | 36.00 | 8.00 | 18P3327 | 18G3327 | 27.00 | 33.00 |
| 1418L8LP | 36.00 | 24.00 | 8.00 | 18P3321 | 18G3321 | 33.00 | 21.00 |
| 1418M8LP | 36.00 | 30.00 | 8.00 | 18P3327 | 18G3327 | 33.00 | 27.00 |
| 1418LL8LP | 36.00 | 36.00 | 8.00 | 18P3333 | 18G3333 | 33.00 | 33.00 |
| 1418N8LP | 42.00 | 24.00 | 8.00 | 18P3921 | 18G3921 | 39.00 | 21.00 |
| 1418O8LP | 42.00 | 30.00 | 8.00 | 18P3927 | 18G3927 | 39.00 | 27.00 |
| 1418P8LP | 42.00 | 36.00 | 8.00 | 18P3933 | 18G3933 | 39.00 | 33.00 |
| 1418Q8LP | 48.00 | 24.00 | 8.00 | 18P4521 | 18G4521 | 45.00 | 21.00 |
| 1418R8LP | 48.00 | 30.00 | 8.00 | 18P4527 | 18G4527 | 45.00 | 27.00 |
| 1418S8LP | 48.00 | 36.00 | 8.00 | 18P4533 | 18G4533 | 45.00 | 33.00 |
| 1418T8LP | 60.00 | 36.00 | 8.00 | 18P5733 | 18G5733 | 57.00 | 33.00 |

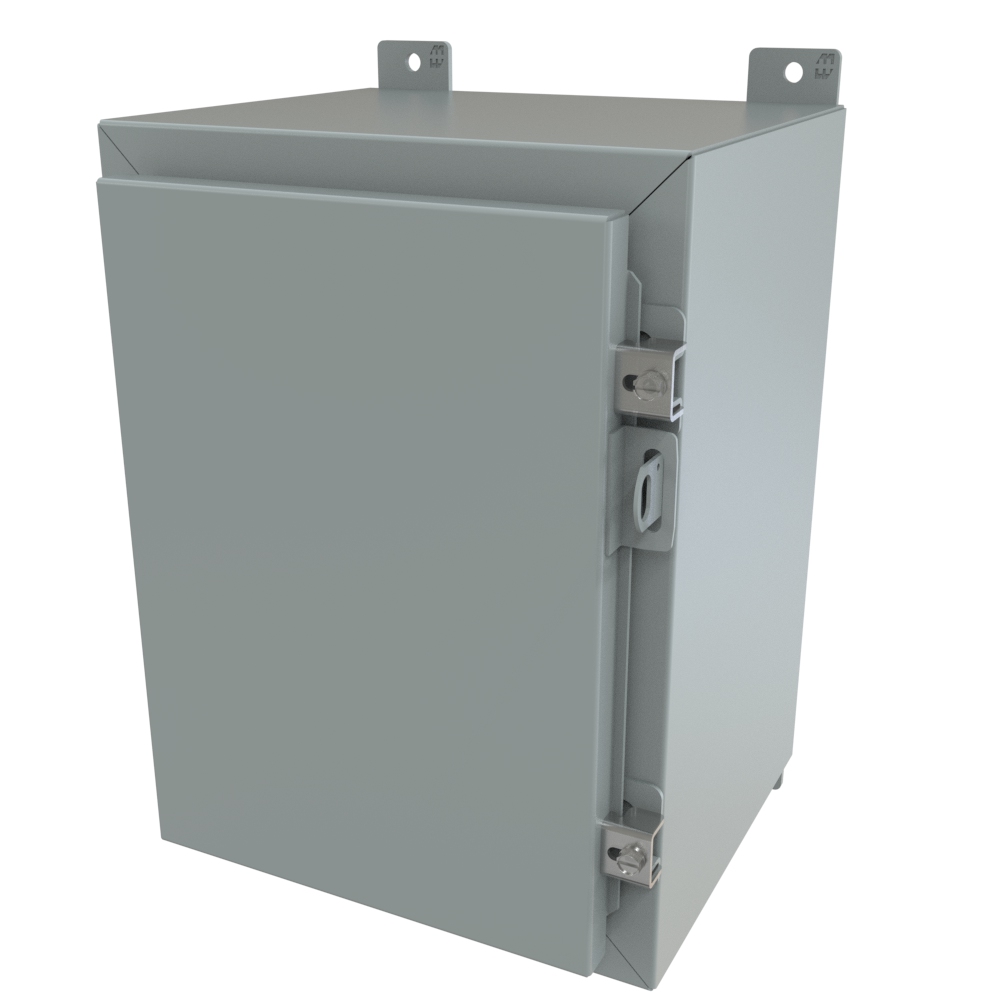

| 1418B10LP | 16.00 | 12.00 | 10.00 | 18P1309 | 18G1309 | 13.00 | 9.00 |
| 1418C10LP | 20.00 | 16.00 | 10.00 | 18P1713 | 18G1713 | 17.00 | 13.00 |

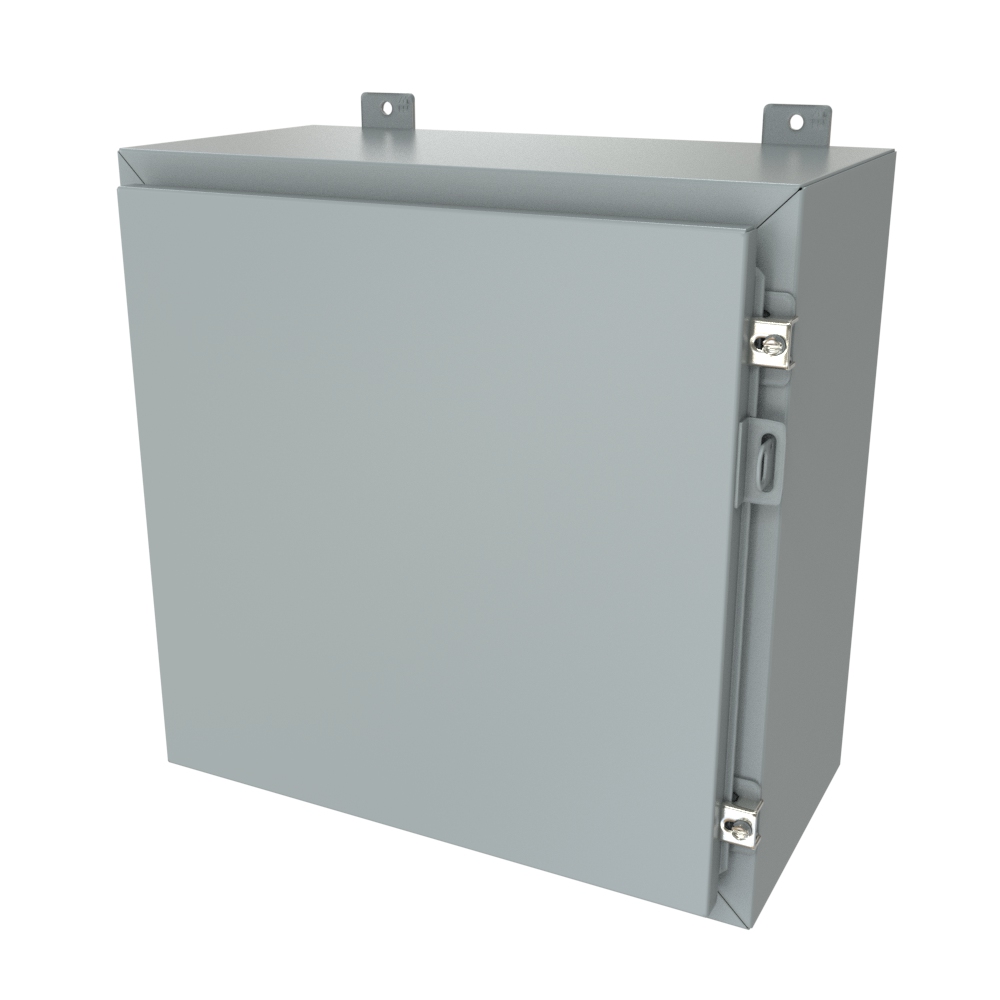

| 1418D10LP | 20.00 | 20.00 | 10.00 | 18P1717 | 18G1717 | 17.00 | 17.00 |

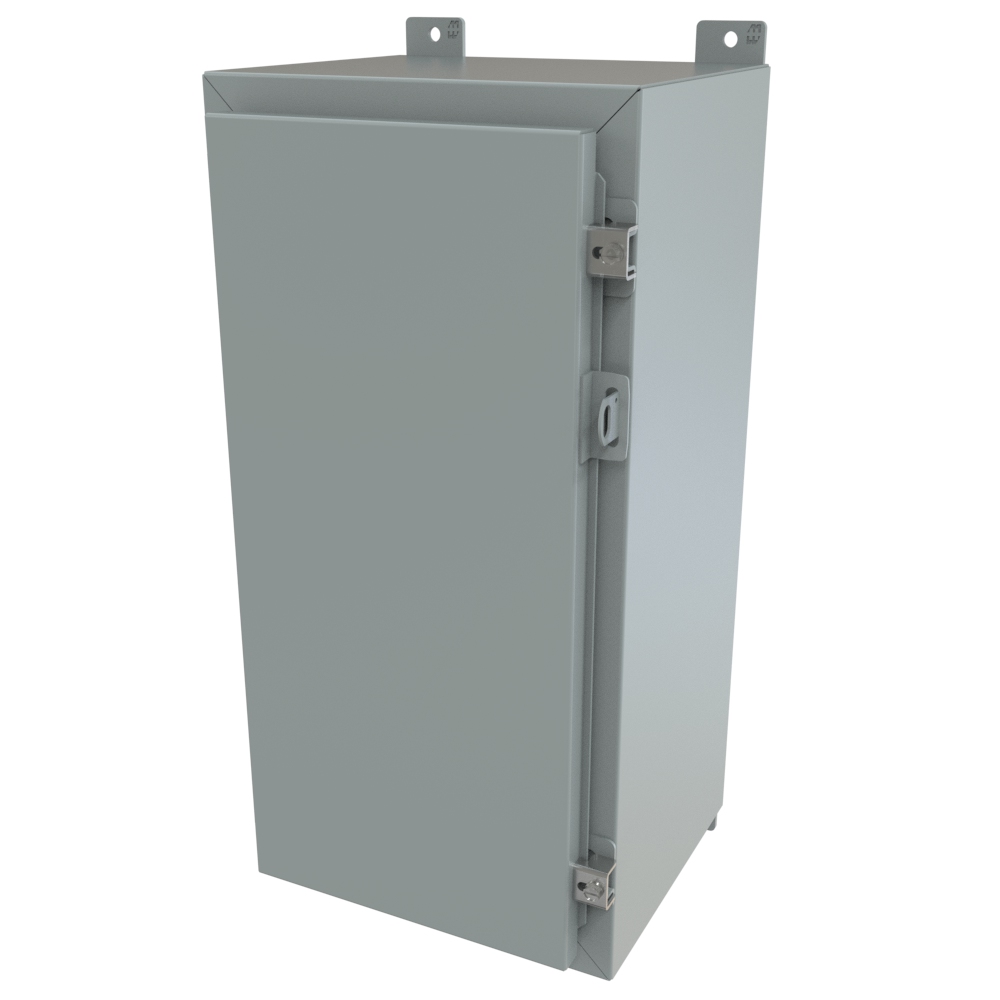

| 1418AR10LP | 24.00 | 12.00 | 10.00 | 18P2109 | 18G2109 | 21.00 | 9.00 |

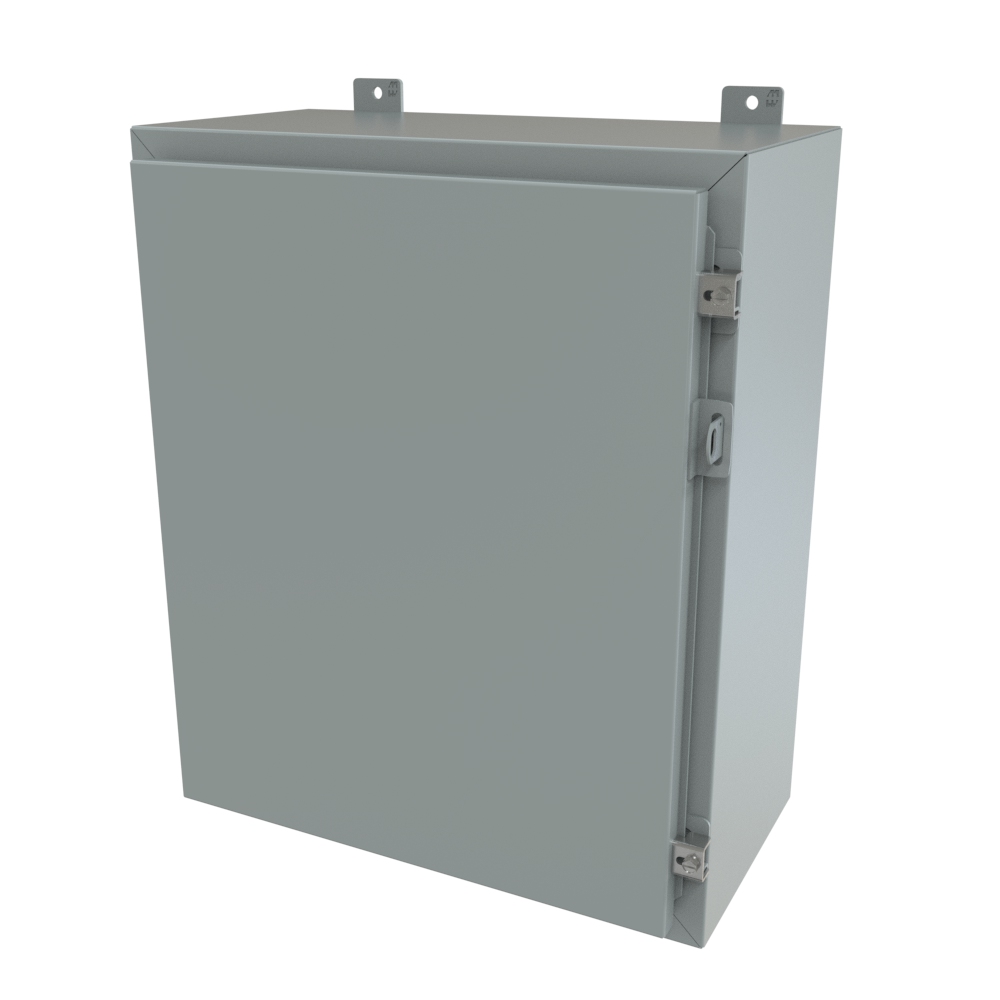

| 1418E10LP | 24.00 | 20.00 | 10.00 | 18P2117 | 18G2117 | 21.00 | 17.00 |

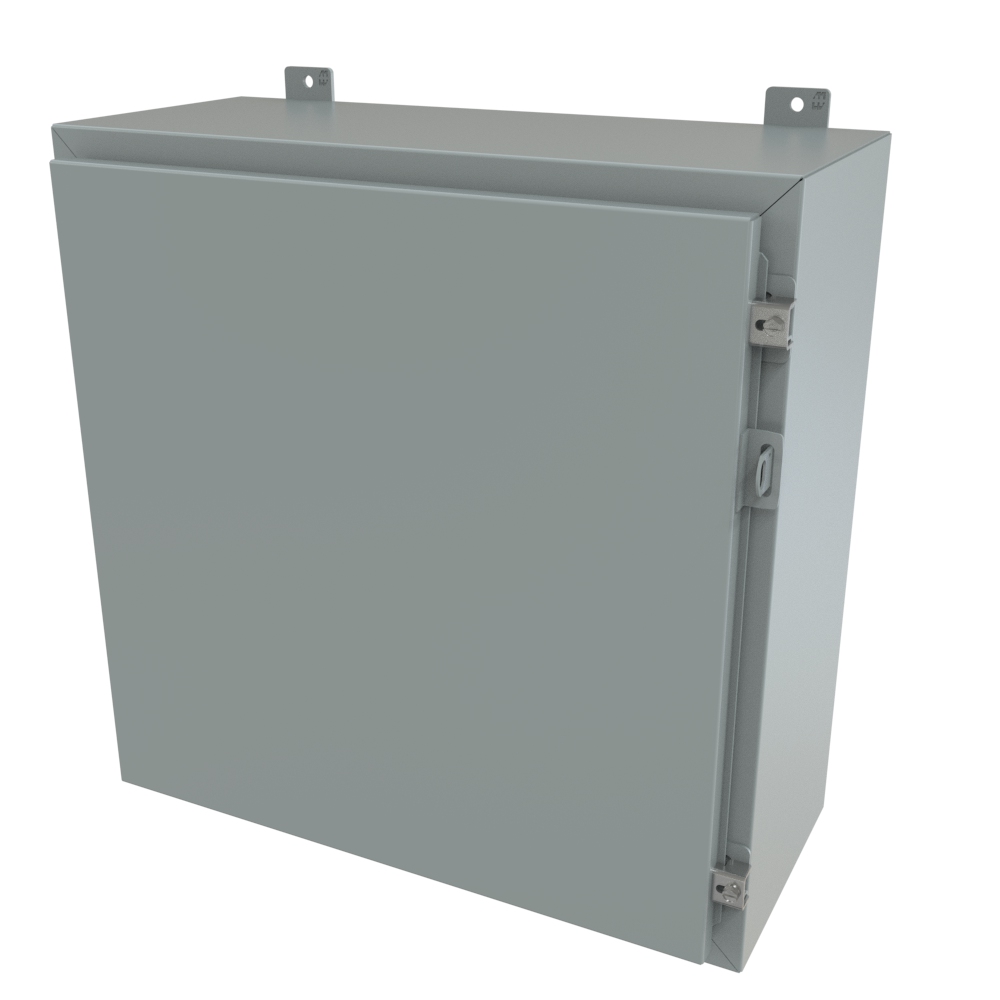

| 1418J10LP | 24.00 | 24.00 | 10.00 | 18P2121 | 18G2121 | 21.00 | 21.00 |
| 1418F10LP | 30.00 | 20.00 | 10.00 | 18P2717 | 18G2717 | 27.00 | 17.00 |
| 1418K10LP | 30.00 | 24.00 | 10.00 | 18P2721 | 18G2721 | 27.00 | 21.00 |
| 1418L10LP | 36.00 | 24.00 | 10.00 | 18P3321 | 18G3321 | 33.00 | 21.00 |
| 1418M10LP | 36.00 | 30.00 | 10.00 | 18P3327 | 18G3327 | 33.00 | 27.00 |
| 1418O10LP | 42.00 | 30.00 | 10.00 | 18P3927 | 18G3927 | 39.00 | 27.00 |
| 1418P10LP | 42.00 | 36.00 | 10.00 | 18P3933 | 18G3933 | 39.00 | 33.00 |
| 1418R10LP | 48.00 | 30.00 | 10.00 | 18P4527 | 18G4527 | 45.00 | 27.00 |
| 1418S10LP | 48.00 | 36.00 | 10.00 | 18P4533 | 18G4533 | 45.00 | 33.00 |
| 1418T10LP | 60.00 | 36.00 | 10.00 | 18P5733 | 18G5733 | 57.00 | 33.00 |
| 1418C12LP | 20.00 | 16.00 | 12.00 | 18P1713 | 18G1713 | 17.00 | 13.00 |

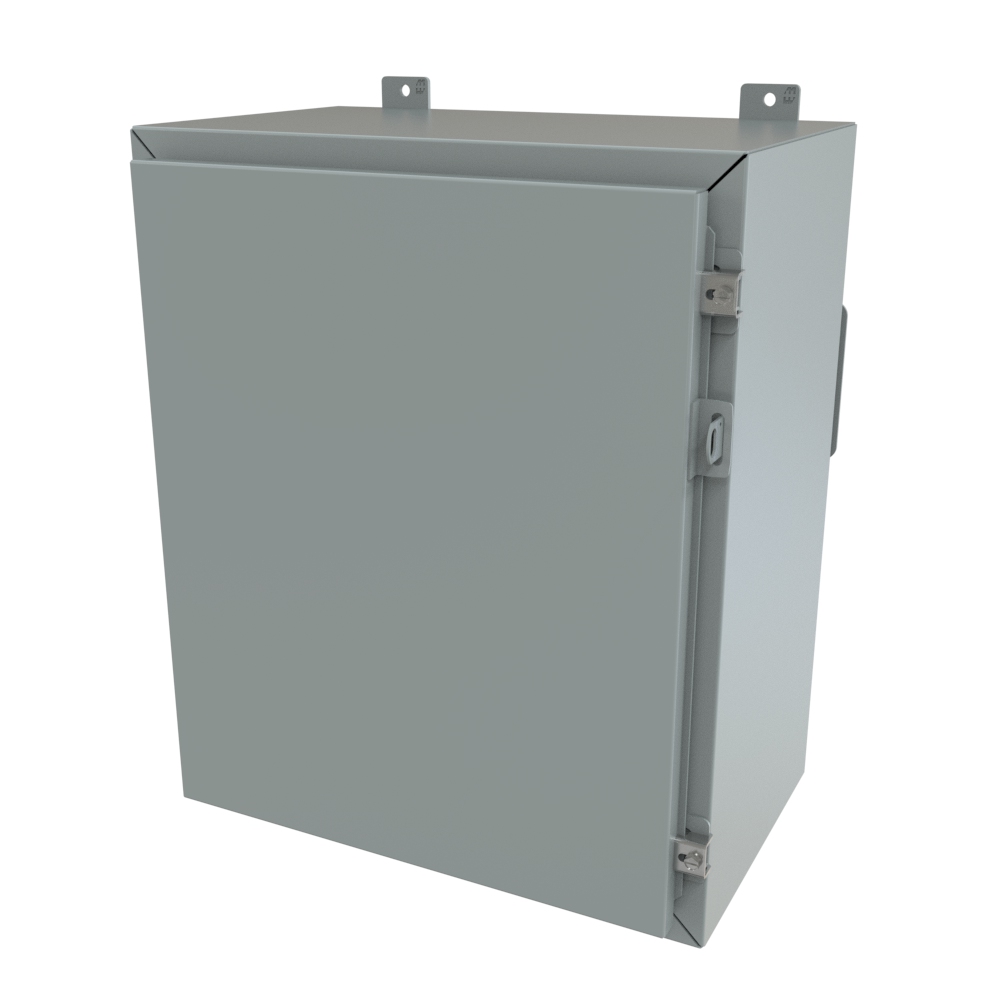

| 1418E12LP | 24.00 | 20.00 | 12.00 | 18P2117 | 18G2117 | 21.00 | 17.00 |
| 1418J12LP | 24.00 | 24.00 | 12.00 | 18P2121 | 18G2121 | 21.00 | 21.00 |

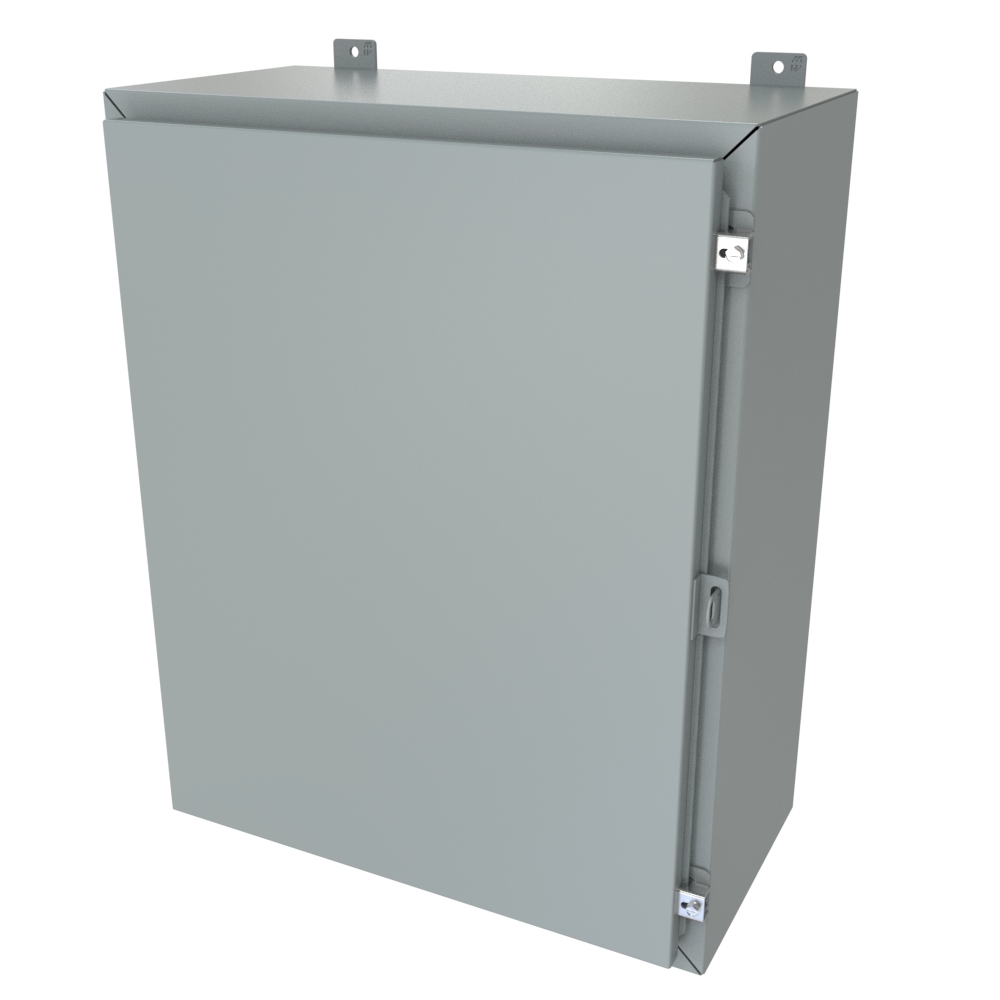

| 1418K12LP | 30.00 | 24.00 | 12.00 | 18P2721 | 18G2721 | 27.00 | 21.00 |
| 1418KK12LP | 30.00 | 30.00 | 12.00 | 18P2727 | 18G2727 | 27.00 | 27.00 |
| 1418L12LP | 36.00 | 24.00 | 12.00 | 18P3321 | 18G3321 | 33.00 | 21.00 |
| 1418M12LP | 36.00 | 30.00 | 12.00 | 18P3327 | 18G3327 | 33.00 | 27.00 |
| 1418LL12LP | 36.00 | 36.00 | 12.00 | 18P3333 | 18G3333 | 33.00 | 33.00 |
| 1418O12LP | 42.00 | 30.00 | 12.00 | 18P3927 | 18G3927 | 39.00 | 27.00 |
| 1418P12LP | 42.00 | 36.00 | 12.00 | 18P3933 | 18G3933 | 39.00 | 33.00 |
| 1418S12LP | 48.00 | 36.00 | 12.00 | 18P4533 | 18G4533 | 45.00 | 33.00 |
| 1418T12LP | 60.00 | 36.00 | 12.00 | 18P5733 | 18G5733 | 57.00 | 33.00 |
| 1418U12LP | 72.00 | 30.00 | 12.00 | 18P6927 | 18G6927 | 69.00 | 27.00 |
| 1418V12LP | 72.00 | 36.00 | 12.00 | 18P6933 | 18G6933 | 69.00 | 33.00 |

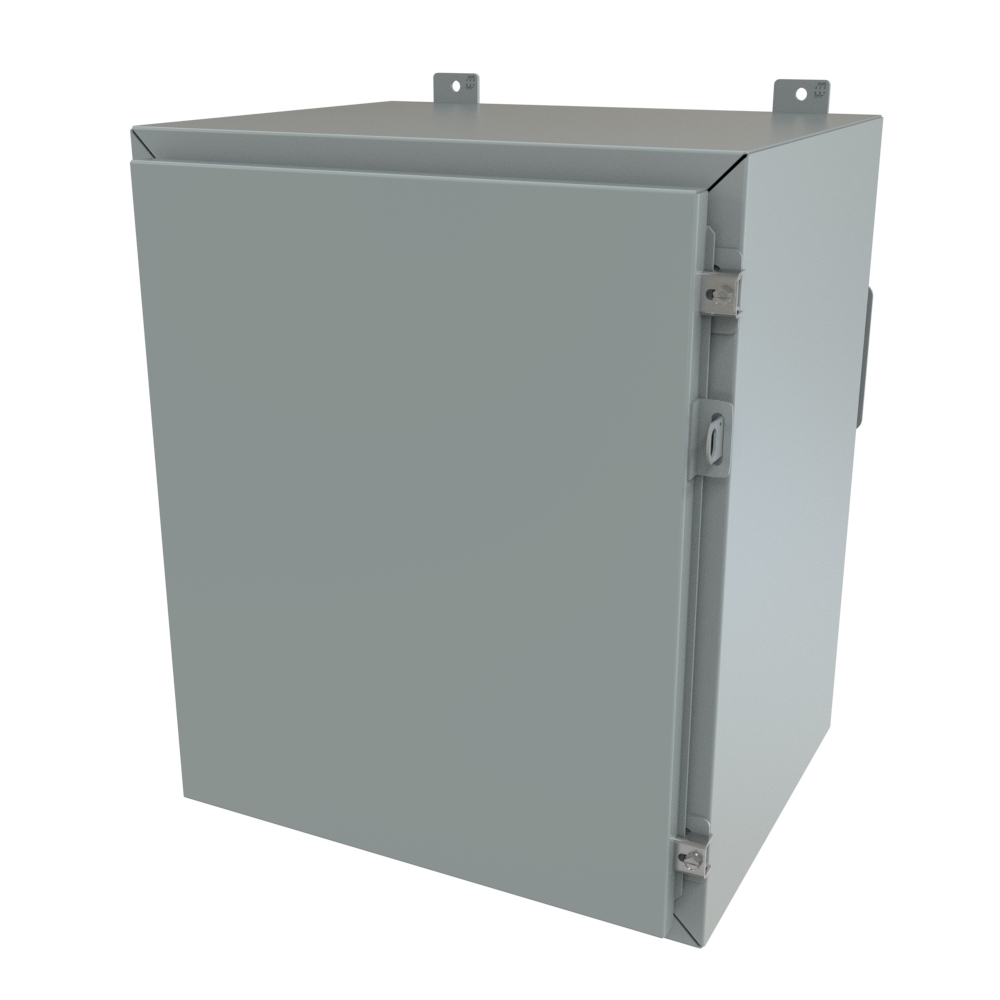

| 1418E16LP | 24.00 | 20.00 | 16.00 | 18P2117 | 18G2117 | 21.00 | 17.00 |

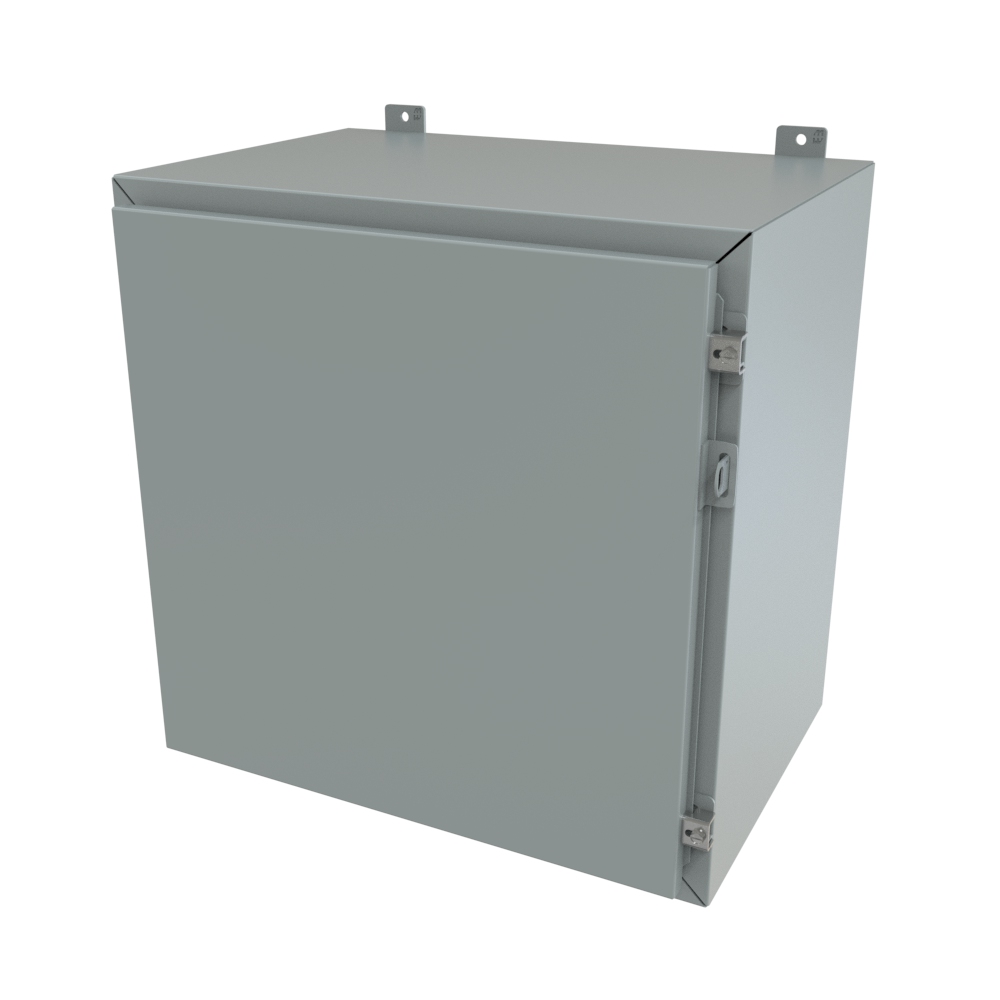

| 1418J16LP | 24.00 | 24.00 | 16.00 | 18P2121 | 18G2121 | 21.00 | 21.00 |

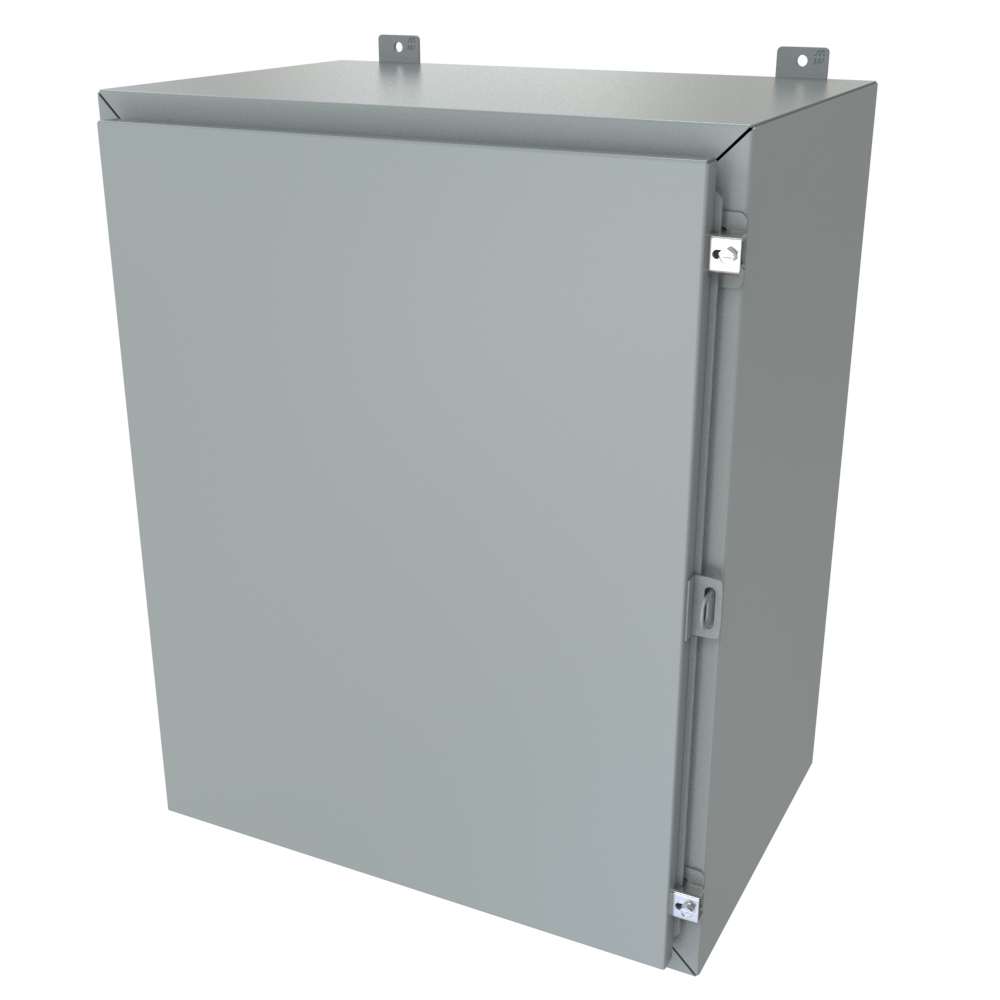

| 1418K16LP | 30.00 | 24.00 | 16.00 | 18P2721 | 18G2721 | 27.00 | 21.00 |
| 1418M16LP | 36.00 | 30.00 | 16.00 | 18P3327 | 18G3327 | 33.00 | 27.00 |
| 1418P16LP | 42.00 | 36.00 | 16.00 | 18P3933 | 18G3933 | 39.00 | 33.00 |
| 1418S16LP | 48.00 | 36.00 | 16.00 | 18P4533 | 18G4533 | 45.00 | 33.00 |
| 1418T16LP | 60.00 | 36.00 | 16.00 | 18P5733 | 18G5733 | 57.00 | 33.00 |
| 1418U16LP | 72.00 | 30.00 | 16.00 | 18P6927 | 18G6927 | 69.00 | 27.00 |

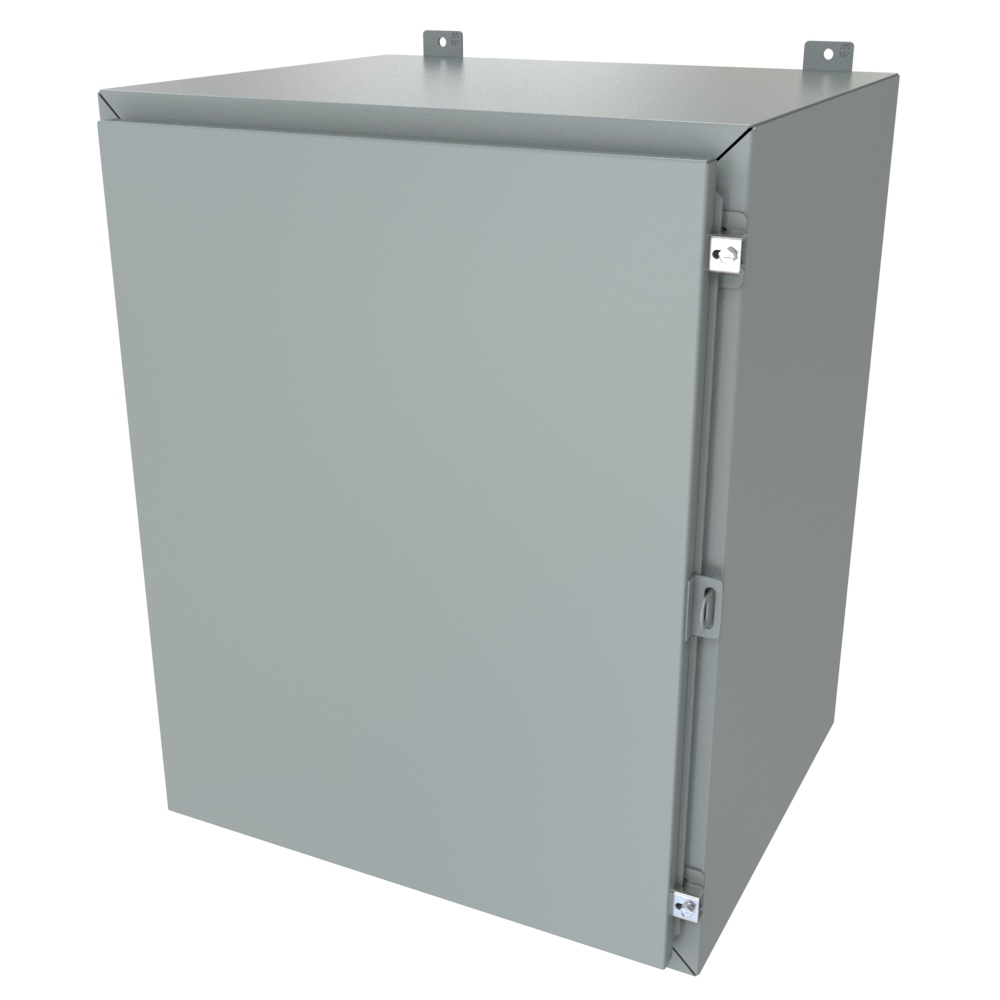

| 1418K20LP | 30.00 | 24.00 | 20.00 | 18P2721 | 18G2721 | 27.00 | 21.00 |
| 1418M20LP | 36.00 | 30.00 | 20.00 | 18P3327 | 18G3327 | 33.00 | 27.00 |
| 1418S20LP | 48.00 | 36.00 | 20.00 | 18P4533 | 18G4533 | 45.00 | 33.00 |
| 1418T20LP | 60.00 | 36.00 | 20.00 | 18P5733 | 18G5733 | 57.00 | 33.00 |
| 1418K24LP | 30.00 | 24.00 | 24.00 | 18P2721 | 18G2721 | 27.00 | 21.00 |
| 1418U24LP | 72.00 | 30.00 | 24.00 | 18P6927 | 18G6927 | 69.00 | 27.00 |
Any questions? Talk with an expert
Call us (224) 955-1644Accessories for this series
Inner Panels · 18P Series
from $12.71
Shop parts
Perforated Inner Panels · 18PP Series
from $26.69
Shop parts
Swing Panel Kit · SPB Series
from $57.18
Shop parts
Door Stop Kit
from $107.66
Shop parts
Door Clamping Hardware - Heavy Duty
from $38.52
Shop parts
Wallmount Quick Release Clamp
from $27.02
Shop parts
Type 4, 12 Lock Kit
from $85.60
Shop parts
Drip Shield Kit · DK Series
from $53.77
Shop partsRelated products
Type 4 Mild Steel Junction Box · Eclipse Junior Series
from $52.20
Shop parts
Type 12 Mild Steel Junction Box · 1414 Series
from $48.15
Shop parts
Type 4 Mild Steel Junction Box · 1414 N4 Series
from $58.85
Shop parts
Type 4, 12 Mild Steel Junction Box · HJ Series
from $4.35
Shop parts
Type 12 Mild Steel Junction Box · 1414 PH Series
from $47.48
Shop parts
Type 4 Mild Steel Junction Box · 1414 N4 PH Series
from $68.21
Shop parts
Type 4, 12 Mild Steel Junction Box · HJ H Series
from $4.35
Shop parts
Type 12 Mild Steel Junction Box · 1414 SC Series
from $48.08
Shop parts
