Low Voltage/Filament, Dual Primary & Secondary - 1.8 VA to 240 VA 266 Series

Low Voltage/Filament, Dual Primary & Secondary - 1.8 VA to 240 VA · 266 Series

Brand: Hammond Manufacturing · 76 part numbers

Open Style, Chassis Mount - 117/234 V Primary

  • ■Primary 117/234 VAC, 50/60 Hz.
  • ■All units have dual secondaries except 266LA25 (C.T. secondary only). If you only require a single primary & secondary check out our more economical 166 Series .
  • ■Secondaries can be used as; a center tapped secondary, parallel connected or used individually (except 266LA25 ).
  • ■Units are designed for use with all windings engaged.
  • ■Open style.
  • ■Minimum 6" long leads.

from $9.76

76 of 76 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 266 Series part number

Filter 77 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

77 of 77 part numbers · 76 priced online

266C24

Power TX 2VA 24/12V

  • VA 2
  • Sec. VAC RMS Serie 24V @ 0.085A
  • Sec. VAC RMS Paral 12V @ 0.17A
  • Mounting Style A
$12.85In stock
Buy now
266E12

Power TX 117VAC - 12V@.15A

  • VA 1.8
  • Sec. VAC RMS Serie 12V @ 0.15A
  • Sec. VAC RMS Paral 6V @ 0.3A
  • Mounting Style A
$13.26In stock
Buy now
266EA24

Power TX 4.8VA 24/12V

  • VA 4.8
  • Sec. VAC RMS Serie 24V @ 0.2A
  • Sec. VAC RMS Paral 12V @ 0.4A
  • Mounting Style A
$14.44In stock
Buy now
266F12

Power TX 3.78VA 12.6/6.3V

  • VA 3.78
  • Sec. VAC RMS Serie 12.6V @ 0.3A
  • Sec. VAC RMS Paral 6.3V @ 0.6A
  • Mounting Style A
$9.76In stock
Buy now
266F12B

Power TX 3.6VA 12V@0.3

  • VA 3.6
  • Sec. VAC RMS Serie 12V @ 0.3A
  • Sec. VAC RMS Paral 6V @ 0.6A
  • Mounting Style A
$12.06In stock
Buy now
266F12C

Power TX 4.2VA 12.6/6.3V

  • VA 4.2
  • Sec. VAC RMS Serie 12V @ 0.35A
  • Sec. VAC RMS Paral 6V @ 0.7A
  • Mounting Style A
$14.44In stock
Buy now
266F20

Power TX 6VA 20/10V

  • VA 6
  • Sec. VAC RMS Serie 20V @ 0.3A
  • Sec. VAC RMS Paral 10V @ 0.6A
  • Mounting Style A
$25.73In stock
Buy now
266F24

Power TX 7.2VA 24/12V

  • VA 7.2
  • Sec. VAC RMS Serie 24V @ 0.3A
  • Sec. VAC RMS Paral 12V @ 0.6A
  • Mounting Style A
$25.73In stock
Buy now
266F48

Power TX 48 V , 0.250 A

  • VA 12
  • Sec. VAC RMS Serie 48V @ 0.25A
  • Sec. VAC RMS Paral 24V @ 0.5A
  • Mounting Style V
$20.02In stock
Buy now
266F6

Power TX 6.3V , 1.89 VA

  • VA 1.89
  • Sec. VAC RMS Serie 6.3V @ 0.3A
  • Sec. VAC RMS Paral 3.15V @ 0.6A
  • Mounting Style A
$24.11In stock
Buy now
266FB24

Power TX 24V , 9.6VA

  • VA 9.6
  • Sec. VAC RMS Serie 24V @ 0.4A
  • Sec. VAC RMS Paral 12V @ 0.8A
  • Mounting Style A
$22.52In stock
Buy now
266G12

Power TX 12.6V , 6.3VA

  • VA 6.3
  • Sec. VAC RMS Serie 12.6V @ 0.5A
  • Sec. VAC RMS Paral 6.3V @ 1A
  • Mounting Style A
$25.73In stock
Buy now
266G14

Power TX 14V , 7VA

  • VA 7
  • Sec. VAC RMS Serie 14V @ 0.5A
  • Sec. VAC RMS Paral 7V @ 1A
  • Mounting Style A
$19.28In stock
Buy now
266G16

Power TX 16V , 8VA

  • VA 8
  • Sec. VAC RMS Serie 16V @ 0.5A
  • Sec. VAC RMS Paral 8V @ 1A
  • Mounting Style A
$22.52In stock
Buy now
266G20

Power TX 20V@0.5A,10V@1A

  • VA 10
  • Sec. VAC RMS Serie 20V @ 0.5A
  • Sec. VAC RMS Paral 10V @ 1A
  • Mounting Style V
$22.52In stock
Buy now
266G24

Power TX 24V@0.5A 12V@1A

  • VA 12
  • Sec. VAC RMS Serie 24V @ 0.5A
  • Sec. VAC RMS Paral 12V @ 1A
  • Mounting Style V
$24.11In stock
Buy now
266G36

Power TX 36V , 18VA

  • VA 18
  • Sec. VAC RMS Serie 36V @ 0.5A
  • Sec. VAC RMS Paral 18V @ 1A
  • Mounting Style A
$25.73In stock
Buy now
266G48

Power TX 48 V , 0.50 A

  • VA 24
  • Sec. VAC RMS Serie 48V @ 0.5A
  • Sec. VAC RMS Paral 24V @ 1A
  • Mounting Style V
$22.90In stock
Buy now
266G9

Power TX 9V , 4.5VA

  • VA 4.5
  • Sec. VAC RMS Serie 9V @ 0.5A
  • Sec. VAC RMS Paral 4.5V @ 1A
  • Mounting Style A
$25.73In stock
Buy now
266GB6

Power TX 6V , 3.8VA

  • VA 3.78
  • Sec. VAC RMS Serie 6.3V@ 0.6A
  • Sec. VAC RMS Paral 3.15V @ 1.2A
  • Mounting Style A
$19.91In stock
Buy now
266GD12

Power TX 12V ,8.4VA

  • VA 8.4
  • Sec. VAC RMS Serie 12V @ 0.7A
  • Sec. VAC RMS Paral 6V @ 1.4A
  • Mounting Style A
$22.52In stock
Buy now
266GD24

Power TX 24V ,16.8VA

  • VA 16.8
  • Sec. VAC RMS Serie 24V @ 0.7A
  • Sec. VAC RMS Paral 12V @ 1.4A
  • Mounting Style A
$25.73In stock
Buy now
266J12

Power TX 12.6V@1A 6.3V@2A

  • VA 12.6
  • Sec. VAC RMS Serie 12.6V @ 1A
  • Sec. VAC RMS Paral 6.3V @ 2A
  • Mounting Style A
$24.11In stock
Buy now
266J14

Power TX 14V ,14VA

  • VA 14
  • Sec. VAC RMS Serie 14V @ 1A
  • Sec. VAC RMS Paral 7V @ 2A
  • Mounting Style A
$24.11In stock
Buy now
266J16

Power TX 16V@1A 8V@2A

  • VA 16
  • Sec. VAC RMS Serie 16V @ 1A
  • Sec. VAC RMS Paral 8V @ 2A
  • Mounting Style A
$25.73In stock
Buy now
266J24

Power TX 24V@1A 12V@2A

  • VA 24
  • Sec. VAC RMS Serie 24V @ 1A
  • Sec. VAC RMS Paral 12V @ 2A
  • Mounting Style V
$13.51In stock
Buy now
266J24B

Power TX 24VCT@1A

  • VA 24
  • Sec. VAC RMS Serie 24V C.T. @ 1A
  • Mounting Style A
$14.97In stock
Buy now
266J25

Power TX 25.2V ,25.2VA

  • VA 25.2
  • Sec. VAC RMS Serie 25.2V @ 1A
  • Sec. VAC RMS Paral 12.6V @ 2A
  • Mounting Style A
$25.73In stock
Buy now
266J26

Power TX 26.8V ,26.5VA

  • VA 26.5
  • Sec. VAC RMS Serie 26.8V @ 1A
  • Sec. VAC RMS Paral 13.4V @ 2A
  • Mounting Style A
$25.73In stock
Buy now
266J36

Power TX 36V , 36VA

  • VA 36
  • Sec. VAC RMS Serie 36V @ 1A
  • Sec. VAC RMS Paral 18V @ 2A
  • Mounting Style A
$32.13In stock
Buy now
266J48

Power TX 48V@1A 24V@2A

  • VA 48
  • Sec. VAC RMS Serie 48V @ 1A
  • Sec. VAC RMS Paral 24V @ 2A
  • Mounting Style V
$24.11In stock
Buy now
266J6

Power TX 6.3@1A

  • VA 6.3
  • Sec. VAC RMS Serie 6.3V @ 1A
  • Sec. VAC RMS Paral 3.15V @ 2A
  • Mounting Style A
$19.28In stock
Buy now
266JA12

Power TX 24V@0.5A, 12V @1A

  • VA 12
  • Sec. VAC RMS Serie 12V @ 1A
  • Sec. VAC RMS Paral 6V @ 2A
  • Mounting Style V
$14.44In stock
Buy now
266JB12

Power TX 12V ,14.4VA

  • VA 14.4
  • Sec. VAC RMS Serie 12V @ 1.2A
  • Sec. VAC RMS Paral 6V @ 2.4A
  • Mounting Style A
$24.11In stock
Buy now
266JB24

Power TX 24V@1A, 12V @ 2A

  • Mounting Style V
$21.24In stock
Buy now
266JB6

Power TX 6.3V ,7.6VA

  • VA 7.6
  • Sec. VAC RMS Serie 6.3V @ 1.2A
  • Sec. VAC RMS Paral 3.15V @ 2.4A
  • Mounting Style A
$10.49In stock
Buy now
266K12

Power TX 12.6V ,18.9VA

  • VA 18.9
  • Sec. VAC RMS Serie 12.6V @ 1.5A
  • Sec. VAC RMS Paral 6.3V @ 3A
  • Mounting Style A
$24.11In stock
Buy now
266K18

Power TX 18V , 27VA

  • VA 27
  • Sec. VAC RMS Serie 18V @ 1.5A
  • Sec. VAC RMS Paral 9V @ 3A
  • Mounting Style A
$13.51In stock
Buy now
266K35

Power TX 35V ,52.5VA

  • VA 52.5
  • Sec. VAC RMS Serie 35V @ 1.5A
  • Sec. VAC RMS Paral 17.5V @ 3A
  • Mounting Style A
$35.35In stock
Buy now
266L12

Power TX 12.6V@2.5A 6.3V@5A

  • VA 31.5
  • Sec. VAC RMS Serie 12.6V @ 2.5A
  • Sec. VAC RMS Paral 6.3V @ 5A
  • Mounting Style A
$26.51In stock
Buy now
266L12B

Power TX 12V@2A 6V@4A

  • VA 25.2
  • Sec. VAC RMS Serie 12.6V @ 2A
  • Sec. VAC RMS Paral 6.3V @ 4A
  • Mounting Style V
$19.28In stock
Buy now
266L14

Power TX 14V ,28VA

  • VA 28
  • Sec. VAC RMS Serie 14V @ 2A
  • Sec. VAC RMS Paral 7V @ 4A
  • Mounting Style A
$25.73In stock
Buy now
266L16

Power TX 16V@2.2A, 8V @ 4.4A

  • VA 35.2
  • Sec. VAC RMS Serie 16V @ 2.2A
  • Sec. VAC RMS Paral 8V @ 4.4A
  • Mounting Style A
$28.92In stock
Buy now
266L20

Power TX 20V ,40 VA

  • VA 40
  • Sec. VAC RMS Serie 20V @ 2A
  • Sec. VAC RMS Paral 10V @ 4A
  • Mounting Style A
$32.13In stock
Buy now
266L24

Power TX 24V@2A, 12V @ 4A

  • VA 48
  • Sec. VAC RMS Serie 24V @ 2A
  • Sec. VAC RMS Paral 12V @ 4A
  • Mounting Style V
$20.25In stock
Buy now
266L25

Power TX 25.2V , 50.2 VA

  • VA 50.4
  • Sec. VAC RMS Serie 25.2V @ 2A
  • Sec. VAC RMS Paral 12.6V @ 4A
  • Mounting Style A
$27.31In stock
Buy now
266L28

Power TX 28V ,56VA

  • VA 56
  • Sec. VAC RMS Serie 28V @ 2A
  • Sec. VAC RMS Paral 14V @ 4A
  • Mounting Style B
$35.35In stock
Buy now
266L48

Power TX 48V@2A, 24V @ 4A

  • VA 96
  • Sec. VAC RMS Serie 48V @ 2A
  • Sec. VAC RMS Paral 24V @ 4A
  • Mounting Style B
$63.67In stock
Buy now

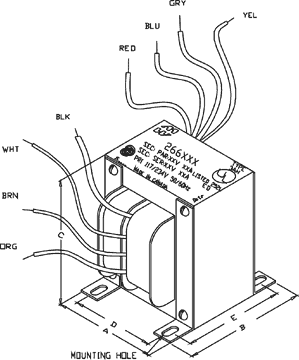

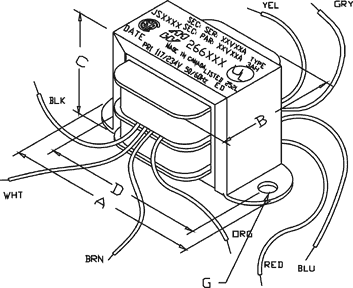

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.VASecondary VAC (R.M.S.) · Series (C.T.)Secondary VAC (R.M.S.) · ParallelMounting · StyleDimensions · ADimensions · BDimensions · CDimensions · DDimensions · EMounting Hole · HeightMounting Hole · WidthWeight · (Lbs)PriceOrder
266M27.52.5V @ 3A1.25V @ 6AA2.821.691.692.38-0.190.76$19.28In stockBuy now
266M5155V @ 3A2.5V @ 6AA3.252.062.002.81-0.191.06$24.11In stockBuy now
266F61.896.3V @ 0.3A3.15V @ 0.6AA2.061.381.251.75-0.190.2$24.11In stockBuy now
266GB63.786.3V@ 0.6A3.15V @ 1.2AA2.381.481.432.00-0.190.4$19.91In stockBuy now
266J66.36.3V @ 1A3.15V @ 2AA2.821.601.692.38-0.190.7$19.28In stockBuy now
266JB67.66.3V @ 1.2A3.15V @ 2.4AA2.821.691.692.38-0.190.7$10.49In stockBuy now
266L612.66.3V @ 2A3.15V @ 4AA3.252.062.002.81-0.190.87$24.11In stockBuy now
266M618.96.3V @ 3A3.15V @ 6AA3.252.062.002.81-0.191.15$25.73In stockBuy now
266PA637.86.3V @ 6A3.15V @ 12AA4.002.252.623.56-0.191.04$32.13In stockBuy now
266S6636.3V @ 10A3.15V @ 20AA4.002.472.623.56-0.192.6$49.83In stockBuy now
266T6756V @ 12.5A3V @ 25AB3.133.563.812.503.000.200.386.4$64.28In stockBuy now
266G94.59V @ 0.5A4.5V @ 1AA2.381.481.432.00-0.190.4$25.73In stockBuy now
266E121.812V @ 0.15A6V @ 0.3AA2.061.221.251.75-0.190.28$13.26In stockBuy now
266F12B3.612V @ 0.3A6V @ 0.6AA2.381.481.432.00-0.190.4$12.06In stockBuy now
266F12C4.212V @ 0.35A6V @ 0.7AA2.381.481.432.00-0.190.4$14.44In stockBuy now
266GD128.412V @ 0.7A6V @ 1.4AA2.821.691.692.38-0.190.76$22.52In stockBuy now
266JA121212V @ 1A6V @ 2AV2.881.732.372.38-0.191$14.44In stockBuy now
266JB1214.412V @ 1.2A6V @ 2.4AA3.252.062.002.81-0.191$24.11In stockBuy now
266LA122412V @ 2A6V @ 4AV3.131.972.752.81-0.191.6$19.28In stockBuy now
266N12B4812V @ 4A6V @ 8AA4.032.212.623.56-0.192.5$24.11In stockBuy now
266PA127212V @ 6A6V @ 12AA4.032.502.633.56-0.192.63$49.83In stockBuy now
266F123.7812.6V @ 0.3A6.3V @ 0.6AA2.381.501.452.00-0.190.4$9.76In stockBuy now
266G126.312.6V @ 0.5A6.3V @ 1AA2.811.601.682.38-0.190.6$25.73In stockBuy now
266J1212.612.6V @ 1A6.3V @ 2AA3.251.752.002.81-0.191$24.11In stockBuy now
266K1218.912.6V @ 1.5A6.3V @ 3AA3.252.062.002.81-0.191.15$24.11In stockBuy now

Features

  • ■Primary 117/234 VAC, 50/60 Hz.
  • ■All units have dual secondaries except 266LA25 (C.T. secondary only). If you only require a single primary & secondary check out our more economical 166 Series .
  • ■Secondaries can be used as; a center tapped secondary, parallel connected or used individually (except 266LA25 ).
  • ■Units are designed for use with all windings engaged.
  • ■Open style.
  • ■Minimum 6" long leads.
  • ■Dual bobbin design - no electrostatic shield required.
  • ■We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
  • ■Hi-Pot test of 2,000V RMS.
  • ■UL listed (# E207860) Type 3AH
  • ■CSA certified (209651)

Documents

Specification SheetConnection Sheet

Any questions? Talk with an expert

Call us (224) 955-1644

Related products

Peter W Dahl Transformers

Peter W Dahl Transformers · PWDAHL Series

from $125.16

Shop parts
High Voltage (Plate) & Filament - 32 VA to 454 VA

High Voltage (Plate) & Filament - 32 VA to 454 VA · 200 Series

from $57.71

Shop parts
Plate & Filament - 22 VA to 248 VA

Plate & Filament - 22 VA to 248 VA · 260 Series

from $67.08

Shop parts
Plate & Filament or Bias - 6 VA to 83 VA

Plate & Filament or Bias - 6 VA to 83 VA · 261-262 Series

from $22.39

Shop parts
High Voltage (Plate) & Filament - 39 VA to 940 VA

High Voltage (Plate) & Filament - 39 VA to 940 VA · 300 Series

from $78.79

Shop parts
Potted High Voltage (Plate) & Filament - 40 VA to 243 VA

Potted High Voltage (Plate) & Filament - 40 VA to 243 VA · 300P Series

from $285.51

Shop parts
High Voltage (Plate) - 259 VA to 1610 VA

High Voltage (Plate) - 259 VA to 1610 VA · 700 Series

from $88.65

Shop parts
Low Voltage, Filament High Current, Chassis Mount - 125 VA to 440 VA

Low Voltage, Filament High Current, Chassis Mount - 125 VA to 440 VA · 165 Series

from $47.07

Shop parts
