Multi Tap Pri, 50/60HZ, 40VA
- VA 40
- VAC 6.3V C.T. @ 2A
$285.65In stock
Buy now

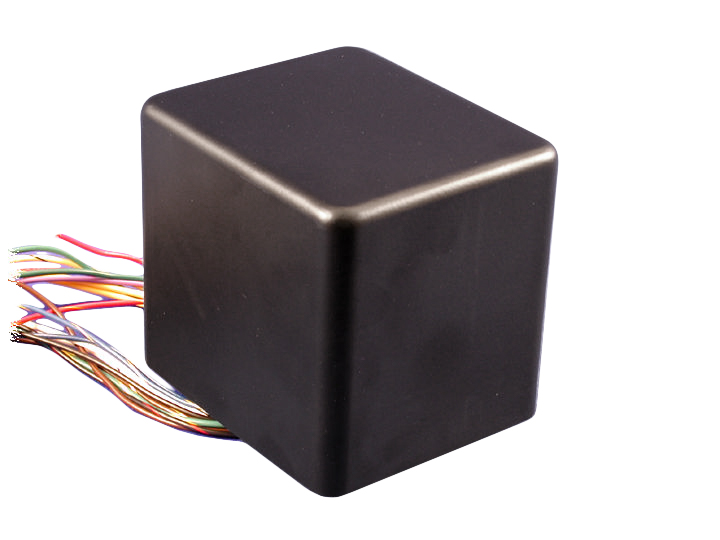

Potted High Voltage (Plate) & Filament - 40 VA to 243 VA · 300P Series
Brand: Hammond Manufacturing · 20 part numbers
Universal Primary & 50/60 Hz Operation
from $285.51
20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 300P Series part number
Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
20 of 20 part numbers · 20 priced online
Multi Tap Pri, 50/60HZ, 50VA
- VA 50
- VAC 6.3V C.T. @ 2.5A
$285.51In stock
Buy nowMulti Tap Pri, 50/60HZ, 50VA
- VA 50
- VAC 6.3V C.T. @ 2.5A
$285.84In stock
Buy nowMulti-Tap Pri, 66VA, 50/60 Hz
- VA 66
- VAC 5V C.T. @ 2A
- VAC 6.3V C.T. @ 2.5A
$289.59In stock
Buy nowMulti-Tap Pri, 76VA, 50/60 Hz
- VA 76
- VAC 6.3V C.T. @ 3.5A
$287.52In stock
Buy nowMulti-Tap Pri, 86VA, 50/60 Hz
- VA 86
- VAC 5V C.T. @ 2A
- VAC 6.3V C.T. @ 3A
$290.57In stock
Buy nowMulti-Tap Pri, 119VA,50/60HZ
- VA 119
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 4A
$312.24In stock
Buy nowMulti Tap Pri, 50/60HZ, 142VA
- VA 141
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 5A
$401.65In stock
Buy nowMulti Tap Pri, 50/60HZ, 180VA
- VA 180
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 6A
$462.33In stock
Buy nowMulti Tap Pri, 41VA ,50/60HZ
- VA 41
- VAC 5V C.T. @ 2A
- VAC 6.3V C.T. @ 1.5A
$291.60In stock
Buy nowMulti Tap Pri, 50/60HZ, 150VA
- VA 150
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 5A
$452.76Backorder
Buy nowMulti-Tap Pri, 191VA, 50/60HZ
- VA 191
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 6A
$461.76In stock
Buy nowMulti Tap Pri, 50/60HZ, 243VA
- VA 243
- VAC 5V C.T. @ 4A
- VAC 6.3V C.T. @ 8A
$512.24Backorder
Buy nowMulti-Tap Pri, 75VA, 50/60 Hz
- VA 75
- VAC 5V C.T. @ 2A
- VAC 6.3V C.T. @ 2.4A
$292.67In stock
Buy nowMulti Tap Pri, 50/60HZ, 125VA
- VA 125
- VAC 5V C.T. @ 2A
- VAC 6.3V C.T. @ 4A
$312.02In stock
Buy nowMulti-Tap Pri, 136VA, 50/60 Hz
- VA 136
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 3.5A
$311.74Backorder
Buy nowMulti Tap Pri, 750VCT Sec.
- VA 200
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 6A
$465.92In stock
Buy nowMulti-Tap PRI,141 VA, 50/60 Hz
- VA 141
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 5A
$449.69In stock
Buy nowMulti-Tap PRI,171VA, 50/60 Hz
- VA 171
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 5A
$454.84In stock
Buy nowMulti-Tap Pri, 157 VA, 50/60HZ
- VA 157
- VAC 5V C.T. @ 3A
- VAC 6.3V C.T. @ 5A
$451.01Backorder

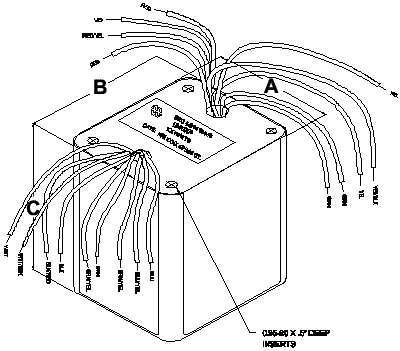

Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | VA | A.C. High Voltage · Secondary R.M.S. | Bias Tap with · High Voltage C.T. · Grounded · (VAC) | Filament #1 · (VAC) | Filament #2 · (VAC) | Dimensions · A | Dimensions · B | Dimensions · C | Mounting · Threaded · Insert | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 369AXP | 40 | 250V C.T. @ 115ma. | 50 | 6.3V C.T. @ 2A | - | 3.31 | 3.88 | 4.25 | 1/4-20 | $285.65In stock | Buy now |
| 370XP | 41 | 480V C.T. @ 46ma. | 50 | 5V C.T. @ 2A | 6.3V C.T. @ 1.5A | 3.31 | 3.88 | 4.25 | 1/4-20 | $291.60In stock | Buy now |
| 369GXP | 50 | 450V C.T. @ 74ma. | 50 | 6.3V C.T. @ 2.5A | - | 3.31 | 3.88 | 4.25 | 1/4-20 | $285.51In stock | Buy now |
| 369JXP | 50 | 500V C.T. @ 69ma. | 50 | 6.3V C.T. @ 2.5A | - | 3.31 | 3.88 | 4.25 | 1/4-20 | $285.84In stock | Buy now |
| 370CAXP | 66 | 500V C.T. @ 81ma. | 50 | 5V C.T. @ 2A | 6.3V C.T. @ 2.5A | 3.31 | 3.88 | 4.25 | 1/4-20 | $289.59In stock | Buy now |
| 370DAXP | 76 | 520V C.T. @ 104ma. | 50 | 6.3V C.T. @ 3.5A | - | 3.31 | 3.88 | 4.25 | 1/4-20 | $287.52In stock | Buy now |
| 370DXP | 86 | 550V C.T. @ 104ma. | 50 | 5V C.T. @ 2A | 6.3V C.T. @ 3A | 3.31 | 3.88 | 4.25 | 1/4-20 | $290.57In stock | Buy now |
| 370EXP | 119 | 550V C.T. @ 144ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 4A | 3.31 | 3.88 | 4.25 | 1/4-20 | $312.24In stock | Buy now |
| 370FXP | 141 | 550V C.T. @ 173ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 5A | 4.25 | 5.00 | 5.44 | 1/4-20 | $401.65In stock | Buy now |
| 370HXP | 180 | 550V C.T. @ 230ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 6A | 4.25 | 5.00 | 5.44 | 1/4-20 | $462.33In stock | Buy now |
| 372FXP | 150 | 600V C.T. @ 173ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 5A | 4.25 | 5.00 | 5.44 | 1/4-20 | $452.76Backorder | Buy now |
| 372HXP | 191 | 600V C.T. @ 230ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 6A | 4.25 | 5.00 | 5.44 | 1/4-20 | $461.76In stock | Buy now |

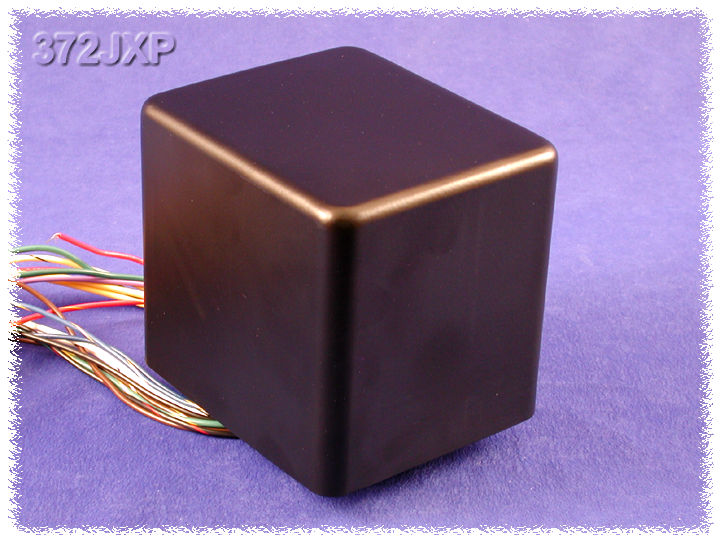

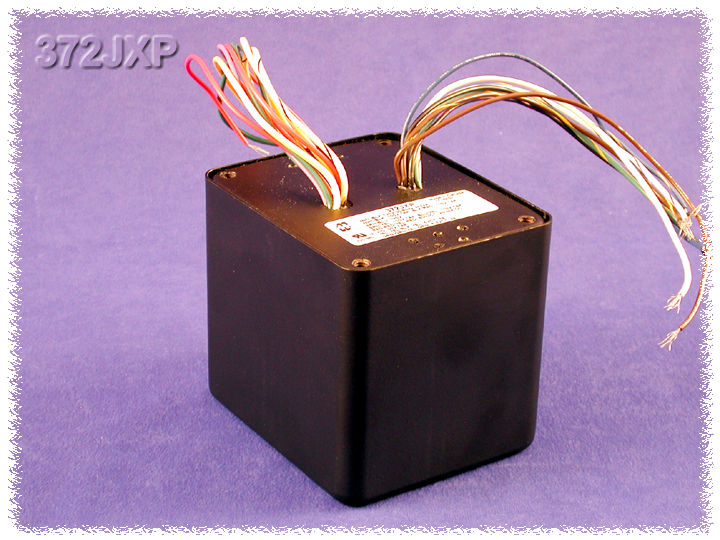

| 372JXP | 243 | 600V C.T. @ 288ma. | 50 | 5V C.T. @ 4A | 6.3V C.T. @ 8A | 4.25 | 5.00 | 5.44 | 1/4-20 | $512.24Backorder | Buy now |
| 372XP | 75 | 620V C.T. @ 81ma. | 50 | 5V C.T. @ 2A | 6.3V C.T. @ 2.4A | 3.31 | 3.88 | 4.25 | 1/4-20 | $292.67In stock | Buy now |
| 376XP | 157 | 640V C.T. @ 173ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 5A | 4.25 | 5.00 | 5.44 | 1/4-20 | $451.01Backorder | Buy now |
| 373XP | 125 | 700V C.T. @ 127ma. | 50 | 5V C.T. @ 2A | 6.3V C.T. @ 4A | 3.31 | 3.88 | 4.25 | 1/4-20 | $312.02In stock | Buy now |
| 374AXP | 136 | 720V C.T. @ 138ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 3.5A | 3.31 | 3.88 | 4.25 | 1/4-20 | $311.74Backorder | Buy now |
| 374XP | 141 | 750V C.T. @ 127ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 5A | 4.25 | 5.00 | 5.44 | 1/4-20 | $449.69In stock | Buy now |
| 374BXP | 200 | 750V C.T. @ 201ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 6A | 4.25 | 5.00 | 5.44 | 1/4-20 | $465.92In stock | Buy now |
| 375XP | 171 | 800V C.T. @ 155ma. | 50 | 5V C.T. @ 3A | 6.3V C.T. @ 5A | 4.25 | 5.00 | 5.44 | 1/4-20 | $454.84In stock | Buy now |
