115V 50/60Hz 750VCT 110VA
- VA 259
- Pri. Voltage 115 VAC
- A.C. High Voltage 750V C.T.
- CCS 345ma.
$88.65In stock
Buy now

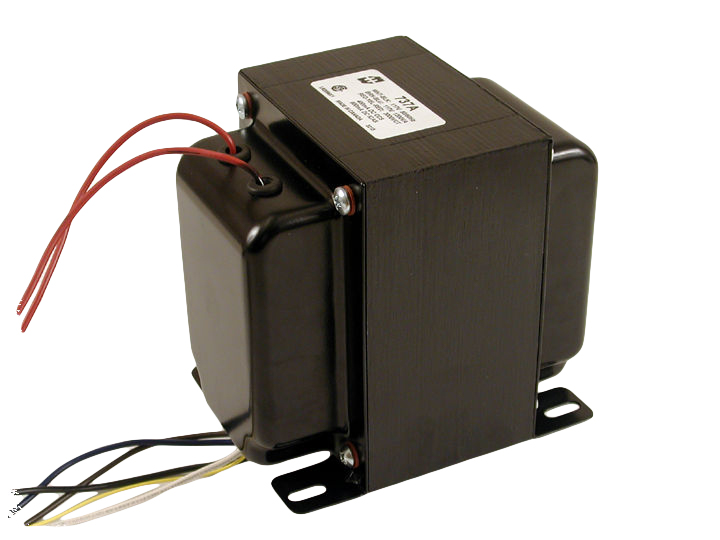

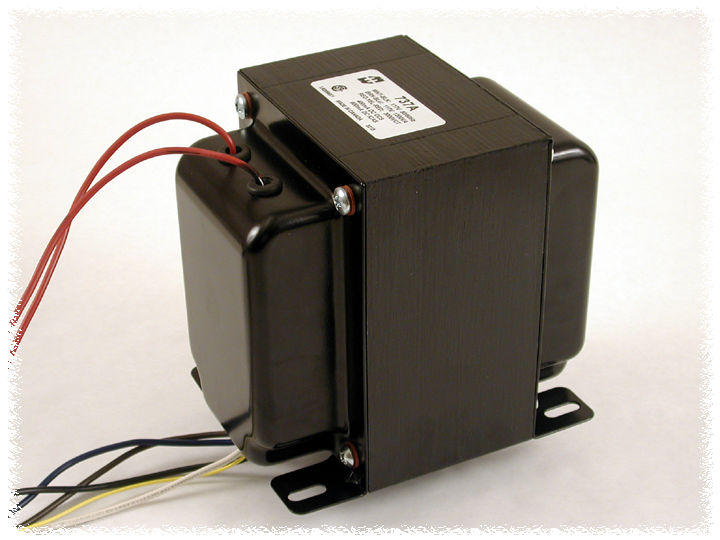

High Voltage (Plate) - 259 VA to 1610 VA · 700 Series
Brand: Hammond Manufacturing · 33 part numbers
115 V or 117/234 V Primary
- ■Two versions available: Primary 115 VAC, 50/60 Hz. or Primary 117/234 VAC, 50/60 Hz.
- ■Primary 115 VAC, 50/60 Hz. or
- ■Primary 117/234 VAC, 50/60 Hz.
- ■At 2,000 VAC and above, secondary leads are through rubber bushings (figure B).
- ■Units can be run full wave bridge or full wave C.T.
- ■V.A. is a C.C.S. rating
from $88.65
33 of 33 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 700 Series part number
Filter 33 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
33 of 33 part numbers · 33 priced online
117/234V 50/60Hz 750VCT
- VA 259
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 750V C.T.
- CCS 345ma.
$109.03In stock
Buy now115V 50/60Hz 850VCT 130VA
- VA 293
- Pri. Voltage 115 VAC
- A.C. High Voltage 850V C.T.
- CCS 345ma.
$110.06In stock
Buy now117/234V 50/60Hz 850VCT
- VA 293
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 850V C.T.
- CCS 345ma.
$118.94In stock
Buy now115V 50/60Hz 1020VCT 180VA
- VA 200
- Pri. Voltage 115 VAC
- A.C. High Voltage 1,020V C.T.
- CCS 196ma.
$94.84In stock
Buy now117/234V 50/60Hz 1020VCT
- VA 200
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 1,020V C.T.
- CCS 196ma.
$128.87In stock
Buy now115V 50/60Hz 1020VCT 200VA
- VA 352
- Pri. Voltage 115 VAC
- A.C. High Voltage 1,020V C.T.
- CCS 300ma.
$119.74In stock
Buy now117/234V 50/60Hz 1020VCT
- VA 352
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 1,020V C.T.
- CCS 300ma.
$132.84In stock
Buy now115V 50/60Hz 1020VCT 510VA
- VA 510
- Pri. Voltage 115 VAC
- A.C. High Voltage 1,020V C.T.
- CCS 500ma.
$463.88In stock
Buy now117/234V 50/60Hz 1020VCT
- VA 510
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 1,020V C.T.
- CCS 500ma.
$485.68In stock
Buy now115V 50/60Hz 1250VCT 235VA
- VA 235
- Pri. Voltage 115 VAC
- A.C. High Voltage 1,250V C.T.
- CCS 200ma.
$123.70In stock
Buy now117/234V 50/60Hz 1250VCT
- VA 235
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 1,250V C.T.
- CCS 200ma.
$135.78In stock
Buy now115V 50/60Hz 1250VCT 370VA
- VA 370
- Pri. Voltage 115 VAC
- A.C. High Voltage 1,250V C.T.
- CCS 300ma.
$142.25In stock
Buy now117/234V 50/60Hz 1250VCT
- VA 370
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 1,250V C.T.
- CCS 300ma.
$153.64In stock
Buy now115V 50/60Hz 1250VCT 625VA
- VA 720
- Pri. Voltage 115 VAC
- A.C. High Voltage 1,250V C.T.
- CCS 575ma.
$453.57Backorder
Buy now117/234V 50/60Hz 1250VCT
- VA 720
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 1,250V C.T.
- CCS 575ma.
$479.73In stock
Buy now115V 50/60Hz 1500VCT 345VA
- VA 345
- Pri. Voltage 115 VAC
- A.C. High Voltage 1,500V C.T.
- CCS 226ma.
$133.99In stock
Buy now117/234V 50/60Hz 1500VCT
- VA 345
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 1,500V C.T.
- CCS 226ma.
$138.77In stock
Buy now115V 50/60Hz 1780VCT 312VA
- VA 312
- Pri. Voltage 115 VAC
- A.C. High Voltage 1,780V C.T.
- CCS 202ma.
$133.99In stock
Buy now117/234V 50/60Hz 1780VCT
- VA 312
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 1,780V C.T.
- CCS 202ma.
$138.77In stock
Buy now115V 50/60Hz 2000VCT 210VA
- VA 346
- Pri. Voltage 115 VAC
- A.C. High Voltage 2,000V C.T.
- CCS 173ma.
$144.32In stock
Buy now117/234V 50/60Hz 2000VCT
- VA 346
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 2,000V C.T.
- CCS 173ma.
$150.66In stock
Buy now115V 50/60Hz 2500VCT 500VA
- VA 500
- Pri. Voltage 115 VAC
- A.C. High Voltage 2,500V C.T.
- CCS 200ma.
$494.80In stock
Buy now117/234V 50/60Hz 2500VCT
- VA 500
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 2,500V C.T.
- CCS 200ma.
$515.39In stock
Buy now115V 50/60Hz 2500VCT 750VA
- VA 750
- Pri. Voltage 115 VAC
- A.C. High Voltage 2,500V C.T.
- CCS 300ma.
$518.40Backorder
Buy now117/234V 50/60Hz 2500VCT
- VA 750
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 2,500V C.T.
- CCS 300ma.
$543.16In stock
Buy now115V 50/60Hz 3000VCT 735VA
- VA 735
- Pri. Voltage 115 VAC
- A.C. High Voltage 3,000V C.T.
- CCS 250ma.
$565.62In stock
Buy nowPlate 117/234V 50/60Hz
- VA 735
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 3,000V C.T.
- CCS 250ma.
$604.59In stock
Buy now115V 50/60Hz 3000VCT 1200VA
- VA 1200
- Pri. Voltage 115 VAC
- A.C. High Voltage 3,000V C.T.
- CCS 400ma.
$602.77Backorder
Buy nowPlate 115/230V 50/60Hz
- VA 1200
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 3,000V C.T.
- CCS 400ma.
$644.28In stock
Buy now115V 50/60Hz 3500VCT 1400VA
- VA 1610
- Pri. Voltage 115 VAC
- A.C. High Voltage 3,500V C.T.
- CCS 375ma.
$672.12In stock
Buy now117/234V 50/60Hz 3500VCT
- VA 1610
- Pri. Voltage 117/234 VAC
- A.C. High Voltage 3,500V C.T.
- CCS 375ma.
$711.65In stock
Buy now117/234V 50/60Hz 5000VCT
$622.88Backorder

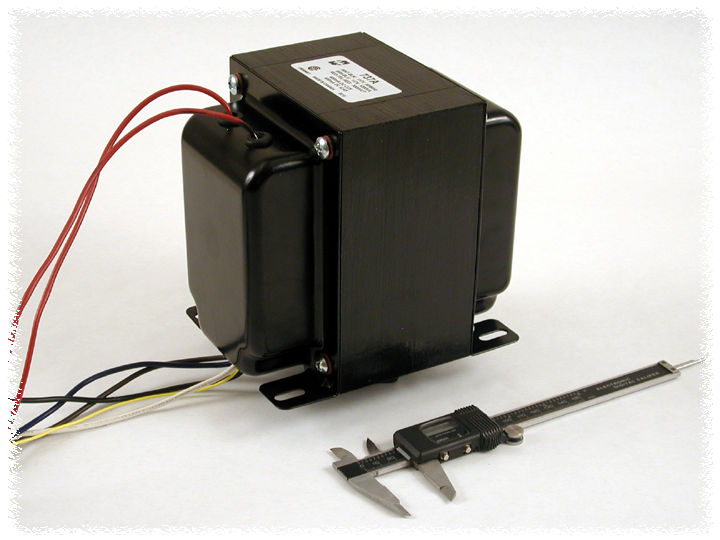

Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 115 VAC Primary | 117/234 VAC Primary | V.A. | A.C. High Voltage · Secondary · R.M.S. | H.V. Secondary · Current · (CCS) | H.V. Secondary · Current · (ICAS) | Weight · (Lbs) | Price | Order |
|---|---|---|---|---|---|---|---|---|
| 710 | 710A | 259 | 750V C.T. | 345ma. | 518ma. | 7.2 | $88.65In stock710 | Buy now |
| 712 | 712A | 293 | 850V C.T. | 345ma. | 518ma. | 8.8 | $110.06In stock712 | Buy now |
| 714 | 714A | 200 | 1,020V C.T. | 196ma. | 288ma. | 5.5 | $94.84In stock714 | Buy now |
| 715 | 715A | 352 | 1,020V C.T. | 300ma. | 450ma. | 9 | $119.74In stock715 | Buy now |
| 717 | 717A | 510 | 1,020V C.T. | 500ma. | 750ma. | 17.7 | $463.88In stock717 | Buy now |
| 718 | 718A | 235 | 1,250V C.T. | 200ma. | 300ma. | 8 | $123.70In stock718 | Buy now |
| 720 | 720A | 370 | 1,250V C.T. | 300ma. | 450ma. | 12 | $142.25In stock720 | Buy now |
| 722 | 722A | 720 | 1,250V C.T. | 575ma. | 863ma | 17.7 | $453.57Backorder722 | Buy now |
| 724 | 724A | 345 | 1,500V C.T. | 226ma. | 339ma. | 12 | $133.99In stock724 | Buy now |
| 726 | 726A | 312 | 1,780V C.T. | 202ma. | 299ma. | 12 | $133.99In stock726 | Buy now |
| 728 | 728A | 346 | 2,000V C.T. | 173ma. | 259ma. | 12 | $144.32In stock728 | Buy now |
| 732 | 732A | 500 | 2,500V C.T. | 200ma. | 300ma. | 17.7 | $494.80In stock732 | Buy now |
| 733 | 733A | 750 | 2,500V C.T. | 300ma. | 450ma. | 24 | $518.40Backorder733 | Buy now |
| 735 | 735A | 735 | 3,000V C.T. | 250ma. | 375ma. | 24 | $565.62In stock735 | Buy now |
| 737 | 737A | 1200 | 3,000V C.T. | 400ma. | 600ma. | 28.5 | $602.77Backorder737 | Buy now |
| 739 | 739A | 1610 | 3,500V C.T. | 375ma. | 565ma. | 34.7 | $672.12In stock739 | Buy now |
| 742A | 1250 | 5,000V C.T. | 250ma. | 375ma. | 26 | $622.88Backorder | Buy now |
Features
- ■Two versions available: Primary 115 VAC, 50/60 Hz. or Primary 117/234 VAC, 50/60 Hz.
- ■Primary 115 VAC, 50/60 Hz. or
- ■Primary 117/234 VAC, 50/60 Hz.
- ■At 2,000 VAC and above, secondary leads are through rubber bushings (figure B).
- ■Units can be run full wave bridge or full wave C.T.
- ■V.A. is a C.C.S. rating
- ■Current ratings are CCS (Continuous Commercial Service) & ICAS ratings (Intermittent Commercial or Amateur Service).
- ■Enclosed, 4 hole chassis mount.
- ■Minimum 6" long leads.
- ■Class A insulation (105 degrees C).
- ■Hi-Pot test at a minimum of twice secondary voltage
- ■Conservative designs - CSA certified (209651).
- ■For other H.V. combinations check out our Peter W. Dahl series as well.
- ■Notes: VA rating specified is CCS (Continuous Commercial Service) ICAS ratings (Intermittent Commercial or Amateur Service) 115VAC only models - Input Black & Black Dual Primary (117/230VAC) models - 117VAC input: connect Blue to Black and Brown to White. 234VAC input: connect Brown to Black - input is Blue & White
- ■VA rating specified is CCS (Continuous Commercial Service)
- ■ICAS ratings (Intermittent Commercial or Amateur Service)
- ■115VAC only models - Input Black & Black
- ■Dual Primary (117/230VAC) models - 117VAC input: connect Blue to Black and Brown to White.
- ■234VAC input: connect Brown to Black - input is Blue & White
