Plate & Filament or Bias - 6 VA to 83 VA 261-262 Series

Plate & Filament or Bias - 6 VA to 83 VA · 261-262 Series

Brand: Hammond Manufacturing · 19 part numbers

115 V Primary

  • ■Primary 115 VAC, 60 Hz. (Except 261B6, 261D6 & 261GE6 which are 115/230 50/60 Hz.) and ( 262EE6 which is 120/240, 50/60 Hz)
  • ■Designed for small power or bias supplies, test equipment, preamps etc.
  • ■Models 261C6, 261D6, 261E6, and 261G6 can also be used with full wave C.T. rectifiers.
  • ■Economical, two hole, channel bracket, chassis mount.
  • ■Minimum 5" long leads.
  • ■Convenient 6.3 or 12.6 volt filament/auxiliary winding.

from $22.39

18 of 19 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your 261-262 Series part number

Filter 19 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

19 of 19 part numbers · 18 priced online

261B6

Plate And Filament TX

  • Schematic Figure # 1
$36.78In stock
Buy now
261C6

Power TX

  • VA 17.5
  • A.C. Filament Seco 6.3V @ 1A
  • A.C. High Voltage 250V C.T. @ 45 ma
  • Schematic Figure # 1
$36.78In stock
Buy now

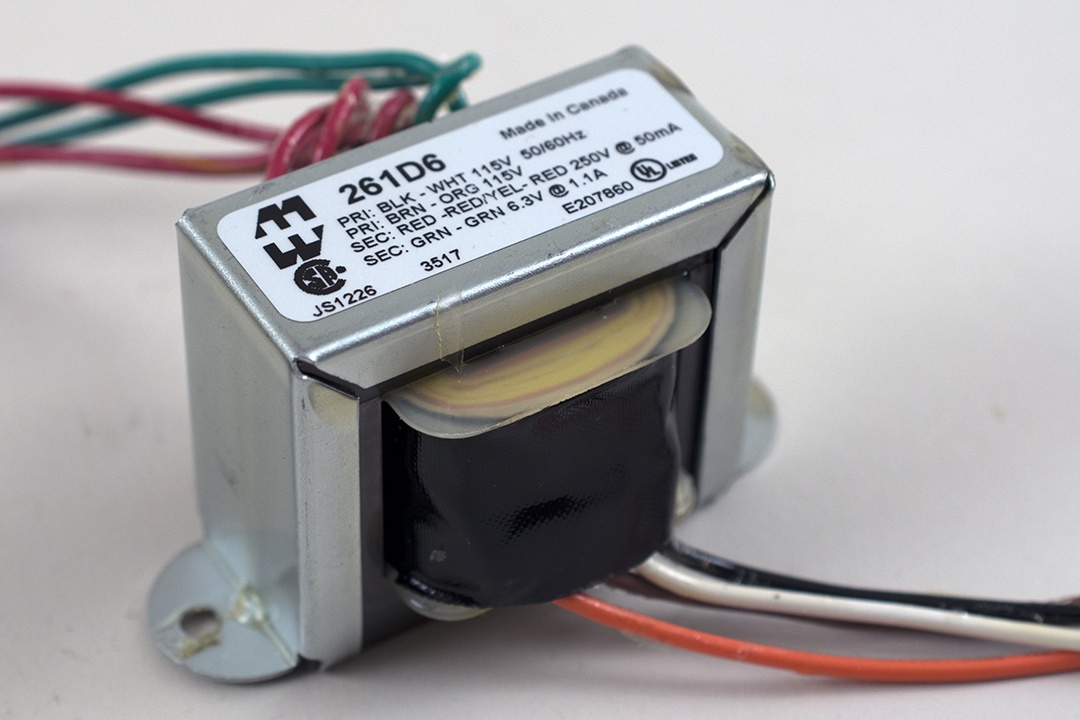

261D6

Plate And Filament TX

  • VA 19.4
  • A.C. Filament Seco 6.3V @ 1.1A
  • A.C. High Voltage 250V C.T. @ 50 ma
  • Schematic Figure # See PDF
$31.91In stock
Buy now
261E6

Power TX

  • VA 29
  • A.C. Filament Seco 6.3V @ 1A
  • A.C. High Voltage 250V C.T. @ 91 ma
  • Schematic Figure # 1
$33.57In stock
Buy now
261G6

Power TX

  • VA 45
  • A.C. Filament Seco 6.3V @ 2A
  • A.C. High Voltage 250V C.T. @ 130 ma
  • Schematic Figure # 1
$36.14In stock
Buy now
261GE6

Power TX

  • VA 45
  • A.C. Filament Seco 6.3V @ 2A
  • A.C. High Voltage 250V C.T. @ 130 ma
  • Schematic Figure # 1
$36.66In stock
Buy now
261M6

Power TX

  • VA 83
  • A.C. Filament Seco 6.3V @ 4A
  • A.C. High Voltage 215V @ 269 ma
  • Schematic Figure # 2
$68.95In stock
Buy now
262A12

117V, 50/60, 125V@15MA,12.6@3A

  • VA 6
  • A.C. Filament Seco 12.6V @ 0.3A
  • A.C. High Voltage 125V @ 15ma
  • Schematic Figure # See PDF
$27.35In stock
Buy now
262B12

Power TX

  • VA 9
  • A.C. Filament Seco 12.6V @ 0.3A
  • A.C. High Voltage 120V @ 45 ma
  • Schematic Figure # 2
$22.45In stock
Buy now
262B24

Power TX

  • VA 8
  • A.C. Filament Seco 12/12V @ 0.2/0.2A
  • A.C. High Voltage 120V @ 27 ma
  • Schematic Figure # 3
$25.16In stock
Buy now
262B6

Power TX

  • VA 7
  • A.C. Filament Seco 6.3V @ 0.3A
  • A.C. High Voltage 120V @ 43 ma
  • Schematic Figure # 2
$22.39In stock
Buy now
262D12

Power TX

  • VA 12
  • A.C. Filament Seco 12.6V @ 0.45A
  • A.C. High Voltage 120V @ 53 ma
  • Schematic Figure # 2
$23.84In stock
Buy now
262D6

Power TX

  • VA 12
  • A.C. Filament Seco 6.3V @ 0.9A
  • A.C. High Voltage 120V @ 53 ma
  • Schematic Figure # 2
$23.84In stock
Buy now
262E12

Power TX

  • VA 18
  • A.C. Filament Seco 12.6V @ 0.6A
  • A.C. High Voltage 120V @ 87 ma
  • Schematic Figure # 2
$24.61In stock
Buy now
262E6

Power TX

  • VA 18
  • A.C. Filament Seco 6.3V @ 1.2A
  • A.C. High Voltage 120V @ 87 ma
  • Schematic Figure # 2
$24.61In stock
Buy now
262EE6

Power TX

  • Schematic Figure # See PDF
$24.61In stock
Buy now
262F12

Power TX

  • VA 26
  • A.C. Filament Seco 12.6V @ 0.75A
  • A.C. High Voltage 120V @ 140 ma
  • Schematic Figure # 2
$26.76In stock
Buy now

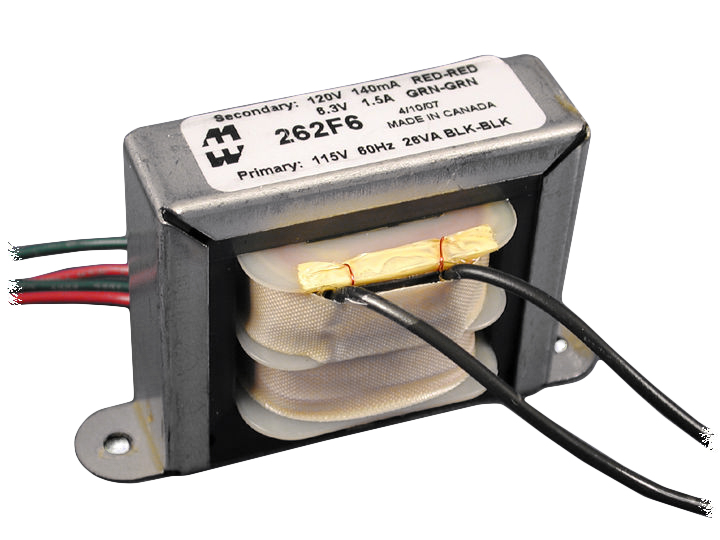

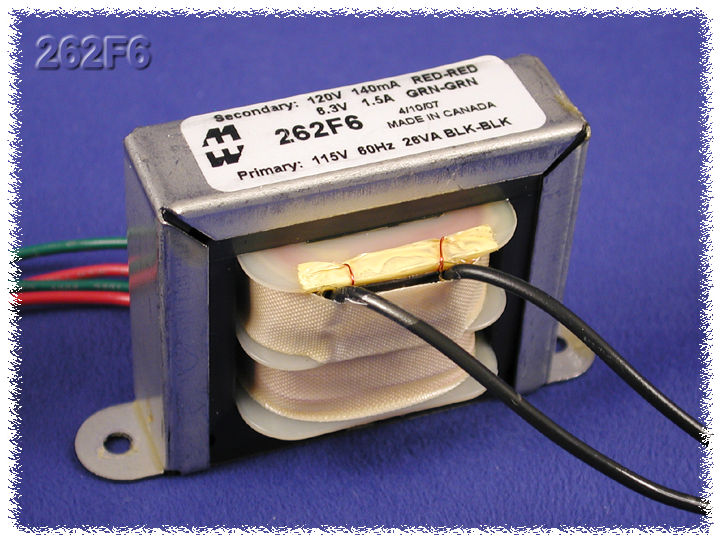

262F6

Power TX

  • VA 26
  • A.C. Filament Seco 6.3V @ 1.5A
  • A.C. High Voltage 120V @ 140 ma
  • Schematic Figure # 2
$26.76In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.VAA.C. · Secondary #1 · RMSA.C. Filament · Secondary #2 · RMSSchematic · Figure # · or PDFDimensions · ADimensions · BDimensions · CDimensions · DDimensions · GDimensions · G (2)Dimensions · G (3)Weight · (Lbs)PriceOrder
261B615.3200V C.T. @ 45 ma6.3Vct @ 1A11$36.78In stockBuy now
261C617.5250V C.T. @ 45 ma6.3V @ 1A13.251.652.002.810.190.190.191$36.78In stockBuy now
PWDP1318412.6250V @ 25 ma6.3Vct @ 1ASee PDF-----1QuoteQuote
261D619.4250V C.T. @ 50 ma6.3V @ 1.1ASee PDF-----1.5$31.91In stockBuy now
261E629250V C.T. @ 91 ma6.3V @ 1A13.691.852.313.130.190.190.191.7$33.57In stockBuy now
261G645250V C.T. @ 130 ma6.3V @ 2A14.002.252.633.560.190.190.192$36.14In stockBuy now
261GE645250V C.T. @ 130 ma6.3V @ 2A14.002.252.633.560.190.190.192$36.66In stockBuy now
261M683215V @ 269 ma6.3V @ 4A24.502.502.934.000.20x0.314$68.95In stockBuy now
262A126125V @ 15ma12.6V @ 0.3ASee PDF--------$27.35In stockBuy now
262B67120V @ 43 ma6.3V @ 0.3A22.811.501.682.380.190.190.190.6$22.39In stockBuy now
262B129120V @ 45 ma12.6V @ 0.3A22.811.501.682.380.190.190.190.6$22.45In stockBuy now
262B248120V @ 27 ma12/12V @ 0.2/0.2A32.811.501.682.380.190.190.190.6$25.16In stockBuy now
262D612120V @ 53 ma6.3V @ 0.9A23.251.622.002.810.190.190.191$23.84In stockBuy now
262D1212120V @ 53 ma12.6V @ 0.45A23.251.622.002.810.190.190.191$23.84In stockBuy now
262E618120V @ 87 ma6.3V @ 1.2A23.252.002.002.810.190.190.191.3$24.61In stockBuy now
262EE618120V @ 93 ma6.3V @ 1.2 ASee PDF-----1..3$24.61In stockBuy now
262E1218120V @ 87 ma12.6V @ 0.6A23.252.002.002.810.190.190.191.3$24.61In stockBuy now
262F626120V @ 140 ma6.3V @ 1.5A23.691.852.313.130.190.190.191.7$26.76In stockBuy now
262F1226120V @ 140 ma12.6V @ 0.75A23.691.852.313.130.190.190.191.5$26.76In stockBuy now

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

  • ■Primary 115 VAC, 60 Hz. (Except 261B6, 261D6 & 261GE6 which are 115/230 50/60 Hz.) and ( 262EE6 which is 120/240, 50/60 Hz)
  • ■Designed for small power or bias supplies, test equipment, preamps etc.
  • ■Models 261C6, 261D6, 261E6, and 261G6 can also be used with full wave C.T. rectifiers.
  • ■Economical, two hole, channel bracket, chassis mount.
  • ■Minimum 5" long leads.
  • ■Convenient 6.3 or 12.6 volt filament/auxiliary winding.

Documents

Specification Sheet

Additional information

Part Details

Part No.VAA.C. · Secondary #1 · RMSA.C. Filament · Secondary #2 · RMSSchematic · Figure # · or PDFDimensions · ADimensions · BDimensions · CDimensions · DDimensions · GDimensions · G (2)Dimensions · G (3)Weight · (Lbs)
261B615.3200V C.T. @ 45 ma6.3Vct @ 1A11
261C617.5250V C.T. @ 45 ma6.3V @ 1A13.251.652.002.810.190.190.191
PWDP1318412.6250V @ 25 ma6.3Vct @ 1ASee PDF-----1
261D619.4250V C.T. @ 50 ma6.3V @ 1.1ASee PDF-----1.5
261E629250V C.T. @ 91 ma6.3V @ 1A13.691.852.313.130.190.190.191.7
261G645250V C.T. @ 130 ma6.3V @ 2A14.002.252.633.560.190.190.192
261GE645250V C.T. @ 130 ma6.3V @ 2A14.002.252.633.560.190.190.192
261M683215V @ 269 ma6.3V @ 4A24.502.502.934.000.20x0.314
262A126125V @ 15ma12.6V @ 0.3ASee PDF--------
262B67120V @ 43 ma6.3V @ 0.3A22.811.501.682.380.190.190.190.6
262B129120V @ 45 ma12.6V @ 0.3A22.811.501.682.380.190.190.190.6
262B248120V @ 27 ma12/12V @ 0.2/0.2A32.811.501.682.380.190.190.190.6
262D612120V @ 53 ma6.3V @ 0.9A23.251.622.002.810.190.190.191
262D1212120V @ 53 ma12.6V @ 0.45A23.251.622.002.810.190.190.191
262E618120V @ 87 ma6.3V @ 1.2A23.252.002.002.810.190.190.191.3
262EE618120V @ 93 ma6.3V @ 1.2 ASee PDF-----1..3
262E1218120V @ 87 ma12.6V @ 0.6A23.252.002.002.810.190.190.191.3
262F626120V @ 140 ma6.3V @ 1.5A23.691.852.313.130.190.190.191.7
262F1226120V @ 140 ma12.6V @ 0.75A23.691.852.313.130.190.190.191.5
