High Voltage (Plate) & Filament - 39 VA to 940 VA 300 Series

High Voltage (Plate) & Filament - 39 VA to 940 VA · 300 Series

Brand: Hammond Manufacturing · 58 part numbers

Universal Primary & 50/60 Hz Operation

  • ■Primary: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz. NOTE: units are designed to operate with BOTH primary windings engaged. See primary wiring information under resources.
  • ■NOTE: units are designed to operate with BOTH primary windings engaged.
  • ■See primary wiring information under resources.

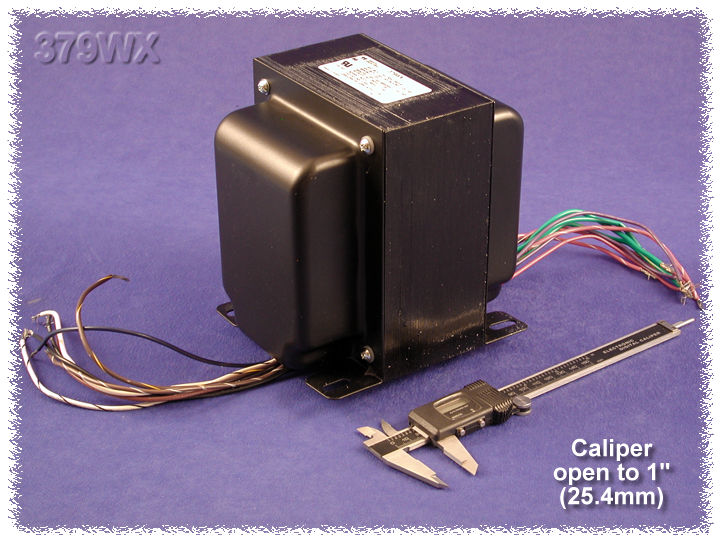

  • ■Bias Tap: 50 VAC tap from high voltage secondary C.T. (except part number 379WX - uses a separate 60VAC 0.2 Amp winding).
  • ■Highpot tested: 2,000 VAC
  • ■Faraday Copper Primary Shield: Our electrostatic shield reduces the capacitive coupling from the primary - greatly attenuating higher frequency current coupling to the secondaries (shield is internally grounded to the end bell).

from $78.79

58 of 58 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 300 Series part number

Filter 58 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

58 of 58 part numbers · 58 priced online

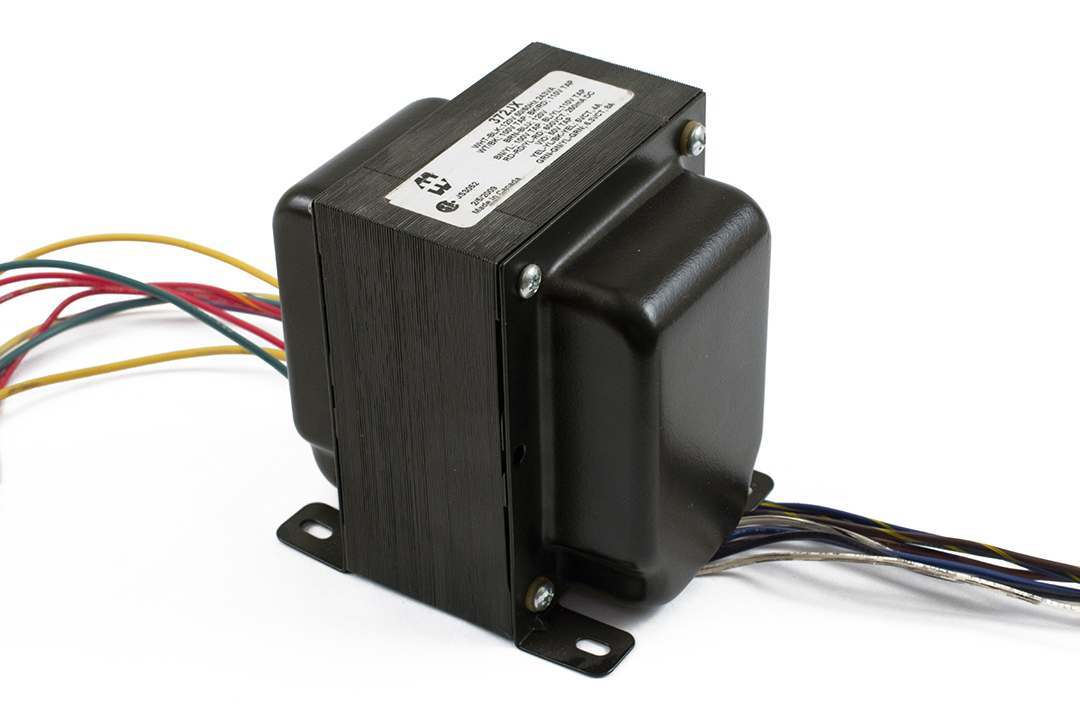

300BX

Multi Tap Pri, 50/60HZ, 280VA

  • VA 280
  • A.C. High Voltage 800V C.T. @ 288ma.
  • VAC 50
  • VAC 5V C.T. @ 1.2A
$207.34In stock
Buy now
302AX

Multi Tap Pri, 50/60HZ, 198VA

  • VA 198
  • A.C. High Voltage 600V C.T. @ 230ma.
  • VAC 50
  • VAC 2.5V C.T. @ 2.5A
$165.89In stock
Buy now
363AX

Multi-Tap Pri, 32VA, 50/60 Hz

  • VA 32
  • A.C. High Voltage 200V C.T. @ 115ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$82.67In stock
Buy now
363CX

Multi Tap Pri, 50/60HZ, 119VA

  • VA 119
  • A.C. High Voltage 360V C.T. @ 288ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$124.41In stock
Buy now
369AX

Multi Tap Pri, 50/60HZ, 40VA

  • VA 40
  • A.C. High Voltage 250V C.T. @ 115ma.
  • VAC 50
  • VAC 6.3V C.T. @ 2A
$82.93In stock
Buy now
369BX

Multi Tap Pri, 50/60HZ, 39VA

  • VA 39
  • A.C. High Voltage 300V C.T. @ 86ma.
  • VAC 50
  • VAC 6.3V C.T. @ 2A
$82.93In stock
Buy now
369EX

Multi Tap Pri, 50/60HZ, 45VA

  • VA 45
  • A.C. High Voltage 380V C.T. @ 75ma.
  • VAC 50
  • VAC 6.3V C.T. @ 2.5A
$78.79In stock
Buy now
369GX

Multi Tap Pri, 50/60HZ, 50VA

  • VA 50
  • A.C. High Voltage 450V C.T. @ 75ma.
  • VAC 50
  • VAC 6.3V C.T. @ 2.5A
$82.93In stock
Buy now
369HX

Multi Tap Pri, 50/60HZ, 121VA

  • VA 120
  • A.C. High Voltage 450V C.T. @ 150ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$136.39In stock
Buy now

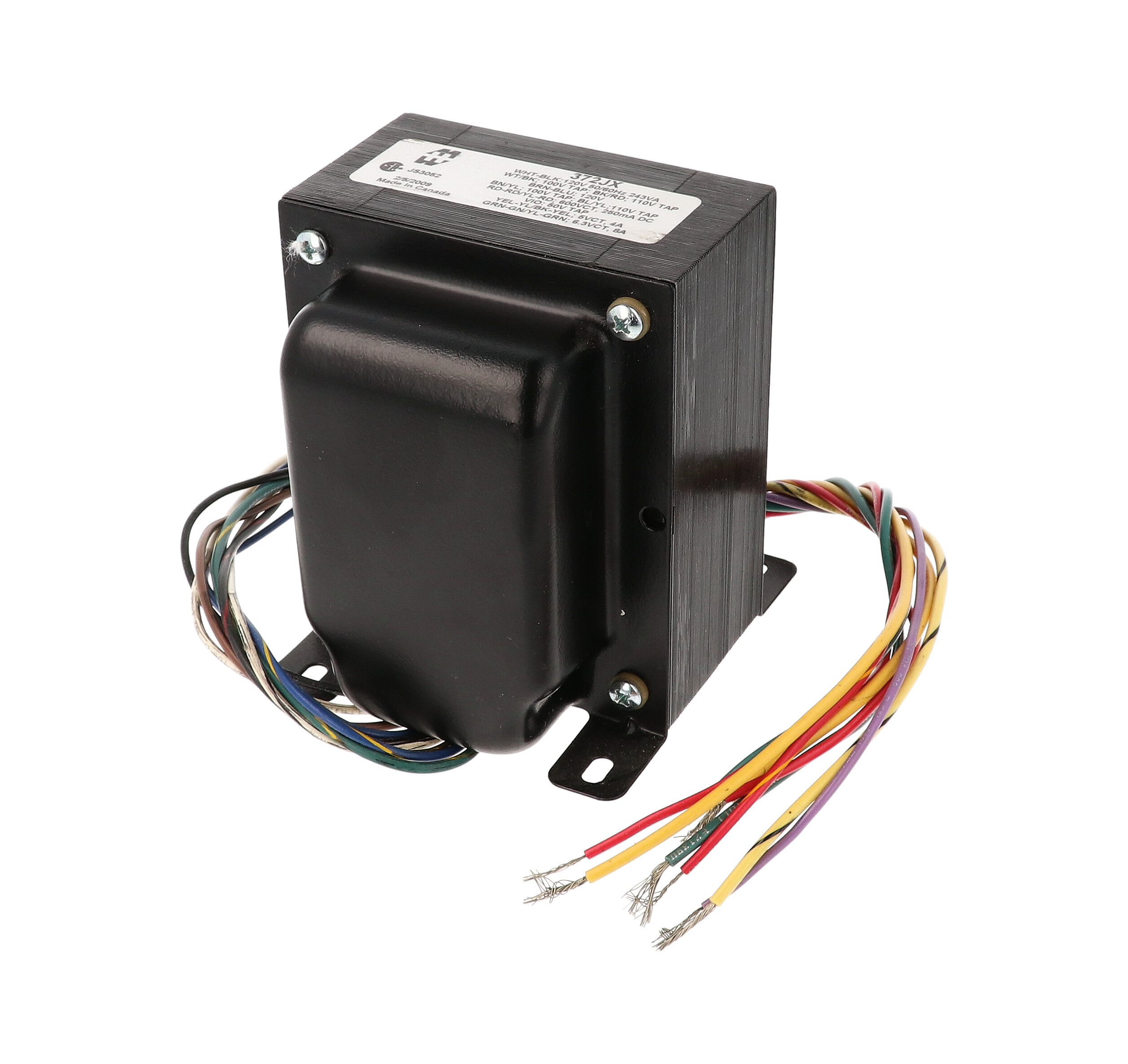

369JX

Multi Tap Pri, 50/60HZ, 50VA

  • VA 50
  • A.C. High Voltage 500V C.T. @ 69ma.
  • VAC 50
  • VAC 6.3V C.T. @ 2.5A
$84.99In stock
Buy now
369KX

Multi Tap Pri, 50/60HZ, 188VA

  • VA 188
  • A.C. High Voltage 450V C.T. @ 300ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$149.64In stock
Buy now
369KZ

Tube Power Trans

  • VA 188
  • A.C. High Voltage 450V C.T. @ 300 ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$168.36Backorder
Buy now
370AX

Multi Tap Pri, 50/60HZ, 44VA

  • VA 44
  • A.C. High Voltage 480V C.T. @ 58ma.
  • VAC 50
  • VAC 6.3V C.T. @ 2.5A
$89.17In stock
Buy now
370BX

Multi Tap Pri, 50/60HZ, 55VA

  • VA 55
  • A.C. High Voltage 550V C.T. @ 58ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$93.30In stock
Buy now
370CAX

Multi-Tap Pri, 66VA, 50/60 Hz

  • VA 66
  • A.C. High Voltage 500V C.T. @ 81ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$104.64In stock
Buy now
370CX

Multi-Tap Pri, 59VA, 50/60 Hz

  • VA 59
  • A.C. High Voltage 550V C.T. @ 75ma.
  • VAC 50
  • VAC 6.3V C.T. @ 0.6A
$100.74In stock
Buy now
370DAX

Multi-Tap Pri, 76VA, 50/60 Hz

  • VA 76
  • A.C. High Voltage 520V C.T. @ 104ma.
  • VAC 50
  • VAC 6.3V C.T. @ 3.5A
$100.74In stock
Buy now
370DAZ

Multi-Tap Pri, 76 VA, 50/60 Hz

  • VA 76
  • A.C. High Voltage 520V C.T. @ 104ma.
  • VAC 50
  • VAC 6.3V C.T. @ 3.5A
$103.36In stock
Buy now
370DX

Multi-Tap Pri, 86VA, 50/60 Hz

  • VA 86
  • A.C. High Voltage 550V C.T. @ 104ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$104.64In stock
Buy now
370EX

Multi-Tap Pri, 119VA,50/60HZ

  • VA 119
  • A.C. High Voltage 550V C.T. @ 144ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$114.98In stock
Buy now
370FX

Multi Tap Pri, 50/60HZ, 142VA

  • VA 141
  • A.C. High Voltage 550V C.T. @ 173ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$124.41In stock
Buy now
370HX

Multi Tap Pri, 50/60HZ, 180VA

  • VA 180
  • A.C. High Voltage 550V C.T. @ 230ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$157.58In stock
Buy now
370JX

Multi Tap Pri, 50/60HZ, 134VA

  • VA 133
  • A.C. High Voltage 500V C.T. @ 161ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$154.29In stock
Buy now
370KX

Multi Tap Pri, 50/60HZ, 229VA

  • VA 229
  • A.C. High Voltage 500V C.T. @ 322ma.
  • VAC 50
  • VAC 5V C.T. @ 6A
$160.22Backorder
Buy now
370KZ

Tube Power Trans

  • VA 218
  • A.C. High Voltage 500V C.T. @ 300 ma.
  • VAC 50
  • VAC 5V C.T. @ 6A
$186.87In stock
Buy now
370LX

Multi Tap Pri, 50/60HZ, 342VA

  • VA 340
  • A.C. High Voltage 550V C.T. @ 460ma.
  • VAC 50
  • VAC 5V C.T. @ 6A
$209.76In stock
Buy now
370MX

Multi Tap Pri, 50/60HZ, 403VA

  • VA 403
  • A.C. High Voltage 550V C.T. @ 575ma.
  • VAC 50
  • VAC 5V C.T. @ 6A
$213.18In stock
Buy now
370X

Multi Tap Pri, 41VA ,50/60HZ

  • VA 41
  • A.C. High Voltage 480V C.T. @ 46ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$91.72In stock
Buy now
371X

Multi-Tap Pri, 63VA, 50/60 Hz

  • VA 63
  • A.C. High Voltage 560V C.T. @ 69ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$95.58In stock
Buy now
372BX

Multi Tap Pri, 50/60HZ, 98VA

  • VA 98
  • A.C. High Voltage 600V C.T. @ 115ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$109.88In stock
Buy now
372DX

Multi-Tap Pri, 127VA, 50/60HZ

  • VA 127
  • A.C. High Voltage 600V C.T. @ 144ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$121.43In stock
Buy now

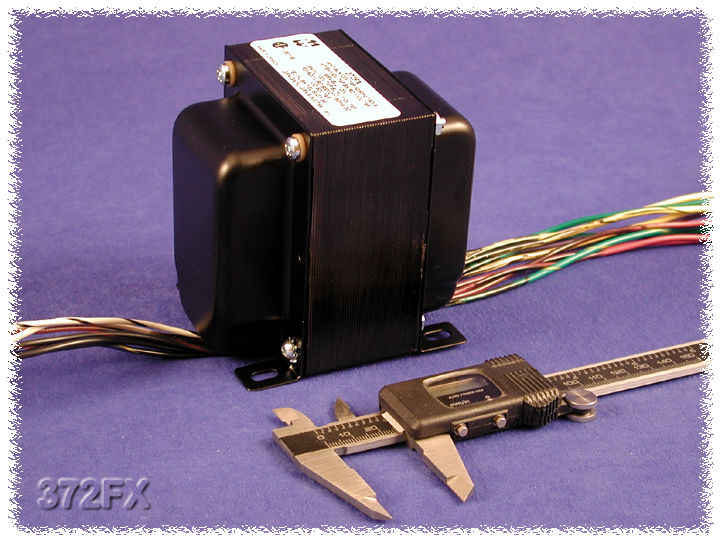

372FX

Multi Tap Pri, 50/60HZ, 150VA

  • VA 150
  • A.C. High Voltage 600V C.T. @ 173ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$140.98In stock
Buy now
372HX

Multi-Tap Pri, 191VA, 50/60HZ

  • VA 191
  • A.C. High Voltage 600V C.T. @ 230ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$160.17In stock
Buy now

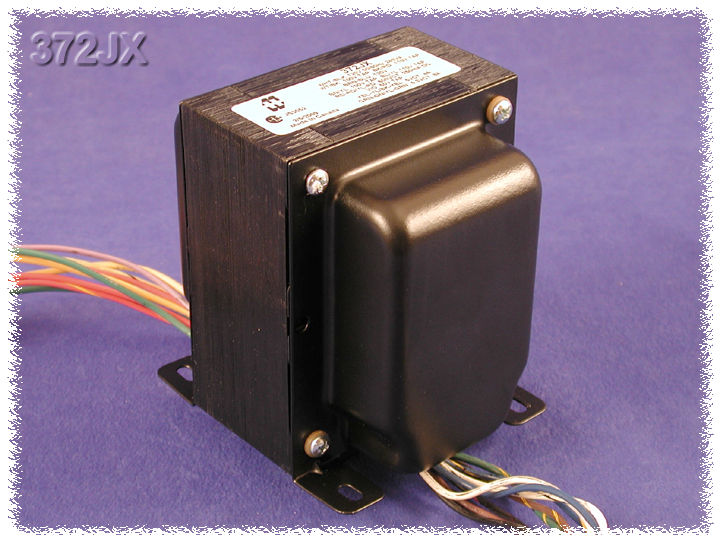

372JX

Multi Tap Pri, 50/60HZ, 243VA

  • VA 243
  • A.C. High Voltage 600V C.T. @ 288ma.
  • VAC 50
  • VAC 5V C.T. @ 4A
$170.02In stock
Buy now
372KX

Multi Tap Pri, 50/60HZ, 436VA

  • VA 432
  • A.C. High Voltage 600V C.T. @ 575ma
  • VAC 50
  • VAC 5V C.T. @ 6A
$232.57In stock
Buy now
372LX

Multi Tap Pri, 50/60HZ, 522VA

  • VA 520
  • A.C. High Voltage 600V C.T. @ 690ma
  • VAC 50
  • VAC 5V C.T. @ 6A
$258.58In stock
Buy now
372X

Multi-Tap Pri, 75VA, 50/60 Hz

  • VA 75
  • A.C. High Voltage 620V C.T. @ 81ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$108.52In stock
Buy now
373AZ

Multi Tap Pri 52 VA , 50/60 Hz

  • VA 49
  • A.C. High Voltage 650V C.T. @ 46ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$113.67In stock
Buy now
373BX

Multi Tap Pri, 50/60HZ, 187VA

  • VA 187
  • A.C. High Voltage 700V C.T. @ 201ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$145.13In stock
Buy now
373CZ

Multi-Tap Pri, 159VA, 50/60HZ

  • VA 159
  • A.C. High Voltage 650V C.T. @ 173ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$180.86In stock
Buy now
373DX

Multi-Tap Pri, 90VA, 50/60 Hz

  • VA 101
  • A.C. High Voltage 700V C.T. @ 104ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$144.69In stock
Buy now
373DZ

Multi-Tap Pri, 101 VA,50/60 Hz

  • VA 101
  • A.C. High Voltage 700V C.T. @ 104ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$147.28Backorder
Buy now
373EX

Multi Tap Pri, 50/60HZ, 342VA

  • VA 311
  • A.C. High Voltage 650V C.T. @ 345ma.
  • VAC 50
  • VAC 5V C.T. @ 6A
$218.19In stock
Buy now
373FX

Multi Tap Pri, 50/60HZ, 386VA

  • VA 386
  • A.C. High Voltage 650V C.T. @ 460ma.
  • VAC 50
  • VAC 5V C.T. @ 6A
$226.88In stock
Buy now
373HX

Multi Tap Pri, 50/60HZ, 369VA

  • VA 369
  • A.C. High Voltage 700V C.T. @ 403ma.
  • VAC 50
  • VAC 5V C.T. @ 6A
$243.66In stock
Buy now
373JX

Multi Tap Pri, 50/60HZ, 714VA

  • VA 710
  • A.C. High Voltage 700V C.T. @ 863ma.
  • VAC 50
  • VAC 5V C.T. @ 6A
$439.68In stock
Buy now
373X

Multi Tap Pri, 50/60HZ, 125VA

  • VA 125
  • A.C. High Voltage 700V C.T. @ 127ma.
  • VAC 50
  • VAC 5V C.T. @ 2A
$135.77In stock
Buy now
374AX

Multi-Tap Pri, 136VA, 50/60 Hz

  • VA 136
  • A.C. High Voltage 720V C.T. @ 138ma.
  • VAC 50
  • VAC 5V C.T. @ 3A
$134.38In stock
Buy now
Dimension tables (inches / mm)
Part No.VAA.C. · High Voltage · Secondary · R.M.S.Bias Tap on High · Voltage secondary · with C.T Grounded · (VAC)Filament #1 · (VAC)Filament #2 · (VAC)Filament #3 · (VAC)Filament #4 · (VAC)Dimension · ReferencePriceOrder
363AX32200V C.T. @ 115ma.505V C.T. @ 2A---X6$82.67In stockBuy now
369AX40250V C.T. @ 115ma.506.3V C.T. @ 2A---X6$82.93In stockBuy now
369BX39300V C.T. @ 86ma.506.3V C.T. @ 2A---X6$82.93In stockBuy now
363CX119360V C.T. @ 288ma.505V C.T. @ 3A---X11$124.41In stockBuy now
369EX45380V C.T. @ 75ma.506.3V C.T. @ 2.5A---X6$78.79In stockBuy now
369HX120450V C.T. @ 150ma.505V C.T. @ 3A6.3V C.T. @ 6A--X10$136.39In stockBuy now
369KX188450V C.T. @ 300ma.505V C.T. @ 3A6.3V C.T. @ 6A--X20$149.64In stockBuy now
370X41480V C.T. @ 46ma.505V C.T. @ 2A6.3V C.T. @ 1.5A--X6$91.72In stockBuy now
370AX44480V C.T. @ 58ma.506.3V C.T. @ 2.5A---X6$89.17In stockBuy now
369GX50450V C.T. @ 75ma.506.3V C.T. @ 2.5A---X6$82.93In stockBuy now
369JX50500V C.T. @ 69ma.506.3V C.T. @ 2.5A---X6$84.99In stockBuy now
370CAX66500V C.T. @ 81ma.505V C.T. @ 2A6.3V C.T. @ 2.5A--X8$104.64In stockBuy now
370JX133500V C.T. @ 161ma.505V C.T. @ 3A6.3V C.T. @ 6A--X20$154.29In stockBuy now
370KX229500V C.T. @ 322ma.505V C.T. @ 6A6.3V C.T. @ 6A--X22$160.22BackorderBuy now
370DAX76520V C.T. @ 104ma.506.3V C.T. @ 3.5A---X8$100.74In stockBuy now
370BX55550V C.T. @ 58ma.505V C.T. @ 2A6.3V C.T. @ 2A--X7$93.30In stockBuy now
370CX59550V C.T. @ 75ma.506.3V C.T. @ 0.6A6.3V C.T. @ 2.5A--X7$100.74In stockBuy now
370DX86550V C.T. @ 104ma.505V C.T. @ 2A6.3V C.T. @ 3A--X8$104.64In stockBuy now
370EX119550V C.T. @ 144ma.505V C.T. @ 3A6.3V C.T. @ 4A--X11$114.98In stockBuy now
370FX141550V C.T. @ 173ma.505V C.T. @ 3A6.3V C.T. @ 5A--X19$124.41In stockBuy now
370HX180550V C.T. @ 230ma.505V C.T. @ 3A6.3V C.T. @ 6A--X20$157.58In stockBuy now
370LX340550V C.T. @ 460ma.505V C.T. @ 6A6.3V C.T. @ 9A--X23$209.76In stockBuy now
370MX403550V C.T. @ 575ma.505V C.T. @ 6A6.3V C.T. @ 9A--X24$213.18In stockBuy now
371X63560V C.T. @ 69ma.505V C.T. @ 2A6.3V C.T. @ 2A--X7$95.58In stockBuy now
372BX98600V C.T. @ 115ma.505V C.T. @ 2A6.3V C.T. @ 3A--X10$109.88In stockBuy now

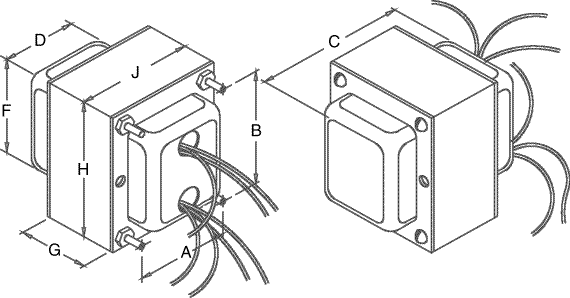

Horizontal Mount ("Z" mounting)

Units shown: inch . Switch units to: mm

Part No.VAA.C. · High Voltage · Secondary · R.M.S.Bias Tap on High · Voltage secondary · with C.T Grounded · (VAC)Filament #1 · (VAC)Filament #2 · (VAC)Dimensions · ADimensions · BDimensions · CDimensions · DDimensions · FDimensions · GDimensions · HDimensions · JPriceOrder
370DAZ76520V C.T. @ 104ma.506.3V C.T. @ 3.5A-2.252.813.502.502.441.303.382.81$103.36In stockBuy now
373AZ49650V C.T. @ 46ma.505V C.T. @ 2A6.3V C.T. @ 2A2.502.813.451.872.441.253.382.81$113.67In stockBuy now
373CZ159650V C.T. @ 173ma.505V C.T. @ 3A6.3V C.T. @ 5A2.503.154.082.062.691.843.753.13$180.86In stockBuy now
373DZ101700V C.T. @ 104ma.505V C.T. @ 2A6.3V C.T. @ 3A2.503.153.602.062.691.393.753.13$147.28BackorderBuy now
369KZ188450V C.T. @ 300 ma.505V C.T. @ 3A6.3V C.T. @ 6A2.503.124.252.062.692.063.753.12$168.36BackorderBuy now
370KZ218500V C.T. @ 300 ma.505V @ 6A6.3V C.T. @ 6A3.003.754.062.593.381.814.503.75$186.87In stockBuy now

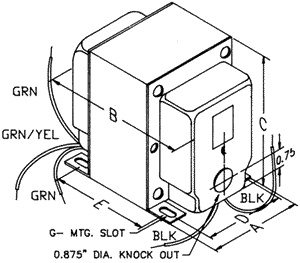

Vertical Mount ("X" mounting)

Units shown: inch . Switch units to: mm

Mtg. · StyleDimensions · ADimensions · BDimensions · CDimensions · DDimensions · EG - Mtg. SlotPriceOrder
X62.502.753.062.001.69.203 X .38QuoteQuote
X72.503.003.062.001.94.203 X .38QuoteQuote
X82.503.253.062.002.19.203 X .38QuoteQuote
X92.503.753.062.002.69.203 X .38QuoteQuote
X103.133.503.812.502.19.203 X .38QuoteQuote
X113.133.753.812.502.44.203 X .38QuoteQuote
X133.754.004.563.002.81.203 X .38QuoteQuote
X143.754.504.563.003.31.203 X .38QuoteQuote
X153.755.004.563.003.81.203 X .38QuoteQuote
X193.133.943.802.502.69.203 X .38QuoteQuote
X203.134.253.812.502.94.203 X .38QuoteQuote
X214.385.605.303.504.00.281 X .625QuoteQuote
X223.754.194.563.003.06.203 X .38QuoteQuote
X234.384.855.303.503.25.281 X .625QuoteQuote
X244.385.105.303.503.50.281 X .625QuoteQuote
X254.386.105.303.504.50.281 X .625QuoteQuote
X265.286.606.364.255.00.281 X .750QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Primary: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz. NOTE: units are designed to operate with BOTH primary windings engaged. See primary wiring information under resources.
  • ■NOTE: units are designed to operate with BOTH primary windings engaged.
  • ■See primary wiring information under resources.
  • ■Bias Tap: 50 VAC tap from high voltage secondary C.T. (except part number 379WX - uses a separate 60VAC 0.2 Amp winding).
  • ■Highpot tested: 2,000 VAC
  • ■Faraday Copper Primary Shield: Our electrostatic shield reduces the capacitive coupling from the primary - greatly attenuating higher frequency current coupling to the secondaries (shield is internally grounded to the end bell).
  • ■Windings: Concentric wound for low stray field and low noise.
  • ■Models: This series is an upgrade from our entire 200 Series range of units PLUS 2 models designed specifically for 300B tubes (Part Number 300BX ) and 2A3 tubes (Part Number 302AX ).
  • ■Finish: Black powder paint to match our 1650 series of output transformers
  • ■Units can be run full wave bridge or full wave C.T.
  • ■Conservative designs - CSA certified (209651).
  • ■For a more economical, open frame, universal primary - check out our 260 Series .
  • ■For that "high end" look & feel check out our potted versions - the 300P Series .

Documents

Specification Sheet

Any questions? Talk with an expert

Call us (224) 955-1644

Related products

Peter W Dahl Transformers

Peter W Dahl Transformers · PWDAHL Series

from $125.16

Shop parts
High Voltage (Plate) & Filament - 32 VA to 454 VA

High Voltage (Plate) & Filament - 32 VA to 454 VA · 200 Series

from $57.71

Shop parts
Plate & Filament - 22 VA to 248 VA

Plate & Filament - 22 VA to 248 VA · 260 Series

from $67.08

Shop parts
Plate & Filament or Bias - 6 VA to 83 VA

Plate & Filament or Bias - 6 VA to 83 VA · 261-262 Series

from $22.39

Shop parts
Potted High Voltage (Plate) & Filament - 40 VA to 243 VA

Potted High Voltage (Plate) & Filament - 40 VA to 243 VA · 300P Series

from $285.51

Shop parts
High Voltage (Plate) - 259 VA to 1610 VA

High Voltage (Plate) - 259 VA to 1610 VA · 700 Series

from $88.65

Shop parts
Low Voltage, Filament High Current, Chassis Mount - 125 VA to 440 VA

Low Voltage, Filament High Current, Chassis Mount - 125 VA to 440 VA · 165 Series

from $47.07

Shop parts
Low Voltage/Filament - Economical Single Primary - 0.63 VA to 288 VA

Low Voltage/Filament - Economical Single Primary - 0.63 VA to 288 VA · 166 Series

from $6.75

Shop parts
