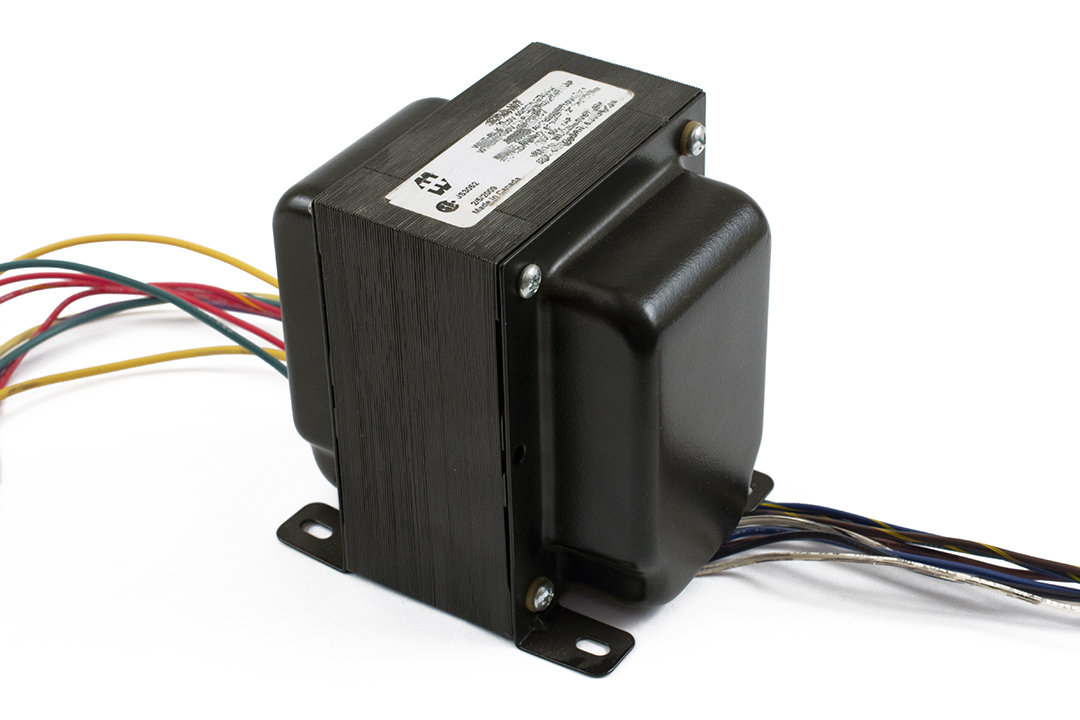

High Voltage (Plate) & Filament - 32 VA to 454 VA 200 Series

High Voltage (Plate) & Filament - 32 VA to 454 VA · 200 Series

Brand: Hammond Manufacturing · 44 part numbers

North American 115V / 125V Primary (60 Hz. Only)

  • ■Primary 115 VAC, 60 Hz. - except as noted For "universal" primaries and/or 50/60 Hz. operation and other output voltage combinations please see our 300 Series .
  • ■For "universal" primaries and/or 50/60 Hz. operation and other output voltage combinations please see our 300 Series .
  • ■Enclosed, 4 hole, chassis mount.
  • ■Minimum 6" long leads.
  • ■Units can be run full wave bridge or full wave C.T.
  • ■Class A insulation (105 degrees C).

from $57.71

44 of 44 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 200 Series part number

Filter 45 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

45 of 45 part numbers · 44 priced online

263AX

Power TX

  • VA 32
  • Pri. VAC 115
  • A.C. High Voltage 200V C.T. @ 115ma.
  • Filament # 1 VAC 5V @ 2A
$57.71In stock
Buy now
263CX

Power TX

  • VA 116
  • Pri. VAC 115
  • A.C. High Voltage 360V C.T. @ 287ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$83.52In stock
Buy now
269AX

35VA 6.3V 2.0A

  • VA 40
  • Pri. VAC 115
  • A.C. High Voltage 250V C.T. @ 115ma.
  • Filament # 1 VAC 6.3V @ 2A
$61.89In stock
Buy now
269BX

Power TX

  • VA 38
  • Pri. VAC 115
  • A.C. High Voltage 300V C.T. @ 86ma.
  • Filament # 1 VAC 6.3V @ 2A
$61.04In stock
Buy now

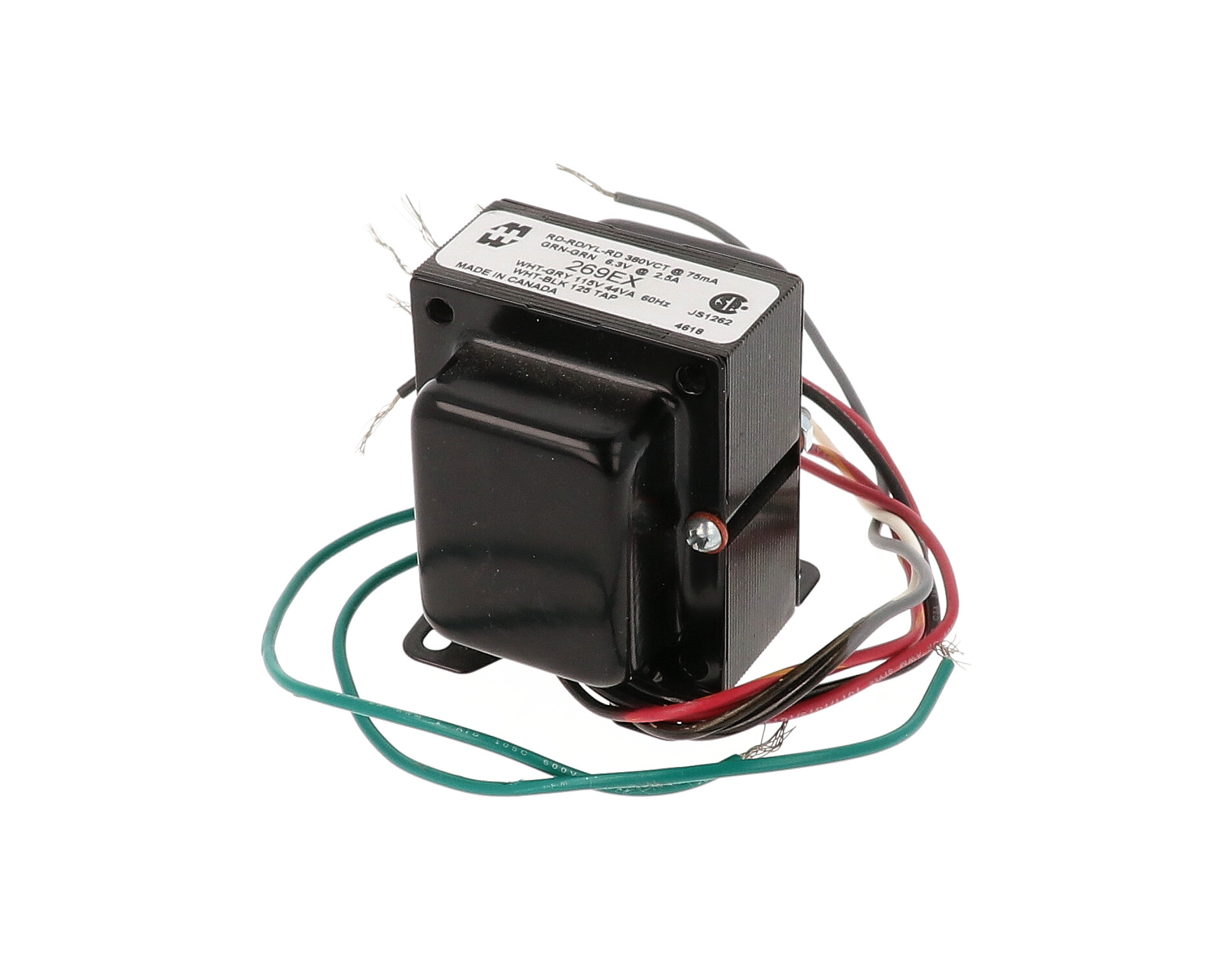

269EX

Power TX

  • VA 43
  • Pri. VAC 115
  • A.C. High Voltage 380V C.T. @ 71ma.
  • Filament # 1 VAC 6.3V @ 2.5A
$58.99In stock
Buy now
269GX

Power TX

  • VA 48
  • Pri. VAC 115
  • A.C. High Voltage 450V C.T. @ 75ma.
  • Filament # 1 VAC 6.3V @ 2.5A
$62.02In stock
Buy now
269JX

Power TX

  • VA 50
  • Pri. VAC 115
  • A.C. High Voltage 500V C.T. @ 69ma.
  • Filament # 1 VAC 6.3V @ 2.5A
$63.73In stock
Buy now
270AX

Power TX

  • VA 42
  • Pri. VAC 115
  • A.C. High Voltage 480V C.T. @ 58ma.
  • Filament # 1 VAC 6.3V @ 2.5A
$65.87In stock
Buy now
270BX

Power TX

  • VA 53
  • Pri. VAC 115
  • A.C. High Voltage 550V C.T. @ 57.5ma.
  • Filament # 1 VAC 5V @ 2A
$69.48In stock
Buy now
270CAX

250-0-250,5V@2A, 6.3VCT@2.5A

  • VA 65
  • Pri. VAC 117
  • A.C. High Voltage 500V C.T. @ 81ma.
  • Filament # 1 VAC 5V @ 2A
$77.69In stock
Buy now
270CX

Power TX

  • VA 59
  • Pri. VAC 115
  • A.C. High Voltage 550V C.T. @ 75ma.
  • Filament # 1 VAC 6.3V @ 0.6A
$75.16In stock
Buy now
270DAX

260-0-260,90MA, 6.3V@4A,50/60

  • VA 76
  • Pri. VAC 117
  • A.C. High Voltage 520V C.T. @ 104ma.
  • Filament # 1 VAC 6.3V @ 3.5A
$74.98In stock
Buy now
270DAZ

260-0-260,90MA,6.3V@4A,50/60

  • VA 76
  • Pri. VAC 117
  • A.C. High Voltage 520V C.T. @ 104ma.
  • Filament # 1 VAC 6.3V @ 3.5A
$76.64In stock
Buy now
270DBX

250-0-250V 115mA/5V 2A/6.3V 3A

$77.86In stock
Buy now
270DX

275-0-275V 104mA/5V 2A/6.3V 3A

  • VA 83
  • Pri. VAC 115
  • A.C. High Voltage 550V C.T. @ 104ma.
  • Filament # 1 VAC 5V @ 2A
$77.86In stock
Buy now
270EX

Power TX

  • VA 118
  • Pri. VAC 115
  • A.C. High Voltage 550V C.T. @ 144ma.
  • Filament # 1 VAC 5V @ 3A
$85.33In stock
Buy now
270FX

Power TX

  • VA 138
  • Pri. VAC 115
  • A.C. High Voltage 550V C.T. @ 173ma.
  • Filament # 1 VAC 5V @ 3A
$90.81In stock
Buy now
270HX

Power TX

  • VA 176
  • Pri. VAC 115
  • A.C. High Voltage 550V C.T. @ 230ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$115.48In stock
Buy now
270X

Power TX

  • VA 41
  • Pri. VAC 115
  • A.C. High Voltage 480V C.T. @ 46ma.
  • Filament # 1 VAC 5V @ 2A
$68.16In stock
Buy now
271X

Power TX

  • VA 63
  • Pri. VAC 115
  • A.C. High Voltage 560V C.T. @ 69ma.
  • Filament # 1 VAC 5V @ 2A
$68.10In stock
Buy now
272BX

Power TX

  • VA 95
  • Pri. VAC 115
  • A.C. High Voltage 600V C.T. @ 115ma.
  • Filament # 1 VAC 5V @ 2A
$81.44In stock
Buy now
272DX

Power TX

  • VA 123
  • Pri. VAC 115
  • A.C. High Voltage 600V C.T. @ 144ma.
  • Filament # 1 VAC 5V @ 3A
$90.52In stock
Buy now
272FX

Power TX

  • VA 146
  • Pri. VAC 115
  • A.C. High Voltage 600V C.T. @ 172ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$104.42In stock
Buy now

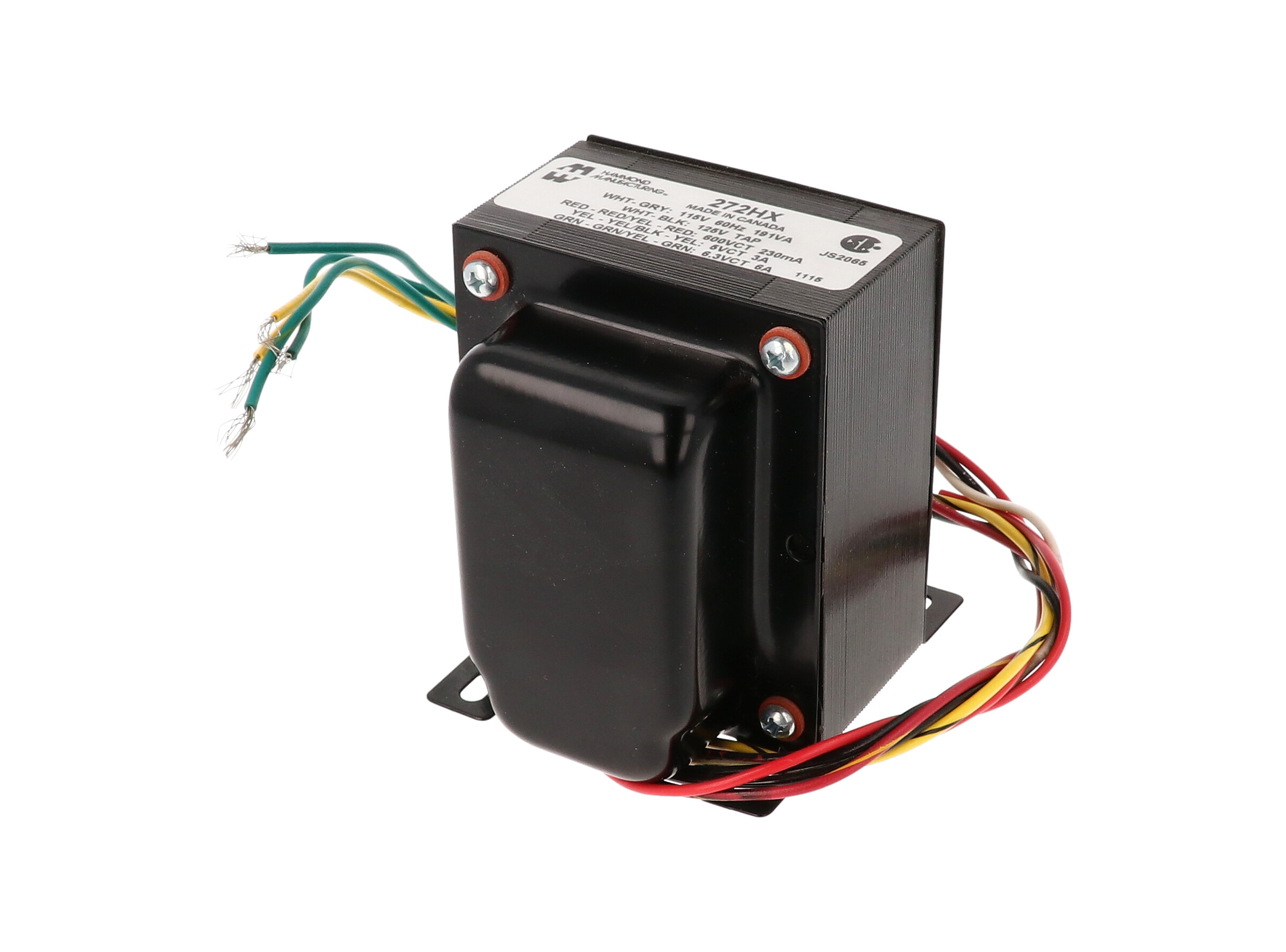

272HX

Power TX

  • VA 186
  • Pri. VAC 115
  • A.C. High Voltage 600V C.T. @ 230ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$117.11In stock
Buy now
272JX

Power TX

  • VA 236
  • Pri. VAC 115
  • A.C. High Voltage 600V C.T. @ 287ma.
  • Filament # 1 VAC 5V C.T. @ 4A
$125.16In stock
Buy now
272X

Power TX

  • VA 74
  • Pri. VAC 115
  • A.C. High Voltage 620V C.T. @ 80ma.
  • Filament # 1 VAC 5V @ 2A
$80.64In stock
Buy now
273AZ

325-0-325,5V@2A,6.3VCT@2A,40MA

  • VA 49
  • Pri. VAC 117
  • A.C. High Voltage 650V C.T. @ 46ma.
  • Filament # 1 VAC 5V @ 2A
$84.51In stock
Buy now
273BX

Power TX

  • VA 182
  • Pri. VAC 115
  • A.C. High Voltage 700V C.T. @ 201ma.
  • Filament # 1 VAC 5V @ 3A
$107.77In stock
Buy now
273CZ

325-0-325,5V@3A, 6.3VCT@5A

  • VA 159
  • Pri. VAC 117
  • A.C. High Voltage 650V C.T. @ 172ma.
  • Filament # 1 VAC 5V @ 3A
$131.31In stock
Buy now
273DX

350-0-350, 5V@2A, 6.3VCT@3A

  • VA 101
  • Pri. VAC 117
  • A.C. High Voltage 700V C.T. @ 103ma.
  • Filament # 1 VAC 5V @ 2A
$108.43In stock
Buy now
273DZ

350-0-350,5V@2A, 6.3VCT@3A,

  • VA 101
  • Pri. VAC 117
  • A.C. High Voltage 700V C.T. @ 103ma.
  • Filament # 1 VAC 5V @ 2A
$108.43In stock
Buy now
273X

Power TX

  • VA 120
  • Pri. VAC 115
  • A.C. High Voltage 700V C.T. @ 126ma.
  • Filament # 1 VAC 5V @ 2A
$99.17In stock
Buy now
274AX

360-0-360, 5V@3A, 6.3VCT@3.5A

  • VA 137
  • Pri. VAC 117
  • A.C. High Voltage 720V C.T. @ 138ma.
  • Filament # 1 VAC 5V @ 3A
$99.95In stock
Buy now
274BX

Power TX

  • VA 198
  • Pri. VAC 115
  • A.C. High Voltage 750V C.T. @ 201ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$115.90In stock
Buy now
274X

Power TX

  • VA 138
  • Pri. VAC 115
  • A.C. High Voltage 750V C.T. @ 126ma.
  • Filament # 1 VAC 5V @ 3A
$92.22In stock
Buy now
275X

Power TX

  • VA 167
  • Pri. VAC 115
  • A.C. High Voltage 800V C.T. @ 155ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$171.71In stock
Buy now
276X

Power TX

  • VA 150
  • Pri. VAC 115
  • A.C. High Voltage 640V C.T. @ 172ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$123.88In stock
Buy now
278CX

Power

  • VA 454
  • Pri. VAC 115
  • A.C. High Voltage 800V C.T. @ 535ma.
  • Filament # 1 VAC 6.3V C.T. @ 6A
$154.97In stock
Buy now
278X

Power Tx. 237VA

  • VA 229
  • Pri. VAC 115
  • A.C. High Voltage 800V C.T. @ 230ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$145.32In stock
Buy now
279X

Power TX

  • VA 186
  • Pri. VAC 115
  • A.C. High Voltage 850V C.T. @ 172ma.
  • Filament # 1 VAC 5V @ 3A
$132.13In stock
Buy now
282X

Fil Power TX

  • VA 273
  • Pri. VAC 115
  • A.C. High Voltage 1,000V C.T. @ 230ma.
  • Filament # 1 VAC 5V C.T. @ 3A
$158.15In stock
Buy now
284X

Power TX

  • VA 329
  • Pri. VAC 115/125
  • A.C. High Voltage 1200V C.T. @ 230ma.
  • Filament # 1 VAC 5V @ 3A
$137.60In stock
Buy now
Dimension tables (inches / mm)

Vertical Mount ("X" mounting)

Units shown: inch . Switch units to: mm

Part No.VAPrimary · VACPrimary · Hz.A.C. High Voltage · Secondary R.M.S.Filament #1 · (VAC)Filament #2 · (VAC)Filament#3 · (VAC)Dimensions · ADimensions · BDimensions · CDimensions · DDimensions · FMounting Slot · GMounting Slot · G (2)Mounting Slot · G (3)PriceOrder
263AX3211560200V C.T. @ 115ma.5V @ 2A-1.882.442.501.501.560.19x0.31$57.71In stockBuy now
269AAX6611760200V C.T. @ 250ma.6.3V C.T. @ 2.5A2.502.753.062.001.690.20x0.38$74.05In stockBuy now
263CX11611560360V C.T. @ 287ma.5V C.T. @ 3A-2.503.753.062.002.690.20x0.38$83.52In stockBuy now
269AX4011560250V C.T. @ 115ma.6.3V @ 2A-2.192.502.631.751.440.19x0.25$61.89In stockBuy now
269BX3811560300V C.T. @ 86ma.6.3V @ 2A-2.192.502.631.751.440.19x0.25$61.04In stockBuy now
269EX4311560380V C.T. @ 71ma.6.3V @ 2.5A-2.192.632.631.751.560.19x0.25$58.99In stockBuy now
269GX4811560450V C.T. @ 75ma.6.3V @ 2.5A-2.192.632.631.751.560.19x0.25$62.02In stockBuy now
269JX5011560500V C.T. @ 69ma.6.3V @ 2.5A-2.192.632.631.751.560.19x0.25$63.73In stockBuy now
270AX4211560480V C.T. @ 58ma.6.3V @ 2.5A-2.192.502.631.751.440.19x0.25$65.87In stockBuy now
270BX5311560550V C.T. @ 57.5ma.5V @ 2A6.3V @ 2A2.502.753.062.001.690.20x0.38$69.48In stockBuy now
270CAX6511750/60500V C.T. @ 81ma.5V @ 2A6.3V @ 2.5A2.503.003.132.002.060.20x0.38$77.69In stockBuy now
270CX5911560550V C.T. @ 75ma.6.3V @ 0.6A6.3V @ 2.5A2.502.753.062.001.690.20x0.38$75.16In stockBuy now
270DAX7611750/60520V C.T. @ 104ma.6.3V @ 3.5A-2.503.003.132.002.190.20x0.38$74.98In stockBuy now
270DX8311560550V C.T. @ 104ma.5V @ 2A6.3V @ 3A2.503.003.062.001.940.20x0.38$77.86In stockBuy now
270DBX86115/12560500V C.T. @ 115mA5V @ 2A6.3V @ 3A2.503.063.052.001.940.20x0.38$77.86In stockBuy now
270EX11811560550V C.T. @ 144ma.5V @ 3A6.3V @ 4A2.503.753.062.002.690.20x0.38$85.33In stockBuy now
270FX13811560550V C.T. @ 173ma.5V @ 3A6.3V C.T. @ 5A3.133.503.812.502.190.20x0.38$90.81In stockBuy now
270HX17611560550V C.T. @ 230ma.5V C.T. @ 3A6.3V C.T. @ 6A3.134.003.812.502.690.20x0.38$115.48In stockBuy now
270X4111560480V C.T. @ 46ma.5V @ 2A6.3V @ 1.5A2.192.502.631.751.440.19x0.25$68.16In stockBuy now
271X6311560560V C.T. @ 69ma.5V @ 2A6.3V C.T. @ 2A2.502.753.062.001.690.20x0.38$68.10In stockBuy now
272BX9511560600V C.T. @ 115ma.5V @ 2A6.3V @ 3A2.503.253.062.002.190.20x0.38$81.44In stockBuy now
272DX12311560600V C.T. @ 144ma.5V @ 3A6.3V @ 4A2.503.753.062.002.690.20x0.38$90.52In stockBuy now
272FX14611560600V C.T. @ 172ma.5V C.T. @ 3A6.3V C.T. @ 5A3.133.503.812.502.190.20x0.38$104.42In stockBuy now
272HX18611560600V C.T. @ 230ma.5V C.T. @ 3A6.3V C.T. @ 6A3.134.003.812.502.690.20x0.38$117.11In stockBuy now
272JX23611560600V C.T. @ 287ma.5V C.T. @ 4A6.3V C.T. @ 8A3.754.004.563.002.810.20x0.38$125.16In stockBuy now
272X7411560620V C.T. @ 80ma.5V @ 2A6.3V @ 2.4A2.503.003.062.001.940.20x0.38$80.64In stockBuy now
273BX18211560700V C.T. @ 201ma.5V @ 3A6.3V C.T. @ 5A3.134.003.812.502.690.20x0.38$107.77In stockBuy now
273DX10111750/60700V C.T. @ 103ma.5V @ 2A6.3V C.T. @ 3A2.883.503.502.252.440.20x0.38$108.43In stockBuy now
273X12011560700V C.T. @ 126ma.5V @ 2A6.3V C.T. @ 4A2.503.753.062.002.690.20x0.38$99.17In stockBuy now
274AX13711750/60720V C.T. @ 138ma.5V @ 3A6.3V C.T. @ 3.5A3.133.503.882.502.380.20x0.38$99.95In stockBuy now
274BX19811560750V C.T. @ 201ma.5V C.T. @ 3A6.3V C.T. @ 6A3.134.003.812.502.690.20x0.38$115.90In stockBuy now
274X13811560750V C.T. @ 126ma.5V @ 3A6.3V C.T. @ 5A3.133.503.812.502.190.20x0.38$92.22In stockBuy now
275X16711560800V C.T. @ 155ma.5V C.T. @ 3A6.3V C.T. @ 5A3.133.753.812.502.440.20x0.38$171.71In stockBuy now
276X15011560640V C.T. @ 172ma.5V C.T. @ 3A6.3V C.T. @ 5A3.133.503.812.502.190.20x0.38$123.88In stockBuy now
278CX45411560800V C.T. @ 535ma.6.3V C.T. @ 6A-3.755.004.563.003.810.20x0.38$154.97In stockBuy now
278X22911560800V C.T. @ 230ma.5V C.T. @ 3A6.3V C.T. @ 6A3.134.003.812.502.690.20x0.38$145.32In stockBuy now
279X18611560850V C.T. @ 172ma.5V @ 3A6.3V C.T. @ 5A3.134.003.812.502.690.20x0.38$132.13In stockBuy now
282X273115601,000V C.T. @ 230ma.5V C.T. @ 3A6.3V C.T. @ 6A3.754.504.563.003.310.20x0.38$158.15In stockBuy now
284X329115/125601200V C.T. @ 230ma.5V @ 3A6.3V @ 3A6.3V @ 3A3.754.504.563.003.310.20x0.38$137.60In stockBuy now

Horizontal Mount ("Z" mounting)

Units shown: inch . Switch units to: mm

Part No.VAPrimary · VACPrimary · Hz.A.C. High Voltage · Secondary R.M.S.Filament #1 · (VAC)Filament #2 · (VAC)Dimensions · ADimensions · BDimensions · CDimensions · DDimensions · FDimensions · GDimensions · HDimensions · JPriceOrder
270DAZ7611760520V C.T. @ 104ma.6.3V @ 3.5A-2.252.883.251.882.381.253.382.81$76.64In stockBuy now
290HBZ8412060620Vct @ 150ma6.3Vct @ 2.25A5V @ 4A3.003.754.001.504.503.75$163.71BackorderBuy now
273AZ4911750/60650V C.T. @ 46ma.5V @ 2A6.3V @ 2A2.002.502.501.752.001.063.002.50$84.51In stockBuy now
273CZ15911750/60650V C.T. @ 172ma.5V @ 3A6.3V C.T. @ 5A2.503.133.812.002.691.333.753.13$131.31In stockBuy now
273DZ10111750/60700V C.T. @ 103ma.5V @ 2A6.3V C.T. @ 3A2.252.813.631.752.251.503.382.81$108.43In stockBuy now

Features

  • ■Primary 115 VAC, 60 Hz. - except as noted For "universal" primaries and/or 50/60 Hz. operation and other output voltage combinations please see our 300 Series .
  • ■For "universal" primaries and/or 50/60 Hz. operation and other output voltage combinations please see our 300 Series .
  • ■Enclosed, 4 hole, chassis mount.
  • ■Minimum 6" long leads.
  • ■Units can be run full wave bridge or full wave C.T.
  • ■Class A insulation (105 degrees C).
  • ■Hi-Pot test of 2,000V RMS.
  • ■Conservative designs - CSA certified (209651).
  • ■NOTE: A production "running change" has been made to the primary winding - effective with August 2009 production.

Documents

Specification Sheet

Any questions? Talk with an expert

Call us (224) 955-1644

Related products

Peter W Dahl Transformers

Peter W Dahl Transformers · PWDAHL Series

from $125.16

Shop parts
Plate & Filament - 22 VA to 248 VA

Plate & Filament - 22 VA to 248 VA · 260 Series

from $67.08

Shop parts
Plate & Filament or Bias - 6 VA to 83 VA

Plate & Filament or Bias - 6 VA to 83 VA · 261-262 Series

from $22.39

Shop parts
High Voltage (Plate) & Filament - 39 VA to 940 VA

High Voltage (Plate) & Filament - 39 VA to 940 VA · 300 Series

from $78.79

Shop parts
Potted High Voltage (Plate) & Filament - 40 VA to 243 VA

Potted High Voltage (Plate) & Filament - 40 VA to 243 VA · 300P Series

from $285.51

Shop parts
High Voltage (Plate) - 259 VA to 1610 VA

High Voltage (Plate) - 259 VA to 1610 VA · 700 Series

from $88.65

Shop parts
Low Voltage, Filament High Current, Chassis Mount - 125 VA to 440 VA

Low Voltage, Filament High Current, Chassis Mount - 125 VA to 440 VA · 165 Series

from $47.07

Shop parts
Low Voltage/Filament - Economical Single Primary - 0.63 VA to 288 VA

Low Voltage/Filament - Economical Single Primary - 0.63 VA to 288 VA · 166 Series

from $6.75

Shop parts
