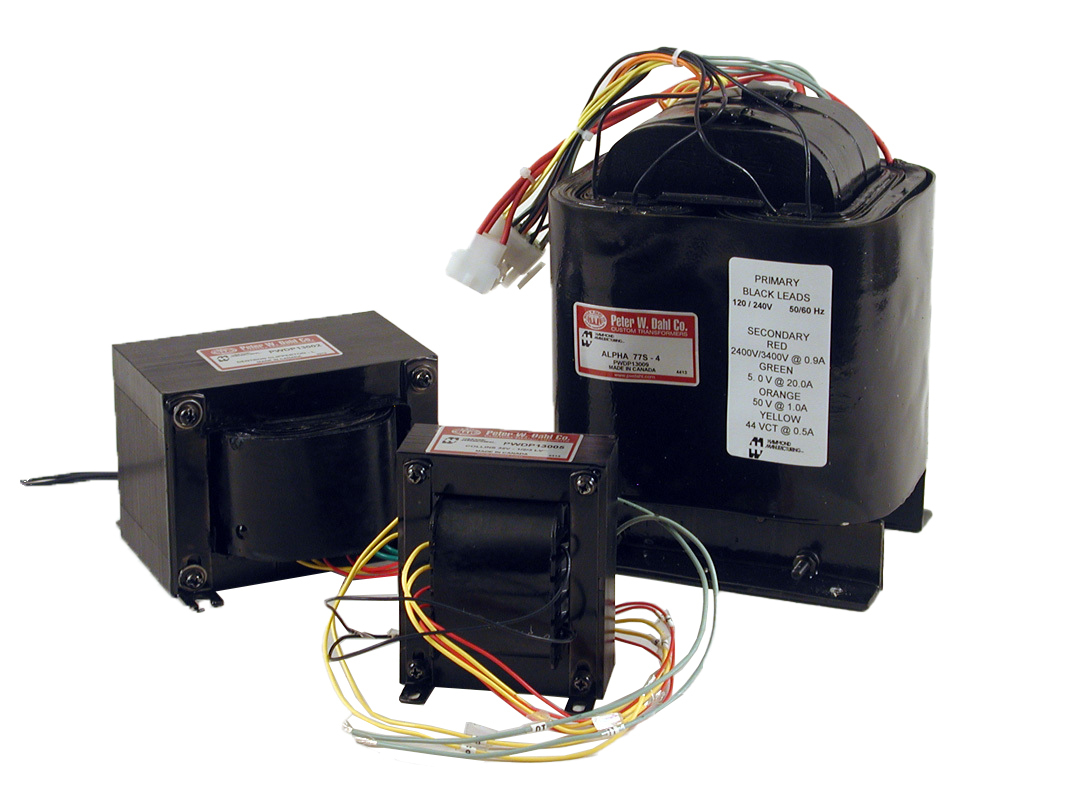

Peter W Dahl Transformers · PWDAHL Series
Brand: Hammond Manufacturing · 146 part numbers
Magnetics for Amateur Radio Products
from $125.16
2 of 146 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your PWDAHL Series part number
Filter 168 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
168 of 168 part numbers
Hallicrafters SX-28 Audio
QuoteRequest a quote
Hallicrafters SX-28 Audio
QuoteRequest a quote
Collins 30S-1 Alc Transformer T-102
QuoteRequest a quote
YU-148 Filament Trans
QuoteRequest a quote

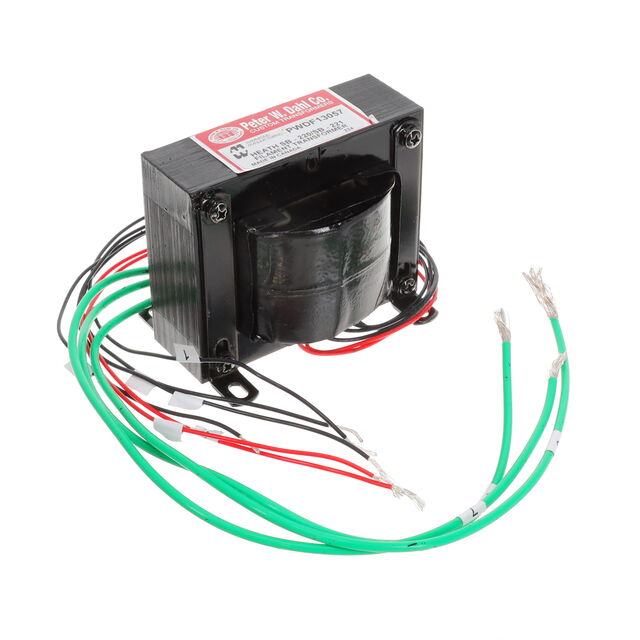

Heath SB-220/SB-221 Filament
QuoteRequest a quote
Collins KWS-1 HV Filament
QuoteRequest a quote
Filament Tsfr 7.5VCT, 55A.
QuoteRequest a quote
B&W PT2500A Filament Trans
QuoteRequest a quote
Filament Trans
QuoteRequest a quote
Filament Trans
QuoteRequest a quote
Filament Trans
QuoteRequest a quote
Peter Dahl 7.5 Vct @ 75A N,
QuoteRequest a quote
QuoteRequest a quote
Drake L4B 3CX1200A7 X 2 Fil
QuoteRequest a quote
Peter Dahl
QuoteRequest a quote
Johnson Vik. Ranger 15H 95mADC
QuoteRequest a quote
Henry 2K Classic DC Choke
QuoteRequest a quote
Johnson Viking 500 HV Choke
QuoteRequest a quote
Johnson Viking HV DC Choke
QuoteRequest a quote
BC-1 Choke 40H 0.6A DC 10kV Wk
QuoteRequest a quote
Henry 4K Ultra DC Choke
QuoteRequest a quote
Johnson Viking 500 L302
QuoteRequest a quote

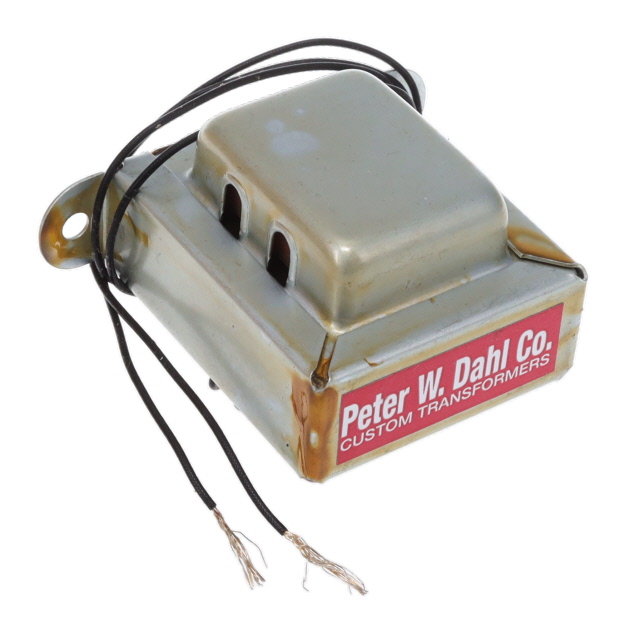

Peter Dahl Inductor
QuoteRequest a quote

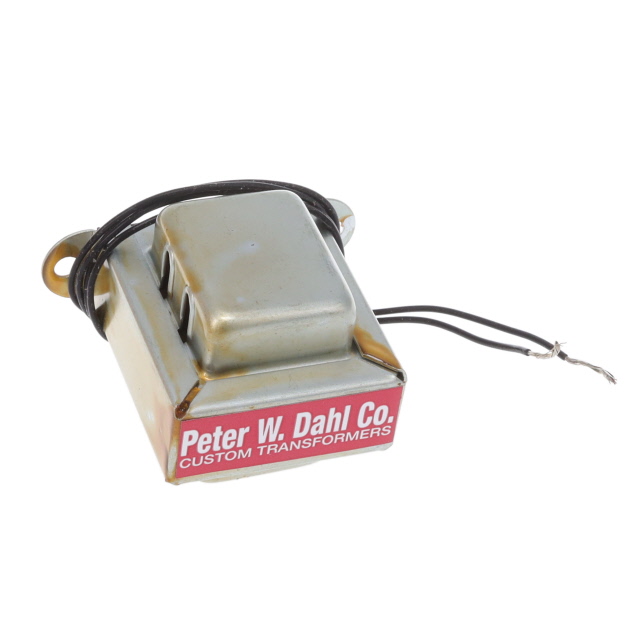

DC Filter Choke
QuoteRequest a quote
Collins 30S-1 Choke
QuoteRequest a quote
DC Filter Choke
QuoteRequest a quote
DC Filter Choke
QuoteRequest a quote
DC Filter Choke
QuoteRequest a quote
Peter Dahl
QuoteRequest a quote
Choke Johnson Invader 2000
QuoteRequest a quote
QuoteRequest a quote
Peter Dahl Modulation Tx.
QuoteRequest a quote
Collins KW-1 Modulation Trans
QuoteRequest a quote
Collins KW-1 Audio Driver
QuoteRequest a quote
Johnson Valiant Mod Xfmer
QuoteRequest a quote
Johnson Viking 500 Modulation
QuoteRequest a quote
Globe King 500A/B Modulation
QuoteRequest a quote
Heath DX-100 Mod
QuoteRequest a quote
Collins 30K Modulation Transformer
QuoteRequest a quote
Johnson Viking Ii Mod Transformer
QuoteRequest a quote

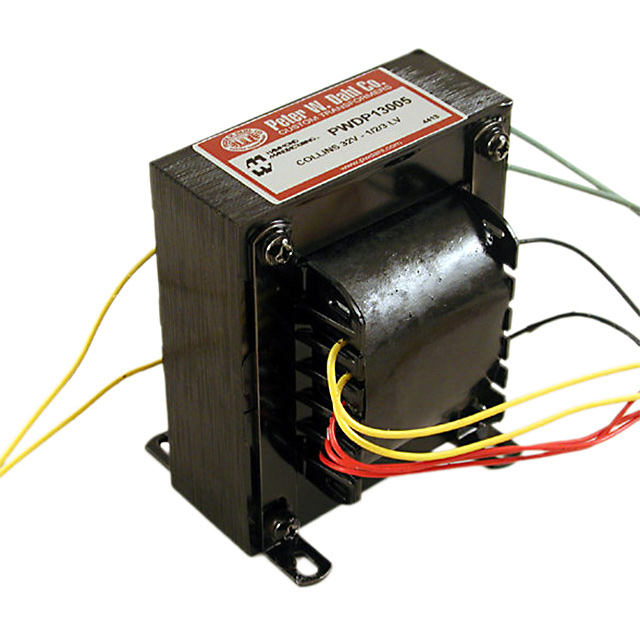

Peter Dahl Power Transformer
QuoteRequest a quote

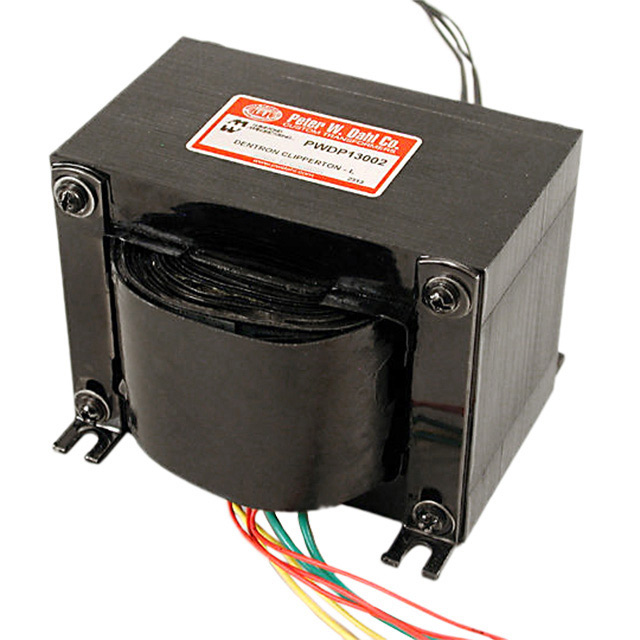

Dentron-Clipperon-L Power Transformer
QuoteRequest a quote
Peter Dahl Power Transformer
QuoteRequest a quote
Peter Dahl Power Transformer
QuoteRequest a quote
Peter Dahl Power Transformer
QuoteRequest a quote
Peter Dahl Power Transformer
QuoteRequest a quote
Commander HF-2500 Power Trans
QuoteRequest a quote
Dimension tables (inches / mm)
| Description | Hammond Part Number | Core (Part No.) | Style (see above) | Primary | Secondary | Approx. Weight (lbs) | col8 | col9 | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ALPHA 76A POWER TRANSFORMER FOR ALPHA MODELS 76A, 76PA, 76CA & 78 | PWDP13139 | B-0393/ C-CORE | 10 | 120/240 VAC 60 HZ 1 PH | S1) 0-1200-1950 VAC @ 0.5A CCS S2) 40 VCT @ 0.5A CCS S3) 25 VAC @ 1A CCS S4) 6.3 VAC @ 9.6A CCS | 23 | Quote | Quote | ||
| ALPHA 76A-2 POWER XFMR SPECIAL HEAVY DUTY 3CX800A7'S VERSION | PWDP13047 | B-0393/ C-CORE | 10 | 120/240 VAC 60 HZ 1 PH | S1) 0-1200-1950 VAC @ 0.5A CCS S2) 40 VCT @ 0.5A CCS S3) 25 VAC @ 1A CCS S4) 13.5 VAC @ 3.0A CCS | 23 | Quote | Quote | ||
| ALPHA A77 POWER XFMR FOR ORIGINAL ETO PA-77 LINEAR AMPLIFIER | PWDP13069 | A-0393/ C-CORE | 10 | 120/240 VAC 60 HZ 1 PH | S1) 0-1800-2800 VAC @ 0.7A ICAS S2) 0-22-66 VAC @ 0.5A CCS S3) 5.0 VAC @ 10A CCS | 23 | Quote | Quote | ||
| ALPHA 87 POWER TRANSFORMER - REV K (NOT THE SAME AS THE ALPHA 87a) ALPHA POWER P/N TPX-X133 | PWDP13140 | A-0516/ C-CORE | 9 | 0-200-220-240 VAC 50/60 HZ 1 PH | S1) 0-1280-1900 VAC @ 1.5A CCS S2) 7.8 VAC @ 4A CCS S3) 14.45 VAC @ 3A CCS S4) 52 VCT @ 3.5A CCS | 33 | Quote | Quote | ||
| ALPHA POWER P/N TPX-X168 ALPHA 91b AND 99 POWER TRANSFORMER | PWDP13049 | A-0516/ C-CORE | 9 | 0-100-120 & 0-100-120 VAC 50/60 HZ 1 PH | S1) 0-2050 VAC @ 1.5A CCS S2) 105 VAC @ 0.5A CCS S3) 310 VAC @ 0.5A CCS S4) 28 VCT @ 3.0A CCS S5) 13.3 VAC @ 7.2A CCS | 37 | Quote | Quote | ||
| MODIFIED AMERITRON AL-80A HD POWER SPECIAL HV MODEL FOR FWB&CAP (4000 VDC) NO 5V OR 13.8V WINDINGS | PWDP13242 | EI-175 X 4" 29G M6X | 4 | 240 VAC 60 HZ 1 PH | S1) 2900 VAC @ 600 MA ICAS | 24 | Quote | Quote | ||

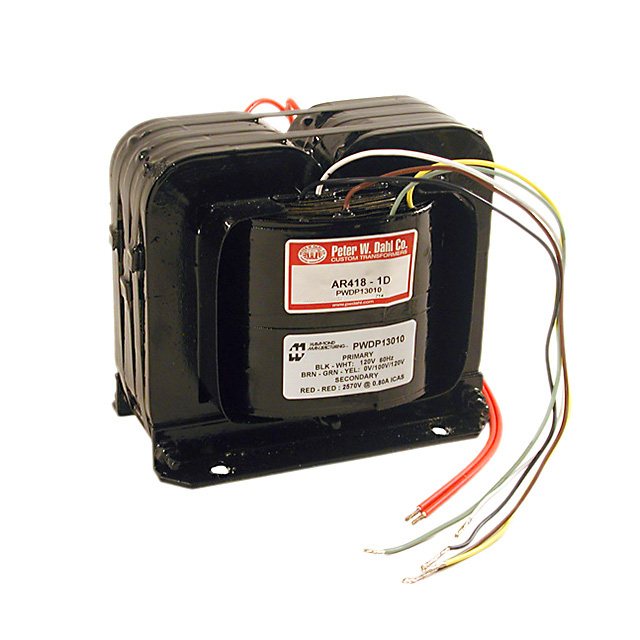

| AMERITRON P/N AR418-1D AL-1200 / AL-82 PLATE TRANSFORMER | PWDP13010 | A-0274/ C-CORE | 10 | 0-120 & 0-100-120 VAC 60 HZ 1PH | 2570 VAC @ 800 MA ICAS | 37 | Quote | Quote | ||
| AMP SUPPLY #LK-450 POWER PLATE & FIL XFMR FOR SINGLE 3-500Z | PWDP13134 | EI-175 X 2.5" 29GAM6 | 4 | 120/240 VAC 60 HZ 1 PH | S1) 2080 VAC @ 0.4A ICAS S2) 5.5 VCT @ 15A CCS S3) 11 VAC @ 2A CCS | 17 | Quote | Quote | ||
| AMP SUPPLY #LK-500F-1 FILAMENT TRANSFORMER FOR LK-500 AMP | PWDF13229 | EI-150 X 1.5 | 4 | 115/230 VAC 60 HZ 1PH | 0S1) 5.5 VCT @ 30A CCS | 8 | Quote | Quote | ||
| AMP SUPPLY #LK-800F-1 | PWDP13080 | EI-150 X 1.5 | 4 | 117/234 VAC 60 Hz 1PH | S1) 13.6 VAC @ 9A S2) 0-10-18 VAC @ 2A | 8 | Quote | Quote | ||
| AMP SUPPLY #LK-800F-1 (with C.T on 13.6 VAC winding) | PWDP13093 | EI-150 X 1.5 | 4 | 117/234 VAC 60 Hz 1PH | S1) 13.6 VAC @ 9A - with C.T. S2) 0-10-18 VAC @ 2A | 8 | Quote | Quote | ||
| B&W PT2500A ER FILAMENT XFMR EXACT REPLACEMENT TRANSFORMER | PWDF13103 | EI-125 X 2" 29GAM6X | 2 | 15/230 VAC 60 HZ 1 PH | S1) 90 VAC @ 60 MA CCS S2) 6.3 VAC @ 1A CCS S3) 5.2 VCT @ 30A CCS | 7 | Quote | Quote | ||
| CENTRAL ELECTRONICS 600L FILAMENT MULTIPLE FILAMENT, CHICAGO 25077 | PWDF13181 | EI | 4 | 120 VAC 60 HZ 1 PH | S1) 240 VAC @ 0.015 A S2) 10 VCT @ 5 A CCS S3) 6.3 VAC @ 0.45 A CCS S4) 6.3 VAC @ 0.3 A CCS S5) 2.5 VCT @ 4 A CCS (2,500 VDC INSULATION) S6) 6.3 VCT @ 4 A CC | 10 | Quote | Quote | ||
| CHOKE 8.0 HY @ 1.5A 4000 WVDC | PWDI13169 | EI | 2 | 8.0 HY @ 1.5A DC (4000 WVDC) | 63 | Quote | Quote | |||
| CHOKE 60 HY @ 150 ma. DC MODULATION REACTOR (CHOKE) | PWDI13132 | EI | 4 | 60 HY @ 150 ma. DC CCS (2 KVDC TEST) | 10 | Quote | Quote | |||
| COLLINS KW-1 AUDIO DRIVER PP 6B4G PLATES TO PP 810 GRIDS (T-404) | PWDM13041 | EI-100 X 1 | 5 | 375 VCT @ 0.1A CCS (5000 OHMS P-P CT) | S1) 125 VAC @ 0.1A CCS (2225 OHMS G-G CT) S2) 125 VAC @ 0.1A CCS (2225 OHMS G-G CT) | 2 | Quote | Quote | ||
| COLLINS KW-1 BIAS T-401 -150 VOLT DC BIAS & FILAMENT TRANSFORMER | PWDP13188 | EI-112 X 1.125 | 4 | 115 VAC 60 HZ 1 PH | S1) 300 VCT @ 30 MA CCS S2) 5 VAC @ 2A CCS | 3 | Quote | Quote | ||
| COLLINS KW-1 MODULATION XFMR PP 810 MODULATORS TO PARALLEL 4-250A'S | PWDM13037 | EI-175 EE-STACK | 10 | 1800/2400 VCT18000/11600 OHMS PP | 1768 VAC @ 283 MA CCS (6250 OHMS RFPA) | 35 | Quote | Quote | ||
| COLLINS KW-1 RECT FIL ER T-501 872A FIL XFMR (EXACT REPLACEMENT) | PWDF13255 | EI-150 X 1.25" 29GRH | 5 | 115 VAC 60 HZ 1 PH | S1) 5.0 VCT @ 15A CCS (10 KVDC INS) | 6 | Quote | Quote | ||
| COLLINS KWS-1 HV FILAMENT REPLACEMENT 866A FIL XFMR (T-502) - BOBBIN WOUND - EPOXY FILLED BAYS | PWDF13061 | EI-087 X 1 | 7 | 115/230 VAC 50/60 HZ 1 PH | S1) 2.5 VCT @ 10A CCS (10 KVDC TEST) | 2 | Quote | Quote | ||
| COLLINS KWS-1 LV POWER XFMR T-506 P/N 662-0146-00 ORIGINAL WAS STYLE #07 - CAN IS NO LONGER AVAILABLE | PWDP13171 | EI-150 X 2.5" 29GAM6 | 5 | 120 VAC 60 HZ 1 PH | S1) 420-200-0-200-420 VAC @ 0.255A CCS S2) 5.0 VAC @ 4A CCS S3) 12.6 VAC @ 0.3A CCS S4) 6.3 VAC @ 9.0A CCS | 13 | Quote | Quote | ||
| COLLINS KWS-1 PLATE XFMR P/N 662-0155-00, E-5017 | PWDP13082 | EI 29GAM6 | 9 | 115/230 VAC 60 HZ 1 PH | S1) 4800 VCT @ 800 MA CC | 39 | Quote | Quote | ||
| COLLINS KWS-1 SCREEN P/N 662-0157-00 T504 - REPLACEMENT IS NOT POTTED - SEE PDF DRAWING | PWDP13043 | EI-100 X 1.25 29GAM6 | 5 | 120 VAC 60 HZ | S1) 980 VCT @ 0.050A CCS | 6 | Quote | Quote | ||
| COLLINS 30K MODULATION XFMR P/N 677-0316-00, 200W,+/- 2DB 100-5000HZ | PWDM13203 | EI-150 X 2.5" 29GM6X | 7 | 2450 VCT @ 175 MA (32K OHMS) | S1) 1770 VAC @ .150ADC & .113AAC(16.7K OHM) S2) 248 VAC @ .050ADC | 12 | Quote | Quote | ||
| COLLINS 30K PLATE 4-125A RF PA & PP 75T MODULATORS | PWDP13256 | A-0480/ C-CORE | 10 | 115/230 VAC 60 HZ 1PH | 2950-2365-0-2365-2950 VAC @ 750MA CCS | 46 | Quote | Quote |
