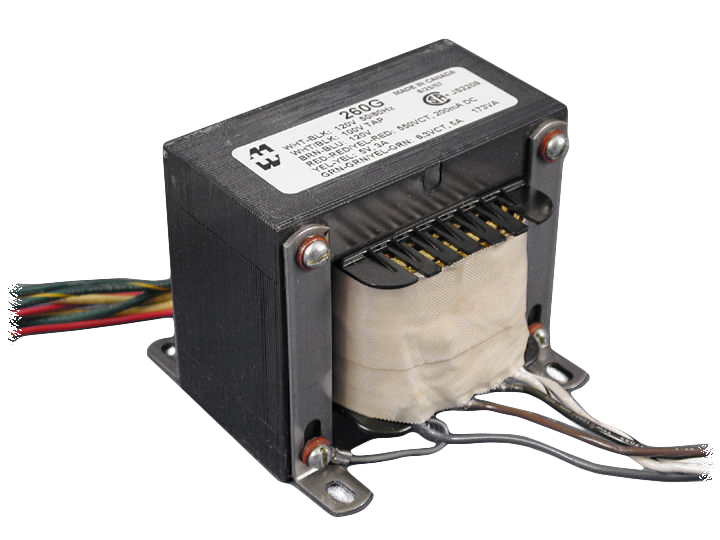

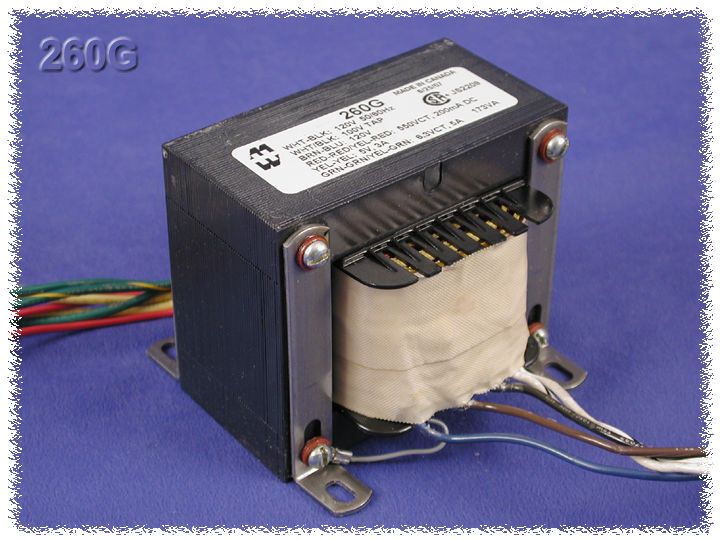

Plate & Filament - 22 VA to 248 VA · 260 Series
Brand: Hammond Manufacturing · 8 part numbers
Universal Primary & 50/60 Hz. Operation

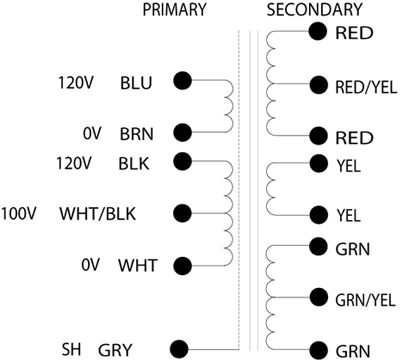

- ■These units are designed to run with BOTH primary windings energized for maximum efficiency (see wiring table below).
- ■The Fara day shield lead - the gray wire - marked SH (shield) above, should remain grounded to the mounting bracket & in turn to the chassis.
from $67.08
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 260 Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
117V,50/60, 370-0-370,60MA
- A.C. Filament Seco 6.3V C.T. @ 2A
- A.C. High Voltage 740V C.T. @ 60ma.
- Figure # or PDF Fi See PDF
$67.08In stock
Buy nowPower TX
- A.C. Filament Seco 5V @ 2A
- A.C. Filament Seco 6.3V C.T. @ 2A
- A.C. High Voltage 500V C.T @ 85ma..
- Figure # or PDF Fi 1
$84.00In stock
Buy nowPower TX
- A.C. Filament Seco 5V @ 2A
- A.C. Filament Seco 6.3V C.T. @ 3A
- A.C. High Voltage 450V C.T. @ 115ma.
- Figure # or PDF Fi See PDF
$97.32In stock
Buy nowPower TX
- A.C. Filament Seco 5V @ 3A
- A.C. Filament Seco 6.3V C.T. @ 5A
- A.C. High Voltage 550V C.T. @ 230ma.
- Figure # or PDF Fi See PDF
$119.78In stock
Buy nowPower TX
- A.C. Filament Seco 5V @ 2A
- A.C. Filament Seco 6.3V C.T. @ 4A
- A.C. High Voltage 650V C.T. @ 173ma.
- Figure # or PDF Fi 2
$131.45In stock
Buy nowPower TX
- A.C. Filament Seco 5V @ 3A
- A.C. Filament Seco 6.3V C.T. @ 5A
- A.C. High Voltage 650V C.T. @ 230ma.
- Figure # or PDF Fi 2
$132.91In stock
Buy nowPower TX
- A.C. Filament Seco 5V @ 3A
- A.C. Filament Seco 6.3V C.T. @ 5A
- A.C. High Voltage 700V C.T. @ 288ma.
- Figure # or PDF Fi 2
$140.31In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | VA | A.C. High Voltage · Secondary #1 · RMS | A.C. Filament · Secondary #2 · RMS | A.C. Filament · Secondary #3 · RMS | Figure # · or PDF · File | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Dimensions · E | Dimensions · G | Dimensions · G (2) | Dimensions · G (3) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260A | 22 | 400V C.T. @ 46ma. | 6.3V C.T. @ 1A | - | 1 | 3.25 | 2.00 | 2.00 | 2.81 | - | 0.19 | 0.19 | 0.19 | $72.27In stock | Buy now |
| 260A6 | 57 | 740V C.T. @ 60ma. | 6.3V C.T. @ 2A | - | See PDF | 2.5 | 2.155 | 3 | - | - | - | - | - | $67.08In stock | Buy now |
| 260C | 65 | 500V C.T @ 85ma.. | 5V @ 2A | 6.3V C.T. @ 2A | 1 | 4.03 | 2.65 | 2.62 | 3.56 | - | 0.19 | 0.19 | 0.19 | $84.00In stock | Buy now |
| 260E | 80 | 450V C.T. @ 115ma. | 5V @ 2A | 6.3V C.T. @ 3A | See PDF | 3.00 | 3.06 | 2.53 | 2.50 | 2.40 | 0.21 | x | 0.38 | $97.32In stock | Buy now |
| 260G | 175 | 550V C.T. @ 230ma. | 5V @ 3A | 6.3V C.T. @ 5A | See PDF | 3.75 | 3.50 | 3.13 | 3.25 | 3.25 | 0.20 | x | 0.38 | $119.78In stock | Buy now |
| 260J | 152 | 650V C.T. @ 173ma. | 5V @ 2A | 6.3V C.T. @ 4A | 2 | 3.75 | 3.13 | 3.13 | 3.12 | 2.75 | 0.22 | x | 0.56 | $131.45In stock | Buy now |
| 260K | 197 | 650V C.T. @ 230ma. | 5V @ 3A | 6.3V C.T. @ 5A | 2 | 4.50 | 3.25 | 3.75 | 3.75 | 3.00 | 0.22 | x | 0.56 | $132.91In stock | Buy now |
| 260M | 248 | 700V C.T. @ 288ma. | 5V @ 3A | 6.3V C.T. @ 5A | 2 | 4.50 | 3.25 | 3.75 | 3.75 | 3.00 | 0.22 | x | 0.56 | $140.31In stock | Buy now |
NOTES
- ■These units are designed to run with BOTH primary windings energized for maximum efficiency (see wiring table below).
- ■The Fara day shield lead - the gray wire - marked SH (shield) above, should remain grounded to the mounting bracket & in turn to the chassis.
