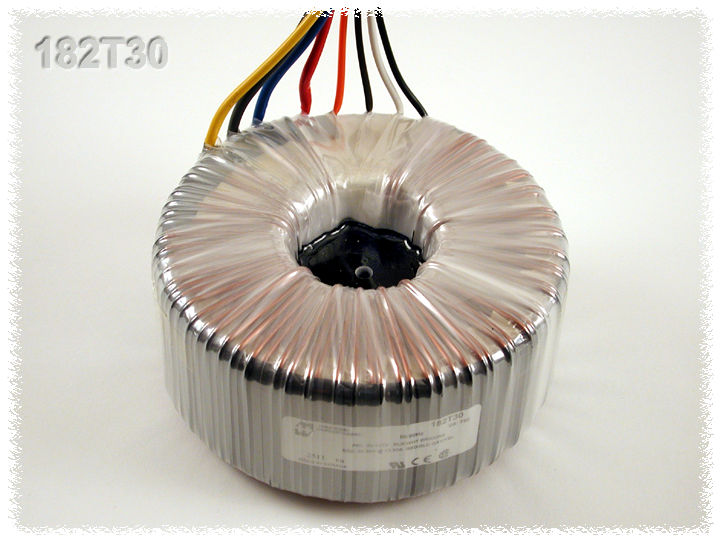

Toroidal L.V. - Chassis Mount - 15 VA to 1500 VA 182 Series

Toroidal L.V. - Chassis Mount - 15 VA to 1500 VA · 182 Series

Brand: Hammond Manufacturing · 98 part numbers

  • ■Low profile, lightweight, cool running - due to high efficiency toroidal design
  • ■Dual 117/234 VAC primary, 50/60 Hz. operation
  • ■Units are designed to have all windings engaged.
  • ■Center single hole mounting - units over 225VA include a potted center (see photos below) for extra mounting strength.
  • ■Supplied with two rubber insulating pads, one metal centering washer and all mounting hardware (160VA and under)
  • ■Supplied with one bottom rubber insulating pad and mounting hardware (225VA and larger)

from $45.38

39 of 98 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 182 Series part number

Filter 98 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

98 of 98 part numbers · 39 priced online

182B240

Replace With 1182B240

  • Dual or Single Sec Single
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
$45.38In stock
Buy now
182D110

Replace With 1182D110

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
QuoteRequest a quote
182D117

Replace With 1182D117

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
$45.38In stock
Buy now
182D240

Replace With 1182D240

  • Dual or Single Sec Single
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
$45.38In stock
Buy now
182E110

Replace With 1182E110

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
$45.38In stock
Buy now
182E117

Replace With 1182E117

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182E240

Toroid, 50VA, 50HZ, 240V Sec

  • Dual or Single Sec Single
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182F18

Replace With 1182F18

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
$45.38In stock
Buy now
182F22

Replace With 1182F22

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
$45.38In stock
Buy now
182F240

Toroid, 80VA, 50HZ, 240V

  • Dual or Single Sec Single
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182F30

Toroid, 225VA, 50HZ, 30/30V

  • Dual or Single Sec Dual
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
QuoteRequest a quote
182G110

Toroid, 50VA, 50HZ, 110/110V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
$50.20In stock
Buy now
182G117

Toroid, 50VA, 50HZ, 117/117V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
$50.20In stock
Buy now
182G12

Replace With 1182G12

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
$45.38In stock
Buy now
182G15

Replace With 1182G15

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
QuoteRequest a quote
182G18

Replaced With 1182G18

  • Dual or Single Sec Dual
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
QuoteRequest a quote
182G22

Replace With 1182G22

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
$45.38In stock
Buy now
182G240

Toroid, 120VA, 50HZ, 240V

  • Dual or Single Sec Single
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182H110

Toroid, 80VA, 50HZ, 110/110V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182H117

Replaced With 1182H117

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182H15

Toroid, 225VA, 50VA, 15/15V

  • Dual or Single Sec Dual
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
QuoteRequest a quote
182H18

Replace With 1182H18

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182H240

Toroid, 160VA, 50HZ, 240V

  • Dual or Single Sec Single
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 1/4-20
QuoteRequest a quote
182H9

Replace With 1182H9

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
QuoteRequest a quote
182J110

Toroid, 120VA, 50HZ, 110/110V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
$56.75In stock
Buy now
182J117

Toroid, 120VA, 50HZ, 117/117V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
$56.75In stock
Buy now
182J15

Replace With 1182J15

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182J18

Toroid, 50VA, 50HZ, 18/18V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182J22

Replaced With 1182J22

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182J240

Toroid, 225VA, 50HZ, 240V

  • Dual or Single Sec Single
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
QuoteRequest a quote
182K110

Toroid, 160VA, 50HZ, 110/110V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 1/4-20
$63.28In stock
Buy now
182K117

Replaced With 1182K117

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 1/4-20
QuoteRequest a quote
182K12

Replace With 1182K12

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182K15

Replaced With 1182K15

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182K240

Toroid, 300VA, 50HZ, 240V

  • Dual or Single Sec Single
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
QuoteRequest a quote
182K30

Toroid, 80VA, 50HZ, 30/30V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182K6

Replace With 1182K6

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 8-32
$45.38In stock
Buy now
182K9

Replace With 1182K9

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182L110

Toroid, 225VA, 50HZ, 110/110V

  • Dual or Single Sec Dual
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
$69.85In stock
Buy now
182L117

Replaced With 1182L117

  • Dual or Single Sec Dual
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
QuoteRequest a quote
182L12

Replaced With 1182L12

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
$51.68In stock
Buy now
182L18

Replaced With 1182L18

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182L22

Toroid, 80VA, 50HZ, 22/22V

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182L240

Toroid, 500VA, 50HZ, 240V

  • Dual or Single Sec Single
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
QuoteRequest a quote
182L30

Replaced With 1182L30

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182L6

Replace With 1182L6

  • Dual or Single Sec Dual
  • Toroid Center Open
  • Potted Center No
  • Included Mounting 10-24
QuoteRequest a quote
182L60

Replaced With 1182L60

  • Dual or Single Sec Dual
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
QuoteRequest a quote
182M110

Toroid, 300VA, 50HZ,117/117V

  • Dual or Single Sec Dual
  • Toroid Center Potted
  • Potted Center Yes
  • Included Mounting 1/4-20
$80.74In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.VAVAC Secondary (RMS) · SeriesVAC Secondary (RMS) · ParallelDual or Single · SecondaryToroid · CenterOutside · DiameterHeightPotted · CenterIncluded Mounting · Hardware Size · ThreadIncluded Mounting · Hardware Size · LengthTop Steel Mounting Washer · with Top & Bottom · Rubber WasherWeight · (lbs.)PriceOrder
182K61512V C.T. @ 1.25A6V @ 2.5ADualOpen2.701.25No8-321.50Yes0.76$45.38In stockBuy now
182L63012V C.T. @ 2.5A6V @ 5ADualOpen2.951.60No10-242.00Yes1.12QuoteQuote
182N65012V C.T. @ 4.17A6V @ 8.34ADualOpen3.631.73No10-242.00Yes1.67$50.20In stockBuy now
182Q68012V C.T. @ 6.67A6V @ 13.34ADualOpen3.731.52No10-242.00Yes2.15QuoteQuote
182H91518V C.T. @ .83A9V @ 1.66ADualOpen2.701.25No8-321.50Yes0.76QuoteQuote
182K93018V C.T. @ 1.67A9V @ 3.34ADualOpen2.951.60No10-242.00Yes1.12QuoteQuote
182M95018V C.T. @ 2.78A9V @ 5.56ADualOpen3.631.73No10-242.00Yes1.67$50.20In stockBuy now
182N98018V C.T. @ 4.44A9V @ 8.88ADualOpen3.731.52No10-242.00Yes2.15QuoteQuote
182Q912018V C.T. @ 6.67A9V @ 13.34ADualOpen3.981.68No10-242.00Yes2.84$56.75In stockBuy now
182G121524V C.T. @ .63A12V @ 1.26ADualOpen2.701.25No8-321.50Yes0.76$45.38In stockBuy now
182K123024V C.T. @ 1.25A12V @ 2.5ADualOpen2.951.60No10-242.00Yes1.12QuoteQuote
182L125024V C.T. @ 2.08A12V @ 4.16ADualOpen3.631.73No10-242.00Yes1.67$51.68In stockBuy now
182M128024V C.T. @ 3.33A12V @ 6.66ADualOpen3.731.52No10-242.00Yes2.15$52.38In stockBuy now
182P1212024V C.T. @ 5A12V @ 10ADualOpen3.981.68No10-242.00Yes2.84QuoteQuote
182Q1216024V C.T. @ 6.67A12V @ 13.34ADualOpen4.431.73No1/4-202.50Yes3.87QuoteQuote
182S1222524V C.T. @ 9.38A12V @ 18.76ADualPotted4.971.90Yes1/4-202.50Bottom Rubber Washer Only4.96QuoteQuote
182T1230024V C.T. @ 12.5A12V @ 25ADualPotted5.062.27Yes1/4-202.50Bottom Rubber Washer Only5.58$96.12In stockBuy now
182G151530V C.T. @ .5A15V @ 1ADualOpen2.701.25No8-321.50Yes0.76QuoteQuote
182J153030V C.T. @ 1A15V @ 2ADualOpen2.951.60No10-242.00Yes1.12QuoteQuote
182K155030V C.T. @ 1.67A15V @ 3.34ADualOpen3.631.73No10-242.00Yes1.67QuoteQuote
182M158030V C.T. @ 2.67A15V @ 5.34ADualOpen3.731.52No10-242.00Yes2.15QuoteQuote
182N1512030V C.T. @ 4A15V @ 8ADualOpen3.981.68No10-242.00Yes2.84$56.75In stockBuy now
182P1516030V C.T. @ 5.33A15V @ 10.66ADualOpen4.431.73No1/4-202.50Yes3.87$63.90BackorderBuy now
182H1522530V C.T. @ 7.5A15V @ 15ADualPotted4.971.90Yes1/4-202.50Bottom Rubber Washer Only4.96QuoteQuote
182S1530030V C.T. @ 10A15V @ 20ADualPotted5.062.27Yes1/4-202.50Bottom Rubber Washer Only5.58$80.74In stockBuy now

Features

  • ■Low profile, lightweight, cool running - due to high efficiency toroidal design
  • ■Dual 117/234 VAC primary, 50/60 Hz. operation
  • ■Units are designed to have all windings engaged.
  • ■Center single hole mounting - units over 225VA include a potted center (see photos below) for extra mounting strength.
  • ■Supplied with two rubber insulating pads, one metal centering washer and all mounting hardware (160VA and under)
  • ■Supplied with one bottom rubber insulating pad and mounting hardware (225VA and larger)
  • ■Center bolt size varies with VA - see tables below.
  • ■Minimum 8" long flexible leads
  • ■Hi-Pot test of 4,000V RMS between primary & secondary
  • ■CSA certified to C22.2 #66 - CSA file #209651
  • ■UL recognized to UL506 - UL file #E207860
  • ■CE certified to IEC950
  • ■Note about Inrush Current:

Documents

Specification SheetConnection Sheet

Any questions? Talk with an expert

Call us (224) 955-1644

Related products

Low Voltage PC Board Mount, 0.5 VA to 24 VA

Low Voltage PC Board Mount, 0.5 VA to 24 VA · 160-161 Series

from $4.83

Shop parts
Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA

Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA · 162-164 Series

from $5.52

Shop parts
Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA

Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA · 183 Series

from $6.15

Shop parts
Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA

Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA · 229 Series

from $7.18

Shop parts
Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA

Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA · 226-227-228 Series

from $49.67

Shop parts
Low Voltage Solder or Quick Connect Terminals - 2.4 VA to 102 VA

Low Voltage Solder or Quick Connect Terminals - 2.4 VA to 102 VA · 186-187 Series

from $5.52

Shop parts
Toroid Power Transformers - 15 VA to 1500 VA

Toroid Power Transformers - 15 VA to 1500 VA · 1182 Series

from $3.04

Shop parts
24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA

24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA · PHC Series

from $28.68

Shop parts
