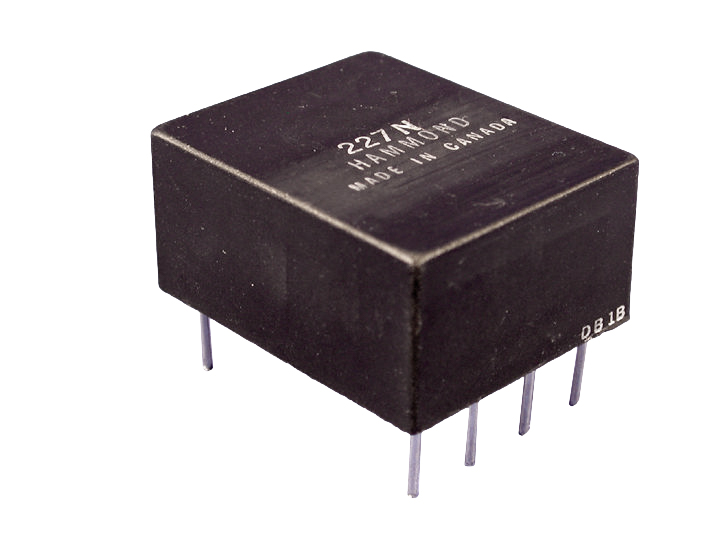

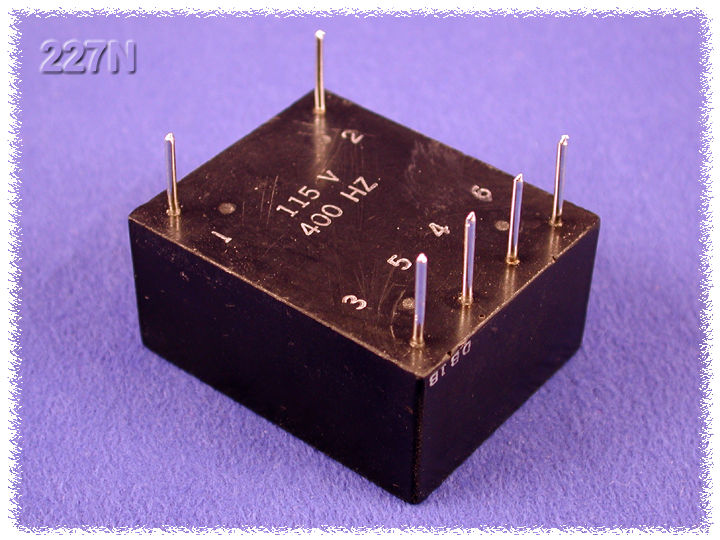

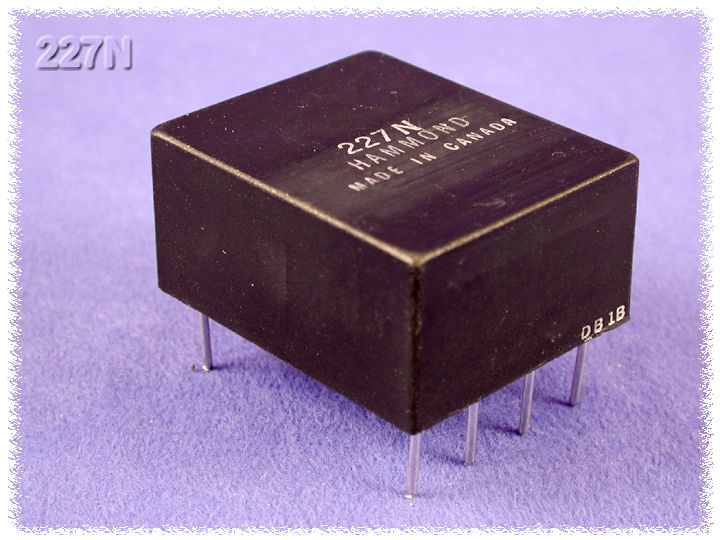

Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA · 226-227-228 Series
Brand: Hammond Manufacturing · 17 part numbers
- ■Primary 115 VAC, 60 or 400Hz. models, 3 case sizes
- ■Epoxy cast to withstand shock and severe environments
- ■Two coil design provides balanced windings and low magnetic radiation - no electrostatic shield required.
- ■228 series include four, 6-32 X .38 machine screw inserts for less strain on p.c. board connections.
from $49.67
6 of 17 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 226-227-228 Series part number
Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
17 of 17 part numbers · 6 priced online
Power PCB 1VA 115V
- VA 1
- % Regulation 21.7
- Hz 60
- C 25
QuoteRequest a quote
Power PCB 1VA 115V
- VA 1
- % Regulation 18.9
- Hz 60
- C 25
QuoteRequest a quote
Power PCB 20VA 115V
- VA 20
- % Regulation 7.2
- Hz 400
- C 35
$63.57In stock
Buy nowPower PCB 20VA 115V
- VA 20
- % Regulation 7.6
- Hz 400
- C 35
QuoteRequest a quote
Power PCB 20VA 115V
- VA 20
- % Regulation 7.5
- Hz 400
- C 35
$63.57In stock
Buy nowPower PCB 20VA 115V
- VA 20
- % Regulation 7.2
- Hz 400
- C 35
QuoteRequest a quote
Power PCB 5VA 115V
- VA 5
- % Regulation 20.07
- Hz 60
- C 25
QuoteRequest a quote
Power PCB 5VA 115V
- VA 5
- % Regulation 24
- Hz 60
- C 25
$63.57In stock
Buy nowPower PCB 5VA 115V
- VA 5
- % Regulation 26
- Hz 60
- C 25
QuoteRequest a quote
Power PCB 40VA 115V
- VA 40
- % Regulation 6
- Hz 400
- C 45
$63.57In stock
Buy nowPower PCB 40VA 115V
- VA 40
- % Regulation 5.7
- Hz 400
- C 45
QuoteRequest a quote
Power PCB 40VA 115V
- VA 40
- % Regulation 6
- Hz 400
- C 45
QuoteRequest a quote
Power PCB 40VA 115V
- VA 40
- % Regulation 5.7
- Hz 400
- C 45
QuoteRequest a quote
Power PCB 10VA 115V
- VA 10
- % Regulation 12.2
- Hz 60
- C 20
QuoteRequest a quote
Power PCB 10VA 115V
- VA 10
- % Regulation 12.5
- Hz 60
- C 20
$63.57In stock
Buy nowPower PCB 10VA 115V
- VA 10
- % Regulation 12.2
- Hz 60
- C 20
QuoteRequest a quote
Dimension tables (inches / mm)
226 Series:
Units shown: inch . Switch units to: mm
| Part No. | Size · (VA) | Freq. · (Hz) | Secondary (RMS) · Series | Secondary (RMS) · Parallel | Temp. Rise · (C) | % · Regulation | High · Max | Pin · Diameter | Weight · lbs. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 226D | 1 | 60 | 20V C.T. @ 50ma | 10V @ 100ma | 25 | 19.7 | 0.8 | 0.04 | 0.22 | $49.67In stock | Buy now |
| 226F | 1 | 60 | 30V C.T. @ 34ma | 15V @ 67ma | 25 | 21.7 | 0.8 | 0.04 | 0.22 | Quote | Quote |
| 226H | 1 | 60 | 40V C.T. @ 25ma | 20V @ 50ma | 25 | 18.9 | 0.8 | 0.04 | 0.22 | Quote | Quote |
| 226N | 20 | 400 | 20V C.T. @ 1A | 10V @ 2A | 35 | 7.2 | 0.8 | 0.04 | 0.22 | $63.57In stock | Buy now |
| 226P | 20 | 400 | 26V C.T. @ 770ma | 13V @ 1.54A | 35 | 7.6 | 0.8 | 0.04 | 0.22 | Quote | Quote |
| 226R | 20 | 400 | 30V C.T. @ 670ma | 15V @ 1.33A | 35 | 7.5 | 0.8 | 0.04 | 0.22 | $63.57In stock | Buy now |
| 226T | 20 | 400 | 40V C.T. @ 500ma | 20V @ 1A | 35 | 7.2 | 0.8 | 0.04 | 0.22 | Quote | Quote |
227 Series:
Units shown: inch . Switch units to: mm
| Part No. | Size · (VA) | Freq. · (Hz) | Secondary (RMS) · Series | Secondary (RMS) · Parallel | Temp. Rise · (C) | % · Regulation | High · Max | Pin · Diameter | Weight · lbs. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 227D | 5 | 60 | 20V C.T. @ 250ma | 10V @ 500ma | 25 | 20.07 | 1.05 | 0.05 | 0.38 | Quote | Quote |
| 227F | 5 | 60 | 30V C.T. @ 170ma | 15V @ 340ma | 25 | 24 | 1.05 | 0.05 | 0.38 | $63.57In stock | Buy now |
| 227H | 5 | 60 | 40V C.T. @ 125ma | 20V @ 250ma | 25 | 26 | 1.05 | 0.05 | 0.38 | Quote | Quote |
| 227N | 40 | 400 | 20V C.T. @ 2A | 10V @ 4A | 45 | 6 | 1.05 | 0.05 | 0.38 | $63.57In stock | Buy now |
| 227P | 40 | 400 | 26V C.T. @ 1.54A | 13V @ 3.08A | 45 | 5.7 | 1.05 | 0.05 | 0.38 | Quote | Quote |
| 227R | 40 | 400 | 30V C.T. @ 1.33A | 15V @ 2.66A | 45 | 6 | 1.05 | 0.05 | 0.38 | Quote | Quote |
| 227T | 40 | 400 | 40V C.T. @ 1A | 20V @ 2A | 45 | 5.7 | 1.05 | 0.05 | 0.38 | Quote | Quote |
228 Series:
Units shown: inch . Switch units to: mm
| Part No. | Size · (VA) | Freq. · (Hz) | Secondary (RMS) · Series | Secondary (RMS) · Parallel | Temp. Rise · (C) | % · Regulation | High · Max | Pin · Diameter | Weight · lbs. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 228D | 10 | 60 | 20V C.T. @ 500ma | 10V @ 1A | 20 | 12.2 | 1.22 | 0.50 | 0.91 | Quote | Quote |
| 228F | 10 | 60 | 30V C.T. @ 340ma | 15V @ 670ma | 20 | 12.5 | 1.22 | 0.50 | 0.91 | $63.57In stock | Buy now |
| 228H | 10 | 60 | 40V C.T. @ 250ma | 20V @ 500ma | 20 | 12.2 | 1.22 | 0.50 | 0.91 | Quote | Quote |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
Units shown: inch . Switch units to: mm
Units shown: inch . Switch units to: mm
- ■Primary 115 VAC, 60 or 400Hz. models, 3 case sizes
- ■Epoxy cast to withstand shock and severe environments
- ■Two coil design provides balanced windings and low magnetic radiation - no electrostatic shield required.
- ■228 series include four, 6-32 X .38 machine screw inserts for less strain on p.c. board connections.
Documents
Additional information
226 Series:
| Part No. | Size · (VA) | Freq. · (Hz) | Secondary (RMS) · Series | Secondary (RMS) · Parallel | Temp. Rise · (C) | % · Regulation | High · Max | Pin · Diameter | Weight · lbs. |
|---|---|---|---|---|---|---|---|---|---|
| 226D | 1 | 60 | 20V C.T. @ 50ma | 10V @ 100ma | 25 | 19.7 | 0.8 | 0.04 | 0.22 |
| 226F | 1 | 60 | 30V C.T. @ 34ma | 15V @ 67ma | 25 | 21.7 | 0.8 | 0.04 | 0.22 |
| 226H | 1 | 60 | 40V C.T. @ 25ma | 20V @ 50ma | 25 | 18.9 | 0.8 | 0.04 | 0.22 |
| 226N | 20 | 400 | 20V C.T. @ 1A | 10V @ 2A | 35 | 7.2 | 0.8 | 0.04 | 0.22 |
| 226P | 20 | 400 | 26V C.T. @ 770ma | 13V @ 1.54A | 35 | 7.6 | 0.8 | 0.04 | 0.22 |
| 226R | 20 | 400 | 30V C.T. @ 670ma | 15V @ 1.33A | 35 | 7.5 | 0.8 | 0.04 | 0.22 |
| 226T | 20 | 400 | 40V C.T. @ 500ma | 20V @ 1A | 35 | 7.2 | 0.8 | 0.04 | 0.22 |
227 Series:
| Part No. | Size · (VA) | Freq. · (Hz) | Secondary (RMS) · Series | Secondary (RMS) · Parallel | Temp. Rise · (C) | % · Regulation | High · Max | Pin · Diameter | Weight · lbs. |
|---|---|---|---|---|---|---|---|---|---|
| 227D | 5 | 60 | 20V C.T. @ 250ma | 10V @ 500ma | 25 | 20.07 | 1.05 | 0.05 | 0.38 |
| 227F | 5 | 60 | 30V C.T. @ 170ma | 15V @ 340ma | 25 | 24 | 1.05 | 0.05 | 0.38 |
| 227H | 5 | 60 | 40V C.T. @ 125ma | 20V @ 250ma | 25 | 26 | 1.05 | 0.05 | 0.38 |
| 227N | 40 | 400 | 20V C.T. @ 2A | 10V @ 4A | 45 | 6 | 1.05 | 0.05 | 0.38 |
| 227P | 40 | 400 | 26V C.T. @ 1.54A | 13V @ 3.08A | 45 | 5.7 | 1.05 | 0.05 | 0.38 |
| 227R | 40 | 400 | 30V C.T. @ 1.33A | 15V @ 2.66A | 45 | 6 | 1.05 | 0.05 | 0.38 |
| 227T | 40 | 400 | 40V C.T. @ 1A | 20V @ 2A | 45 | 5.7 | 1.05 | 0.05 | 0.38 |
228 Series:
| Part No. | Size · (VA) | Freq. · (Hz) | Secondary (RMS) · Series | Secondary (RMS) · Parallel | Temp. Rise · (C) | % · Regulation | High · Max | Pin · Diameter | Weight · lbs. |
|---|---|---|---|---|---|---|---|---|---|
| 228D | 10 | 60 | 20V C.T. @ 500ma | 10V @ 1A | 20 | 12.2 | 1.22 | 0.50 | 0.91 |
| 228F | 10 | 60 | 30V C.T. @ 340ma | 15V @ 670ma | 20 | 12.5 | 1.22 | 0.50 | 0.91 |
| 228H | 10 | 60 | 40V C.T. @ 250ma | 20V @ 500ma | 20 | 12.2 | 1.22 | 0.50 | 0.91 |
