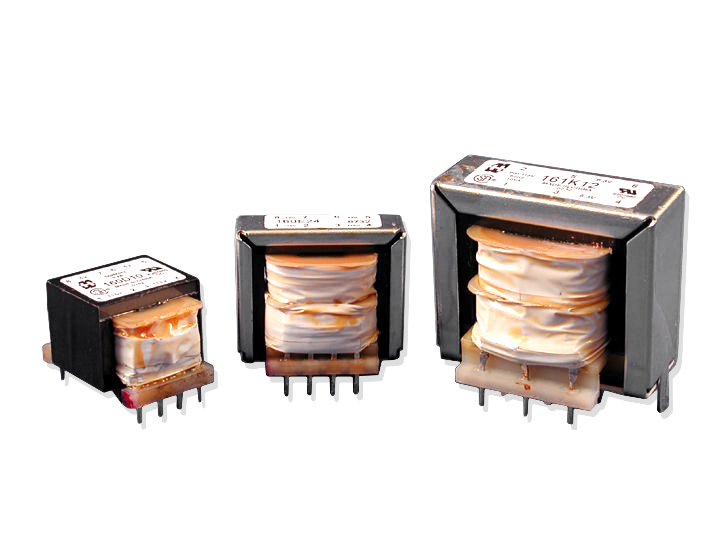

Low Voltage PC Board Mount, 0.5 VA to 24 VA 160-161 Series

Low Voltage PC Board Mount, 0.5 VA to 24 VA · 160-161 Series

Brand: Hammond Manufacturing · 103 part numbers

Low Voltage, P.C. Board Mount Vertical - 115 & 115/230 V Primary

  • ■20 output voltages to choose from (5 - 120VAC R.M.S.)
  • ■Six VA size models available from - .5 to 24 VA
  • ■Vertical mount, split bobbin design.
  • ■1.2, 4.4, 10, 24 VA models are non-concentric wound.
  • ■0.5 and 1 VA are both concentric wound.
  • ■Low primary to secondary coupling - no electrostatic shield required.

from $4.83

103 of 103 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your 160-161 Series part number

Filter 103 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

103 of 103 part numbers · 103 priced online

160D10

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 10V C.T. @ 90ma
  • Sec. Parallel 5V @ 180ma
$5.93In stock
Buy now
160D12

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 12.6V C.T. @ 70ma
  • Sec. Parallel 6.3V @ 140ma
$5.93In stock
Buy now
160D120

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 120V C.T. @ 8ma
  • Sec. Parallel 60V @ 16ma
$5.93Backorder
Buy now
160D16

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 16V C.T. @ 55ma
  • Sec. Parallel 8V @ 110ma
$5.38In stock
Buy now
160D20

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 20V C.T. @ 45ma
  • Sec. Parallel 10V @ 90ma
$5.93In stock
Buy now
160D24

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 24V C.T. @ 35ma
  • Sec. Parallel 12V @ 70ma
$5.93In stock
Buy now
160D28

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 28V C.T. @ 30ma
  • Sec. Parallel 14V @ 60ma
$5.38In stock
Buy now
160D34

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 34V C.T. @ 25ma
  • Sec. Parallel 17V @ 50ma
$5.38In stock
Buy now
160D40

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 40V C.T. @ 20ma
  • Sec. Parallel 20V @ 40ma
$5.93In stock
Buy now
160D56

Power TX 1VA 115/230V

  • VA 1
  • Sec. Series 56V C.T. @ 15ma
  • Sec. Parallel 28V @ 30ma
$5.38In stock
Buy now
160E120

Power TX 1.2VA 115/230V

  • VA 1.2
  • Sec. Series 120V C.T. @ 10ma
  • Sec. Parallel 60V @ 20ma
$5.52In stock
Buy now
160E16

Power TX 1.2VA 115/230V

  • VA 1.2
  • Sec. Series 16V C.T. @ 75ma
  • Sec. Parallel 8V @ 150ma
$6.07In stock
Buy now
160E20

Power TX .2VA 115/230V

  • VA 1.2
  • Sec. Series 20V C.T. @ 60ma
  • Sec. Parallel 10V @ 120ma
$5.52In stock
Buy now
160E24

Power TX 1.2VA 115/230V

  • VA 1.2
  • Sec. Series 24V C.T. @ 50ma
  • Sec. Parallel 12V @ 100ma
$6.07In stock
Buy now
160E28

Power TX 1.2VA 115/230V

  • VA 1.2
  • Sec. Series 28V C.T. @ 40ma
  • Sec. Parallel 14V @ 80ma
$5.49In stock
Buy now
160E34

Power TX 1.2VA 115/230V

  • VA 1.2
  • Sec. Series 34V C.T. @ 35ma
  • Sec. Parallel 17V @ 70ma
$5.52In stock
Buy now
160E40

Power TX 1.2VA 115/230V

  • VA 1.2
  • Sec. Series 40V C.T. @ 30ma
  • Sec. Parallel 20V @ 60ma
$5.52In stock
Buy now
160E56

Power TX 1.2VA 115/230V

  • VA 1.2
  • Sec. Series 56V C.T. @ 20ma
  • Sec. Parallel 28V @ 40ma
$5.52In stock
Buy now
160F10

Power TX 1.2VA 115/230V

  • VA 1.2
  • Sec. Series 10V C.T. @ 120ma
  • Sec. Parallel 5V @ 240ma
$5.52In stock
Buy now
160F12

Power TX 4.4VA 115/230V

  • VA 1.2
  • Sec. Series 12.6V C.T. @ 100ma
  • Sec. Parallel 6.3V @ 200ma
$6.07In stock
Buy now
160F120

Power TX 4.4VA 115/230V

  • VA 4.4
  • Sec. Series 120V C.T. @ 35ma
  • Sec. Parallel 60V @ 70ma
$6.84In stock
Buy now
160F16

Power TX 4.4VA 115/230V

  • VA 4.4
  • Sec. Series 16V C.T. @ 260ma
  • Sec. Parallel 8V @ 520ma
$6.84In stock
Buy now
160F20

Power TX 4.4VA 115/230V

  • VA 4.4
  • Sec. Series 20V C.T. @ 220ma
  • Sec. Parallel 10V @ 440ma
$6.84In stock
Buy now
160F24

Power TX 4.4VA 115/230V

  • VA 4.4
  • Sec. Series 24V C.T. @ 180ma
  • Sec. Parallel 12V @ 360ma
$6.84In stock
Buy now
160F28

Power TX 4.4VA 115/230V

  • VA 4.4
  • Sec. Series 28V C.T. @ 160ma
  • Sec. Parallel 14V @ 320ma
$6.84In stock
Buy now
160F34

Power TX 4.4VA 115/230V

  • VA 4.4
  • Sec. Series 34V C.T. @ 125ma
  • Sec. Parallel 17V @ 250ma
$6.84In stock
Buy now
160F40

Power TX 4.4VA 115/230V

  • VA 4.4
  • Sec. Series 40V C.T. @ 110ma
  • Sec. Parallel 20V @ 220ma
$6.23In stock
Buy now
160F56

Power TX 4.4VA 115/230V

  • VA 4.4
  • Sec. Series 56V C.T. @ 80ma
  • Sec. Parallel 28V @ 160ma
$6.23In stock
Buy now
160G10

Power TX 10VA 115/230V

  • VA 4.4
  • Sec. Series 10V C.T. @ 440ma
  • Sec. Parallel 5V @ 880ma
$6.23In stock
Buy now
160G12

Power TX 10VA 115/230V

  • VA 4.4
  • Sec. Series 12.6V C.T. @ 350ma
  • Sec. Parallel 6.3V @ 700ma
$6.84In stock
Buy now
160G120

Power TX 10VA 115/230V

  • VA 10
  • Sec. Series 120V C.T. @ 85ma
  • Sec. Parallel 60V @ 170ma
$7.59In stock
Buy now
160G16

Power TX 10VA 115/230V

  • VA 10
  • Sec. Series 16V C.T. @ 640ma
  • Sec. Parallel 8V @ 1.28A
$8.35In stock
Buy now
160G20

Power TX 10VA 115/230V

  • VA 10
  • Sec. Series 20V C.T. @ 500ma
  • Sec. Parallel 10V @ 1A
$8.35In stock
Buy now
160G24

Power TX 10VA 115/230V

  • VA 10
  • Sec. Series 24V C.T. @ 450ma
  • Sec. Parallel 12V @ 900ma
$8.35In stock
Buy now
160G28

Power TX 10VA 115/230V

  • VA 10
  • Sec. Series 28V C.T. @ 360ma
  • Sec. Parallel 14V @ 720ma
$8.35In stock
Buy now
160G34

Power TX 10VA 115/230V

  • VA 10
  • Sec. Series 34V C.T. @ 300ma
  • Sec. Parallel 17V @ 600ma
$8.35In stock
Buy now
160G40

Power TX 10VA 115/230V

  • VA 10
  • Sec. Series 40V C.T. @ 250ma
  • Sec. Parallel 20V @ 500ma
$7.59In stock
Buy now
160G56

Power TX 10VA 115/230V

  • VA 10
  • Sec. Series 56V C.T. @ 180ma
  • Sec. Parallel 28V @ 360ma
$7.59In stock
Buy now
160H10

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 10V C.T. @ 2.4A
  • Sec. Parallel 5V @ 4.8A
$13.11In stock
Buy now
160H12

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 12.6V C.T. @ 2A
  • Sec. Parallel 6.3V @ 4A
$14.43In stock
Buy now
160H120

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 120V C.T. @ 200ma
  • Sec. Parallel 60V @ 400ma
$15.19In stock
Buy now
160H16

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 16V C.T. @ 1.5A
  • Sec. Parallel 8V @ 3A
$14.43In stock
Buy now
160H20

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 20V C.T. @ 1.2A
  • Sec. Parallel 10V @ 2.4A
$13.11In stock
Buy now
160H24

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 24V C.T. @ 1A
  • Sec. Parallel 12V @ 2A
$14.43In stock
Buy now
160H28

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 28V C.T. @ 800ma
  • Sec. Parallel 14V @ 1.6A
$13.11In stock
Buy now
160H34

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 34V C.T. @ 700ma
  • Sec. Parallel 17V @ 1.4A
$15.19In stock
Buy now
160H40

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 40V C.T. @ 600ma
  • Sec. Parallel 20V @ 1.2A
$16.72In stock
Buy now
160H56

Power TX 24VA 115/230V

  • VA 24
  • Sec. Series 56V C.T. @ 420ma
  • Sec. Parallel 28V @ 840ma
$15.19In stock
Buy now
Dimension tables (inches / mm)
Part No · Single Primary · 115VPart No · Dual Primary · 115/230VSize · VASecondary (RMS) · SeriesSecondary (RMS) · ParallelPriceOrder
161C10-0.510V C.T. @ 50ma5V @ 100ma$5.16In stockBuy now
161D10160D10110V C.T. @ 90ma5V @ 180ma$4.83In stock161D10Buy now
161FA10160F101.210V C.T. @ 120ma5V @ 240ma$4.96In stock161FA10Buy now
161GA10160G104.410V C.T. @ 440ma5V @ 880ma$6.07In stock161GA10Buy now
161J10160J101010V C.T. @ 1A5V @ 2A$7.30In stock161J10Buy now
161H10160H102410V C.T. @ 2.4A5V @ 4.8A$13.11In stock161H10Buy now
161C12-0.512.6V C.T. @ 40ma6.3V @ 80ma$5.16In stockBuy now
161D12160D12112.6V C.T. @ 70ma6.3V @ 140ma$4.83In stock161D12Buy now
161FA12160F121.212.6V C.T. @ 100ma6.3V @ 200ma$5.49In stock161FA12Buy now
161GA12160G124.412.6V C.T. @ 350ma6.3V @ 700ma$6.69In stock161GA12Buy now
161K12160K121012.6V C.T. @ 800ma6.3V @ 1.6A$8.05In stock161K12Buy now
161H12160H122412.6V C.T. @ 2A6.3V @ 4A$13.11In stock161H12Buy now
161C16-0.516V C.T. @ 31.3ma8V @ 62.5ma$5.16In stockBuy now
161D16160D16116V C.T. @ 55ma8V @ 110ma$4.83In stock161D16Buy now
161EA16160E161.216V C.T. @ 75ma8V @ 150ma$4.96In stock161EA16Buy now
161FA16160F164.416V C.T. @ 260ma8V @ 520ma$6.69In stock161FA16Buy now
161G16160G161016V C.T. @ 640ma8V @ 1.28A$7.30In stock161G16Buy now
161H16160H162416V C.T. @ 1.5A8V @ 3A$13.11In stock161H16Buy now
161D20160D20120V C.T. @ 45ma10V @ 90ma$4.83In stock161D20Buy now
161EA20160E201.220V C.T. @ 60ma10V @ 120ma$5.49In stock161EA20Buy now
161FA20160F204.420V C.T. @ 220ma10V @ 440ma$6.69In stock161FA20Buy now
161G20160G201020V C.T. @ 500ma10V @ 1A$7.30In stock161G20Buy now
161H20160H202420V C.T. @ 1.2A10V @ 2.4A$13.11In stock161H20Buy now
161D24160D24124V C.T. @ 35ma12V @ 70ma$4.83In stock161D24Buy now
161E24160E241.224V C.T. @ 50ma12V @ 100ma$5.49In stock161E24Buy now

Mechanical & Schematic Data (160 Series):

Units shown: inch . Switch units to: mm

Size · (VA)Overall Dimensions · AOverall Dimensions · BOverall Dimensions · COverall Dimensions · D ThicknessOverall Dimensions · D WidthOverall Dimensions · EOverall Dimensions · F ThicknessOverall Dimensions · F WidthOverall Dimensions · GOverall Dimensions · HOverall Dimensions · JPriceOrder
11.001.380.830.020.041.20--0.20N/AN/AQuoteQuote
1.21.381.191.220.020.041.00--0.20N/AN/AQuoteQuote
4.41.691.251.450.020.041.100.030.120.251.670.46QuoteQuote
101.941.441.690.020.041.300.030.190.251.890.57QuoteQuote
241.632.251.380.020.042.10--0.25N/AN/AQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Mechanical & Schematic Data (161 Series):

Units shown: inch . Switch units to: mm

Size · (VA)Overall Dimensions · AOverall Dimensions · BOverall Dimensions · COverall Dimensions · D ThicknessOverall Dimensions · D WidthOverall Dimensions · EOverall Dimensions · F ThicknessOverall Dimensions · F WidthOverall Dimensions · GOverall Dimensions · HOverall Dimensions · JPriceOrder
0.51.000.940.840.0250.030.78--0.25--QuoteQuote
11.001.380.830.020.041.20--0.25--QuoteQuote
1.21.381.191.220.020.041.00--0.31--QuoteQuote
4.41.691.251.450.020.041.100.030.120.401.670.44QuoteQuote
101.941.441.690.020.041.300.030.190.401.890.55QuoteQuote
241.632.251.380.020.042.10--0.40--QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

Units shown: inch . Switch units to: mm

  • ■20 output voltages to choose from (5 - 120VAC R.M.S.)
  • ■Six VA size models available from - .5 to 24 VA
  • ■Vertical mount, split bobbin design.
  • ■1.2, 4.4, 10, 24 VA models are non-concentric wound.
  • ■0.5 and 1 VA are both concentric wound.
  • ■Low primary to secondary coupling - no electrostatic shield required.
  • ■Choice of economical single primary 115V - 60 Hz only (161 series) or the universal dual primary 115/230V - 50/60 Hz (160 series).
  • ■High insulation - Hipot of 2,000V RMS.
  • ■Class B insulation - 130 degrees C.
  • ■CSA certified (File # LR3902) and UL recognized (File #E207860).

Documents

Specification Sheet

Additional information

Part Details

Part No · Single Primary · 115VPart No · Dual Primary · 115/230VSize · VASecondary (RMS) · SeriesSecondary (RMS) · Parallel
161C10-0.510V C.T. @ 50ma5V @ 100ma
161D10160D10110V C.T. @ 90ma5V @ 180ma
161FA10160F101.210V C.T. @ 120ma5V @ 240ma
161GA10160G104.410V C.T. @ 440ma5V @ 880ma
161J10160J101010V C.T. @ 1A5V @ 2A
161H10160H102410V C.T. @ 2.4A5V @ 4.8A
161C12-0.512.6V C.T. @ 40ma6.3V @ 80ma
161D12160D12112.6V C.T. @ 70ma6.3V @ 140ma
161FA12160F121.212.6V C.T. @ 100ma6.3V @ 200ma
161GA12160G124.412.6V C.T. @ 350ma6.3V @ 700ma
161K12160K121012.6V C.T. @ 800ma6.3V @ 1.6A
161H12160H122412.6V C.T. @ 2A6.3V @ 4A
161C16-0.516V C.T. @ 31.3ma8V @ 62.5ma
161D16160D16116V C.T. @ 55ma8V @ 110ma
161EA16160E161.216V C.T. @ 75ma8V @ 150ma
161FA16160F164.416V C.T. @ 260ma8V @ 520ma
161G16160G161016V C.T. @ 640ma8V @ 1.28A
161H16160H162416V C.T. @ 1.5A8V @ 3A
161D20160D20120V C.T. @ 45ma10V @ 90ma
161EA20160E201.220V C.T. @ 60ma10V @ 120ma
161FA20160F204.420V C.T. @ 220ma10V @ 440ma
161G20160G201020V C.T. @ 500ma10V @ 1A
161H20160H202420V C.T. @ 1.2A10V @ 2.4A
161D24160D24124V C.T. @ 35ma12V @ 70ma
161E24160E241.224V C.T. @ 50ma12V @ 100ma
161F24160F244.424V C.T. @ 180ma12V @ 360ma
161G24160G241024V C.T. @ 450ma12V @ 900ma
161H24160H242424V C.T. @ 1A12V @ 2A
161D28160D28128V C.T. @ 30ma14V @ 60ma
161E28160E281.228V C.T. @ 40ma14V @ 80ma
161F28160F284.428V C.T. @ 160ma14V @ 320ma
161G28160G281028V C.T. @ 360ma14V @ 720ma
161H28160H282428V C.T. @ 800ma14V @ 1.6A
161D34160D34134V C.T. @ 25ma17V @ 50ma
161E34160E341.234V C.T. @ 35ma17V @ 70ma
161F34160F344.434V C.T. @ 125ma17V @ 250ma
161G34160G341034V C.T. @ 300ma17V @ 600ma
161H34160H342434V C.T. @ 700ma17V @ 1.4A
161D40160D40140V C.T. @ 20ma20V @ 40ma
161E40160E401.240V C.T. @ 30ma20V @ 60ma
161F40160F404.440V C.T. @ 110ma20V @ 220ma
161G40160G401040V C.T. @ 250ma20V @ 500ma
161H40160H402440V C.T. @ 600ma20V @ 1.2A
161D56160D56156V C.T. @ 15ma28V @ 30ma
161E56160E561.256V C.T. @ 20ma28V @ 40ma
161F56160F564.456V C.T. @ 80ma28V @ 160ma
161G56160G561056V C.T. @ 180ma28V @ 360ma
161H56160H562456V C.T. @ 420ma28V @ 840ma
161D120160D1201120V C.T. @ 8ma60V @ 16ma
161E120160E1201.2120V C.T. @ 10ma60V @ 20ma
161F120160F1204.4120V C.T. @ 35ma60V @ 70ma
161G120160G12010120V C.T. @ 85ma60V @ 170ma
161H120160H12024120V C.T. @ 200ma60V @ 400ma

Mechanical & Schematic Data (160 Series):

Size · (VA)Overall Dimensions · AOverall Dimensions · BOverall Dimensions · COverall Dimensions · D ThicknessOverall Dimensions · D WidthOverall Dimensions · EOverall Dimensions · F ThicknessOverall Dimensions · F WidthOverall Dimensions · GOverall Dimensions · HOverall Dimensions · J
11.001.380.830.020.041.20--0.20N/AN/A
1.21.381.191.220.020.041.00--0.20N/AN/A
4.41.691.251.450.020.041.100.030.120.251.670.46
101.941.441.690.020.041.300.030.190.251.890.57
241.632.251.380.020.042.10--0.25N/AN/A

Mechanical & Schematic Data (161 Series):

Size · (VA)Overall Dimensions · AOverall Dimensions · BOverall Dimensions · COverall Dimensions · D ThicknessOverall Dimensions · D WidthOverall Dimensions · EOverall Dimensions · F ThicknessOverall Dimensions · F WidthOverall Dimensions · GOverall Dimensions · HOverall Dimensions · J
0.51.000.940.840.0250.030.78--0.25--
11.001.380.830.020.041.20--0.25--
1.21.381.191.220.020.041.00--0.31--
4.41.691.251.450.020.041.100.030.120.401.670.44
101.941.441.690.020.041.300.030.190.401.890.55
241.632.251.380.020.042.10--0.40--

Any questions? Talk with an expert

Call us (224) 955-1644

Related products

Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA

Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA · 162-164 Series

from $5.52

Shop parts
Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA

Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA · 183 Series

from $6.15

Shop parts
Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA

Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA · 229 Series

from $7.18

Shop parts
Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA

Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA · 226-227-228 Series

from $49.67

Shop parts
Low Voltage Solder or Quick Connect Terminals - 2.4 VA to 102 VA

Low Voltage Solder or Quick Connect Terminals - 2.4 VA to 102 VA · 186-187 Series

from $5.52

Shop parts
Toroid Power Transformers - 15 VA to 1500 VA

Toroid Power Transformers - 15 VA to 1500 VA · 1182 Series

from $3.04

Shop parts
24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA

24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA · PHC Series

from $28.68

Shop parts
Low Voltage Chassis Mount - 25 VA to 175 VA

Low Voltage Chassis Mount - 25 VA to 175 VA · 185 Series

from $12.68

Shop parts
