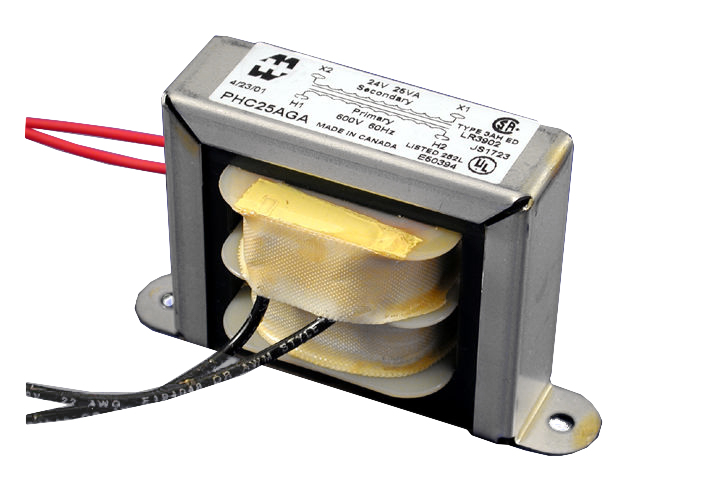

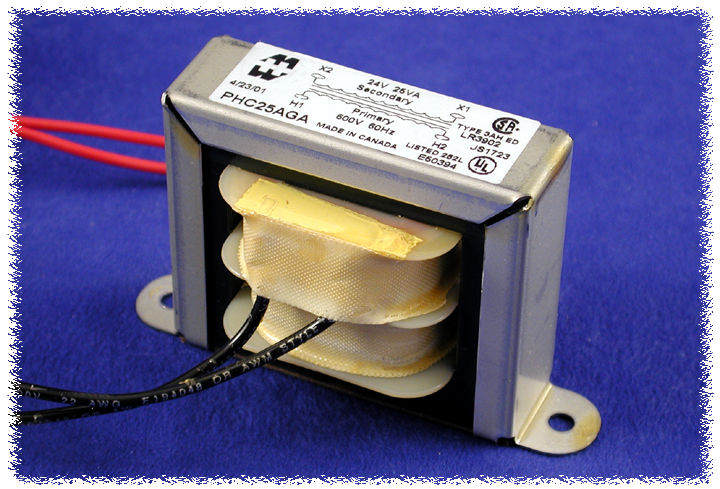

24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA PHC Series

24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA · PHC Series

Brand: Hammond Manufacturing · 11 part numbers

120V, 208V, 347V or 600V Primary

  • ■Used as a small 24 volt transformer for relay, pilot lights or low voltage, low power control use.
  • ■60 Hz. operation.
  • ■Chassis mount.
  • ■With 10" leads.
  • ■CSA certified (209651)
  • ■UL listed (File #E207860)

from $28.68

11 of 11 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PHC Series part number

Filter 11 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

11 of 11 part numbers · 11 priced online

PHC25AGA

25VA 600V

  • VA 25
  • Pri. Voltage 600
  • A 1.04
  • Sec. Voltage 24
$28.68In stock
Buy now
PHC25FGA

25VA 480V

  • VA 25
  • Pri. Voltage 480
  • A 1.04
  • Sec. Voltage 24
$28.68In stock
Buy now
PHC25JGA

25VA 120V

  • VA 25
  • Pri. Voltage 120
  • A 1.04
  • Sec. Voltage 24
$28.68In stock
Buy now
PHC25KGA

25VA 347V

  • VA 25
  • Pri. Voltage 347
  • A 1.04
  • Sec. Voltage 24
$28.68In stock
Buy now
PHC25LGA

25VA 208V

  • VA 25
  • Pri. Voltage 208
  • A 1.04
  • Sec. Voltage 24
$28.68In stock
Buy now
PHC50AGA

50VA 600V

  • VA 50
  • Pri. Voltage 600
  • A 2.08
  • Sec. Voltage 24
$30.64In stock
Buy now
PHC50FGA

50VA 480V

  • VA 50
  • Pri. Voltage 480
  • A 2.08
  • Sec. Voltage 24
$30.64In stock
Buy now
PHC50JGA

50VA 120V

  • VA 50
  • Pri. Voltage 120
  • A 2.08
  • Sec. Voltage 24
$30.64In stock
Buy now
PHC50KGA

50VA 347V

  • VA 50
  • Pri. Voltage 347
  • A 2.08
  • Sec. Voltage 24
$30.64In stock
Buy now
PHC50LGA

50VA 208V

  • VA 50
  • Pri. Voltage 208
  • A 2.08
  • Sec. Voltage 24
$30.64In stock
Buy now
PHC50PGA

50VA 24V Primary

  • VA 50
  • Pri. Voltage 24
  • A 2.08
  • Sec. Voltage 24 VCT
$30.64In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Primary · VoltageSecondary · VoltageSecondary · Current · (Amps)VAOverall Dimensions · Height · (C)Overall Dimensions · Width · (A)Overall Dimensions · Depth · (B)Mounting · Hole · Centers · (D)PriceOrder
PHC50PGA2424 VCT2.08502.634.002.253.56$30.64In stockBuy now
PHC25JGA120241.04252.313.692.133.13$28.68In stockBuy now
PHC50JGA120242.08502.634.002.503.56$30.64In stockBuy now
PHC25LGA208241.04252.313.692.133.13$28.68In stockBuy now
PHC50LGA208242.08502.634.002.503.56$30.64In stockBuy now
PHC25KGA347241.04252.313.692.133.13$28.68In stockBuy now
PHC50KGA347242.08502.634.002.503.56$30.64In stockBuy now
PHC25FGA480241.04252.313.692.133.13$28.68In stockBuy now
PHC50FGA480242.08502.634.002.503.56$30.64In stockBuy now
PHC25AGA600241.04252.313.692.133.13$28.68In stockBuy now
PHC50AGA600242.08502.634.002.503.56$30.64In stockBuy now

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

  • ■Used as a small 24 volt transformer for relay, pilot lights or low voltage, low power control use.
  • ■60 Hz. operation.
  • ■Chassis mount.
  • ■With 10" leads.
  • ■CSA certified (209651)
  • ■UL listed (File #E207860)

Documents

Specification Sheet

Additional information

Part Details

Part No.Primary · VoltageSecondary · VoltageSecondary · Current · (Amps)VAOverall Dimensions · Height · (C)Overall Dimensions · Width · (A)Overall Dimensions · Depth · (B)Mounting · Hole · Centers · (D)
PHC50PGA2424 VCT2.08502.634.002.253.56
PHC25JGA120241.04252.313.692.133.13
PHC50JGA120242.08502.634.002.503.56
PHC25LGA208241.04252.313.692.133.13
PHC50LGA208242.08502.634.002.503.56
PHC25KGA347241.04252.313.692.133.13
PHC50KGA347242.08502.634.002.503.56
PHC25FGA480241.04252.313.692.133.13
PHC50FGA480242.08502.634.002.503.56
PHC25AGA600241.04252.313.692.133.13
PHC50AGA600242.08502.634.002.503.56
