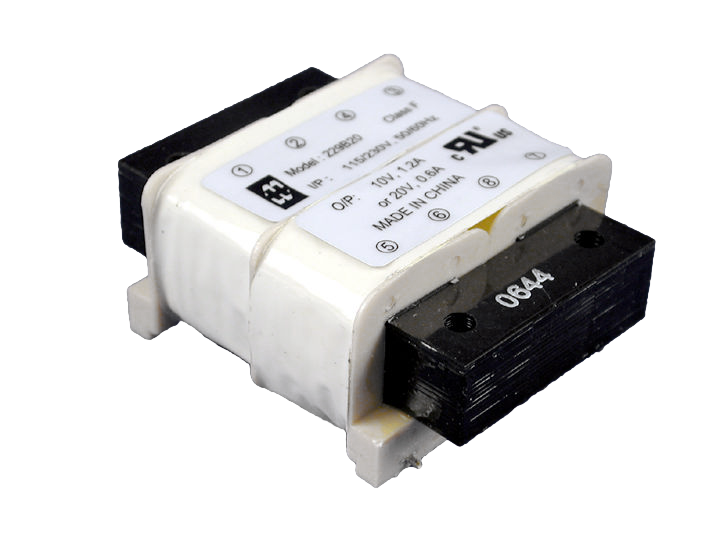

Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA 229 Series

Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA · 229 Series

Brand: Hammond Manufacturing · 54 part numbers

  • ■Low profile mounting, dual - split bobbin design.
  • ■Low primary to secondary coupling, balanced windings, no electrostatic shield required and low EMF radiation due to semi-toroidal design.
  • ■Universal dual primary 115/230V - 50/60 Hz.
  • ■High insulation - Hipot of 1,750V RMS.
  • ■Class B insulation - 130 degrees C.
  • ■C UL US recognized. UL file E207860

from $7.18

54 of 54 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your 229 Series part number

Filter 54 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

54 of 54 part numbers · 54 priced online

229A10

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A12

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A120

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A16

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A20

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A230

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15Backorder
Buy now
229A24

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A30

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A34

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A40

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A56

TX 115/230V 6VA 50/60HZ

  • VA 6
$8.15In stock
Buy now
229A88

TX 115/230V 6VA 50/60HZ

  • VA 6
$7.40In stock
Buy now
229B10

TX 115/230V 12VA 50/60HZ

  • VA 12
$9.80In stock
Buy now
229B12

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B120

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B16

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B20

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B230

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B24

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B30

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B34

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B40

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B56

TX 115/230V 12VA 50/60HZ

  • VA 12
$10.80In stock
Buy now
229B88

TX 115/230V 12VA 50/60HZ

  • VA 12
$9.80In stock
Buy now
229C10

TX 115/230V 24VA 50/60HZ

  • VA 24
$13.98In stock
Buy now
229C12

TX 115/230V 24VA 50/60HZ

  • VA 24
$13.98In stock
Buy now
229C16

TX 115/230V 24VA 50/60HZ

  • VA 24
$13.98In stock
Buy now
229C20

TX 115/230V 24VA 50/60HZ

  • VA 24
$13.98In stock
Buy now
229C24

TX 115/230V 24VA 50/60HZ

  • VA 24
$13.98In stock
Buy now
229C30

TX 115/230V 24VA 50/60HZ

  • VA 24
$12.68In stock
Buy now
229C34

TX 115/230V 24VA 50/60HZ

  • VA 24
$13.98In stock
Buy now
229C40

TX 115/230V 24VA 50/60HZ

  • VA 24
$13.98In stock
Buy now
229C56

TX 115/230V 24VA 50/60HZ

  • VA 24
$13.98In stock
Buy now
229D10

TX 115/230V 48VA 50/60HZ

  • VA 48
$19.62In stock
Buy now
229D12

TX 115/230V 48VA 50/60HZ

  • VA 48
$19.62In stock
Buy now
229D16

TX 115/230V 48VA 50/60HZ

  • VA 48
$19.62In stock
Buy now
229D20

TX 115/230V 48VA 50/60HZ

  • VA 48
$19.62In stock
Buy now
229D24

TX 115/230V 48VA 50/60HZ

  • VA 48
$19.62In stock
Buy now
229D30

TX 115/230V 48VA 50/60HZ

  • VA 48
$19.62In stock
Buy now
229D34

TX 115/230V 48VA 50/60HZ

  • VA 48
$19.62In stock
Buy now
229D40

TX 115/230V 48VA 50/60HZ

  • VA 48
$21.60In stock
Buy now
229D56

TX 115/230V 48VA 50/60HZ

  • VA 48
$19.62In stock
Buy now
229E10

TX 115/230V 2VA 50/60HZ

  • VA 2
$7.91In stock
Buy now
229E12

TX 115/230V 2VA 50/60HZ

  • VA 2
$7.91Backorder
Buy now
229E120

TX 115/230V 2VA 50/60HZ

  • VA 2
$7.91In stock
Buy now
229E16

TX 115/230V 2VA 50/60HZ

  • VA 2
$7.91In stock
Buy now
229E20

TX 115/230V 2VA 50/60HZ

  • VA 2
$7.91In stock
Buy now
229E230

TX 115/230V 2VA 50/60HZ

  • VA 2
$7.91In stock
Buy now
Dimension tables (inches / mm)
Dual Primary · 115/230V · Part No.Size · (VA)Secondary (RMS) · SeriesSecondary (RMS) · ParallelPriceOrder
229E10210V C.T. @ 250ma5V @ 500ma$7.91In stockBuy now
229A10610V C.T. @ 600ma5V @ 1.2A$8.15In stockBuy now
229B101210V C.T. @ 1.2A5V @ 2.4A$9.80In stockBuy now
229C102410V C.T. @ 2.4A5V @ 4.8A$13.98In stockBuy now
229D104810V C.T. @ 4.8A5V @ 9.6A$19.62In stockBuy now
229E12212.6V C.T. @ 200ma6.3V @ 400ma$7.91BackorderBuy now
229A12612.6V C.T. @ 450ma6.3V @ 900ma$8.15In stockBuy now
229B121212.6V C.T. @ 900ma6.3V @ 1.8a$10.80In stockBuy now
229C122412.6V C.T. @ 1.9A6.3V @ 3.8A$13.98In stockBuy now
229D124812.6V C.T. @ 3.8A6.3V @ 7.6A$19.62In stockBuy now
229E16216V C.T. @ 150ma8V @ 300ma$7.91In stockBuy now
229A16616V C.T. @ 350ma8V @ 700ma$8.15In stockBuy now
229B161216V C.T. @ 700ma8V @ 1.4A$10.80In stockBuy now
229C162416V C.T. @ 1.5A8V @ 3A$13.98In stockBuy now
229D164816V C.T. @ 3A8V @ 6A$19.62In stockBuy now
229E20220V C.T. @ 125ma10V @ 250ma$7.91In stockBuy now
229A20620V C.T. @ 300ma10V @ 600ma$8.15In stockBuy now
229B201220V C.T. @ 600ma10V @ 1.2A$10.80In stockBuy now
229C202420V C.T. @ 1.2A10V @ 2.4A$13.98In stockBuy now
229D204820V C.T. @ 2.4A10V @ 4.8A$19.62In stockBuy now
229E24224V C.T. @ 100ma12V @ 200ma$7.91In stockBuy now
229A24624V C.T. @ 250ma12V @ 500ma$8.15In stockBuy now
229B241224V C.T. @ 500ma12V @ 1A$10.80In stockBuy now
229C242424V C.T. @ 1A12V @ 2A$13.98In stockBuy now
229D244824V C.T. @ 2A12V @ 4A$19.62In stockBuy now

Mechanical & Schematic Data

Units shown: inch . Switch units to: mm

Size · (VA)RegulationPC Board · Card SpacingPin SizePin Size (2)Pin Size (3)Dimensions · ADimensions · BDimensions · CDimensions · DDimensions · D1Dimensions · EPriceOrder
20.30.750.02x0.041.561.880.650.380.381.60QuoteQuote
60.31.000.02x0.041.561.880.850.380.381.60QuoteQuote
120.21.250.02x0.042.002.501.070.500.502.00QuoteQuote
240.151.500.04x0.042.252.871.250.600.531.90QuoteQuote
480.151.500.04x0.042.503.121.380.600.662.18QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

  • ■Low profile mounting, dual - split bobbin design.
  • ■Low primary to secondary coupling, balanced windings, no electrostatic shield required and low EMF radiation due to semi-toroidal design.
  • ■Universal dual primary 115/230V - 50/60 Hz.
  • ■High insulation - Hipot of 1,750V RMS.
  • ■Class B insulation - 130 degrees C.
  • ■C UL US recognized. UL file E207860

Documents

Specification Sheet

Additional information

Part Details

Dual Primary · 115/230V · Part No.Size · (VA)Secondary (RMS) · SeriesSecondary (RMS) · Parallel
229E10210V C.T. @ 250ma5V @ 500ma
229A10610V C.T. @ 600ma5V @ 1.2A
229B101210V C.T. @ 1.2A5V @ 2.4A
229C102410V C.T. @ 2.4A5V @ 4.8A
229D104810V C.T. @ 4.8A5V @ 9.6A
229E12212.6V C.T. @ 200ma6.3V @ 400ma
229A12612.6V C.T. @ 450ma6.3V @ 900ma
229B121212.6V C.T. @ 900ma6.3V @ 1.8a
229C122412.6V C.T. @ 1.9A6.3V @ 3.8A
229D124812.6V C.T. @ 3.8A6.3V @ 7.6A
229E16216V C.T. @ 150ma8V @ 300ma
229A16616V C.T. @ 350ma8V @ 700ma
229B161216V C.T. @ 700ma8V @ 1.4A
229C162416V C.T. @ 1.5A8V @ 3A
229D164816V C.T. @ 3A8V @ 6A
229E20220V C.T. @ 125ma10V @ 250ma
229A20620V C.T. @ 300ma10V @ 600ma
229B201220V C.T. @ 600ma10V @ 1.2A
229C202420V C.T. @ 1.2A10V @ 2.4A
229D204820V C.T. @ 2.4A10V @ 4.8A
229E24224V C.T. @ 100ma12V @ 200ma
229A24624V C.T. @ 250ma12V @ 500ma
229B241224V C.T. @ 500ma12V @ 1A
229C242424V C.T. @ 1A12V @ 2A
229D244824V C.T. @ 2A12V @ 4A
229E30230V C.T. @ 85ma15V @ 170ma
229A30630V C.T. @ 200ma15V @ 400ma
229B301230V C.T. @ 400ma15V @ 800ma
229C302430V C.T. @ 800ma15V @ 1.6A
229D304830V C.T. @ 1.6A15V @ 3.2A
229E34234V C.T. @ 75ma17V @ 150ma
229A34634V C.T. @ 170ma17V @ 340ma
229B341234V C.T. @ 340ma17V @ 680ma
229C342434V C.T. @ 700ma17V @ 1.4A
229D344834V C.T. @ 1.4A17V @ 2.8A
229E40240V C.T. @ 60ma20V @ 120ma
229A40640V C.T. @ 150ma20V @ 300ma
229B401240V C.T. @ 300ma20V @ 600ma
229C402440V C.T. @ 600ma20V @ 1.2A
229D404840V C.T. @ 1.2A20V @ 2.4A
229E56256V C.T. @ 45ma28V @ 90ma
229A56656V C.T. @ 100ma28V @ 200ma
229B561256V C.T. @ 200ma28V @ 400ma
229C562456V C.T. @ 425ma28V @ 850ma
229D564856V C.T. @ 850ma28V @ 1.7A
229E88288V C.T. @ 28ma44V @ 56ma
229A88688V C.T. @ 65ma44V @ 130ma
229B881288V C.T. @ 130ma44V @ 260ma
229E1202120V C.T. @ 20ma60V @ 40ma
229A1206120V C.T. @ 50ma60V @ 100ma
229B12012120V C.T. @ 100ma60V @ 200ma
229E2302230V C.T. @ 10ma115V @ 20ma
229A2306230V C.T. @ 25ma115V @ 50ma
229B23012230V C.T. @ 50ma115V @ 100ma

Mechanical & Schematic Data

Size · (VA)RegulationPC Board · Card SpacingPin SizePin Size (2)Pin Size (3)Dimensions · ADimensions · BDimensions · CDimensions · DDimensions · D1Dimensions · E
20.30.750.02x0.041.561.880.650.380.381.60
60.31.000.02x0.041.561.880.850.380.381.60
120.21.250.02x0.042.002.501.070.500.502.00
240.151.500.04x0.042.252.871.250.600.531.90
480.151.500.04x0.042.503.121.380.600.662.18
