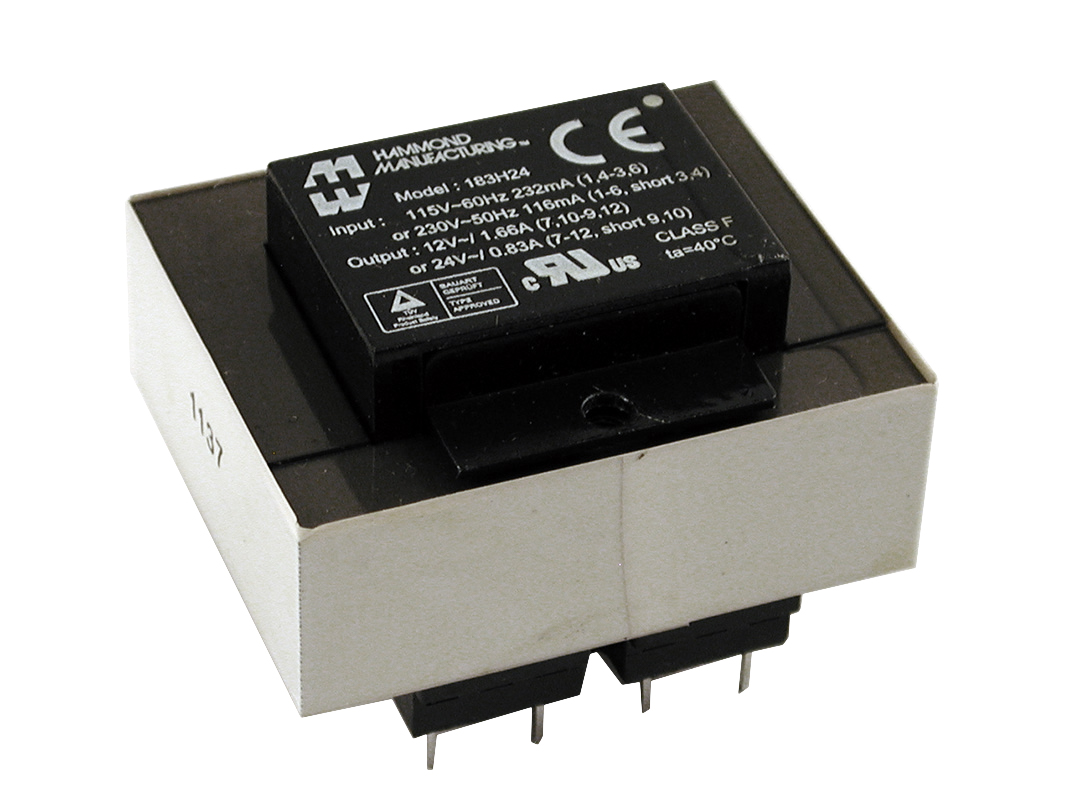

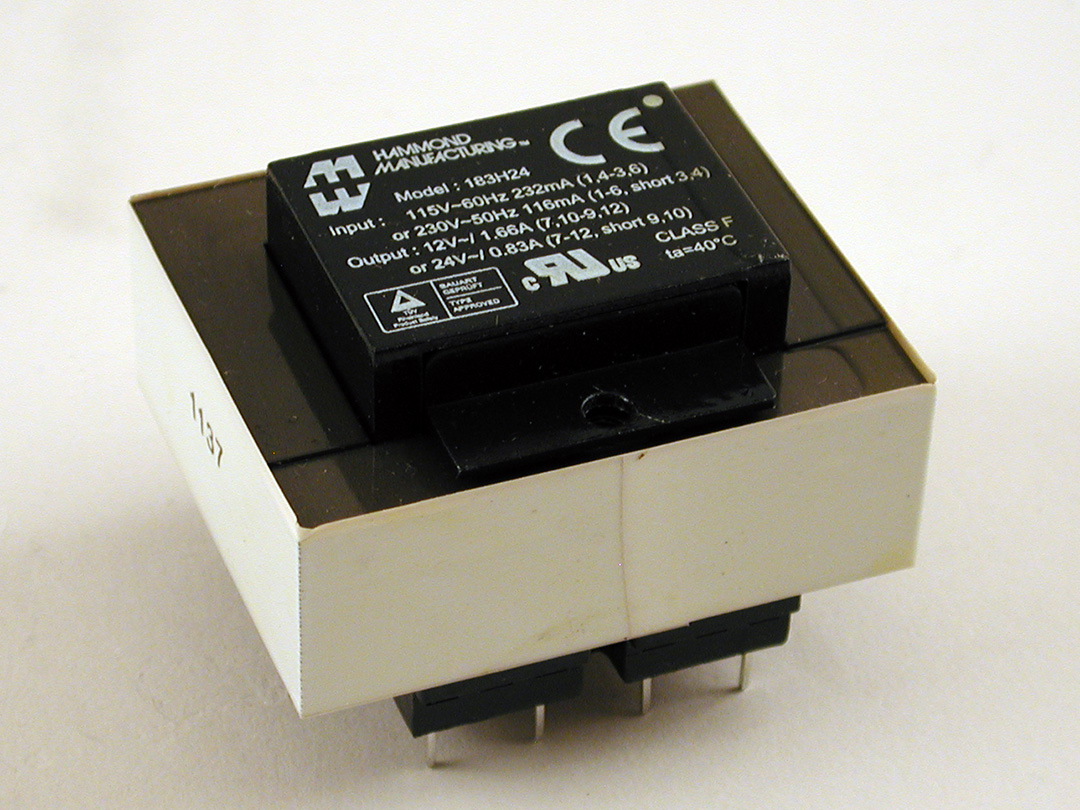

Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA 183 Series

Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA · 183 Series

Brand: Hammond Manufacturing · 84 part numbers

  • ■Universal operation - dual primary. 115 or 230 VAC, 50/60 Hz current.
  • ■14 output voltages to choose from (5 - 36 VAC R.M.S.)

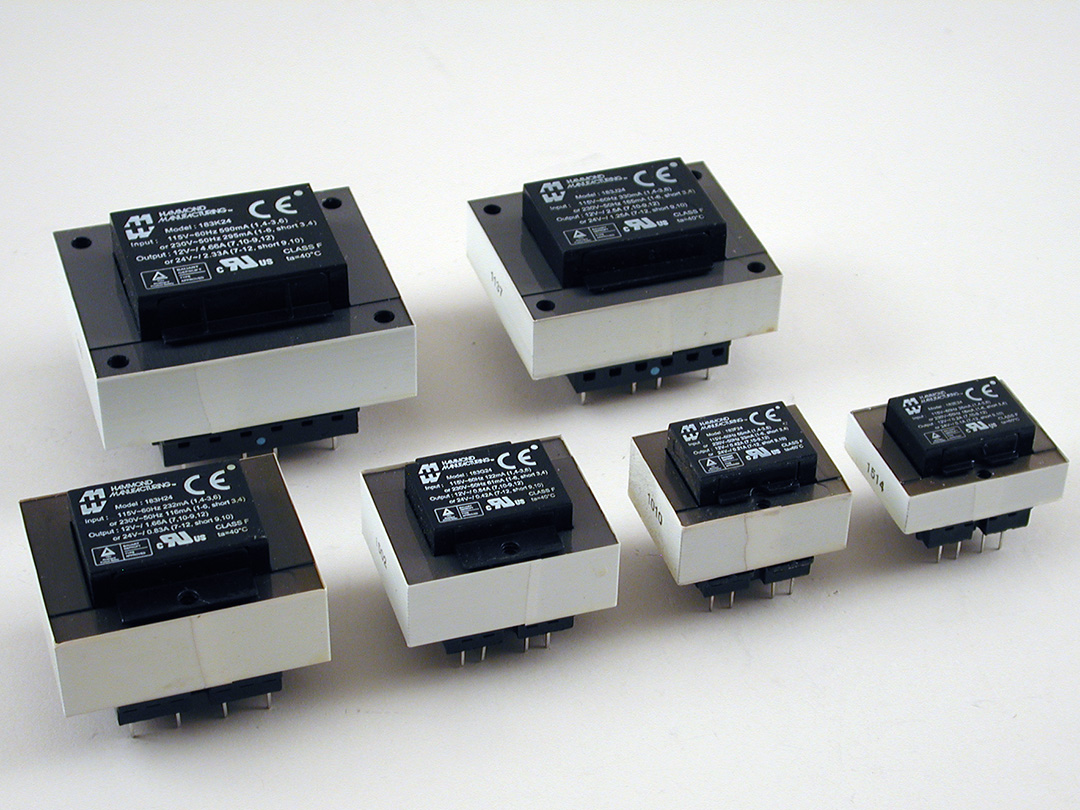

  • ■Six VA size models available from - 2.5 to 56VA.
  • ■Low profile, split bobbin with top shroud design.
  • ■Dual winding secondaries, non-concentrically wound. Can be wired in series, parallel or used separately.
  • ■Low primary to secondary coupling - no electrostatic shield required.

from $6.15

42 of 84 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 183 Series part number

Filter 84 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

84 of 84 part numbers · 42 priced online

183E10

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 10V C.T. @ 0.25A
  • Sec. Parallel 5V @ 0.5A
$6.15In stock
Buy now
183E10-BULK

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 10V C.T. @ 0.25A
  • Sec. Parallel 5V @ 0.5A
QuoteRequest a quote
183E12

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 12.6V C.T. @ 0.2A
  • Sec. Parallel 6.3V @ 0.4A
$6.15In stock
Buy now
183E12-BULK

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 12.6V C.T. @ 0.2A
  • Sec. Parallel 6.3V @ 0.4A
QuoteRequest a quote
183E16

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 16V C.T. @ 0.15A
  • Sec. Parallel 8V @ 0.3A
$6.15In stock
Buy now
183E16-BULK

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 16V C.T. @ 0.15A
  • Sec. Parallel 8V @ 0.3A
QuoteRequest a quote
183E20

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 20V C.T. @ 0.12A
  • Sec. Parallel 10V @ 0.24A
$6.15In stock
Buy now
183E20-BULK

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 20V C.T. @ 0.12A
  • Sec. Parallel 10V @ 0.24A
QuoteRequest a quote
183E24

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 24V C.T. @ 0.1A
  • Sec. Parallel 12V @ 0.2A
$6.15In stock
Buy now
183E24-BULK

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 24V C.T. @ 0.1A
  • Sec. Parallel 12V @ 0.2A
QuoteRequest a quote
183E28

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 28V C.T. @ 0.09A
  • Sec. Parallel 14V @ 0.18A
$6.15In stock
Buy now
183E28-BULK

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 28V C.T. @ 0.09A
  • Sec. Parallel 14V @ 0.18A
QuoteRequest a quote
183E36

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 36V C.T. @ 0.07A
  • Sec. Parallel 18V @ 0.14A
$6.15In stock
Buy now
183E36-BULK

Power PCB 2.5VA 115/230

  • VA 2.5
  • Sec. Series 36V C.T. @ 0.07A
  • Sec. Parallel 18V @ 0.14A
QuoteRequest a quote
183F10

Power PCB 5VA 115/230

  • VA 5
  • Sec. Series 10V C.T. @ 0.5A
  • Sec. Parallel 5V @ 1A
$6.48In stock
Buy now

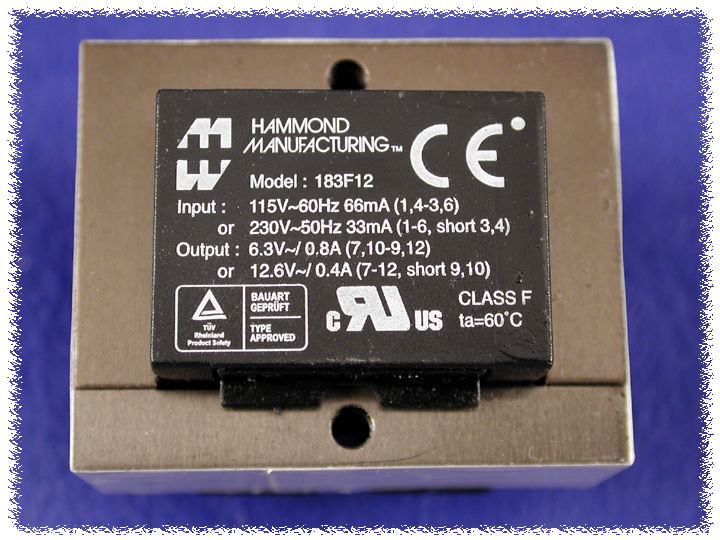

183F12

Power PCB 5VA 115/230

  • VA 5
  • Sec. Series 12.6V C.T. @ 0.4A
  • Sec. Parallel 6.3V @ 0.8A
$6.48In stock
Buy now
183F16

Power PCB 5VA 115/230

  • VA 5
  • Sec. Series 16V C.T. @ 0.31A
  • Sec. Parallel 8V @ 0.62A
$6.48In stock
Buy now
183F20

Power PCB 5VA 115/230

  • VA 5
  • Sec. Series 20V C.T. @ 0.25A
  • Sec. Parallel 10V @ 0.5A
$6.48In stock
Buy now
183F24

Power PCB 5VA 115/230

  • VA 5
  • Sec. Series 24V C.T. @ 0.21A
  • Sec. Parallel 12V @ 0.42A
$6.48In stock
Buy now
183F28

Power PCB 5VA 115/230

  • VA 5
  • Sec. Series 28V C.T. @ 0.18A
  • Sec. Parallel 14V @ 0.36A
$6.48In stock
Buy now
183F36

Power PCB 5VA 115/230

  • VA 5
  • Sec. Series 36V C.T. @ 0.14A
  • Sec. Parallel 18V @ 0.28A
$6.48In stock
Buy now
183G10

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 10V C.T. @ 1A
  • Sec. Parallel 5V @ 2A
$7.63In stock
Buy now
183G12

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 12.6V C.T. @ 0.8A
  • Sec. Parallel 6.3V @ 1.6A
$7.63In stock
Buy now
183G12-BULK

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 12.6V C.T. @ 0.8A
  • Sec. Parallel 6.3V @ 1.6A
QuoteRequest a quote
183G16

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 16V C.T. @ 0.62A
  • Sec. Parallel 8V @ 1.25A
$7.63In stock
Buy now
183G20

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 20V C.T. @ 0.5A
  • Sec. Parallel 10V @ 1A
$7.63In stock
Buy now
183G24

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 24V C.T. @ 0.42A
  • Sec. Parallel 12V @ 0.84A
$7.63In stock
Buy now
183G24-BULK

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 24V C.T. @ 0.42A
  • Sec. Parallel 12V @ 0.84A
QuoteRequest a quote
183G28

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 28V C.T. @ 0.36A
  • Sec. Parallel 14V @ 0.72A
$7.63In stock
Buy now
183G28-BULK

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 28V C.T. @ 0.36A
  • Sec. Parallel 14V @ 0.72A
QuoteRequest a quote
183G36

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 36V C.T. @ 0.28A
  • Sec. Parallel 18V @ 0.56A
$7.63In stock
Buy now
183G36-BULK

Power PCB 10VA 115/230

  • VA 10
  • Sec. Series 36V C.T. @ 0.28A
  • Sec. Parallel 18V @ 0.56A
QuoteRequest a quote
183H10

Power PCB 20VA 115/230

  • VA 20
  • Sec. Series 10V C.T. @ 2A
  • Sec. Parallel 5V @ 4A
$9.70In stock
Buy now
183H10-BULK

Power PCB 20VA 115/230

  • VA 20
  • Sec. Series 36V C.T. @ 0.28A
  • Sec. Parallel 18V @ 0.56A
QuoteRequest a quote
183H12

Power PCB 20VA 115/230

  • VA 20
  • Sec. Series 12.6V C.T. @ 1.6A
  • Sec. Parallel 6.3V @ 3.2A
$9.70In stock
Buy now
183H12-BULK

Power PCB 20VA 115/230

  • VA 20
  • Sec. Series 12.6V C.T. @ 1.6A
  • Sec. Parallel 6.3V @ 3.2A
QuoteRequest a quote
183H16

Power PCB 20VA 115/230

  • VA 20
  • Sec. Series 16V C.T. @ 1.25A
  • Sec. Parallel 8V @ 2.5A
$9.70In stock
Buy now
183H16-BULK

Power PCB 20VA 115/230

  • VA 20
  • Sec. Series 12.6V C.T. @ 1.6A
  • Sec. Parallel 6.3V @ 3.2A
QuoteRequest a quote
Dimension tables (inches / mm)
Dual Primary · 115/230V · Part No.Bulk Pack · Part No.Size · VASecondary (RMS) · Series (see notes)Secondary (RMS) · ParallelPriceOrder
183E10183E10-BULK2.510V C.T. @ 0.25A5V @ 0.5A$6.15In stock183E10Buy now
183F10183F10-BULK510V C.T. @ 0.5A5V @ 1A$6.48In stock183F10Buy now
183G10183G10-BULK1010V C.T. @ 1A5V @ 2A$7.63In stock183G10Buy now
183H10183H10-BULK2010V C.T. @ 2A5V @ 4A$9.70In stock183H10Buy now
183J10183J10-BULK3010V C.T. @ 3A5V @ 6A$12.23In stock183J10Buy now
183K10183K10-BULK5610V C.T. @ 5.6A5V @ 11.2A$14.76In stock183K10Buy now
183E12183E12-BULK2.512.6V C.T. @ 0.2A6.3V @ 0.4A$6.15In stock183E12Buy now
183F12183F12-BULK512.6V C.T. @ 0.4A6.3V @ 0.8A$6.48In stock183F12Buy now
183G12183G12-BULK1012.6V C.T. @ 0.8A6.3V @ 1.6A$7.63In stock183G12Buy now
183H12183H12-BULK2012.6V C.T. @ 1.6A6.3V @ 3.2A$9.70In stock183H12Buy now
183J12183J12-BULK3012.6V C.T. @ 2.4A6.3V @ 4.8A$12.23In stock183J12Buy now
183K12183K12-BULK5612.6V C.T. @ 4.4A6.3V @ 8.8A$14.76In stock183K12Buy now
183E16183E16-BULK2.516V C.T. @ 0.15A8V @ 0.3A$6.15In stock183E16Buy now
183F16183F16-BULK516V C.T. @ 0.31A8V @ 0.62A$6.48In stock183F16Buy now
183G16183G16-BULK1016V C.T. @ 0.62A8V @ 1.25A$7.63In stock183G16Buy now
183H16183H16-BULK2016V C.T. @ 1.25A8V @ 2.5A$9.70In stock183H16Buy now
183J16183J16-BULK3016V C.T. @ 1.9A8V @ 3.8A$12.23In stock183J16Buy now
183K16183K16-BULK5616V C.T. @ 3.5A8V @ 7A$14.76In stock183K16Buy now
183E20183E20-BULK2.520V C.T. @ 0.12A10V @ 0.24A$6.15In stock183E20Buy now
183F20183F20-BULK520V C.T. @ 0.25A10V @ 0.5A$6.48In stock183F20Buy now
183G20183G20-BULK1020V C.T. @ 0.5A10V @ 1A$7.63In stock183G20Buy now
183H20183H20-BULK2020V C.T. @ 1.0A10V @ 2A$9.70In stock183H20Buy now
183J20183J20-BULK3020V C.T. @ 1.5A10V @ 3A$12.23In stock183J20Buy now
183K20183K20-BULK5620V C.T. @ 2.8A10V @ 5.6A$14.76In stock183K20Buy now
183E24183E24-BULK2.524V C.T. @ 0.1A12V @ 0.2A$6.15In stock183E24Buy now

Mechanical & Schematic Data

Units shown: inch . Switch units to: mm

(VA) · SizeDimensions · LDimensions · WDimensions · HDimensions · ADimensions · BDimensions · CDimensions · MDimensions · NDimensions · PPin Size · (Square)Mtg. · ScrewWeight · lbs.PriceOrder
2.51.631.441.130.200.251.001.06--0.025#40.17QuoteQuote
51.631.441.380.200.401.001.06--0.025#40.37QuoteQuote
101.881.561.380.200.401.141.25--0.036#40.53QuoteQuote
202.251.881.630.400.401.461.50--0.036#40.9QuoteQuote
302.632.191.560.550.281.68-1.752.190.045#61.15QuoteQuote
563.002.501.810.600.301.90-2.002.500.045#61.7QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Universal operation - dual primary. 115 or 230 VAC, 50/60 Hz current.
  • ■14 output voltages to choose from (5 - 36 VAC R.M.S.)
  • ■Six VA size models available from - 2.5 to 56VA.
  • ■Low profile, split bobbin with top shroud design.
  • ■Dual winding secondaries, non-concentrically wound. Can be wired in series, parallel or used separately.
  • ■Low primary to secondary coupling - no electrostatic shield required.
  • ■High insulation - Hipot of 4,000V RMS.
  • ■Class F insulation - 155 degrees C.
  • ■Two hole mounting on 2.5, 5, 10 and 20VA sizes, four hole mounting on 30 and 56VA size (mounting screws not provided).
  • ■P.C. board mount with industry standard pin spacing.
  • ■Listings: cUL

Mechanical & Schematic Data

  • ■Mounting Dimensions (see tables below)
  • ■Schematic
  • ■Complete Connection diagram can be found here - 183 Connection Diagram

Documents

Specification Sheet183 Connection Diagram
