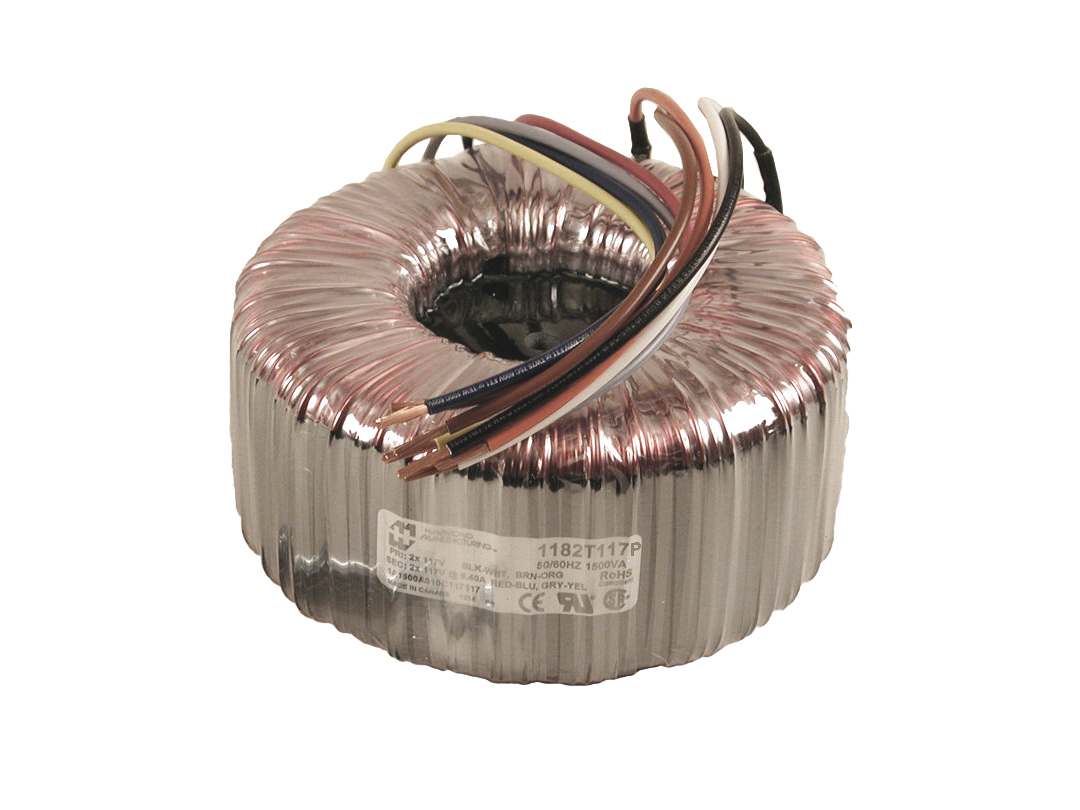

Toroid Power Transformers - 15 VA to 1500 VA · 1182 Series

Brand: Hammond Manufacturing · 106 part numbers

■Torodial transformer benefits: low profile lightweight cool running / high efficiency due to the core shape - low stray magnetic flux leakage (low EMI)
■low profile
■lightweight
■cool running / high efficiency
■due to the core shape - low stray magnetic flux leakage (low EMI)
■Dual 117/234 VAC primary, 50/60 Hz. operation.

from $3.04

105 of 106 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1182 Series part number

Filter 106 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

106 of 106 part numbers · 105 priced online

Filters

Dual(86)
Single(13)

Open(92)
Potted(7)

1/4-20 x 2.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads(1)
1/4-20 x 3.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads(1)
3/8-16 x 3.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads(1)
3/8-16 x 4.00" bolt, nut & lockwasher(1)
3/8-16 x 4.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads(1)
10-24 x 1.75" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads(1)
10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads(1)

16(4)
18(2)
N/A(1)

1182D110

Toroid, 15VA, 50/60HZ,110/110V

VA 15
Sec. Series 220V C.T. @ 0.068A
Sec. Parallel 110V @ 0.136A
% Voltage Regulati 12

$41.88In stock

Buy now

1182D240

Toroid, 30VA, 50/60HZ,240

VA 30
Sec. Parallel 240V @ 125ma
% Voltage Regulati 12
Dual or Single Sec Single

$44.90In stock

Buy now

1182E110

Toroid, 30VA, 50/60HZ,110/110V

VA 30
Sec. Series 220V C.T. @ 136ma
Sec. Parallel 110V @ 272ma
% Voltage Regulati 13

$44.90In stock

Buy now

1182E117

Toroid, 30VA, 50/60HZ,117/117V

VA 30
Sec. Series 234V C.T. @ 128ma
Sec. Parallel 117V @ 256ma
% Voltage Regulati 12

$44.90In stock

Buy now

1182E240

Toroid, 50VA, 50/60HZ 240

VA 50
Sec. Parallel 240V @ 208ma
% Voltage Regulati 13
Dual or Single Sec Single

$48.84In stock

Buy now

1182F18

Toroid, 15VA, 50/60HZ, 18/18V

VA 15
Sec. Series 36V C.T. @ 0.420A
Sec. Parallel 18V @ 0.84A
% Voltage Regulati 12

$41.88In stock

Buy now

1182F240

Toroid, 80VA, 50/60HZ,240

VA 80
Sec. Parallel 240V @ 333ma
% Voltage Regulati 10
Dual or Single Sec Single

$51.21In stock

Buy now

1182F30

Toroid, 225VA, 50/60HZ, 30/30V

VA 225
Sec. Series 60V C.T. @ 3.75A
Sec. Parallel 30V @ 7.5A
% Voltage Regulati 6

$70.90Backorder

Buy now

1182G110

Toroid, 50VA, 50/60HZ,110/110V

VA 50
Sec. Series 220V C.T. @ 227ma
Sec. Parallel 110V @ 454ma
% Voltage Regulati 14

$48.84In stock

Buy now

1182G117

Toroid, 50VA, 50/60HZ,117/117V

VA 50
Sec. Series 234V C.T. @ 214ma
Sec. Parallel 117V @ 428ma
% Voltage Regulati 13

$48.84In stock

Buy now

1182G18

Toroid, 225VA, 50/60HZ, 18/18V

VA 225
Sec. Series 36V C.T. @ 6.25A
Sec. Parallel 18V @ 12.5A
% Voltage Regulati 7

$70.90In stock

Buy now

1182G22

Toroid, 30VA, 50/60HZ, 22/22V

VA 30
Sec. Series 44V C.T. @ 0.68A
Sec. Parallel 22V @ 1.36A
% Voltage Regulati 13

$44.90In stock

Buy now

1182G240

Toroid, 120VA,50/60HZ,240

VA 120
Sec. Parallel 240V @ 0.5A
% Voltage Regulati 8
Dual or Single Sec Single

$55.14In stock

Buy now

1182H110

Toroid, 80VA, 50/60HZ,110/110V

VA 80
Sec. Series 220V C.T. @ 364ma
Sec. Parallel 110V @ 728ma
% Voltage Regulati 11

$51.21In stock

Buy now

1182H117

Toroid, 80VA, 50/60HZ,117/117V

VA 80
Sec. Series 234V C.T. @ 342ma
Sec. Parallel 117V @ 684ma
% Voltage Regulati 10

$51.21In stock

Buy now

1182H15

Toroid, 225VA, 50/60HZ, 15/15V

VA 225
Sec. Series 30V C.T. @ 7.5A
Sec. Parallel 15V @ 15A
% Voltage Regulati 7

$70.90In stock

Buy now

1182H18

Toroid, 30VA, 50/60HZ, 18/18V

VA 30
Sec. Series 36V C.T. @ 0.83A
Sec. Parallel 18V @ 1.66A
% Voltage Regulati 12

$44.90In stock

Buy now

1182H240

Toroid, 160VA,50/60HZ,240

VA 160
Sec. Parallel 240V @ 667ma
% Voltage Regulati 8
Dual or Single Sec Single

$63.01In stock

Buy now

1182H9

Toroid, 15VA, 50/60HZ, 9/9V

VA 15
Sec. Series 18V C.T. @ 0.830A
Sec. Parallel 9V @ 1.66A
% Voltage Regulati 11

$41.88In stock

Buy now

1182J110

Toroid, 120VA,50/60HZ,110/110V

VA 120
Sec. Series 220V C.T. @ 545ma
Sec. Parallel 110V @ 1.09A
% Voltage Regulati 8

$55.14In stock

Buy now

1182J117

Toroid, 120VA,50/60HZ,117/117V

VA 120
Sec. Series 234V C.T. @ 513ma
Sec. Parallel 117V @ 1.02A
% Voltage Regulati 8

$55.14In stock

Buy now

1182J15

Toroid, 30VA, 50/60HZ, 15/15V

VA 30
Sec. Series 30V C.T. @ 1A
Sec. Parallel 15V @ 2A
% Voltage Regulati 12

$44.90In stock

Buy now

1182J18

Toroid, 50VA, 50/60HZ, 18/18V

VA 50
Sec. Series 36V C.T. @ 1.39A
Sec. Parallel 18V @ 2.78A
% Voltage Regulati 14

$48.84In stock

Buy now

1182J22

Toroid, 50VA, 50/60HZ, 22/22V

VA 50
Sec. Series 44V C.T. @ 1.14A
Sec. Parallel 22V @ 2.28A
% Voltage Regulati 14

$48.84In stock

Buy now

1182J240

Toroid, 225VA,50/60HZ,240

VA 225
Sec. Parallel 240V @ 0.94A
% Voltage Regulati 6
Dual or Single Sec Single

$70.90In stock

Buy now

1182K110

Toroid, 160VA,50/60HZ,110/110V

VA 160
Sec. Series 220V C.T. @ 727ma
Sec. Parallel 110V @ 1.45A
% Voltage Regulati 8

$63.01In stock

Buy now

1182K117

Toroid, 160VA,50/60HZ,117/117V

VA 160
Sec. Series 234V C.T. @ 684ma
Sec. Parallel 117V @ 1.37A
% Voltage Regulati 8

$63.01In stock

Buy now

1182K12

Toroid, 30VA, 50/60HZ, 12/12V

VA 30
Sec. Series 24V C.T. @ 1.25A
Sec. Parallel 12V @ 2.5A
% Voltage Regulati 12

$44.90In stock

Buy now

1182K15

Toroid, 50VA, 50/60HZ, 15/15V

VA 50
Sec. Series 30V C.T. @ 1.67A
Sec. Parallel 15V @ 3.34A
% Voltage Regulati 13

$48.84In stock

Buy now

1182K240

Toroid, 300VA,50/60HZ,240

VA 300
Sec. Parallel 240V @ 1.25A
% Voltage Regulati 6
Dual or Single Sec Single

$78.76In stock

Buy now

1182K30

Toroid, 80VA, 50/60HZ, 30/30V

VA 80
Sec. Series 60V C.T. @ 1.33A
Sec. Parallel 30V @ 2.66A
% Voltage Regulati 10

$51.21In stock

Buy now

1182K6

Toroid, 15VA, 50/60HZ, 6/6V

VA 15
Sec. Series 12V C.T. @ 1.25A
Sec. Parallel 6V @ 2.5A
% Voltage Regulati 12

$41.88In stock

Buy now

1182K9

Toroid, 30VA, 50/60HZ, 9/9V

Dual or Single Sec Dual
Toroid Center Open

$44.90In stock

Buy now

1182KIT1500

1182 Hardware Kit (1500VA)

Additional Hardwar Heavy Duty - Upgrade Kit 1,500VA Models
Additional Hardwar 3/8-16 x 4.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads
Metal Washer Steel 16

$3.77In stock

Buy now

1182KIT1500P

1182 Hardware Kit - 1500VA Potted

Additional Hardwar 1,500VA Models
Additional Hardwar 3/8-16 x 4.00" bolt, nut & lockwasher
Metal Washer Steel N/A

$3.04In stock

Buy now

1182KIT160

1182 Hardware Kit (160-300VA)

Additional Hardwar 160VA, 225VA & 300VA Models
Additional Hardwar 1/4-20 x 2.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads
Metal Washer Steel 16

$6.23In stock

Buy now

1182KIT30

1182 Hardware Kit (30VA)

Additional Hardwar 30VA Models
Additional Hardwar 10-24 x 1.75" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads
Metal Washer Steel 18

$4.36In stock

Buy now

1182KIT50

1182 Hardware Kit (50-120VA)

Additional Hardwar 50VA, 80VA & 120VA Models
Additional Hardwar 10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads
Metal Washer Steel 18

$4.39In stock

Buy now

1182KIT500

1182 Hardware Kit (500-625VA)

Additional Hardwar 500VA & 625VA Models
Additional Hardwar 1/4-20 x 3.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads
Metal Washer Steel 16

$7.80In stock

Buy now

1182KIT750

1182 Hardware Kit (750-1000VA)

Additional Hardwar 750VA & 1,000VA Models
Additional Hardwar 3/8-16 x 3.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads
Metal Washer Steel 16

$8.21In stock

Buy now

1182L110

Toroid, 225VA,50/60HZ,110/110V

VA 225
Sec. Series 220V C.T. @ 1.02A
Sec. Parallel 110V @ 2.04A
% Voltage Regulati 6

$70.90In stock

Buy now

1182L117

Toroid, 225VA,50/60HZ,117/117V

VA 225
Sec. Series 234V C.T. @ 0.96A
Sec. Parallel 117V @ 1.92A
% Voltage Regulati 6

$70.90In stock

Buy now

1182L12

Toroid, 50VA, 50/60HZ, 12/12V

VA 50
Sec. Series 24V C.T. @ 2.08A
Sec. Parallel 12V @ 4.16A
% Voltage Regulati 13

$48.84In stock

Buy now

1182L18

Toroid, 80VA, 50/60HZ, 18/18V

VA 80
Sec. Series 36V C.T. @ 2.22A
Sec. Parallel 18V @ 4.44A
% Voltage Regulati 11

$51.21In stock

Buy now

1182L22

Toroid, 80VA, 50/60HZ, 22/22V

VA 80
Sec. Series 44V C.T. @ 1.82A
Sec. Parallel 22V @ 3.64A
% Voltage Regulati 10

$51.21In stock

Buy now

1182L240

TOROID,500VA, 50/60HZ,240

VA 500
Sec. Parallel 240V @ 2.08A
% Voltage Regulati 5
Dual or Single Sec Single

$102.40In stock

Buy now

1182L30

Toroid, 120VA, 50/60HZ, 30/30V

VA 120
Sec. Series 60V C.T. @ 2A
Sec. Parallel 30V @ 4A
% Voltage Regulati 8

$55.14In stock

Buy now

1182L6

Toroid, 30VA, 50/60HZ, 6/6V

VA 30
Sec. Series 12V C.T. @ 2.5A
Sec. Parallel 6V @ 5A
% Voltage Regulati 12

$44.90In stock

Buy now

Dimension tables (inches / mm)

Part No.	VA	VAC Secondary (RMS) · Series	VAC Secondary (RMS) · Parallel	Dual or Single · Secondary	% Voltage · Regulation	Toroid · Center	Dim. · Ref	Price	Order
1182K6	15	12V C.T. @ 1.25A	6V @ 2.5A	Dual	12.41%	Open	A	$41.88In stock	Buy now
1182L6	30	12V C.T. @ 2.5A	6V @ 5A	Dual	11.70%	Open	B	$44.90In stock	Buy now
1182N6	50	12V C.T. @ 4.17A	6V @ 8.34A	Dual	12.60%	Open	C	$48.84In stock	Buy now
1182Q6	80	12V C.T. @ 6.67A	6V @ 13.34A	Dual	9.70%	Open	D	$51.21In stock	Buy now
1182H9	15	18V C.T. @ 0.830A	9V @ 1.66A	Dual	11.42%	Open	A	$41.88In stock	Buy now
1182K9	30	18V C.T. @ 1.67A	9V @ 3.34A	Dual	12.80%	Open	B	$44.90In stock	Buy now
1182M9	50	18V C.T. @ 2.78A	9V @ 5.56A	Dual	13.20%	Open	C	$48.84In stock	Buy now
1182N9	80	18V C.T. @ 4.44A	9V @ 8.88A	Dual	10.50%	Open	D	$51.21In stock	Buy now
1182Q9	120	18V C.T. @ 6.67A	9V @ 13.34A	Dual	9.00%	Open	E	$55.14In stock	Buy now
1182K12	30	24V C.T. @ 1.25A	12V @ 2.5A	Dual	11.70%	Open	B	$44.90In stock	Buy now
1182L12	50	24V C.T. @ 2.08A	12V @ 4.16A	Dual	12.60%	Open	C	$48.84In stock	Buy now
1182M12	80	24V C.T. @ 3.33A	12V @ 6.66A	Dual	9.70%	Open	D	$51.21In stock	Buy now
1182P12	120	24V C.T. @ 5A	12V @ 10A	Dual	7.70%	Open	E	$55.14Backorder	Buy now
1182Q12	160	24V C.T. @ 6.67A	12V @ 13.34A	Dual	7.70%	Open	F	$63.01Backorder	Buy now
1182S12	225	24V C.T. @ 9.38A	12V @ 18.76A	Dual	7.20%	Open	G	$70.90In stock	Buy now
1182T12	300	24V C.T. @ 12.5A	12V @ 25A	Dual	7.10%	Open	H	$78.76Backorder	Buy now
1182W12	1000	24V C.T. @ 41.7A	12V @ 83.4A	Dual	2.20%	Open	L-1	$179.91In stock	Buy now
1182J15	30	30V C.T. @ 1A	15V @ 2A	Dual	12.30%	Open	B	$44.90In stock	Buy now
1182K15	50	30V C.T. @ 1.67A	15V @ 3.34A	Dual	13.00%	Open	C	$48.84In stock	Buy now
1182M15	80	30V C.T. @ 2.67A	15V @ 5.34A	Dual	10.20%	Open	D	$51.21Backorder	Buy now
1182N15	120	30V C.T. @ 4A	15V @ 8A	Dual	8.50%	Open	E	$55.14In stock	Buy now
1182P15	160	30V C.T. @ 5.33A	15V @ 10.66A	Dual	7.00%	Open	F	$63.01Backorder	Buy now
1182H15	225	30V C.T. @ 7.5A	15V @ 15A	Dual	7.20%	Open	G	$70.90In stock	Buy now
1182S15	300	30V C.T. @ 10A	15V @ 20A	Dual	5.00%	Open	H	$78.76In stock	Buy now
1182F18	15	36V C.T. @ 0.420A	18V @ 0.84A	Dual	11.7%	Open	A	$41.88In stock	Buy now

Part No.	VA	VAC Secondary (RMS) · Series	VAC Secondary (RMS) · Parallel	Dual or Single · Secondary	% Voltage · Regulation	Toroid · Center	Dim. · Ref	Price	Order
1182L60	300	120V C.T. @ 2.5A	60V @ 5A	Dual	6.10%	Open	H	$78.76In stock	Buy now
1182N60	500	120V C.T. @ 4.17A	60V @ 8.34A	Dual	4.80%	Open	I	$102.40In stock	Buy now
1182P60	625	120V C.T. @ 5.21A	60V @ 10.42A	Dual	4.10%	Open	J	$110.28In stock	Buy now
1182Q60	750	120V C.T. @ 6.25A	60V @ 12.5A	Dual	4.10%	Open	K	$126.03In stock	Buy now
1182R60	1000	120V C.T. @ 8.3A	60V @ 16.7A	Dual	2.80%	Open	L	$157.54In stock	Buy now
1182T60P	1500	120V C.T. @ 12.5A	60V @ 25A	Dual	3.00%	Potted	M	$220.56In stock	Buy now
1182L90	225	180V C.T. @ 1.25A	90V @ 2.5A	Dual		Open		$70.90In stock	Buy now
1182D110	15	220V C.T. @ 0.068A	110V @ 0.136A	Dual	11.9%	Open	A	$41.88In stock	Buy now
1182E110	30	220V C.T. @ 136ma	110V @ 272ma	Dual	13.10%	Open	B	$44.90In stock	Buy now
1182G110	50	220V C.T. @ 227ma	110V @ 454ma	Dual	14.10%	Open	C	$48.84In stock	Buy now
1182H110	80	220V C.T. @ 364ma	110V @ 728ma	Dual	10.50%	Open	D	$51.21In stock	Buy now
1182J110	120	220V C.T. @ 545ma	110V @ 1.09A	Dual	8.40%	Open	E	$55.14In stock	Buy now
1182K110	160	220V C.T. @ 727ma	110V @ 1.45A	Dual	8.00%	Open	F	$63.01In stock	Buy now
1182L110	225	220V C.T. @ 1.02A	110V @ 2.04A	Dual	6.10%	Open	G	$70.90In stock	Buy now
1182M110	300	220V C.T. @ 1.36A	110V @ 2.72A	Dual	6.10%	Open	H	$78.76In stock	Buy now
1182P110	500	220V C.T. @ 2.27A	110V @ 4.54A	Dual	4.70%	Open	I	$102.40In stock	Buy now
1182Q110	625	220V C.T. @ 2.84A	110V @ 5.68A	Dual	3.70%	Open	J	$110.28In stock	Buy now
1182R110	750	220V C.T. @ 3.41A	110V @ 6.82A	Dual	3.10%	Open	K	$126.03In stock	Buy now
1182S110	1000	220V C.T. @ 4.5A	110V @ 9.1A	Dual	3.20%	Open	L	$157.54In stock	Buy now
1182U110P	1500	220V C.T. @ 6.8A	110V @ 13.6A	Dual	1.90%	Potted	M	$220.56In stock	Buy now
1182E117	30	234V C.T. @ 128ma	117V @ 256ma	Dual	12.40%	Open	B	$44.90In stock	Buy now
1182G117	50	234V C.T. @ 214ma	117V @ 428ma	Dual	13.40%	Open	C	$48.84In stock	Buy now
1182H117	80	234V C.T. @ 342ma	117V @ 684ma	Dual	10.00%	Open	D	$51.21In stock	Buy now
1182J117	120	234V C.T. @ 513ma	117V @ 1.02A	Dual	8.00%	Open	E	$55.14In stock	Buy now
1182K117	160	234V C.T. @ 684ma	117V @ 1.37A	Dual	7.60%	Open	F	$63.01In stock	Buy now

Mechanical & Schematic Data

Units shown: inch . Switch units to: mm

Dimension · Reference	VA · Size	Outside · Diameter	Height	Inside · Diameter	Potted · Center	Included Mounting · Hardware	Weight · (lbs.)	Weight · (kg.)	Price	Order
A	15	2.65	1.20	1.25	No	10-24 x 1.75" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	0.75	0.35	Quote	Quote
B	30	3.00	1.40	1.50	No	10-24 x 1.75" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	1.1	0.5	Quote	Quote
C	50	3.25	1.50	1.25	No	10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	1.5	0.7	Quote	Quote
D	80	3.50	1.50	1.60	No	10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	2.1	1	Quote	Quote
E	120	4.00	1.63	1.45	No	10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	3	1.3	Quote	Quote
F	160	4.25	1.75	1.70	No	1/4-20 x 2.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	3.8	1.7	Quote	Quote
G	225	4.50	2.00	1.62	No	1/4-20 x 2.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	4.7	2.1	Quote	Quote
H	300	5.00	2.00	1.85	No	1/4-20 x 2.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	6	2.7	Quote	Quote
I	500	5.50	2.25	2.30	No	1/4-20 x 3.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	9	4.1	Quote	Quote
J	625	5.88	2.38	2.45	No	1/4-20 x 3.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	10.8	4.9	Quote	Quote
K	750	5.88	2.88	2.45	No	3/8-16 x 3.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	12.9	5.8	Quote	Quote
L	1000	6.25	2.88	2.35	No	3/8-16 x 3.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	16.3	7.4	Quote	Quote
L-1	1000	6.85	3.40	2	No	3/8-16 x 3.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	16.3	7.4	Quote	Quote
M	1500	7.25	3.25	Potted	Yes	3/8-16 x 3.50" bolt, with nut, lockwasher & one (1) rubber bottom insulating pad	23.2	10.5	Quote	Quote
N	1500	7.40	3.50	2	No	3/8-16 x 3.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	24.75	11.2	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Additional Hardware Kits:

Units shown: inch . Switch units to: mm

Part No.	Additional Hardware Kit · (included with transformers) · For Use With	Additional Hardware Kit · (included with transformers) · For Use With (2)	Metal Washer · Diameter	Metal Washer · Steel · Gauge	Rubber Washer · Diameter	Rubber Washer · Thickness	Price	Order
1182KIT30	30VA Models	10-24 x 1.75" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	2.37	18	2.50	0.06	$4.36In stock	Buy now
1182KIT50	50VA, 80VA & 120VA Models	10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	2.37	18	2.50	0.06	$4.39In stock	Buy now
1182KIT160	160VA, 225VA & 300VA Models	1/4-20 x 2.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	3.56	16	3.75	0.06	$6.23In stock	Buy now
1182KIT500	500VA & 625VA Models	1/4-20 x 3.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	4.30	16	4.75	0.09	$7.80In stock	Buy now
1182KIT750	750VA & 1,000VA Models	3/8-16 x 3.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	4.30	16	4.75	0.09	$8.21In stock	Buy now
1182KIT1500P	1,500VA Models	3/8-16 x 4.00" bolt, nut & lockwasher	N/A	N/A	N/A	N/A	$3.04In stock	Buy now
1182KIT1500	Heavy Duty - Upgrade Kit 1,500VA Models	3/8-16 x 4.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads	4.30	16	6.00	0.12	$3.77In stock	Buy now

Features

■Torodial transformer benefits: low profile lightweight cool running / high efficiency due to the core shape - low stray magnetic flux leakage (low EMI)
■low profile
■lightweight
■cool running / high efficiency
■due to the core shape - low stray magnetic flux leakage (low EMI)
■Dual 117/234 VAC primary, 50/60 Hz. operation.
■Note: Units are designed to have all windings engaged (either series or parallel connected) or connected as an autotransformer. Connection sheet included with transformer. See Product Resources for Download.
■Supplied with two neoprene rubber insulating pads, one metal centering washer and all mounting hardware (except the 1,500 VA size).
■1,500 VA size - is supplied with a potted center for extra strength.
■Minimum 8" long flexible leads
■Manufactured using Class B (130 degree C) materials.
■Hi-Pot test of 4,000VAC RMS between primary & secondary
■UL recognized to UL 5085-1 General requirements and UL 5085-2 General purpose transformers, UL file #E207860
■CSA certified to C22.2 #66.1-6 and C22.2 #66.2-6, Low voltage transformers - CSA file #209651
■Self-declared having been evaluated in accordance with applicable sections of IEC/EN61558-1-Safety power transformers, general requirements and tests-Second Edition 2005-09 and IEC/EN61558-2-4
■This series replaces our older 182 Toroid Series .
