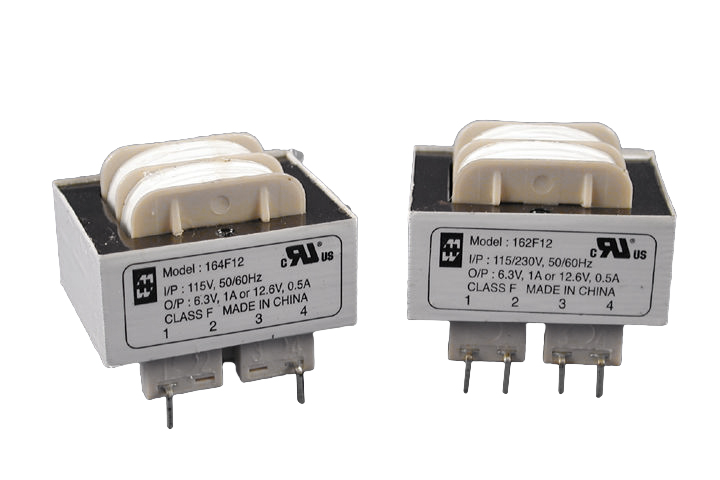

Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA 162-164 Series

Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA · 162-164 Series

Brand: Hammond Manufacturing · 120 part numbers

  • ■20 output voltages to choose from (5 - 120VAC R.M.S.)
  • ■Six VA size models available from - 1.1 to 36VA
  • ■Both series operate on 50/60 Hz current
  • ■Low profile, split bobbin design.
  • ■Dual winding secondaries, non-concentrically wound
  • ■Units are designed so that all windings must be used

from $5.17

120 of 120 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 162-164 Series part number

Filter 120 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

120 of 120 part numbers · 120 priced online

162D10

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 10V C.T. @ .11A
  • Sec. Parallel 5V @ .22A
$5.52In stock
Buy now
162D12

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 12.6V C.T. @ .09A
  • Sec. Parallel 6.3V @ .18A
$6.07In stock
Buy now
162D120

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 120V C.T. @ .01A
  • Sec. Parallel 60V @ .02A
$5.52In stock
Buy now
162D16

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 16V C.T. @ .07A
  • Sec. Parallel 8V @ .14A
$5.52In stock
Buy now
162D20

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 20V C.T. @ .055A
  • Sec. Parallel 10V @ .11A
$5.52In stock
Buy now
162D24

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 24V C.T. @ .045A
  • Sec. Parallel 12V @ .09A
$5.52In stock
Buy now
162D28

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 28V C.T. @ .04A
  • Sec. Parallel 14V @ .08A
$6.07In stock
Buy now
162D36

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 36V C.T. @ .03A
  • Sec. Parallel 18V @ .06A
$5.52In stock
Buy now
162D48

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 48V C.T. @ .023A
  • Sec. Parallel 24V @ .046A
$5.52In stock
Buy now
162D56

Power TX 1.1VA 115/230

  • VA 1.1
  • Sec. Series 56V C.T. @ .02A
  • Sec. Parallel 28V @ .04A
$5.52In stock
Buy now
162E10

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 10V C.T. @ .25A
  • Sec. Parallel 5V @ .5A
$7.24In stock
Buy now
162E12

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 12.6V C.T. @ .2A
  • Sec. Parallel 6.3V @ .4A
$7.24In stock
Buy now
162E120

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 120V C.T. @ .02A
  • Sec. Parallel 60V @ .04A
$6.56In stock
Buy now
162E16

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 16V C.T. @ .15A
  • Sec. Parallel 8V @ .3A
$7.24In stock
Buy now
162E20

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 20V C.T. @ .12A
  • Sec. Parallel 10V @ .24A
$7.24In stock
Buy now
162E24

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 24V C.T. @ .1A
  • Sec. Parallel 12V @ .2A
$7.24In stock
Buy now
162E28

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 28V C.T. @ .085A
  • Sec. Parallel 14V @ .17A
$6.56In stock
Buy now
162E36

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 36V C.T. @ .065A
  • Sec. Parallel 18V @ .13A
$7.24In stock
Buy now
162E48

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 48V C.T. @ .05A
  • Sec. Parallel 24V @ .1A
$6.56In stock
Buy now
162E56

Power TX 2.4VA 115/230

  • VA 2.4
  • Sec. Series 56V C.T. @ .045A
  • Sec. Parallel 28V @ .09A
$6.56In stock
Buy now
162F10

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 10V C.T. @ .6A
  • Sec. Parallel 5V @ 1.2A
$7.59In stock
Buy now
162F12

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 12.6V C.T. @ .5A
  • Sec. Parallel 6.3V @ 1.0A
$7.59In stock
Buy now
162F120

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 120V C.T. @ .05A
  • Sec. Parallel 60V @ .1A
$7.59In stock
Buy now
162F16

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 16V C.T. @ .4A
  • Sec. Parallel 8V @ .8A
$7.59In stock
Buy now
162F20

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 20V C.T. @ .3A
  • Sec. Parallel 10V @ .6A
$7.59In stock
Buy now
162F24

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 24V C.T. @ .25A
  • Sec. Parallel 12V @ .5A
$7.59In stock
Buy now
162F28

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 28V C.T. @ .2A
  • Sec. Parallel 14V @ .4A
$7.59In stock
Buy now
162F36

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 36V C.T. @ .17A
  • Sec. Parallel 18V @ .34A
$7.59In stock
Buy now
162F48

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 48V C.T. @ .125A
  • Sec. Parallel 24V @ .25A
$6.90In stock
Buy now
162F56

Power TX 6VA 115/230

  • VA 6
  • Sec. Series 56V C.T. @ .11A
  • Sec. Parallel 28V @ .22A
$6.90In stock
Buy now
162G10

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 10V C.T. @ 1.2A
  • Sec. Parallel 5V @ 2.4A
$8.73In stock
Buy now
162G12

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 12.6V C.T. @ 1.0A
  • Sec. Parallel 6.3V @ 2.0A
$8.73In stock
Buy now
162G120

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 120V C.T. @ .1A
  • Sec. Parallel 60V @ .2A
$7.94In stock
Buy now
162G16

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 16V C.T. @ .8A
  • Sec. Parallel 8V @ 1.6A
$8.73In stock
Buy now
162G20

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 20V C.T. @ .6A
  • Sec. Parallel 10V @ 1.2A
$8.73In stock
Buy now
162G24

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 24V C.T. @ .5A
  • Sec. Parallel 12V @ 1.0A
$8.73In stock
Buy now
162G28

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 28V C.T. @ .42A
  • Sec. Parallel 14V @ .84A
$7.94In stock
Buy now
162G36

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 36V C.T. @ .35A
  • Sec. Parallel 18V @ . 7A
$8.73In stock
Buy now
162G48

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 48V C.T. @ .25A
  • Sec. Parallel 24V @ .5A
$7.94In stock
Buy now
162G56

Power TX 12VA 115/230

  • VA 12
  • Sec. Series 56V C.T. @ .22A
  • Sec. Parallel 28V @ .44A
$7.94In stock
Buy now
162H10

Power TX 20VA 115/230

  • VA 20
  • Sec. Series 10V C.T. @ 2A
  • Sec. Parallel 5V @ 4.0A
$10.36In stock
Buy now
162H12

Power TX 20VA 115/230

  • VA 20
  • Sec. Series 12.6V C.T. @ 1.6A
  • Sec. Parallel 6.3V @ 3.2A
$10.36In stock
Buy now
162H120

Power TX 20VA 115/230

  • VA 20
  • Sec. Series 120V C.T. @ .16A
  • Sec. Parallel 60V @ .32A
$10.36In stock
Buy now
162H16

Power TX 20VA 115/230

  • VA 20
  • Sec. Series 16V C.T. @ 1.25A
  • Sec. Parallel 8V @ 2.5A
$11.40Backorder
Buy now
162H20

Power TX 20VA 115/230

  • VA 20
  • Sec. Series 20V C.T. @ 1A
  • Sec. Parallel 10V @ 2.0A
$11.40In stock
Buy now
162H24

Power TX 20VA 115/230

  • VA 20
  • Sec. Series 24V C.T. @ .8A
  • Sec. Parallel 12V @ 1.6A
$11.40In stock
Buy now
162H28

Power TX 20VA 115/230

  • VA 20
  • Sec. Series 28V C.T. @ .7A
  • Sec. Parallel 14V @ 1.4A
$11.40In stock
Buy now
162H36

Power TX 20VA 115/230

  • VA 20
  • Sec. Series 36V C.T. @ .55A
  • Sec. Parallel 18V @ 1.1A
$11.40In stock
Buy now
Dimension tables (inches / mm)
Part No · Single Primary · 115VPart No · Dual Primary · 115/230VSize · VASecondary (RMS) · SeriesSecondary (RMS) · ParallelPriceOrder
164D10162D101.110V C.T. @ .11A5V @ .22A$5.17In stock164D10Buy now
164E10162E102.410V C.T. @ .25A5V @ .5A$6.46In stock164E10Buy now
164F10162F10610V C.T. @ .6A5V @ 1.2A$6.23In stock164F10Buy now
164G10162G101210V C.T. @ 1.2A5V @ 2.4A$7.24In stock164G10Buy now
164H10162H102010V C.T. @ 2A5V @ 4.0A$9.67In stock164H10Buy now
164J10162J103610V C.T. @ 3.6A5V @ 7.2A$13.19In stock164J10Buy now
164D12162D121.112.6V C.T. @ .09A6.3V @ .18A$5.69In stock164D12Buy now
164E12162E122.412.6V C.T. @ .2A6.3V @ .4A$6.46In stock164E12Buy now
164F12162F12612.6V C.T. @ .5A6.3V @ 1.0A$6.84In stock164F12Buy now
164G12162G121212.6V C.T. @ 1.0A6.3V @ 2.0A$7.24In stock164G12Buy now
164H12162H122012.6V C.T. @ 1.6A6.3V @ 3.2A$9.67In stock164H12Buy now
164J12162J123612.6V C.T. @ 2.85A6.3V @ 5.7A$13.19In stock164J12Buy now
164D16162D161.116V C.T. @ .07A8V @ .14A$5.17In stock164D16Buy now
164E16162E162.416V C.T. @ .15A8V @ .3A$6.46In stock164E16Buy now
164F16162F16616V C.T. @ .4A8V @ .8A$6.84In stock164F16Buy now
164G16162G161216V C.T. @ .8A8V @ 1.6A$7.24In stock164G16Buy now
164H16162H162016V C.T. @ 1.25A8V @ 2.5A$10.63In stock164H16Buy now
164J16162J163616V C.T. @ 2.25A8V @ 4.5A$13.19In stock164J16Buy now
164D20162D201.120V C.T. @ .055A10V @ .11A$5.17In stock164D20Buy now
164E20162E202.420V C.T. @ .12A10V @ .24A$5.86In stock164E20Buy now
164F20162F20620V C.T. @ .3A10V @ .6A$6.23In stock164F20Buy now
164G20162G201220V C.T. @ .6A10V @ 1.2A$7.24In stock164G20Buy now
164H20162H202020V C.T. @ 1A10V @ 2.0A$9.67In stock164H20Buy now
164J20162J203620V C.T. @ 1.8A10V @ 3.6A$13.19In stock164J20Buy now
164D24162D241.124V C.T. @ .045A12V @ .09A$5.17In stock164D24Buy now

Mechanical & Schematic Data

Units shown: inch . Switch units to: mm

(VA) · SizePart Number · LetterDimensions · LDimensions · WDimensions · HDimensions · ADimensions · BDimensions · CDimensions · MDimensions · NDimensions · PMounting · ScrewWeight · lbs.PriceOrder
1.1D1.381.1315/160.250.251.2----0.17QuoteQuote
2.4E1.381.131.190.250.251.2----0.25QuoteQuote
6F1.631.311.310.250.351.281.06--#40.44QuoteQuote
12G1.881.561.500.300.401.411.25--#40.7QuoteQuote
20H2.251.881.440.300.401.61.5--#40.8QuoteQuote
36J2.632.191.560.400.401.85-1.752.19#61.1QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■20 output voltages to choose from (5 - 120VAC R.M.S.)
  • ■Six VA size models available from - 1.1 to 36VA
  • ■Both series operate on 50/60 Hz current
  • ■Low profile, split bobbin design.
  • ■Dual winding secondaries, non-concentrically wound
  • ■Units are designed so that all windings must be used
  • ■Low primary to secondary coupling - no electrostatic shield required.
  • ■Choice of economical single primary 115V (164 series) or universal dual primary 115/230V (162 series) - either model 50/60 Hz operation.
  • ■High insulation - Hipot of 2,500V RMS.
  • ■Class B insulation - 130 degrees C.
  • ■No mounting hardware required on 1.1 and 2.4 VA sizes, two hole mounting on 6, 12 and 20VA sizes, four hole mounting on 36VA size (mounting screws not provided). P.C. board mount with industry standard pin spacing.
  • ■c UL us recognized

Documents

Specification Sheet

Any questions? Talk with an expert

Call us (224) 955-1644

Related products

Low Voltage PC Board Mount, 0.5 VA to 24 VA

Low Voltage PC Board Mount, 0.5 VA to 24 VA · 160-161 Series

from $4.83

Shop parts
Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA

Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA · 183 Series

from $6.15

Shop parts
Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA

Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA · 229 Series

from $7.18

Shop parts
Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA

Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA · 226-227-228 Series

from $49.67

Shop parts
Low Voltage Solder or Quick Connect Terminals - 2.4 VA to 102 VA

Low Voltage Solder or Quick Connect Terminals - 2.4 VA to 102 VA · 186-187 Series

from $5.52

Shop parts
Toroid Power Transformers - 15 VA to 1500 VA

Toroid Power Transformers - 15 VA to 1500 VA · 1182 Series

from $3.04

Shop parts
24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA

24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA · PHC Series

from $28.68

Shop parts
Low Voltage Chassis Mount - 25 VA to 175 VA

Low Voltage Chassis Mount - 25 VA to 175 VA · 185 Series

from $12.68

Shop parts
