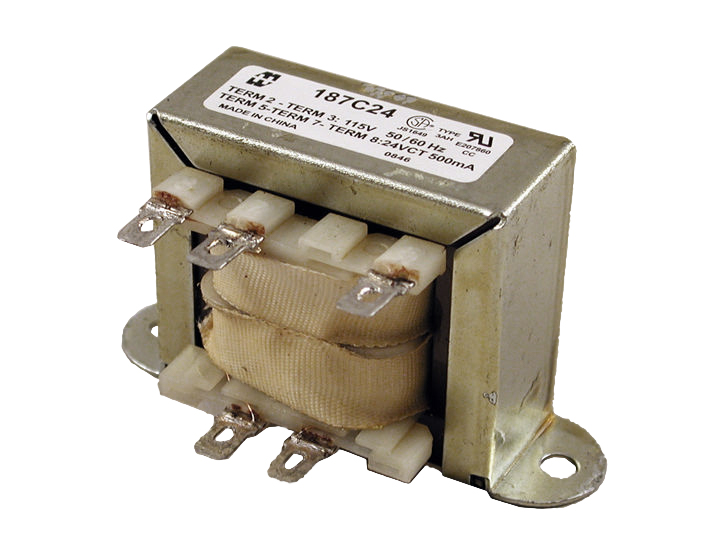

Low Voltage Solder or Quick Connect Terminals - 2.4 VA to 102 VA 186-187 Series

Low Voltage Solder or Quick Connect Terminals - 2.4 VA to 102 VA · 186-187 Series

Brand: Hammond Manufacturing · 110 part numbers

Chassis Mount - 115 & 115/230 V Primary

  • ■Choice of two primaries: Single Primary 115VAC (187 series) or Dual Primary 115/230VAC (186 series).
  • ■Either series operates on 50/60 Hz.
  • ■Combination solder or quick connect terminals.
  • ■Split bobbin construction eliminates the need for an electrostatic shield.
  • ■Hi-pot tested to 2 KV RMS.
  • ■Economical open style, channel frame - chassis mount design

from $5.52

110 of 110 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 186-187 Series part number

Filter 110 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

110 of 110 part numbers · 110 priced online

186B10

TX 115/230, 6VA 50/60HZ

  • VA 6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 10V C.T.
  • Amps 0.6
$7.69In stock
Buy now
186B12

TX 115/230, 6.3VA 50/60HZ

  • VA 6.3
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 12.6V C.T.
  • Amps 0.5
$7.69In stock
Buy now
186B120

TX 115/230, 6VA 50/60HZ

  • VA 6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 120V C.T.
  • Amps 0.05
$7.00In stock
Buy now
186B16

TX 115/230, 6.4VA 50/60HZ

  • VA 6.4
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 16V C.T.
  • Amps 0.4
$7.69In stock
Buy now
186B20

TX 115/230, 6VA 50/60HZ

  • VA 6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 20V C.T.
  • Amps 0.3
$7.69In stock
Buy now
186B24

TX 115/230, 6VA 50/60HZ

  • VA 6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 24V C.T.
  • Amps 0.25
$7.69Backorder
Buy now
186B28

TX 115/230, 5.6VA 50/60HZ

  • VA 5.6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 28V C.T.
  • Amps 0.2
$7.69In stock
Buy now
186B36

TX 115/230, 6.12VA 50/60HZ

  • VA 6.12
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 36V C.T.
  • Amps 0.17
$7.69In stock
Buy now
186B48

TX 115/230, 6VA 50/60HZ

  • VA 6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 48V C.T.
  • Amps 0.12
$7.00In stock
Buy now
186B56

TX 115/230, 6.16VA 50/60HZ

  • VA 6.16
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 56V C.T.
  • Amps 0.11
$7.00In stock
Buy now
186C10

TX 115/230, 12VA 50/60HZ

  • VA 12
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 10V C.T.
  • Amps 1.2
$8.69In stock
Buy now
186C12

TX 115/230, 12.6VA 50/60HZ

  • VA 12.6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 12.6V C.T.
  • Amps 1
$8.69In stock
Buy now
186C120

TX 115/230, 12VA 50/60HZ

  • VA 12
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 120V C.T.
  • Amps 0.1
$8.69In stock
Buy now
186C16

TX 115/230, 12.8VA 50/60HZ

  • VA 12.8
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 16V C.T.
  • Amps 0.8
$8.69In stock
Buy now
186C20

TX 115/230, 12VA 50/60HZ

  • VA 12
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 20V C.T.
  • Amps 0.6
$8.69In stock
Buy now
186C24

TX 115/230, 12VA 50/60HZ

  • VA 12
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 24V C.T.
  • Amps 0.5
$8.69In stock
Buy now
186C28

TX 115/230, 12VA 50/60HZ

  • VA 12
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 28V C.T.
  • Amps 0.42
$8.69In stock
Buy now
186C36

TX 115/230, 12.6VA 50/60HZ

  • VA 12.6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 36V C.T.
  • Amps 0.35
$8.69In stock
Buy now
186C48

TX 115/230, 12VA 50/60HZ

  • VA 12
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 48V C.T.
  • Amps 0.25
$7.89In stock
Buy now
186C56

TX 115/230, 12.3VA 50/60HZ

  • VA 12.3
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 56V C.T.
  • Amps 0.21
$7.89In stock
Buy now
186D10

TX 115/230, 30VA 50/60HZ

  • VA 30
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 10V C.T.
  • Amps 3
$11.51In stock
Buy now
186D12

TX 115/230, 31.5VA 50/60HZ

  • VA 31.5
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 12.6V C.T.
  • Amps 2.5
$11.51In stock
Buy now
186D120

TX 115/230, 30VA 50/60HZ

  • VA 30
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 120V C.T.
  • Amps 0.25
$10.44Backorder
Buy now
186D16

TX 115/230, 32VA 50/60HZ

  • VA 32
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 16V C.T.
  • Amps 2
$11.51In stock
Buy now
186D20

TX 115/230, 30VA 50/60HZ

  • VA 30
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 20V C.T.
  • Amps 1.5
$11.51In stock
Buy now
186D24

TX 115/230, 30VA 50/60HZ

  • VA 30
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 24V C.T.
  • Amps 1.25
$11.51In stock
Buy now
186D28

TX 115/230, 30VA 50/60HZ

  • VA 30
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 28V C.T.
  • Amps 1.07
$11.51In stock
Buy now
186D36

TX 115/230, 30.6VA 50/60HZ

  • VA 30.6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 36V C.T.
  • Amps 0.85
$11.51In stock
Buy now
186D48

TX 115/230, 30VA 50/60HZ

  • VA 30
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 48V C.T.
  • Amps 0.62
$10.44In stock
Buy now
186D56

TX 115/230, 30VA 50/60HZ

  • VA 30
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 56V C.T.
  • Amps 0.53
$10.44In stock
Buy now
186E10

TX 115/230, 50VA 50/60HZ

  • VA 50
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 10V C.T.
  • Amps 5
$14.03In stock
Buy now
186E12

TX 115/230, 50.4VA 50/60HZ

  • VA 50.4
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 12.6V C.T.
  • Amps 4
$14.03In stock
Buy now
186E120

TX 115/230, 60VA 50/60HZ

  • VA 60
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 120V C.T.
  • Amps 0.5
$12.75In stock
Buy now
186E16

TX 115/230, 56VA 50/60HZ

  • VA 56
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 16V C.T.
  • Amps 3.5
$14.03In stock
Buy now
186E20

TX 115/230, 56VA 50/60HZ

  • VA 56
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 20V C.T.
  • Amps 2.8
$14.03In stock
Buy now
186E24

TX 115/230, 57.6VA 50/60HZ

  • VA 57.6
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 24V C.T.
  • Amps 2.4
$14.03In stock
Buy now
186E28

TX 115/230, 56VA 50/60HZ

  • VA 56
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 28V C.T.
  • Amps 2
$14.03In stock
Buy now
186E36

TX 115/230, 54VA 50/60HZ

  • VA 54
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 36V C.T.
  • Amps 1.5
$14.03In stock
Buy now
186E48

TX 115/230, 57.6VA 50/60HZ

  • VA 57.9
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 48V C.T.
  • Amps 1.2
$12.75In stock
Buy now
186E56

TX 115/230, 56VA 50/60HZ

  • VA 56
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 56V C.T.
  • Amps 1
$12.75In stock
Buy now
186F10

TX 115/230, 100VA 50/60HZ

  • VA 100
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 10V C.T.
  • Amps 10
$18.95In stock
Buy now
186F12

TX 115/230, 100.8VA 50/60HZ

  • VA 100.8
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 12.6V C.T.
  • Amps 8
$18.95In stock
Buy now
186F120

TX 115/230, 102VA 50/60HZ

  • VA 102
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 120V C.T.
  • Amps 0.85
$17.20In stock
Buy now
186F16

TX 115/230, 100VA 50/60HZ

  • VA 100
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 16V C.T.
  • Amps 6.25
$18.95In stock
Buy now
186F20

TX 115/230, 100VA 50/60HZ

  • VA 100
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 20V C.T.
  • Amps 5
$18.95In stock
Buy now
186F24

TX 115/230, 96VA 50/60HZ

  • VA 96
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 24V C.T.
  • Amps 4
$18.95In stock
Buy now
186F28

TX 115/230, 100VA 50/60HZ

  • VA 100
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 28V C.T.
  • Amps 3.57
$18.95In stock
Buy now
186F36

TX 115/230, 100.8VA 50/60HZ

  • VA 100.8
  • Pri. Voltage 115 / 230 VAC
  • Sec. VAC 36V C.T.
  • Amps 2.8
$18.95In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Single Primary · 115 VACDual Primary · 115/230 VACSecondary · (R.M.S.) · VACCurrent · (Amps)VA · RatingDimensions · Length · LDimensions · Depth · (Not Including Terminals) · BDimensions · Height · CDimensions · Mounting · Centers · DDimensions · Depth · To Terminal · EPriceOrder
187A10-10V C.T.0.252.52.061.061.181.751.44$5.52In stockBuy now
187B10186B1010V C.T.0.662.371.251.372.001.62$6.69In stock187B10Buy now
187C10186C1010V C.T.1.2122.811.371.622.371.73$7.29In stock187C10Buy now
187D10186D1010V C.T.3303.251.681.932.812.06$9.87In stock187D10Buy now
187E10186E1010V C.T.5503.681.812.253.122.19$12.62In stock187E10Buy now
187F10186F1010V C.T.101004.032.252.563.502.62$18.14In stock187F10Buy now
187A12-12.6V C.T.0.192.52.061.061.181.751.44$5.52In stockBuy now
187B12186B1212.6V C.T.0.56.32.371.251.372.001.62$6.69In stock187B12Buy now
187C12186C1212.6V C.T.112.62.811.371.622.371.73$7.29In stock187C12Buy now
187D12186D1212.6V C.T.2.531.53.251.681.932.812.06$8.98In stock187D12Buy now
187E12186E1212.6V C.T.450.43.681.812.253.122.19$12.62In stock187E12Buy now
187F12186F1212.6V C.T.8100.84.032.252.563.502.62$18.14In stock187F12Buy now
187A16-16V C.T.0.152.42.061.061.181.751.44$5.52In stockBuy now
187B16186B1616V C.T.0.46.42.371.251.372.001.62$6.69In stock187B16Buy now
187C16186C1616V C.T.0.812.82.811.371.622.371.73$7.29In stock187C16Buy now
187D16186D1616V C.T.2323.251.681.932.812.06$9.87Backorder187D16Buy now
187E16186E1616V C.T.3.5563.681.812.253.122.19$13.90In stock187E16Buy now
187F16186F1616V C.T.6.251004.032.252.563.502.62$18.14In stock187F16Buy now
187A20-20V C.T.0.122.42.061.061.181.751.44$5.52In stockBuy now
187B20186B2020V C.T.0.362.371.251.372.001.62$6.69In stock187B20Buy now
187C20186C2020V C.T.0.6122.811.371.622.371.73$7.29In stock187C20Buy now
187D20186D2020V C.T.1.5303.251.681.932.812.06$8.98In stock187D20Buy now
187E20186E2020V C.T.2.8563.681.812.253.122.19$13.90In stock187E20Buy now
187F20186F2020V C.T.51004.032.252.563.502.62$18.14In stock187F20Buy now
187A24-24V C.T.0.12.42.061.061.181.751.44$5.52In stockBuy now

Features

  • ■Choice of two primaries: Single Primary 115VAC (187 series) or Dual Primary 115/230VAC (186 series).
  • ■Either series operates on 50/60 Hz.
  • ■Combination solder or quick connect terminals.
  • ■Split bobbin construction eliminates the need for an electrostatic shield.
  • ■Hi-pot tested to 2 KV RMS.
  • ■Economical open style, channel frame - chassis mount design
  • ■Insulation material - Class B or 130 C
  • ■Lower temperature rise designed not to exceed Class A for longer life.
  • ■UL listed (# E207860) Type 3AH
  • ■CSA Certified

Documents

Specification Sheet186 / 187 Wiring Information

Any questions? Talk with an expert

Call us (224) 955-1644

Related products

Low Voltage PC Board Mount, 0.5 VA to 24 VA

Low Voltage PC Board Mount, 0.5 VA to 24 VA · 160-161 Series

from $4.83

Shop parts
Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA

Low Voltage PCB Mount - Low Profile - 1.1 VA to 36 VA · 162-164 Series

from $5.52

Shop parts
Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA

Low Voltage PCB Mount - Universal - 2.5 VA to 56 VA · 183 Series

from $6.15

Shop parts
Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA

Low Voltage PCB Mount - Low Profile - 2 VA to 48 VA · 229 Series

from $7.18

Shop parts
Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA

Low Voltage PCB Mount - Epoxy Cast - 1 VA to 40 VA · 226-227-228 Series

from $49.67

Shop parts
Toroid Power Transformers - 15 VA to 1500 VA

Toroid Power Transformers - 15 VA to 1500 VA · 1182 Series

from $3.04

Shop parts
24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA

24V / Small Control Open Style, Chassis Mount - 25 VA to 50 VA · PHC Series

from $28.68

Shop parts
Low Voltage Chassis Mount - 25 VA to 175 VA

Low Voltage Chassis Mount - 25 VA to 175 VA · 185 Series

from $12.68

Shop parts
