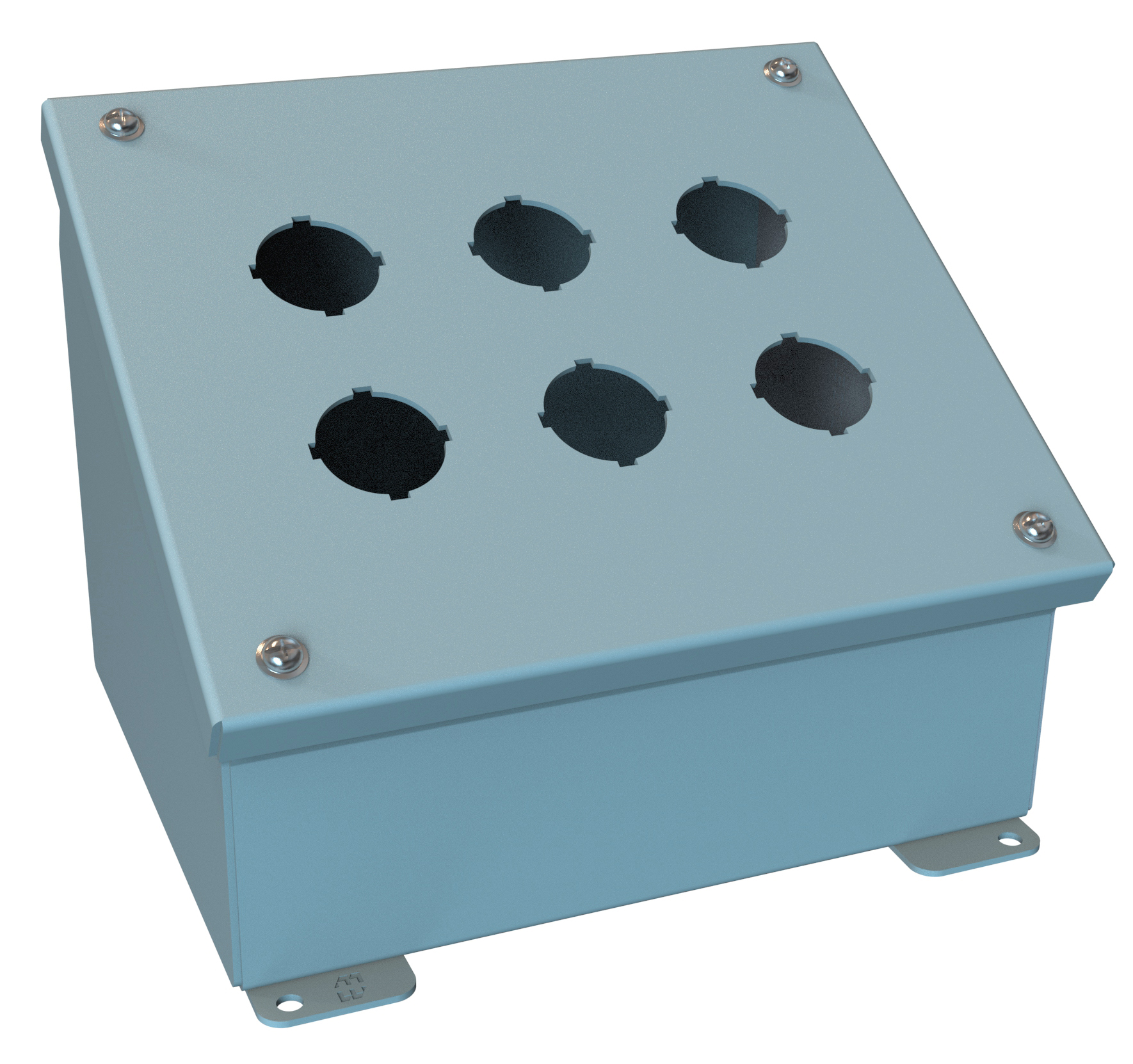

Type 12 Mild Steel Pushbutton Enclosures · 1490 Series
Brand: Hammond Manufacturing · 32 part numbers
Sloped Consolet
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Ideal for wall or surface mounting to provide the necessary control slope.
- ■Provides protection from dirt, dust, oil and water.
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
from $78.91
32 of 32 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1490 Series part number
Filter 32 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
32 of 32 part numbers · 32 priced online
N12 Slpg Frnt P/B Box
$95.62In stock
Buy nowN12 Slpg Frnt P/B Box
$108.34In stock
Buy nowN12 Slpg Frnt P/B Box
$121.70In stock
Buy nowN12 Slpg Frnt P/B Box
$195.93In stock
Buy nowN12 Slpg Frnt P/B Box
$215.33In stock
Buy nowN12 Slpg Frnt P/B Box
$249.44Backorder
Buy nowN12 Slpg Frnt P/B Box
$135.75Backorder
Buy nowN12 Slpg Frnt P/B Box
$157.15Backorder
Buy nowN12 Slpg Frnt P/B Box
$177.88In stock
Buy nowN12 Slpg Frnt P/B Box
$185.24Backorder
Buy nowN12 Slpg Frnt P/B Box
$205.29In stock
Buy nowN12 Slpg Frnt P/B Box
$228.70Backorder
Buy nowN12 Slpg Frnt P/B Box
$264.14In stock
Buy nowN12 Slpg Frnt P/B Box
$300.26In stock
Buy nowN12 Slpg Frnt P/B Box
$327.67In stock
Buy now1 Pb 22MM 3.5X3.3X4.9
$78.91Backorder
Buy now2 Pb 22MM 3.5X5.5X4.9
$91.61Backorder
Buy now3 Pb 22MM 3.5X7.8X4.9
$105.66In stock
Buy now4 Pb 22MM 3.5X10X4.9
$117.69Backorder
Buy now10 Pb 22MM 7.3X13X6.8
$191.26In stock
Buy now12PB 22MM 7.3X15.3X6.8
$209.98In stock
Buy now16 Pb 22MM 7.3X19.8X6.8
$242.75Backorder
Buy now4 Pb 22MM 7.3X6.3X6.8
$132.41In stock
Buy now6 Pb 22MM 7.3X8.5X6.8
$151.80Backorder
Buy nowN12 Slpg Frnt P/B Box
$171.86In stock
Buy nowN12 Slpg Frnt P/B Box
$179.88In stock
Buy now12PB 22MM 11.8X8.5X9
$200.62In stock
Buy now16 Pb 22MM 11.8X10.8X9
$222.68In stock
Buy now20 Pb 22MM 11.8X13X9
$256.78In stock
Buy now25PB 22MM 14X13X10.1
$289.55Backorder
Buy now30 Pb 22MM 14X15.3X10.1
$316.98In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 30.5mm PB · Part No. | 22.5mm PB · Part No. | No. Of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|---|
| 1490D1 | 1490MD1 | 1 | 3.50 | 3.25 | 4.88 | $80.92Backorder1490D1 | Buy now |
| 1490D2 | 1490MD2 | 2 | 3.50 | 5.50 | 4.88 | $95.62In stock1490D2 | Buy now |
| 1490D3 | 1490MD3 | 3 | 3.50 | 7.75 | 4.88 | $108.34In stock1490D3 | Buy now |
| 1490D4 | 1490MD4 | 4 | 3.50 | 10.00 | 4.88 | $121.70In stock1490D4 | Buy now |
| 1490G4 | 1490MG4 | 4 | 7.25 | 6.25 | 6.75 | $135.75Backorder1490G4 | Buy now |
| 1490G6 | 1490MG6 | 6 | 7.25 | 8.50 | 6.75 | $157.15Backorder1490G6 | Buy now |
| 1490G8 | 1490MG8 | 8 | 7.25 | 10.75 | 6.75 | $177.88In stock1490G8 | Buy now |
| 1490H9 | 1490MH9 | 9 | 9.50 | 8.50 | 7.88 | $185.24Backorder1490H9 | Buy now |
| 1490G10 | 1490MG10 | 10 | 7.25 | 13.00 | 6.75 | $195.93In stock1490G10 | Buy now |
| 1490G12 | 1490MG12 | 12 | 7.25 | 15.25 | 6.75 | $215.33In stock1490G12 | Buy now |
| 1490J12 | 1490MJ12 | 12 | 11.75 | 8.50 | 9.00 | $205.29In stock1490J12 | Buy now |
| 1490G16 | 1490MG16 | 16 | 7.25 | 19.75 | 6.75 | $249.44Backorder1490G16 | Buy now |
| 1490J16 | 1490MJ16 | 16 | 11.75 | 10.75 | 9.00 | $228.70Backorder1490J16 | Buy now |
| 1490J20 | 1490MJ20 | 20 | 11.75 | 13.00 | 9.00 | $264.14In stock1490J20 | Buy now |
| 1490K25 | 1490MK25 | 25 | 14.00 | 13.00 | 10.13 | $300.26In stock1490K25 | Buy now |
| 1490K30 | 1490MK30 | 30 | 14.00 | 15.25 | 10.13 | $327.67In stock1490K30 | Buy now |
Application
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Ideal for wall or surface mounting to provide the necessary control slope.
- ■Provides protection from dirt, dust, oil and water.
Standards
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 16 gauge steel.
- ■Smooth continuously welded seams.
- ■Construction provides either a 30° or 60° slope on front cover depending on mounting position.
- ■Welded brackets provide for enclosure mounting.
- ■Captive cover screws thread into sealed wells.
- ■Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring (as noted in table).
- ■Oil resistant gasket and adhesive.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| 30.5mm PB · Part No. | 22.5mm PB · Part No. | No. Of · Holes | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|---|---|
| 1490D1 ¹ | 1490MD1 ¹ | 1 | 3.50 | 3.25 | 4.88 |
| 1490D2 ¹ | 1490MD2 ¹ | 2 | 3.50 | 5.50 | 4.88 |
| 1490D3 ¹ | 1490MD3 ¹ | 3 | 3.50 | 7.75 | 4.88 |
| 1490D4 ¹ | 1490MD4 ¹ | 4 | 3.50 | 10.00 | 4.88 |
| 1490G4 | 1490MG4 | 4 | 7.25 | 6.25 | 6.75 |
| 1490G6 | 1490MG6 | 6 | 7.25 | 8.50 | 6.75 |
| 1490G8 | 1490MG8 | 8 | 7.25 | 10.75 | 6.75 |
| 1490H9 | 1490MH9 | 9 | 9.50 | 8.50 | 7.88 |
| 1490G10 | 1490MG10 | 10 | 7.25 | 13.00 | 6.75 |
| 1490G12 | 1490MG12 | 12 | 7.25 | 15.25 | 6.75 |
| 1490J12 | 1490MJ12 | 12 | 11.75 | 8.50 | 9.00 |
| 1490G16 | 1490MG16 | 16 | 7.25 | 19.75 | 6.75 |
| 1490J16 | 1490MJ16 | 16 | 11.75 | 10.75 | 9.00 |
| 1490J20 | 1490MJ20 | 20 | 11.75 | 13.00 | 9.00 |
| 1490K25 | 1490MK25 | 25 | 14.00 | 13.00 | 10.13 |
| 1490K30 | 1490MK30 | 30 | 14.00 | 15.25 | 10.13 |
