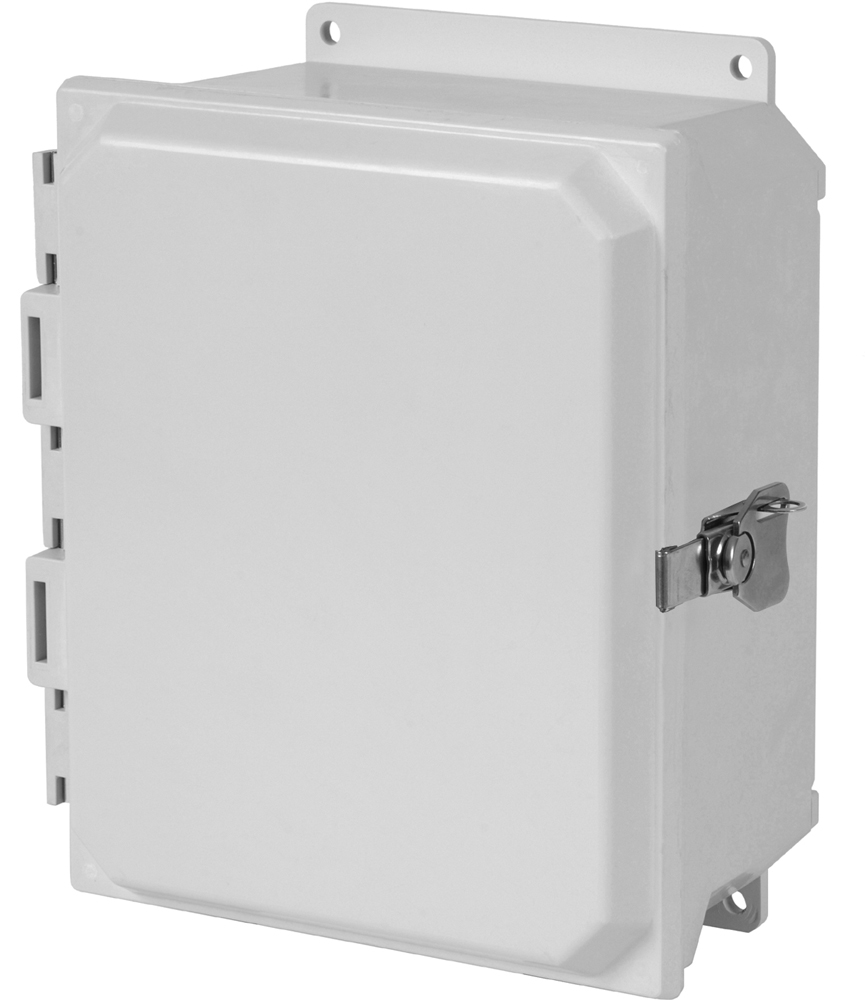

Type 4X Polyester Junction Box (Solid and Clear Cover) PJU Series

Type 4X Polyester Junction Box (Solid and Clear Cover) · PJU Series

Brand: Hammond Manufacturing · 42 part numbers

Continuous Hinge Door with Twist Latches

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.
  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66

from $5.35

40 of 42 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PJU Series part number

Filter 34 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

34 of 34 part numbers · 32 priced online

PJU664CCT

Nonmet Hng Twist L Clr Cvrfeet

$126.53In stock
Buy now
PJU664T

Non Met Hng Twist L Feet

$113.81In stock
Buy now
PJU864CCT

Nomet Hng Twist L Clrcvr Feet

$131.15Backorder
Buy now
PJU864T

Nomet Hng Twist L Feet

$117.93In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PJU664TFPJU664TPJU664CCTFPJU664CCT6.056.274.134.884.8814R0505$116.90In stockPJU664TFBuy now
PJU864TFPJU864TPJU864CCTFPJU864CCT8.056.274.136.754.8814R0705$121.29In stockPJU864TFBuy now
PJU1084TFPJU1084TPJU1084CCTFPJU1084CCT10.058.274.138.756.8814R0907$130.56In stockPJU1084TFBuy now
PJU1086TFPJU1086TPJU1086CCTFPJU1086CCT10.058.276.138.756.8814R0907$132.70In stockPJU1086TFBuy now
PJU12106TFPJU12106TPJU12106CCTFPJU12106CCT12.0510.276.1310.758.8814R1109$155.33In stockPJU12106TFBuy now
PJU14126TFPJU14126TPJU14126CCTFPJU14126CCT14.0512.276.1312.7510.8814R1311$184.89In stockPJU14126TFBuy now
PJU16148TFPJU16148TPJU16148CCTFPJU16148CCT16.0514.278.1314.7512.8814R1513$209.65In stockPJU16148TFBuy now
PJU181610TFPJU181610T18.3016.5210.1316.8814.88P1868$309.09BackorderPJU181610TFBuy now
PJU201610TFPJU201610TPJU201610CCTFPJU201610CCT20.5016.2710.1318.4414.44P2068$434.59In stockPJU201610TFBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 1, 2, 3, 4, 4X, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • ■Enhanced UV inhibitors protect against outdoor weathering.
  • ■Standard JIC sizes under 18" x 16".
  • ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • ■Stainless steel butterfly type "twist latch" door fasteners.
  • ■Door fasteners include a provision for padlocking.

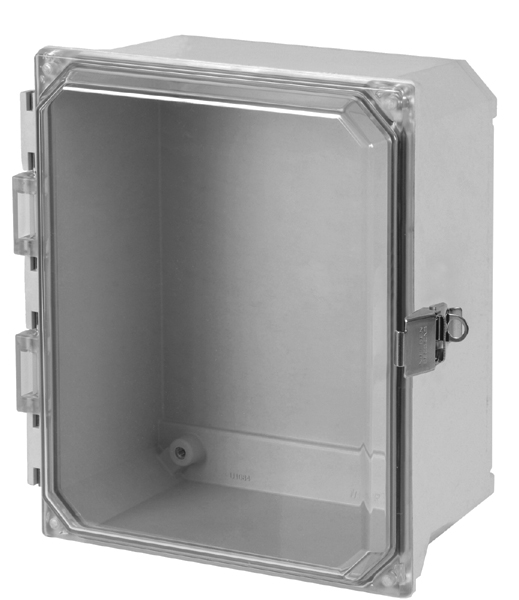

  • ■Enclosure available with clear Polycarbonate cover to 16" x 14".
  • ■Molded hinge with stainless steel pin.
  • ■Captive oil resistant gasket provides a positive seal.
  • ■Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
  • ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • ■Impact index of 6.78J (5 ft/lb).
  • ■For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • ■Fiberglass polyester material has a gray finish.
  • ■Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.

Documents

Specification Sheet

Additional information

Part Details

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PJU664TFPJU664TPJU664CCTFPJU664CCT6.056.274.134.884.8814R0505
PJU864TFPJU864TPJU864CCTFPJU864CCT8.056.274.136.754.8814R0705
PJU1084TFPJU1084TPJU1084CCTFPJU1084CCT10.058.274.138.756.8814R0907
PJU1086TFPJU1086TPJU1086CCTFPJU1086CCT10.058.276.138.756.8814R0907
PJU12106TFPJU12106TPJU12106CCTFPJU12106CCT12.0510.276.1310.758.8814R1109
PJU14126TFPJU14126TPJU14126CCTFPJU14126CCT14.0512.276.1312.7510.8814R1311
PJU16148TFPJU16148TPJU16148CCTFPJU16148CCT16.0514.278.1314.7512.8814R1513
PJU181610TFPJU181610T18.3016.5210.1316.8814.88P1868
PJU201610TFPJU201610TPJU201610CCTFPJU201610CCT20.5016.2710.1318.4414.44P2068
