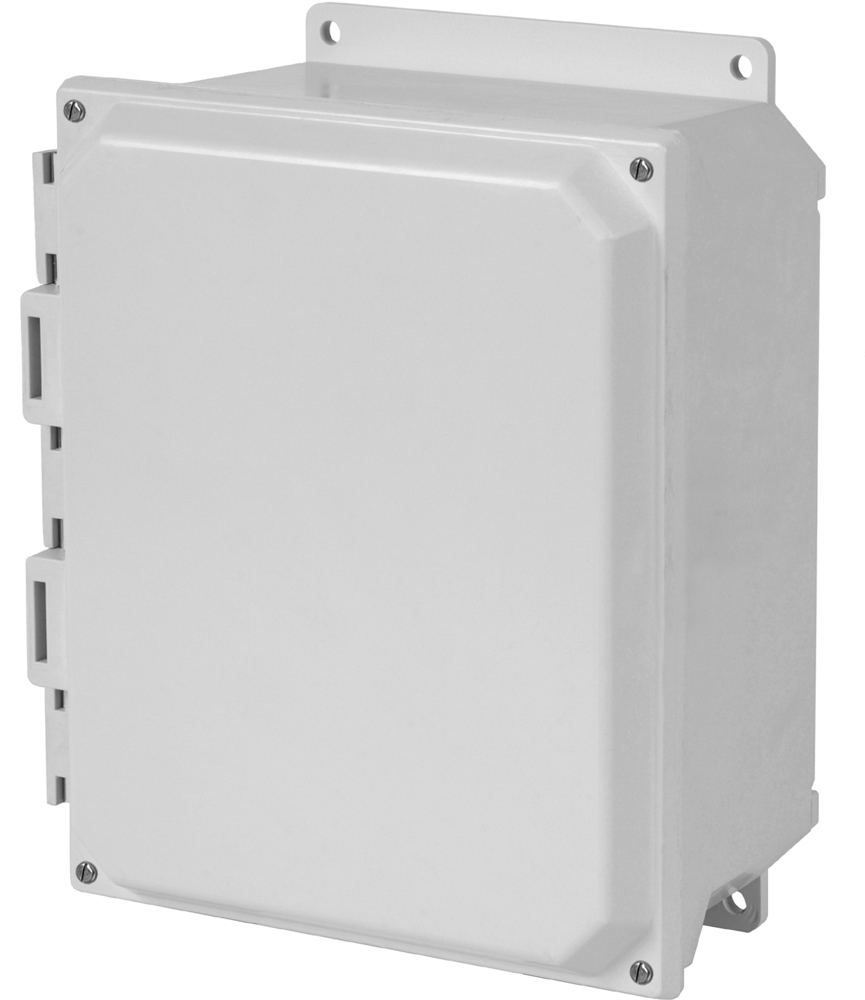

Type 4X Polyester Junction Box (Solid and Clear Cover) PJU Series

Type 4X Polyester Junction Box (Solid and Clear Cover) · PJU Series

Brand: Hammond Manufacturing · 40 part numbers

Lift-Off Cover with Screws

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.
  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only, up to and including 14x12)
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only, up to and including 14x12) per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only, up to and including 14x12) IEC 60529, IP66 (IP68 for solid covers only up to and including 14x12)

from $5.35

40 of 40 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PJU Series part number

Filter 32 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

32 of 32 part numbers · 32 priced online

PJU1086

N4X Solid Door Sc W/Ft 10X8X6

$99.43Backorder
Buy now
PJU1086CC

Non Met Lift Off Clr Cvr Feet

$112.16Backorder
Buy now
PJU664

Non Met Lift Off Feet

$86.17In stock
Buy now
PJU664CC

Non Met Lift Off Clr Cvr Feet

$95.77Backorder
Buy now
PJU864

Non Met Lift Off Feet

$90.93In stock
Buy now
PJU864CC

Non Met Lift Off Clr Cvr Feet

$101.13In stock
Buy now
PJU864F

Non Metalllic Liftoff Flan

$93.43In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PJU664FPJU664PJU664CCFPJU664CC6.056.274.134.884.8814R0505$88.51In stockPJU664FBuy now
PJU864FPJU864PJU864CCFPJU864CC8.056.274.136.754.8814R0705$93.43In stockPJU864FBuy now
PJU1084FPJU1084PJU1084CCFPJU1084CC10.058.274.138.756.8814R0907$97.20In stockPJU1084FBuy now
PJU1086FPJU1086PJU1086CCFPJU1086CC10.058.276.138.756.8814R0907$102.17BackorderPJU1086FBuy now
PJU12106FPJU12106PJU12106CCFPJU12106CC12.0510.276.1310.758.8814R1109$129.26BackorderPJU12106FBuy now
PJU14126FPJU14126PJU14126CCFPJU14126CC14.0512.276.1312.7510.8814R1311$149.15In stockPJU14126FBuy now
PJU16148FPJU16148PJU16148CCFPJU16148CC16.0514.278.1314.7512.8814R1513$174.42BackorderPJU16148FBuy now
PJU181610FPJU18161018.3016.5210.1316.8814.88P1868$263.10In stockPJU181610FBuy now
PJU201610FPJU20161020.5016.2710.1318.4414.44P2068$412.46In stockPJU201610FBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only, up to and including 14x12)
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only, up to and including 14x12) per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only, up to and including 14x12) IEC 60529, IP66 (IP68 for solid covers only up to and including 14x12)
  • ■NEMA Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only, up to and including 14x12)
  • ■IEC 60529, IP66 (IP68 for solid covers only up to and including 14x12)

Construction

  • ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • ■Enhanced UV inhibitors protect against outdoor weathering.
  • ■Standard JIC sizes under 18" x 16".
  • ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • ■Cover fastened with captive stainless steel screws in threaded brass inserts.

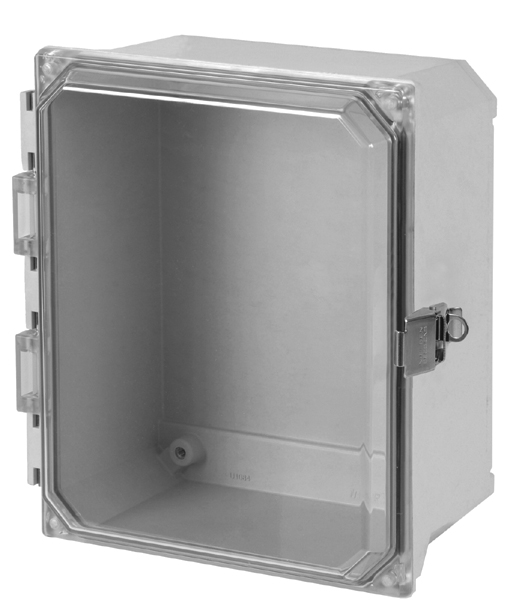

  • ■Enclosure available with clear Polycarbonate cover to 16" x 14".
  • ■Captive oil resistant gasket provides a positive seal.
  • ■Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
  • ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • ■Impact index of 6.78J (5 ft/lb).
  • ■For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • ■Fiberglass polyester material has a gray finish.
  • ■Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.

Documents

Specification Sheet

Additional information

Part Details

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PJU664FPJU664PJU664CCFPJU664CC6.056.274.134.884.8814R0505
PJU864FPJU864PJU864CCFPJU864CC8.056.274.136.754.8814R0705
PJU1084FPJU1084PJU1084CCFPJU1084CC10.058.274.138.756.8814R0907
PJU1086FPJU1086PJU1086CCFPJU1086CC10.058.276.138.756.8814R0907
PJU12106FPJU12106PJU12106CCFPJU12106CC12.0510.276.1310.758.8814R1109
PJU14126FPJU14126PJU14126CCFPJU14126CC14.0512.276.1312.7510.8814R1311
PJU16148FPJU16148PJU16148CCFPJU16148CC16.0514.278.1314.7512.8814R1513
PJU181610FPJU18161018.3016.5210.1316.8814.88P1868
PJU201610FPJU20161020.5016.2710.1318.4414.44P2068
