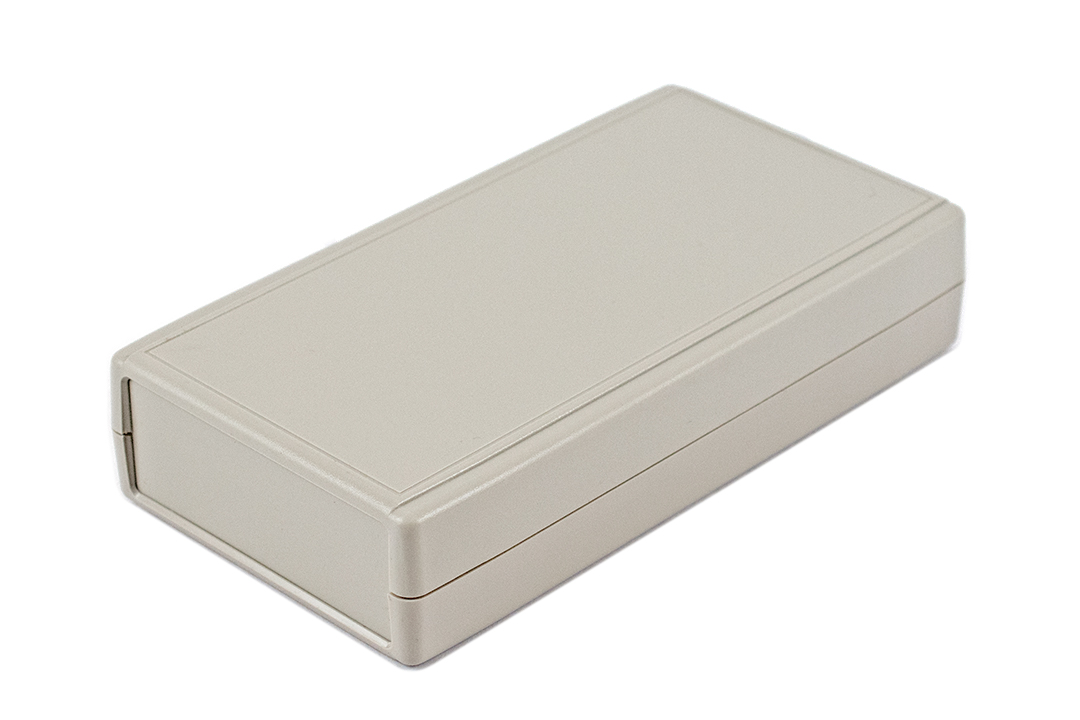

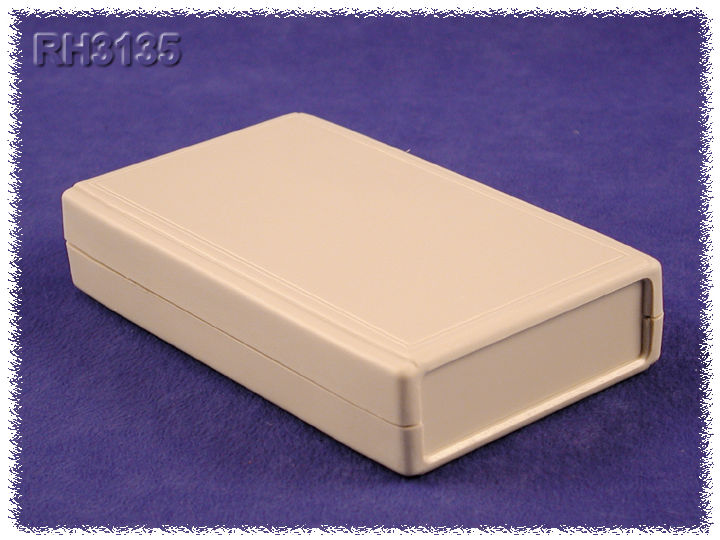

ABS Plastic Hand Held Enclosures · RH Series

Key Features:

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

• ■Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
• ■Ergonomically designed for a comfortable fit into the user’s hand.
• ■Lap joint construction provides some protection against dust accumulation and splashing water.
• ■Removeable front panel for easy modifications.
• ■Molded in a light grey general purpose ABS plastic with a light texture (material carries a UL flammability rating of UL94 HB).
• ■Assembled with M3 Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly is required. See part number table below for replacement lid screw packs.
• ■See part number table below for replacement lid screw packs.

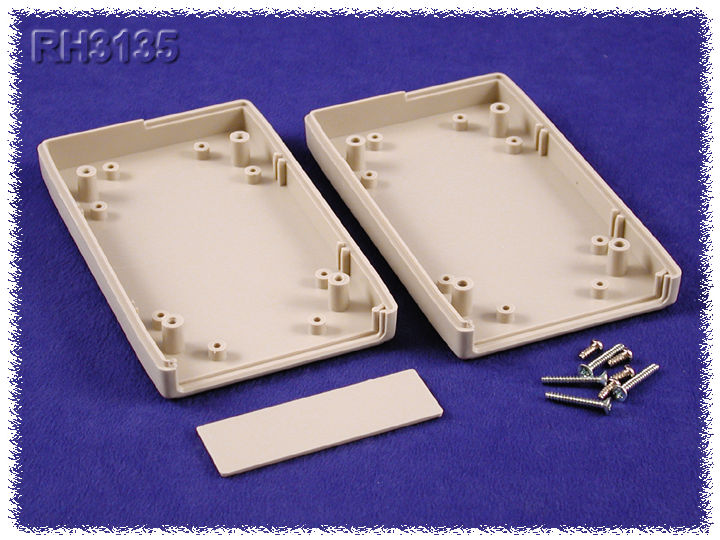

• ■Both top and bottom halves contain P.C. board standoffs molded in (see photos for details).

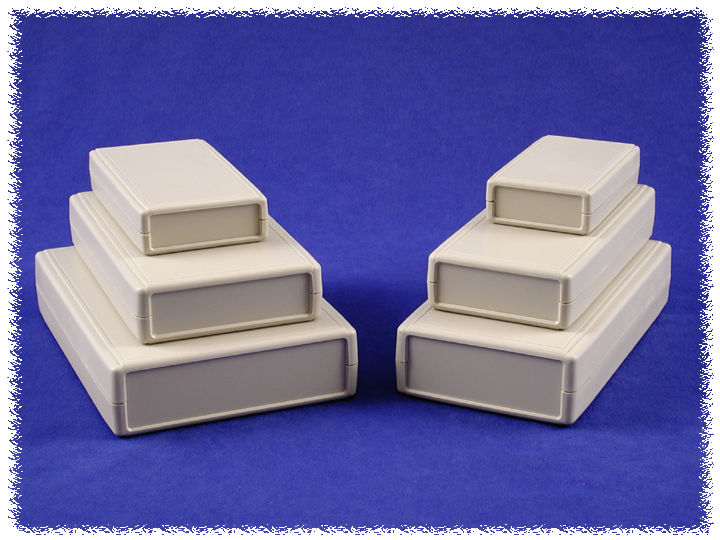

• ■The two largest sizes ( RH3185 & RH3195 ) include four self adhesive rubber feet for desktop use.
• ■Replacement M2.6 x 6mm self-tapping PCB screws, pack of 50: SC519-50.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
