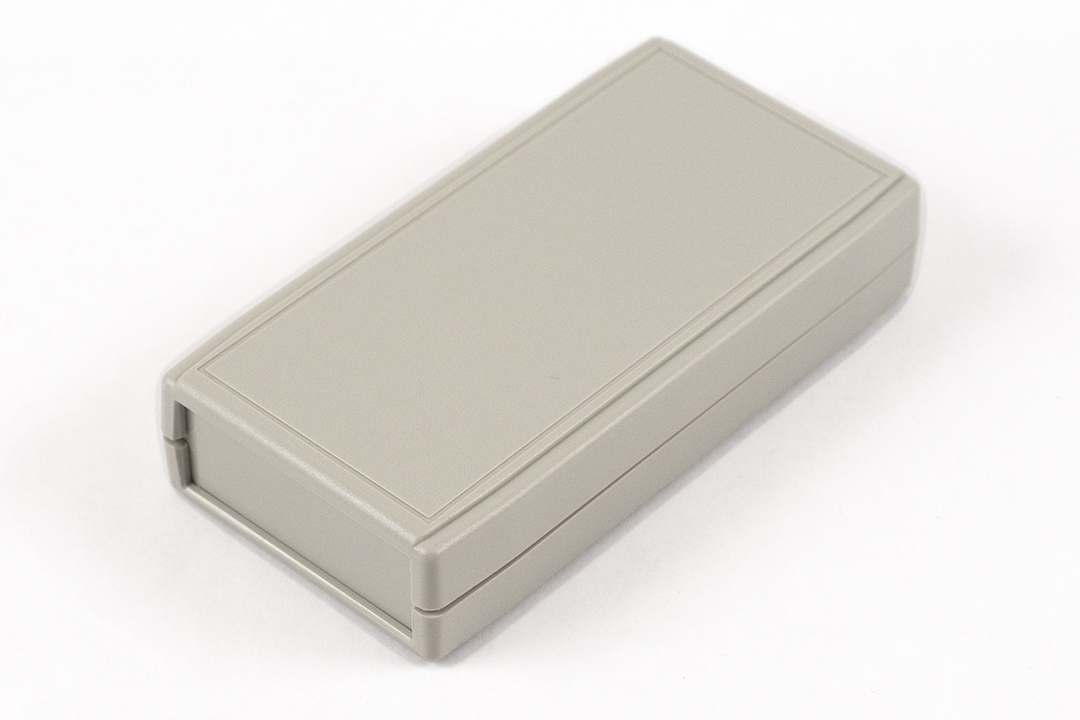

Hammond RH3125A 120 x 62 mm Handheld Enclosure with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Built-in battery door on a 120 x 62 x 25.5 mm case
- Removable front panel for connector and switch cut-outs
- Molded standoffs accept M2.6 self-tapping PCB screws
- Light gray textured ABS with UL94 HB rating
- Includes battery door, end panel, 4 PCB screws and 3 lid screws
- Optional CP-001G nylon belt clip kit
- REACH and RoHS compliant
RH3125A pairs the 120 mm RH Series hand-held enclosure with a battery door, giving battery-powered products a user-serviceable battery compartment in an ergonomic case. The series table sizes it at 120 x 62 x 25.5 mm, with a nominal 4.72 x 2.36 x 0.98 in (120 x 60 x 25 mm) on the part page.
The shell is light gray general purpose ABS with a light surface texture, and the material carries a UL94 HB flammability rating. Its lap joint provides some protection against dust accumulation and splashing water, and the removable front panel simplifies modification for connectors and switches.
Both halves contain molded P.C. board standoffs that take M2.6 self-tapping screws. Supplied with the box, lid, 4 PCB screws, end panel, battery door and 3 lid screws; tighten to (43-50) Ozf.in / (30-35) cN.m.
Replacement lid screws are SC520-50 (M2.6 x 18 mm self-tapping), PCB screws are SC519-50, and a CP-001G nylon belt clip kit is available. RH3125A weighs 0.15 lbs (0.07 kg) and is REACH and RoHS compliant. The non-battery-door equivalent is RH3125. The factory can also mill, drill or print enclosures to order, and solid models are available in .stp or .x_t format.
Ideal For
- Battery-powered hand-held instruments
- Portable data loggers
- Hand-held remote controls
- Field test devices
Overview
| Type | Hand-held, general purpose |
| Series | RH Series - ABS Plastic Hand Held Enclosures |
| CAD Models | Solid models available in .stp or .x_t |
| Description | ABS HANDHELD |
| Part Number | RH3125A |
| Product Type | Enclosure - plastic |
| Infrared Panel | Available (special order) |
| Included In Assembly | Box, lid, 4 PCB screws, end panel, battery door, and 3 lid screws |
| Version Without Battery Door | RH3125 |
Dimensions
| Series Table Width | 62 mm |
| Series Table Height | 25.5 mm |
| Series Table Length | 120 mm |
| Nominal Size (L X W X H) | 4.72 in x 2.36 in x 0.98 in (120 mm x 60 mm x 25 mm) |
Accessories
| Nylon Belt Clip Kit | CP-001G |
| Replacement Lid Screws | SC520-50 |
| Cover Screws M2.6 X 18 Mm Self-Tapping (50 Pkg) | SC520-50 |
| Replacement PCB Screws M2.6 X 6 Mm Self-Tapping (50 Pkg) | SC519-50 |
Identifiers
| UPC | 623980318202 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Color | Light Gray |
| Joint | Lap joint construction (some protection against dust accumulation and splashing water) |
| Material | ABS Plastic (general purpose ABS, light texture) |
| Front Panel | Removable, for easy modification |
| Battery Door | Yes |
| PCB Standoffs | Molded into both top and bottom halves; accept M2.6 self-tapping screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request (quote) |
| Recommended Screw Torque | (43-50) Ozf.in / (30-35) cN.m |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the RH3125A include the battery door?▾
Yes, the battery door is part of the purchased assembly along with the box, lid, end panel, 4 PCB screws and 3 lid screws.
What size is it?▾
120 x 62 x 25.5 mm per the series table; nominal 4.72 x 2.36 x 0.98 in (120 x 60 x 25 mm).
Which replacement lid screws fit?▾
SC520-50, M2.6 x 18 mm self-tapping cover screws in a pack of 50.
Is it RoHS compliant?▾
Yes, it is both RoHS and REACH compliant.
